probst EASYCLEAN EC-60 User manual

51700004
V10
GB
Operating Instructions
Translation of original operating instructions
EASYCLEAN EC-60 Paver Cleaning Device
EC-60

Bitte beachten Sie, dass das Produkt ohne vorliegende Betriebsanleitung in Landessprache nicht
eingesetzt / in Betrieb gesetzt werden darf. Sollten Sie mit der Lieferung des Produkts keine
Betriebsanleitung in Ihrer Landessprache erhalten haben, kontaktieren Sie uns bitte. In Länder der
EU / EFTA senden wir Ihnen diese kostenlos nach. Für Länder außerhalb der EU / EFTA erstellen wir
Ihnen gerne ein Angebot für eine Betriebsanleitung in Landessprache, falls die Übersetzung nicht
durch den Händler/Importeur organisiert werden kann.
Please note that the product may not be used / put into operation without these operating
instructions in the national language. If you did not receive operating instructions in your national
language with the delivery of the product, please contact us. In countries of the EU / EFTA we will
send them to you free of charge. For countries outside the EU / EFTA, we will be pleased to provide
you with an offer for an operating manual in the national language if the translation cannot be
organised by the dealer/importer.

EC-Declaration of Conformity
2 / 16
Contents
1EC-Declaration of Conformity ............................................................................................................................... 3
2Safety...................................................................................................................................................................... 4
2.1 Safety symbols................................................................................................................................................4
2.2 Safety Marking................................................................................................................................................4
2.3 Definition skilled worker / specialist .............................................................................................................. 5
2.4 Personal safety requirements ........................................................................................................................ 5
2.5 Protective equipment..................................................................................................................................... 5
2.6 Accident prevention ....................................................................................................................................... 5
2.7 Safety procedures ..........................................................................................................................................6
2.8 Function Control.............................................................................................................................................6
2.8.1 General .......................................................................................................................................................6
2.8.2 Unauthorized alterations ..........................................................................................................................6
3General.................................................................................................................................................................... 7
3.1 Authorized use................................................................................................................................................ 7
3.2 Survey and construction ................................................................................................................................8
3.3 Technical data.................................................................................................................................................8
4Installation.............................................................................................................................................................. 9
4.1 Transportation (EC 60)...................................................................................................................................9
4.2 Assembly (EC 60)............................................................................................................................................9
4.3 Water supply...................................................................................................................................................9
5Operation ..............................................................................................................................................................10
5.1 General .......................................................................................................................................................... 10
5.2 Work with Lance/high pressure-and low pressure nozzle........................................................................... 11
5.2.1 Admixing from cleaning agents ...............................................................................................................12
5.2.2 Accessories: Sand Blasting Kit SSK ..........................................................................................................12
6Maintenance and care .......................................................................................................................................... 13
6.1 Maintenance ..................................................................................................................................................13
6.2 Mechanical .....................................................................................................................................................13
6.3 Trouble shooting ...........................................................................................................................................14
6.4 Repairs ...........................................................................................................................................................15
6.5 Safety procedures .........................................................................................................................................15
6.6 Hints to the type plate.................................................................................................................................. 16
6.7 Hints to the renting/leasing of PROBST devices ......................................................................................... 16

EC-Declaration of Conformity
3 / 16
1EC-Declaration of Conformity
Description:
Type:
Order number:
EASYCLEAN EC-60 Paver Cleaning Device
EC-60
51700004
Manufacturer:
Probst GmbH
Gottlieb-Daimler-Straße 6
71729 Erdmannhausen, Germany
[email protected]
www.probst-handling.de
Complies with the following provisions applying to it
EC-machinery directive 2006/42/EC
Based on the following harmonized standards (in excerpts):
DIN EN ISO 12100
Safety of machinery - General principles for design - Risk assessment and risk reduction (ISO 12100:2010)
DIN EN ISO 13857
Safety of machinery - safety distances to prevent hazard zones being reached by upper and lower limbs (ISO 13857:2008)
DIN EN 1829-1
High pressure cleaner - High-pressure water jet machines - Safety-relevant requirements.
Authorized person for EC-documentation:
Name: J. Holderied
Address: Probst GmbH; Gottlieb-Daimler-Straße 6; 71729 Erdmannhausen, Germany
Signature, information to the subscriber:
Erdmannhausen, 09.05.2017..........................................................................
(M. Probst, Managing director)

EC-Declaration of Conformity / UKCA-Declaration of Conformity
Manufacturer:
Probst GmbH
Gottlieb-Daimler-Straße 6
71729 Erdmannhausen, Germany
[email protected]
www.probst-handling.com
Importer:
Probst Ltd
Unit 2 Fletcher House
Stafford Park 17
Telford Shropshire TF3 3DG, United Kingdom
www.probst-handling.co.uk
[e-mail]
The machine described above complies with the relevant requirements of the following EU directives:
The object of the declaration described above is in conformity with the relevant UK-Regulations and UK-Guidelines:
EC-machinery directive 2006/42/EC (Reference: OJ L 157, 09.06.2006)
UK-Regulation: Supply of Machinery (Safety) Regulations 2008 (SI 2008 No. 1597)
The following standards and technical specifications were used:
DIN EN ISO 12100
Safety of machinery - General principles for design - Risk assessment and risk reduction
UK-Regulation: BS EN ISO 12100-1:2003+A1:2009
DIN EN ISO 13857
Safety of machinery - safety distances to prevent hazard zones being reached by upper and lower limbs.
UK-Regulation: BS EN ISO 13857:2019
Authorized person for EC-documentation:
Name: Jean Holderied
Address: Probst GmbH; Gottlieb-Daimler-Straße 6; 71729 Erdmannhausen, Germany
Authorized person for UK-documentation:
Name: Nigel Hughes
Address: Probst Ltd ; Unit 2 Fletcher House; Stafford Park 17; Telford Shropshire TF3 3DG, United Kingdom
Signature, information to the subscriber:
Erdmannhausen, 02.08.2021..........................................................................
(Eric Wilhelm, Managing director)

Safety
4 / 16
2Safety

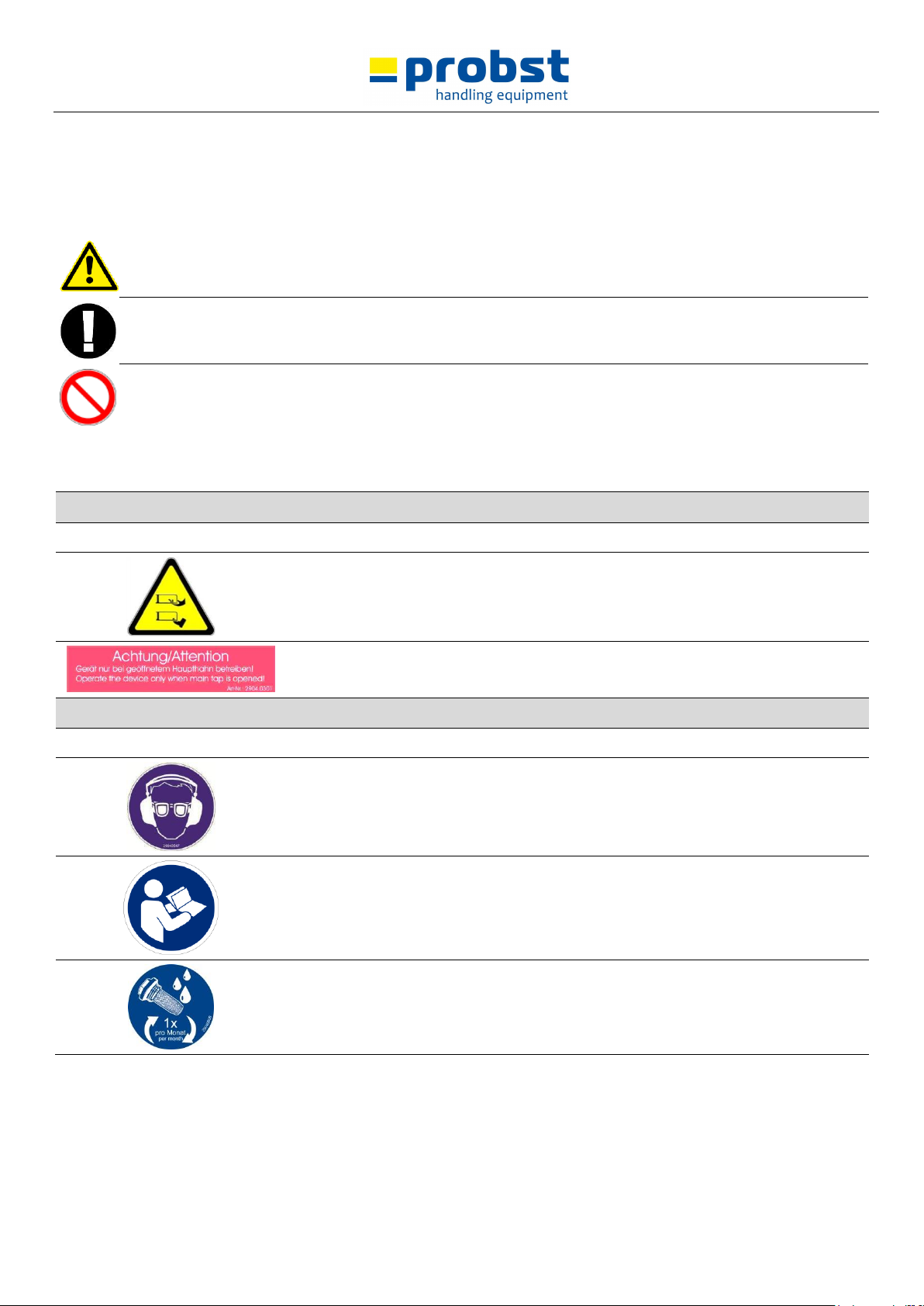

2.1 Safety symbols
Danger to life!
Identifies imminent hazard. If you do not avoid the hazard, death or severe injury will result.
Hazardous situation!
Identifies a potentially hazardous situation. If you do not avoid the situation, injury or damage to property can
result.
Prohibition!
Identifies imminent a prohibition. If you do not avoid the prohibition, death and severe injury, or damage to
property will result.
2.2 Safety Marking
WARNING SIGN
Symbol
Meaning
Order-No.:
Size:
Danger of injury by rotary parts.
2904.0297
50 mm
Operate the device only when main tap is opened!
2904.0301
20x90 mm
REGULATORY SIGN
Symbol
Meaning
Order-No.:
Size:
Use hearing and eye protection.
2904.0547
50 mm
Each operator must have read and understood the
operating instructions (and all safety instructions).
2904.0665
2904.0666
30 mm
50 mm
Clean the dirt filter once a month (with water jet, if
necessary tapping out)
2904.0699
45 mm

Safety
5 / 16
Open /close main tap.
2904.0299
20x86 mm
Open /close cross flow.
2904.0300
20x86 mm
Minimum water pressure 0,3 bar
2904.0395
180x20
Empty the pump and all water pipelines at
temperatures around the freezing point completely.

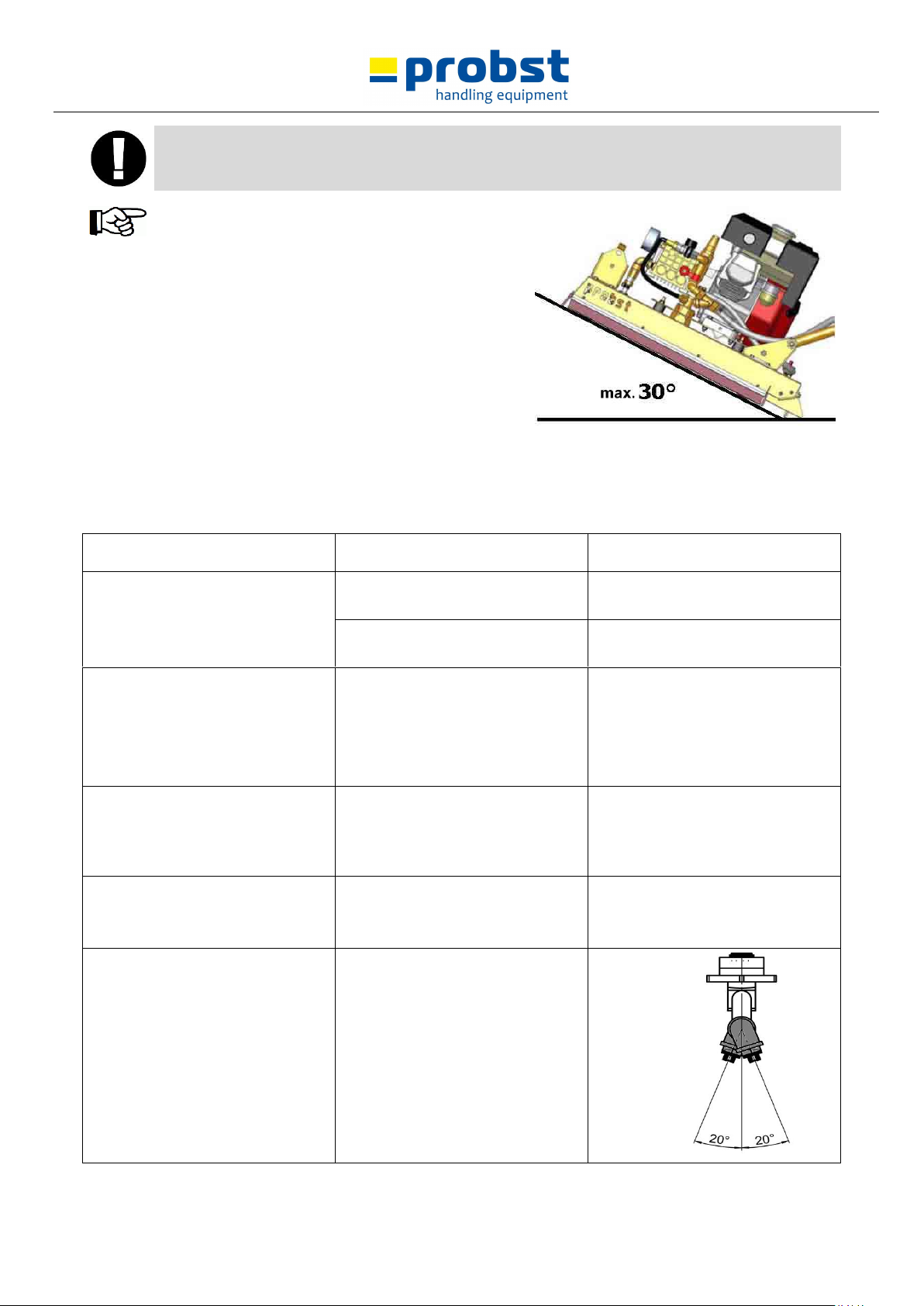

With all maintenance work, with which the device must
be tip, the angle of inclination may not exceed >30°.
2904.0565
125x75 mm
2.3 Definition skilled worker / specialist
Only skilled workers or specialists are allowed to carry out the installation-, maintenance-, and repair work on this device!
Skilled workers or specialists must have for the following points (if it applies for
this device), the necessary professional knowledge.
●for mechanic
●for hydraulics
●for pneumatics
●for electrics
2.4 Personal safety requirements
●Each operator must have read and understood the operating instructions (and all safety instructions).
●Only qualified, authorized personal is allowed to operate the device and all devices which are connected
(lifting equipment).
●The manual guiding is only allowed for devices with handles.
2.5 Protective equipment
The protective equipment must consist, according to the
safety regulations of the following parts:
●Protective clothing
●Safety gloves
●Safety shoes
●Hearing and eye protection
2.6 Accident prevention
●The workplace has to be covered for unauthorized persons, especially children.
●Take care in case of thunderstorm!
●The workplace has to be sufficiently illuminated.
●Take care with handling wet, dirty and not solidified components.
●The working with the device in case of atmospheric editions under 3 °C (37,5 °F) is forbidden!
Because the goods could be fall down caused by dampness or freezing.

Safety
6 / 16
2.7 Safety procedures
●The device may not be operated in closed areas (danger of poisoning by exhaust gases).
●Refuelling the device may take place only, if the engine is so far cooled down that no fire and danger of
explosion exist.
●Maintenance work may take place only with shut down device, i.e. the rotation arm may not itself moving
any more (after switching off at wait least one minute!) and the exhaust system must be so far cooled down
that no burn danger exists.
●Worn brushes must be exchanged.
2.8 Function Control
2.8.1 General
●Before using the device check the functions and the working condition.
●Maintenance and lubrication are only permitted when device is shut down!
●Do not use the device, until all faults which can cause safety hazards are removed.
●If there are any cracks, splits or damaged parts on any parts of the device, immediately stop using it.
●The operating instructions must be available at the workplace every time.
●Do not remove the type plate of the machine.
●Unrecognisable information signs (such as regulatory or prohibition signs) must be replaced.
2.8.2 Unauthorized alterations
All unauthorized alterations of the device and the use of any self-made additional equipment could cause
danger and are therefore forbidden!

General
7 / 16
3General
3.1 Authorized use
The device exclusively applicable for cleaning even plates and paving areas. The device is not even sucking in,
i.e. the device must be supplied with clean, nonporous tap water.
It is to be made certain that the cleaning range is sealed by the protection hood and the brushes attached to it.
The surface which shall be cleaned, must be able to withstand the application of pressure by the water steel
damage-free.
The operation of the device is only permitted to persons, over the age of 18.
The use of the device for persons over 16 years is permitted, as long as this is necessary for the reaching of their
training goal and their protection is ensured by a supervisory one.
=> see for this BGV D15 work with liquid emitters
●The device is only designed for the use specified in this documentation.
●Every other use is not authorized and is forbidden!
●All relevant safety regulations, corresponding legal regulations, especially regulations of the declaration of
conformity, and additional local health and safety regulations have to be observed.
Prior to every operation the user must ensure that:
●the equipment is suited to the intended operation, the functioning and the working condition of the
equipment is examined, and the load is suitable to be handled.
Any doubts about instructions should be raised with the manufacturer prior to use.

General
8 / 16
3.2 Survey and construction
3.3 Technical data
Type
Working width
[mm]
Dead weight
[kg]
Working capacity
[kW / PS]
Pump diaphragm
[bar / l/min]
Order-Nr.:
EASY CLEAN EC-60
600 (23 ½")
51 (110 lbs)
4 / 5,5
150 / 13
5170.0004
Combustion engine
High-pressure pump
Pressure setting with
pressure relieve valve
Handle
Petrol tank
(feed opening)
Water
conduit
Rollers
Nozzles
Rotation arm

Installation
9 / 16
4Installation
4.1 Transportation (EC 60)
The device can be carried on the handles (in folded up
condition).
Carry the device only at the handles! 
Take care, that the spring bolts at all 4 positions
engaged and the handle is surely embodied in the
transportation position.
4.2 Assembly (EC 60)
Pull the spring bolts of the device out and rotate them.
Adjust the handle and lock it again in the final position
(to turn back and engage leave).
Take care, that by the adjusting of the handle neither
member masses nor the water hose is squeezed.
4.3 Water supply
Connect the water hose with the ¾"-connection at the
handle of the (EC 60). *
Pay attention that the ball valve is in closed position.
*If only a ½"-connection (with plug system) is present,
a adaptor piece must be used. 
Spring bolt 3
Spring bolt 4
Spring bolt 1
Spring bolt 2

Operation
10 / 16

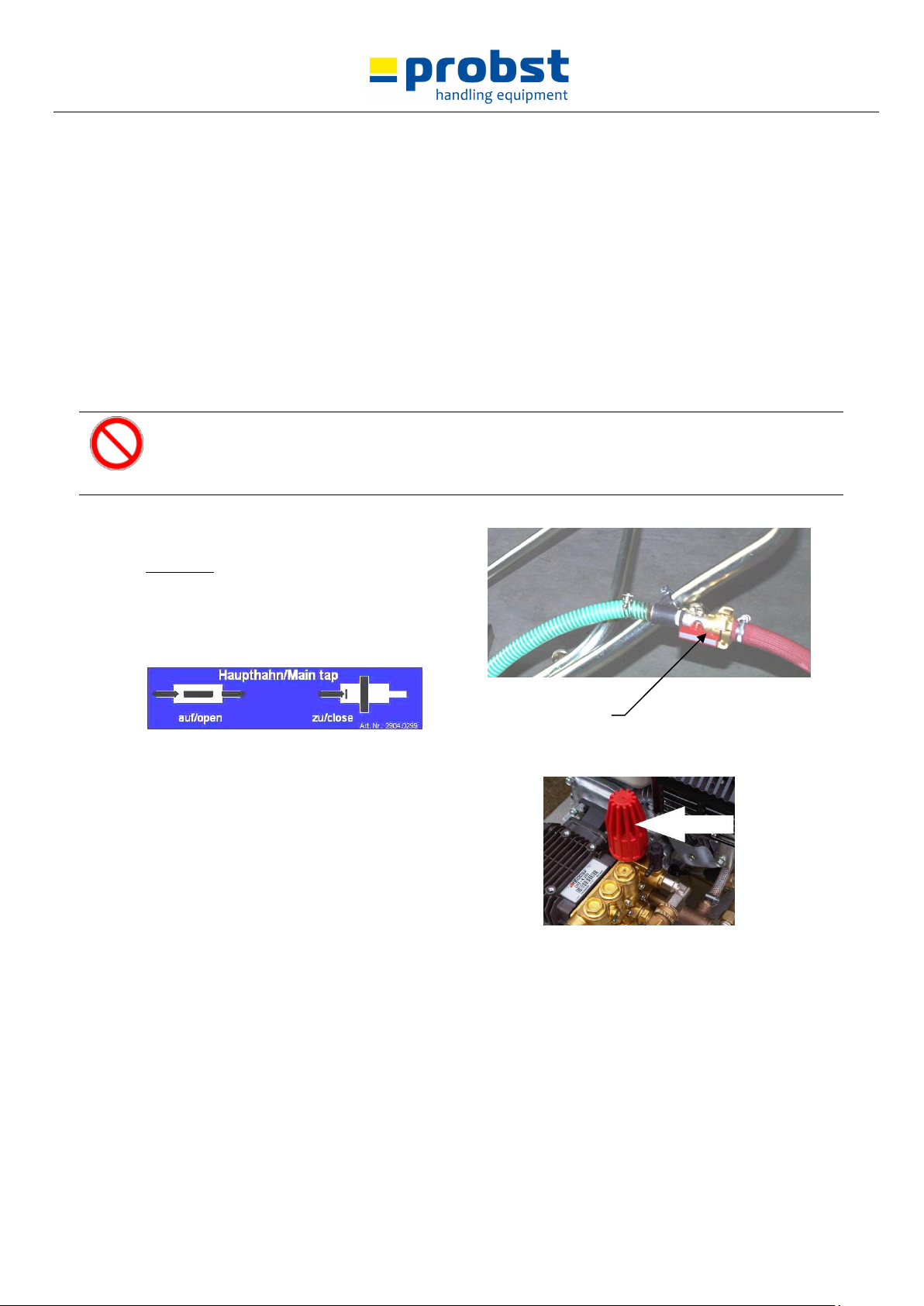

5Operation
5.1 General
The pump may not be operated in the dry operation (without water supply)!
The pump may be operated with lance/jet tube max. 5 minutes continuously, without water outlet.
In order to avoid damage to the device (EC-60), the water temperature (water inlet) may not exceed 40° C.
The supply water from the line system must be filtered with 300-400 µ. The water pressure may amount to max.
10 bar. A minimum water pressure of 0,3 bar (at 20 l/min) is necessary, otherwise no function of the engine!
If supply water is taken out of a well, or an open waters, it must be filtered with 100-200µ.
Do not drive with the equipment over uneven area/supernatant articles! Rotation arm/nozzles can be
damage/adjusted!
General it is forbidden to grip under rotary parts - danger of injury!
1.
Open the handles of the device
(See chapter Installation)
2.
Open main top (pic. 1a/pic. 1)
Pic.
1
!
Important: open absolutely first the water
supply (main tap) before starting the engine!
(Pic. 1a /Pic. 1) 
Close the cross flow (Pic. 4) while starting the
engine.
Pic. 1A
In case of starting problems of the engine (often
in cold weather) unscrew pressure adjusting
valve () (anticlockwise). Once the engine is at
operating temperature, screw in the pressure
adjusting () valve (clockwise).. (Pic. 1B) 
Pic. 1B
Main tap

Operation
11 / 16

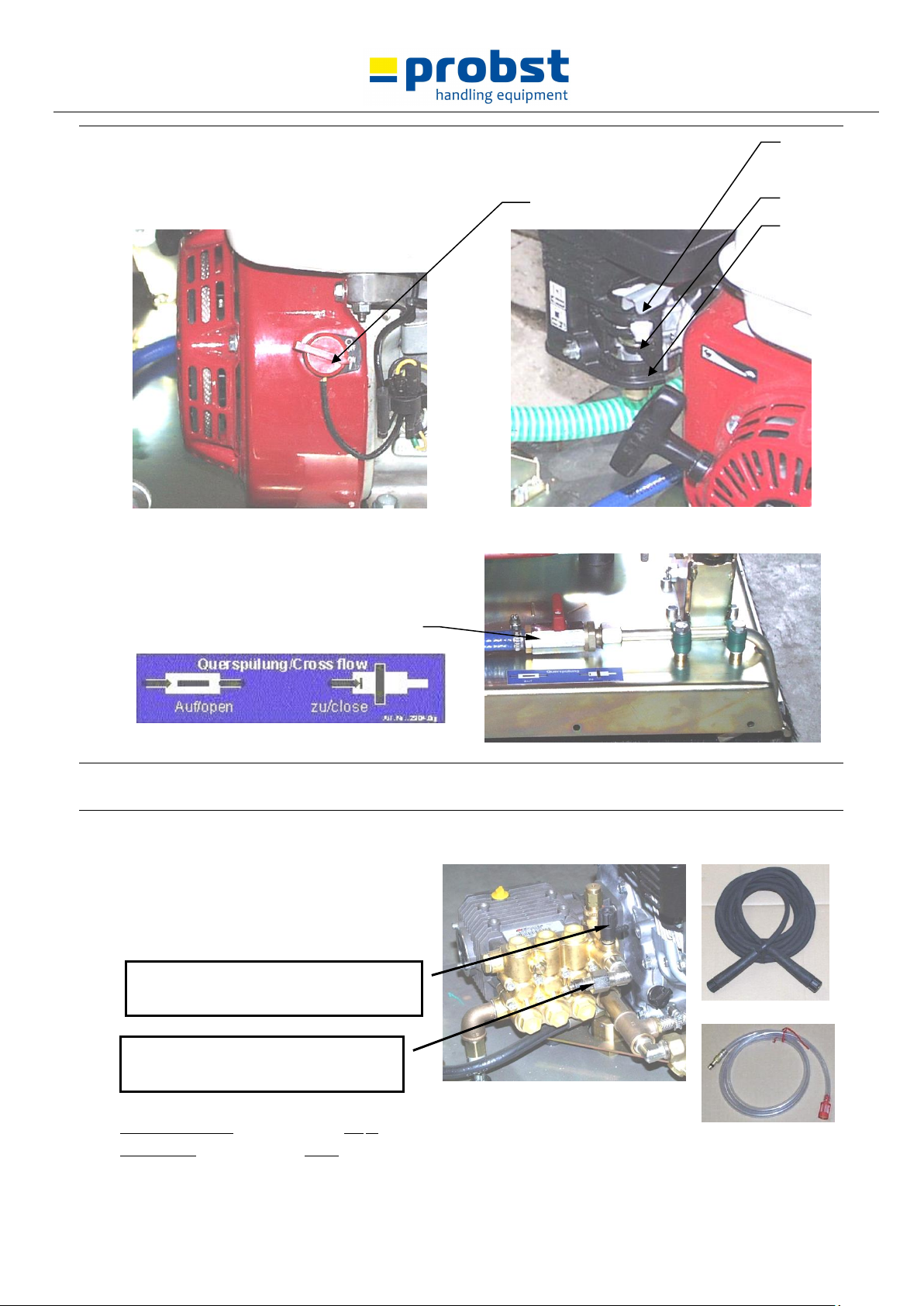

3.
Start the engine
●Turn start lever of ON (Pic. 2)
●Open fuel valve (Pic. 3)
●Activate the choke (Pic. 3)
Pic. 2
Pic. 3
4.
Switch, if necessary cross flow on (dirt will be
washed away to the right) Pic. 4
Pic. 4
5.
The rotational speed of the engine and the feed speed of the (EC 60) must be adapted and optimized
depending upon degree of pollution of the surface.
5.2 Work with Lance/high pressure-and low pressure nozzle
!
When working additional with a lance,
operated absolutely the pistol, before starting
the engine, so that no counter-pressure
develops! (Pic. 5/Pic. 6)
High-pressure hose (lance enterprise) Pic. 5a
Suction hose (cleaning agents) Pic. 5b 
Pic. 5
Pic. 5a
Pic. 5b
Start lever
Choke
Fuel valve
Speed-
regelung
Cross flow
Connection of the high-pressure hose
for lance enterprise
Connection of the suction hose for the
admixture of cleaning agents

Operation
12 / 16

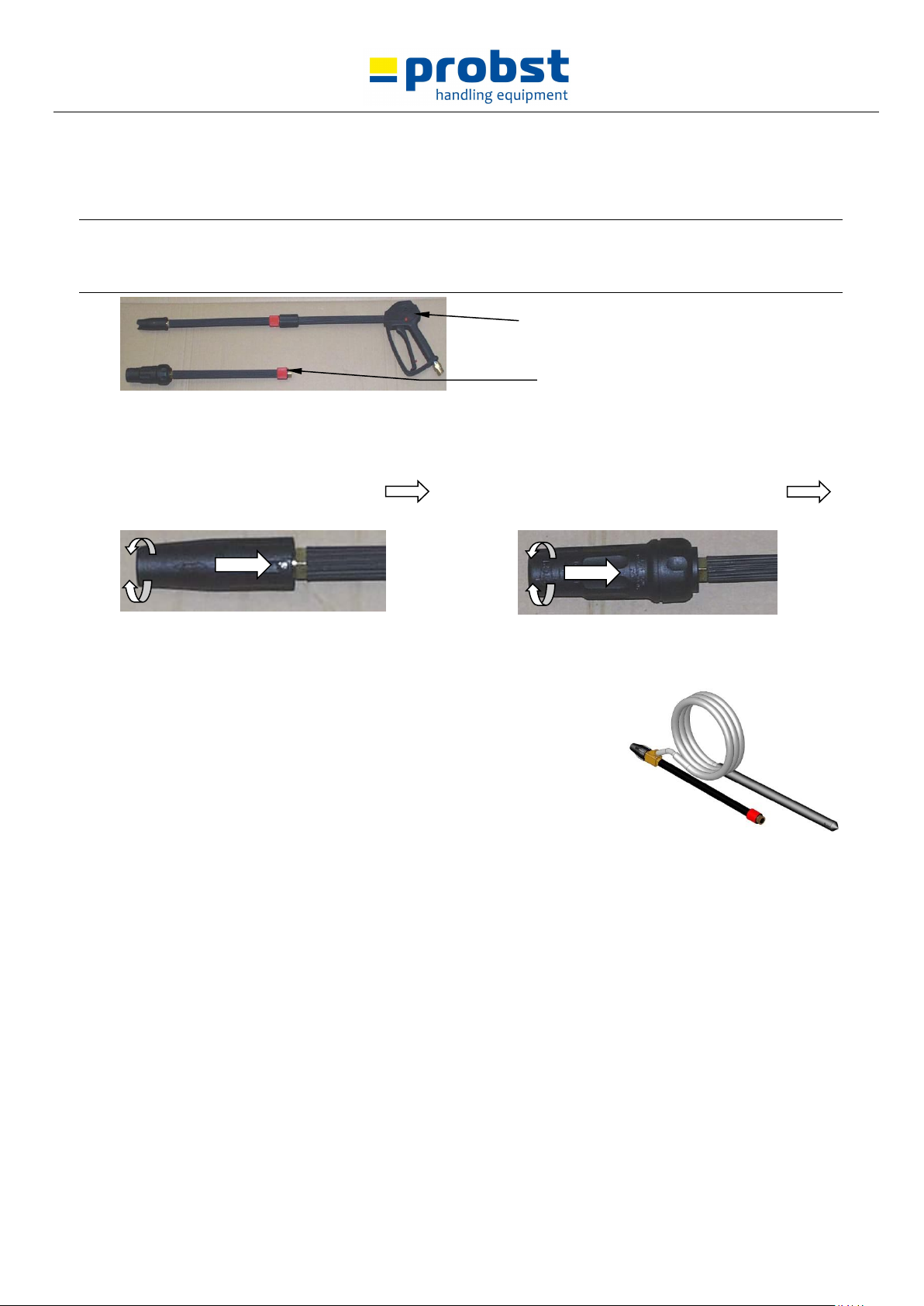

5.2.1 Admixing from cleaning agents
To clean a surface, with strong degree of pollution with a cleaning agent, a suction hose must be attached
(see pic. 5, 5b).
!
When adding cleaning agents, the lance must be changed to low pressure!
Pic. 6
Changing from high to low pressure
Lance –flat jet nozzle (see arrow )
Lance –rotation nozzle (see arrow)
5.2.2 Accessories: Sand Blasting Kit SSK
For erasing persistent dirt up to derusting and similar applications. This kit
allows intake and dosage of sand for blasting (quartz sand with max. grain
0,1 - 0,5 mm).
●Connect sand blasting kit at the device.
●Start the device (EC 60).
●Wait as long as the pump sucks water, than open the cross flow. Since
otherwise air is sucked over the cross flow.
Pistol with lance (flat jet nozzle)
Change set Lance with rotation
nozzle

Maintenance and care
13 / 16
6Maintenance and care
6.1 Maintenance
To ensure the correct function, safety and service life of the device the following points must be executed in the
maintenance interval.
Used only original spare parts, otherwise the warranty expires.
All operations may only be made in closed state of the device!
For all operations you have to make sure, that the device will not close unintended. Danger of injury!!!
6.2 Mechanical
SERVICE INTERVAL
Maintenance work
First inspection after
25 operating hours
●Control and tighten all screws and connections.
(The implementation is only allowed by an expert).
All 50 operating hours
●Tighten all screws and connections (take care that the tightening torques according
to the property class of the screws are observed).
●Check all existing safety elements (such as linchpins) for perfect function and replace
defective safety elements.
●Check all joints, bolts, guidance’s and gears for correct function, if necessary adjust or
replace it.
●Check all grippers (if available) for signs of wear.
●Grease all slidings (if available) when the device is in opened position with a spatula.
●Grease all grease nipples (if available) with a grease gun.
Minimum 1x per year
(at rough conditions shorten the
interval)
●Check of all the suspension parts, bolts and straps. Check for corrosion and safety by
an expert.
Clean the dirt filter once a month (with water jet, if
necessary tapping out)
As thread sealing:
use Loctite 542 (liquid)
As assembly fat:
Emulsify Lithum, use water-steady fat.
As oil (for crank enterprise):
Use mineral engine oil 15W40.
Since with longer downtimes of the device lime deposits develops, absolutely flush the water lines with lime-free
water.
Dirt filter

Maintenance and care
14 / 16
Empty the pump and all water pipelines at temperatures around the freezing point completely.
Frozen water can harm the pump and the water pipelines!
With all maintenance work and trouble shootings,
with which the device must be tip, the angle of
inclination may not exceed >30°.
6.3 Trouble shooting
ERROR
CAUSE
REPAIR
Engine does not start.
●Error at the engine
●See operating instructions of the
engine (Appendix)
●Spray gun produces back
pressure
●When starting press pistol on
spray gun
Engine runs but no pressure is
produced.
●No water supply
●Circle swing assembly faulty
●Nozzle clogged
●Error in the pump
●Check water supply
●Check circle swing assembly
●Check nozzle
●See operating instructions pump
(Appendix)
Engine runs, pressure is produced,
but no turn of the rotation arm
●The rotation arm is obstructed
●Repair error when device is shut
down.
●Correct Nozzle position (~20°)
with pipe tongs (see Fig. 1).
Engine runs, pressure is produced,
rotation arm turns, but no cleaning
effect
●Nozzle position is not correct.
●Nozzles are clogged (caused by
a sand grain )
●Correct Nozzle position (~20°)
with pipe tongs (see Fig. 1).
●Remove nozzles and clean them.
Fig. 1

Maintenance and care
15 / 16
Engine is stuttering or running
engine stopps
Dirt filter is blocked
Remove the locking screw at the
dirt trap and clean dirt filter
(for details, see chapter
„Maitenance intervals“)
6.4 Repairs
●Only persons with the appropriate knowledge and ability are allowed to repair the device.
●Before the device is used again, it has to be checked by an expert.
6.5 Safety procedures
It is the contractor’s responsibility to ensure that the device is checked by an expert in periods of max. 1
year and all recognized errors are removed (see BGR 500).
The corresponding legal regulations and the regulations of the declaration of conformity have to be
observed!
We recommend, that after checking the device the badge „Safety checked“ is put on the device.
(Order-No.: 2904.0056+inspection sticker with date).
●You can receive these badges from us.
The check by an expert must be proved!
Device
Year
Date
Expert
Company

Maintenance and care
16 / 16
6.6 Hints to the type plate
Type, serial-number and production year are very important for the identification of your device. If you need
information to spare-parts, warranty or other specific details please refer to this information.
The maximum carrying capacity/working load limit (WLL) is the maximum load which can be handled with the
device. Do not exceed this carrying capacity/working load limit (WLL).
If you use the device in combination with other lifting equipment (Crane, chain hoist, forklift truck, excavator)
consider the deadweight of the device.
Example:
6.7 Hints to the renting/leasing of PROBST devices
With every renting/leasing of PROBST devices the original operating instructions must be included
unconditionally (in deviation of the users country's language, the respective translations of the original
operating instructions must be delivered additionally)!

Länge geklappt 770
Länge 1193
Höhe
987
684
Höhe geklappt 462
Breite 614
Arbeitsbreite / Working Width 60 cm
Gewicht / Weight 50 kg
Antriebsleistung / Power 4 kW / 5,5 PS
Hochdruckpumpe / Pressure Pump 0,3 - 150 bar / 13 l/min
4
3
C
B
A
B
D
F
7 5
1 3 5 7
F
4
2 6
8
E
D
8 6
C
E
1 2
A
Zust.
Gepr.
Erst.
Name
von
Blatt
Ers. f.
Ers. d.
Urspr.
Artikelnummer/Zeichnungsnummer
Benennung
© all rights reserved conform to ISO 16016
17.9.2014
14.12.2004 Ralf.Hoffmann
Ralf.Hoffmann
Easy Clean EC
Hochdruckreiniger mit Spritzschutz
D51700004
1
1
zum schnellen und effizienten Reiningen
von Pflasteroberflächen
Datum

26110032 28000004
26110033
26110026
26110025
26110024
27200007
51700004
28000018
ohne Motor gez.
Einzelteile
Komplett
Artikel Nr. Beschreibung
51700004
Easy Clean EC
Hochdruckreiniger mit Spritzschutz
26110032
Lanze kompl. mit Multireg 99 und
Hochdruckschlauch 8m - 5/16" (TX-TSX-
Serie)
26110024
Pistole / Lanzen / kompl.
für Easy Clean (TX - TSX - Serie)
26110025
MULTIREG - KIt für Easy Clean
(TX - TSX - Serie)
26110026
ROTOTEK - KIT für Easy Clean
(TX - TSX - Serie)
27200007
Hochdruckschlauch 8m / 5/16"
für Easy Clean
26110033 Sandstrahlkit TX -TSX-Serie
28000004 Chemiecal-Filter-KIT
28000018
Adapterstück für Easy Clean
(von Bayonett auf Gardena)
4
3
C
B
A
B
D
F
7 5
1 3 5 7
F
4
2 6
8
E
D
8 6
C
E
1 2
A
Zust.
Gepr.
Erst.
Name
von
Blatt
Ers. f.
Ers. d.
Urspr.
Artikelnummer/Zeichnungsnummer
Benennung
© all rights reserved conform to ISO 16016
14.12.2004 Ralf.Hoffmann
Easy Clean komplett mit Anbauteile
51700004-Anbauteile
1
3
Datum
