3005.2‐061515

SERVICE ------------------------------------------------------------------------ 2
LABEL PLACEMENT --------------------------------------------------------- 3
PRODUCT SAFETY ---------------------------------------------------------- 4
OVERVIEW DRAWING ------------------------------------------------------ 6
HARDWARE LIST & TOOL ------------------------------------------------- 7
PARTS LIST --------------------------------------------------------------------- 8
ASSEMBLY --------------------------------------------------------------------- 10
COMPUTER -------------------------------------------------------------------- 12
STORAGE ----------------------------------------------------------------------- 15
ADJUSTMENT --------------------------------------------------------------- 16
LUBRICATION ---------------------------------------------------------------- 18
MAINTENANCE & TROUBLESHOOTING ----------------------------- 19
WARM UP ----------------------------------------------------------------------- 20
WARRANTY -------------------------------------------------------------------- 21
FAX FORM ---------------------------------------------------------------------- 22
TABLEOFCONTENTS
1

IMPORTANT: FOR NORTH AMERICA ONLY
To request product service and order
replacement parts, please call our
customer service department at:
1-844-641-7920
Daily, 8:00 AM-5:00 PM Pacific Standard Time,
or email us at: [e-mail]
Please visit our website at www.paradigmhw.com.
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
Before returning this product to the store please contact
customer service at the contact number.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA
SERVICE
2

3
LABEL PLACEMENT

Basic precautions should always be followed, including the following safety
instructions when using this treadmill: Read all instructions before using this
treadmill.
DANGER:To reduce the risk of electric shock, please read the following:
Always unplug the treadmill from the electrical outlet immediately after using
and before cleaning, assembling, or servicing.
NOTE: Failure to follow these instructions may lead to personal injury and
cause damage to the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock or injury to
any persons, please read the following:
Never leave the treadmill unattended when plugged in. Disconnect by turning
off the master power switch, and unplugging from outlet when not in use and
before putting on or taking off parts.
Use this appliance only for its intended use as described in this manual. Do
not use attachments not recommended by the manufacturer.
Never operate this treadmill if it has a damaged cord or plug, or if it is not
working properly. If it has been dropped or damaged, or been exposed to
water, do not use and consult an Authorized Service Representative at
1-844-641-7920. Do not attempt any maintenance or adjustments other than
those described in this manual. Should any problems arise, discontinue use
and consult an Authorized Service Representative.
Never operate the appliance with the air openings blocked. Keep the air
openings free of lint, hair, and the like.
Do not use the treadmill outdoors.
Do not pull the treadmill by its power cord or use the cord as a handle.
Keep children and pets away from the equipment while in use. This machine
is designed for adults only. Close supervision is necessary when this
treadmill is used by on, near those with disabilities.
Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
Keep Dry - do not operate in a wet or moist condition. Save these
instructions.
PRODUCTSAFETY
4

Do not operate the treadmill near a blanket. Excessive heating can occur and
cause fire, electrical shock, or injury to user.
Keep electrical cord away from heated surfaces.
Never insert any object into any opening.
Keep the treadmill on a solid, level surface with the minimum safety area
clearance of 78.74 inch x 39.37 inch of the treadmill. Be sure the area around
the treadmill remains clear during use and has adequate clearance.
This treadmill is for household use only.
Only one person should be on the treadmill while in use.
Wear comfortable and suitable clothing when using the treadmill. Do not use
the treadmill barefoot, in only socks or in sandals, always wear athletic shoes.
Never wear loose clothing because it could run the risk of getting caught in the
treadmill.
Always hold on to the handrails while using the treadmill.
Always make sure the storage latch is in place when folding and moving the
treadmill.
Do not leave children who are under 12 year-old unsupervised near or on the
treadmill.
To disconnect, turn all controls to the off position, then remove plug from outlet.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
Pull up the Safety Tether Key for emergency stop. Reinstall the Safety Tether
Key onto the Computer Console. Press the START/STOP button to begin
exercise again.
Maximum Weight Capacity is 275 lbs / 125kgs.
This treadmill is designed for WALKING only.
CAUTION: Risk of Injury to Persons –To Avoid Injury, use extreme caution
when stepping onto or off of a moving belt. Read Instruction Manual Before
Using.
Note: It is the obligation of the owner to review and explain these safety
precautions to all users of this treadmill.
PRODUCTSAFETY
5

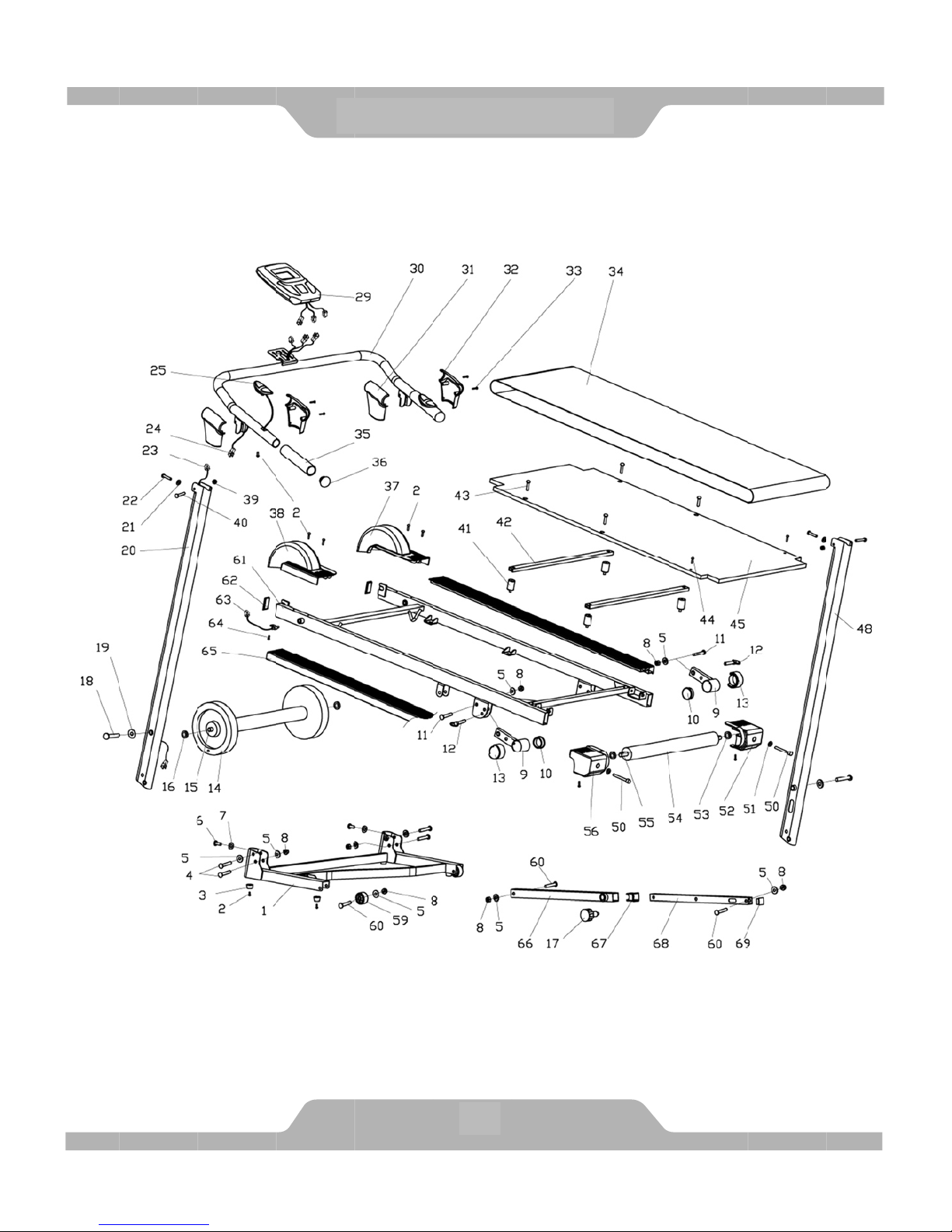

OVERV
6
IEW D
R
R
AWIN
G
G

7

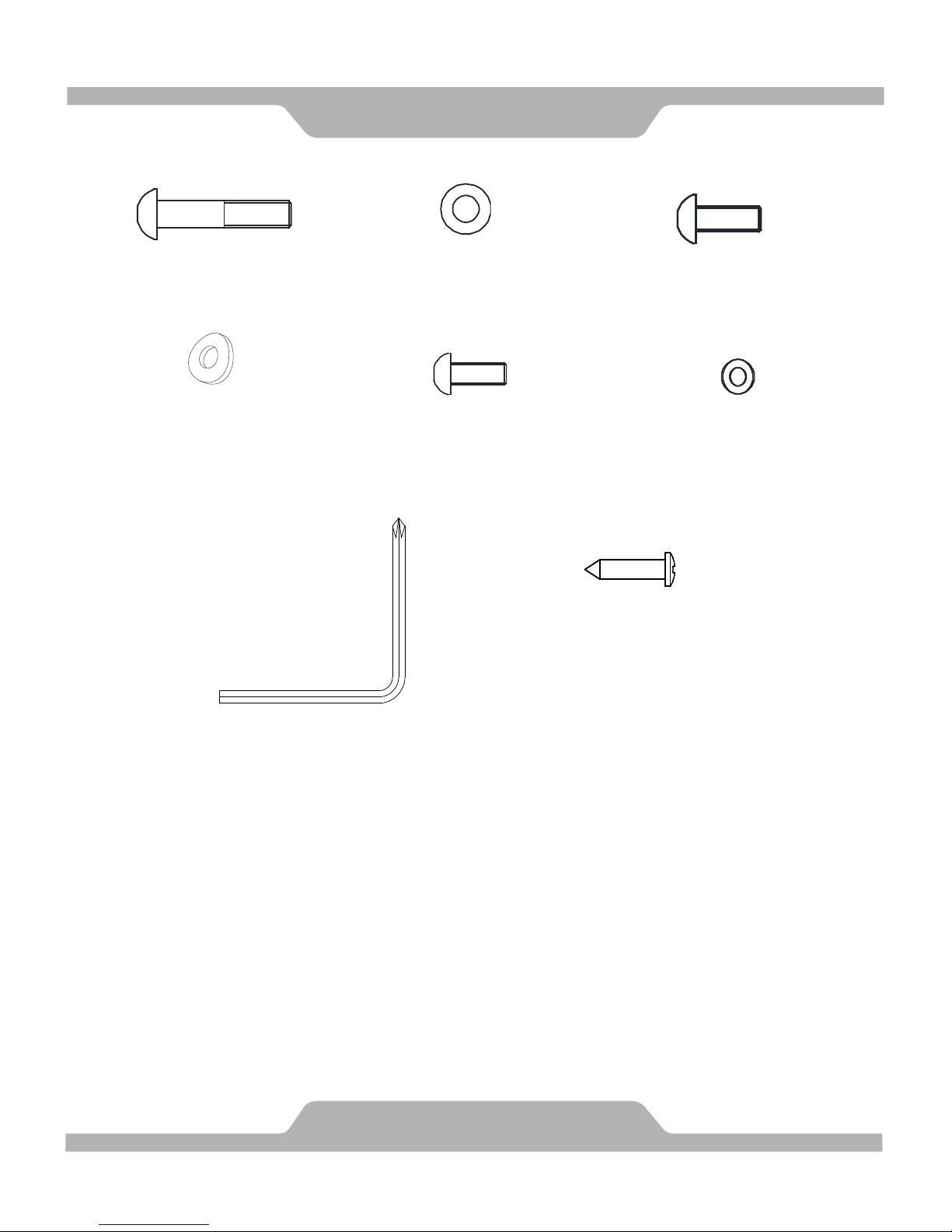

HARDWARELIST
&
TOOLS
(#4)
A
llen Bolt M8X50
2 PCS
(#5) Flat Washer Φ8
2 PCS
(#6)
A
llen Bolt M8X20
2 PCS
(#7) Curve Washer
Φ8
2 PCS
(#22)
A
llen Bolt M6X15
2 PCS (#21) Curve Washer
Φ6
2 PCS
S5
A
llen Wrench
1PCS
(#33) Philips screw
ST4.0x12
4 PCS

No. Description Qty No. Description Qty
001 Base tube 1 029 Computer 1
002 Philips screw ST4.2*20 6 030 Handle bar 1
003 Foot pad 4 031 Left handle bar cover 2
004 Allen bolt M8x50 4 032 Right handle bar cover 2
005 Flat washer Φ8 10 033 Philips screw ST4.0x12 4
006 Allen bolt M8x20 2 034 Running belt 1
007 Curve washer Φ8 2 035 Foam for handle bar 2
008 Nylon nut M8 8 036 Round inner plug 2
009 Rear support tube 2 037 Right motor cover 1
010 Round inner plug 2 038 Left motor cover 1
011 Allen bolt M8x35 2 039 Nylon nut M6 2
012 Hang ring pin Φ8x35 2 040 Allen bolt M6x35 2
013 Foot cover 2 041 Cushion pad 4
014 Front roller 1 042 Running board support tube 2
015 Front roller shaft 1 043 Philips screw M6*30 4
016 Spacer 2 044 Philips screw ST4.8*25 2
017 Locking knob M10*70 1 045 Running board 1
018 Allen bolt M10x60 2 048 Right upright 1
019 Flat washer M10 2 050 Allen bolt M6x60 2
020 Left upright 1 51 Flat washer M6 2
021 Curve washer Φ6 2 52 Right cap 1
022 Allen bolt M6x15 2 53 Spacer 2
023 Sensor wire 1 1 54 Rear roller 1
024 Sensor wire 2 1 55 Rear roller shaft 1
025 Hand pulse connector 2 56 Left cap 1
PARTS LIST
8

No. Description Qty No. Description Qty
59 Transport wheel 2 65 Side rail 2
60 Allen bolt M8x40 4 66 Support tube 1
61 Main frame 1 67 Plug 1
62 Square inner plug 3 68 Inner adjustment tube 1
63 Sensor 1 69 Square inner plug 1
64 Philips screw ST4.2*12 1
PARTS LIST
9

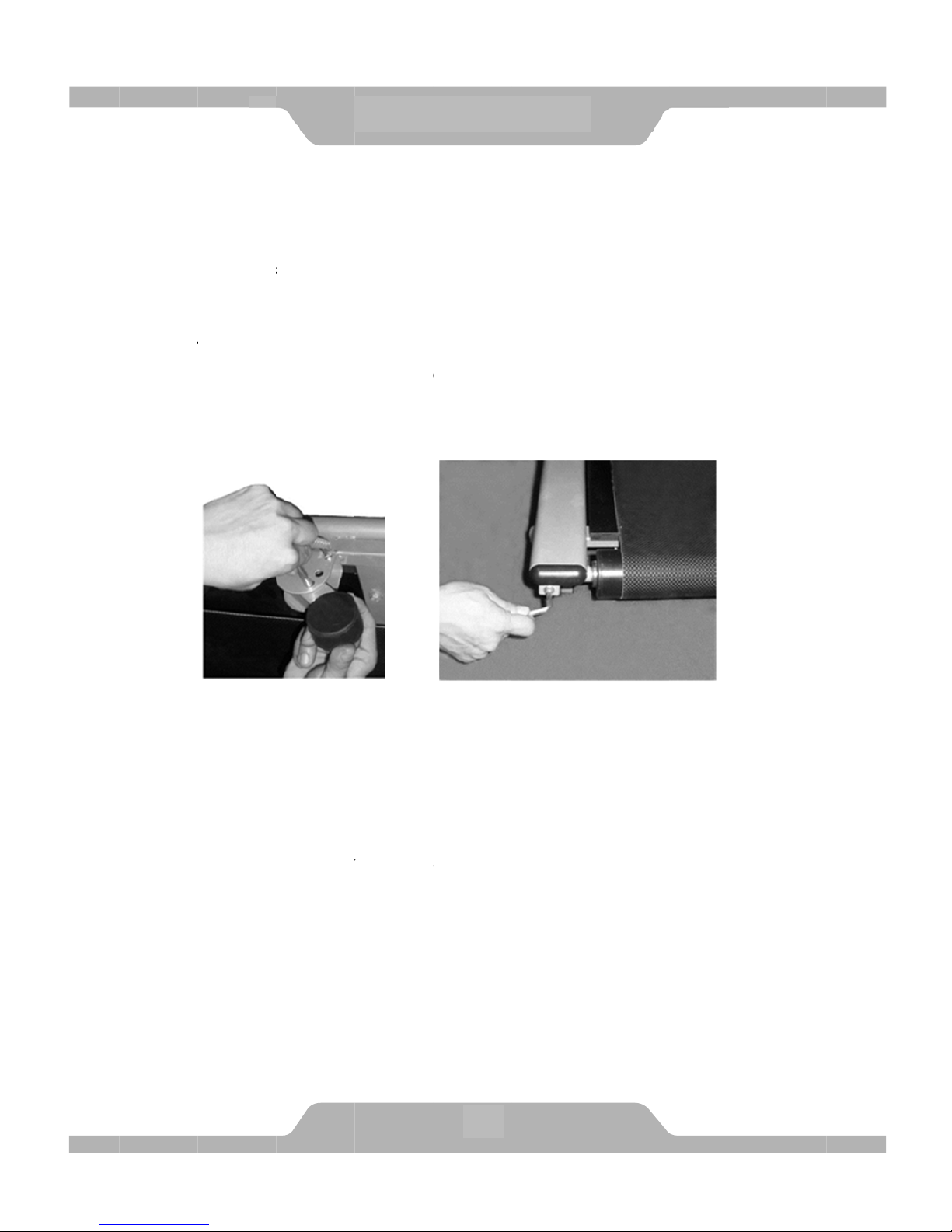

Step 1
Loosen and pull the locking knob (17), insert the left upright (20) and right upright
(48) to the main frame (61) secure with Allen bolt (6) and arc washer (7); then
insert Allen bolt (4) and flat washer (5) through the left and right uprights and
secure. Connect the main frame (61) and base tube (1) with the locking knob
(17).
Hardware:
ASSEMBLY
10
(#4)
A
llen Bolt M8X50
2 PCS
(#5) Flat Washer D8
2 PCS
(#6)
A
llen Bolt M8X20
2 PCS
(#7) Curve Washer
Φ8
2 PCS
S5
A
llen Wrench
1PCS
Tool:

Step 2
Fold up the handle bar (30) then secure the handle bar with Allen bolt (22)
and curve washer (21) into the left upright (20), and right upright (48). Put the
left handle bar cover (31), and right handle bar cover (32) onto the left
upright (20) and right upright (48) secure with screw (33).
Hardware:
ASSEMBLY
11
(#22)
A
llen Bolt M6X15
2 PCS
(#21) Curve Washer
Φ6
2 PCS
(#33) Philips screw
ST4.0x12
4 PCS
S5
A
llen Wrench
1PCS
Tool:

Step 3
Connect computer (29) with the sensor wire (24) and two hand pulse connector
(25), then install the computer (29) into the computer plate on handle bar (30).
ASSEMBLY
12

Ple
a
SP
E
TI
M
SP
E
DI
S
TO
T
CA
L
PU
L
.
a
se load 2
E
CIFICAT
I
M
E----------
-
E
ED-------
-
S
TRANCE
-
T
AL DIST
-
L
ORIE----
-
L
SE -------
-
SCAN
TOTAL DI
pcs of 1.5
V
I
ONS
-
-------------
-
-
-------------
-
-
-------------
-
-
------------
-
-
-------------
-
-
------------
-
S
P
ST
V
“AAA” b
a
-
------------
-
-
------------
-
-
------------
-
-
-------------
-
-
------------
-
-
-------------
-
C
O
P
EED
CALORI
E
a
tteries b
e
-
------------
0
-
-------------
0
-
------------
0
-
-----------
0
-
------------
0
-
------------
4
O
MPUT
13
DIS
T
E
e
fore oper
a
0
:00~99:5
9
0
.0~999.9
M
0
.0~999.9
M
0
.00~99.9
9
0
.0~999.9
K
4
0~240BP
ER
T
ANCE
PULSE
a
ting the c
o
9
MIN
M
L/H
M
L
9
ML
K
CAL
M
TIM
E
M
L
o
nsole.
E
L

KEY FUNCTIONS:
MODE: This key lets you to select and lock on to a particular function you want.
Reset the value to zero by pressing the key for 4 seconds.
FUNCTIONS:
1.TIME : Press the MODE key until pointer lock in to TIME. The total working time
will be shown when starting exercise.
2.SPEED: Press the MODE key until pointer lock on to Display current speed
duringworkingtime.
3.DISTANCE : Press the MODE key until pointer lock on to DISTANCE . The
distance of each workout will be displayed when starting exercise.
4.CALORIE :Press the MODE key until pointer lock on to CALORIE The calorie
burned will be displayed when starting exercise.
5.TOTAL DIST :Automatically accumulates workout distance when starting
exercise.
6.PULSE: Press the MODE key until the pointer advance to PULSE function and
put hands on sensor part of the handlebar about 3 seconds, then the heart rate
will show out.
SCAN : Display changes according to the next diagram every 4 seconds.
A
utomatically display of the followingfunctionsintheordershown:
TIME---SPEED---DISTANCE---CALORIE---TOTAL DIST ---PULSE---SCAN
NOTE:
1. Without any signal coming in for 4-5 minutes, the LCD display will be shut off
automatically.
2. The monitor automatically turns on when signal came in.
3. Replace the batteries if the signal is getting improper on the LCD.
COMPUTER
14

F
O
To
f
the
tre
a
the
Ma
k
(Se
Th
e
sto
r
chil
d
SE
To
s
an
d
de
c
po
s
Not
TO
W
H
O
LDING
U
f
old up the
other han
d
a
dmill up i
n
locked po
s
k
e sure th
e
e diagram
e
unit can
b
r
age. Stor
e
d
ren.
TTING
D
s
et down t
h
d
the other
c
k to the g
r
s
ition. (S
e
t
e: Do not
s
PREVEN
T
H
EN LIFTI
N
U
P THE
T
treadmill,
d
to pull th
n
to the upr
s
ition.
e
deck is s
s A and B.
b
e carefull
y
e
the tread
D
OWN T
H
h
e treadm
i
hand to p
u
r
ound until
e
e diagra
m
s
tand und
e
T
INJURY
N
G UP O
R
T
READM
place one
e Locking
ight positi
o
ecurely lo
c
)
y
tilted ont
o
mill in a cl
e
H
E TRE
A
i
ll, place o
n
u
ll the Loc
k
the Locki
n
m
s C and
D
e
r the dec
k
PLEASE
M
R
SETTIN
G
S
ILL
hand on t
Knob (17)
o
n and tur
n
c
ked befo
r
o its trans
p
e
an and d
r
A
DMILL
n
e hand o
n
king Knob
n
g Knob (1
D
.)
k
when se
t
M
AKE SU
R
G
DOWN
T
TORAG
15
he back e
n
. Careful
n
the Lock
i
r
e moving
t
p
ort wheel
s
r
y environ
m
n
the back
(17), then
7) "pops"
d
t
ting down
R
E YOU H
T
HE DEC
K
E
n
d of the t
r
ly lift the e
ng Knob (
t
he tread
m
s
for easy
m
ent awa
y
end of th
e
carefully l
o
d
own into
the tread
m
A
VE A FI
R
.
r
eadmill a
n
e
nd of the
17) lock in
m
ill.
moving a
n
y
from
e
treadmill
ower the
the locke
d
m
ill.
R
M HOLD
n
d
to
n
d
d

A
dj
u
Pla
c
Th
e
the
A
dj
u
(12
)
A
dj
u
NO
T
bot
h
A
dj
u
inju
A
d
j
1.
ma
y
the
2.
sta
n
you
dir
e
u
sting the
c
e one ha
n
e
n lift the r
e
Hang Rin
g
u
st the In
c
)
into the
h
u
ster in pl
a
T
E: Make
h
Incline A
u
sters at
d
ry.
j
usting th
The runn
y
come lo
o
belt will b
e
If the run
n
n
d on the
m
r right or l
e
e
ction of th
Incline Ad
j
n
d on the
r
e
ar end of
g
Pin (12)
c
line
A
djus
t
h
oles on th
a
ce.
sure whe
n
djusters s
h
d
ifferent an
e Runni
n
ing belt is
o
se during
e
gin to str
e
n
ing belt
b
m
ain fram
e
e
ft foot to
r
e slip.
j
uste
r
r
ear end o
f
the Main
F
t
er to the
d
e Main Fr
a
n
adjusting
h
ould be a
d
gles can
c
n
g Belt
initially se
t
transport
a
e
tch out.
egins to s
h
e
and hold
r
un on the
s
A
D
f
the Main
F
rame up
a
d
esired po
s
a
me and I
n
the inclin
e
djusted to
c
ause the t
t
and adju
s
a
tion and/
o
h
ift to eith
e
the handl
e
side of th
e
16
D
JUST
M
Frame,
a
nd use th
s
ition and
i
n
cline.
Ad
e
angle of
t
the same
readmill t
o
s
ted at the
r
during u
s
er
left or ri
g
e
bars with
e
running
b
M
ENTS
e othe
r
ha
nsert the
H
d
juster loc
k
t
he Incline
angle. Usi
o
be unsta
b
factory.
s
e. After
g
ht side, t
h
both han
d
elt that is
o
a
nd to rem
o
H
ang Ring
k
s the Incl
i
Adjuster t
ng the Inc
l
b
le and ca
u
However i
t
prolonged
h
e user ca
n
d
s. Then
o
pposite t
o
o
ve
Pin
i
ne
hat
l
ine
u
se
t
use,
n
use
o
the

3. If the belt begins to slip to the left use your right foot on the right side.
You should see the belt start to correct itself by moving back towards the
center.
However, if the running belt is still shifting away from center, use the S5 Allen
Wrench provided and turn the left or right Allen Bolts (50) turn in a clockwise
direction (turn the same side bolt that matches the direction of the slip).
Then try running on the center of the running belt again. If the running belt is
still shifting away from center, turn the same Allen Bolt another 1/4 turn in the
clockwise direction. You should see the belt start to correct itself by moving
back towards the center. Repeat this procedure until the running belt is
centered.
If the running belt is slipping during use, then use the S5 Allen Wrench
provided and turn both the left and right rear Allen Bolts (50) 1/4 turn in the
clockwise direction. You should now run on the running belt to determine if
the running belt is still slipping. Repeating the above procedure until the
running belt is not slipping.
ADJUSTMENTS
17

Th
e
lea
v
gra
d
re-
s
on
c
ag
a
the
the
A
tt
e
not
da
m
be
w
e
treadmill
v
ing the m
a
d
ually per
m
s
pread the
c
e the resi
s
a
inst the ru
silicone oi
silicone oi
e
ntion: Onl
add any
o
m
aged.
D
w
iped off
w
has alrea
d
a
nufacturi
n
m
eated th
r
oil in nor
m
s
tance ha
s
nning dec
k
l with an
e
l to ‘set’ fo
y use "Sili
c
o
ther oil in
g
D
o not ove
r
w
ith a clea
n
d
y been s
p
n
g plant.
r
ough the
r
m
al circum
s
s
been incr
e
k
. To hol
d
ven motio
n
r one min
u
c
one Oil" l
u
g
redient; o
t
r
-lubricate
n
towel.
LU
p
read with
Silicone
o
r
unning be
s
tances.
r
eased an
d
d
open th
e
n
on the c
e
u
te before
ubricants
f
t
herwise t
h
the runnin
BRICA
T
18
"
Silicone
O
o
il is witho
u
lt. There
"Silicone
O
d
the runni
n
e
running
b
e
nter of th
e
using the
m
f
or this eq
u
h
e magnet
i
g deck.
E
T
ION
O
il" in adv
a
u
t volatility
will be no
O
il" may b
e
n
g belt sta
elt from t
w
e
running
d
m
agnetic t
u
ipment.
i
c treadmil
E
xcess lu
b
a
nce befor
e
and has
need to
e
re-sprea
d
rts rubbin
g
w
o sides, a
d
eck. All
o
t
readmill.
In additio
n
l will be
b
ricant sho
e
d
g
pply
o
w
n
, do
uld
