Progress Lighting AirPro P2553 User manual

®
P2553
93114634_B C

Limited Lifetime Warranty
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
111017
P2553
Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical
defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and
metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from
the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/
or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for
ENERGY STAR® qualied products may apply.
Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal
conditions of use, are warranted to be free from defects in material and workmanship which cause the light
sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase
on the LED Light modules and electrical components for fans used in single family residences, and (ii) three
(3) years from the date of purchase on the LED Light modules and electrical components for fans used in
multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other
than manufacturer’s warranty. Non-LED bulbs carry no warranty.
With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the
rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)
678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall
be purchaser’s sole and exclusive remedy.
Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor
(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.
This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,
misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser
or a third party, including without limitation improper voltage supply or power surge, use of improper parts or
accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.
THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION
AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.
PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF
BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations
of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specic rights and you may have other rights which vary from state to state.
785247240357
785247240364

Safety Rules
Unpacking Your Fan
Installing Your Fan
Operating Your Fan
Care of Your Fan
Troubleshooting
Specications
Table of Contents
1
2
3
9
10
10
11

1. To reduce the risk of electric shock, insure electricity
has been turned off at the circuit breaker or fuse box
before beginning.
2. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70-1999 and local electrical
codes. Electrical installation should be performed by a
qualied licensed electrician.
3. CAUTION: To reduce the risk of personal injury, use
only the screws provided with the electrical box.
4. The outlet box and support structure must be securely
mounted and capable of reliably supporting 35 lbs. (15.9
kg). Use only UL Listed outlet boxes marked “Accept-
able for Fan Support of 35 lbs. (15.9 kg) or less.”
5. CAUTION: The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of the blades
to the oor.
6. Do not operate reversing switch while fan blades are
in motion. Fan must be turned off and blades stopped
before reversing blade direction.
7. Avoid placing objects in path of the blades.
8. To avoid personal injury or damage to the fan and other
items, be cautious when working around or
cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
electrical box. The wires should be spread apart with the
grounded conductor and the equipment-grounding
conductor on one side of the electrical box and ungrounded
conductor on the other side of the electrical box.
11. Electrical diagrams are for reference only. Light kits that
are not packed with the fan must be UL Listed and marked
suitable for use with the model fan you are installing.
Switches must be UL General Use Switches. Refer to the
instructions packaged with the light kits and switches for
proper assembly.
12. All set screws must be checked and retightened where
necessary before installation.
13. Suitable for use with solid-state speed controls.
1. Safety Rules
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR
FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS”, AND USE SCREWS
PROVIDED WITH THE OUTLET BOX.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES. TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATION CONTROL/SWITCH.

3
2
5
6
7
8
4
1
a. Blade attachment hardware
(10 Screws)
b. Electrical hardware & Balancing kit
(3 plastic wire connectors, blade
balancing kit)
5. Blades (3)
6. Light Kit Fitter Assembly
7. Glass Shade
8. Light Bulbs (2)
1. Mounting Bracket (inside canopy)
2. 4.5” Ball/Downrod Assembly (hanger pin
and locking pin pre-attached)
3. Canopy
4. Fan Motor Assembly
2. Unpacking Your Fan

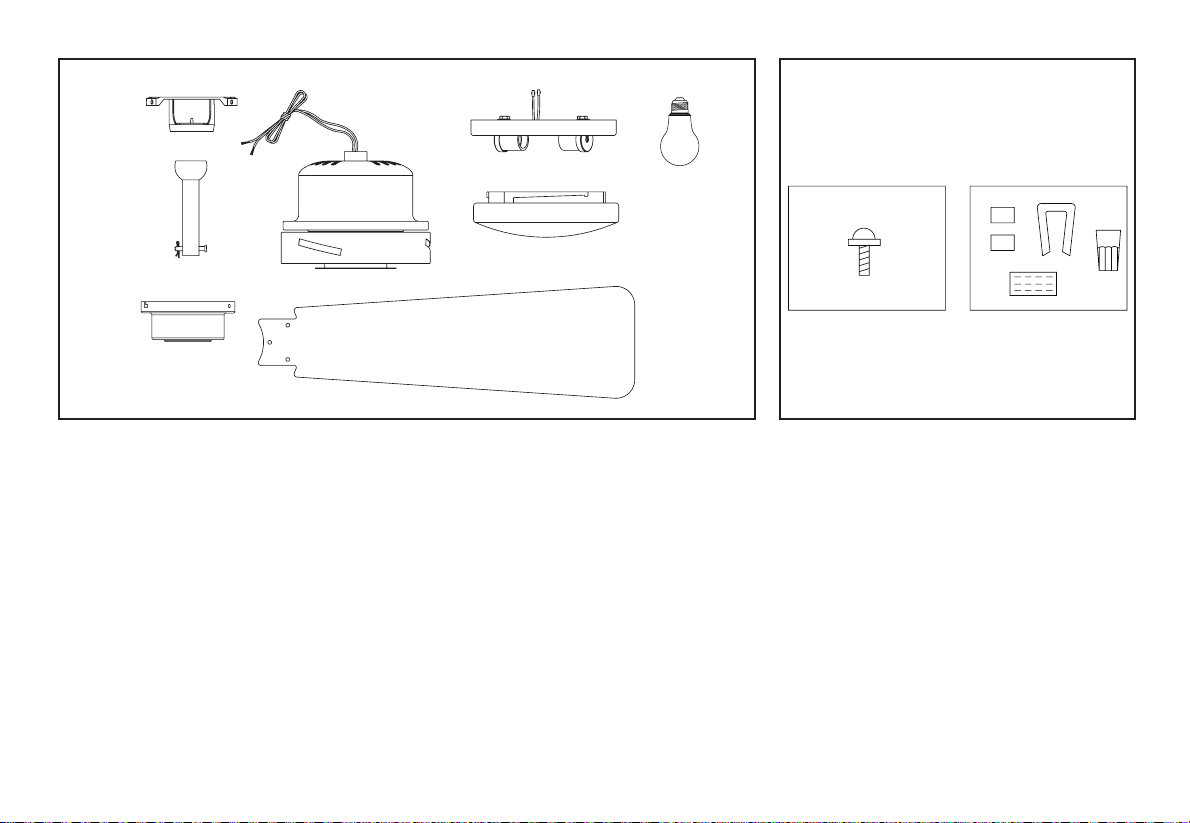

Unpack your fan and check the contents. You should have the following items:
ab

3. Installing Your Fan
Tools Required
Phillips screw driver or straight slotted screw
driver, adjustable wrench, step ladder, and
wire cutters.
Mounting Options
If there isn’t an existing electrical box, then
read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the electrical box directly to the building
structure. Use appropriate fasteners and
building materials. The electrical box and
its support must be able to fully support the
moving weight of the fan (at least 35 lbs.).
Do not use plastic electrical boxes.

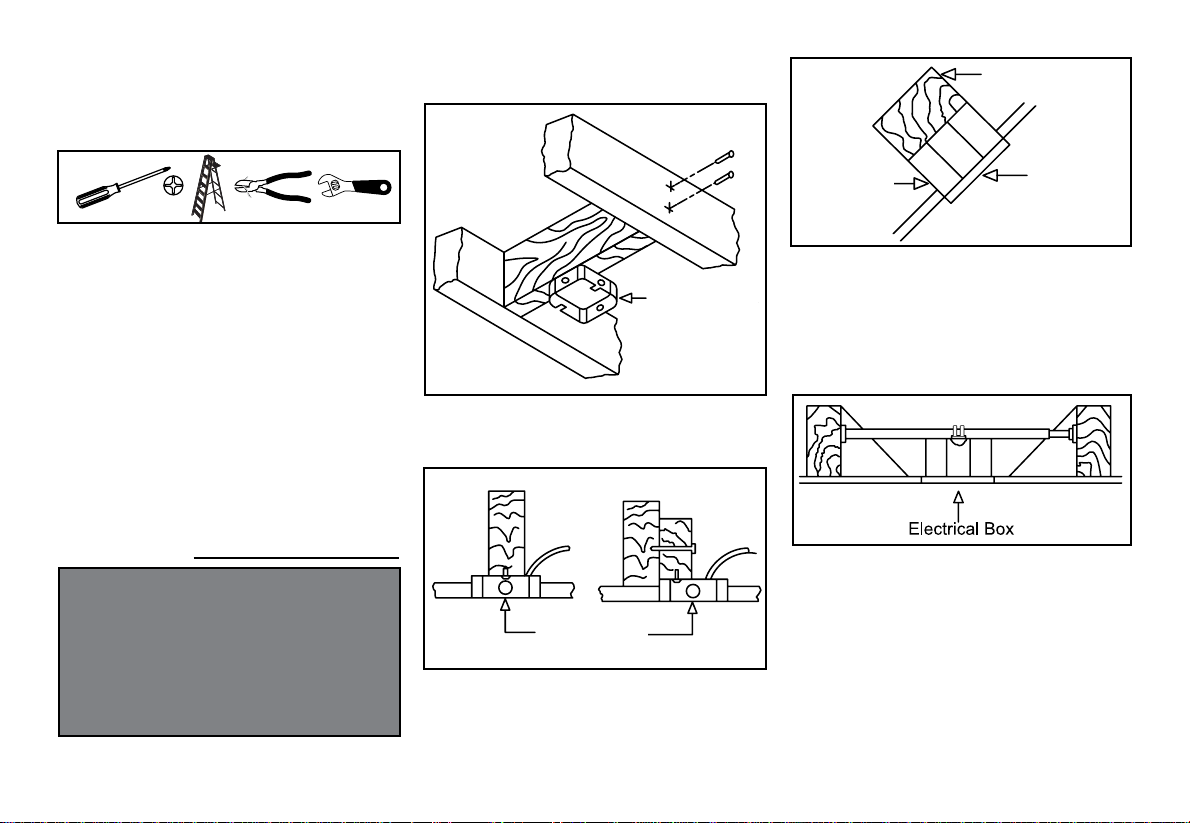

Figures 1, 2, and 3 are examples of different
ways to mount the electrical box.
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum
allowable angle is 30˚.
To hang your fan where there is an existing
xture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE
FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR
LESS”, AND USE SCREWS PROVIDED WITH
THE OUTLET BOX. ELECTRICAL BOXES
COMMONLY USED FOR THE SUPPORT
OF LIGHTING FIXTURES MAY NOT BE
ACCEPTABLE FOR FAN SUPPORT AND
MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Figure 1
Figure 2
Figure 4
Figure 3

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This fan is recommended for
standard ceiling mount using the downrod
provided with this fan. When using standard
ceiling installation with the 4.5 inch downrod
provided, the distance from the ceiling
to the bottom of the fan blades will be
approximately 12.1 inches.
Standard Ceiling Mounting
1. Remove the mounting plate from the
canopy by loosening the four screws on
the top of the canopy. Remove the two
non-slotted screws and loosen the slotted
screws. This will enable you to remove
the mounting plate. (Figure 5)
2. Remove the hanger pin and locking pin
from downrod assembly.
3. Route the wires exiting the top of the fan
motor
. Make sure the slot openings are
through the canopy
ball/downrod
Loosen, but do not remove, the set screws
on the collar on the top of the motor
housing.
6.
Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing. (Figure 6)
7.
Carefully insert the hanger pin through the
holes in the collar and downrod. Be careful
not to jam the hanger pin against the wiring
inside the downrod. Insert the locking pin
through the hole near the end of the hanger
pin until it snaps into its locked position, as
noted in the circle inset of Figure 6.
Re-tighten the set screws on the motor collar
on top of the motor housing.
5.
Proceed to “Installing the Fan” section.
FAILURE TO PROPERLY INSTALL SET SCREWS
AS NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.

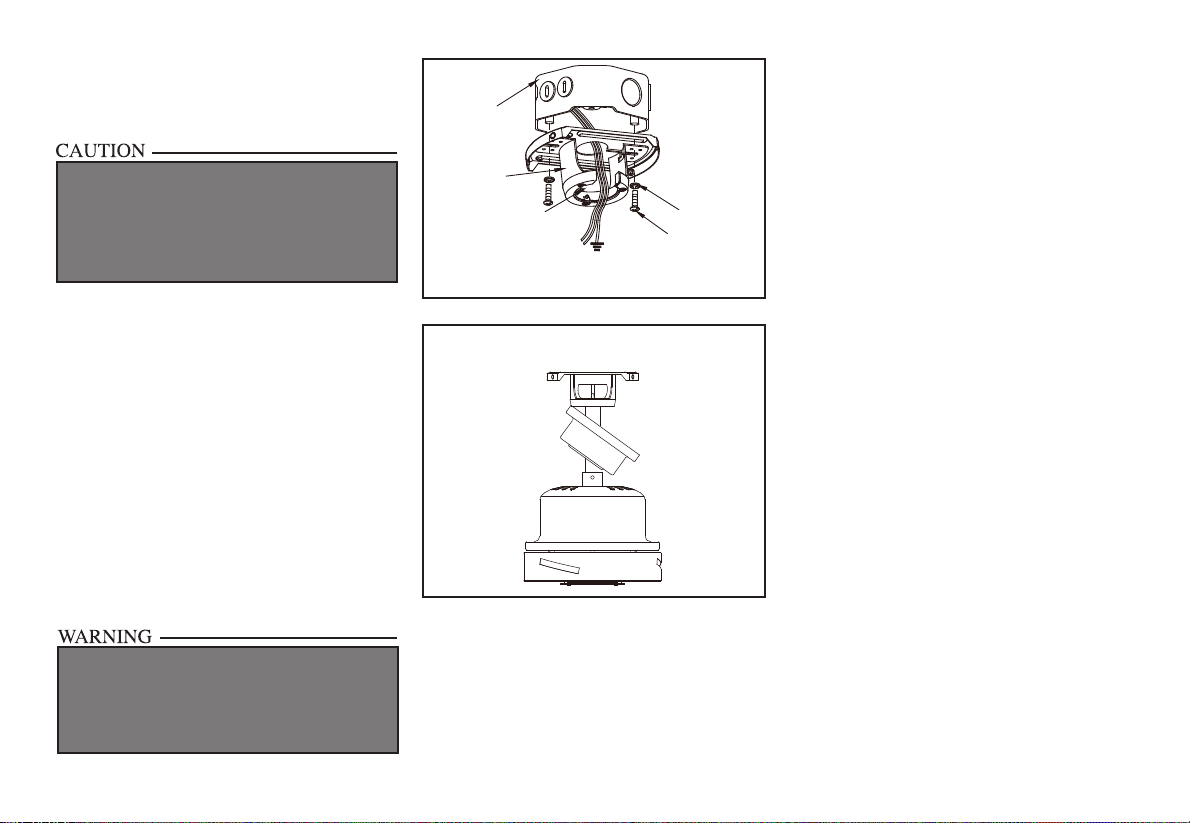

Figure 6
Pin in
position
locked
Motor wires
Ball/Downrod
assembly
Canopy
Tighten screws
Motor
collar
Hanger
pin Locking
pin
Reverse
switch
Remove
Loosen but Do Not Remove
Figure 5
4.
8.
on top. Route the wires
and then through the
assembly. (Figure 6)

Standard mounting
5.
Installing Fan to
the Electrical Box
WHEN MOUNTING THE FAN ON A SLOPED
CEILING, THE STANDARD BALL/DOWNROD
MOUNTING METHOD MUST BE USED. THE
MOUNTING PLATE MUST BE MOUNTED SO
THAT THE SLOT OPENINGS ARE ON THE
LOWER SIDE BY SLIDING THE MOUNTING
PLATE FROM THE TOP DOWN.
1. Pass the 120-volt supply wires through the
center hole in the ceiling mounting plate as
shown in Figure 7.
2. Install the ceiling mounting bracket on the
electrical box by using the mounting screws
provided with the electrical box. Note that
the at side of the mounting plate is toward
the electrical box. (Figure 7)
3. Tighten the two screws on the electrical box
securely.
4. Carefully lift the fan assembly up to the
ceiling mounting plate. Make sure the tab
on the mounting plate is properly seated in
the groove in the hanger ball. (Figure 8)
Figure 7
Washers
120V Wires
UL Listed
Electrical
Box
Ceiling
Mounting
Bracket
Hook
Mounting
Screws
(Supplied with
Electrical Box)
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING BRACKET MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Figure 8

Selecting a Control
Your fan does not include controls for
operating the speed or lighting functions.
Please select a control that suits your
preference from the following guide.
(1) Remote Control Options
Non-Dimmable Bulbs
When using bulbs that are not dimmable
(requires seperate purchase of LED or
incandescent bulbs), use Progress Lighting
P2618-01 or equivalent control.
Dimmable Bulbs
When using bulbs that are dimmable (such as
the included LED bulbs), use Progress Lighting
P2662-01 or equivalent control.
(2) Hardwired Control Options
1-Gang Switch Box
Dimmable Bulbs
When using bulbs that are dimmable (requires
separate purchase of LED or incandescent
bulbs), use Progress Lighting P2630-30 or
equivalent control.
2-Gang Switch Box
Non-Dimmable Bulbs
When using bulbs that are not dimmable
(requires seperate purchase of LED or
incandescent bulbs), use Progress Lighting
P2613-30 or equivalent control PLUS a
separate on/off control to operate lighting.
Dimmable Bulbs
When using bulbs that are dimmable (such as
the included LED bulbs), use Progress Lighting
P2613-30 or equivalent control PLUS a
separate compatible dimmer control to operate
lighting.
A REMOTE CONTROL IS YOUR ONLY CONTROL
OPTION IF YOU ONLY HAVE 1 CIRCUIT
PROVIDING POWER TO THE FAN. THE REMOTE
RECEIVER WILL SPLIT THE CIRCUIT TO
PROVIDE SEPARATE CONTROL FOR THE FAN
SPEEDS AND LIGHTING.
HARDWIRED CONTROLS CAN ONLY BE USED
IF 2 CIRCUITS ARE PROVIDED TO POWER THE
FAN. ONE CIRCUIT WILL BE USED TO OPERATE
THE FAN SPEEDS AND ONE CIRCUIT WILL BE
USED TO OPERATE THE LIGHTING.
6. Fan & Light Control Options
REFER TO THE WIRING INSTRUCTIONS
INCLUDED
WITH CONTROL PURCHASED FOR
USE WITH THIS FAN.

Attaching the Fan
Blades
1. Insert the blade through the slot cut-off in
the center ywheel, align the three screw
holes in the blade with the screw holes in
the ywheel and secure with the screws
provided. (Figure 9)
2. Repeat for the remaining blades.
Figure 9
Figure 10
Blade Balancing
All blades are grouped by weight. Because
natural woods vary in density, the fan may
wobble even though the blades are weight
matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
from a point on the center of each blade
to the point on the ceiling. Measure this
distance as shown in Figure 10. Rotate
the fan until the next blade is positioned
for measurement. Repeat for each blade.
Measurements deviation should be within
1/8”. Run the fan for 10 minutes.
Finishing the Fan
Installation
STANDARD CEILING MOUNTING
1. Align the locking slots of the ceiling
canopy with the two screws in the
mounting plate. Push up to engage the
slots and turn clockwise to lock in place.
Immediately tighten the two mounting
screws rmly.
2. Install the remaining two mounting screws
into the holes in the canopy and tighten
rmly.
3. You may now proceed to attaching the fan
blades.
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING PLATE MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
3. Make sure that canopy is tightened securely
to ceiling mounting bracket and that the
ceiling mounting bracket is tightened
securely to the electrical box.
4. Interchanging two adjacent blades can
redistribute the weight and possibly result
in the smoother operation.
5. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
7.

Installing the Light
Kit/ Glass Bowl
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit
to the fan before installing the light kit.

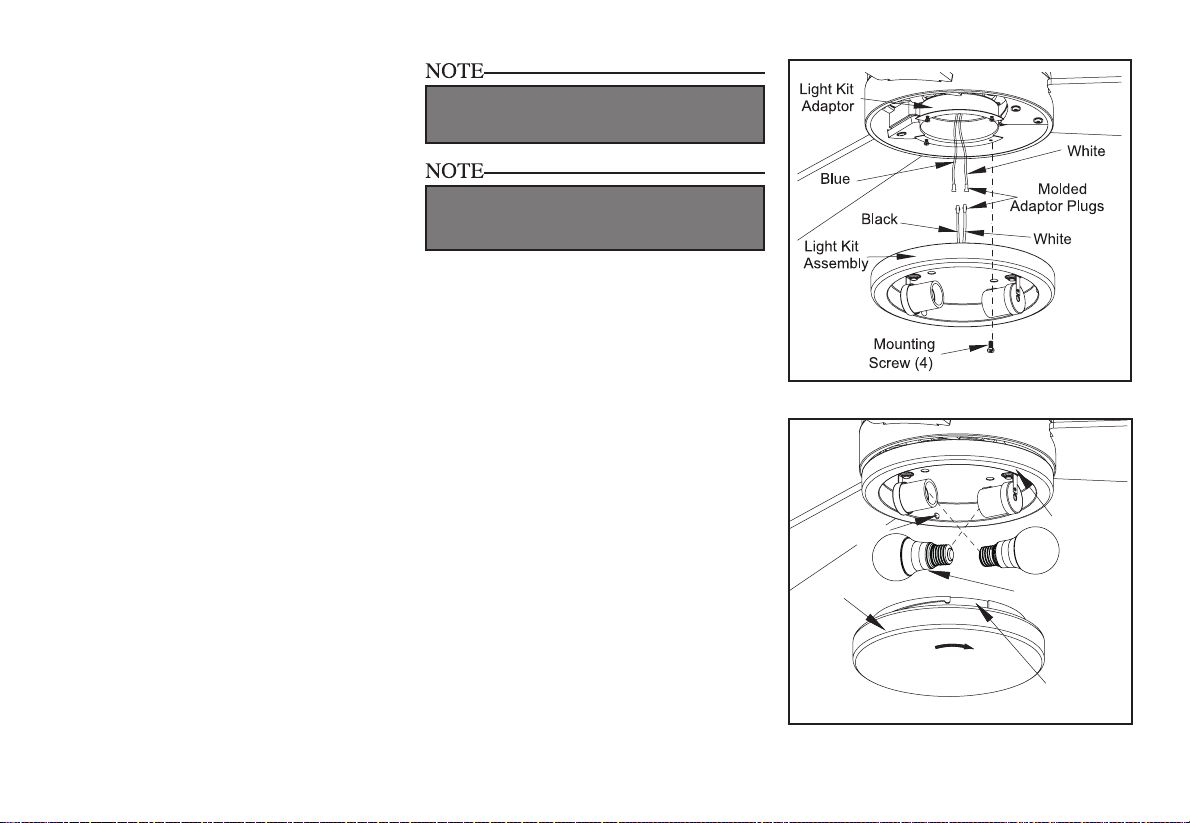

1. Loosen but do not remove three of four
mounting screws from the light kit adaptor
below the fan motor assembly; remove one
mounting screw. (Figure 11)
2. Connect the blue and white wires exiting
the light kit adaptor with the black and
white wires from the light kit assembly by
engaging the molded adaptor plugs (blue to
black; white to white).
3. Carefully tuck connectors into the light
kit adaptor. Position the light kit assembly
onto the light kit adaptor, aligning each of
the four holes. Rotate the light kit assembly
clockwise to engage the three mounting
screws with the three key hole slots, tighten
the screws. Re-install the one mounting
screw that was removed in step 1 and
tighten rmly.
4. With power off, install the two LED bulbs
by screwing into the light bulb sockets.
(Figure 12)
5. Place the glass shade into the light kit
assembly, aligning the three at areas
on the top ange of the glass shade with
the three raised dimples in the light kit
assembly. Turn the glass shade clockwise
until it stops. (Figure 12)
Glass
Light Kit
Assembly
Bulbs(2)
(Provided)
Dimples
Raised
Flat Area
Figure 12
Figure 11
PERIODICALLY CHECK THE SHADE IS SEATED
FULLY CLOCKWISE IN THE LIGHT KIT PAN
ASSEMBLY.
8.
ALLOW THE BULBS TO COOL COMPLETELY
BEFORE TOUCHING OR REPLACING TO AVOID
ACCIDENTAL BURNING OF THE SKIN.

9. Operating Your Fan
Speed settings for warm or cool weather depend
on factors such as room size, ceiling height,
number of fans, and so on.
The fan shipped from the factory with the
reversing switch positioned to circulate air
downward. If airow is desired in the opposite
direction, turn your fan off and wait for the
blades to stop turning, then slide the reversing
switch (located at the top of the motor housing,
refer to figure 6 on page 4) to opposite position,
and turn fan on again. The fan blades will turn
in the opposite direction and reverse airow. Figure 13
Figure 14

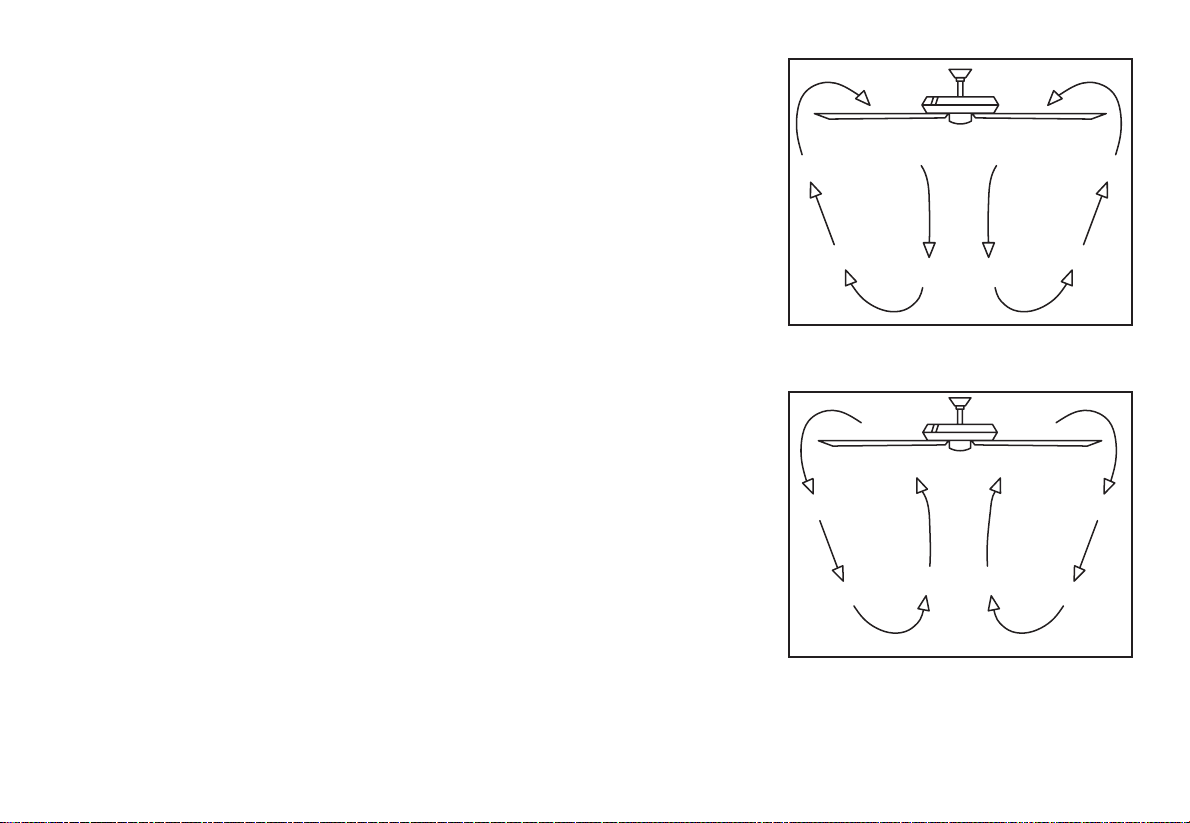

Warm weather - (Forward) A downward air
ow creates a cooling effect as shown in Figure
13. This allows you to set your air conditioner
on a higher setting without affecting your
comfort.
Cool weather - (Reverse) An upward air ow
moves warm air off the ceiling are as shown in
Figure 14. This allows you to set your heating
unit on a lower setting without affecting your
comfort.

10. Care of Your Fan and Troubleshooting
Care of Your Fan
Here are some suggestions to help you
maintain your fan.
1. Because of the fan’s natural movement,
some connections may become loose.
Check the support connections, brackets,
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Do not
use water when cleaning, this could damage
the motor, or the wood or possibly cause
an electrical shock. Use only a soft brush
or lint-free cloth to avoid scratching the
nish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing.
Warning - Make sure the power is off
before cleaning your fan.
3. You can apply a light coat of furniture polish
to the wood for additional protection and
enhanced beauty. Cover small scratches
with a light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
sealed ball bearings. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT TO MAKE ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS.”
Fan will not start
Fan sounds noisy
1. Check main and branch circuit fuses or breakers
2. Check line wire connections to the fan and switch wire connections in
the switch housing. CAUTION: Make sure main power is off.
3. Check batteries in the transmitter. Does the red LED light come on?
Are you standing close enough to the fan? (Normal range is 10-20
feet.) Are the dip switch settings the same on the transmitter (hand unit)
and receiver? REMEMBER TO TURN OFF POWER SUPPLY
BEFORE CHECKING THE DIP SWITCH SETTINGS IN
RECEIVER.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
3. Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
CAUTION: Make sure power is off.
4. Allow a 24-hour “breaking in” period. Most noises associated with a
new fan disappear during this time.
5. Make sure that the light bulbs are secure.
6. Make sure the canopy is a short distance from the ceiling.
It should not touch the ceiling.
7. Make sure your electrical box is secure and rubber isolator pads were
used between the mounting bracket and electrical box.
Troubleshooting
Problem Solution

11. Specications
FAN
SIZE SPEED VOLTS
FAN POWER
CONSUMPTION
(WITHOUT LIGHTS)
WATTS
AIRFLOW
CFM
AIRFLOW
EFFICIENCY
(HIGHER IS BETTER)
CFM/WATT
NET
WEIGHT
GROSS
WEIGHT
CUBE
FEET
52” Low 120 9 2144 238 16.98
Lbs
19.12
Lbs 1.7
High 56 5296 95
©2017 Progress Lighting, Inc.
701 Millennium Blvd.,
Greenville, SC 29607
All Rights Reserved

®
P2553
Manual de instalación del ventilador de techo
93114634_ C

Garantía limitada de por vida
Fecha de compra
Tienda donde se compró
Modelo UL Nº.
Número de serie
Proveedor Nº.
UPC
111017
P2553
Los motores de ventilador Progress Lighting se garantizan al comprador original como libres de defectos eléctricos y/o mecánicos
por el tiempo en que estén en su posesión como dueño. Los interruptores activados por cadena, los interruptores de reversa, los
capacitores y los acabados de metal se garantizan como libres de defectos materiales o de fabricación por el plazo de 1 año desde
la fecha de compra. Las deformaciones de las aspas de madera o plástico no están cubiertas por esta garantía. Tampoco lo están la
corrosión y/o deterioro del acabado de ventiladores instalados a menos de diez millas de cualquier costa del mar. Pudieran aplicarse
garantías extendidas para productos ENERGY STAR® que caliquen.
Los ventiladores de techo Progress Lighting con fuentes de luz LED incorporadas, si han sido bien instalados y bajo condiciones
normales de uso, se garantizan como libres de defectos materiales y de fabricación que puedan causar un fallo en el funcionamiento
según las especicaciones de dichas fuentes de luz durante un periodo de (i) cinco (5) años a partir de la fecha de compra para los
módulos de luz LED y componentes eléctricos de ventiladores usados en residencias unifamiliares y durante (ii) tres (3) años para
ventiladores usados residencias multifamiliares o en instalaciones comerciales. Las bombillas LED suministradas por Progress
Lighting sólo poseen la garantía del fabricante. Las bombillas que no sean LED no tienen garantía.
Con prueba de la compra, el comprador original puede devolver el ventilador defectuoso, para su reposición, al lugar donde lo
compró, dentro de los 30 días siguientes a la compra. Pasados los 30 días, el comprador original TIENE que comunicarse con
Progress al [phone] para reparación o reposición, según determine Progress Lighting a su entera discreción, y este será el
único y exclusivo remedio del comprador.
No se cubren cargos por mano de obra y envío. Esta garantía no cubre ningún costo ni cargo asociado a la mano de obra (incluyendo,
pero sin limitarse a, los cargos del electricista) que se requieran para instalar, retirar o reponer un ventilador o cualquiera de sus
piezas o partes.
Esta garantía no cubre ninguna pérdida o daño resultante de (i) desgaste normal o alteración, mal uso, abuso o negligencia, o (ii)
instalación, operación, reparación o mantenimiento incorrectos por el comprador original o un tercero, incluso sin limitación del
suministro de tensión o sobrecarga de alimentación, uso de piezas o accesorios inadecuados, reparación no autorizada (realizada o
intentada) o falta de mantenimiento al ventilador.
LAS GARANTÍAS ANTERIORES ESTABLECEN LA OBLIGACIÓN DE GARANTÍA TOTAL DE PROGRESS
LIGHTING Y EL ÚNICO Y EXCLUSIVO REMEDIO DEL COMPRADOR ORIGINAL RELACIONADO CON DICHOS
PRODUCTOS. PROGRESS LIGHTING NO ES RESPONSABLE POR NINGÚN DAÑO (SEAN INDIRECTOS,
ESPECIALES, INCIDENTALES O CONSECUENTES) DEBIDO A FALLAS DEL PRODUCTO, YA SEAN DERIVADAS DE
INCUMPLIMIENTO DE LA GARANTÍA O DEL CONTRATO, O DE CUALQUIER OTRA CAUSA. ESTA GARANTÍA SE
OTORGA EN LUGAR DE TODAS LAS DEMÁS, YA SEAN EXPRESAS O IMPLÍCITAS, INCLUIDAS LAS GARANTÍAS
DE COMERCIABILIDAD, IDONEIDAD PARA UN PROPÓSITO EN PARTICULAR O NO INFRACCIÓN.
Algunos estados no permiten limitaciones en la duración de una garantía implícita ni exclusión o limitaciones de daños incidentales
o consecuentes, así que las exclusiones o limitaciones anteriores pudieran no aplicarse a su caso. Esta garantía le otorga derechos
especícos y es posible que usted tenga otros, que varían de estado a estado.
785247240357
785247240364

Normas de seguridad
Cómo desempacar el ventilador
Cómo instalar el ventilador
Cómo usar el ventilador
Cuidado del ventilador
Solución de problemas
Especicaciones
Tabla de contenido
1
2
3
9
10
10
11

1. Para disminuir el riesgo de descarga eléctrica, antes de comenzar la
instalación asegúrate de que la electricidad ha sido desconectada en el
cortacircuitos o en la caja de fusibles.
2. Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y con los códigos locales de
electricidad. La instalación eléctrica debe hacerse por un electricista
calicado y con licencia.
3. PRECAUCIÓN: Para reducir el riesgo de lesiones físicas, usa sólo los
tornillos suministrados con la caja de distribución.
4. La caja eléctrica y estructura de soporte tienen que montarse de forma
segura para poder sostener con conanza 35 lb. (15.9 kg). Usar solo
cajas eléctricas aprobadas por UL con la marca «Apta para sostener
ventiladores de 35 lb» (15.9 kg) o menos.”
5. PRECAUCIÓN: El ventilador tiene que montarse con al menos 7 pies
(2.13 m) de separación entre el borde de salida de las aspas y el piso.
6. No operar el interruptor de reversa mientras las aspas del ventilador
estén en movimiento. El ventilador tiene que estar apagado y las aspas
detenidas antes de invertir el sentido del movimiento.
7. Evita colocar objetos en la trayectoria de las aspas.
8. Para evitar lesiones personales o daños al ventilador y otros artículos, ten
cuidado al limpiarlo o al trabajar cerca de él.
9. No usar agua ni detergentes para limpiar el ventilador o las aspas. Para
limpiar, casi siempre será adecuado un paño seco o ligeramente humedecido
con que quitar el polvo.
10. Después de concluir las conexiones eléctricas, debes voltear los conductores
empalmadoshaciaarribayempujarlosconcuidadodentrodelacajaeléctrica.
Los cables deben quedar separados, con el cable y el conductor a tierra
del equipo a uno de los lados de la caja eléctrica, y el conductor sin conexión
a tierra al lado opuesto.
11. Los diagramas eléctricos son solo para referencia. Los kits de luces no
empaquetados con el ventilador tienen que estar aprobados por UL y
marcados como apropiados para usar con el modelo de ventilador que estás
instalando. Los interruptores tienen que estar clasicados de uso general
por UL. Para ensamblar bien, consulta las instrucciones adjuntas a los kits
de luces e interruptores.
12. Antes de la instalación, todos los tornillos de jación tienen que comprobarse
y reajustarse donde sea necesario.
13. Apto para usar con dispositivo de estado sólido para control de velocidad.
1. Normas de seguridad
LEE Y GUARDA ESTAS INSTRUCCIONES
ADVERTENCIA
ADVERTENCIA
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA O LESIONES
PERSONALES, INSTALA SÓLO EN UNA CAJA ELÉCTRICA CLASIFICADA COMO “APTA
PARA SOSTENER VENTILADORES DE 35 LB. (15.9 KG) O MENOS”, Y USA SÓLO LOS
TORNILLOS INCLUIDOS CON LA CAJA ELÉCTRICA.
PARA REDUCIR EL RIESGO DE LESIONES PERSONALES, NO DOBLES LOS BRAZOS
DE LAS ASPAS (TAMBIÉN LLAMADOS “REBORDES”) NI DURANTE NI DESPUÉS DE LA
INSTALACIÓN. NO COLOCAR OBJETOS EN LA TRAYECTORIA DE LAS ASPAS. PARA REDUCIR EL RIESGO DE DESCARGA ELÉCTRICA, ESTE VENTILADOR TIENE
QUE INSTALARSE CON UN CONTROL/INTERRUPTOR DE AISLAMIENTO.
ADVERTENCIA

3
2
5
6
7
8
4
1
a. Herrajes de montaje de aspas
(10 tornillos)
b. Herrajes eléctricos y kit de compensación
(3 conectores plásticos de cables, kit de
compensación de aspas).
5. Aspas (3)
6. Conjunto de soporte del kit de luces
7. Pantalla de vidrio
8. Bombillas (2)
1. Soporte de montaje (dentro de la cubierta)
2. Conjunto de tubo bajante/esfera de 4.5” [11.4 cm]
(pasadores de soporte y de cierre prejados)
3. Cubierta
4. Conjunto del motor del ventilador
2. Cómo desempacar el ventilador
Desempaca tu ventilador y revisa el contenido. Debes tener los siguientes artículos:
ab

3. Cómo instalar el ventilador
Herramientas necesarias
Destornillador Phillips o de punta plana, llave
ajustable, escalera de tijera y cortacables.
Opciones de montaje
Si no hay una caja eléctrica presente, lee las
siguientes instrucciones. Desconecta la corriente
eléctrica retirando los fusibles o apagando los
cortacircuitos.
Asegura la caja eléctrica directamente a la estructura
de la edicación. Usa sujetadores y materiales de
construcción apropiados. La caja eléctrica y su
soporte tienen que poder sostener todo el peso en
movimiento del ventilador (al menos 35 lb = 15.9 kg).
No uses cajas eléctricas de plástico.
Las guras 1, 2 y 3 ejemplican diferentes maneras
de montar la caja eléctrica.
Nota: Tal vez necesites un tubo bajante más
largo para mantener la altura mínima adecuada
de las aspas al instalar el ventilador en un techo
de inclinación pronunciada. Ángulo máximo
permitido: 30º
Para colgar el ventilador donde haya una lámpara,
pero ninguna viga de techo, tal vez necesites una
barra colgante de instalación como se muestra en
la Figura 4.
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA
ELÉCTRICA U OTRAS LESIONES, INSTALA SÓLO EN UNA
CAJA ELÉCTRICA CLASIFICADA COMO “APTA PARA
SOSTENER VENTILADORES DE 35 LB (15.9 KG). (15.9
KG) O MENOS”, Y USA SÓLO TORNILLOS INCLUIDOS
CON LA CAJA ELÉCTRICA. UNA CAJA ELÉCTRICA
QUE SUELE UTILIZARSE PARA EL SOPORTE DE
LÁMPARAS PUDIERA NO SERVIR COMO SOPORTE DEL
VENTILADOR Y TAL VEZ DEBA REEMPLAZARSE. EN CASO
DE DUDA, CONSULTA A UN ELECTRICISTA CALIFICADO.
Figura 1
Figura 2
Figura 4
Figura 3
Caja eléctrica
Caja eléctrica
Provee un
soporte fuerte
Caja eléctrica
empotrada
Placa
de montaje
en techo
ADVERTENCIA
