MATRIX BAR 2 IP Wi
USER MANUAL

http://prolux.net.ua
2
1 SUMMARY
Summary Thank you for purchasing our MATRIX BAR 2 IP Wi. Please read these
instructions carefully before begin and operate the fixtures according to these
instructions to avoid any possible damages and accidents causes by misusage
Product introduction LED MATRIX BAR 2 IP Wi light uses casting aluminum
housing, designed in a fashion of hydrodynamic form. Appearance shows. It
adopts high power 5-in-1 LED, which refers to single LED is made of R, G, B, A,
W 5-IN-1 LED, and long life span, low consumption, good color mixing effect and
high brightness are the most prominent features. Each kind of LED can be
independently dimmed. The built-in program includes dimming, strobe, eotic,
gradual change, fading and so on. It uses power switch, performs low weight and
consumption, stable capability and long life. International standard DMX 512 signal
is requested.
Packing list
Content
Quantity
MATRIX BAR 6 IP
Wi
1
Power Cable
1
DMX Signal cable
1
The use manual
1
2 SAFETY INSTRUCTION
Safety Notes
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving
and moving;
! Avoid direct eye exposure to the fixture when it is on;
Safety instruction
Make sure the power supply voltage is consistent with this lights Ensure the use
of voltage is in the range of the request technical parameter.
Before the installation, please check the light’s fasteners and mechanical structure
have been received in good condition and appear no damage.
This light is designed for indoor use; working temperature is lower than 40
degrees.

http://prolux.net.ua
3
The fixtures maybe mounted in any position provided there is adequate room for
ventilation. Make sure there are no inflammable and explosive items (ornaments)
in 0.5 meters away.
Yellow / green cabling earthling safety; no flicker when the fixture is working on.

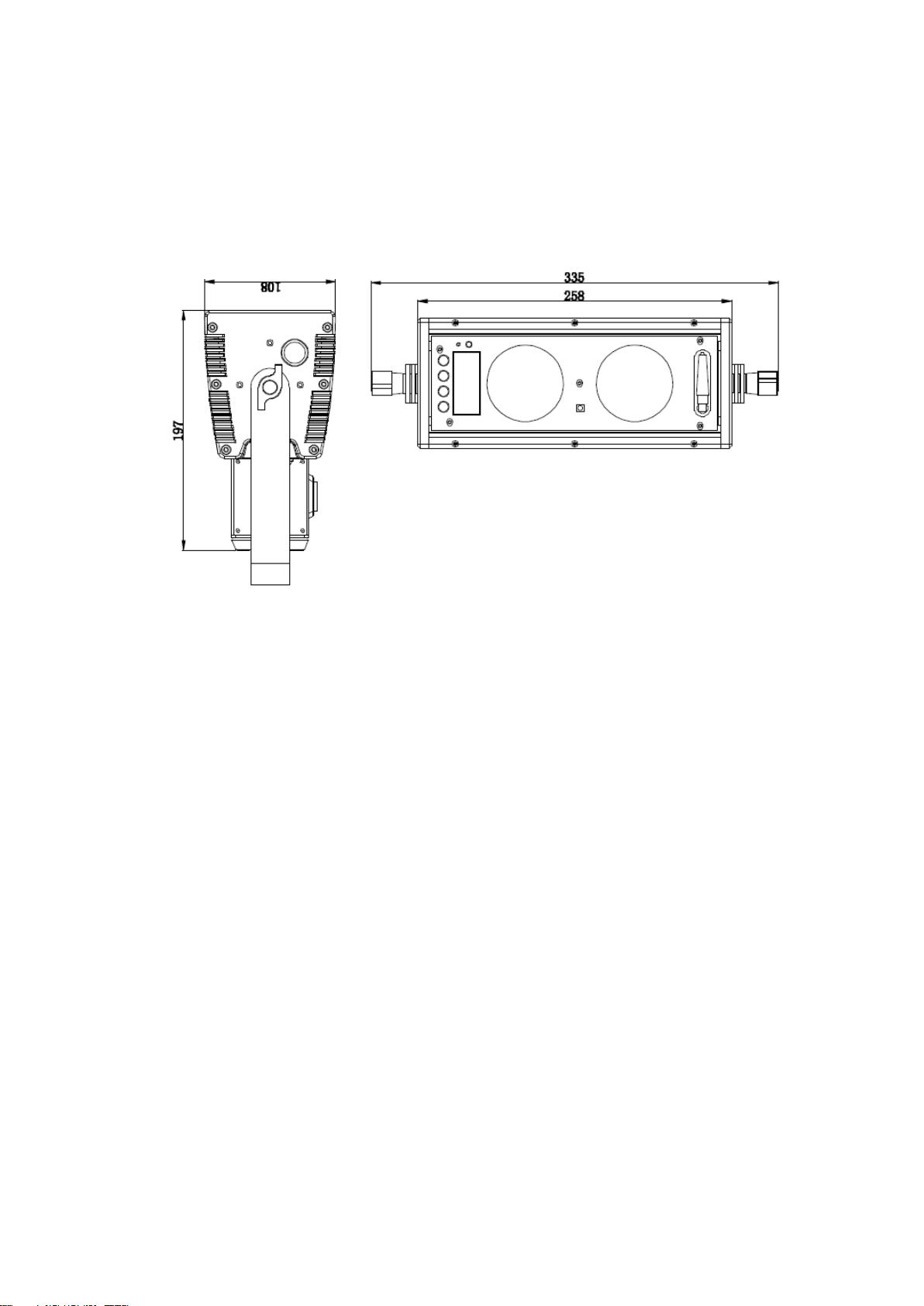

3OUTSIDE SIZE PICTURE
4 MAIN FUNCTIONS
Input voltage: AC 100V-264V/47-63HZ
Power consumption: 60W
Lamp Type: 25W LED 5-in-1 RGBWA (2PCS)
Life span: 50000~100000hours
PWM Dimmer: 1500HZ (16666 grades)
Control Signal: DMX512
Control mode: standalone/ sound activated/Master/Slaver, Infrared keyboard
control, 2.4G wireless DMX512
Channel: 11CH/8CH/6CH/5CH
Function Effect: dimmer, strobe, gradual change
Battery charge time: 5 hours
Full power battery duration: 4.5 hours
Cooling mode: Natural Convection
Anti-electricity intension: 1.5KV
Insulation Resistance: >2MΩ
Beam Angle: 30°

http://prolux.net.ua
4
5 DMX CONTROL FUNCTION
DMX Channels
5CH
6CH
8CH
11CH
Value
Function
-
CH1
CH1
CH1
0-255
Dim all
CH1
CH2
CH2
CH2
0-255
R
CH2
CH3
CH3
CH3
0-255
G
CH3
CH4
CH4
CH4
0-255
B
CH4
CH5
CH5
CH5
0-255
A
CH5
CH6
CH6
CH6
0-255
W
-
-
CH7
CH7
0-5
No strobe
6-115
Normal strobe (slow to fast)
116-130
No strobe
131-170
Electronic Sinewave(slow to fast)
171-210
Opening pulse(slow to fast)
211-250
Closing pulse(slow to fast)
251-255
No strobe
-
-
-
CH8
(CH8
Prior to
CH10)
0-5
No effect
6-10
CT01(Call custom color in menu settint)
11-15
CT02
16-20
CT03
21-25
CT04
26-30
CT05
31-35
CT06
36-40
CT07
41-45
CT08
46-50
CT09
51-55
CT10
56-60
AUTO 1(R,G,B,RG,RB,GB)
61-65
AUTO
2(R↑,R↓,G↑,G↓,B↑,B↓,A↑,A↓,W↑,W↓)
66-70
AUTO
3(R↑G↑,R↓G↓,R↑B↑,R↓B↓,B↑G↑,B↓G↓)
71-75
AUTO 4(R↑G↑B↑W↑,R↓G↓B↓W↓)

http://prolux.net.ua
5
76-80
AUTO 5(Rainbow effect:
B,BG↑,BG,B↓G,G,GR↑,GR,G↓R,R,RB↑,RB
,R↓B)
81-220
Reserved
221-225
CHASE1
226-230
CHASE2
231-235
CHASE3
236-240
SOUND 1: Sound change color
241-245
SOUND 2: Sound Strobe(white color only)
246-255
Reserved
-
-
-
CH9
0-255
Auto speed,fast->slow
-
-
-
CH10
Virtual colour wheel
0-10
No effect
11
Blue (Blue=full,
Red+Green+White=0)(step)
12-50
Red=0, Green->up,Blue =full,
White=0(proportional)
51
Light Blue (Red=0, Green=full, Blue =full,
White=0)(step)
52-90
Red=0, Green=full, Blue->down,
White=0(proportional)
91
Green (Red=0, Green=full, Blue =0,
White=0)(step)
92-130
Red->up, Green=full, Blue=0,
White=0(proportional)
131
Yellow (Red=full, Green=full, Blue=0,
White=0)(step)
132-170
Red=full, Green->down, Blue=0,
White=0(proportional)
171
Red(Red=full, Green=0, Blue=0,
White=0)(step)
172-210
Red=full, Green=0, Blue->up,
White=0(proportional)
211
Magenta (Red=full, Green=0, Blue=full,
White=0)(step)
212-250
Red -> down, Green=0, Blue=full,
White=0(proportional)

http://prolux.net.ua
6
251-255
Blue (Red=0, Green=0, Blue=full,
White=0)(step)
-
-
CH8
CH11
0-10
Use the dimmer mode which menu had set
up
11-20
Linear curve
21-30
Square law curve
31-40
Inverse square law curve
41-50
S-curve
51-60
Linear curve and smooth
61-70
Square law curve and smooth
71-80
Inverse square law curve and smooth
81-90
S-curve and smooth
91-255
Use the dimmer mode which menu had set
up

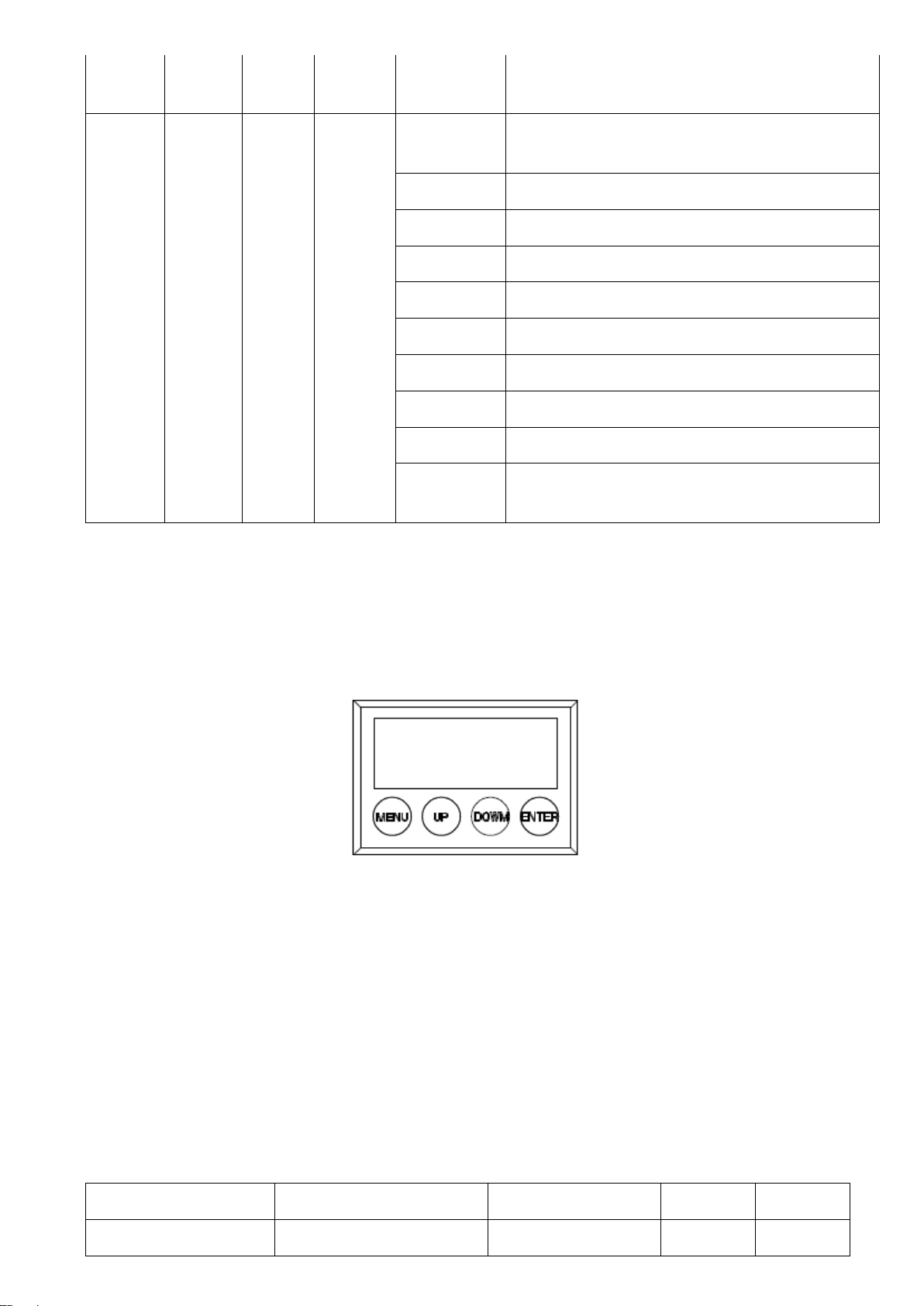

6 DISPLAY OPERATION INSTRUCTION
MENU: access the menu or return to a previous menu option
ENTER: select the current menu option
UP: menu selection or parameter increments
DOWN: menu selection or parameters decrease
Menu Tree
TAB
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
ADDR (Address)
001-512

http://prolux.net.ua
7
STAT (Static
control)
R
0-255 *
G
0-255 *
B
0-255 *
A
0-255 *
W
0-255 *
SHUT
0-255 *
SET(Set)
SIGN (DMX signal
selection)
2.4G(wireless)/CA
BL(Cable)
WIRE (Wireless set)
REST(reset)
YES/NO
KEY
BAT (battery output)
HIGH/MIDDLE/LO
W
CAL (Calibration)
R
0-25
G
0-255
B
0-255
A
0-255
W
0-255
USE
YES/NO
CHMD (Channel mode)
11CH
8CH
6CH
5CH
DIM (Dimming mode)
LIN (linear)/SQR
(square law)/ISQR
(inverse square
law)/SCUR (S-
curve)/LIN. (linear
smooth)/SQR.
(square law
smooth)/ISQR.
(inverse square
law
smooth)/SCUR.
(S-curve smooth)
DISY (Display set)
ON (Permanent
on)
2 OFF (2 minutes
off)

http://prolux.net.ua
8
SHOW
ADDR/BAT
CTST (Custom color
set)
CT01
R
0-255
.
G
0-255
.
B
0-255
.
A
0-255
.
W
0-255
CT10
AUTO(Auto)
AT01
RUN.. *
.
RUN.. *
.
RUN.. *
.
RUN.. *
AT05
RUN.. *
ATSP (Auto speed)
0-255(S)
CHS1(Chase 1)
RUN.. *
CHS2 (Chase 2)
RUN.. *
CHS3 (Chase 3)
RUN.. *
SOU1 (Sound1)
RUN..*(Sound
change color)
SOU2 (Sound2)
RUN..* (Sound
Strobe, white color
only)
PROG (Program)
CHS1 (Chase 1)
SC01 (Scene 1)
R
0-255
.
.
G
0-255
.
.
B
0-255
.
.
A
0-255
.
.
W
0-255
.
.
SHUT
0-255
.
.
AUTO
NONE,
AT01-
AT05
.
.
ATSP
0-255(S)
.
.
TIME
0-255(S)
.
.
WAIT
0-
25.5(S)

http://prolux.net.ua
9
.
.
USE
YES/NO
.
SC25(Scene 25)
CHS3 (Chase 3)
INFO (Information)
SOFT (Software
version)
Vx.x
BATTERY
0%-100%
POW (Power reduction)
xxx%
TEMP
xxxC
LOAD(Load)
ST L (Setting load)
YES/NO
PR L (Program load)
YES/NO
SEND(Send)
YES/NO
Instructions:
When enter to the “*” position displayed on the LED, the light will
automatically set as master and send data to external. Other fixtures can
receive this data and will synchronously running without manually set as
slave. When power cycle it will jump to the “*” position and running again.
And in these position it will not return back to the default display after two
minutes.
6.1 DMX ADDRESS SETTING
1) Press the 【ENTER】button in 【ADDR】menu, then enter to the DMX
address setting.
2) Press the【UP/DOWN】button to select【1-512】numerical value.
3) Press the【ENTER】button to escape and save.
6.2 STATIC SETTING
1) Press the【ENTER】button in 【STAT】menu, then enter to the static setting.
2) Press the【UP/DOWN】button to select 【RED】,【GREEN】,【BLUE】
,【AMBER, 【WHITE】and【SHUT】.
3) Press the【UP/DOWN】button to set up the【0-255】numerical value.
4) Press the【ENTER】button to escape and save.
6.3 DMX SIGNAL SELECTION SETTING
1) Press the【ENTER】button in【SIGN】menu, then enter to the DMX signal
selection setting.
2) Press the【UP/DOWN】button to select【2.4G, 【CABLE】

http://prolux.net.ua
10
3) Press the【ENTER】button to escape and save.
6.4 WIRELESS SET
1) Press the【ENTER】button in【WIRE】menu, then enter to the wireless set.
2)【RESET】Analog the wireless module,it is the process of off and pressing the
button then power
3)【KEY】similar as the external key.
6.5 BATTERY OUTPUT SETTING
1) Press the【ENTER】button in【BAT】menu, then enter to the Battery output
setting.
2) Press the【UP/DOWN】button to select【HIGH】, 【MIDDLE】, 【LOW】
3) Press the【ENTER】button to escape and save.
6.6 COLOR CAST CALIBRATION SETTING
1) Press the【ENTER】button in 【CAL】menu, then enter to the color cast
calibration setting.
2) Press the【UP/DOWN】button to select 【RED】,【GREEN】...【WHITE】
3) Press the【UP/DOWN】button to set up the【0-255】numerical value.
4) On the【USE】interface, pressing【YES】button means valid, 【NO】means
invalid.
5) Press the【ENTER】button to escape and save.
Illustrations: When pressing the【YES】button which means valid on the【USE
】interface, the actual output value of RED... WHITE is output in accordance with
the percentage which the color cast calibration value divides 255.
6.7 CHANNEL MODE SETTING
1) Press the【ENTER】button in 【CHMD】menu, then enter to the channel
mode setting.
2) Press the【UP/DOWN】button to select【11CH】,【8CH】,【6CH】,【
5CH】
3) Press the【ENTER】button to escape and save.
6.8 DIMMING MODE SETTING
1) Press the【ENTER】button in【DIM】menu, then enter to the dimming mode
setting.
2) Press the【UP/DOWN】button to select【LIN】,【SQR】,【ISQR】,【
SCUR】,【LIN.】,【SQR. 】,【ISQR.】And SCUR.】.
3) Press the【ENTER】button to escape and save.
Illustrations:When setting【LIN.】【SQR. 】,【ISQR. 】and 【SCUR. 】in

http://prolux.net.ua
11
【DIM】menu, there will be added a little delay dimming effect for smooth.

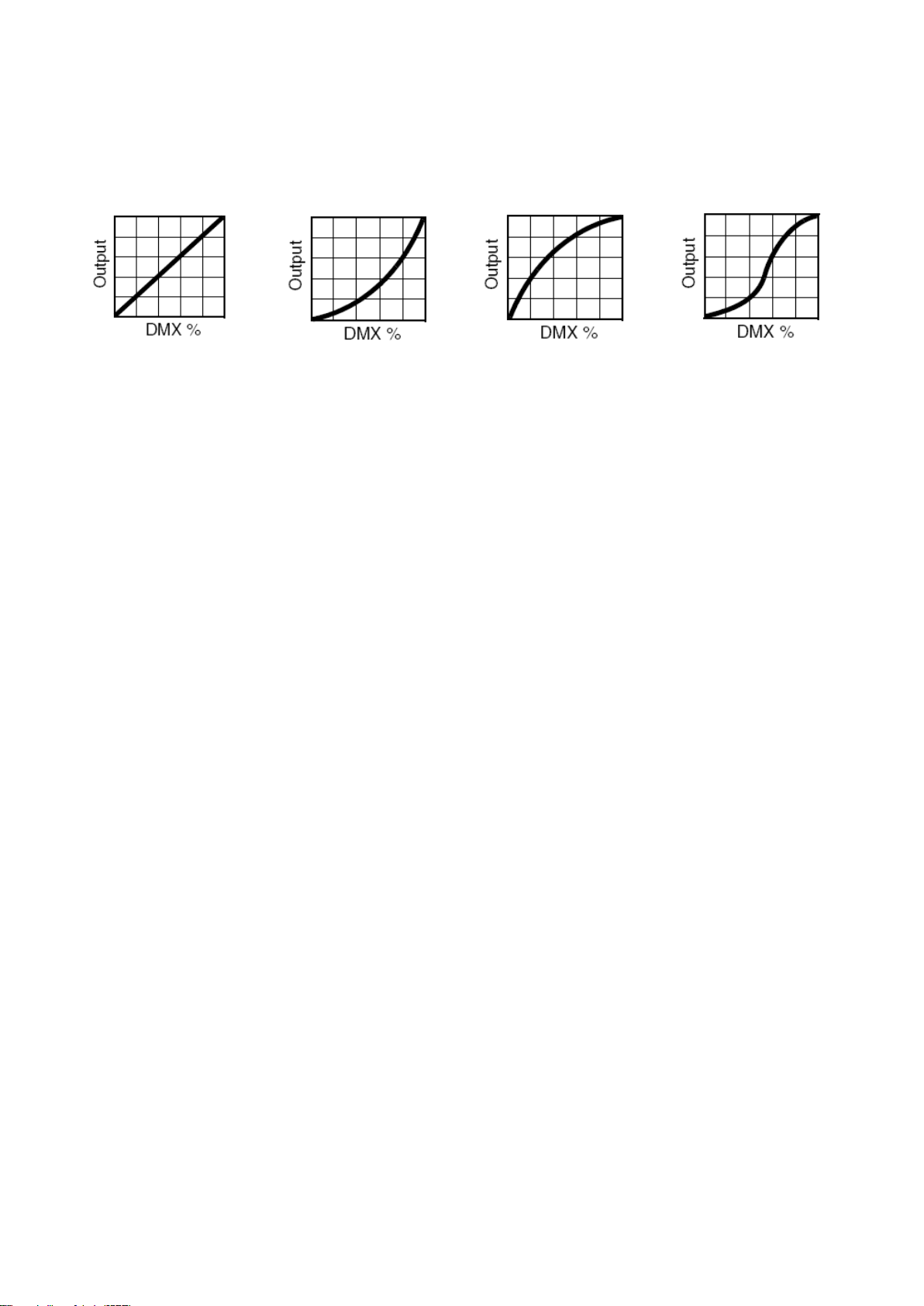

Dimming curve:
Linear curve: Square law curve: Inverse Square law curve: S-
curve:
6.9 DISPLAY SETTING
1) Press the【ENTER】button in【DISY】menu, then enter to the display setting.
2) Press the【UP/DOWN】button to select【ON】,【2 MINITES OFF】
3) Press the【ENTER】button to escape and save.
6.10 TWO MINUTES TIME OUT DISPLAY SETTING
1) Press the【ENTER】button in【DISY】menu, then enter to the two minutes
time out display setting.
2) Press the【UP/DOWN】button to select【ADDR】,【BAT】
3) Press the【ENTER】button to escape and save.
6.11 CUSTOM COLOR SETTING
1) Press the 【ENTER】button in 【CTST】menu, thenenter tothe custom color
setting.
2) Press the 【UP/DOWN】select 【CT01】…【CT10】
2) Press the【UP/DOWN】button to select【1-255】numerical value.
3) Press the【ENTER】button to escape and save.
6.12 AUTO RUN, SELF-PROGRAM RUN
1)Press the【ENTER】button in【AUTO】menu, then enter to the auto run,self-
program run.

http://prolux.net.ua
12
2)Press the【UP/DOWN】button to select【AT01】…【AT05】,【AUTO
SPEED】,【CHASE01】…【SOUND2】
3)Press the【ENTER】button to start running.
6.13 EDIT SELF-PROGRAM
1) Press the【ENTER】button in【PROG】menu, then enter to the edit self-
program.
2) Press the【UP/DOWN】button to select【CHASE01】…【CHASE03】
3) Press the【ENTER】button for confirmation and enter to the next menu.
4) Press the【UP/DOWN】button to select【SCENE01】…【SCENE20】
5) Press the【ENTER】button for confirmation and enter to the next menu.
6) Then press the【UP/DOWN】button to select【RED】…【SHUT】,【TIME
】,
【WAIT】,【USE】
7) Press the【UP/DOWN】button to set up the parameter which are needed.
8) Press the【ENTER】button to escape and save.
Illustrations:When【USE】is set to be【NO】,or the parameter of【TIME】is
0, it will not run this scene.When 【WAIT】is set to be FADE time, the running
process isas the following chart showing.
6.14 CHECK THE LIGHTING INFORMATION
1) Press the【ENTER】button in【INFO】menu, then enter to the checking the
lighting information.
2) 【SOFT】button is for software version information.
3) 【BAT】is battery level from 0% to 100%。
4) 【POW】button is for the current information of power reduction.
5) 【TEMP】Current temperature of lamp board.

http://prolux.net.ua
13
6.15 LIGHTING SETTING PARAMETER RESET
1) Press the【ENTER】button in【ST L】menu, then enter to the lighting setting
parameter reset.
2) Press the【UP/DOWN】button to select【YES】.
3) Press the【ENTER】button to escape and save.
Illustrations:“ADDR” “CTST” and “PROG” are not reset, the others reset to the
underlined value of the word.
6.16 【PROG】SELF-PROGRAMMING PARAMETER RESET
1) Press the【ENTER】button in【PR L】menu, then enter to the【PROG】self-
programming parameter reset.
2) Press the【UP/DOWN】button to select【YES】.
3) Press the【ENTER】button to escape and save.
6.17 LIGHTING PARAMETER DOWNLOADING EACH OTHER VIA DMX
CABLE
1) Press the【ENTER】button in【SEND】menu, then enter to sending
parameter to other lightings.
2) Press the【UP/DOWN】button to select【YES】.
3) Press the【ENTER】button to confirm sending.
Illustrations:
1)Please disconnect the connection of projector and DMX console before sending
the parameter.
2)The information of【ADDR】、【CAL】can’t be sent, can’t be downloaded
each other.
3)There will be an automatic reset of the other projectors after receiving parameter
correctly.
7 INSTRUCTION FOR COMPATIBLE SWEDEN DMX WIRELESS MODULE
1) There are 4 modes: compatible Sweden receive mode (green indicator),
compatible Sweden transmit mode(blue indicator), normal mode(yellow
indicator),custom mode(red indicator)
2) After 【RESET】,and then press【KEY】to switch above modes, select
needed mode and press【KEY】one second to confirm and save it.
3) Under compatible Sweden DMX receive mode, press 【KEY】3 seconds to
delete matching between light and transmitter.
4) Under compatible Sweden DMX transmit mode, press 【KEY】to match
receive mode, press 3 seconds will delete matched mode.

http://prolux.net.ua
14
5) Working in normal mode, indicator has 7 colors for option, when light and
transmitter indicator are in the same color, can receive and transmit data.
6) User-defined function is not available.
7) Notice: compatible Sweden DMX mode in this lights has complete data for
sending and receiving, but transmit function is not available here.
8 IFRARED KEYBOARD OPERATION
1) 【MENU】, 【UP】, 【DOWN】, 【ENTER】is same as the keys on the
fixture.
2) 【R1】...【W2】,【SHUT】is shortcut for 【STAT】.
3) 【AT01】, 【CHS01】, 【ATSP】, 【SOU1】is correspond to the positon
of
【AT01】, 【CHS01】, 【SOU1】in the MENU.

http://prolux.net.ua
15
4) 【CLEAR】is clear the value of 【R1】, 【G1】... 【SHUT】then save
and reset.
9 OPERATING CONTROL INSTRUCTION
Master/Slave When the fixtures work in master mode it will send out the signal for
the slave synchronous with it. To avoid the host signal and DMX512 signals
interfere with each other, should cut off the DMX512 signals. The signal lines are
longer than 60 meters (20 lamps), should increase a signal amplifier.
10 XLR CABLE CONNECTING
The standard connection way of the XLR is: one end connects to the male plug,
and the other connects to the female. As below: pin 1: ground, pin 2: negative
signal, pin 3: positive signal.
Noted: In order to avoid failures and interference signal transmission, we connect
a
resistance120Ω (1/4W) at the end of the DMX connecting as below:
Termination reduces signal errors and avoids signal transmission
problems and interference. It is always advisable to connect a
DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2
(DMX-) and PIN 3 (DMX +) of the last fixture.
The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN
cable.
3-Pin XLR to 5-Pin XLR Conversion
Conductor
3-Pin XLR Female (Out)
5-Pin XLR Male (In)
Ground/Shield
Pin 1
Pin 1
Data Compliment (- signal)
Pin 2
Pin 2
Data True (+ signal)
Pin 3
Pin 3
Not Used
Do Not Use
XLR pin configuration
Pin 1 = Ground
Pin 2 = Data compliment
(negative)
Pin 3 = Data true (positive)

http://prolux.net.ua
16
Not Used
Do Not Use
11 CONNECTING PICTURE
12 TROUBLE SHOOTING
Problem
Reason and action
The lighting can’t be
started normally
Check the power connection is correct or not.
Please detect the voltage.
Power supply is damaged or incorrect connected. Call a
qualified personnel to fix it.
Connection of control board is not correct. Call a qualified
personnel to fix it.
Out of console’s
control
Please check the DMX connector and the power connection
is connected correctly or not. It means having signal if it
shows twinkling of the decimal point which in the lower right
corner of the screen when exiting the screen saver.
Please check the DMX address setting of lighting is correct
or not.
Check【CHMD】setting is correct or not.
Please check whether the DMX line is near to the high
voltage wire or not. In that case, it will damage or interfere
the DMX electric circuit.
The beam appears
dim, the brightness
declines obviously
Check whether the 【CAL】is started or not and the set
value is too small.
Check whether the【POW】is in over temperature
protection situation or not, if yes, please take measures for
ventilation.
Table of contents
Other Prolux Lighting Equipment manuals

Prolux
Prolux LED PAR 1818 User manual

Prolux
Prolux 611 695 User manual

Prolux
Prolux MOVING WASH STROBE User manual

Prolux
Prolux P-ML 350 User manual

Prolux
Prolux LUX LED 740 User manual

Prolux
Prolux R02 Series User manual

Prolux
Prolux MATRIX BAR 6 IP User manual

Prolux
Prolux LED FOLLOW 600 User manual

Prolux
Prolux LED FOLLOW 350 User manual
Popular Lighting Equipment manuals by other brands

American DJ
American DJ Mega Par Profile System User instructions

Avlite
Avlite AV-OL-ILAB-UM-R Installation & service manual

Telefunken
Telefunken HVMM LICHT MAL 203204TF Mounting instructions

FLOS
FLOS IC C/W1 quick start guide

Sensio
Sensio Torino SE17232C0 manual

Lightolier
Lightolier Calculite ProSpec PA3P3075 specification
