Operations Manual
Model: SL1577TBCEC
Split Lid Grill
rev1 - 42814

Operation Instructions
Please read carefully before attempting to use this appliance.
Step 1. Carefully unpack and clean grill plates with mild soap then sponge clean
with cold water.
Step. 2. Place in location where it will be used allowing for clearances per the
dimensions indicated.
WARNING! Allow 2” minimum clearance between adjacent equipment and/or
wall areas.
Do not touch hot surfaces.
Step 3. Plug into proper 3 prong wall outlet. If other appliances are connected
to the same circuit make sure the total load does not exceed maximum
ampacity of the circuit. Electrical information is as follows:
120V/60Hz/1 phase/2200W/18.3 Amps
208V/60Hz/1 phase/2800W/13.5 Amps
220V/60Hz/1 phase/2200W/10.0 Amps
Step 4: Warm-up
Energize by turning on the power switch which will illuminate when turned
on. The display flashes and shows left preset timer during warm-up. Pre-
heat temperature time will be 40-50 minutes. When the set point is
reached, the display stops flashing and beeps 3 times.
Step 4: Operation
Simply place product on either side of the grill, close lid and press the
desired pre-set time cycle 10 or 20 seconds. After the time cycle is
finished press it again to reset the time cycle.
Cleaning Instructions
NOTE! Always turn off power and allow to cool down before attempting to clean.
Never submerge grill in water or other liquid nor use mineral spirits
or other flammable material to clean this appliance.
!Never use ice to cool down grill, warranty will be void!
Clean stainless steel and griddle surfaces with soap and water using a
soft, clean cloth periodically as required, but at least once daily. Never
use harsh abrasives. Use only non-abrasive scouring pads when required.

Clean Cycle
275°F is the factory default temp for the CLEAN cycle. To change the CLEAN cycle temp, simultaneously
hold down the TEMP and CLEAN buttons for 15 seconds. The current temp setting will display on the
right digital display only. Using the up or down arrows to adjust to the desired temp.
To start a clean cycle, push CLEAN button once so the CLEAN LED light is turned on. All preset LED’s are
turned off, and the temperature set point is changed to the clean set point of 275°F. This also initiates
the cool down to clean set point condition as well the display starts flashing until the clean set point is
reached.
To stop the clean cycle, simply press the CLEAN button once to deactivate the clean cycle. The CLEAN
LED is turned off, the preset LED’s are restored, the temperature set point is changed to the main set
point. Again, the warm-up condition is initiated and the display flashes until the cook set point is
reached.

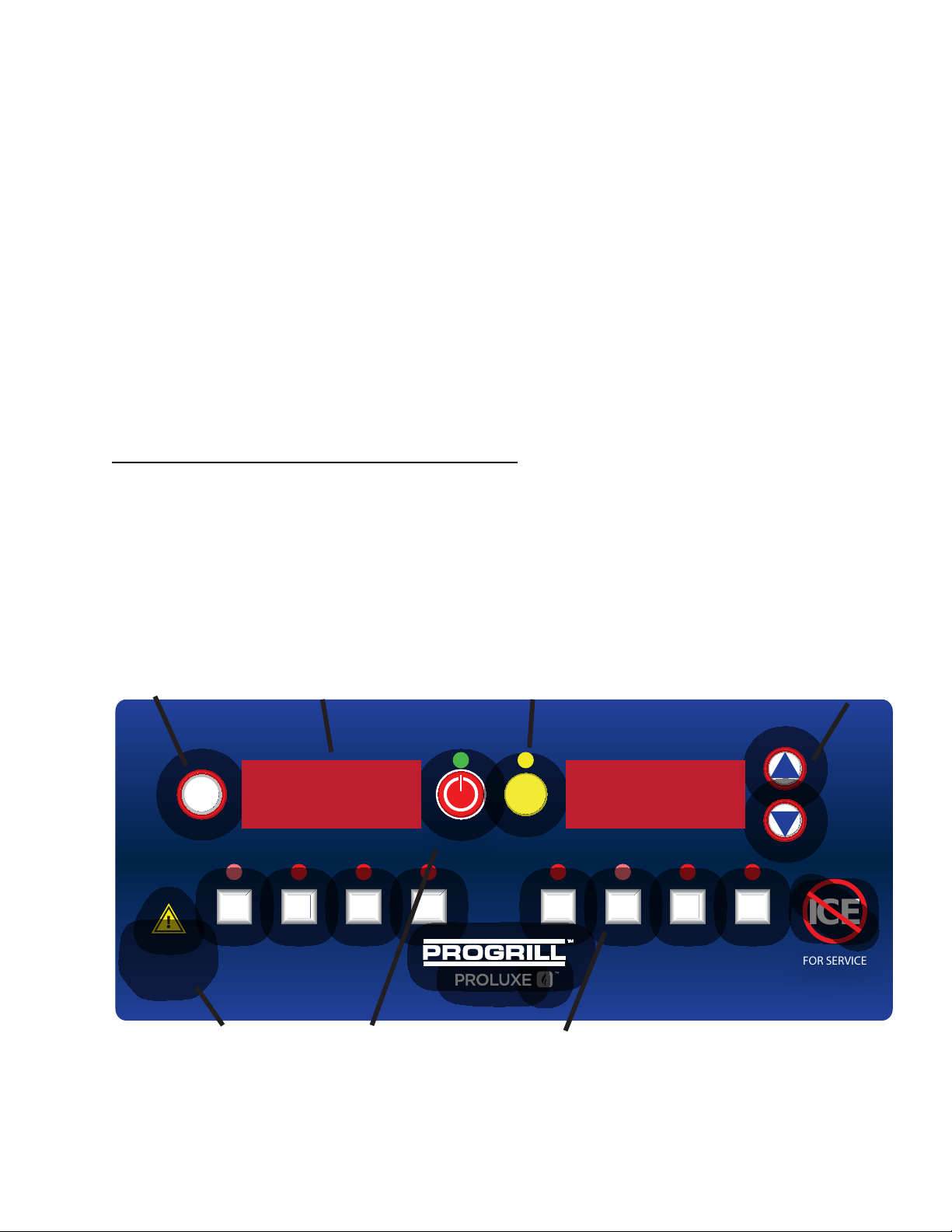

POWER
CLEAN
TEMP
17 17
0:17 0:17
17 17
FOR SERVICE
[phone]
!
PLEASE CLOSE
LID WHEN NOT
IN USE TO KEEP
GRILL HOT
ICE
By:
SL1577 Operating Instructions:
1. Press desired time to start the time cycle. After the cycle is finished, press it again to
reset the time cycle
HOW TO IND TEMPERATURE
1. To find the temperature of the UPPER PLATENS:
Press the TEMPERATURE button and the ARROW UP button at the same time.
2. To find the temperature of the LOWER PLATENS:
Press the TEMPERATURE button and the ARROW DOWN button at the same time
*
* 275° is the factory default temp for the CLEAN cycle. To change the CLEAN cycle temp,
simultaneously hold down the TEMP and CLEAN buttons for 15 seconds. The current temp setting will
display on the right digital display only. Using the up or down arrows to adjust to the desired temp.

17 17 17 17
By:
Instruction’s for Adjusting the Temperature
PRESS and hold the TEMP and
ARROW up
buttons simultaneously for 15
seconds.
The current temperature setting
will display on the right
digital display only.
Using the ARROW buttons, you
may now adjust the temperature
to your
desired setting.
Once you have set your desired
temperature simply push
the TEMP button. The digital
displays will now read the
preset times.
Instruction’s for Adjusting the Set-Time
Press the TEMP button first and then the
desired timer button and continue to hold
both for 5 seconds.
The digital displays will now read their preset
times as shown here. Each side is capable of
having up to 4 different settings, making a total
of 8 set-times.
Now using the ARROW buttons you
can set your desired time.
Once you have set the desired time simply press the
TEMP button, the unit will display the new set-time.
*IMPORTANT NOTE: When adjusting the time settings, The RIGHT SIDE time buttons
control the left side, so the same time you set on the right will automatically be set to
the left side accordingly. If you desire an additional set of times you can adjust the left
side AFTER you have adjusted the right side without effecting the right side settings.

DOUGHPRO
SL1577 Split Lid Grill Trouble Shooting Guide
Symptom Probable Cause Action to be Taken Parts List Ref. #
Power Button on Control face is
depressed but doesn’t turn on.
Power Cord is not plugged in.
Plug power cord into wall 's
receptacle and depress power
button on controller
___
Circuit Breaker is tripped off in the
site's breaker box
Reset circuit breaker that the Grill is
plugged into. Depress Power Button
to turn on.
___
Transformer has taken a electrical
surge and is damaged
Replace Transformer 18
Check voltage on the secondary side
of the Transformer. If you read
12VDC then you are receiving voltage
to the Controller.
Replace Controller. Controller
should be on once the power button
is depressed.
A8
Possibly blown Fuse Check fuse and repace if necessary # 98
Digital Controller's LED's are
scrambled or randomly irratic
Possibly a componet on the Digital
Controller is damaged
Replace the Digital Controller. # A8
Possibly control needs to reset
While unit is on (controller lit up)
Unplug unit, wait for 1 min. then
plug machine on and depress power
button.
___
Digital Controller is constantly
Beeping No heat on either on left
right Upper, or Lower Platen.
Depress Temp. While depressing
Temp., depress either up or down
arrow to locate error
message,"PROB" (zone 1, Lower
Platen, zone 2 Left Upper Platen,
zone 3, right Upper Platen.) . If
occurred when depressing the up
arrow indicates either the left or
right Upper Platen has the open
sensor or probe. same goes for the
down arrow indicating Lower Platen.
Sensor in one of two zones lost it's
continuity. Depress Temp. While
depressing Temp., depress either up
or down arrow to locate error
message,"PROB" (zone 1, Lower
Platen, zone 2 Left Upper Platen,
zone 3, right Upper Platen.) . If
occurred when depressing the up
arrow indicates either the left or right
Upper Platen has the open sensor or
probe. same goes for the down
arrow indicating Lower Platen
Disconnect prob and check for
continuity (by using Ohm Meter) and
replace. Do not cut and splice new
sensor. Install new 2000 ohm RTD
sensor to under side of Heat Platen
and reconnect to Controller. Upper
left and right sensor for replacement
on upper platens, Lower Platen
sensor for replacement for Lower
Platen.
# 22
# 46
Digital Controller is beeper chirping
and is over heating.
The Mechanical Relay on the
switched side is not opening to
regulate temperture. Same as above,
hold Temp button then depress
either the down or up arrow (zone 1,
Lower Platen, zone 2 Left Upper
Platen, zone 3, right Upper Platen.)
which ever zone is the problem, you
will see RLY indicating the damage (in
closed position) .
Replace the Mechanical Relay. #15
One of the three Heater Platens not
close to set point.
The offset function in the Controller's
setting needs to be adjusted to
achieve proper shade of toast.
Call Doughpro [phone] for
instructions. This information must
not to be given to operators of the
SL1577. They may get confused and
cause further temperature
discrepancies.
____
Beeper not functioning Beeper has failing. Replace Controller board # A8

DOUGHPRO
SL1577 Split Lid Grill Trouble Shooting Guide
Symptom Probable Cause Action to be Taken Parts List Ref. #
Either Heater Platen is not Heating
but the Digital Controller is on and
appears to be functioning.
If the Mechanical Relay (s) on the coil
side are receiving 12vdc indicates the
Controller is functioning properly. On
the switching side of the relay, is the
rated voltage for the Model(120,208,
or 220~AC) going to the heater in
question? If there is no voltage on
the to the switching side of the relay
to the heaters, the Relay is not
working properly
Replace Mechanical Relay. # 15
Heater Platen overheating
The mechanical Relay may be stuck in
the closed position (zone 1, Lower
Platen #1 labeled on this relay, zone
2, left upper and zone 3, right upper).
Replace Mechanical Relay. # 15
If you are receiving 12vdc on the coil
of the relay, the Controller is properly
functioning thus maybe you have a
break in the wire to the heater (s) or
the Heater Platen lost it's continuity
One of the Heater's embedded into
to the Heated Aluminum Platen may
have lost Continuity. With use of a
Ohm Meter a condinuity check must
check at the cold pins of the heater
(where the heater wire is brazed at
the cold pin. This will eliminate any
other failue before the the heater
element validating the loss off
condinuity at the source (Heater
Element). If so, either the Upper left
(zone 2), right (zone 3) or Lower,
#15
Either Upper Heater not coming
down parallel to the Lower Heater
Platen.
Parallel Lever not attached either in
the rear out on the Upper Heater
Platen. Check to see if Parallel leveler
is connected on both sides. The
retaining clip attached to pin may
have come off.
Reconnect the pin and the retaining
E-Clip.
# 25
Upper Platen falling down or lost It's
retension .
Possibly the Springs (2, one for each
Upper Heater Platen has lost some
retension.
Remove rear panel and adjust the
retaining collars on shaft by winding
spring tighter. There are mutlple set
screws that need to be loosened in
order to wind the spring tighter.
Once achieving proper tension be
sure to tighten all set screws so that
tension isn't lost again.
___
If one heating zone is not reaching
setpoint and another heater is
overheating
Sensors maybe crossed
Make sure each sensor is connected
to it's prospective postion on the
terminal block which in turn to the
Controller.
___

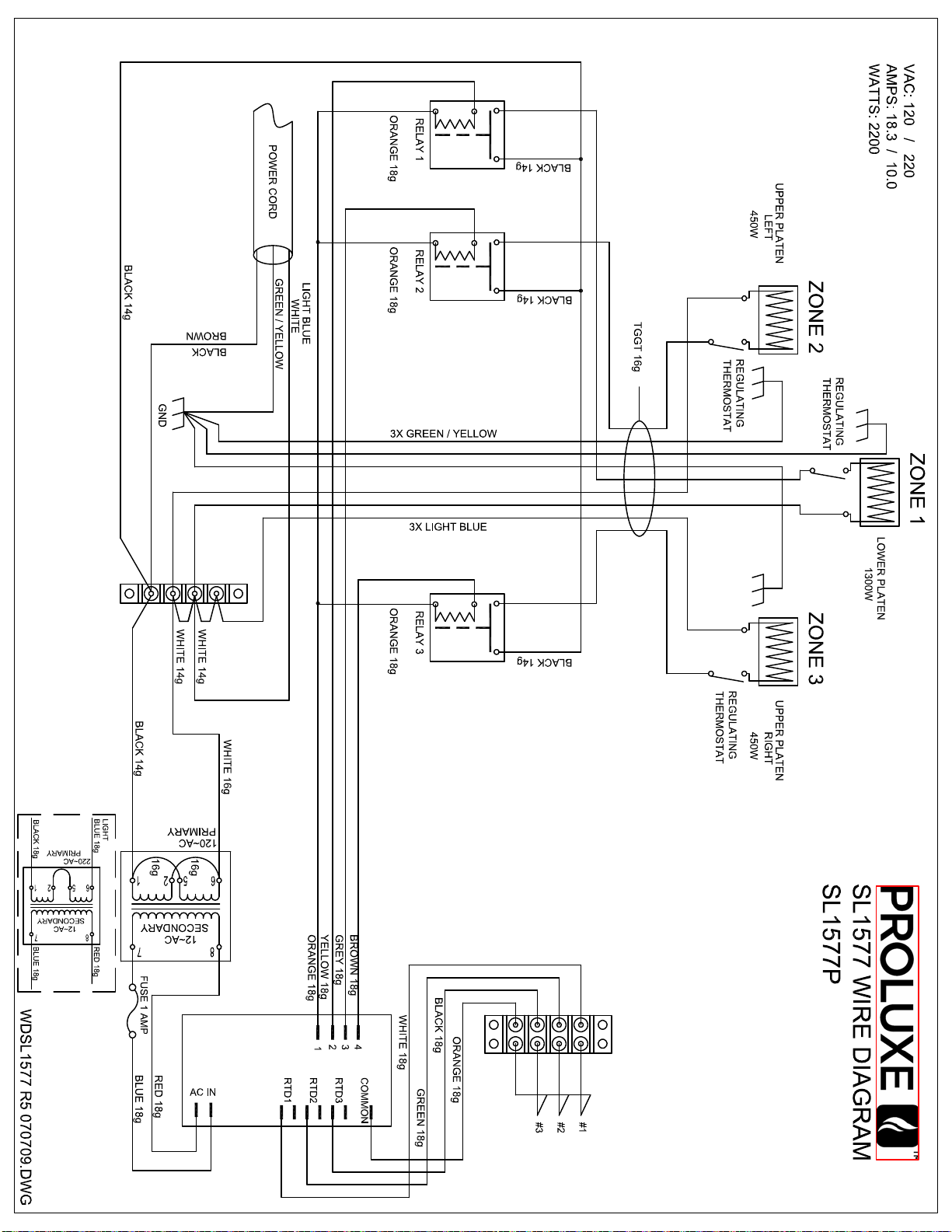

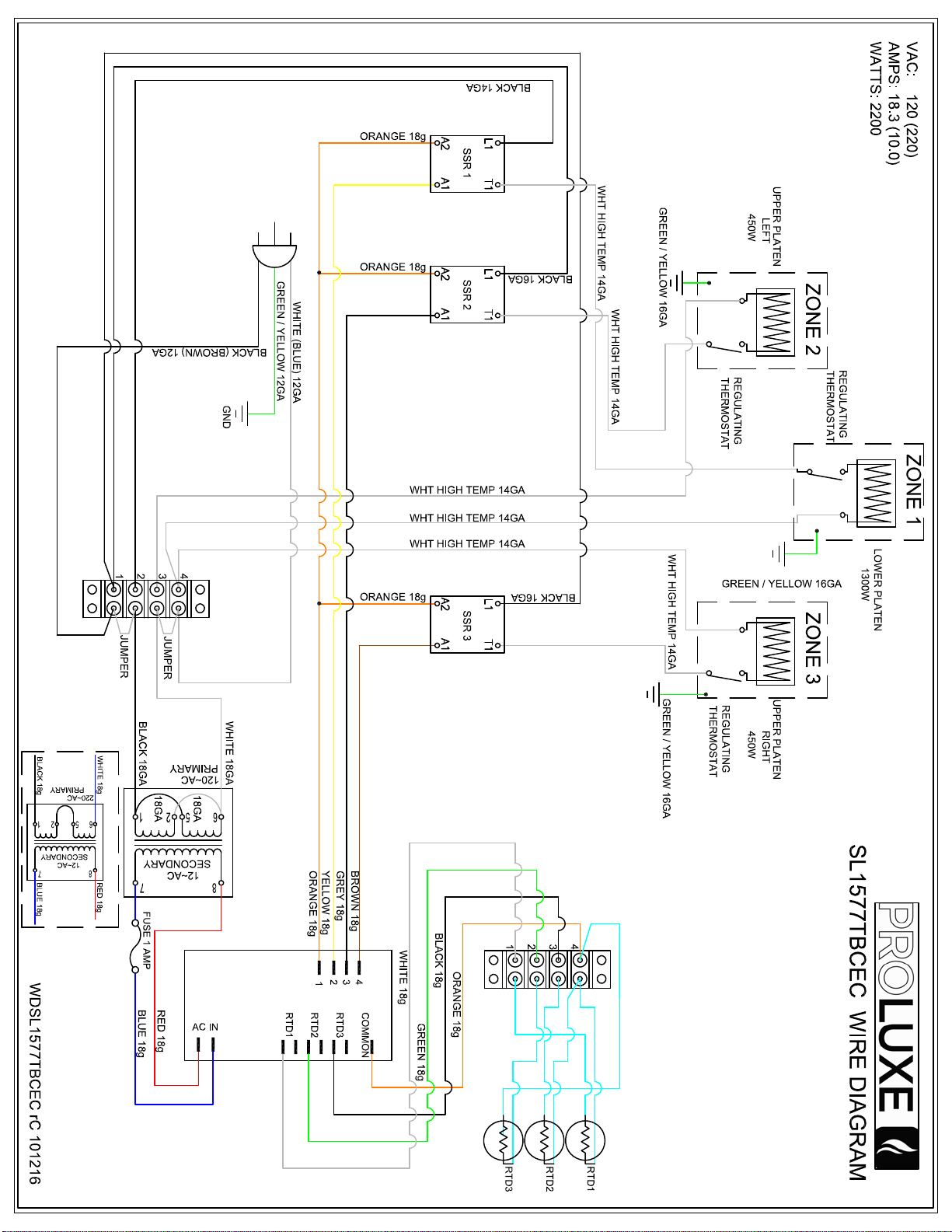

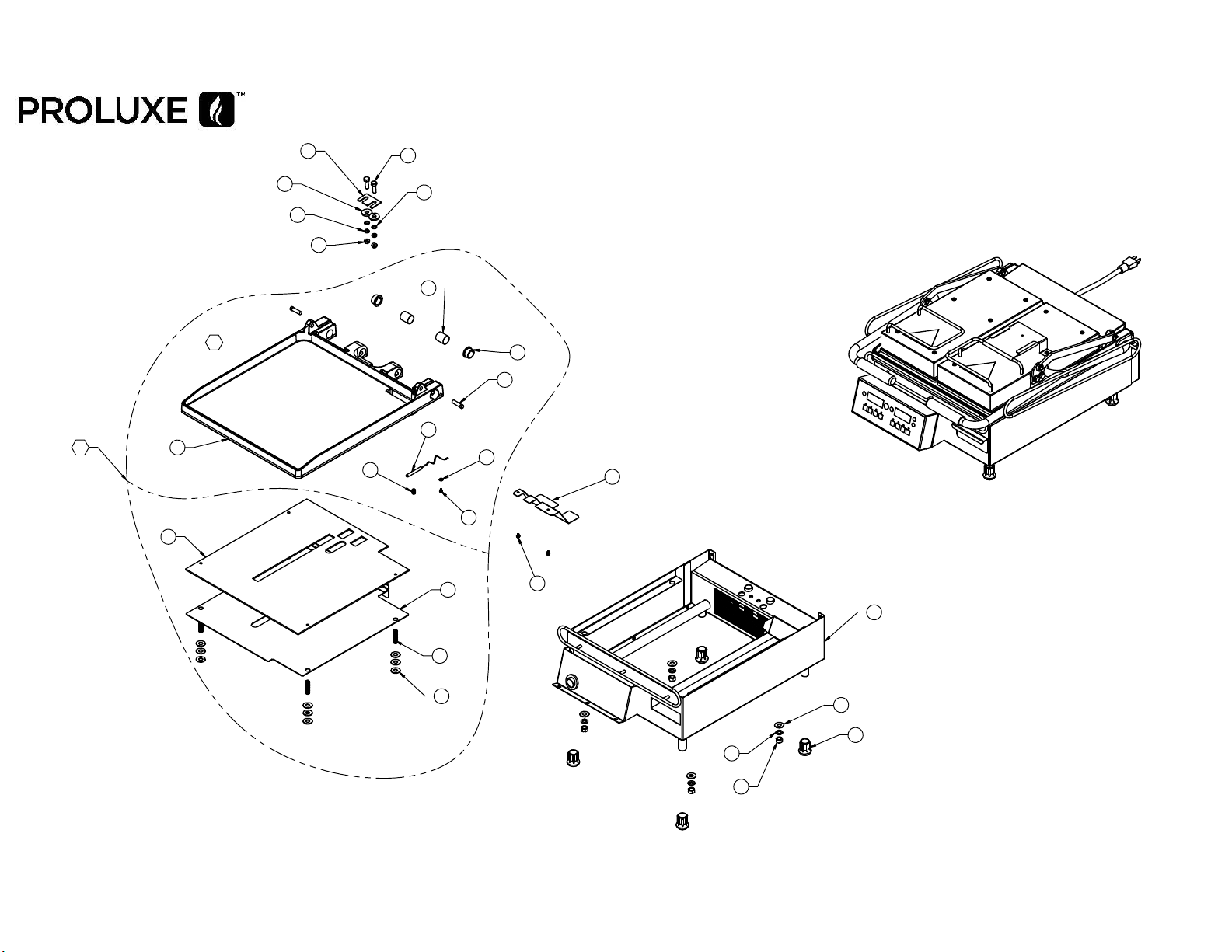

79
2X
40
54
45
1
4X
28
52 4X
42
4X
2X
63
71
4X
70
75
3
64
12X
52
77
4X
76
78
2X
74
2X
73
2X 72
2X 46
2X 55
2X
2
68
A1
A2
EXPSL1577TBCEC RC 101216
SHEET 1 OF 2

A5
