Operations Manual

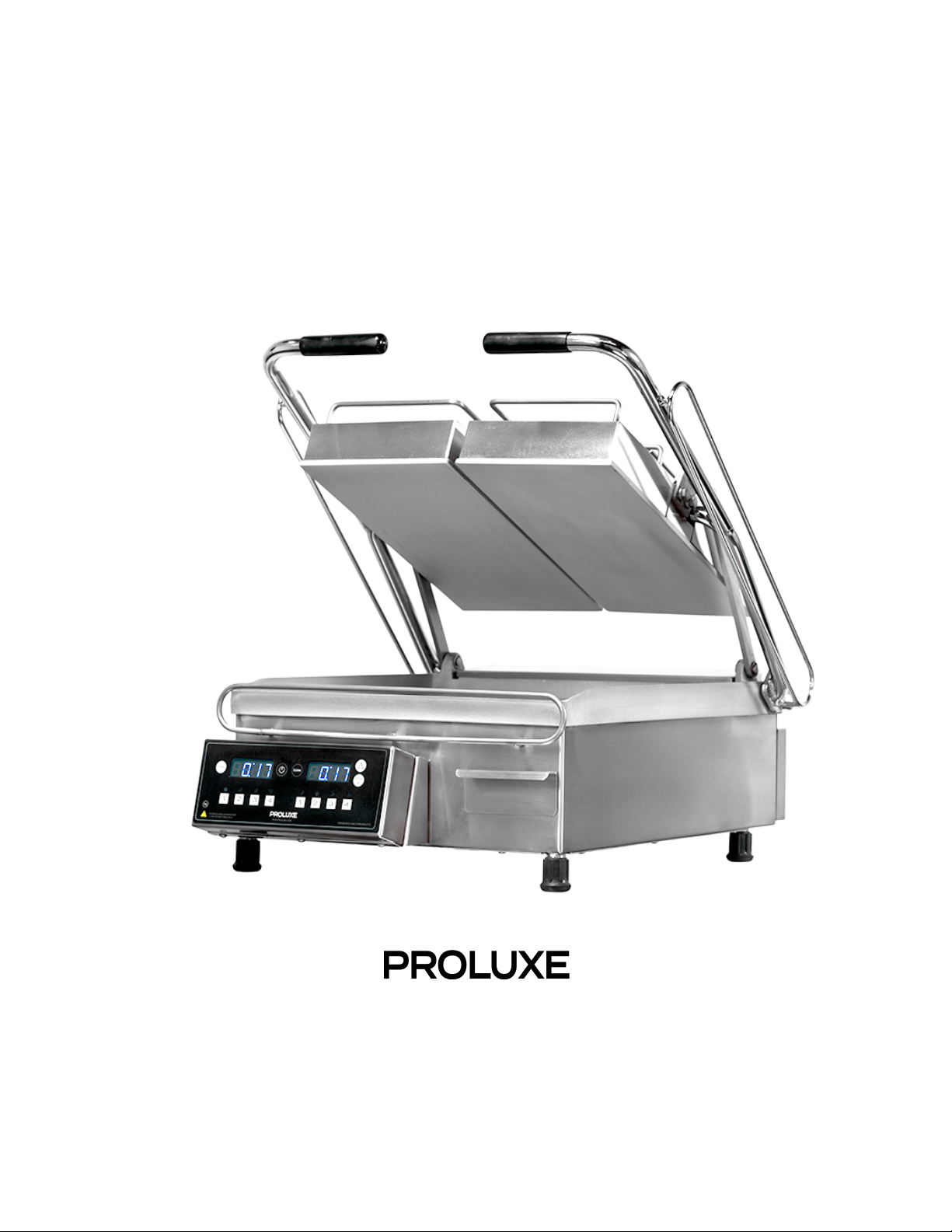

Vantage SL - Split Lid Grill

Model #: SL1577



WWW.PROLUXE.COM



Version: 122820

Congratulations on your selection of

the Vantage SL Compact Split Lid

Grill. Proluxe is a leading

manufacturer of food preparation

and cooking equipment designed for

the most demanding commercial

kitchens. Proluxe equipment is a

result of the highest quality

engineering and time-tested design.



This manual includes installation,

operation, and maintenance

procedures for your new split lid

grill. Please read this manual

carefully and keep it with your

machine for proper operation and

lasting service.



Electrical:

120V/50-60Hz/220W/18.3 Amps

1 phase



Also available; specify when ordering:

●Voltage: 120/208/220

●Amps: 18.3/10

●Watts: 2200/2200/2800



Includes: 72” cord and 6-30P NEMA

approved plug.



Controlled heating zones: 3



Shipping Weight:

78lbs. (35kg)



G E T T I N G S T A R T E D



Please read carefully before attempting to

use this appliance.



1. Place in location where it will be used

allowing for clearances per the

dimensions indicated. Allow 2”

minimum clearance between

adjacent equipment and/or wall

areas.



2. Plug into proper 3 prong wall outlet.

If other appliances are connected to

the same circuit make sure the total

load does not exceed a maximum

ampacity of the circuit. Electrical

information is as follows:



3. Press the power button, the green

light above will illuminate when

powered on. The display flashes and

shows left preset timer during

warm-up. Pre-heat time will be 40-50

minutes. When the set point is

reached, the display stops flashing

and beeps 3 times.



4. Simply place product on either side of

the grill, close lid and press the

desired preset time cycle 10 or 20

seconds. After the time cycle is

finished press it again to reset the

time cycle.



1

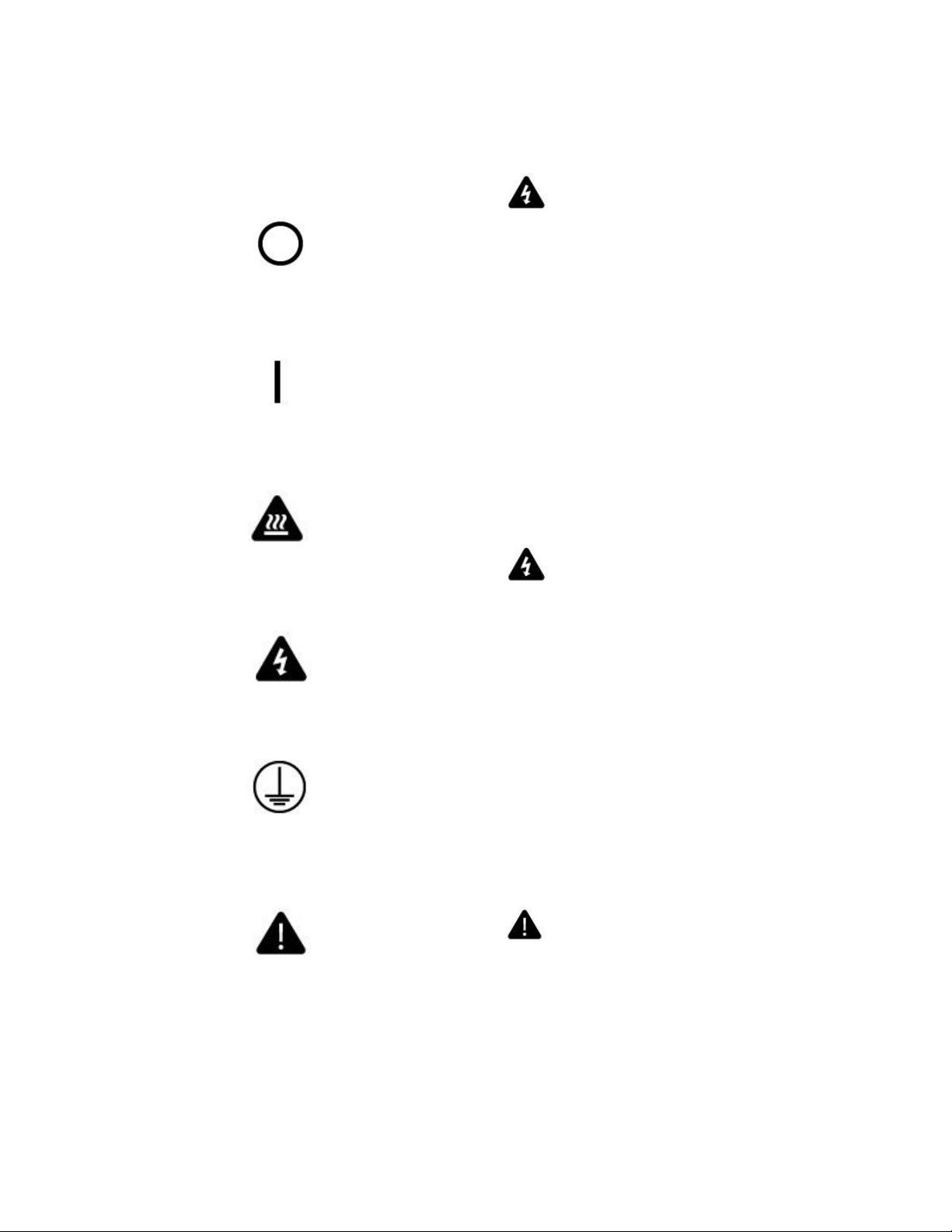

I N T E R N A T I O N A L S Y M B O L S

Symboles internationaux



Power Off

éteindre



Power On

allumer



Hot Surface

surface chaude



Risk of Electrical Shock

Risque de choc électrique



Protective Earth Terminal

Borne de terre de protection



Caution - Warning

chaud - avertissement



S A F E T Y S U M M A R Y



Warning

To reduce the risk of electrical shock, do not

remove or open cover. No user-serviceable

parts inside. Refer servicing to qualified

personnel.



Avertissement

Pour réduire le risque de choc électrique, ne pas

retirer ou couvercle ouvert Aucune pièce

réparable par l’utillsateur, reportez-vous à du

personnel qualifié.



Warning

In case of power cord damage, do not

attempt to repair or replace the power cord.

Please contact the manufacturer or the local

distributor.



Avertissement

Pour une protection continue contre l’incendie

et de choc électrique, remplacer avec le même

type et calibre du fusible. Mis fusible

supplémentaire nominale max 3A, 120 Vac.



Warning

For continued protection against fire and

electric shock, replace with the same type

and rating fuse. Listed Supplemental Fuse

rated max 3A, 120Vac.



2

Avertissement

Pour une protection continue contre l’incendie

et de choc électrique, remplacer avec le même

type et calibre du fusible. Mis fusible

supplémentaire nominale max 3A, 120 Vac.



Caution Hot

Avoid touching hot surfaces while operating

the machine.



Attention à chaud

Évitez de toucher les surfaces chaudes lorsque

vous utilisez la machine.



Caution

When servicing or cleaning the machine,

make sure that the power cord is removed

from the wall socket.



During normal operation, the base of the

machine must be installed or placed above

the wall socket.



Avertissement

Lors de l'entretien ou du nettoyage de la

machine, assurez-vous que le cordon

d'alimentation est débranché de la prise murale.



T E M P E R A T U R E/T I M E R 

S E T T I N G S



How to Find Set Temperature

To find the temperature of upper platens:

Press and hold the TEMP button and the

arrow up (↑) button at the same time.



To find the temperature of bottom platens:

Press and hold the TEMP button and the

arrow down (↓) button at the same time.



Adjusting the Set Temperature

1. Press and hold the TEMP button and

the arrow up (↑) button at the same

time for 15 seconds.



2. The current temperature with display

on the right digital display screen

only.



3. Using the up (↑) and down (↓) adjust

the temperature to your desired

setting.



4. Once your desired temperature is

set, push the TEMP button to return.



Adjusting the Set Time

1. Press the TEMP button first and then

select the desired timer button and

hold for 5 seconds.

2. The current temperature with display

on the right digital display screen

only.

3. Using the up (↑) and down (↓) adjust

the timer to your desired setting.

4. Once your desired temperature is

set, push the TEMP button to return.



Note: When adjusting the timer settings, the

right set of buttons control the left side.

Your left side timer will automatically set to

your right control settings. If you desire a

separate left timer you can manually adjust

3

the left side timer without affecting the right

timer.



C L E A N C Y C L E



Start Cycle

To start a clean cycle, push CLEAN button

once so the CLEAN LED light is turned on. All

preset LED’s are turned off, and the

temperature set point is changed to the clean

set point of 275°F. This also initiates the cool

down to clean set point condition as well the

display starts flashing until the clean set

point is reached.



Stop Cycle

To stop the clean cycle, simply press the

CLEAN button once to deactivate the clean

cycle. The CLEAN LED is turned off, the

preset LED’s are restored, the temperature

set point is changed to the main set point.

Again, the warm-up condition is initiated and

the display flashes until the cook set point is

reached.



Change Clean Temp

275°F is the factory default temp for the

CLEAN cycle. To change the CLEAN cycle

temp, simultaneously hold down the TEMP

and CLEAN buttons for 15 seconds. The

current temp setting will display on the right

digital display only. Using the up or down

arrows to adjust to the desired temp.



P R E V E N T A T I V E 

M A I N T E N A N C E 



Proluxe machines are relatively maintenance

free. For a long lifespan, the following

preventative maintenance should be

followed:



Daily Care:

1. Platens: Turn your machine off and allow

to cool down before attempting to clean.

These platens should only be cleaned with

mild soap and warm water then wiped off

with a clean, soft cloth or soft sponge.



2. Exterior surfaces: Wipe daily with mild

soap and warm water.



DO NOT use ice or cold water to cool the

unit down. This can cause platens to warp.



Service Problems:

Contact our factory at (800) 624-6717 (U.S.

only) or approved service agency. When

contacting the factory for information, parts

or service instructions, please provide the

serial number of the machine be provided.

This number can be found on the serial plate

located on the rear of the machine.



4



Vantage SL Troubleshoot Guide - Model #: SL1577



5

Problem

Cause

Action

Ref #

Power button on

digital controller face

is depressed but

doesn’t turn on.

1. Power cord is not plugged in.



2. Circuit breaker is tripped off in the

site's breaker box.



3. Transformer has taken an

electrical surge and is damaged.



4. Check voltage on the secondary

side of the Transformer. If you read

12VDC then you are receiving

voltage to the controller.



5. Possible blown fuse.

1. Plug the power cord into wall

receptacle and power button.



2. Reset circuit breaker that the

grill is plugged into. Depress

Power Button to turn on.



3. Replace Transformer after you

check secondary side of

transformer. If working properly,

you should receive 12vdc.



4. Replace controller. Controller

should be on once the power

button is depressed.



5. Replace fuse.



----



-----



18



A8



98

Digital controller's

LED's are scrambled

or randomly erratic.

If when turning on,

the display will first

go to segment check

1. Possibly a component on the

Digital controller is damaged.



2. Control needs to reset.

1. Replace digital controller.



2. While unit is on unplug unit,

wait for 1 min. Then plug machine

on again and depress the power

button.



A8



----

Digital controller is

constantly beeping.

No heat on either on

left, right, upper, or

lower platen.



Sensor in one of two zones lost it's

continuity. Depress TEMP. While

depressing TEMP depress either up

or down arrow to locate error

message PROB (zone 1, lower

platen, zone 2 left upper platen, zone

3, right upper platen.) If occurred

when depressing the up arrow

indicates either the left or right

platen has the open sensor or

Probe.



Disconnect probe and check for

continuity (by using Ohm Meter)

and replace. Do not cut and splice

new sensor. Install new 2000

ohm RTD sensor to underside of

the platen and reconnect to

controller. Upper left and right

sensor for replacement on upper

platens, lower platen sensor for

replacement for lower platen.



22

46

Digital display shows

Sensor lost it's continuity as shown

Disconnect prob that is open (no

41

6

PROB. No heat on

any platen.



on a muti-meter.

continuity as shown on a multi-

meter. Must replace sensor

(RTD). Do not cut and splice new

sensor. Install new 2000 ohm

RTD sensor to under side of heat

platen and reconnect to the

controller.

Digital controller

beeping and is

overheating.



The mechanical relay on the switched

side is not opening to regulate

temperature. Hold TEMP button

then depress either the down or up

arrow (zone 1, lower platen, zone 2,

left upper platen and zone 3, right

upper platen.) RLY will display on

problem zone indicating the damage.



Replace the mechanical relay.



15

Either platen is not

heating but the

digital controller is

on and appears to be

functioning.

If the mechanical relay(s) on the coil

side are receiving 12vdc indicates the

controller is functioning properly. If

there is no voltage on the switching

side of the relay to the heaters, the

relay is not working properly.



Replace the mechanical relay.

15

Beeper is not

functioning.

Beeper has failed.

Replace control board.

A8

One of the three

heater platens not

close to set point.

The offset function in the controller's

setting needs to be adjusted to

achieve proper shade of toast.



Call (800) 624-6717 for

instructions.

----

One heating zone is

not reaching setpoint

and another heater is

overheating.

Sensors maybe crossed.

Make sure each sensor is

connected to its prospective

position on the terminal block

and back to the controller.



----

Setpoint is reached

but slightly off in

temperature.

Offset may need to be calibrated and

adjusted.

Call (800) 624-6717 for

instructions.

----

Heater platen is

overheating.

1. The mechanical Relay may be

stuck in the closed position (zone 1,

lower platen #1 labeled on this relay,

zone 2, left upper and zone 3, right

upper).



2. If you are receiving 12vdc on the

coil of the relay, the controller is

properly functioning.

Use an Ohm meter for a

continuity check must check at

the cold pins of the heater (where

the heater wire is brazed at

the cold pin. This will eliminate

any other failure before the

heater element validating the loss

off continuity at the source the

heater element.

15



7



Upper heater not

coming down parallel

to the lower platen.



Parallel lever not attached either in

the rear out on the upper heater

platen. Check to see if parallel leveler

is connected on both sides. The

retaining clip attached to pin may

have come off.

Reconnect the pin and the

retaining E-Clip.



25

Upper platen falling

down or lost

tension.



The springs have lost some

tension.



Remove rear panel and adjust the

retaining collars on shaft by

winding the spring tighter. There

are multiple set screws that need

to be loosened in order to wind

the spring tighter. Once proper

tension is achieved, tighten all set

screws to prevent tension loss.

----

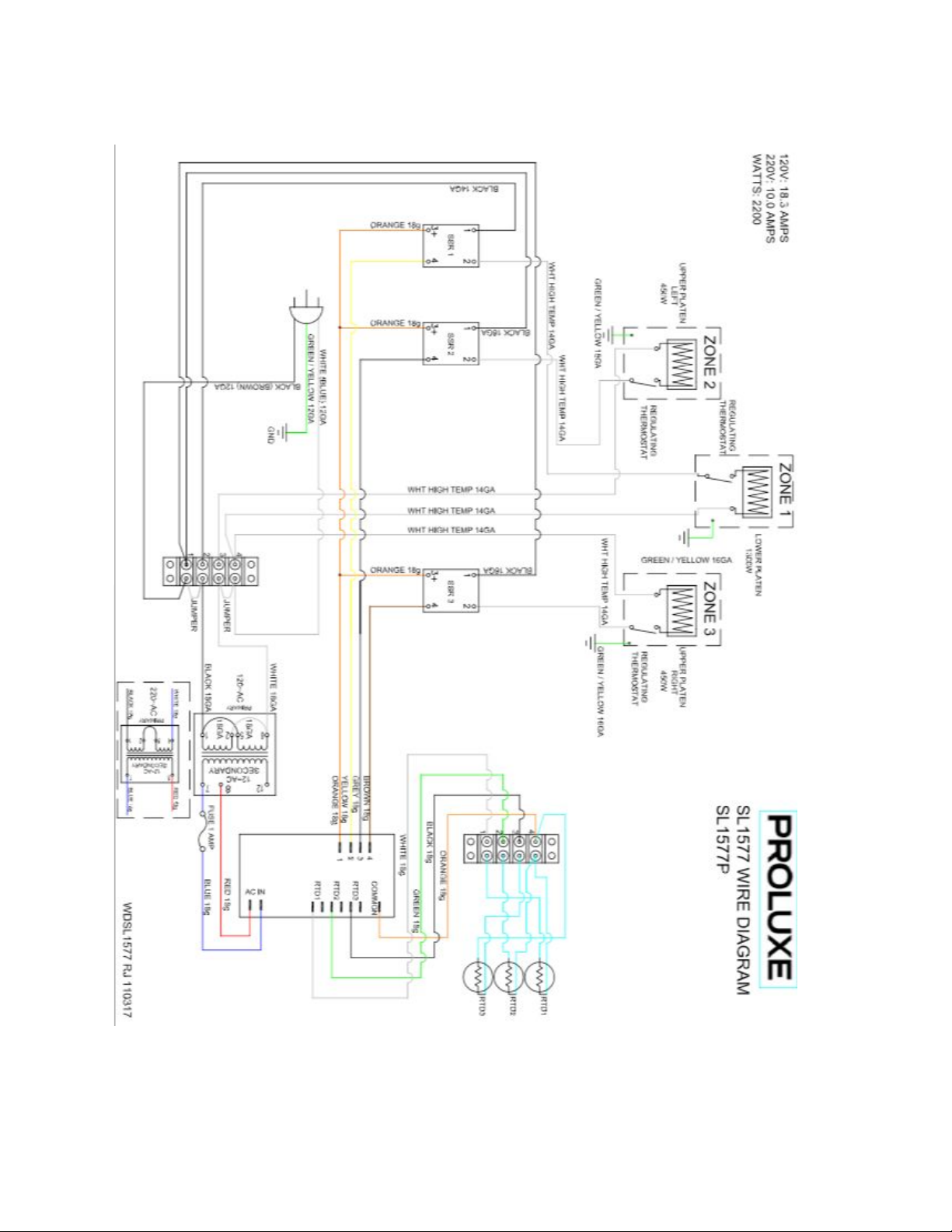

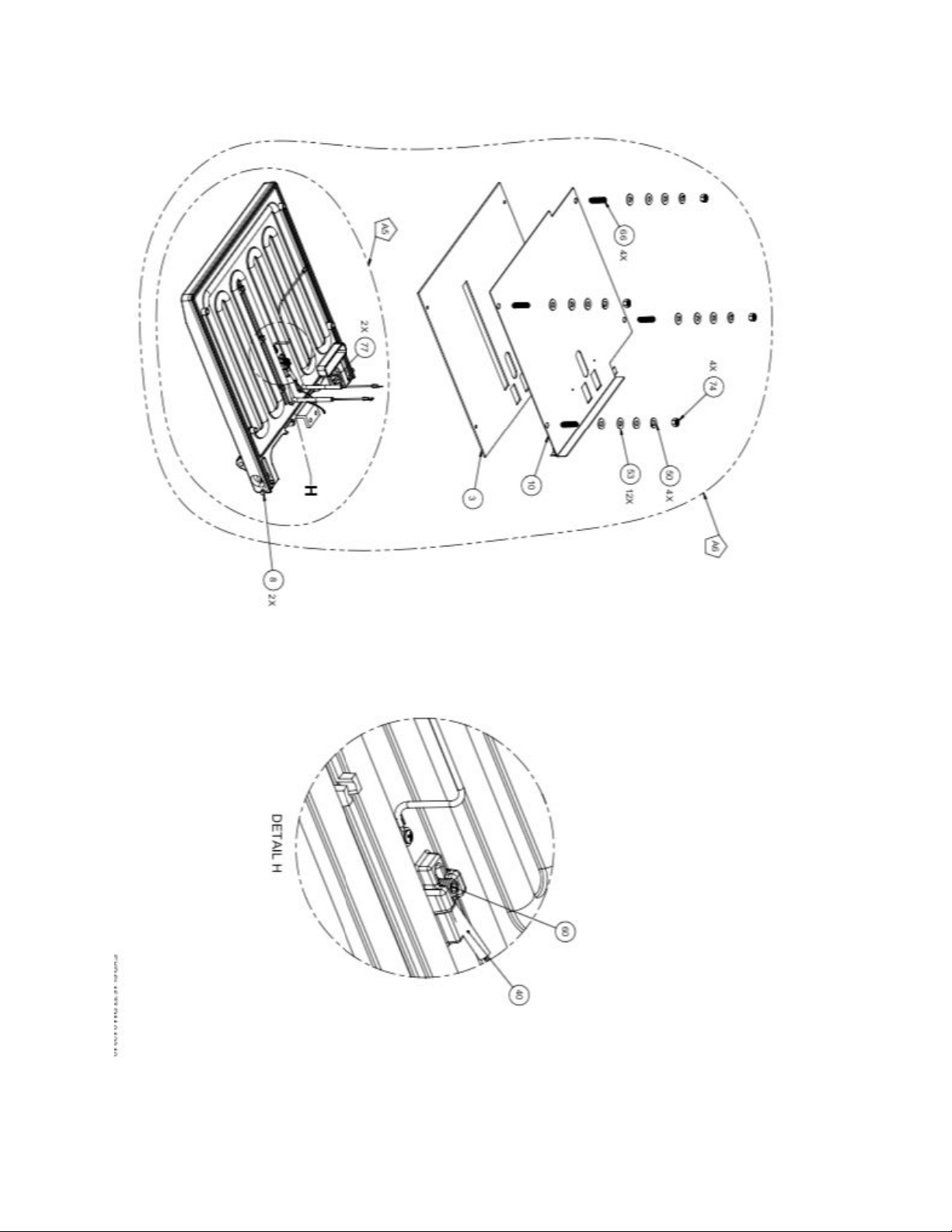

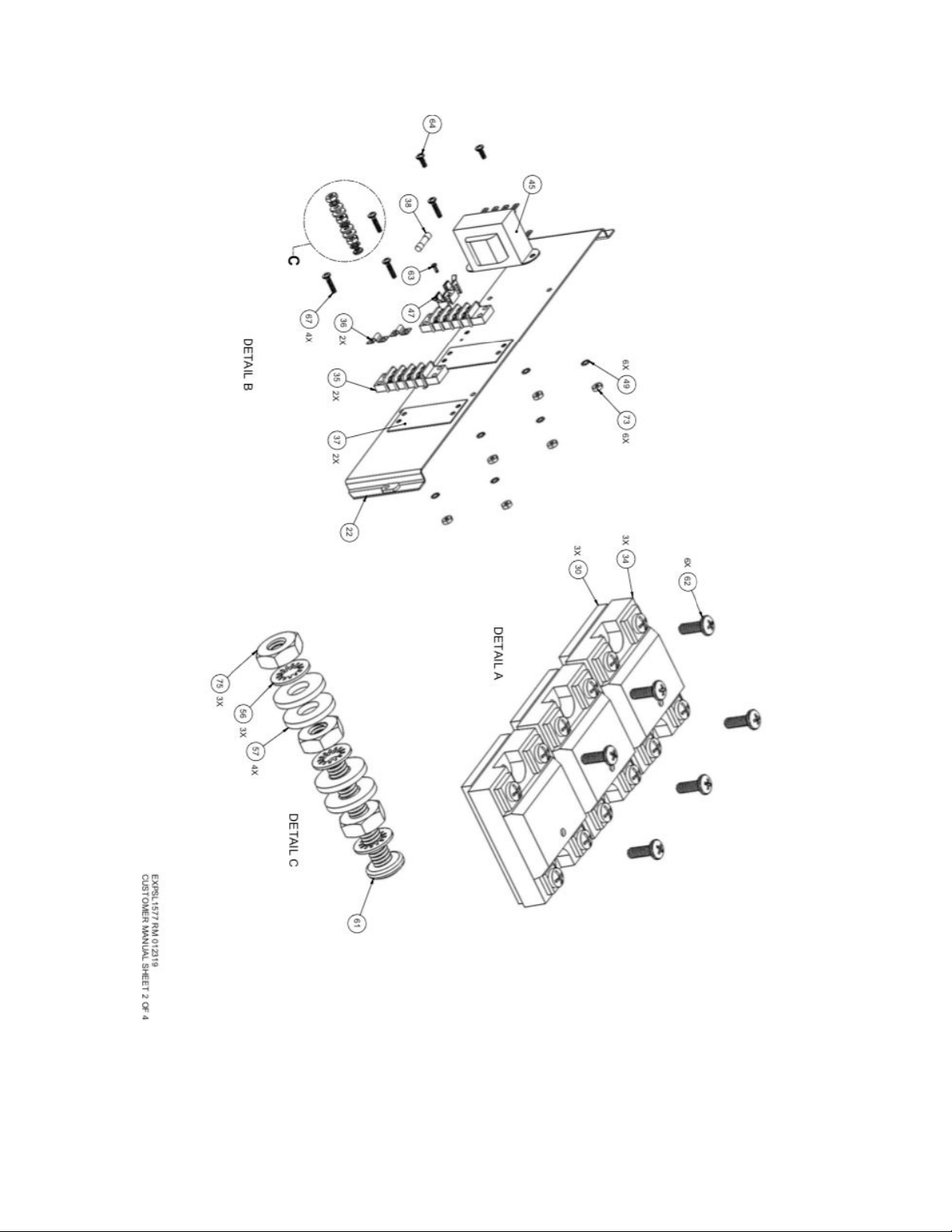

8

9

10



11



12

Vantage SL Part List - Model #: SL1577



13

ITEM

#

DESCRIPTION

SL1577A

~120V

SL1577CEC

~220V

SL1577E

~208V

SL1577PA

~120V

SL1577PCEC

~220V

SL1577PE

~208V

QTY.

1

LOWER WRAP AROUND

SHROUD ASSEMBLY

110115501

1

2

INSULATION,UPPER 7" X

15" LEFT AND RIGHT

110888251

2

3

LOWER PLATEN

INSULATION

110115542

1

4

CLEVIS ASSY LEFT HAND

110115503

1

5

CLEVIS ASSY RIGHT

HAND

110115504

1

6

SHROUD, LEFT ASSY

1101654645

4

1101654645

4

1101654645

4

1101654645

4

1101654645

4

1101654645

4

1

7

SHROUD, RIGHT ASSY

1101654645

5

1101654645

5

1101654645

5

1101654645

5

1101654645

5

1101654645

5

1

8

STOP, HEX PIN

1101834403

7

1101834403

7

1101834403

7

1101834403

7

1101834403

7

1101834403

7

2

9

COVER, BOTTOM ASSY

110115570

1

10

COVER, LOWER PLATEN

INSULATION

110115506

1

11

COVER, BACK

110115562

1

12

INSTRUMENT HOUSING

ASSEMBLY

110115511

1

13

GREASE TRAY ASSEMBLY

110115505

1

14

WIRE HARNESS SL1577

1101102050

1

ITEM

#

DESCRIPTION

SL1577A

~120V

SL1577CEC

~220V

SL1577E

~208V

SL1577PA

~120V

SL1577PCEC

~220V

SL1577PE

~208V

QTY.

15

TUBING-PAD

110115531

2

16

HANDLE LEFT ASSEMBLY

110115522

1

17

HANDLE RIGHT

ASSEMBLY

110115521

1

18

HANDLE SPRING

ADJUSTING COLLAR

110115528

2

19

SPRING TORSION LH

1101023154

L

1101023154

L

1101023154

L

1101023154

L

1101023154

L

1101023154

L

1

20

SPRING, TORSION RH

1101023154

R

1101023154

R

1101023154

R

1101023154

R

1101023154

R

1101023154

R

1

21

PLUNGER ASSEMBLY

110115544

2

22

MOUNTING BRACKET

ASSY.

110115559

1

23

TOP LINK

110115508

2

14

24

PIN, PIVOT BACK

1101708886

6

1101708886

6

1101708886

6

1101708886

6

1101708886

6

1101708886

6

2

25

PIN, PIVOT FRONT

1101708886

5

1101708886

5

1101708886

5

1101708886

5

1101708886

5

1101708886

5

2

26

HANDLE-HOLDER

110115530

2

27

SHIM, CLEVIS

11060421

2

28

UPPER LEVELING SHIM

110115557

2

29

UPPER LEVELING

BRACKET

110115510

2

30

SINK, HEAT, ALUMINUM

(SSR)

11057322

3

31

SPACER, HANDLE

BUSHING RETAINER

11013283

2

32

OVERLAY

OSL1577B

1

33

LOW CLEARENCE CLIP

LCC3478

4

34

SOLID STATE RELAY, 25

AMPS

PL2425

3

35

TERMINAL BLOCK #4,

DOUBLE

6014

2

36

JUMPER, TERMINAL

J601

2

37

MARKER STRIP #4

DOUBLE

MS6014

2

38

FUSE BUSS 1 AMP

MPPF701R

1

39

RTD TOP SENSOR 45.5"

1108881101

2

40

2000 OHM RTD,

BOTTOM SENSOR

1108881102

1

41

RETAINING RING

1101708886

7

1101708886

7

1101708886

7

1101708886

7

1101708886

7

1101708886

7

8

ITEM

#

DESCRIPTION

SL1577A

~120V

SL1577CEC

~220V

SL1577E

~208V

SL1577PA

~120V

SL1577PCEC

~220V

SL1577PE

~208V

QTY.

42

HANDLE GRIP

110901168

2

43

TRANSFORMER

INSULATION

1101159180

1

44

CLAMP, CABLE 3/8

CC38

2

45

TRANSFORMER

11096975

1

46

DIGITAL CONTROL 3

ZONE SOFTWARE REV

5.54

1101041052

1

47

FUSE HOLDER 1 AMP

MPPF708

1

48

STRAIN RELIEF

1106546468

1

49

WASHER, INTERNAL

TOOTH LOCK #6

WLIT6

12

50

WASHER, LOCK 3/8

WL38

4

15

51

WASHER, .311 OD X .150

ID X .20 THK

311150019

6

52

WASHER, CUT 5/16

WC516

6

53

WASHER, SAE 3/8"

WSAE38

12

54

WASHER, 5/16" SPLIT

LOCK

WL516

10

55

WASHER, LOCK

INTERNAL TOOTH 5/16"

WLIT516

4

56

WASHER, INTERNAL

TOOTH LOCK #8

WLIT8

3

57

WASHER, SAE #8

WSAE8

4

58

SCREW, PAN HEAD

PHILLIPS 8-32X 3/8 SS

SP83238S

15

59

SCREW, PHILLIPS PAN

HEAD 8-32 X 3/8

SP83238

2

60

SCREW, SET 3/8-16 X 1/2

SST381612

5

61

SCREW, PAN HEAD 8-32

X 1

SP8321

1

62

SCREW, PAN HEAD

PHILLIPS 8-32 X 1/2

SP83212

6

63

SCREW, PHILLIPS PAN

2-56x1/4

SP25614

1

64

SCREW, PAN HEAD

PHILLIPS 6-32 X 3/8

SP63238

2

65

SCREW, SET KNURLED

CUP POINT 5/16-18X3/8

SST5161838

KN

SST5161838

KN

SST5161838

KN

SST5161838

KN

SST5161838

KN

SST5161838

KN

12

66

SCREW, SET 3/8-16 X

1-1/2

SST3816112

4

ITEM

#

DESCRIPTION

SL1577A

~120V

SL1577CEC

~220V

SL1577E

~208V

SL1577PA

~120V

SL1577PCEC

~220V

SL1577PE

~208V

QTY.

67

SCREW, PAN HEAD

PHILLIPS 6-32 X 5/8

SP63258

4

68

SCREW, PAN HEAD

PHILLIPS 8-32 X 1-1/2 SS

SP832112S

2

69

SCREW, PAN HEAD

PHILLIPS 10-24X3/8

STAINLESS STEEL

SP102438S

12

70

SCREW, SET 3/8-16 X 1"

SST38161

2

71

BOLT, SOCKET HD

5/16-18X3/4"

SSH5161834

6

72

BOLT, 5/16 -18 x 1 SS HEX

HEAD

BH516181S

4

73

NUT, HEX 6-32

NH632

12

74

NUT, HEX 3/8-16

NH3816

4

75

NUT, HEX 8-32

NH832

3



16

76

FEET, RUBBER 3/4

1101654646

9

1101654646

9

1101654646

9

1101654646

9

1101654646

9

1101654646

9

4

77

BUSHING, FLANGED

TEFLON 3/4 ID X .875 OD

X .5 L

110115563

4

78

BUSHING, TEFLON, 3/4"

ID X 7/8" OD X 1" L

110115541

4

79

BUSHING TEFLON 3/4"

ID X 7/8" OD X 3/4" L

110113441

2

80

RUBBER GROMET, 5/16

I.D. x .500 O.D. x .100

110115554

2

81

GROMMET, RUBBER

CS157, 3/4" ID 1.3/8" OD

X 1/8

110103919

1

82

SPRING, DETENT

110115555

2

83

NYLON SPACER 1/4 X

.141 X 9/32

11090109

6

84

POWER CORD

1101591174

MPPW202

1101009176

1101591174

MPPW202

1101009176

1

85

MANUAL SL1577

MSL1577

1

A1

UPPER PLATEN LEFT

HAND WITH WIRING

1101155201

1101155202

1101155203

1101591201

L

1101155302

L

1101155303

L

1

A2

UPPER PLATEN RIGHT

HAND WITH WIRING

1101155204

1101155205

1101155206

1101591204

R

1101155305

R

1101155306

R

1

A3

UPPER PLATEN LEFT

HAND ASSY

1101155110

1101155111

1101155112

1101591110

L

1101155311

L

1101155312

L

1

A4

UPPER PLATEN RIGHT

HAND ASSY

1101155113

1101155114

1101155115

1101591113

R

1101155314

R

1101155315

R

1

ITEM

#

DESCRIPTION

SL1577A

~120V

SL1577CEC

~220V

SL1577E

~208V

SL1577PA

~120V

SL1577PCEC

~220V

SL1577PE

~208V

QTY.

A5

LOWER PLATEN WITH

WIRING

1101008002

120K

1101008002

220K

1101008002

208K

1101155232

120K

1101155232

220K

1101155232

208K

1

A6

LOWER PLATEN ASSY

1101008002

120AK

1101008002

220AK

1101008002

208AK

1101155232

120AK

1101155232

220AK

1101155232

208AK

1

A7

CONTROLLER

TEMPERATURE WITH

INSTRUCTIONS

1101041052

K

1101041052

K

1101041052

K

1101041052

K

1101041052

K

1101041052

K

1

A8

CONTROLLER

TEMPERATURE ASSY

110104152K

1

Warranty & Return Policy



Proluxe warrants all products manufactured

by it against defects in workmanship or

materials from the date of purchase for a

period of 1 year on parts and labor. This

warranty applies to only equipment

purchased and used in the United States.



Warranty period shall begin when equipment

ships. Warranty travel will only be covered

for 60 miles.



ALL WARRANTY SERVICE CALLS MUST BE

APPROVED BY PROLUXE. IF THIS

PROCEDURE IS NOT FOLLOWED,

WARRANTY SERVICE WILL NOT BE

COVERED. WARRANTY SERVICE WILL BE

PAID ON STRAIGHT TIME, OVERTIME

WILL NOT BE COVERED.



Service Calls

Contact our factory to obtain warranty

service. Proluxe must issue a return

authorization number, and call tag, or find

the name and location of a Factory

Authorized Service Center nearest you.

When calling for service, please furnish the

model number, serial number, and a

description of the problem.



E X C L U S I O N S



The warranties provided by Proluxe DO

NOT apply to the following:



●Damage due to misuse, abuse,

alteration, or accident.

●Improper or unauthorized repairs.

●Submerged in water.

●Damaged in shipment.

●Equipment exported to foreign

countries.



Special Order Equipment and

Accessories

Cannot be canceled and are not returnable

unless defective within the terms of this

warranty.

In no event shall Proluxe be liable for

consequential damages arising out of the

failure of any of its products if operated

improperly or caused by normal wear or

damaged by operator abuse.



Limited Lifetime Warranty on

Heating Elements

If replacement is needed, Proluxe will send

the new part at no charge but labor will not

be covered unless the unit is still under the 1

year manufacturer warranty.



R E T U R N E D M E R C H A N D I S E

P O L I C Y



Should it become necessary to return any of

the company’s products, the following

instructions must be adhered to: First,

contact our customer service department for

approval and a return authorization number.

Please have the serial number of your item

available at that time. All merchandise must

be shipped freight prepaid by customer or

service agency. Subject to the inspection of

the product by the company, a restocking

charge of 20% of the Net purchased price

paid to Proluxe will be assessed.

17

Merchandise may not be returned for credit

without prior written approval of Proluxe.



Collect shipments will not be accepted. No

returns after 60 days of original shipment

date on machines. Purchased parts may not

be returned after 30 days. If upon inspection

by Proluxe or its authorized agent it is

determined the equipment has not been used

in an appropriate manner, has been modified,

or has not been properly maintained, or has

been subject to misuse, misapplication,

neglect, abuse, accident, unauthorized

modification, damage during transit, delivery,

fire, flood, act or war, riot or act of God, then

this warranty shall be deemed null and void.



T E R M S & C O N D I T I O N S



1. Price List prices are suggested retail prices

and are shown in U.S. Dollars.



2. Terms of Payment: 1% 10 days, NET 30

days.



3. New Accounts: Satisfactory credit

information must be provided before open

account status can be extended.



Unless agreed otherwise, all shipments will

be made C.O.D., Cash in advance.



4. Pricing: Prices, specifications, model

numbers, capacities and accessories are

subject to change without notice.



5. Freight/Routing: Method of shipment will

be determined by Proluxe unless otherwise

advised by purchaser.



6. Damaged Claims: All merchandise shipped

at purchaser’s risk. Inspection must be made

by purchaser at time goods are received. If

goods are damaged, the PURCHASER shall

request that the agent of the transportation

company make a written notation on the

proper shipping documents immediately and

then file a claim for damages.



Note



: Goods damaged in shipping are

non-returnable.



7. Returns: Machines may not be returned

after 60 days. Purchased parts may not be

returned after 30 days. A restocking fee of

20% will be assessed on non-warranty

returns.



8. Taxes: Prices indicated herein DO NOT

include State, Federal, Local or foreign taxes

or duties, nor do they include fees, permits,

insurance or other levies, all of which are the

responsibility of the purchaser.



9. All orders are subject to acceptance by

Proluxe.



10. Possession of this price list shall not be

considered an offer to sell



18

Proluxe Vantage SL SL1577 User manual

Popular Grill manuals by other brands
