Promax ATLAS NG User manual

ATLAS NG
UNIVERSAL BROADCAST
ANALYZER
-0 MI2207-

i
NOTES ABOUT THE MANUAL
Read the user’s manual before using the equipment, mainly SAFETY RULES paragraph.
The symbol on the equipment means “SEE USER’S MANUAL”. In this manual may
also appear as a Caution or Warning symbol.
WARNING AND CAUTION statements may appear in this manual to avoid injury
hazard or damage to this product or other property.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress
and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
ELECTRONIC MANUAL VERSION
You can access instantly to any chapter by clicking on the title of the chapter in the table
of contents.
Click on the arrow at the top right page to return to the table of contents.
At Index, click on a page number to access the related content.
Click on the link or scan the QR code inside de video boxes in order to play a
tutorial video.
USER’S MANUAL VERSION
Please update your equipment to the latest firmware version available.
WHAT’S NEW on manual F2.0
•New: Booting up sequence (“► Switching On:” on page 10).
•New: Advanced tool: Drive Test (“Drive Test” on page 54).
•New: Shoulder Attenuation tool (“Shoulder Attenuation” on page 40).
•New: Audio levels tool (“Audio levels” on page 35).
•Improvement: New section “Screenshot” (“Screenshot” on page 14).
•Improvement: New section “Firmware update” (“Firmware Update” on page 18).
•Improvement: New section “Channel plan Edition” (“Channel Plan Editor” on
page 14).
•Improvement: New section “Top menu” (“Top Menu” on page 13).
Manual Version Web Publication Date Firmware Version
F2.1 October 2023 1.5.0

ii
•Improvement: New chapter “Workspaces” (“WORKSPACES” on page 60).
•Update: Description of input impedance option (“Top Menu” on page 13).
•Update: More and better specifications (“SPECIFICATIONS ATLAS NG” on page 70).
•Update: Change of side micro-USB connector to USB-C (“Equipment Details” on
page 7).
•Update: Optical power meter (“Optical Power Measurement” on page 52).
•Update: New videos (“MULTIMEDIA CONTENT” on page 92)
•Update: HDMI trademark.
•Improvement: Better figures definition.
•Others: Other minor updates and improvements.

iii
SAFETY RULES
* The safety could not be assured if the instructions for use are not closely followed.
* Use this equipment connected only to systems with their negative of measurement
connected to ground potential.
* The AL-103 external DC charger is a Class I equipment, for safety reasons plug it to
a supply line with the corresponding ground terminal.
* This equipment can be used in Overvoltage Category I installations and Pollution
Degree 2 environments.
* External DC charger can be used in Overvoltage Category II, installation and Pollution
Degree 1 environments.
* When using some of the following accessories use only the specified ones to ensure
safety:
Rechargeable battery
External DC charger
Car lighter charger cable
Power cord
* Observe all specified ratings both of supply and measurement.
* Remember that voltages higher than 70 V DC or 33 V AC rms are dangerous.
* Use this instrument under the specified environmental conditions.
* When using the power adaptor, the negative of measurement is at ground potential.
* Do not obstruct the ventilation system of the instrument.
* Use for the signal inputs/outputs, specially when working with high levels, appropriate
low radiation cables.
* Follow the cleaning instructions described in the Maintenance paragraph.

iv
SAFETY SYMBOLS
DESCRIPTIVE EXAMPLES OF OVER-VOLTAGE CATEGORIES
* Cat I: Low voltage installations isolated from the mains.
* Cat II: Portable domestic installations.
* Cat III: Fixed domestic installations.
* Cat IV: Industrial installations.
CAUTION: The battery used can present danger of fire or chemical burn if it is
severely mistreat. Do not disassembly, cremate or heat the battery
above 100 °C under no circumstances.

v
TABLE OF CONTENTS
1. INTRODUCTION ........................................................................................ 1
1.1. Description............................................................................................ 1
2. SETTING UP .............................................................................................. 3
2.1. Package Content .................................................................................... 3
2.2. Power ................................................................................................... 3
2.2.2.Charging the Battery ................................................................................................. 4
2.2.1.First Charge .............................................................................................................4
2.2.3.Charge / Discharge Times .......................................................................................... 5
2.2.4.Energy Saving .......................................................................................................... 5
2.2.5.Smart Control Battery ................................................................................................ 5
2.2.6.Usage Tips ...............................................................................................................6
2.3. Equipment Details .................................................................................. 7
2.5. Reset...................................................................................................10
2.4. Switching On/Off...................................................................................10
2.6. Icons...................................................................................................11
2.7. Home Menu..........................................................................................12
2.8. Top Menu.............................................................................................13
2.9. Screenshot...........................................................................................14
2.10. Channel Plan Editor..............................................................................14
2.11. Tuning Practical examples.....................................................................15
2.11.1.RF Terrestrial signal tuning ......................................................................................15
2.11.2.RF Satellite signal tuning .........................................................................................16
2.12. Firmware Update .................................................................................18
3. SETTINGS AND PREFERENCES................................................................. 19
3.1. Settings Menu.......................................................................................19
3.1.1.General Settings ......................................................................................................19
3.1.2.TV Analyzer Settings .................................................................................................21
3.1.4.Spectrum Analyzer Settings .......................................................................................23
3.1.3.IPTV Settings ...........................................................................................................23
3.2. Audio and Brightness Settings.................................................................24
4. TV ANALYZER.......................................................................................... 25
4.1. Introduction .........................................................................................25
4.2. TV Analyzer Screen ...............................................................................26
4.3. Tuning Settings.....................................................................................27
4.4. Tools ...................................................................................................28
4.4.1.Spectrum ................................................................................................................29
4.4.2.Measurement ...........................................................................................................31
4.4.3.Signal Parameters ....................................................................................................33
4.4.4.Video ......................................................................................................................34
4.4.5.Audio levels .............................................................................................................35
4.4.6.Audio/Video Parameters ............................................................................................36
4.4.7.Constellation ...........................................................................................................37
4.4.8.Echoes ....................................................................................................................39
4.4.9.Shoulder Attenuation ................................................................................................40
4.4.10.MER by Carrier .......................................................................................................42
4.4.11.Recording ..............................................................................................................43
4.4.12.Transport Stream Analyzer ......................................................................................44
4.4.12.1.Transport Stream Tables .......................................................................................45
4.4.12.2.Transport Stream Bitrate ......................................................................................46
4.4.12.3.Transport Stream PIDs .........................................................................................48
4.4.12.4.Transport Stream Alarms ......................................................................................49
4.4.13.FM ........................................................................................................................50
4.4.14.Optical Power Measurement .....................................................................................52

vi
4.5. Advanced Tools.....................................................................................53
4.5.1.Drive Test ...............................................................................................................54
5. WORKSPACES ......................................................................................... 60
5.1. Introduction .........................................................................................60
5.2. Operation.............................................................................................60
5.3. Workspace Management ........................................................................63
5.4. Resources ............................................................................................64
6. WEBCONTROL ......................................................................................... 66
6.1. Introduction .........................................................................................66
6.2. Settings and Remote Access ...................................................................66
6.3. Remote Console ....................................................................................68
7. SPECIFICATIONS ATLAS NG ................................................................... 70
7.1. General................................................................................................70
7.2. TV Analyzer Mode..................................................................................75
7.2.1.Supported Standards ................................................................................................75
7.2.2.TV Analyzer Tools .....................................................................................................79
7.3. Spectrum Analyzer Mode........................................................................82
7.4. IPTV Mode............................................................................................83
7.5. ASI Mode .............................................................................................85
7.6. SDI Mode.............................................................................................86
7.7. Options................................................................................................87
8. MAINTENANCE ........................................................................................ 89
8.1. Instructions for Returning by Mail ............................................................89
8.2. Considerations about the Screen .............................................................89
8.3. Cleaning Recommendations ....................................................................89
i. ADDITIONAL INFORMATION.................................................................... 91
ii. MULTIMEDIA CONTENT ........................................................................... 92
iii. INDEX .................................................................................................... 94

Chapter 1: INTRODUCTION 1 October 2023
UNIVERSAL BROADCAST ANALYZER
ATLAS
NG
1 INTRODUCTION
The new ATLAS NG is the eighth generation of field meters that PROMAX
launches. As each new generation, it represents an evolution from the previous,
since it integrates the latest technological innovations and develops applications
for the new demands and needs that have emerged in recent years.
The new ATLAS NG has been created with the aim to make easy the user
experience. Everything has been designed so the equipment can be fully
operated using the 10” multitouch display (even using wearing gloves). The
friendly interface has been designed so the user has a simple tool to use but
powerful. The new outer frame offers extreme ruggedness maximizing grip and
ease of handling.

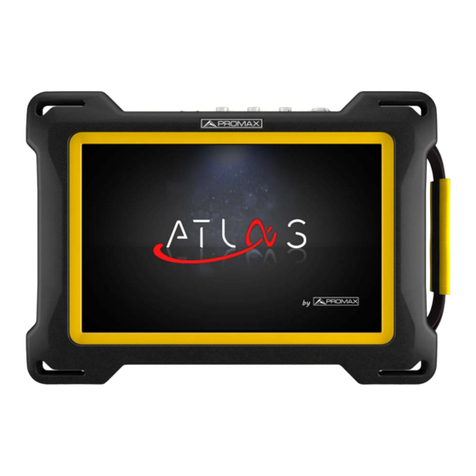

Figure 1.
The ATLAS NG is a universal analyzer that covers the most stringent
requirements for broadcast professionals. It covers all standards developed by
ISDB and the DVB consortium, as well as the ISDB and ATSC standard, including
the next generation versions for these standards, like the ATSC 3.0 and DVB-
S2x.
Besides the basic functions of TV meter and spectrum analyzer for terrestrial and
satellite band, the ATLAS NG can analyze signals from IPTV, Transport
Streams, SDI, WiFi, OTT and fiber optics. The frequency range arrives to 6 GHz,
1.1 Description

October 2023 2 Chapter 1: INTRODUCTION
covering the S and C bands, used by technologies like teleports or broadband
wireless.
The ATLAS NG has a variety of input-output connectors that allows the user to
work with most of the broadcast signals: N-type universal, 1PPS, FC/APC, ASI-
SDI, SFP+, Ethernet among others. It also incorporates HDMI™ technology that
allows audio and video output to be displayed on an external screen.
Additionally, it can be connected to a network and remotely managed very easily
using a standard web browser.
In an effort to facilitate its work to professionals, our long experience ensures
an after sales quality service. In addition, there are software updates
periodically released, that add functions and improvements to the equipment.
The ATLAS NG
has been designed and developed entirely in the European
Union. A multidisciplinary team of highly qualified professionals has dedicated
effort and commitment to the development of a powerful, efficient and reliable
tool. During the manufacturing process, all used materials have been subjected
to a strict quality control.
Figure 2.
Introducing the ATLAS NG (01:30s)
S
C
A
N

Chapter 2: SETTING UP 3 October 2023
2 SETTING UP
Check that your package contains the following elements:
ATLAS NG Universal Analyzer.
External DC charger.
Mains cord for external DC charger.
Car lighter charger.
GPS receiver.
Dongle WiFi.
BNC/m-TV/f IEC adapter.
Aero N/m-F/f adapter.
N/m-BNC/f adapter.
Carrying bag.
Support belt.
4V/RCA Jack Cable.
Monopod.
Transport suitcase.
Quick Start Guide.
The ATLAS NG is powered by a 7.4 V built-in rechargeable Li-Po battery of high
quality and long operation time. This equipment can operate on battery or
connected to the mains using a DC adapter. An adapter is also supplied to use
with the power connector car (cigarette lighter).
2.1 Package Content
NOTE: Keep the original packaging, since it is specially designed to protect the
equipment. You may need it in the future to send the analyzer to be
calibrated.
2.2 Power

October 2023 4 Chapter 2: SETTING UP
The equipment comes with the battery half charged. Depending on the time
elapsed from first charge and environmental conditions may have lost some of
the charge. You should check the battery level. It is advisable a first full charge.
Connect the DC power adapter to the equipment through the power connector
on the left side panel (see figure).
Figure 3.
Then connect the DC power adapter to the mains via the mains cord. Ensure that
your mains voltage is compatible with the adapter voltage.
For a fast charging is necessary to switch off the equipment.
If the equipment is ON, the battery charge will be slower, depending on the type
of work you are doing. When connecting the equipment to the mains the mains
connected symbol appears inside the battery icon.
The charger led indicates the battery status:
Red: Charging.
Green: Charge finished.
Blinking: Battery not detected.
Off: Battery is discharging.
When switching on the equipment, the battery voltage is checked. If the tension
is too weak to start, the equipment does not start up. In this case please charge
the battery immediately.
2.2.1 First Charge
2.2.2 Charging the Battery

Chapter 2: SETTING UP 5 October 2023
Average charging time with the equipment off (fast charge):
3 hours to achieve an 80% charge.
5 hours to achieve a 100% charge.
With the equipment on (slow charge):
5 hours to achieve an 80% charge.
8 hours to achieve a 100% charge.
Average discharge time (with external supply disabled):
With the battery full charge the average battery time is 5:00 hours.
With the battery at 80% charge the average battery time is 4 h.
These options are available in the menu Settings -> Appearance.
Power Off: It allows the user to select the time to power off, which is the
time after which the equipment shuts down automatically unless pressing
any key. Time options are: off, 1, 5, 10, 15, 30 o 60 minutes.
TFT Screen: User can select a time after which the TFT screen turns off,
but the equipment is still running normally. The equipment can measure
(for example, making a datalogger or channel exploration) and the battery
will last longer, about 10% more. The screen turns on by pressing any
key. Time options are: off, 1, 5, 10, 30 or 60 minutes.
The built-in battery of the equipment is of the "smart" type, which means that
reports its state of charge. This information can be shown on screen by enabling
the “Battery time” option. It shows the average time available next to the
battery icon. In this way the user knows at any time the remaining battery level.
2.2.3 Charge / Discharge Times
2.2.4 Energy Saving
2.2.5 Smart Control Battery

October 2023 6 Chapter 2: SETTING UP
The remaining time charge that appears is calculated according to the work that
has been doing. If the external supply is working, the average time would be
reduced according to the increase in consumption that occurs.
The battery is losing storage capacity as you go through its life. Contact your
PROMAX distributor when necessary to replace the battery.
To extend battery life the user should follow these tips:
In case of providing a long inactivity period of the equipment it is
advisable to make every 3 months a charge / discharge cycle and a
subsequent partial charge (40% aprox.).
It is advisable to keep it in a cool place and away from heat.
You should avoid keeping the battery for a long period of time at full load
or fully discharged.
There is not necessary to wait to fully discharge before a charge because
these batteries have no memory effect.
2.2.6 Usage Tips

Chapter 2: SETTING UP 7 October 2023
Figure 4. Front View.
2.3 Equipment Details
Inputs and Outputs (03:13s)
S
C
A
N

October 2023 8 Chapter 2: SETTING UP
Figure 5. Left Side View.
1 Output with HDMI™ technology (supports HDMI 1.4b with 2.9 Gb/s and up
to 3840x2160 @ 30 Hz).
2 USB-C Host/Device connector (selectable).
3 RJ45 connection for remote management.
4 Analogue Video/Audio input/output.
5 Power input connector.
6 LED indicator for battery charge level.

Chapter 2: SETTING UP 9 October 2023
Figure 6. Top View.
1 ON/OFF. Press for an instant to switch on/off.
2 USB 3.0 port for WiFi dongle, GPS receivers or USB drives.
3 RJ45 connector for IPTV or OTT signal analysis.
4 SFP+ transceiver compatible with GE and fiber optics.
5 ASI/SDI output signal.
6 ASI/SDI input signal.
7 Input for reference synchronism signal 1PPS or 10 MHz.
8 Radio frequency input signal (RF).
9 Fiber optics input.
10 CAM module slot.

October 2023 10 Chapter 2: SETTING UP
►Switching On:
1 Press the power on/off button located at the top of the device for a few
moments. The SFP+ connector's LED lights will turn on, and the fans will
start running to indicate that the device is booting up.
2 The boot screen appears and also a progress bar that indicates the system
is loading.
3 After the system loads, it shows the same status before power off.
►Switching Off by software (recommended):
1 Press the switching off icon at the main screen.
2 Select “Power Off” or “Reboot”.
►Switching Off by button:
1 Press the ON/OFF button placed on the top of the equipment.
►Switching Off by software (Energy save):
1 Press the Settings icon from the main screen.
2 Press the Appearance icon .
3 The option "Power Off" allows the user to enable the automatic shutdown
option. Select a waiting time (time without pressing any key and the meter
not working) after which the equipment turns off automatically.
How to RESET: Hold down the ON/OFF key for 10 seconds until the equipment
switches off.
2.4 Switching On/Off
NOTE: The equipment keeps its last status (mode and screen) which is
recovered when power on.
2.5 Reset

Chapter 2: SETTING UP 11 October 2023
When to RESET:
When it crashes and does not respond to any key.
When it does not switch on.
When it does not finish the boot process.
Icons on screen provide useful information about the equipment:
2.6 Icons
Icon Description Icon Description
Attenuator: The input signal has an
adequate level.
Signal Quality according to threshold: Correct
quality.
Attenuator: The input signal is over-
attenuated.
Signal Quality according to threshold: Quality
close to threshold.
Attenuator: The input signal is
saturated.
Signal Quality according to threshold: Not
acceptable quality.
RF Input Impedance: 50 Ohms. Outdoor unit power supply: Power off.
RF Input Impedance: 75 Ohms. Outdoor unit power supply: It shows selected
voltage.
Battery charging. Outdoor unit power supply: It shows selected
voltage and 22 kHz signal activated.
Battery in use.

October 2023 12 Chapter 2: SETTING UP
To access the Home Menu from any screen press the PROMAX logo at the
left bottom corner.
From the Main Menu you can access the main tools as described below.
 TV Analyzer: Tool to analyze and demodulate terrestrial, CATV or
FM signals (from 45 to 1000 MHz) and satellite (from 250 to 2350 MHz)
(for more details refer to “TV ANALYZER” on page 25).
 Spectrum Analyzer: Tool to tune and measure RF (power and C/N)
signal from 5 MHz to 6 GHz.
 IPTV: Tool to inspect in detail IPTV streams.
 ASI: Tool to analyze Transport Streams.
 SDI: Tool to analyze SD-SDI, HD-SDI and 3G-SDI.
 Manual: Quick guide and complete user manual.
 Settings: Access the settings menu (for more details refer to
“SETTINGS AND PREFERENCES” on page 19).
2.7 Home Menu
Main Menu (05:23s)
S
C
A
N

Chapter 2: SETTING UP 13 October 2023
To access the Top menu from any screen, swipe down from the top of the screen.
From the Top menu, you can access various management options. Some options
are only available in certain modes.
The options are described below:
Workspace: It allows you to manage the workspace folders where data
and resources are stored (for more information refer to “WORKSPACES” on
page 60).
USB: It allows you to manage the type of connection (host/slave) to the
device connected to the USB 3.0 port. It also allows you to unmount the
connected device.
GPS: It allows you to manage the GPS connected to the USB 3.0 port.
WiFi: It allows you to manage the WiFi antenna connected to the USB 3.0
port.
HDMI™: It allows you to view the resolution and other details of the
interface with HDMI™ technology.
CAM: It allows you to manage the CAM card.
Optical Power: It measures power at full optical band (800 - 1700 nm).
Optical LNB (available only for Optical Option): It allows users to measure
optical power for each band and manage the conversion of optical signals
to RF for optical LNB.
ASI OUT: It allows you to enable/disable the ASI output.
Antenna: It allows configuring the antenna field strength and input
impedance at the RF input (N connector) of the meter. The input of the
meter is designed to have 50 Ω. If the input is 75 Ω, a 75/50 Ωadapter
should be used at the meter’s input (see optional accessories in
“SPECIFICATIONS ATLAS NG” on page 70) and then select the 75 Ωoption.
When selecting 75 Ω, a software correction is done, applying the 7.5 dB
loss of the 'Min loss pad' impedance adapter.
External Power: It allows you to select the voltage and frequency of power
supply for external devices.
Volume: It allows you to increase or decrease the audio volume.
Brightness: It allows you to increase or decrease the screen brightness.
Notifications space: It allows you to view the latest notifications displayed
on the screen.
2.8 Top Menu
