INSTRUCTION MANUAL
DFB13/RAD10
1
INSTRUCTION MANUAL
DulcoFlex Peristaltic Pump: DFB13/RAD13
This manual forms an integral part of the pump and must accompany it until its demolition. The peristaltic
pump is a machine destined to work in industrial areas and as such the instruction manual must form part
of the legislative dispositions and the applicable technical standards and does not substitute any
installation standard or eventual additional standard.
The person in charge of safety should therefore guarantee that
- The pump is transported, installed, put in service, used, maintained and repaired by qualified personnel
who should therefore posses:
- Specific training and sufficient experience.
- Knowledge of the technical standards and applicable laws.
- Knowledge of the general national and local safety standards and also of installation.
Any work carried out on the electrical part of the pump should be authorized by the person responsible for
safety. Given that the pump is destined to form part of an installation, it is the responsibility of whoever
supervises the installation to guarantee absolute safety, adopting the necessary measures of additional
protection.
GENERAL SAFETY WARNING
Pumps are machines that due to their functioning under pressure and moving parts can
present dangers.
- Improper use
- Removing the protections and/or disconnecting the protection device
- The lack of inspections and maintenance
CAN CAUSE SERIOUS DAMAGE OR INJURY
P/N 1092492

INSTRUCTION MANUAL
2
INDEX
Page N#
Cover
01
Index
02
Identification record of equipment
03
Transport and storage
04
General safety standards
05
General description
07
Installation
08
Roller pressure adjustment
08
Work conditions
09
Performance curves
10
Checks before starting up the machine
11
Maintenance
11
Reposition of the hose –dismantling
12
Reposition of the hose –mounting
12
Problems, causes and solutions
13

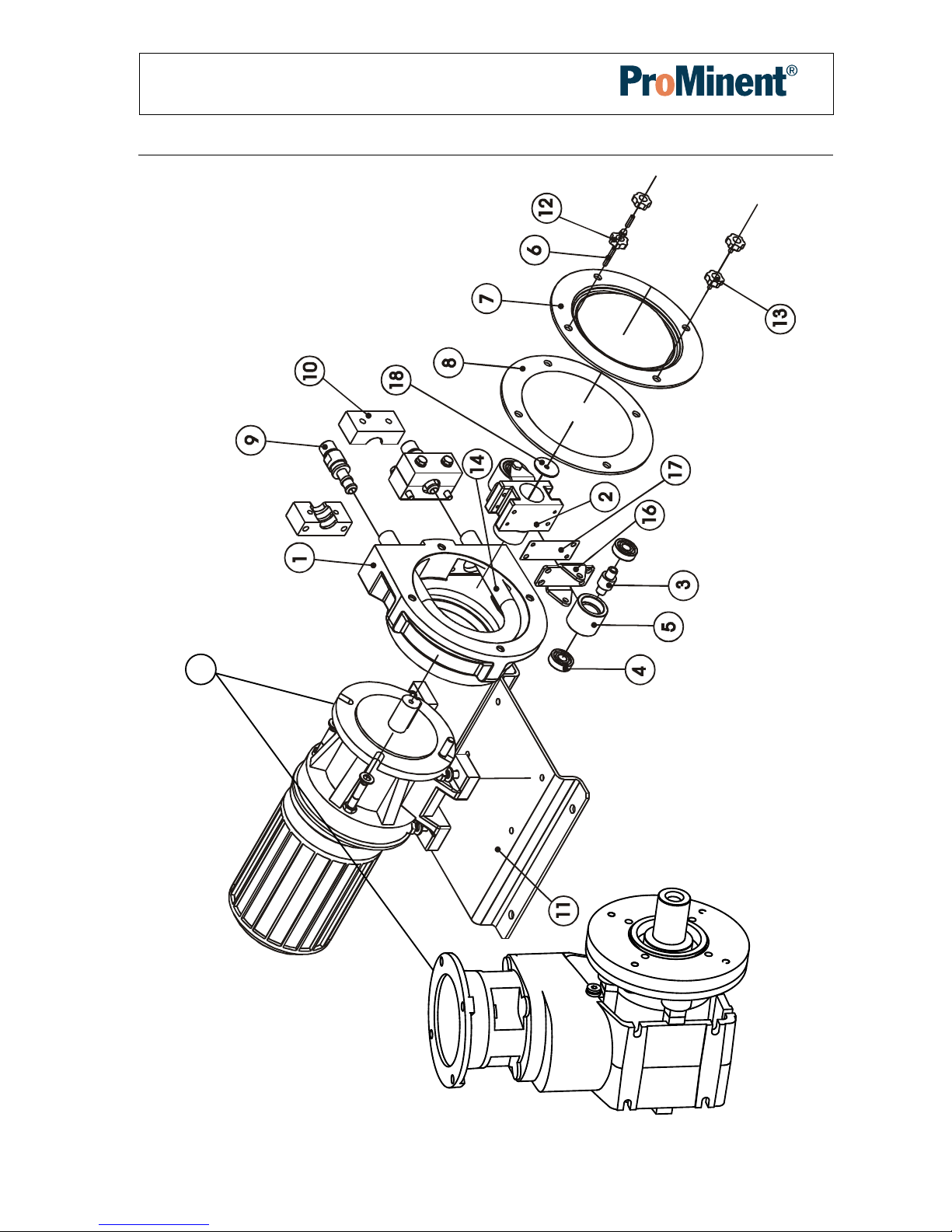

Diagram of components parts
14
Spare parts code
15
Certificate of approval
16
Guarantee
17
DFB13/RAD10

INSTRUCTION MANUAL
3
IDENTIFICATION RECORD OF EQUIPMENT
MANUFACTURER:
MODEL OF PUMP: DFB13/RAD13
SERIAL NUMBER:
DRIVER MARK:
DRIVER POWER / SPEED:
REDUCER MARK & MODEL:
REDUCTION RATIO:
FIXED SPEED MOTOR GEAR REDUCER:
GEAR REDUCER WITH VFD:
WORK SPEED:
MAXIMUM SPEED:
MINIMUM SPEED:
WORKING MANOMETRIC PRESSURE: MAXIMUM
DESIGN PRESSURE: 116 psi
HOSE MATERIAL:
CONNECTIONS MATERIAL:
IMPORTER / SUPPLIER:
DFB13/RAD10

INSTRUCTION MANUAL
4
TRANSPORT and STORAGE
TRANSPORT
The pump is protected by a cardboard packaging.
The packaging materials are recyclable.
During transportation, the pump is in a resting position (the hose is not compressed)
STORAGE
The pump should be in a resting position. (The hose should not be compressed).
Avoid areas open to inclement weather or excessive humidity.
For storage periods of longer than 60 days, protect the coupling surfaces with
adequate anti-oxidant products, remove hose/tube or remove one roller and rotate
remaining roller out of contact with hose/tube.
Hose/tube spares should be stored in a dry place away from direct light.
DFB13/RAD10

INSTRUCTION MANUAL
5
GENERAL SAFETY STANDARDS
The instructions of this manual, whose inobservance is
determined as a failure to meet safety standards, are
identified by this symbol
The instructions of this manual, whose inobservance
compromises electrical safety.
The instructions of this manual, whose inobservance
compromises the correct working of the pump, are identified
with this symbol.
Do not start the pump without first having installed the front cover.
For any manipulation of the equipment, it is necessary to make certain that the
pump is stopped and the electricity supply disconnected.
Changing the hose should be done with the pump stopped.
Do not exceed the nominal pressure, speed or temperature of the pump, or
use the pump for applications other than that originally planned without first
consulting the manufacturer.
WARNING!
WARNING!
DFB13/RAD10

INSTRUCTION MANUAL
6
Cleaning the pipe, including the hose, should be done with fluids compatible
with the mentioned drive pump and at its maximum temperature
recommended.
Do not start the pump without it being properly secured to the floor - unless
cart mounted.
Do not carry out any maintenance operations or dismantle the pump without
first making sure that the pipes are not under pressure and are empty or
isolated.
The start system of the motor should be provided with a direction inverter,
stop-go button and emergency stop button (together with the pump), in such a
way that the pump can be manipulated with total safety.
In the case of the hose becoming stuck during extraction or fitting it is
necessary to reverse the direction of the pump, relubricate, and then repeat
the operation.
The DulcoFlex pump is a positive displacement pump and therefore
susceptible to a closed valve (dead headed) condition. Installing a pressure
relief valve on the discharge piping can help prevent damage caused by a
“dead headed” condition.
Check the turning direction of the pump, as it is reversible it could generate
pressure in the suction and compromise the safety of the installation. The
circulation of the fluid should be in the same direction as the turning direction
of the pump as seen from the inspection plate situated on the front cover.
Since hose/tube life is so unpredictable, it may be necessary to equip the
pump with a moisture sensing device that can shut the pump down in the
event of a hose/tube failure.
For C.I.P. type cleaning process, it’s necessary to check with the manufacturer
the correct installation of the pump (it’s necessary to use a special
installation), and also the compatibility of the cleaning products with the
peristaltic hose.
GENERAL DESCRIPTION
WARNING!
WARNING!
WARNING!
DFB13/RAD10

INSTRUCTION MANUAL
7

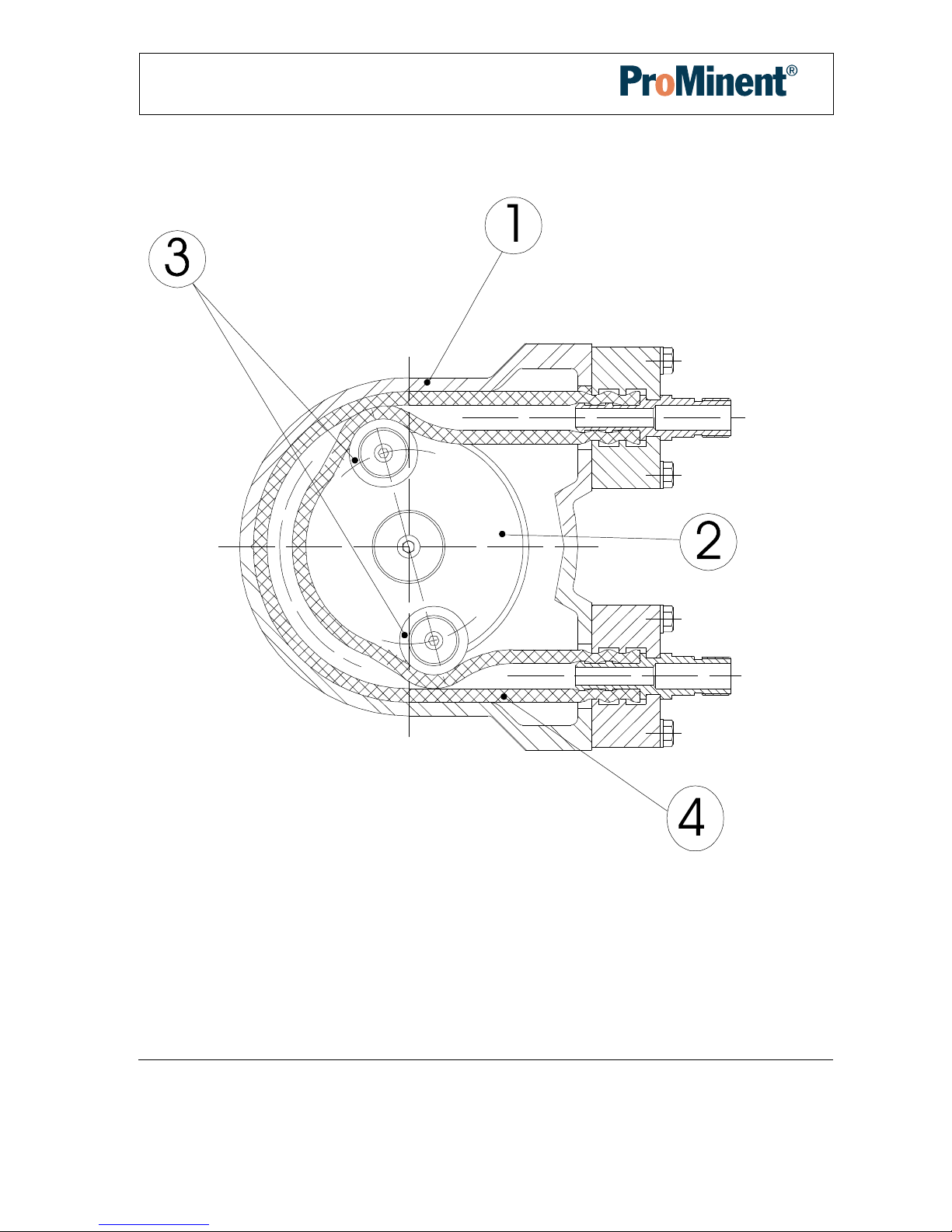

Construction of the pump.
As shown in the figure below, the pump unit is a very simple design, robust and with very few moving
parts.
The outer casing (1) terminates with threading connectors. Inside the casing are found the rotor (2),
completed with two rollers (3). As this is revolving it compresses the reinforced tube (4) and in this way
generates a pumping action. A change in the direction of rotation will give rise to a change in direction of
the pumped fluid.
INSTALLATION
PERISTALTIC PUMP
DFB13/RAD10

INSTRUCTION MANUAL
8
Installation should normally be made in a well ventilated area away from heat sources. If it is
necessary to place the pump outside it should be provided with a cover to protect it from sunlight and
inclement weather.
The positioning of the pump should allow easy access for all kinds of maintenance operations.
Suction. The pump should be as near as possible to the supply of liquid so that the suction pipe is as
short and straight as possible. The suction pipe should be perfectly airtight and made of suitable material
so that it does not collapse due to the internal drop in vacuum. The minimum diameter should be similar
to that of the tubular element. With viscous fluids a larger diameter is recommendable. (Consult
manufacturer or distributor).The pump has automatic suction and does not need an inlet valve. The
pump is reversible, and so the suction connection can be either one of the two. (Normally the one which
adapts itself physically better to the installation would be chosen). It is recommendable to use a
flexible connection between the piping and the pump flanges/fittings in order to avoid the
transmission of vibration to the piping.
Discharge. To reduce power being absorbed, use the straightest and shortest piping possible. The
diameter should be the same as the nominal diameter of the pump, excepting precise calculations of load
losses. With viscous fluids a larger diameter is needed. (Consult the manufacturer or distributor).
Connecting the fixed piping to the pump with a length of flexible pipe facilitates maintenance and avoids
vibrations and loads on the pump. Tighten all piping firmly. The discharge is slightly pulsatory: To avoid
such effect, it is advisable to install pulsation dampeners. (See accessories.)
ROLLER PRESSURE ADJUSTMENT
The peristaltic pump, includes a shims (Figure 6 ), that are used to adjust the exact pressing distance of
the roller ( figure 9 ).
The shims are installed from factory to work at the work conditions indicated ( in function of the speed and
the work pressure), and following the next tables.NOTE: If not indicated on original order, the
pumps are factory set to 60 psi.
6
9
DFB13/RAD10

INSTRUCTION MANUAL
9
DFB13/RAD13 ( Number of shims of 0.5 mm. )
rpm
0-19
20-39
40-59
60-79
80-99
PSI
7.25
1
1
1
1
1
29
1
1
1
1
1
58
2
1
1
1
1
87
2
2
2
--
--
116
3
2
--
--
--
The standard position of assembly is 4 bar.
DFB13, THERMOPLASTIC HOSE ( Number of shims of 0.5 mm. )
rpm
0-19
20-39
40-59
60-79
80-99
PSI
7.25
5
5
5
5
5
29
5
5
5
5
5
WORK CONDITIONS
There are limits of temperatures and pressures, in function of the hose selected. Those limits are the
next:
MATERIAL
MINIMUM TEMP
(ºF)
MAXIMUM TEMP
(ºF)
MIN AMBIENT (ºF)
MAX. PRESS.
(PSI)
NR
-4
176
-40
116
NBR
14
176
-40
116
EPDM
14
176
-40
116
NR-A
14
176
-40
116
NBR-A
14
176
-40
116
NORPRENE
-40
248
-40
29
TYGON
14
158
-40
29

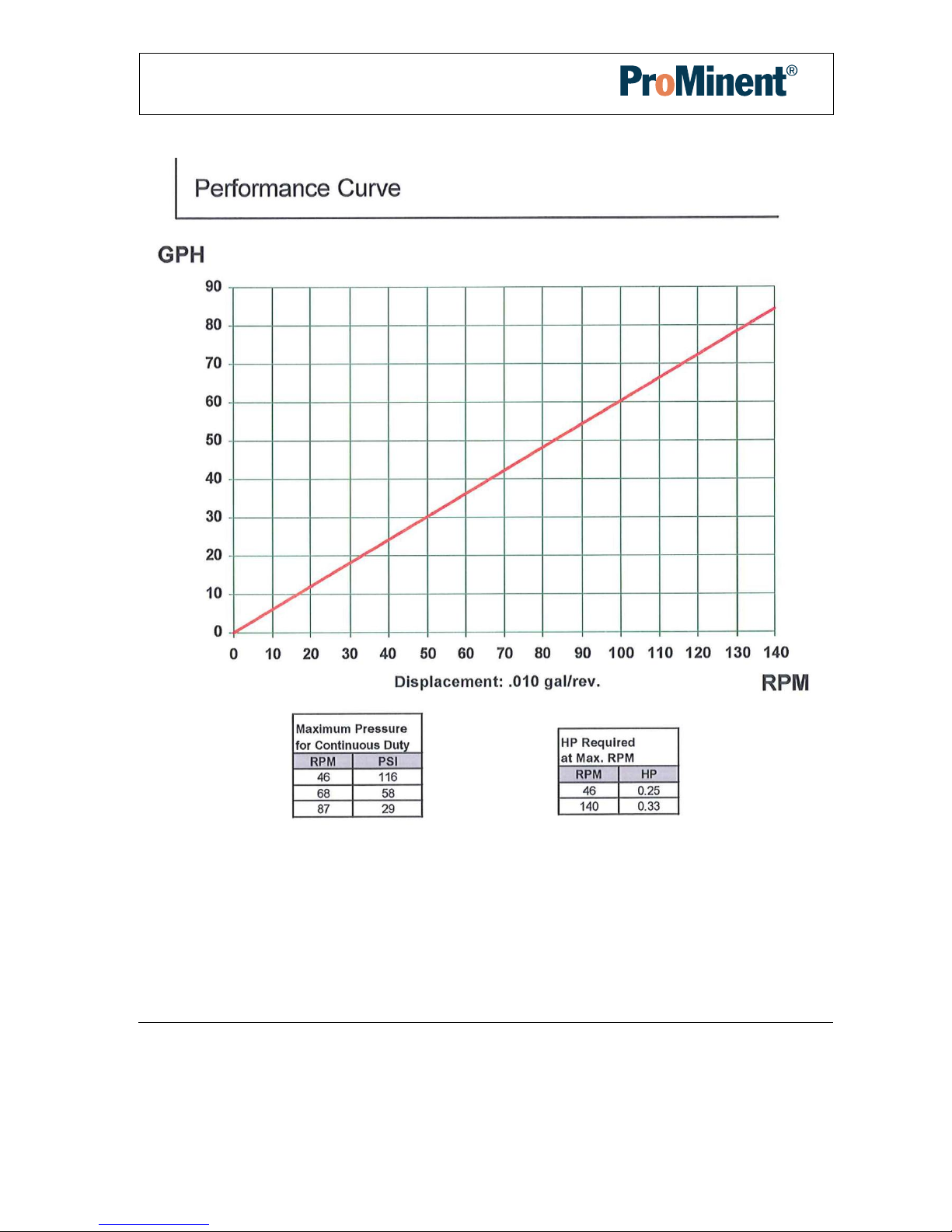

PERFORMANCE CURVES
DFB13/RAD10

INSTRUCTION MANUAL
10
DFB13/RAD13
CHECKS BEFORE SWITCHING ON THE PUMP
Check that the pumping equipment has not suffered any damage during transportation or storage, any
damage should be notified to the supplier immediately.
Check that the network voltage is suitable for the motor.
DFB13/RAD10

INSTRUCTION MANUAL
11
Make sure that the hose is suitable for the fluid to be pumped and that it will not be chemically affected;
check also that the temperature of the fluid does not exceed the maximum recommended temperature.
If the hose is in a resting position, then the pump has come from storage or transportation; now is the
moment to install the second roller. Do not switch on the pump without the pump body cover being
correctly installed.
Lubrication. Check that the drive pump and the inner of the rollers are correctly greased. The specially
formulated grease can be obtained from an authorized distributor.
Check that the protectors of the moving parts are correctly assembled.
Check that the thermal protector corresponds with that of the values on the plate on the motor.
Check that the direction of rotation is the desired one. (rotation test).
Check that the optional electrical components are connected to the control panel and test that they
function correctly.
In cases of doubt of the valuation of discharge pressure (e.g. high viscosity), mount a pressure gauge on
the discharge.
Check in predicted working conditions that the values of flow, pressure and absorbed power of the motor
correspond to the project.
MAINTENANCE
Any work carried out on the pump must be done when the pump is stationary and disconnected from the
electricity supply.
Lubrication
Check that the rollers and the hose are correctly greased. Check it every 200 hours of work. Add silicon
grease as necessary.
Check that the lubricant level in the gear reducer is correct and carry out periodic changes of lubricant
according to the maintenance manual.
REPOSITIONING OF HOSE - DISMANTLING
First, all valves must be closed to prevent losses of the product.
Disconnect the suction and impulsion pipes.
DFB13/RAD10

INSTRUCTION MANUAL
12
Dismantling of the suction/impulsion connections. Dismantling of the rollers that compress the drive
pump. Remove the tube to be replaced and separate the connections from both pipe ends.
REPOSITIONING OF HOSE - MOUNTING
Clean the internal surfaces of the pump body. Lubricate the internal faces of the body of the pump
where there could be friction with the hose. To carry out this operation correctly it is necessary to
remove the front cover.
Inspect the rollers, checking that there is no damage to the pressure surface. If the machine is being
set up for the first time, see paragraph Rotor in the section CHECKS BEFORE SWITCHING ON THE
PUMP.
Insert the connections in each hose end.
Install the hose in the pump body, lubricating with silicon grease the hose and the inner of the rollers.
Mount the tightening collars that fasten the hose and its connections to the pump body.
Fit the rollers.
Fit the front cover.
Connect suction/discharge pipes.
DFB13/RAD10

INSTRUCTION MANUAL
13
PROBLEMS, CAUSES AND SOLUTIONS
PROBLEM
POSSIBLE CAUSE
SOLUTIÓN
Elevated
temperature
Hose with no lubricant
Elevated temperature of product
Poor or bad suction conditions
Excessive pipe tightening
Excessive pumping speed
Use original silicon grease
Reduce pumping temperature
Check there are no obstructions
Recalculate sections and lengths
Check rollers shaft mounting
Reduce velocity of pump
Reduction of
capacity/pressure
Suction or discharge valve closed.
Hose insufficiently compressed
Rupture of the hose (the product leaks to the
casing)
Partial obstruction of suction piping
Insufficient product amount in suction reservoir
Insufficient diameter of suction piping
Excessive length of suction pipe
High viscosity of product
Entry of air via the suction connections
High pulsation on suction
Open valves
Check rollers shaft mounting and check for
correct number of shims.
Replace drive hose
Clean piping
Fill or stop
Increase section length/reduce pump speed
Shorten suction piping
Reduce viscosity
Increase section length of piping
Confirm that the pump is suitable
Tighten connections and accessories Install
pulsation dampener
Reconsider application (speed etc.)
Vibrations in
pump and piping
The piping is not correctly fixed together
Excessive pumping speed
Insufficient diameter of piping
Bedplate of pump loose
Elevated pulsation of pump
Re-tighten piping
Reduce the speed of the pump
Increase pipe diameter
Fix the bedplate firmly
Install pulsation dampener
Short life of the
hose
Chemical attack
High speed of pump
High pumping temperature
High working pressure
Abnormal elevation of temperature
Unsuitable lubricant
Insufficient quantity of grease
Cavitation of the pump
Confirm compatibility of the hose with the
pumped fluid and the cleaning fluid
Reduce speed of pump
Reduce temperature of product
Reduce speed of pump
Increase section diameter of piping
Check rollers shaft mounting
Use original silicon grease
Apply silicon grease
Reconsider suction conditions
Stretching of the
hose inside the
pump
Insufficient grease
High suction pressures (>45 psi)
Hose full of sediment
Brackets insufficiently tightened
Add silicon grease to hose/tube
Reduce suction pressure
Clean hose
Retighten brackets
The pump does not
start
Insufficient starter power
Insufficient power from frequency convertor
Blockage in the pump
Increase starter power
Increase power
Check that the voltage is adequate
Do not drop below a frequency of 1Hz
(confirm this point with the distributor).
Check there are no obstructions in the pipe -
suction and discharge.
DFB13/RAD10

INSTRUCTION MANUAL
DFB13/RAD13
14
DFB13/RAD13 SPARE PARTS
15

INSTRUCTION MANUAL
DFB13/RAD13
15
ITEM DESCRIPTION QTY REQ
(per pump) PROMINENT
PART #
1 Casing 1 7761086
Casing halar coated 1 7761474
2 Rotor 1 7761088
3 Roller shaft 2 7501012
4 Roller bearing 4 7761087
5 Roller Ø35 2 7501015
6 Long stud 1 7761074
Short stud 3 7761077
7 Front cover 1 7501037
8 Gasket front cover 1 7761090
9 Connection 3/8” SS NPT 2 7500991
Connection 3/8” PVDF NPT 2 7500992
Connection 3/8” PVC NPT 2 7500994
Connectin ½” Tri-Clamp Sanitary 2 7761081
10 Press flange standard 2 7500995
Press flange thermoplastic 2 7761082
11 Baseplate SS Orange 1 1080215
Baseplate SS Halar coated 1 1080217
12 Press pommel 1 7761084
13 Press pommel blind 3 7761085
14 Hose NR 1 1037150
Hose NR-A (food grade) 1 1037153
Hose NBR 1 1037151
Hose NBR-A (food grade) 1 1037154
Hose EPDM 1 1037152
Hose Hypalon 1 1037156
Tube Norprene 1 1037155
15 Driver 1
16 Roller support 2 7761091
17 Shim 7500987
18 Rotor washer 1 7761095

INSTRUCTION MANUAL
16
DECLARATION OF CONFORMITY
The company:
Declares under its own sole responsibility that the next industrial peristaltic
pump: Model: DFB13/RAD13
Serial number:
CE DECLARATION OF CONFORMITY (Ann. II.A, 98/37/CE)
The pump is conform to the safety requirements according to the 98/37/CE norms and
amendments.
DFB13/RAD10

INSTRUCTION MANUAL
17
GUARANTEE
-The contractor shall obtain from the manufacturer its warranty that the
equipment shall be warranted for a period of one (1) year from the date of
start-up or 18 months from signed delivery acknowledgement, whichever
comes first, to be free from defects in materials and workmanship. This
guarantee does not include the hose or the lubricant as these are elements
that have a normal function wear, irrespective of their duration.
-This guarantee is valid as long as the equipment functions within the
parameters indicated in the technical information card supplied with every
pump or on subsequent changes authorized.
-This guarantee includes materials and work but not the transportation of
materials to or from our warehouses, being necessary to do so arising from
the necessities of the client, the corresponding costs of displacement and
expenses will be charged.
DFB13/RAD10
