pronovost P-5103S/4E Programming manual

No. C1060R1 01/04
OPERATOR'S / PARTS
MANUAL
Dump Trailers
Models
P-5103S/4E P-516/3S

Copyright © Les Machineries Pronovost Inc., 2004
All rights reserved.
Printed in Canada.

TABLE OF CONTENTS
- 3 -
Section Item Page
1 Introduction ................................................................................................................ 5
2 Safety .......................................................................................................................... 6
General Safety .................................................................................................. 6
Safety in Operation ........................................................................................... 6
Safety with Maintenance .................................................................................. 7
Safety in Transport ........................................................................................... 7
3 Decals .......................................................................................................................... 8
Safety Decals .................................................................................................... 8
Maintenance Decals .......................................................................................... 8
4 Start-up ........................................................................................................................ 9
Basic Start-up Procedures ................................................................................. 9
5 Maintenance .............................................................................................................. 10
6 Storage ....................................................................................................................... 11
7 Specifications............................................................................................................. 12
8 Parts List ................................................................................................................... 13
Dump Trailer P-5103S/4E ............................................................................. 13
Dump Trailers P-516/3S ................................................................................ 16
Electric Hydraulic Pump Kit .......................................................................... 19
Electric circuit................................................................................................. 20
Hub H5000 ..................................................................................................... 21
Telescopic Cylinder # 51478 .......................................................................... 22
Electric Hydraulic Pump #51536.................................................................... 23
9 Torque Chart ............................................................................................................ 25
10 Warranty ................................................................................................................... 26

Figure 1
MODEL: "
SERIAL NO: "
DATE OF PURCHASE: "
INTRODUCTION
- 5 -
NOW take a moment to enter the model, serial
number and the date of purchase of your Trailer in the
space provided below.
When ordering parts from your Dealer, please refer to
these numbers for a fast and efficient service. Use
PRONOVOST parts for replacement.
The model and serial numbers are on the name plate
shown on Fig. 1.
Thank you for choosing PRONOVOST. We are
confident this equipment will meet your requirements
in terms of quality, performance and reliability.
This manual was prepared to assist you in the safe
operation of your new Dump Trailer. It contains
important information which will help you achieve
excellent returns with your PRONOVOST Dump
Trailer for years to come.
Please read this manual before operating your Trailer
and keep it for future reference.
Before using this equipment, you or any other person
who will be using it must familiarize yourself with the
safety recommendations, the operating and safety
instructions. Please read carefully and be sure to
understand and follow all recommendations and
procedures.
In this manual, the right and left sides are identified
while standing at the rear end of the equipment and
facing it.
If you require additional information on your Dump
Trailer, please contact your PRONOVOST Dealer.
CONGRATULATIONS! 1

WHEN YOU SEE THIS SYMBOL
SAFETY
- 6 -
ATTENTION!
BE ALERT
YOUR SAFETY IS INVOLVED
This symbol "SAFETY ALERT" is used in this
manual and on the safety decals on the Trailer. It
warns you of the possibility of danger. Carefully read,
understand and follow all safety recommendations
before operating the equipment.
1) Careful operation is the best assurance against
accidents. Carefully read this manual and follow
all recommendations before operating this
equipment. It is the owner’s responsibility to
make sure that anyone who will operate the Trailer
will read this manual before operating the
equipment.
2) Do not modify the equipment. Any non
authorized modification may affect the efficiency
and/or safety of the equipment.
3) Never operate the equipment with defective parts
or if damaged in any way. Have it repaired before
using it.
4) Make sure all fasteners are in place and properly
secured or tightened. Refer to torque chart on
page 25.
5) Hydraulic fluids under pressure can damage your
skin. Do not use your hands to locate a leak.
6) Battery (with 12V hydraulic system) contains
GENERAL SAFETY
sulfuric acid. Avoid contact with skin, eyes or
clothing.
SAFETY IN OPERATION
1) WARNING! Do not overload your trailer, do not
exceed the load capacity indicated in the
specifications on page 12.
2) Be sure there are no obstructions around the
equipment and that no one stands near the
equipment when in use.
3) Do not operate an engine in a confined or non
ventilated area.
4) Do not perform any adjustments, cleaning, mainte-
nance or repairs with the engine running on the
towing vehicule. Preferably remove the key from
the ignition.
5) Be careful when backing-up, make sure you have
good visibility.
6) In the case of a Highway Service Trailer, make
sure the suspension, brakes and lights are all
functioning properly.
7) Do not forget to unlock the proper panel before
dumping.
8) With the 3-way dump trailers, do not forget to
install the pins in the two ball-joints on the side
you wish to dump the load, and release the adja-
cent panel.
9) Always travel at a safe operating speed following
regulations and common sense. In the case of
agricultural service tires, follow the manufacturer's
specified safe speed. The road speed should be
such as to maintain full control over steering and
braking.
2

SAFETY (cont'd)
- 7 -
SAFETY WITH MAINTENANCE
1) Perform maintenance according to
recommendations contained in this manual.
2) Before performing any work under the raised
platform, always install the safety prop
provided.
3) If the trailer is hooked up to the tractor while
performing maintenance work, make sure the
engine is not running and preferably remove the
ignition key.
SAFETY IN TRANSPORT
1) On public roads, use proper safety lights and
check local regulations.
2
2) Be alert while driving on the road. Never carry
passengers.

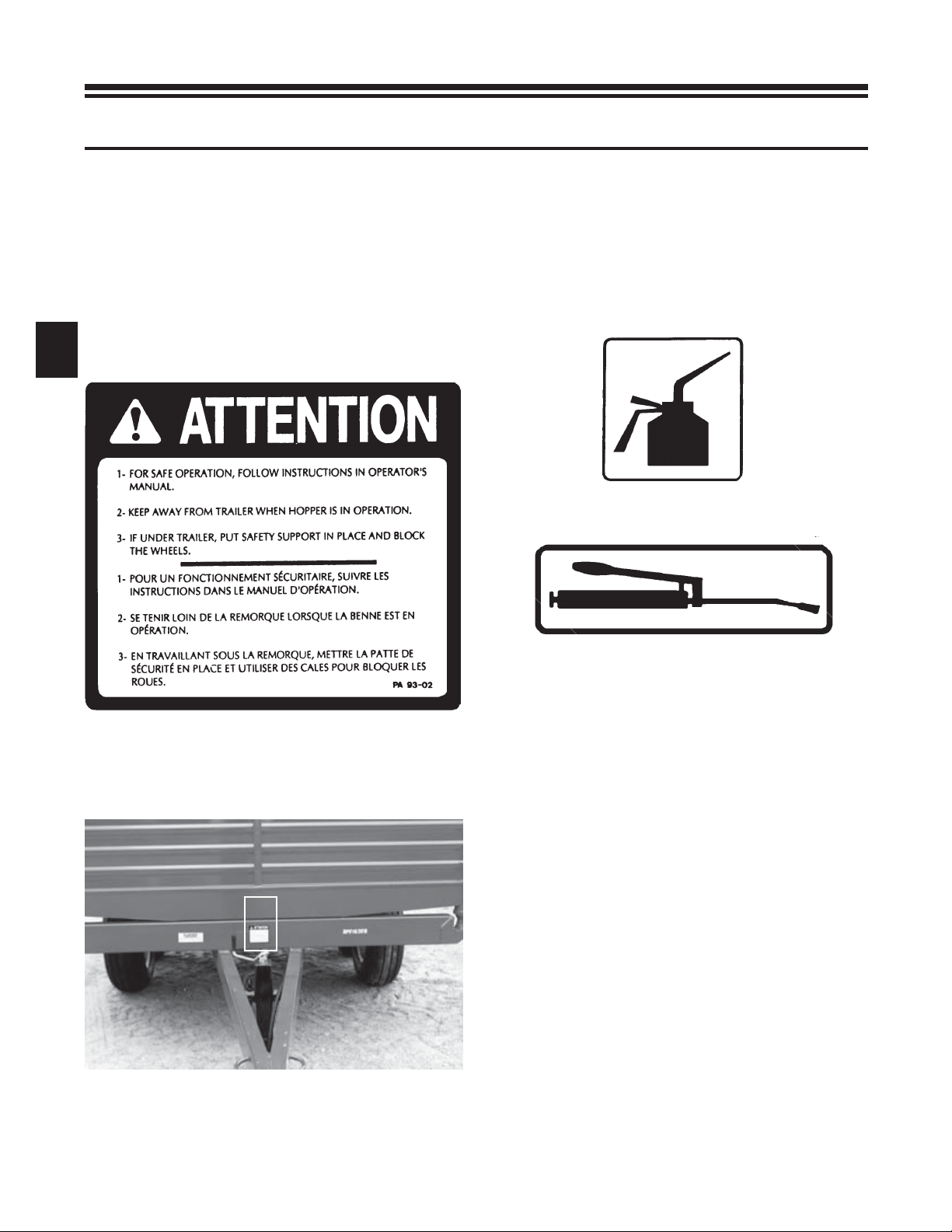

DECALS
SAFETY DECALS
The safety decals are affixed wherever special safety
precautions are indicated. Locate them on the
equipment and read them carefully. If a decal is
damaged, lost or illegible, install a new one. The
following photos indicate where each one must be
installed.
- 8 -
3
Figure 3
A
MAINTENANCE DECALS
The maintenance decals indicate the points requiring
lubrication. Refer to maintenance section for more
details.
Figure 5 Part no.: A 106
Figure 4 Part no.: A 105
Figure 2
Decal A Part no.: A110

START-UP
- 9 -
7) Verify for adequate tightness of all fastening
devices. Refer to torque chart on page 25.
8) Operate the hydraulic system a few times, raising
and lowering the platform in order to remove any
trapped air in the system. Then check the oil level
in the tractor's hydraulic oil reservoir.
9) With the 3-way dump trailer, the ball-joint pins are
usually installed in a diagonal configuration to
prevent tipping during handling. They must be
installed on the side you wish to dump the load.
ATTENTION: Never use the diagonal configu-
ration when using your Dump Trailer.
10) Do not forget to unlock the proper panel before
dumping.
BASIC START-UP PROCEDURES
1) Lubricate all grease fittings with a good quality
multiuse grease.
2) Lubricate panel release mechanism, front and rear
with good quality oil.
3) Adjust tire pressure to manufacturer's
specifications.
4) Install wheels on hubs.
5) Install panels.
6) Install all hydraulic hoses and fittings compatible
with your equipment.
4

MAINTENANCE
Before performing any work under the raised
platform, always install the safety prop provided.
1) Wipe off all grease fittings with a clean cloth
before adding grease in order to avoid injecting
dirt or sand.
2) Repair or replace damaged grease fittings.
3) Lubricate all grease fittings every 20 hours of
operation.
4) Check all bolts on wheels after first 5 hours of
operation and then every 50 hours of operation.
5) Lubricate panel release mechanism, front and rear,
every 20 hours of operation.
6) Check tire pressure every 50 hours of operation,
adjust according to manufacturer's
recommendation indicated on the tires.
7) Check brakes once a year and adjust or repair if
necessary.
8) Open, clean and lubricate wheel bearings once a
year.
9) Check all nuts and bolts once a year. If necessary
use torque chart on page 25.
- 10 -
5

STORAGE
1) Store in a cool, dry place.
2) Install wooden blocks under the axles to keep the
tires off the ground and cover them if left exposed
to the sun.
3) Keep all piston rods in the retracted position. This
will assure better protection against the elements.
4) Clean your trailer.
5) Thoroughly inspect all parts of the trailer. Replace
or repair worn or defective parts.
6) Touch-up or repaint if necessary.
7) Lubricate all points before storage.
- 11 -
6

- 12 -
7
SPECIFICATIONS
Design and specifications subject to change without notice.
SERVICE OFF-ROAD HIGHWAY
MODEL P-516/3S P-5103S/4E
Gross weight 16000 lbs / 7264 kg 10000 lbs / 4540 kg
Width x length interior of box in/mm 90 x 120 / 2286 x 3048 90 x 120 / 2286 x 3048
Thickness of floor 3/16" / 4.78 mm 3/16" / 4.78 mm
Side panel height 12G (removable) 16" / 406 mm 16" / 406 mm
Front/back panel height 12G (removable) 24" / 610 mm 24" / 610 mm
Platform height 36 1/2" / 927 mm 38 1/2" / 978 mm
Overall length 175" / 4445 mm 175" / 4445 mm
Overall width 96 1/2" / 2451 mm 96 1/2" / 2451 mm
Overall height 69 1/2" / 1765 mm 71 1/2" / 1816 mm
Free height / maximum lift 20" / 508 mm 22" / 559 mm
Thread width 75" / 1905 mm 78" / 1981 mm
Dumping angle (back) 47° 47°
Dumping angle (2 sides) 47° 47°
Central unloading hatch (8" x 12") option option
Axle Tandem Tandem
Suspension -- Springs
Hubs 6 bolts 6 bolts
Hub capacity 5000 lbs / 2270 kg 2500 lbs / 1136 kg
Spindles 2 1/4" --
Wheels 4 4
Wheel dimensions 15 x 8 x 6 15 x 6 x 6
Tires (standard) 11L15 (8 ply) ST-225/75R15 (8 ply)
Hitch: clevis/swivel standard option
Hitch: ball coupler 2 5/16" / 59 mm option standard
Electric brakes -- standard
Security chain option standard
Electric power pack option option
Battery 12V option standard
Light system (12 V) -- standard
Oil / volume required 5.2 L 5.2 L
Cylinder 1 single acting 1 single acting
Hitch weight (empty) 260 lbs / 118 kg 260 lbs / 118 kg
Total weight 2920 lbs / 1327 kg 3180 lbs / 1445 kg

- 13 -
8

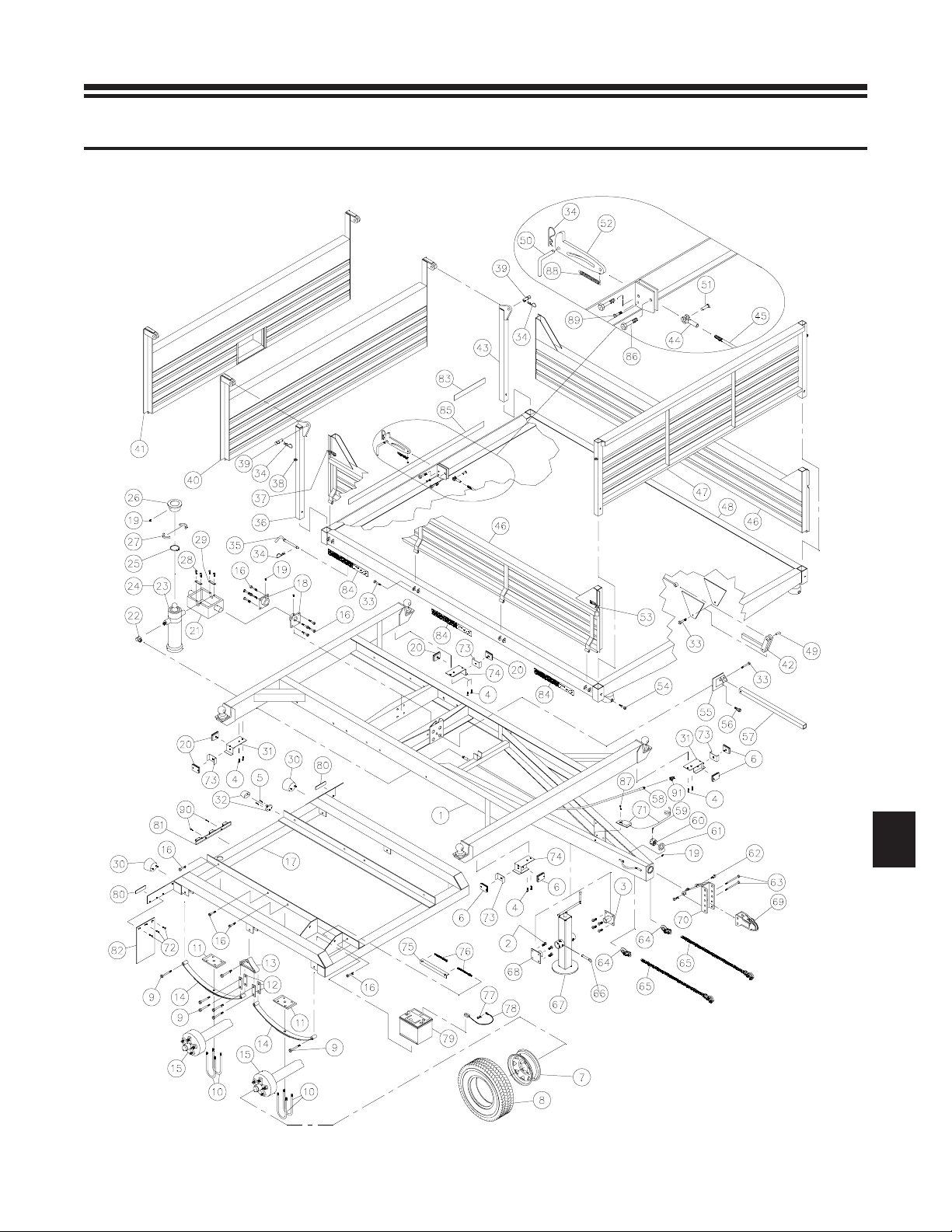

DUMP TRAILER P-5103S/4E
170-02345R1

DUMP TRAILER P-5103S/4E (cont'd)
- 14 -
8
REF. PART # DESCRIPTION QTY
1 120-02401 Main frame for P-5103S/4E ......................................................................... 1
2 300-38280 Bolt 7/16" NC x 1 1/4" lg + nylon locknut ................................................... 8
3 110-00051 Jack support plate ..................................................................................... 1
4 316-20191 Teck screw 10-16 x 1/2" lg ........................................................................ 8
5 300-18190 Bolt 8 - 32 x 1/2" lg + nylon locknut ........................................................... 2
6 52077 Parking light (yellow) .................................................................................. 4
7 RM-1565 Rim 15" x 6" - 6 bolts ................................................................................ 4
8 PN-22575R15 Tire ST 225/75 R15 ................................................................................... 4
9 300-42400 Bolt 9/16" NC x 3" lg + nylon locknut ......................................................... 14
10 Std. "U" bolt 1/2" NF x 3" x 7" + 2 nylon locknut ............................................... 8
11 51599 Spring back plate ....................................................................................... 4
12 51601 Pivot plates ............................................................................................... 8
13 51483 Spring's pivot ............................................................................................ 2
14 51484 Springs 3/8" x 1 3/4" x 25 1/4" center ........................................................ 4
15 110-11501 Road axle with hub and brakes .................................................................... 2
16 300-40310 Bolt 1/2" NC x 1 1/2" lg + nylon locknut ..................................................... 16
17 120-02221 Highway running gear support ..................................................................... 1
18 110-09041 Support for cylinder gimbal ......................................................................... 2
19 Std. Grease fitting 1/4"-28 straight ..................................................................... 5
20 52076 Parking light (red) ...................................................................................... 4
21 51611 Cylinder gimbal .......................................................................................... 1
22 9455-8x8 Elbow (swivel) ........................................................................................... 1
23 51478 Telescopic cylinder 5 sections (see detail page 22) ......................................... 1
24 51479 Repair kit for cylinder no. 51478 ................................................................. 1
25 51480 Retaining ring ............................................................................................ 1
26 51482 Ball-joint seat (welded) ............................................................................... 1
27 51481 Locking segments for ball-joint .................................................................... 2
28 308-32020 Bolt Metric M8 - 1.25 x 20 mm lg................................................................ 4
29 51477 Retaining plate for cylinder gimbal ................................................................ 2
30 32229 Rear signal light ......................................................................................... 2
31 110-12001 Support for lights (left front & right rear) ....................................................... 2
32 52070 Light for license plate ................................................................................. 1
33 300-40400 Bolt 1/2" NC x 3" lg + nylon locknut ........................................................... 10
34 Std. Hitch pin clip 1/8" x 2 9/16" lg ................................................................... 5
35 150-00721 Pin for platform pivot ................................................................................. 2
36 110-14661 Right rear stake ......................................................................................... 1
37 51584-G Side panel lock (L.H.) (welded) .................................................................... 2
38 51583 Ring for side panel lock (welded) ................................................................. 4
39 150-02831 Hinge pin for rear panel .............................................................................. 2
40 110-03892 Standard rear panel .................................................................................... 1
41 120-00682 Rear panel with grain door .......................................................................... opt.
42 110-14271 Lever for automatic locking mechanism ........................................................ 1
43 110-14671 Left rear stake ........................................................................................... 1
44 51435 Clevis 1/2" - 20 NF + nut .......................................................................... 1
45 110-14601 Rod 1/2" for rear panel lock ........................................................................ 1
46 110-07811 Side panel ................................................................................................. 2
47 110-07821 Front panel ............................................................................................... 1
48 120-01952 Platform ................................................................................................... 1
49 150-02761 Pin 1/2" x 1 1/2" lg ................................................................................... 1
50 150-02861 Pin for rear locking mechanism .................................................................... 1

DUMP TRAILER P-5103S/4E (cont'd)
- 15 -
REF. PART # DESCRIPTION QTY
51 51436 Clevis pin 1/2" x 1 37/64" .......................................................................... 1
52 130-16211 Rear panel lock .......................................................................................... 1
53 51584-D Side panel lock (R.H.) (welded) .................................................................... 2
54 300-38430 Bolt 7/16" NC x 3 1/2" lg + nylon locknut ................................................... 4
55 110-07831 Safety prop bracket ................................................................................... 1
56 300-44310 Bolt 5/8" NC x 1 1/2" lg + nylon locknut ..................................................... 1
57 160-04011 Safety prop ............................................................................................... 1
58 190-02151 Hose 3/8" x 156" lg + 26U108 .................................................................. 1
59 Std. Cotter pin 1/4" x 3" lg ............................................................................... 1
60 357-57000 Castle nut 1 1/2" NC ................................................................................. 1
61 130-20401 Flat washer 1 5/8" i.d. x 2 3/8" o.d. ............................................................ 1
62 300-38310 Bolt 7/16" NC x 1 1/2" lg + nylon locknut + 2 flat washers .......................... 2
63 302-44490 Bolt 5/8" NF x 4 1/2" lg + nylon locknut ...................................................... 2
64 54070 Hook with safety lock ................................................................................ 2
65 54064 Chain 5/16" (10000 lbs) + hook with safety lock .......................................... 2
66 51493 Pin for jack ............................................................................................... 1
67 190-05972 Jack type P-575 ........................................................................................ 1
68 110-00061 Jack support plate ..................................................................................... 1
69 51615 Ball hitch 2 5/16" ...................................................................................... 1
70 110-14752 Adjustable mounting support for ball hitch .................................................... 1
71 52069 Emergency brake switch ............................................................................. 1
72 300-32250 Bolt 1/4" NC x 1" lg + nylon locknut & flat washer ....................................... 6
73 130-13371 Light guard ............................................................................................... 4
74 110-12002 Support for lights (right front & left rear) ....................................................... 2
75 130-05751 Angle ....................................................................................................... 1
76 110-04841 Tightener + nylon locknut 3/8" NC + nylon locknut 7/16" NC .................................. 2
77 300-36250 Bolt 3/8" NC x 1" lg + nylon locknut ........................................................... 1
78 51607 Battery cable 4G x 16" lg ........................................................................... 1
79 51614 Battery 12 volts 850 amp. .......................................................................... 1
80 52074 Self-adhesive reflector (red) 1 1/8" x 4 1/2" .................................................. 2
81 52071 Set of 3 parking lights (red) ......................................................................... 1
82 51612 Mudguard 8" x 14" .................................................................................... 2
83 190-02921 Self-adhesive reflector strip 2" x 14" lg ........................................................ 2
84 190-03011 Self-adhesive reflector strip 2" x 18" lg ........................................................ 6
85 190-02931 Self-adhesive reflector strip 2" x 47" lg ........................................................ 1
86 300-40340 Bolt 1/2" NC x 2" lg + nylon locknut ........................................................... 2
87 300-32220 Bolt 1/4" NC x 3/4" lg + nylon locknut ........................................................ 1
88 190-02351 Spring 3/4" x 4 1/2" lg ............................................................................... 1
89 300-34340 Bolt 5/16" NC x 2" lg + nylon locknut ......................................................... 1
90 300-20250 Bolt 10-24 x 1" lg NC ................................................................................ 2
91 Std. Quick coupler 1/2" male ............................................................................. 1
8

DUMP TRAILER P-516/3S
- 16 -
8
170-02353

DUMP TRAILER P-516/3S (cont'd)
- 17 -
REF. PART # DESCRIPTION QTY
1 120-02401 Frame .......................................................................................................... 1
2 300-40340 Bolt 1/2" NC x 2" lg + nylon locknut ............................................................... 2
3 160-01091 Brass bushing 1¾" i.d. x 2" o.d. x 2" lg ........................................................... 4
4 Std. Grease fitting ¼"-28 straight .......................................................................... 7
5 110-11402 Tandem frame ............................................................................................... 2
6 150-02272 Axle 2 1/4" ø x 15" lg (welded) ....................................................................... 4
7 300-40400 Bolt 1/2" NC x 3" lg + nylon locknut ............................................................. 12
8 110-00011 Pin for tandem ............................................................................................... 2
9 51441 Hub # H-5000 complete (see details page 21) ................................................... 4
10 110-11404 Tandem assembly .......................................................................................... 2
11 110-11921 Cross-beam................................................................................................... 1
12 300-40310 Bolt ½" NC x 1½" lg + nylon locknut ............................................................ 16
13 51611 Cylinder gimbal .............................................................................................. 1
14 110-09041 Cylinder gimbal mounting plate ........................................................................ 2
15 308-32020 Bolt M8 - 1.25 x 20 mm lg ............................................................................. 4
16 51477 Retaining plate for cylinder gimbal .................................................................... 2
17 R-1586 Rim 15" x 8" - 6 holes ................................................................................... 4
17 R-15106 Rim 15" x 10" - 6 holes (4) .......................................................................... opt.
18 PN-11L15 Tire 11L15 - 8 ply with tube ........................................................................... 4
18 PN-12.5L15 Tire 12.5L15 - 10 ply with tube (4) ............................................................... opt.
19 9455-8x8 Elbow (swivel) ............................................................................................... 1
20 51478 Telescopic cylinder 5 sections (see details page 22) ........................................... 1
21 51479 Repair kit for cylinder no. 51478 ..................................................................... 1
22 51480 Retaining ring ................................................................................................ 1
23 51481 Locking segments for ball-joint ........................................................................ 2
24 51482 Ball joint seat (welded) ................................................................................... 1
25 120-00682 Rear panel with grain door ........................................................................... opt.
26 Std. Hitch pin clip 1/8" x 2 9/16" lg ....................................................................... 5
27 150-00721 Pin for platform pivot ..................................................................................... 2
28 110-14661 Right rear stake ............................................................................................. 1
29 51584-G Side panel lock (L.H.) (welded) ........................................................................ 2
30 51583 Ring for side panel lock (welded) ..................................................................... 4
31 150-02831 Hinge pin for rear panel .................................................................................. 2
32 110-03892 Standard rear panel ........................................................................................ 1
33 51436 Pin ½" ø x 1 37/64" lg ................................................................................... 1
34 110-14671 Left rear stake ............................................................................................... 1
35 51435 Clevis ½" - 20 NF + nut ................................................................................ 1
36 110-14601 Rod ½" for rear panel lock .............................................................................. 1
37 110-07811 Side panel ..................................................................................................... 2
38 110-07821 Front panel ................................................................................................... 1
39 120-01952 Platform ....................................................................................................... 1
40 150-02761 Pin 1/2" x 1 1/2" lg ....................................................................................... 1
41 150-02861 Pin for rear locking mechanism ........................................................................ 1
42 110-14271 Lever for automatic locking mechanism ............................................................ 1
43 130-16211 Rear panel lock .............................................................................................. 1
44 51584-D Side panel lock (R.H.) (welded) ........................................................................ 2
45 300-38430 Bolt 7/16" NC x 3 1/2" lg + nylon locknut ....................................................... 4
46 160-04011 Safety prop ................................................................................................... 1
47 110-07831 Safety prop bracket ....................................................................................... 1
48 300-44310 Bolt 5/8" NC x 1½" lg + nylon locknut ............................................................ 1
8

REF. PART # DESCRIPTION QTY
DUMP TRAILER P-516/3S (cont'd)
- 18 -
8
49 190-02151 Hose 3/8" x 156" lg + 2 6U108 ..................................................................... 1
50 Std. Cotter pin 1/4" x 3" lg ................................................................................... 1
51 357-57000 Castle nut 1 1/2" NC ..................................................................................... 1
52 110-06901 Swivel hitch .................................................................................................. 1
53 110-00051 Jack mounting plate ....................................................................................... 1
54 300-38280 Bolt 7/16" NC x 1 1/4" lg + nylon locknut ....................................................... 8
55 51493 Pin for jack ................................................................................................... 1
56 190-05972 Jack type P-575 ........................................................................................ 1
57 110-00061 Jack mounting plate ....................................................................................... 1
58 300-34340 Bolt 5/16" NC x 2" lg + nylon locknut ......................................................... 1
59 190-02351 Spring 3/4" x 4 1/2" lg ............................................................................... 1
60 130-20401 Flat washer 1 5/8" i.d. x 2 3/8" o.d. ............................................................ 1

ELECTRIC HYDRAULIC PUMP
- 19 -
8
REF. PART # DESCRIPTION QTY
1 613-00000 Electric hydraulic pump ............................................................................. 1 1
2 9405x6x6 Fitting 90° (9045x6x6) ............................................................................ 1 1
3 140-05011 Connecting rod ........................................................................................ 1 1
4 300-34280 Bolt 5/16" NC x 1 1/4" lg + nylon locknut ................................................. 2 2
5 Std. Roll pin 1/8" x 1" .................................................................................... 1 1
6 110-06801 Pivot ...................................................................................................... 1 1
7 150-00541 Handle 26" lg .......................................................................................... 1 1
8 110-07861 Rear support (for pump) ............................................................................ 1 1
9 300-36310 Bolt 3/8" NC x 1 1/2" lg + nylon locknut & flat washer ............................... 8 8
10 110-07851 Front support (for pump) ........................................................................... 1 1
11 300-36250 Bolt 3/8" NC x 1" lg + nylon locknut ......................................................... 4 -
12 110-06772 Battery holder ......................................................................................... 1 -
13 110-04841 Threaded rod + 1 nylon locknut 3/8" NC + 1 nylon locknut 7/16" NC ........... 2 -
14 130-05751 Angle ..................................................................................................... 1 -
15 51614 Battery 12 volts - 850 Amp ................................................................... opt. -
16 51617 Battery cable 4G x 36" lg ......................................................................... 1 1
17 51607 Battery cable 4G x 16" lg ......................................................................... 1 -
18 C3159x4 Cap 1/4" NPTM ....................................................................................... 1 1
170-00961
P-516/3S
P-5103S/4E

ELECTRIC CIRCUIT P-5103S/4E
- 20 -
8
REF. PART # DESCRIPTION QTY
1 52065 Connector 7 poles (trailer side) .................................................................... 1
2 52072 P-5103S/4E conductors cable kit ................................................................. 1
3 52069 Emergency brake switch ............................................................................. 1
4 51614 Battery 12 volts - 850 Amp ........................................................................ 1
5 52077 Yellow parking light ................................................................................... 2
6 52076 Red parking light ........................................................................................ 2
7 32229 Flasher ..................................................................................................... 2
8 52070 License plate ............................................................................................. 1
9 52071 Kit of 3 parking lights ................................................................................. 1
10 51607 Battery cable 4 GA x 10" lg ........................................................................ 1
NI* 52078 Connector 7 poles (vehicle side) .................................................................. 1
*NI=Not illustrated
170-01711
