Propel Trampolines SPEED STAR User manual

ULTRA-LIGHT. ULTRA-FAST. FOR ALL SKILL LEVELS.
SPEED STAR
BC

1
Table of conTenTs
Warnings and Cautions................................................................2
FCC Information ......................................................................6
Location of Parts and Controls.........................................................7
Remote Control Battery Installation ....................................................9
Charging the Interchangeable Battery.................................................10
Helicopter Battery Installation ........................................................11
Operation: Preparing for Flight........................................................12
Syncing Your Helicopter..............................................................12
Flying Tips...........................................................................13

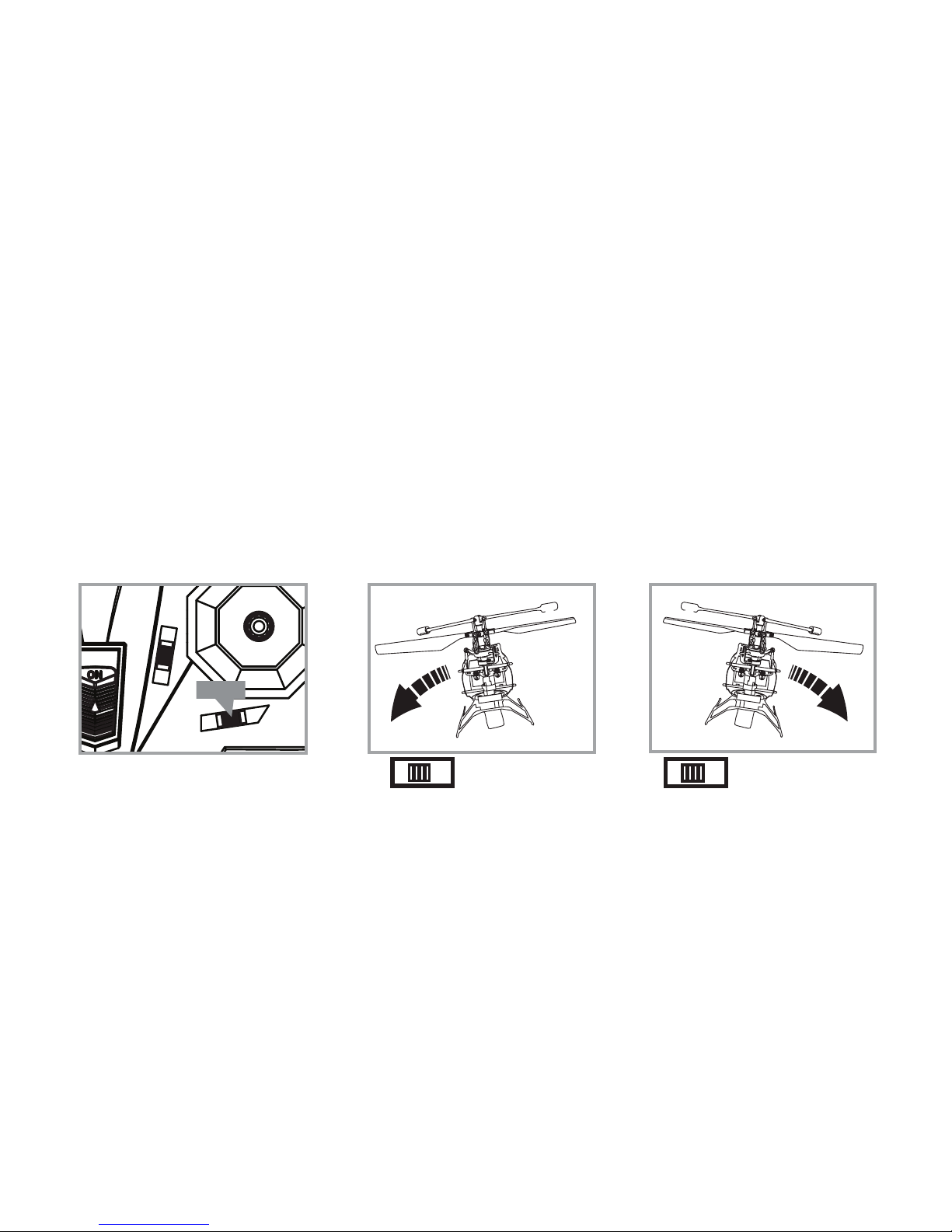

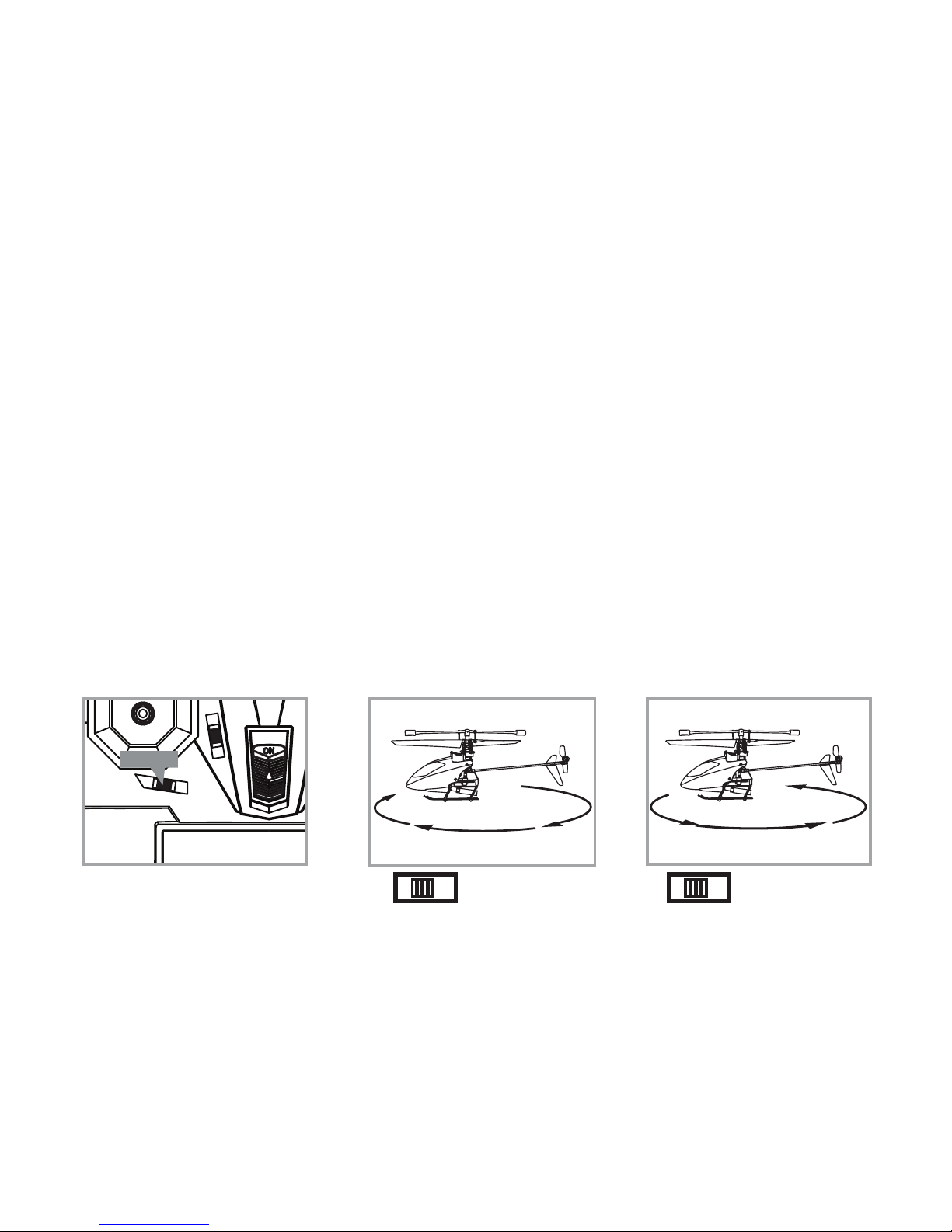

Understanding Helicopter Trim Adjustments...........................................14
Speed Select Button .................................................................17
Channel Select Button ...............................................................17

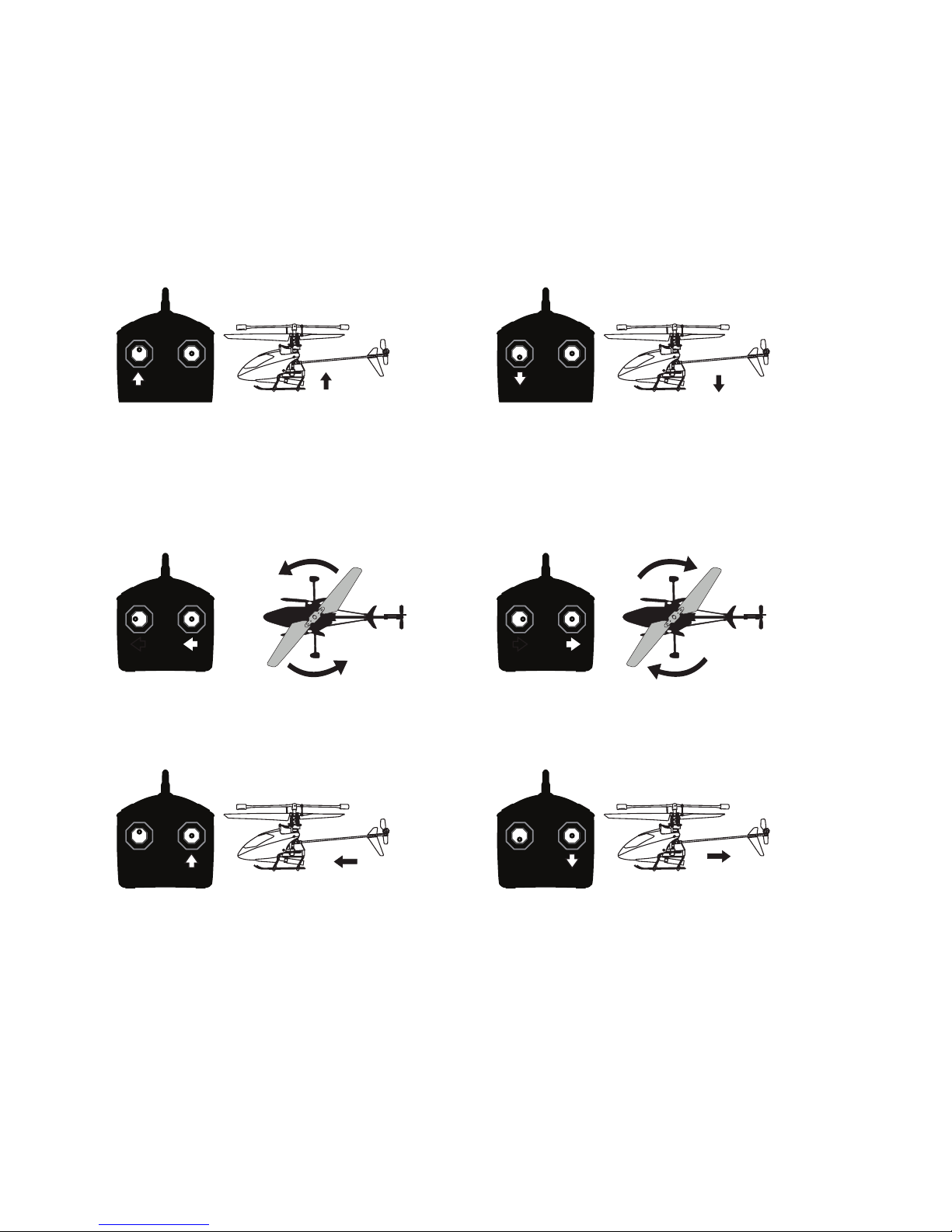

3 Channel Flight Control (Beginner) ..................................................17
4 Channel Flight Control (Advanced) ..................................................19
Parts Replacement Instruction ........................................................21
Helicopter Propeller System ..........................................................21
Replacing Connecting Rod and Direction Connecting Rod .............................22
Replacing the Upper Propeller Blade..................................................23
Replacing the Tail Propeller Blade ....................................................24

2
caUTIon
• TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
THERE ARE NO SERVICEABLE PARTS INSIDE.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
The lightning flash with arrow-head symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the unit’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the unit.
IMPoRTanT safeTY InsTRUcTIons
All of the safety and operating instructions should be read, adhered to and followed
before the unit is operated.
save These InsTRUcTIons

3
DanGeR
To reduce the risk of electric shock, burns, fire or injury:
1. Do not use while bathing or in a shower.
2. Do not place or store unit where it can fall or be pulled into a tub or sink.
3. Do not place in, drop or submerge in water or other liquid.
4. Do not reach for unit that has fallen into water. Unplug it immediately.
5. Care should be taken so that objects do not fall and liquids are not
spilled onto the unit.
WaRnInG
1. Close supervision is necessary when this appliance/product is used near children
or mentally disabled individuals.
2. Use this unit only for its intended use as described in this manual.
3. Unplug this unit during lightning storms or when unused for long periods of time.
4. Never drop or insert an object into any opening.
5. Protect the adapter cord from being walked on or pinched, particularly at plug
outlets, convenience receptacles and the point where it exits the unit.
6. Do not allow adapter cord to touch hot surfaces. Wrap cord loosely around the
unit when storing.
7. The unit should be situated away from direct sunlight or heat sources such as radiators,
electric heaters, heat registers, stoves, or other units (including amplifiers) that produce
heat. Avoid placing on top of stereo equipment that radiates heat.
8. Never block the air openings of the unit with materials such as clothing, plastic bags
or papers, or place it on a soft surface such as a bed or couch, where the air openings
may be blocked.
9. Do not overload electrical outlet. Use only the power source as indicated.
10. Do not carry this unit by cord or use cord as handle.

4
HELICOPTER WARNING
The helicopter blades revolve at high speeds and can cause damage to the user, spectators and
animals. Stand away from the helicopter to reduce the risk of getting into the flight path. Warn
spectators that you will be flying your helicopter so that they are aware of its position. Before flight,
inspect the rotor blades to make certain that the blades are securely fastened to the helicopter.
WARNING!
• Choking/Cutting Hazard. Small Parts/Sharp Rotor Blades.
• Keep hands, hair and loose clothing away from the propeller when the power switch
is turned to the ON position.
• Turn off the remote control and helicopter power switches when not in use.
• New alkaline batteries in the remote are recommended for maximum performance.
baTTeRY WaRnInGs
RECHARGEABLE BATTERY
• This helicopter uses an interchangeable Li-Po rechargeable battery. If the
battery no longer stays charged, dispose of battery properly according to local
disposal requirements.
• The adapter is built specifically for the helicopter’s Li-Po battery. Do not use it to
charge any other battery.
11. Never operate this unit if it has a damaged cord or plug, if it is not working
properly, or if it has been dropped or damaged, or dropped into water. If the
unit’s power supply cord or plug is damaged, do not attempt to fix it yourself.
12. To avoid the risk of electric shock, do not disassemble or attempt to repair
the unit. Incorrect repair can cause risk of electric shock or injury to persons
when unit is used.
13. Do not operate in the presence of explosive and/or flammable fumes.
14. Never remove the adapter plug from the socket by pulling the power cord.
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

5
• ALWAYS handle Li-Po batteries with extreme caution. NEVER place the Li-Po
helicopter battery in a place where the contact tabs could inadvertently be connected
to each other via coins, keys, tools or any other metallic objects. If anything happens
to complete the circuit across the connect tab the batteries will likely be damaged and
may cause injury.
• Do not directly solder the battery or pierce it with a nail or other sharp object.
• Do not short circuit the battery’s supply terminals.
• Do not disassemble or alter the battery.
• Charge the battery every six months.
• Recycle used batteries after covering the battery terminals with insulation tape or
inserting the battery into an individual polybag.
REMOTE CONTROL BATTERIES
Remote control requires 6 AA batteries (not included). Please read the important
battery safety warning below.
1. Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel
Metal Hydride).
2. Do not mix old and new batteries.
3. Non-rechargeable batteries are NOT to be recharged.
4. Exhausted batteries should be removed immediately and must be recycled or
disposed of properly according to state or local government ordinances and
regulations.
5. The supply terminals are not to be short-circuited.
6. Only batteries of the same or equivalent type as recommended are to be used.
7. Batteries are to be inserted with the correct polarity (see inside this manual
for diagram).
8. Do not dispose of batteries in a fire as batteries may leak or explode.

6
fcc InfoRMaTIon
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received including interference
that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment. Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a residential installation. This unit generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

7

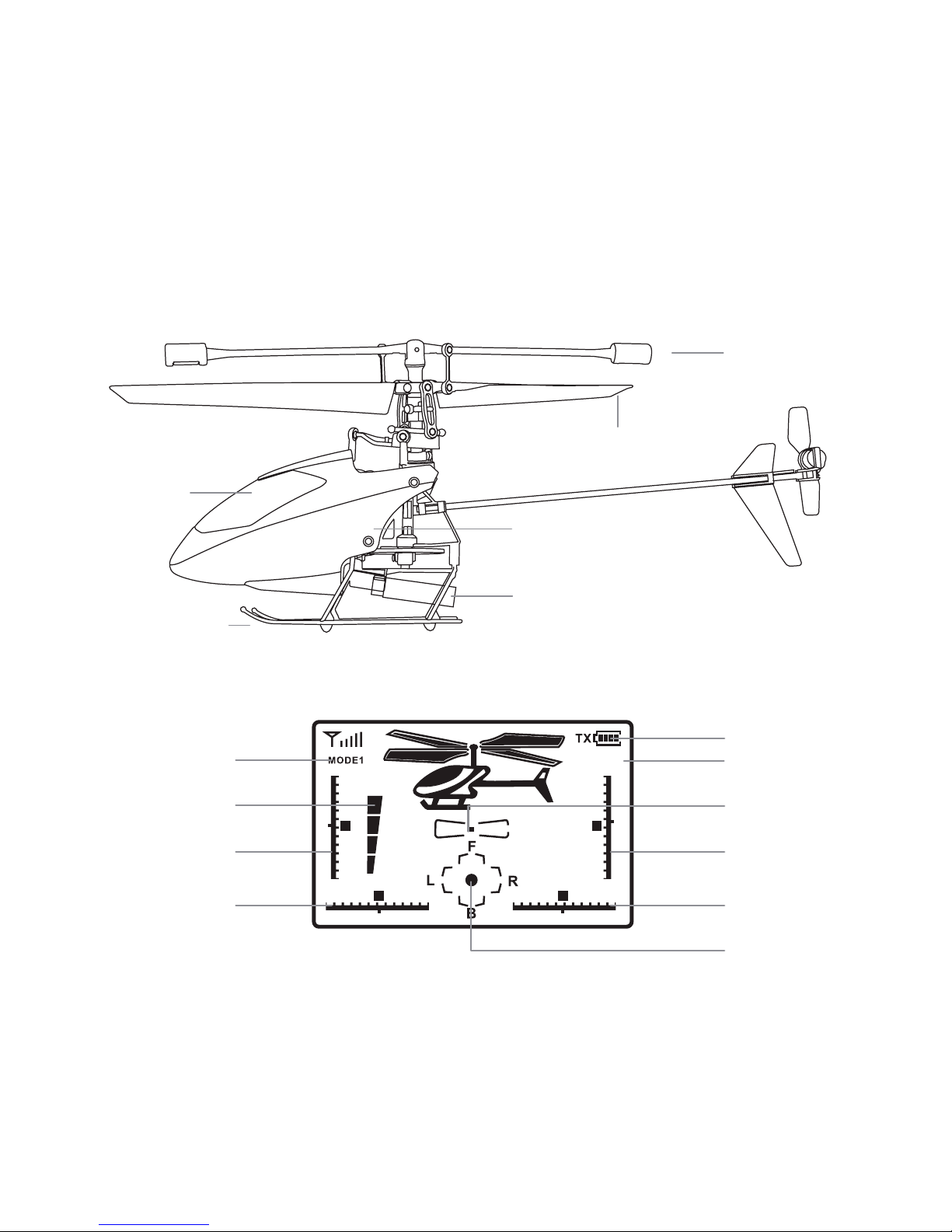

locaTIon of PaRTs anD conTRols (coPTeR)
Interchangeable
Head
Landing Gear
Stabilizer Bar
Main Rotor Blades Tail Rotor
Blade
Power Indicator Light
Interchangeable Battery
Speed Mode Indicator
Throttle Indicator
Throttle Trim Indicator
Direction Trim Indicator
Battery
Channel Mode Indicator
Turning Direction
4 CH
Forward &
Backward Trim
Banks Trim Indicator
Forward & Backward
Banks Left and Right
Remote Control Display

8

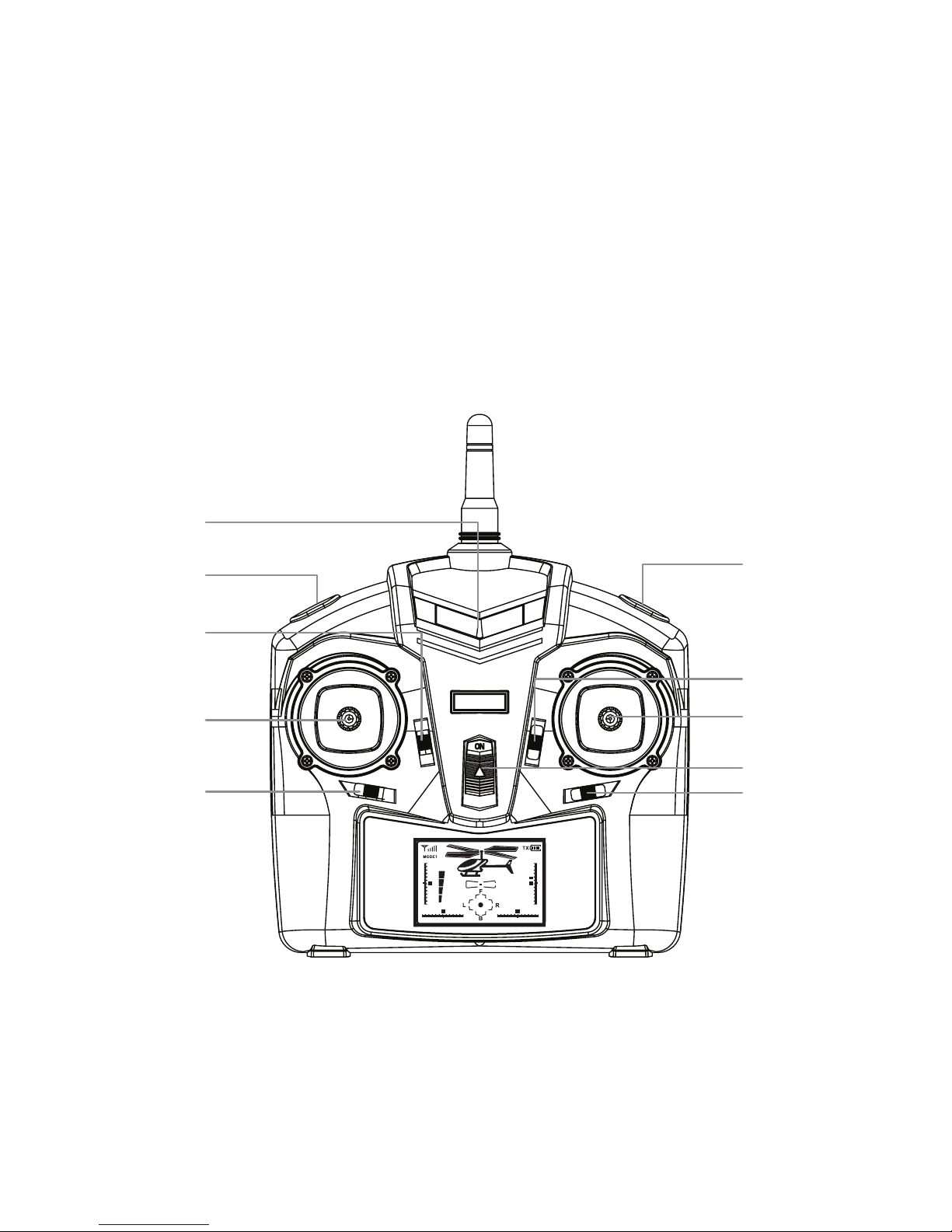

locaTIon of PaRTs anD conTRols
(ReMoTe conTRol)
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Battery
Channel Mode Indicator
Turning Direction
Banks Trim Indicator
Antenna
Power Indicator Light
Speed Select Button
Throttle Sensitive Trim
Throttle, Left & Right
Turning Control
Direction Trim
Channel Select Button
Forward & Backward Trim
Forward & Backward,
Banks Left & Right
Control
Power On/Off
Banks Trim

9

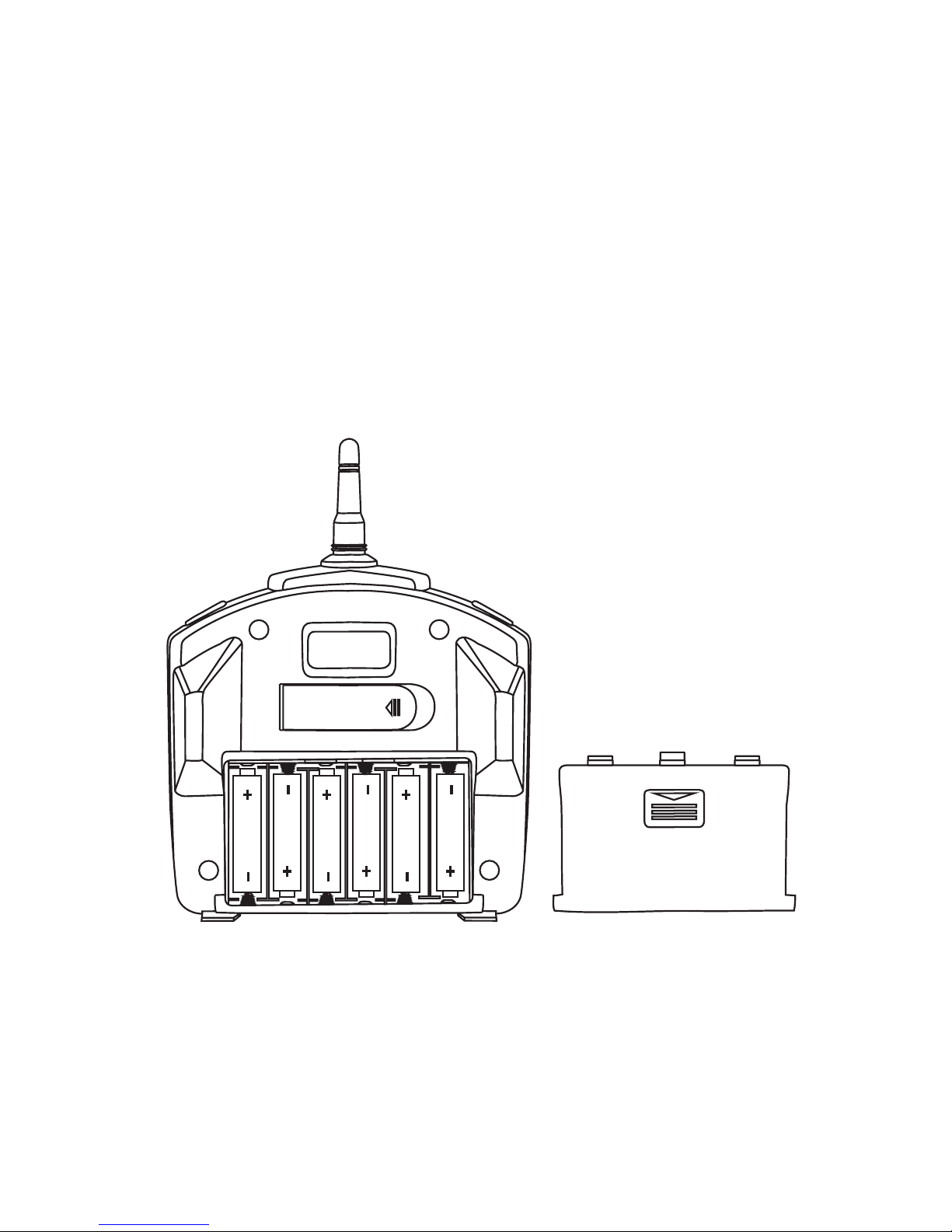

ReMoTe conTRol baTTeRY InsTallaTIon
1. Remove the battery cover and battery pack from the remote control.
2. Install 6 AA alkaline batteries into the battery pack according to the polarity
indicators and then install the pack in the remote as shown in the diagram below.
3. Replace the battery cover.
Battery Compartment Battery Cover

10
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
chaRGInG The InTeRchanGeable baTTeRY
This helicopter comes with 1 interchangeable batteries, make sure to fully charge the
battery before you fly the helicopter.
1. Plug the battery into the included charger (A).
Charging from remote control (B):
• Connect the charging plug on the back of remote
control to the charging socket, switch on your remote,
the red LED light will illuminate on the charger. If the
battery is fully charged, the red LED light will turn off.
Charging from the USB cable (C):
• Plug the included USB cable into a USB port
on your computer. Please make sure that your
computer is turned on. When the batteries are
charging, the red LED light will illuminate on the
charger. If the battery is fully charged, the red
LED light will turn off.
Note: Length of charging time will vary depending
on percentage of the helicopter battery power left and, if
you are charging from the remote, the condition of the batteries in the remote.
Average charging time is approximately 45 minutes with new batteries in the remote.
The helicopter operates for approximately 6-8 minutes per charge.
Important! Always disconnect charger cord after charging. Never leave charger
cord connected to helicopter overnight or for extended periods of time.
A
C
B

11
helIcoPTeR baTTeRY InsTallaTIon
1. When the interchangeable battery is fully charged load it into the battery
compartment of the helicopter.
2. Keep the battery’s metal edge facing the helicopter’s battery socket. Slide the
battery into the helicopter’s battery socket until it stops.
3. When the battery is seated correctly, the red LED light will flash.

12
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
oPeRaTIon: PRePaRInG foR flIGhT
• Verify that there are 6 “AA” batteries inside the remote control unit and the
helicopter's battery has been installed correctly.
• Make sure to be in a large space with an open radius of at least 50 feet.
• Make sure the empty space has no obstacles or nearby water. Set your helicopter
on a clean flat surface before take-off.
WARNING! DO NOT ATTEMPT TO FLY YOUR HELICOPTER OUTDOORS IF
THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR LIGHTNING. IT COULD
DAMAGE YOUR HELICOPTER AND POSSIBLY EVEN CAUSE BODILY HARM.
sYncInG YoUR helIcoPTeR
Your helicopter utilizes an automatic 2.4G channel selection system that allows up to
8 people to fly side by side in the same wireless range.
For One Person Play:
1. Before starting, make sure that the power on the remote is in the OFF position.
Also make sure that there are no other 2.4G devices in the area.
2. Install the interchangeable battery into the helicopter and set it down on a flat
surface. The red LED indicators inside the helicopter body should flash.
3. Put the remote throttle to the “zero” position (all the way down), then turn
ON your remote. The remote will “Beep” in 3-5 seconds. When you hear a
long “Beep,” the red LED indicators inside the body should stay solid red. This
indicates that your product has been successfully synced.

13
For Multi Person Play:
1. Before starting, make sure that the power on the remote is in the OFF position.
Also make sure that there are no other 2.4G devices in the area.
2. Each person will have to sync their helicopter individually, at a different time, to
avoid interference. Follow steps 1 to 3 under “Syncing your helicopter,” making
sure no one else is attempting to sync at the same time.
3. After syncing one helicopter, that helicopter should be left ON until all players
have succeeded in syncing their helicopters.
4. Should there be a mistake or interference in syncing, all players must turn off
their remotes and helicopters and start the syncing process again.
flYInG TIPs
• It is recommended that you operate the helicopter in a wide indoor/outdoor
space. You should allow at least a 25-foot radius range.
• This helicopter is designed for either INDOOR OR OUTDOOR USE.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the helicopter with others, make sure all spectators are
behind you.
• For best performance, it is recommended that you operate the helicopter in zero
wind conditions. Close all open doors or windows, and turn off any nearby fans.
Wind can greatly affect the performance of the helicopter.

14
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
UnDeRsTanDInG helIcoPTeR TRIM aDJUsTMenTs
Turn Left/Right Trim
• If your helicopter nose rotates to the left or right uncontrollably, you may need to
utilize the DIRECTION TRIM buttons.
• If your helicopter over rotates CLOCKWISE (to the right), push and release the
DIRECTION TRIM button repeatedly to left side until the turning stops and
proper flight is maintained.
• If your helicopter over rotates COUNTER-CLOCKWISE (to the left), push and
release the DIRECTION TRIM button to right side in the same manner until the
problem is resolved.
• From time to time you may have to adjust the DIRECTION TRIM to left and
right to ensure the helicopter will fly straight and respond accurately to control
commands.
im
Direction Trim
It over rotates to the right…
Direction Trim Controls Push to left Push to right
It over rotates to the left…

15
Forward/Backward Trim
• If your helicopter is moving forwards or backwards automatically, you may need
to adjust the FORWARD/BACKWARD TRIM buttons.
• If your helicopter flies forward, push and release the FORWARD/BACKWARD
TRIM button back repeatedly until the moving stops and proper flight is
maintained.
• If your helicopter flies backwards, push and release the FORWARD/BACKWARD
TRIM button forward in the same manner until the problem is resolved.
• From time to time you may have to adjust the FORWARD/BACKWARD TRIM
to ensure the helicopter will hover in mid-air and respond accurately to your
commands.
d
Forward/Backward
Trim
Forward/backward
Trim Controls
Push to go backward Push to go forward

16
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Banks Left/Right Trim
• If your helicopter is not steadily hovering and is banking to the left or right
automatically, you may need to adjust the BANKS TRIM buttons.
• If your helicopter banks to the left, push and release the BANKS TRIM button
repeatedly to the right until the banking stops and proper flight is maintained.
• If your helicopter banks to the right, push and release the BANKS TRIM button
to the left in the same manner until the problem is resolved.
• From time to time you may have to adjust the BANKS TRIM to left/right
to ensure the helicopter will steadily hover in mid-air and respond accurately to
your commands.
Throttle Speed Trim
• If you find the throttle is too sensitive when you fly the helicopter, you may need
to utilize the Throttle speed trim.
• Push and release the Throttle speed trim button back to lower the sensitivity of
the throttle. Push and release the Throttle speed trim button forward to increase
the sensitivity of the throttle. The middle position is recommended.
Push to go forward
Forward/backward
Trim Controls
Push to go right Push to go left
Banks Trim

17
sPeeD selecT bUTTon
Press the SPEED SELECT button on the top left of the remote control and your
helicopter will change to high-speed mode [MODE 2]. Press the SPEED SELECT
button a second time to go back to normal speed [MODE 1].
Note: The use of high-speed mode [MODE 2] is recommended for outdoor use only.
channel selecT bUTTon
Press the CHANNEL SELECT button on the top right of the remote control to
toggle between 3 Channel (Beginner Mode) and 4 Channel (Advanced Mode)
modes. It is recommended that the user successfully pilot the helicopter in 3
Channel Mode, before advancing to 4 Channel Mode.
3 channel flIGhT conTRol (beGInneR)
On the following pages is a list of basic flight functions for your long-range remote
control helicopter. While learning to fly your helicopter it is best to start with a large
indoor room until you get used to the basic controls. As you master flying your
helicopter you can move to more advanced maneuvering techniques. Practice makes
perfect! When you have these basic steps down you can move to the next level.

18
796083_INS_Speed Star Copter Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Move the Throttle forward to increase
the speed of the main rotor and the
helicopter will rise up.
Move the Throttle backward to
decrease the speed of the main rotor
and the helicopter will descend.
Move the Direction Control left and
the helicopter will turn left.
Move the Direction Control right
and the helicopter will turn right.
Move the Direction Control up and
the helicopter will move forward.
Move the Direction Control down and
the helicopter will move backward.

19
4 channel flIGhT conTRol (aDvanceD)
On the following pages is a list of basic flight functions for your long-range remote
control helicopter. While learning to fly your helicopter it is best to start with a large
indoor room until you get used to the basic controls. As you master flying your
helicopter you can move to more advanced maneuvering techniques. Practice makes
perfect! When you have these basic steps down you can move to the next level.
Move the Throttle forward to increase
the speed of the main rotor and the
helicopter will rise up.
Move the Throttle backward to
decrease the speed of the main rotor
and the helicopter will descend.
Move the Throttle left and the
helicopter will turn left.
Move the Throttle right and the
helicopter will turn right.
