Propoint 8561102 User manual

Vl.O

8561102

I:I.

PCII

3-in-1 Flooring Nailer &

Stapler

User Manual

Please read

and

understand

all

instructions

before

use.

Retain

this

manual

for

future

reference.

8561102

3-in-1

Flooring

Nailer

&

Stapler

If D

3-in-1 Flooring

Nailer &

Stapler

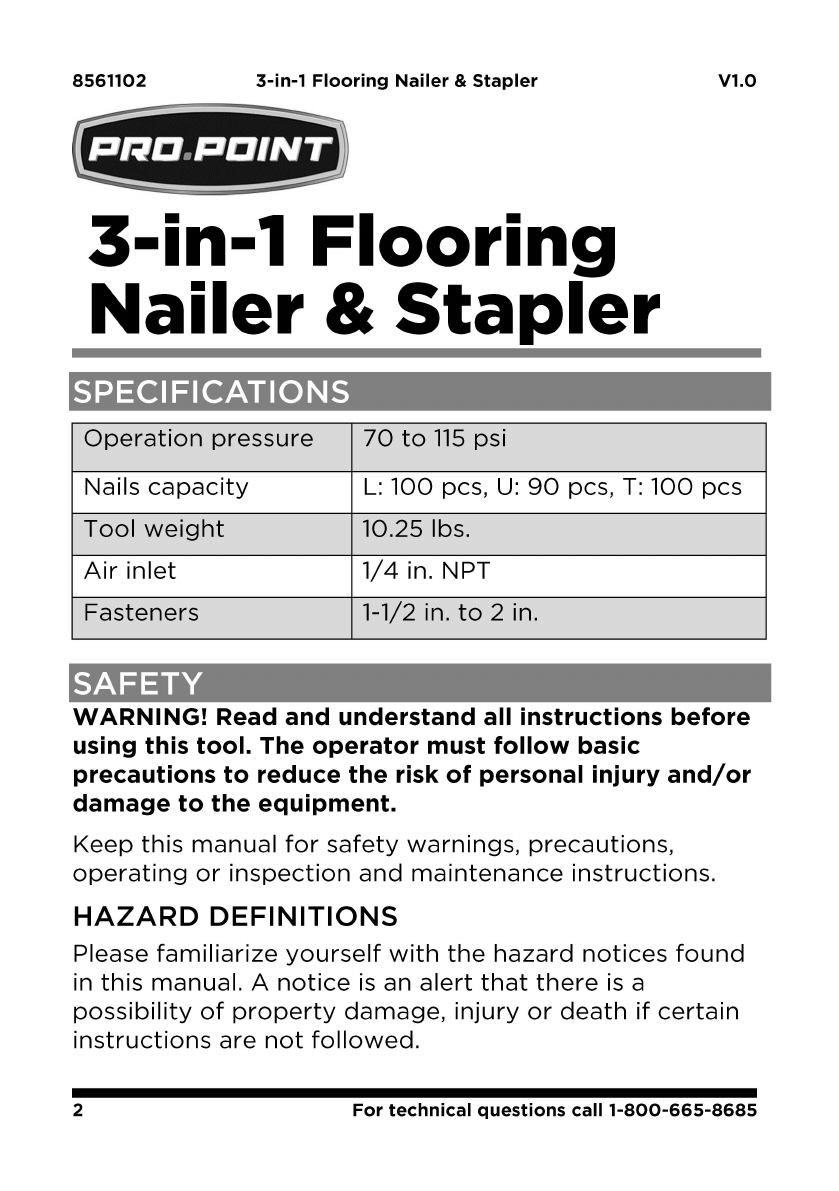

SPECIFICATIONS

Operation

pressure

70

to

115

psi

V1.0

Nails

capacity

L:

100

pes,

U:

90

pes,

T:

100

pes

Tool

weight

10.25 lbs.

Air

inlet

1/4

in. NPT

Fasteners

1-1/2 in.

to

2 in.

SAFETY

WARNING! Read and understand all instructions before

using this tool. The

operator

must follow basic

precautions

to

reduce the risk

of

personal injury

and/or

damage

to

the equipment.

Keep

this

manual

for

safety

warnings,

precautions,

operating

or

inspection

and

maintenance

instructions.

HAZARD

DEFINITIONS

Please

familiarize

yourself

with

the

hazard

notices

found

in

this

manual.

A

notice

is

an

alert

that

there

is

a

possibility

of

property

damage,

injury

or

death

if

certain

instructions

are

not

followed.

2

For

technical

questions

call

1-800-665-8685

V1.0 3-in-1

Flooring

Nailer

&

Stapler

8561102

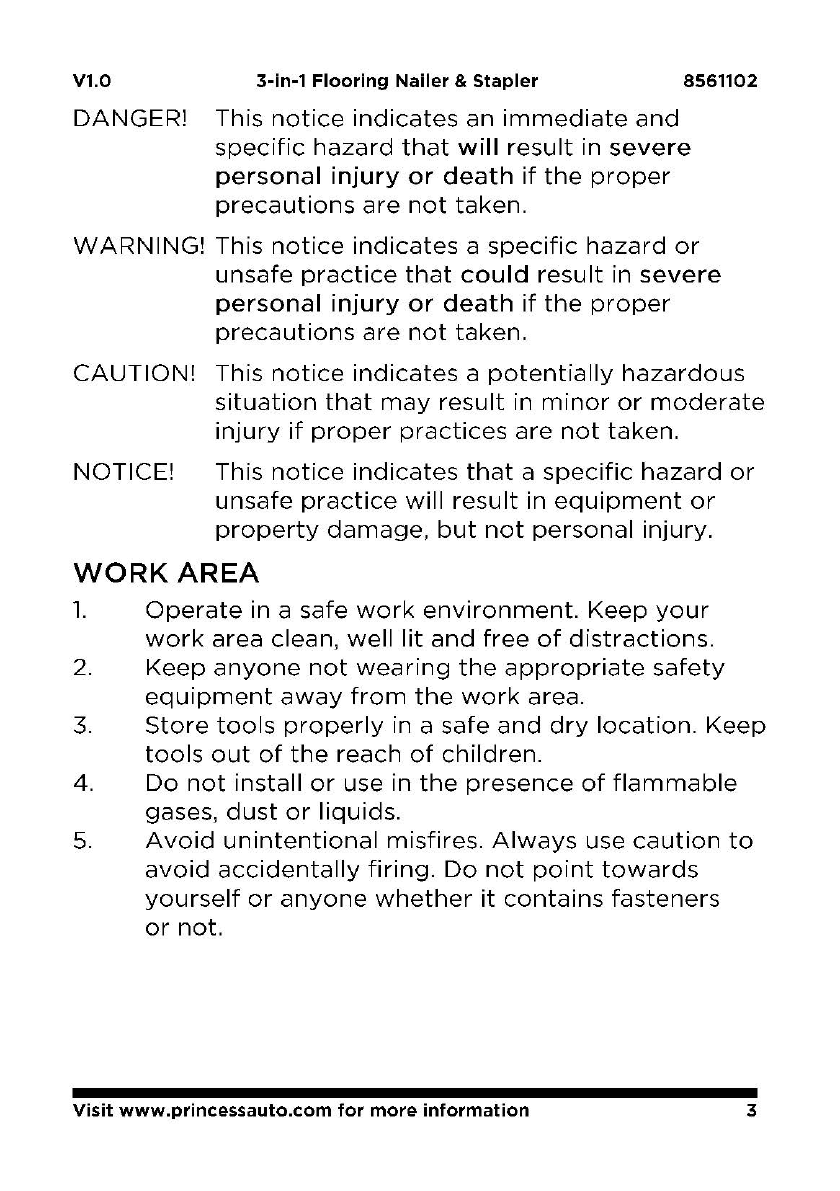

DANGER! This

notice

indicates

an

immediate

and

specific

hazard

that

will

result

in

severe

personal

injury

or

death

if

the

proper

precautions

are

not

taken.

WARNING!

This

notice

indicates

a

specific

hazard

or

unsafe

practice

that

could

result

in

severe

personal

injury

or

death

if

the

proper

precautions

are

not

taken.

CAUTION!

This

notice

indicates

a

potentially

hazardous

situation

that

may

result

in

minor

or

moderate

injury

if

proper

practices

are

not

taken.

NOTICE! This

notice

indicates

that

a

specific

hazard

or

unsafe

practice

will

result

in

equipment

or

property

damage,

but

not

personal

injury.

WORK

AREA

1.

Operate

in a safe

work

environment.

Keep

your

work

area

clean,

well

lit

and

free

of

distractions.

2.

Keep

anyone

not

wearing

the

appropriate

safety

equipment

away

from

the

work

area.

3.

Store

tools

properly

in a

safe

and

dry

location.

Keep

tools

out

of

the

reach

of

children.

4.

Do

not

install

or

use in

the

presence

of

flammable

gases,

dust

or

liquids.

5.

Avoid

unintentional

misfires.

Always

use

caution

to

avoid

accidentally

firing.

Do

not

point

towards

yourself

or

anyone

whether

it

contains

fasteners

or

not.

Visit

www.princessauto.com

for

more

information

3

8561102

3-in-1 Flooring Nailer &

Stapler

V1.0

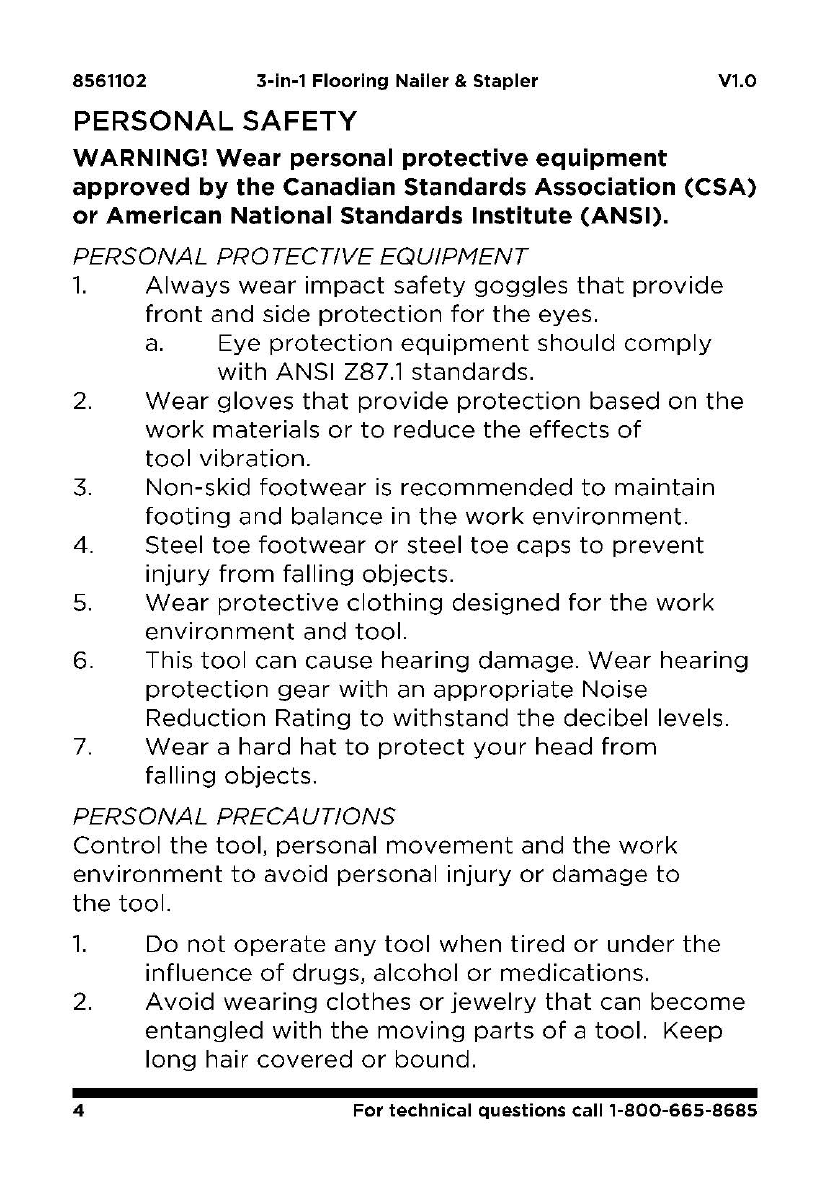

PERSONAL

SAFETY

WARNING!

Wear

personal

protective

equipment

approved

by

the Canadian Standards Association

{CSA)

or

American National Standards Institute {ANSI).

PERSONAL

PROTECTIVE

EQUIPMENT

1.

Always

wear

impact

safety

goggles

that

provide

front

and

side

protection

for

the

eyes.

a.

Eye

protection

equipment

should

comply

with

ANSI

Z87.1

standards.

2.

Wear

gloves

that

provide

protection

based

on

the

work

materials

or

to

reduce

the

effects

of

tool

vibration.

3.

Non-skid

footwear

is

recommended

to

maintain

footing

and

balance

in

the

work

environment.

4. Steel

toe

footwear

or

steel

toe

caps

to

prevent

injury

from

falling

objects.

5.

Wear

protective

clothing

designed

for

the

work

environment

and

tool.

6. This

tool

can

cause

hearing

damage.

Wear

hearing

protection

gear

with

an

appropriate

Noise

Reduction

Rating

to

withstand

the

decibel

levels.

7.

Wear

a

hard

hat

to

protect

your

head

from

falling

objects.

PERSONAL

PRECAUTIONS

Control

the

tool,

personal

movement

and

the

work

environment

to

avoid

personal

injury

or

damage

to

the

tool.

1.

Do

not

operate

any

tool

when

tired

or

under

the

influence

of

drugs,

alcohol

or

medications.

2.

Avoid

wearing

clothes

or

jewelry

that

can

become

entangled

with

the

moving

parts

of

a

tool.

Keep

long

hair

covered

or

bound.

4

For

technical questions

call1-800-665-8685

V1.0 3-in-1 Flooring Nailer & Stapler 8561102

3.

Do

not

overreach

when

operating

the

tool.

Proper

footing

and

balance

enables

better

control

in

unexpected

situations.

4.

Support

the

workpiece

or

clamp

it

to

a

stable

platform.

Holding

the

workpiece

by

hand

or

against

your

body

may

lead

to

personal

injury.

SPECIFIC

SAFETY

PRECAUTIONS

1.

Use

only

fasteners

that

are

recommended

for

your

models.

Do

not

use

the

wrong

fasteners

or

load

the

fasteners

incorrectly.

2.

Do

not

force

tool.

Use

the

correct

tool

for

your

application.

The

correct

tool

will

do

the

job

better

and

safer

at

the

rate

for

which

it

is

designed.

3.

Keep

the

tool

and

its

handle

dry,

clean

and

free

from

oil

and

grease.

Always

use a

clean

cloth

when

cleaning.

Never

use

brake

fluids,

gasoline,

petroleum-based

products,

or

any

strong

solvents

to

clean

your

tool.

4.

Do

not

use

the

tool

as a

hammer.

Never

use

this

tool

in a

manner

that

could

cause

a

fastener

to

be

directed

toward

anything

other

than

the

workpiece.

5.

Always

carry

the

tool

by

the

handle.

Never

carry

the

tool

by

the

air

hose.

AIR

TOOL

PRECAUTIONS

1.

Extended

exposure

to

air

tool

noise

may

cause

hearing

loss. Ear

protection

gear

can

reduce

or

eliminate

the

noise

level.

2.

Inspect

the

tool's

airline

for

cracks,

fraying

or

other

faults

before

each

use.

Discontinue

use

if

the

airline

is

damaged

or

hissing

is

heard

from

the

airline

or

connectors,

while

operating

the

tool.

Replace

the

defective

component/airline.

Visit www.princessauto.com

for

more

information 5

8561102

3-in-1

Flooring

Nailer

&

Stapler

V1.0

3.

Do

not

allow

people,

mobile

equipment

or

vehicles

to

pass

over

the

unprotected

airline.

Position

the

airline

away

from

high

traffic

areas, in a

reinforced

conduit

or

place

planks

on

both

sides

of

the

airline

to

create

a

protective

trench.

4.

Prevent

damage

to

the

airline

by

observing

the

following:

a.

Never

carry

the

tool

by

the

airline.

b.

Keep

the

airline

behind

the

tool

and

out

of

the

tool's

work

path.

c.

Keep

the

airline

away

from

heat, oil,

sharp

edges

or

moving

parts.

d.

Do

not

wrap

the

airline

around

the

tool

as

sharp

edges

may

pierce

or

crack

the

airline.

Coil

the

airline

when

storing.

5.

A

damaged

or

disconnected

airline

under

pressure

may

whip

around

and

inflict

personal

injury

or

damage

the

work

area.

Secure

the

compressor's

airline

to

a

fixed

or

permanent

structure

with

clamps

or

cable

ties.

6. Install an

in-line

shutoff

valve

or

regulator

to

allow

immediate

control

over

the

air

supply

in an

emergency,

even

if

a

hose

is

ruptured.

USE

AND

CARE

OF

THE

TOOL

WARNING:

Disconnect

the

tool

from

the

air source

before

making adjustments, doing

tool

maintenance,

clearing jams, touching

the

safety yoke, leaving

work

area,

or

unloading

the

tool. Such precautionary

measures reduce

the

risk

of

injury

to

persons.

1.

Know

this

tool.

Read

manual

carefully,

learn its

applications

and

limitations,

as

well

as

the

specific

potential

hazards

this

tool.

6

For

technical questions call

1-800-665-8685

V1.0 3-in-1 Flooring Nailer & Stapler 8561102

2.

Use

only

fasteners

that

are

recommended

for

your

models.

Do

not

use

the

wrong

fasteners

or

load

the

fasteners

incorrectly.

3.

Use

only

accessories

that

are

identified

by

the

manufacturer

for

the

specific

tool

model.

Use

of

unauthorized

parts

or

failure

to

follow

maintenance

instructions

may

create

a

risk

of

injury.

4. Use

only

those

fasteners

recommended

for

use

with

this

tool.

Fasteners

not

identified

for

use

with

this

tool

by

the

tool

manufacturer

are

able

to

result

in a

risk

of

injury

to

persons

or

tool

damage

when

used

in

this

tool.

5.

Check

for

misalignment

or

binding

of

moving

parts,

breakage

of

parts,

and

any

other

condition

that

may

affect

the

tool's

operation.

If

damaged,

have

the

tool

serviced

before

using.

Many

accidents

are

caused

by

poorly

maintained

tools.

6.

Maintain

tools

with

care.

Keep

tool

clean. A

properly

maintained

tool,

reduces

the

risk

of

binding

and

is

easier

to

control.

7.

Store

tools

out

of

the

reach

of

children

and

other

untrained

people.

Tools

are

dangerous

in

the

hands

of

untrained

users.

8.

Check

operation

of

the

tool

before

use.

Do

not

use

the

tool

if

the

workpiece

contact

mechanism

is

not

working

correctly

as

accidental

driving

of

a

fastener

may

occur.

9.

Do

not

use

tool

if

trigger

does

not

actuate

properly.

Any

tool

that

cannot

be

controlled

with

the

trigger

is

dangerous

and

must

be

repaired.

10.

Do

not

force

tool.

Use

the

correct

tool

for

your

application.

The

correct

tool

will

do

the

job

better

and

safer

at

the

rate

for

which

it

is

designed.

Visit www.princessauto.com

for

more

information 7

8561102

3-in-1 Flooring Nailer &

Stapler

V1.0

11.

Use

clamps

or

another

practical

way

to

secure

and

support

the

workpiece

to

a

stable

platform.

Holding

a

tool

by

hand

or

against

the

body

is

unstable

and

may

lead

to

loss

of

control.

12.

Keep

the

tool

and

its

handle

dry,

clean

and

free

from

oil

and

grease.

Always

use a

clean

cloth

when

cleaning.

Never

use

brake

fluids,

gasoline,

petroleum-based

products,

or

any

strong

solvents

to

clean

your

tool.

13.

Do

not

use

the

tool

as a

hammer.

14.

Never

use

this

tool

in a

manner

that

could

cause

a

fastener

to

be

directed

toward

anything

other

than

the

workpiece.

15.

Never

use

gasoline

or

other

flammable

liquids

to

clean

the

tool.

Never

use

the

tool

in

the

presence

of

flammable

liquids

or

gases.

Vapors

could

ignite

by

a

spark

and

cause

an

explosion

which

will

result

in

death

or

serious

personal

injury.

16.

Do

not

remove,

tamper

with,

or

otherwise

cause

the

trigger

lock

or

trigger

to

become

inoperable.

Do

not

operate

any

tool

which

has

been

modified

in a

like

fashion.

Death

or

serious

personal

injury

could

result.

17.

Do

not

touch

the

trigger

unless

driving

fasteners.

Never

attach

air

line

to

tool

or

carry

tool

while

touching

the

trigger.

The

tool

could

eject

a

fastener

which

will

result

in

death

or

serious

personal

injury.

Also

actuate

the

trigger

lock

to

the

safe

position

when

not

in use.

8

For

technical questions

call1-800-665-8685

V1.0 3-in-1 Flooring Nailer & Stapler 8561102

18.

Always

fit

tool

with

a

fitting

or

hose

coupling

on

or

near

the

tool

in such a

manner

that

all

compressed

air

in

the

tool

is

discharged

at

the

time

the

fitting

or

hose

coupling

is

disconnected.

Do

not

use

a

check

valve

or

any

other

fitting

which

allows

air

to

remain

in

the

tool.

Death

or

serious

personal

injury

could

occur.

19.

Never

place

hands

or

any

other

body

parts

in

the

fastener

discharge

area

of

the

tool.

The

tool

might

eject

a

fastener

and

could

result

in

death

or

serious

personal

injury.

20.

Never

carry

the

tool

by

the

air

hose

or

pull

the

hose

to

move

the

tool

or

a

compressor.

Keep

hoses

away

from

heat,

oil

and

sharp

edges.

Replace

any

hose

that

is

damaged,

weak

or

worn.

Personal

injury

or

tool

damage

could

occur.

21.

Always

assume

the

tool

contains

fasteners.

Respect

the

tool

as a

working

implement;

no

horseplay.

22.

Always

keep

others

at

a

safe

distance

from

the

work

area

in case

of

accidental

discharge

of

fasteners.

Do

not

point

the

tool

toward

yourself

or

anyone

whether

it

contains

fasteners

or

not.

Accidental

triggering

of

the

tool

could

result

in

death

or

serious

personal

injury.

23.

Do

not

drop

or

throw

the

tool.

Dropping

or

throwing

the

tool

can

result

in

damage

that

will

make

the

tool

unusable

or

unsafe. If

the

tool

has

been

dropped

or

thrown,

examine

the

tool

closely

for

bent,

cracked

or

broken

parts

and

air

leaks.

STOP

and

repair

before

using,

or

serious

injury

could

occur.

24.

Avoid

using

the

tool

when

the

magazine

is

empty.

Accelerated

wear

on

the

tool

may

occur.

Visit www.princessauto.com

for

more

information 9

8561102

3-in-1

Flooring

Nailer

&

Stapler

V1.0

25. Clean

and

check

all

air

supply

hoses

and

fittings

before

connecting

the

tool

to

an

air

supply.

Replace

any

damaged

or

worn

hoses

or

fittings.

Tool

performance

or

durability

may

be

reduced.

26.

Do

not

use

the

tool

if it

leaks

air

or

does

not

function

properly.

27.

Do

not

operate

the

tool

if it

does

not

contain

a

legible

warning

label.

28.

Always

carry

the

tool

by

the

handle.

Never

carry

the

tool

by

the

air

hose.

LJ!.!.~~~

Description

Qty.

3 In 1

flooring

nailer

1

Color

box

1

Mallet

1

Air

connector

(pre-attached)

1

Adjustment

tools

1

Lubrication

oil 1

Anti-dust

cap

(pre-attached)

1

5/8

in.

foot

plate

1

Instruction

manual

1

10

For

technical questions call

1-800-665-8685

I

Vl.O 3-in-1 Flooring Nailer &Stapler

8561102

FEATURES

Compatible

With

Generic

Brands

1/2

in. Staples, T-Cleats,

& L-Cieats.

1.

2.

3.

4.

5.

6.

REVOLUTIONARY

3 IN 1 DESIGN.

For

use

with

Staples,

T

-Cleats

and

L-Cieats.

NO-MAR

DESIGN.

Provides

increased

protection

from

T cleats L cleats 1/2

1n

. (12.7 mm)

r==-1

U

IT

i

1-112IO

(38mm)

Th-

112

10

(38mm)

38

mm

1-3/410

(45mm)

1-

3/410

(45mm) 45mm

1-

3/4in.

50

mm

2in.

21n

(SOmm)

210

(SOmm)

- -

1-1/21n

Ga15-115

0.075

in.

x0.063

in.

1.9x 1

.6

mm

marring

when

working

with

a

finished

flooring

surface.

ANODIZED

ALUMINUM

MAGAZINE.

For

long

lasting

durability.

DURABLE

CONSTRUCTION.

Light

weight

and

durably

constructed

of

high-strength

aluminum

and

heat

treated

steel

parts.

AIR FILTER.

Keeps

interior

components

debris

free,

extending

tool

life.

MALLET

INCLUDED.

UNPACKING

1.

This

tool

has

been

shipped

completely

assembled.

2.

Carefully

remove

the

tool

and

any

accessories

from

the

box.

3.

Inspect

the

tool

carefully

to

make

sure

no

breakage

or

damage

occurred

during

shipping.

4.

Do

not

discard

the

packing

material

until

you

have

carefully

inspected

and

satisfactorily

operated

the

tool.

5.

If

any

parts

are

damaged

or

missing,

please

call

1-800-665-8685

Visit www.princessauto.com for more information

11

8561102

3-in-1

Flooring

Nailer

&

Stapler

V1.0

WARNING:

If

any

parts

are

missing

do

not

operate

this

tool

until

the

missing

parts

are

replaced.

Failure

to

do

so

could

result

in

possible

serious

personal

injury.

WARNING:

Do

not

attempt

to

modify

this

tool

or

create

accessories

not

recommended

for

use

with

this

tool.

Any

such

alteration

or

modification

is

misuse

and

could

result

in

hazardous

condition

leading

to

possible

serious

personal

injury.

OPERATION

1.

Do

not

drive

fasteners

near

edge

of

material.

The

workpiece

may

split

causing

the

fastener

or

ricochet,

injuring

you

or

people

around.

2.

Do

not

drive

fasteners

on

top

of

other

fasteners

or

with

the

tool

at

an

overly

steep

angle

as

this

may

cause

deflection

of

fasteners

which

could

cause

injury.

3.

Do

not

actuate

the

tool

unless

you

intend

to

drive

a

fastener

into

the

workpiece.

4.

Always

handle

the

tool

with

care:

a.

Respect

the

tool

as a

working

implement.

b.

Never

engage

in

horseplay.

c.

Keep

others

a safe

distance

from

the

tool

while

tool

is

in

operation

as

accidental

AIR

SUPPLY

AND

CONNECTIONS

1.

The

connector

on

the

tool

must

not

hold

pressure

when

air

supply

is

disconnected.

If an

incorrect

fitting

is

used,

the

tool

can

remain

charged

with

air

after

disconnecting

and

thus

will

be

able

to

drive

a

fastener

even

after

the

air

line

is

disconnected,

possibly

causing

injury.

12

For

technical

questions

call

1-800-665-8685

V1.0 3-in-1 Flooring Nailer & Stapler 8561102

2.

Do

not

use

any

type

of

reactive

gases,

including,

but

not

limited

to,

oxygen

and

combustible

gases,

as

a

power

source.

Use

filtered,

lubricated,

regulated

compressed

air

only.

Use

of

a

reactive

gas

instead

of

compressed

air

may

cause

the

tool

to

explode

which

will

cause

death

or

serious

personal

injury.

3.

Use

only

a

pressure-regulated

compressed

air

source

to

limit

the

air

pressure

supplied

to

the

tool.

The

regulated

pressure

must

not

exceed

100

psi.

If

the

regulator

fails,

the

pressure

delivered

to

the

tool

must

not

exceed

200

psi.

The

tool

could

explode

whichwill

cause

death

or

serious

personal

injury.

4.

Always

disconnect

air

resource:

a.

Before

unloading

or

making

adjustments.

b.

When

maintaining

the

tool.

c.

When

clearing

a

jam.

d.

When

touching

the

safety

yoke.

e.

When

tool

is

not

in use.

f.

When

moving

to

a

different

work

area.

Such

precautionary

measures

reduce

the

risk

of

injury

to

persons.

LOADING

TOOL

1.

Do

not

load

the

tool

with

fasteners

when

any

one

of

the

operating

controls

is

activated.

2.

Never

place

a

hand

or

any

part

of

body

in

fastener

discharge

area

of

tool.

3.

Never

point

tool

at

anyone.

Visit www.princessauto.com

for

more

information 13

8561102 3-in-1

Flooring

Nailer

&

Stapler

V1.0

WARNING:

The warnings and precautions discussed

above

cannot cover all possible conditions and

situations

that

may

occur. It must

be

understood

by

the

user

that

common sense and caution are factors which

cannot be built into this product,

but

must

be

supplied

by

the

user.

LOADING

CLEAT

NAILS

1.

Pull

the

Pusher

(A)

back

to

the

end

of

magazine.

Lock

pusher

in

the

place

by

using

the

Lock

button

(C).

Then

pull

the

Magazine

side

shelter

(B)

back.

2.

Place

full

clip

of

desired

Fasteners

into

magazine

from

the

side.

Up

to

100

cleat

nails

can

be

loaded

into

magazine.

Be

noted

that,

when

loading

the

L

cleat

nails,

the

side

with

the

L

head

should

be

in

the

left

of

the

Magazine

side

shelter

(B)

. Press

the

Lock

button

(C),

then

the

Pusher

(A)

set

back

to

make

the

Magazine

side

shelter(B)

down

back.

LOADING

STAPLES

1.

Pull

the

Pusher(A)

back

to

the

end

of

magazine.

Lock

pusher

in

the

place

by

using

Lock

button(C).

Then

pull

the

Magazine

side

shelter(B)

back.

2.

Place a

full

clip

of

1/2

in.

prown

Staples

in

the

magazine

from

the

top.

Up

to

90pcs

can

be

loaded

into

the

tool.

3.

Press

the

Lock

button(C),

then

the

Pusher(A)

sets

back

to

make

the

Magazine

side

shelter(B)

down

back

.

14

For

technical

questions

call

1-800-665-8685

Vl.O

3-in-1

Flooring

Nailer

&

Stapler

8561102

WARNING: The

tool

may

fire when it first connected

to

the

air source. Always connect

the

tool

to

the

air source

before

loading fasteners

to

prevent injury from

unintended cycling. Always make sure

the

tool's

magazine

is

empty

at

the

beginning

of

each

work

session,

before

connecting

to

an air source.

WARNING: Use only those fasteners recommended for

use with this tool. Fasteners

not

identified for use with

this tool

by

the

tool

manufacturer are

able

to

result in a

risk

of

injury

to

persons

or

tool

damage

when used

in

this tool.

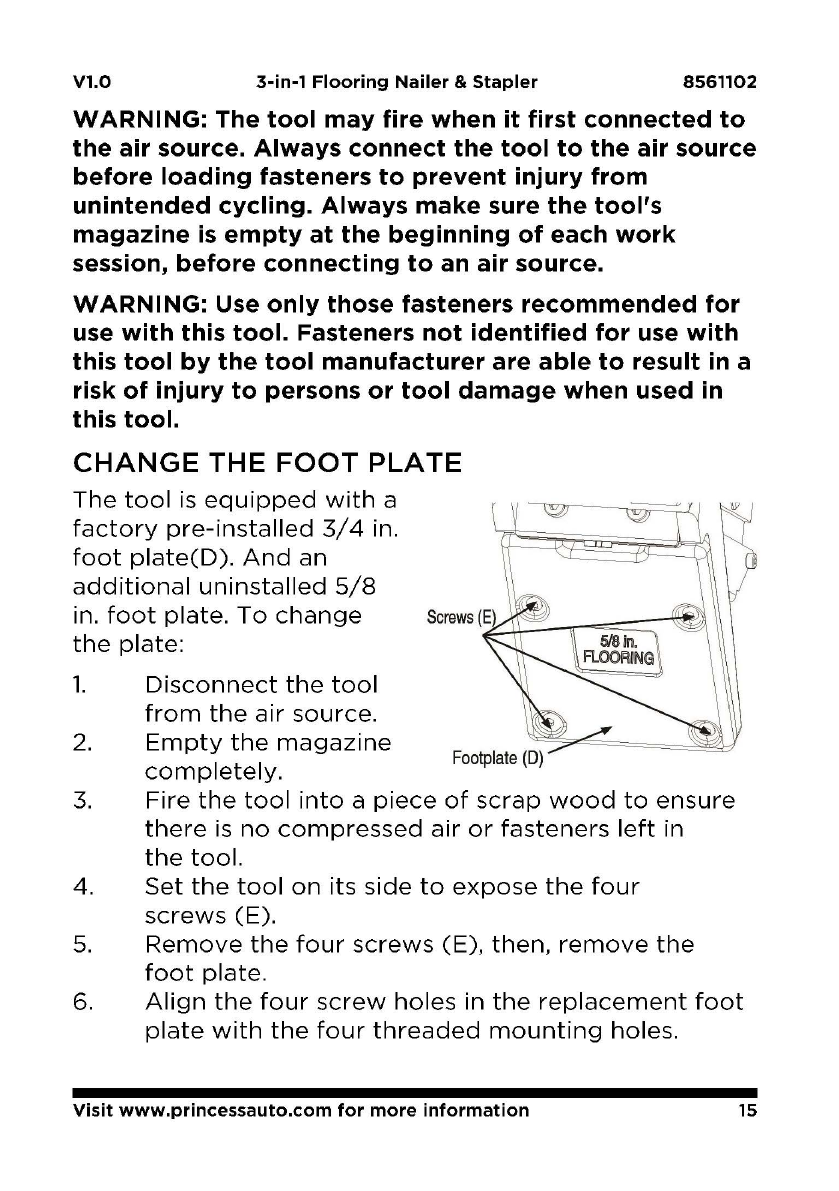

CHANGE

THE

FOOT

PLATE

The

tool

is

equipped

with

a

factory

pre-installed

3/4

in.

foot

plate(D).

And

an

additional

uninstalled

5/8

in.

foot

plate.

To

change

the

plate:

1.

Disconnect

the

tool

from

the

air

source

.

2.

Empty

the

magazine

completely.

3.

Fire

the

tool

into

a

piece

of

scrap

wood

to

ensure

there

is

no

compressed

air

or

fasteners

left

in

the

tool.

4.

Set

the

tool

on

its

side

to

expose

the

four

screws

(E).

5.

Remove

the

four

screws

(E),

then,

remove

the

foot

plate.

6.

Align

the

four

screw

holes

in

the

replacement

foot

plate

with

the

four

threaded

mounting

holes.

Visit

www.princessauto.com

for

more

information

15

8561102

3-in-1

Flooring

Nailer

&

Stapler

7.

Using

the

four

screws

you

removed

just

now,

secure

the

replacement

foot

plate

to

the

tool.

V1.0

8.

Ensure

the

correct

Foot

Plate

is

installed

by

firing

into

a

scrap

piece

of

flooring

and

checking

for

proper

fastener

placement.

WARNING:

Disconnect

the

tool from

the

air source

whenever changing

the

foot

plate. Make sure

there

is

no

fastener in

the

magazine

before

changing the

foot

plate.

ADJUST

THE

FRONT

FOOT

The

tool

is

equipped

with

an

adjustable

front

foot,

can

be

adjusted

for

3/4

in.

to

5/8

in.

wood

floors.

This

tool

is

shipped

out

set

for

3/4

in.

wood

floor.

To

adjust

the

front

foot

(F):

1.

Disconnect

the

tool

from

the

air

source.

2.

Empty

the

magazine

completely.

3.

Fire

the

tool

into

a

piece

of

scrap

wood

to

ensure

there

is

no

compressed

air

or

fasteners

left

in

the

tool.

4.

Set

the

tool

on

its

side

to

expose

the

two

Bolts(G)

and

two

Small

Plates(H).

5.

Loose

these

two

Bolts

(G)

and

two

Small Plates

(H)

to

ensure

move

the

Front

Foot(F)

in

the

range

of

the

Adjust

Groove(l).

16

For

technical

questions call

1-800-665-8685

Vl.O

3-in-1

Flooring

Nailer

&

Stapler

8561102

6.

Adjust

the

proper

position

of

the

Front

Foot(F)

according

to

the

actual

thickness

of

wood

floors

and

then

lock

tightly

these

two

Bolts(G)

and

two

Small

Plates(H).

7.

Ensure

the

correct

front

foot

set

for

the

wood

floor

by

firing

into

a

scrap

piece

of

flooring

and

checking

for

proper

fastener

placement.

WARNING:

Disconnect

the

tool

from

the

air

source

whenever

changing

the

foot

plate.

Make

sure

there

is

no

fastener

in

the

magazine

before

changing

the

foot

plate.

SETTING

THE

AIR

PRESSURE

The

amount

of

air

pressure

required

depends

on

the

size

of

the

fasteners

and

the

workpiece

material.

Begin

testing

the

depth

of

drive

by

driving

a

test

nail

into

the

same

type

of

workpiece

material

used

for

the

actual

job.

Drive

a

test

fastener

with

the

air

pressure

set

at

90

to

95

psi. Raise

or

lower

the

air

pressure

to

find

the

lowest

setting

that

will

perform

the

job

with

consistent

results.

OPERATING

THE

TOOL

1.

Attach

the

tool

to

the

air

resource.

Start

your

compressor

and

check

the

pressure,

making

sure

it

is

set

between

70

to

115

psi.

Do

not

exceed

the

maximum

115

psi.

2.

Hold

the

Hand

grip(J)

securely

and

Press

the

Hammer

Cap

(K)

Foot

plate(D)

to

the

work

surface.

Make

sure

the

plate

is

over

the

fastener

target

position.

Visit

www.princessauto.com

for

more

information

17

8561102 3-in-1

Flooring

Nailer

&

Stapler

Vl.O

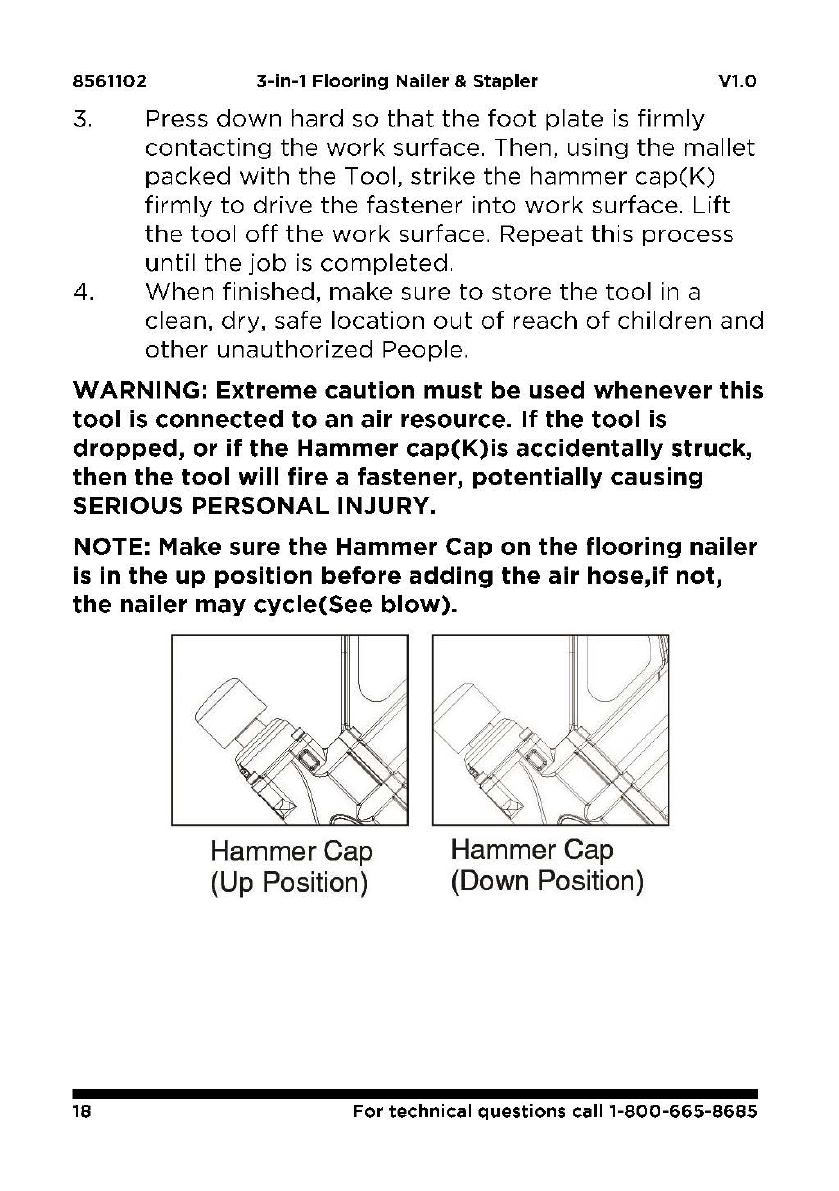

3.

Press

down

hard

so

that

the

foot

plate

is

firmly

contacting

the

work

surface. Then,

using

the

mallet

packed

with

the

Tool,

strike

the

hammer

cap(K)

firmly

to

drive

the

fastener

into

work

surface.

Lift

the

tool

off

the

work

surface.

Repeat

this

process

until

the

job

is

completed.

4.

When

finished,

make

sure

to

store

the

tool

in a

clean,

dry,

safe

location

out

of

reach

of

children

and

other

unauthorized

People.

WARNING:

Extreme

caution

must

be

used

whenever

this

tool

is

connected

to

an

air

resource.

If

the

tool

is

dropped,

or

if

the

Hammer

cap(K)is

accidentally

struck,

then

the

tool

will

fire

a

fastener,

potentially

causing

SERIOUS

PERSONAL

INJURY.

NOTE:

Make

sure

the

Hammer

Cap

on

the

flooring

nailer

is

in

the

up

position

before

adding

the

air

hose,if

not,

the

nailer

may

cycle(See

blow).

18

HammerCap

(Up Position) HammerCap

(Down Position)

For

technical

questions

call

1-800-665-8685

V1.0 3-in-1 Flooring Nailer & Stapler 8561102

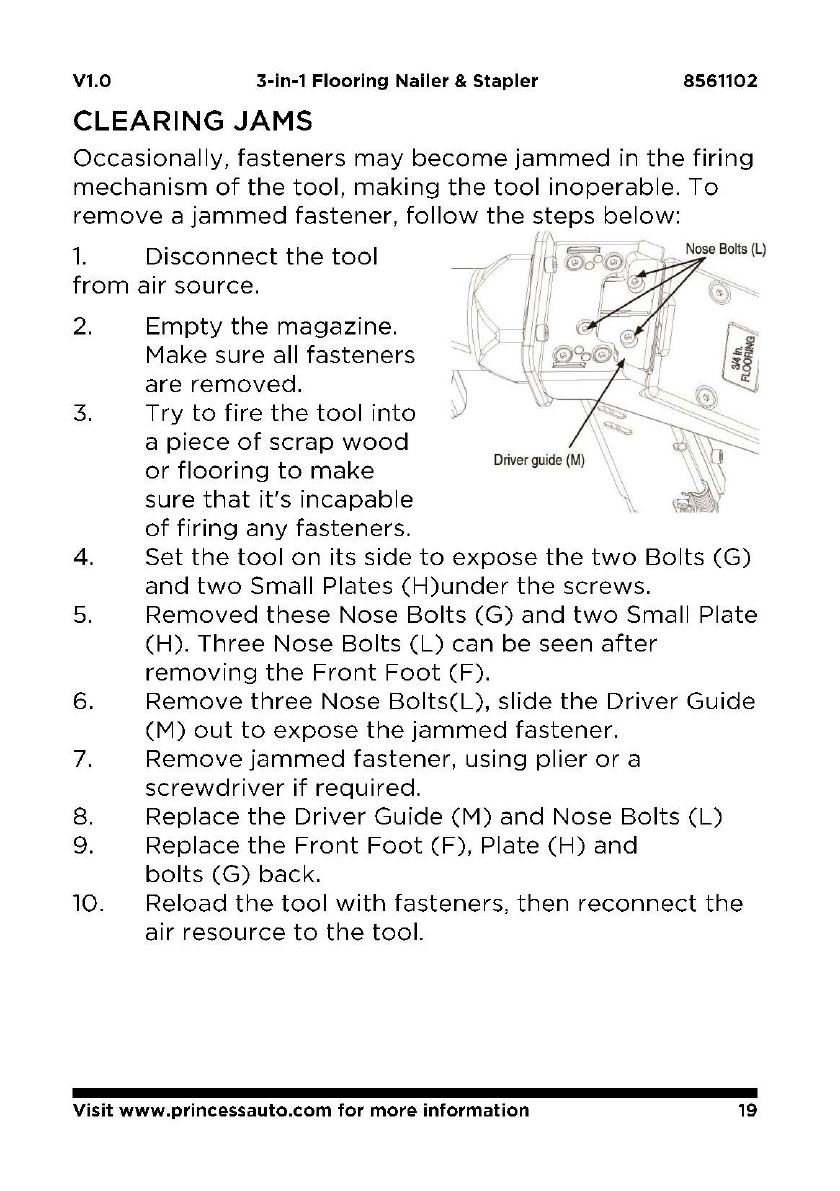

CLEARING

JAMS

Occasionally

,

fasteners

may

become

jammed

in

the

firing

mechanism

of

the

tool,

making

the

tool

inoperable.

To

remove

a

jammed

fastener

,

follow

the

steps

below:

1.

Disconnect

the

tool

from

air

source.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Empty

the

magazine.

Make

sure

all

fasteners

are

removed.

Try

to

fire

the

tool

into

a

piece

of

scrap

wood

or

flooring

to

make

sure

that

it's

incapable

of

firing

any

fasteners.

Drive

r

guide

(

M)

Set

the

tool

on

its

side

to

expose

the

two

Bolts

(G)

and

two

Small

Plates

(H)under

the

screws.

Removed

these

Nose

Bolts

(G)

and

two

Small

Plate

(H).

Three

Nose

Bolts

(L)

can

be

seen

after

removing

the

Front

Foot

(F).

Remove

three

Nose

Bolts(L),

slide

the

Driver

Guide

(M)

out

to

expose

the

jammed

fastener.

Remove

jammed

fastener,

using

plier

or

a

screwdriver

if

required.

Replace

the

Driver

Guide

(M)

and

Nose

Bolts

(L)

Replace

the

Front

Foot

(F),

Plate

(H)

and

bolts

(G)

back.

Reload

the

tool

with

fasteners

,

then

reconnect

the

air

resource

to

the

tool.

Visit www.princessauto.com

for

more

information

19

8561102

3-in-1

Flooring

Nailer

&

Stapler

V1.0

11.

Press

the

Drive

guide

(M)

against

a

piece

of

wood,

and

test

fire

the

fasteners

several

times

to

check

for

proper

operation.

If

the

tool

is

properly

firing,

you

may

continue

using

the

tool.

If

the

tool

fails

to

perform

properly,

immediately

discontinue

use

and

have

the

tool

repaired

by

a

qualified

service

technician.

WARNING: Make sure there

is

no fastener

in

magazine

before clearing a jam.

MAINTENANCE

Before

making

any

adjustments

or

changing

accessories,

turn

off

the

tool

and

disconnect

it

from

its

power

source.

1.

Keep

the

vent

passage

clear

from

dirt.

Clean

off

the

accumulated

dust

and

oil

dirt

periodically.

Clean

the

tool

after

each

use.

2.

During

normal

operation,

if

anything

happens,

the

power

supply

should

be

cut

off

at

once

and

the

tool

should

be

checked

and

repaired.

3.

Check

for

damaged

parts.

Before

using

any

tool,

any

part

that

appears

to

be

damaged

should

be

carefully

checked

to

determine

that

it

would

operate

properly

and

perform

its

intended

functions.

Check

for

alignment

and

binding

of

moving

parts,

for

broken

parts

or

mounting

fixtures,

or

for

any

other

condition

that

may

affect

proper

operation.

Any

part

that

is

damaged

should

be

repaired

or

replaced

by

a

qualified

technician.

4.

When

servicing,

use

only

identical

replacement

parts.

Only

use

accessories

intended

for

use

with

this

tool.

Replace

damaged

parts

immediately.

20

For

technical questions call

1-800-665-8685
