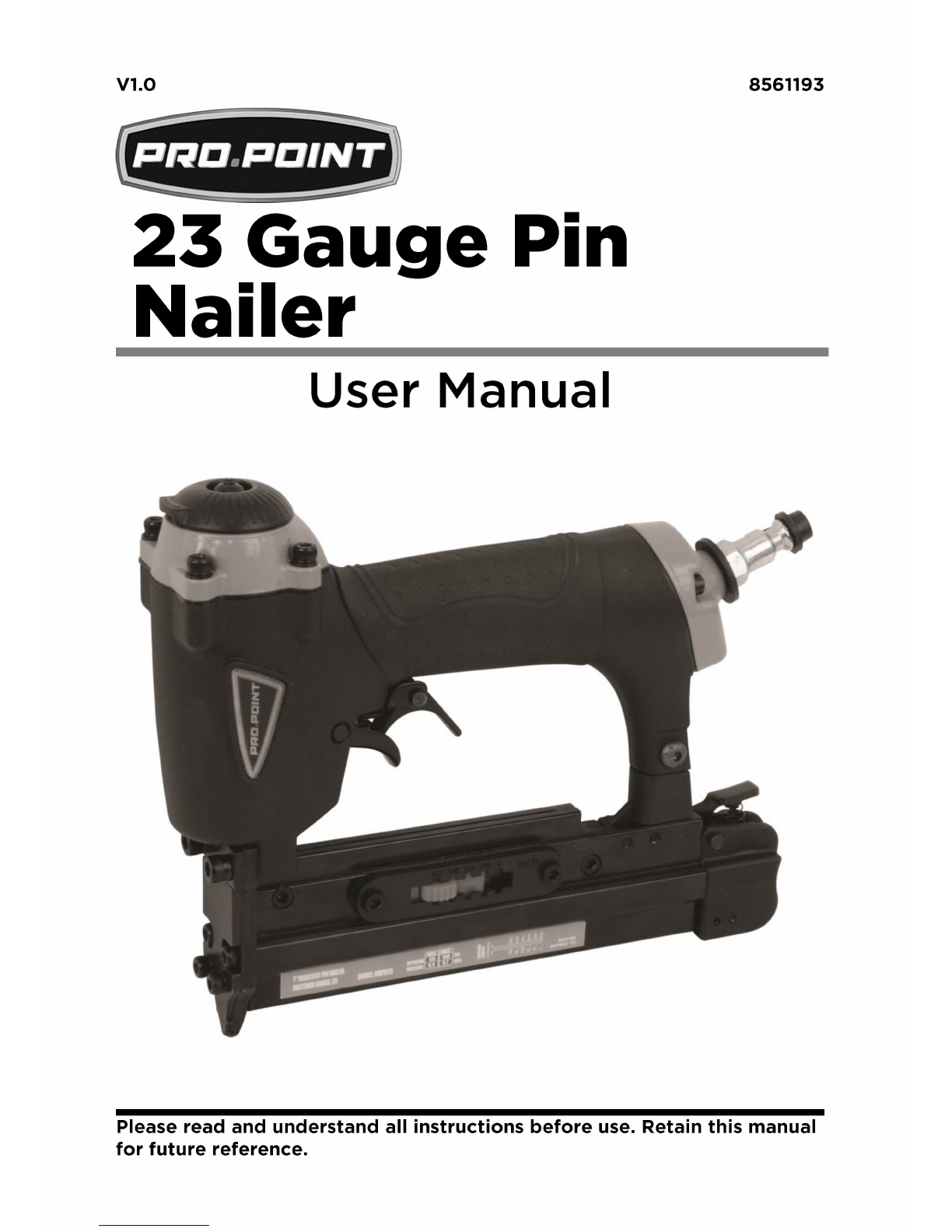

PROPOINT 8561193 User manual
V1.0
If D
23
Gauge Pin
Nailer
User Manual
8561193
Please read
and
understand
all
instructions
before
use.
Retain
this
manual
for
future
reference.
8561193
23
Gauge
Pin
Nailer
If D
23
Gauge
Pin Nailer
SPECIFICATIONS
V1.0
Requires
1.36 SCFM
with
100
fasteners
per
minute
@
80
psi
Air
inlet
1/4
inch
NPT
Magazine
capacity
100
headless pins,
23
gauge
Weight
1.94 lbs
Maximum
pressure
100
psi
Pressure
range
60
psi
to
100
psi
Fastener
size
range
1/2
inch
to
1
inch
SAFETY
WARNING!
Read
and
understand
all
instructions
before
using
this
tool.
The
operator
must
follow
basic
precautions
to
reduce
the
risk
of
personal
injury
and/or
damage
to
the
equipment.
Keep
this
manual
for
safety
warnings,
precautions,
operating
or
inspection
and
maintenance
instructions.
2
For
technical
questions
call
1-800-665-8685
Vl.O
23
Gauge Pin
Nailer
8561193

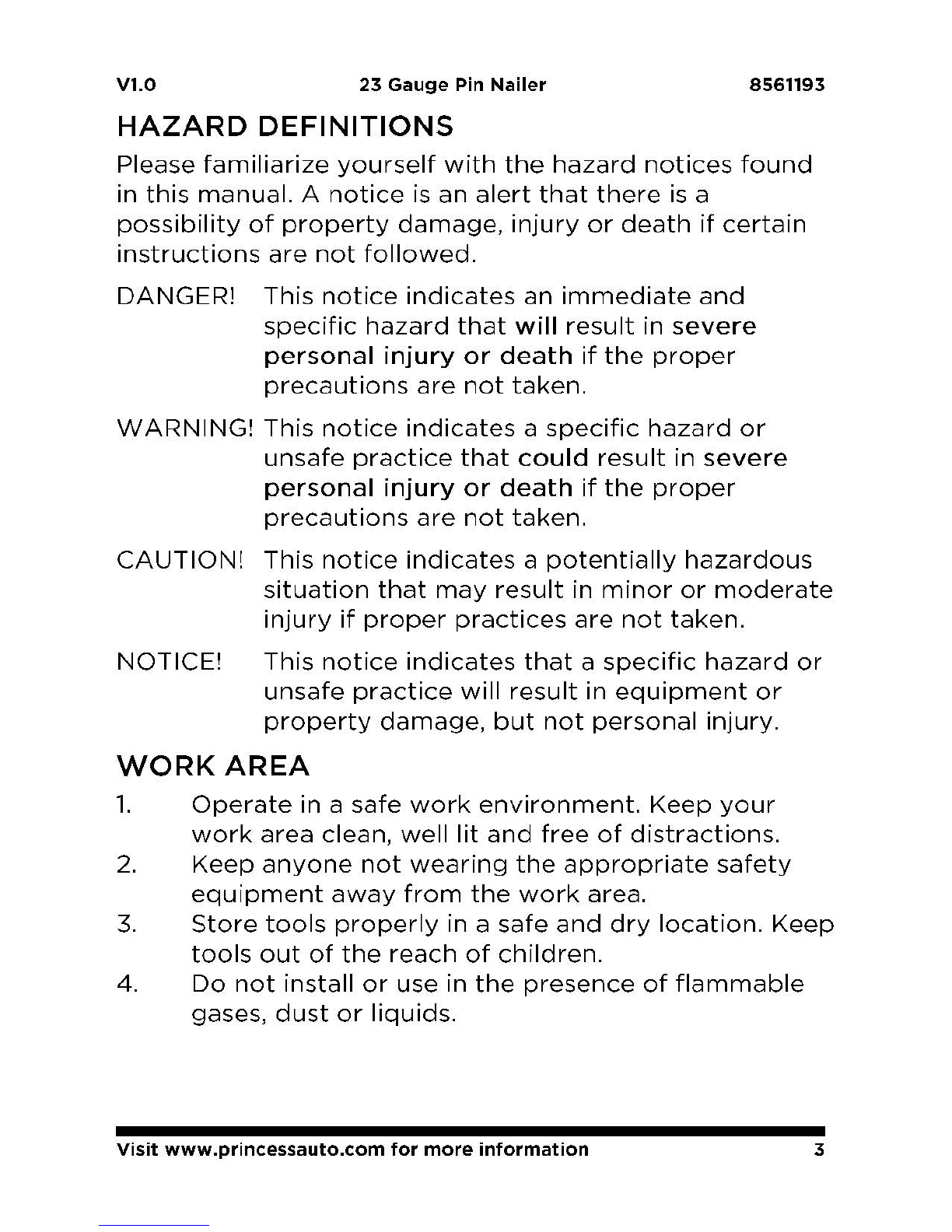

HAZARD
DEFINITIONS
Please
familiarize
yourself
with
the
hazard
notices
found
in
this
manual.
A
notice
is
an
alert
that
there
is
a
possibility
of
property
damage,
injury
or
death
if
certain
instructions
are
not
followed.
DANGER! This
notice
indicates
an
immediate
and
specific
hazard
that
will
result
in
severe
personal
injury
or
death
if
the
proper
precautions
are
not
taken.
WARNING!
This
notice
indicates
a
specific
hazard
or
unsafe
practice
that
could
result
in
severe
personal
injury
or
death
if
the
proper
precautions
are
not
taken.
CAUTION!
This
notice
indicates
a
potentially
hazardous
situation
that
may
result
in
minor
or
moderate
injury
if
proper
practices
are
not
taken.
NOTICE! This
notice
indicates
that
a
specific
hazard
or
unsafe
practice
will
result
in
equipment
or
property
damage,
but
not
personal
injury.
WORK
AREA
1.
Operate
in a safe
work
environment.
Keep
your
work
area
clean,
well
lit
and
free
of
distractions.
2.
Keep
anyone
not
wearing
the
appropriate
safety
equipment
away
from
the
work
area.
3.
Store
tools
properly
in a safe
and
dry
location.
Keep
tools
out
of
the
reach
of
children.
4.
Do
not
install
or
use in
the
presence
of
flammable
gases,
dust
or
liquids.
Visit
www.princessauto.com
for
more
information
3
8561193
23
Gauge Pin
Nailer
V1.0
5.
Avoid
unintentional
misfires.
Always
use
caution
to
avoid
accidentally
firing.
Do
not
point
towards
yourself
or
anyone
whether
it
contains
fasteners
or
not.
PERSONAL
SAFETY
WARNING!
Wear
personal
protective
equipment
approved
by
the
Canadian Standards Association
(CSA)
or
American
National
Standards
Institute
(ANSI).
PERSONAL
PROTECTIVE
EQUIPMENT
1.
Always
wear
impact
safety
goggles
that
provide
front
and
side
protection
for
the
eyes.
a.
Eye
protection
equipment
should
comply
with
ANSI
Z87.1
standards.
2.
Wear
gloves
that
provide
protection
based
on
the
work
materials
or
to
reduce
the
effects
of
tool
vibration.
3.
Non-skid
footwear
is
recommended
to
maintain
footing
and
balance
in
the
work
environment.
4. Steel
toe
footwear
or
steel
toe
caps
to
prevent
injury
from
falling
objects.
5.
Wear
protective
clothing
designed
for
the
work
environment
and
tool.
6. This
tool
can
cause
hearing
damage.
Wear
hearing
protection
gear
with
an
appropriate
Noise
Reduction
Rating
to
withstand
the
decibel
levels.
7.
Wear
a
hard
hat
to
protect
your
head
from
falling
objects.
PERSONAL
PRECAUTIONS
Control
the
tool,
personal
movement
and
the
work
environment
to
avoid
personal
injury
or
damage
to
the
tool.
4
For
technical questions call
1-800-665-8685
Vl.O
23
Gauge Pin
Nailer
8561193

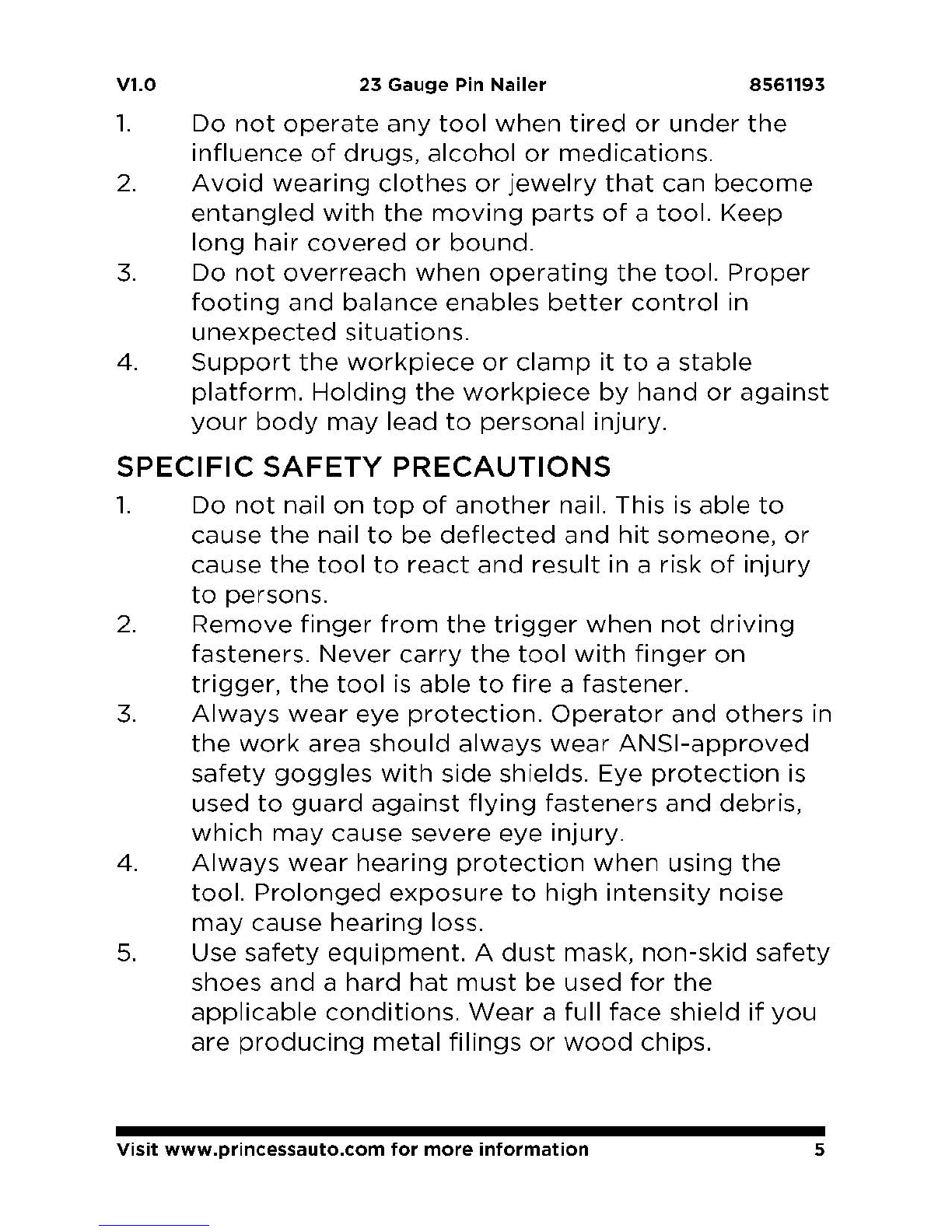

1.
Do
not
operate
any
tool
when
tired
or
under
the
influence
of
drugs,
alcohol
or
medications.
2.
Avoid
wearing
clothes
or
jewelry
that
can
become
entangled
with
the
moving
parts
of
a
tool.
Keep
long
hair
covered
or
bound.
3.
Do
not
overreach
when
operating
the
tool.
Proper
footing
and
balance
enables
better
control
in
unexpected
situations.
4.
Support
the
workpiece
or
clamp
it
to
a
stable
platform.
Holding
the
workpiece
by
hand
or
against
your
body
may
lead
to
personal
injury.
SPECIFIC
SAFETY
PRECAUTIONS
1.
Do
not
nail
on
top
of
another
nail. This is
able
to
cause
the
nail
to
be
deflected
and
hit
someone,
or
cause
the
tool
to
react
and
result
in a risk
of
injury
to
persons.
2.
Remove
finger
from
the
trigger
when
not
driving
fasteners.
Never
carry
the
tool
with
finger
on
trigger,
the
tool
is
able
to
fire
a
fastener.
3.
Always
wear
eye
protection.
Operator
and
others
in
the
work
area
should
always
wear
ANSI-approved
safety
goggles
with
side
shields. Eye
protection
is
used
to
guard
against
flying
fasteners
and
debris,
which
may
cause
severe
eye
injury.
4.
Always
wear
hearing
protection
when
using
the
tool.
Prolonged
exposure
to
high
intensity
noise
may
cause
hearing
loss.
5.
Use
safety
equipment.
A
dust
mask,
non-skid
safety
shoes
and
a
hard
hat
must
be
used
for
the
applicable
conditions.
Wear
a full
face
shield
if
you
are
producing
metal
filings
or
wood
chips.
Visit
www.princessauto.com
for
more
information
5
8561193
23
Gauge Pin
Nailer
V1.0
6. Dress
properly.
Do
not
wear
loose
clothing
or
jewelry.
Contain
long
hair.
Keep
your
hair,
clothing,
and
gloves
away
from
moving
parts.
Loose
clothes,
jewelry,
or
long
hair
can
be
caught
in
moving
parts.
7.
Stay
alert,
watch
what
you
are
doing
and
use
common
sense
when
operating
a
power
tool.
Do
not
use
tool
while
tired
or
under
the
influence
of
drugs,
alcohol,
or
medication.
A
moment
of
inattention
while
operating
the
tool
may
cause
serious
injury.
8.
Avoid
unintentional
firing.
Keep
fingers
away
from
trigger
when
not
driving
fasteners,
especially
when
connecting
the
tool
to
the
air
supply.
9.
Keep
proper
footing
and
balance
at
all
times.
Proper
footing
and
balance
enables
better
control
of
the
tool
in
unexpected
situations.
10.
Do
not
use
on
a
ladder
or
unstable
supports.
Stable
footing
on
a
solid
surface
enables
better
control
of
the
tool
in
unexpected
situations.
11.
Make
sure
the
hose
is
free
of
obstructions
or
snags.
Entangled
or
snarled
hoses
can
cause
loss
of
balance
or
footing
and
may
become
damaged,
resulting
in
possible
injury.
12.
Do
not
overreach.
Keep
proper
footing
and
balance
at
all
times.
Proper
footing
and
balance
enables
better
control
of
the
tool
in
unexpected
situations.
13.
Do
not
attach
the
hose
or
tool
to
your
body.
14.
Always
assume
that
the
tool
contains
fasteners.
Do
not
point
the
tool
toward
yourself
or
anyone
whether
it
contains
fasteners
or
not.
6
For
technical questions
call1-800-665-8685
Vl.O
23
Gauge
Pin
Nailer
8561193
15.
Wash
hands
after
handling.
This
product
or
its
power
cord
may
contain
chemicals
known
to
cause
cancer
and
birth
defects
or
other
reproductive
harm.
AIR
TOOL
PRECAUTIONS
1.
Extended
exposure
to
air
tool
noise
may
cause
hearing
loss. Ear
protection
gear
can
reduce
or
eliminate
the
noise
level.
2.
Inspect
the
tool's
airline
for
cracks,
fraying
or
other
faults
before
each
use.
Discontinue
use
if
the
airline
is
damaged
or
hissing
is
heard
from
the
airline
or
connectors,
while
operating
the
tool.
Replace
the
defective
component/airline.
3.
Do
not
allow
people,
mobile
equipment
or
vehicles
to
pass
over
the
unprotected
airline.
Position
the
airline
away
from
high
traffic
areas, in a
reinforced
conduit
or
place
planks
on
both
sides
of
the
airline
to
create
a
protective
trench.
4.
Prevent
damage
to
the
airline
by
observing
the
following:
a.
Never
carry
the
tool
by
the
airline.
b.
Keep
the
airline
behind
the
tool
and
out
of
the
tool's
work
path.
c.
Keep
the
airline
away
from
heat, oil,
sharp
edges
or
moving
parts.
d.
Do
not
wrap
the
airline
around
the
tool
as
sharp
edges
may
pierce
or
crack
the
airline.
Coil
the
airline
when
storing.
Visit www.princessauto.com
for
more
information 7
8561193
23
Gauge
Pin
Nailer
V1.0
5.
A
damaged
or
disconnected
airline
under
pressure
may
whip
around
and
inflict
personal
injury
or
damage
the
work
area.
Secure
the
compressor's
airline
to
a
fixed
or
permanent
structure
with
clamps
or
cable
ties.
6. Install an
in-line
shutoff
valve
or
regulator
to
allow
immediate
control
over
the
air
supply
in an
emergency,
even
if
a
hose
is
ruptured.
USE
AND
CARE
OF
THE
TOOL
WARNING: Disconnect the tool from the air source
before making adjustments, doing tool maintenance,
clearing jams, touching the safety yoke, leaving
work
area, or unloading the tool. Such precautionary
measures reduce the risk
of
injury
to
persons.
1.
Know
this
tool.
Read
manual
carefully,
learn its
applications
and
limitations,
as
well
as
the
specific
potential
hazards
related
to
this
tool.
2.
Use
only
fasteners
that
are
recommended
for
your
models.
Do
not
use
the
wrong
fasteners
or
load
the
fasteners
incorrectly.
3.
Use
only
accessories
that
are
identified
by
the
manufacturer
for
the
specific
tool
model.
Use
of
unauthorized
parts
or
failure
to
follow
maintenance
instructions
may
create
a risk
of
injury.
4. Use
only
those
fasteners
recommended
for
use
with
this
tool.
Fasteners
not
identified
for
use
with
this
tool
by
the
tool
manufacturer
are
able
to
result
in a
risk
of
injury
to
persons
or
tool
damage
when
used
in
this
tool.
8
For
technical questions call
1-800-665-8685
Vl.O
23
Gauge
Pin
Nailer
8561193
5.
Check
for
misalignment
or
binding
of
moving
parts,
breakage
of
parts,
and
any
other
condition
that
may
affect
the
tool's
operation.
If
damaged,
have
the
tool
serviced
before
using.
Many
accidents
are
caused
by
poorly
maintained
tools.
6.
Maintain
tools
with
care.
Keep
tool
clean. A
properly
maintained
tool,
reduces
the
risk
of
binding
and
is
easier
to
control.
7.
Store
tools
out
of
the
reach
of
children
and
other
untrained
people.
Tools
are
dangerous
in
the
hands
of
untrained
users.
8.
Check
operation
of
the
tool
before
use.
Do
not
use
the
tool
if
the
workpiece
contact
mechanism
is
not
working
correctly
as
accidental
driving
of
a
fastener
may
occur.
9.
Do
not
use
tool
if
trigger
does
not
actuate
properly.
Any
tool
that
cannot
be
controlled
with
the
trigger
is
dangerous
and
must
be
repaired.
10.
Do
not
force
tool.
Use
the
correct
tool
for
your
application.
The
correct
tool
will
do
the
job
better
and
safer
at
the
rate
for
which
it is
designed.
11.
Use
clamps
or
another
practical
way
to
Secure
and
support
the
workpiece
to
a
stable
platform.
Holding
a
tool
by
hand
or
against
the
body
is
unstable
and
may
lead
to
loss
of
control.
12.
Keep
the
tool
and
its
handle
dry,
clean
and
free
from
oil
and
grease.
Always
use a
clean
cloth
when
cleaning.
Never
use
brake
fluids,
gasoline,
petroleum-based
products,
or
any
strong
solvents
to
clean
your
tool.
13.
Do
not
use
the
tool
as a
hammer.
Visit www.princessauto.com
for
more
information 9
8561193
23
Gauge Pin
Nailer
V1.0
14.
Never
use
this
tool
in a
manner
that
could
cause
a
fastener
to
be
directed
toward
anything
other
than
the
workpiece.
15.
Never
use
gasoline
or
other
flammable
liquids
to
clean
the
tool.
Never
use
the
tool
in
the
presence
of
flammable
liquids
or
gases.
Vapors
could
ignite
by
a
spark
and
cause
an
explosion
which
will
result
in
death
or
serious
personal
injury.
16.
Do
not
remove,
tamper
with,
or
otherwise
cause
the
trigger
lock
or
trigger
to
become
inoperable.
Do
not
operate
any
tool
which
has
been
modified
in a
like
fashion.
Death
or
serious
personal
injury
could
result.
17.
Do
not
touch
the
trigger
unless
driving
fasteners.
Never
attach
air
line
to
tool
or
carry
tool
while
touching
the
trigger.
The
tool
could
eject
a
fastener
which
will
result
in
death
or
serious
personal
injury.
Also
actuate
the
trigger
lock
to
the
safe
position
when
not
in use.
18.
Always
fit
tool
with
a
fitting
or
hose
coupling
on
or
near
the
tool
in such a
manner
that
all
compressed
air
in
the
tool
is
discharged
at
the
time
the
fitting
or
hose
coupling
is
disconnected.
Do
not
use
a
check
valve
or
any
other
fitting
which
allows
air
to
remain
in
the
tool.
Death
or
serious
personal
injury
could
occur.
19.
Never
place
hands
or
any
other
body
parts
in
the
fastener
discharge
area
of
the
tool.
The
tool
might
eject
a
fastener
and
could
result
in
death
or
serious
personal
injury.
10
For
technical questions call
1-800-665-8685
Vl.O
23
Gauge
Pin
Nailer
8561193
20.
Never
carry
the
tool
by
the
air
hose
or
pull
the
hose
to
move
the
tool
or
a
compressor.
Keep
hoses
away
from
heat,
oil
and
sharp
edges.
Replace
any
hose
that
is
damaged,
weak
or
worn.
Personal
injury
or
tool
damage
could
occur.
21.
Always
assume
the
tool
contains
fasteners.
Respect
the
tool
as a
working
implement;
no
horseplay.
22.
Always
keep
others
at
a safe
distance
from
the
work
area
in case
of
accidental
discharge
of
fasteners.
Do
not
point
the
tool
toward
yourself
or
anyone
whether
it
contains
fasteners
or
not.
Accidental
triggering
of
the
tool
could
result
in
death
or
serious
personal
injury.
23.
Do
not
drop
or
throw
the
tool.
Dropping
or
throwing
the
tool
can
result
in
damage
that
will
make
the
tool
unusable
or
unsafe. If
the
tool
has
been
dropped
or
thrown,
examine
the
tool
closely
for
bent,
cracked
or
broken
parts
and
air
leaks.
STOP
and
repair
before
using,
or
serious
injury
could
occur.
24.
Avoid
using
the
tool
when
the
magazine
is
empty.
Accelerated
wear
on
the
tool
may
occur.
25. Clean
and
check
all
air
supply
hoses
and
fittings
before
connecting
the
tool
to
an
air
supply.
Replace
any
damaged
or
worn
hoses
or
fittings.
Tool
performance
or
durability
may
be
reduced.
26.
Do
not
use
the
tool
if
it
leaks air
or
does
not
function
properly.
27.
Do
not
operate
the
tool
if
it
does
not
contain
a
legible
warning
label.
28.
Always
carry
the
tool
by
the
handle.
Never
carry
the
tool
by
the
air
hose.
Visit www.princessauto.com
for
more
information
11
8561193
23
Gauge
Pin
Nailer
V1.0
FEATURES
Compatible
with
All
Generic
Brands
23
Gauge
Micro
Pins.
1.
2.
3.
4.
5.
360
ADJUST
ABLE
EXHAUST.
Allows
user
to
direct
air
away
from
face.
COMFORT-GRIP
HANDLE.
For
increased
comfort
and
control.
ERGONOMICALLY
ENGINEERED
BODY.
Rugged
and
Comfortable
face
resulting
in a
lightweight
tool
great
for
extended
use.
DUAL
TRIGGER.
Safety
for
users.
NON-MARRING
SAFETY
CONTACT.
¢0.025
in.
(¢0.64
mm)
--
11
--
12
mm
16
mm
19
mm
22mm
25mm
1/2
in.
5/8
in.
3/4
in.
7/8
in.
1
in
.
Eliminates
damage
to
working
surface.
UNPACKING
1.
This
tool
has
been
shipped
completely
assembled.
2.
Carefully
remove
the
tool
and
any
accessories
from
the
box.
3.
Inspect
the
tool
carefully
to
make
sure
no
breakage
or
damage
occurred
during
shipping.
4.
Do
not
discard
the
packing
material
until
you
have
carefully
inspected
and
satisfactorily
operated
the
tool.
5.
If
any
parts
are
damaged
or
missing,
please
call
1-800-665-8685
WARNING: If any parts are missing
do
not
operate
this
tool until the missing parts are replaced. Failure
to
do
so
could result
in
possible serious personal injury.
12
For
technical questions call
1-800-665-8685
V1.0
23 Gauge
Pin
Nailer
8561193
WARNING: Do not
attempt
to
modify this tool or create
accessories not recommended for use with this tool. Any
such alteration or modification
is
misuse and could
result
in
hazardous condition leading
to
possible serious
personal injury.
OPERATION
1.
Do
not
drive
fasteners
near
edge
of
material.
The
workpiece
may
split
causing
the
fastener
or
ricochet,
injuring
you
or
people
around.
2.
Do
not
carry
the
tool
from
place
to
place
holding
the
trigger.
Accidental
discharge
could
result.
Choice
of
triggering
method
is
important.
Check
manual
for
triggering
options.
3.
During
normal
use
the
tool
will
recoil
immediately
after
driving
a
fastener.
This
is
a
normal
function
of
the
tool.
Do
not
attempt
to
prevent
the
recoil
by
holding
the
tool
against
the
work.
Restriction
to
the
recoil
can
result
in a
second
fastener
being
driven
from
the
tool.
Grip
the
handle
firmly
and
let
the
tool
do
the
work.
Failure
to
heed
this
warning
can
result
in
serious
personal
injury.
4.
Do
not
drive
fasteners
on
top
of
other
fasteners
or
with
the
tool
at
an
overly
steep
angle
as
this
may
cause
deflection
of
fasteners
which
could
cause
injury.
5.
Do
not
actuate
the
tool
unless
you
intend
to
drive
a
fastener
into
the
workpiece.
Visit www.princessauto.com for more information 13
8561193
23
Gauge Pin
Nailer
V1.0
6.
Always
handle
the
tool
with
care:
a.
Respect
the
tool
as
a
working
implement.
b.
Never
engage
in
horseplay.
c.
Never
pull
the
trigger
unless
nose
is
directed
toward
the
work.
d.
Keep
others
a safe
distance
from
the
tool
while
tool
is in
operation
as
accidental
actuation
may
occur,
possibly
causing
injury.
AIR
SUPPLY
AND
CONNECTIONS
1.
The
connector
on
the
tool
must
not
hold
pressure
when
air
supply
is
disconnected.
If
an
incorrect
fitting
is used,
the
tool
can
remain
charged
with
air
after
disconnecting
and
thus
will
be
able
to
drive
a
fastener
even
after
the
air
line
is
disconnected,
possibly
causing
injury.
2.
Do
not
use
any
type
of
reactive
gases,
including,
but
not
limited
to,
oxygen
and
combustible
gases,
as
a
power
source.
Use
filtered,
lubricated,
regulated
compressed
air
only.
Use
of
a
reactive
gas
instead
of
compressed
air
may
cause
the
tool
to
explode
which
will
cause
death
or
serious
personal
injury.
3.
Use
only
a
pressure-regulated
compressed
air
source
to
limit
the
air
pressure
supplied
to
the
tool.
The
regulated
pressure
must
not
exceed
100
psi.
If
the
regulator
fails,
the
pressure
delivered
to
the
tool
must
not
exceed
200
psi.
The
tool
could
explode
which
will
cause
death
or
serious
personal
injury.
14
For
technical questions call
1-800-665-8685
Vl.O
23
Gauge
Pin
Nailer
8561193
4.
Always
disconnect
air
resource:
a.
Before
unloading
or
making
adjustments.
b.
When
maintaining
the
tool.
c.
When
clearing
a
jam.
d.
When
touching
the
safety
yoke.
e.
When
tool
is
not
in use.
f.
When
moving
to
a
different
work
area.
Such
precautionary
measures
reduce
the
risk
of
injury
to
persons.
LOADING
TOOL
1.
Do
not
load
the
tool
with
fasteners
when
any
one
of
the
operating
controls
is
activated.
2.
Never
place
a
hand
or
any
part
of
body
in
fastener
discharge
area
of
tool.
3.
Never
point
tool
at
anyone.
WARNING: The warnings and precautions discussed
above cannot cover all possible conditions and
situations that may occur. It must be understood by the
user that common sense and caution are factors which
cannot be built into this product, but must be supplied
by the user.
USING
BELT
HOOK
The
tool
is
packed
with
a
separate
hook
system.
Assemble
the
hook
on
the
tool
before
using
the
hook.
The
hook
can
be
positioned
on
both
left
and
right
sides.
1.
Loosen
and
remove
the
hook
screw
and
nut(A).
Save
the
screw
and
nut
for
future
use.
2.
Position
the
hook
in
your
preferred
position.
Using
the
longer
screw
packed
with
hook,
fasten
hook
to
tool.
Visit www.princessauto.com
for
more
information 15
8561193
23
Gauge
Pin
Nailer
V1.0
Hook nut(A)
ADJUSTING
THE
EXHAUST
The
adjustable
exhaust
on
the
cap
of
the
tool
allows
users
to
direct
the
exhaust
accord
i
ng
to
operator
preference.
To
adjust
the
direction,
turn
the
exhaust
cap
in
the
desired
direction.
LOADING
FASTENERS
1.
2.
Connect
the
tool
to
the
a1r
source.
Set
the
pin
length
adjustment
switch(A)
to
the
appropriate
setting
for
the
length
of
pins
you
are
loading
by
first
pu
s
hing
in
on
the
red
switch(A
)
and
sliding
until
the
notch
is in
the
appropriate
groo
v
e.
Hook
~
ut~~~
Length adjustment switch(A)
16
For
technical
questions
call
1-800-665-8685
Vl.O
23
Gauge Pin
Nailer
8561193
3.
Push
the
latch
button
(B).
Pull
magazine
cover
fully
(C).
4.
Insert
a
stick
of
5.
fasteners
into
the
magazine
with
pins
positioned
as
shown,
make
sure
pins
are
not
dirty
or
damaged.
Pins
are
marked
for
direction
of
loading.
Push
the
magazine
cover
forward
until
latch
engages.
Magazine
cover(C)
WARNING:
The
tool
may
fire
when
it
is
first
connected
to
the
air
source.
Always
connect
the
tool
to
the
air
source
before
loading
fasteners
to
prevent
injury
from
unintended
cycling.
Always
make
sure
the
tool's
magazine
is
empty
at
the
beginning
of
each
work
session,
before
connecting
to
an
air
source.
WARNING:
Use
only
those
fasteners
recommended
for
use
with
this
tool.
Fasteners
not
identified
for
use
with
this
tool
by
the
tool
manufacturer
are
able
to
result
in
a
risk
of
injury
to
persons
or
tool
damage
when
used
in
this
tool.
WARNING:
Keep
the
tool
pointed
away
from
yourself
and
others
when
loading
fasteners.
Failure
to
do
so
could
result
in
possible
serious
personal
injury.
WARNING:
Never
load
fasteners
with
the
workpiece
contact
or
trigger
activated.
Doing
so
could
result
in
possible
serious
personal
injury.
Visit
www.princessauto.com
for
more
information
17
8561193
23
Gauge Pin
Nailer
V1.0
UNLOADING
FASTENERS
Unloading
is
the
reverse
of
loading.
Always
disconnect
the
air
source
before
unloading.
WARNING:
Always unload all fasteners
before
removing
tool
from service.
WARNING:
Always disconnect the
air
source
before
unloading.
CLEARING
JAMS
Occasionally,
a
fastener
may
become
jammed
in
the
firing
mechanism
of
the
tool,
making
the
tool
inoperable.
To
remove
a
jammed
fastener,
follow
the
steps
below:
1.
Disconnect
the
tool
from
air
source.
2.
Remove
fasteners
from
the
tool.
Failure
to
do
so
will
cause
the
fasteners
to
eject
from
the
front
of
3.
the
tool.
Remove
the
non-
marring
pad(G)
from
the
nose.
@):J
@):J~
~
\
N"•(F)
Nose screws(D)
~
Nose plate(E)
"\
Non-marring pad(G)
4.
Completely
remove
the
small
nose
screws
(D)
and
the
top
nose
plate
(E)
to
reveal
the
jammed
fastener.
5.
Using
caution
not
to
bend
or
damage
the
driver
blade,
use
pliers
or
a
screwdriver
if
required
to
clear
the
jammed
fastener.
6.
Put
the
nose
plate
(E)
back
on
the
nose
(F),
fastening
it
with
the
screws
(D).
7.
Reconnect
the
tool
to
the
air
source.
18
For
technical questions call
1-800-665-8685
To remove the pad
To replace the pad
8561193
23
Gauge
Pin
Nailer
V1.0
SETTING
THE
AIR
PRESSURE
The
amount
of
air
pressure
required
depends
on
the
size
of
the
fasteners
and
the
workpiece
material.
Begin
testing
the
depth
of
drive
by
driving
a
test
nail
into
the
same
type
of
workpiece
material
used
for
the
actual
job.
Drive
a
test
fastener
with
the
air
pressure
set
at
90
to
95
psi.
Raise
or
lower
the
air
pressure
to
find
the
lowest
setting
that
will
perform
the
job
with
consistent
results.
It
may
be
possible
to
achieve
the
desired
depth
with
air
pressure
adjustments
alone.
FIRING
THE
TOOL
(SINGLE
MODE)
1.
2.
Connect
the
tool
to
the
air source.
Grip
the
tool
firmly
to
maintain
control.
Position
the
nose
of
the
tool
onto
the
work
surface.
Second
trigger
(H)
3.
Completely
pull
the
second
trigger(H),
then
pull
the
main
trigger(l),
squeeze
the
main
trigger
to
drive
a
fastener.
4.
Both
release
the
second
trigger
and
main
trigger
when
not
using
the
tool.
WARNING:
During
normal
use
the
tool
will
recoil
immediately
after
driving
a
fastener.
This
is
a
normal
function
of
the
tool.
Do
not
attempt
to
prevent
the
recoil
by
holding
the
tool
against
the
work.
Restriction
to
the
recoil
can
result
in
a
second
fastener
being
driven
from
the
tool.
Grip
the
handle
firmly
and
let
the
tool
do
the
work.
Failure
to
heed
this
warning
can
result
in
serious
personal
injury.
20
For
technical
questions
call
1-800-665-8685
Table of contents
Languages:
Other PROPOINT Nail Gun manuals
