ProSun Luxura V5 User manual

8-29-11 Rev03
By ProSun International, LLC.
User’s Manual
ProSun International, LLC
2442 - 23rd Street North
St. Petersburg, FL 33713-4018
Website: www.prosun.com
Phone: [phone]
Fax: [phone]
Toll Free: 800-874-2776
E-mail: [email protected]
A Worldwide Leader in Tanning Equipment
12 Minutes
ProSun V5 42 XLc Intensive

2
Contents
Warranty policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Read this first ...........................................................................6
10 Golden rules for sensible tanning in the tanning unit .........................................7
Users instructions

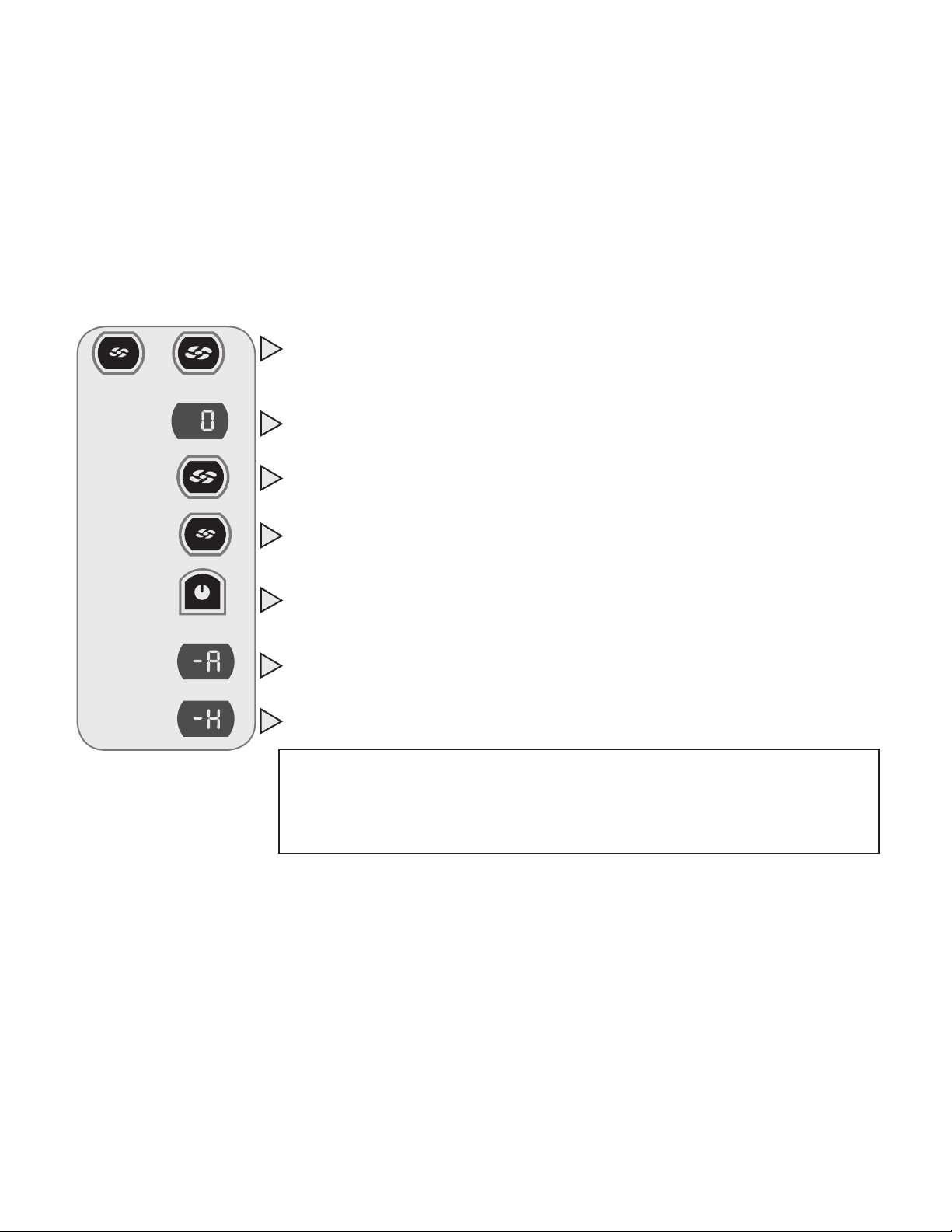

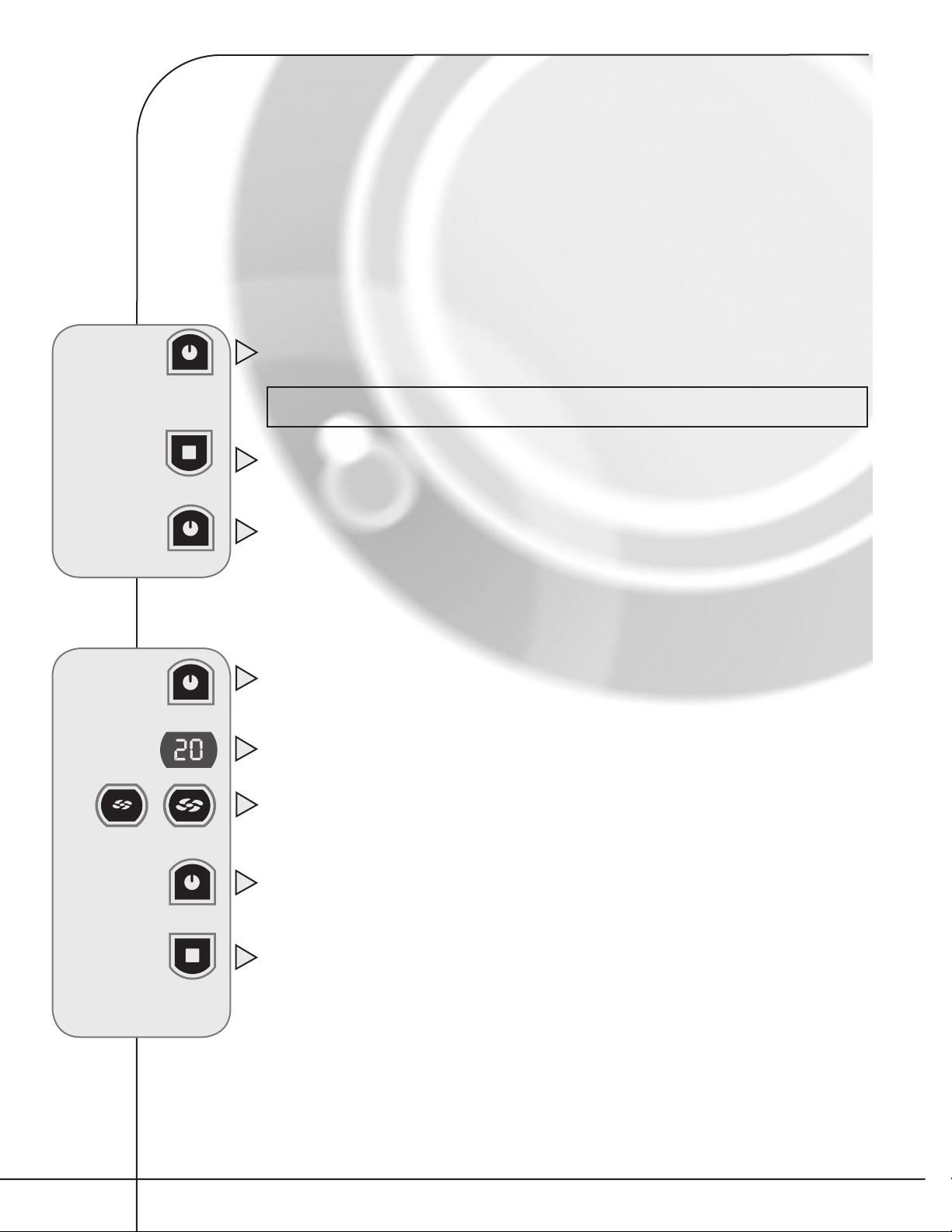

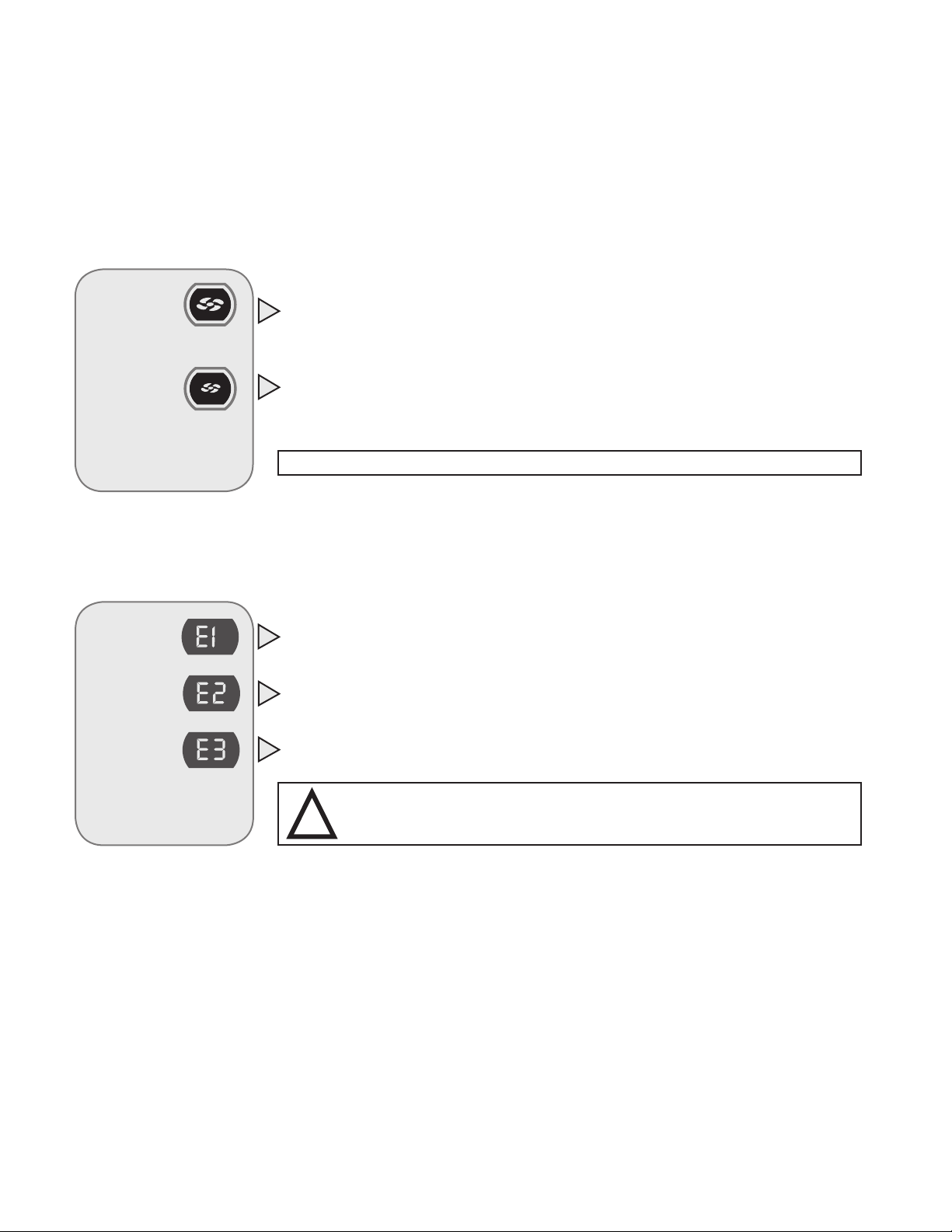

- Operation............................................................................8

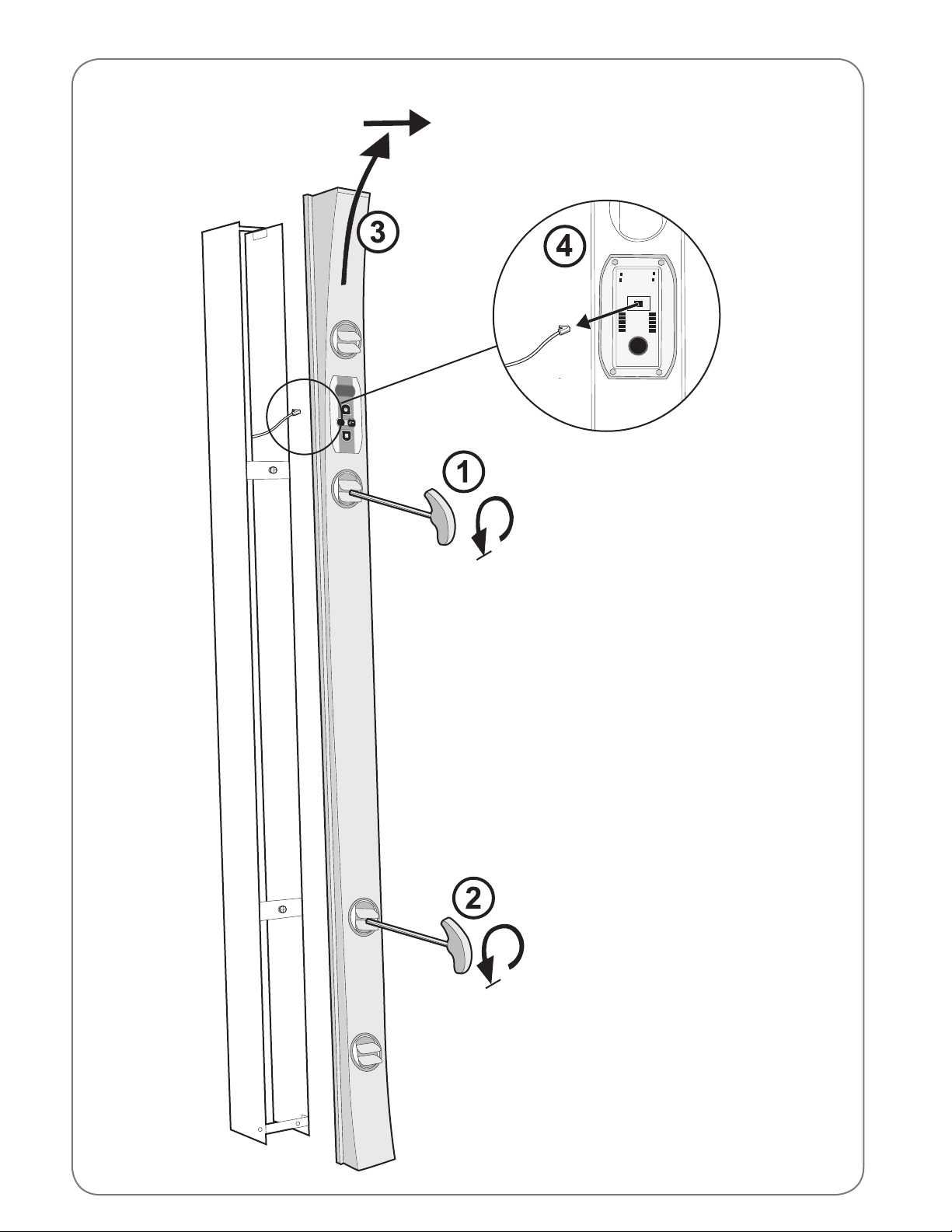

- Removing the acryl sheets.............................................................59
Line-up / Dimensions ....................................................................58
Technical data ..........................................................................60

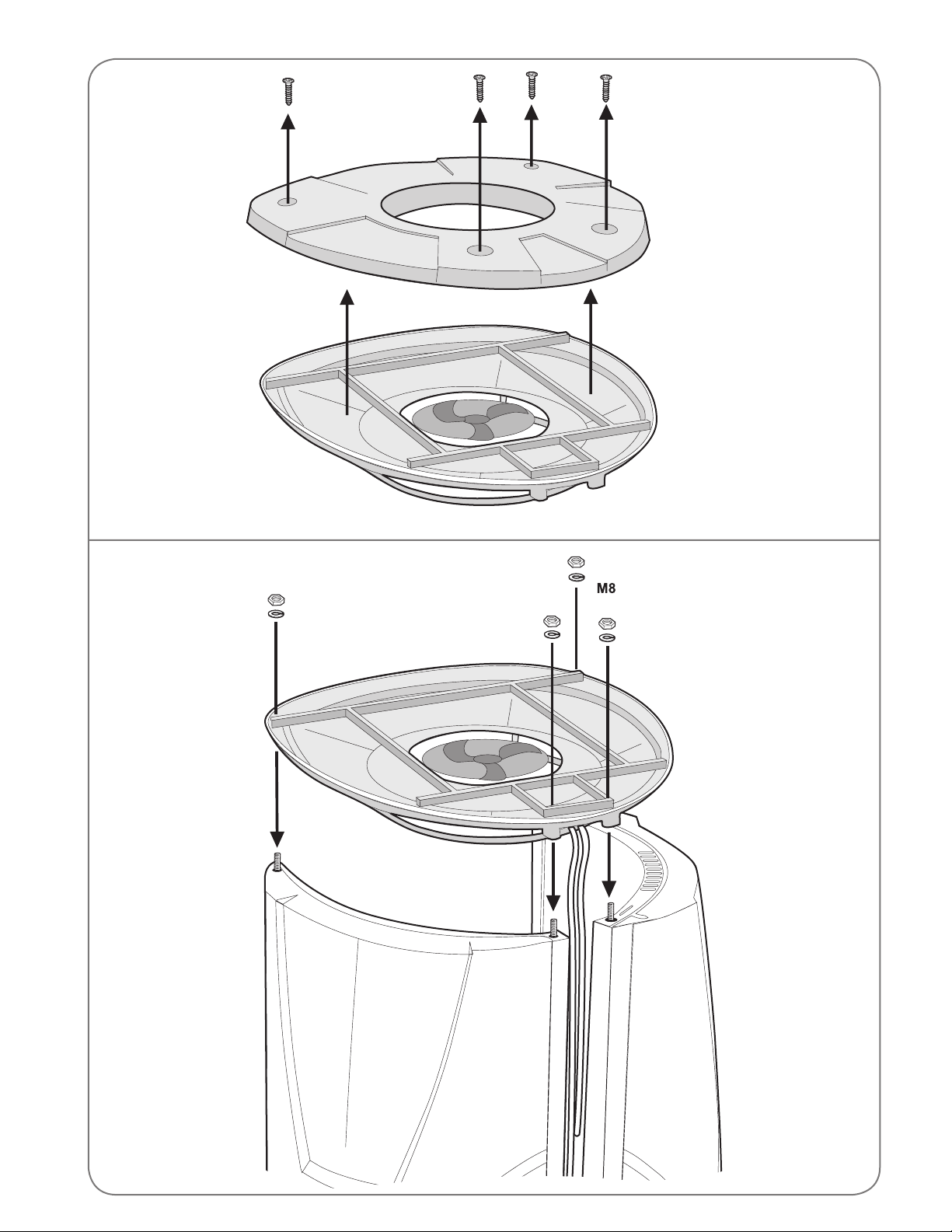

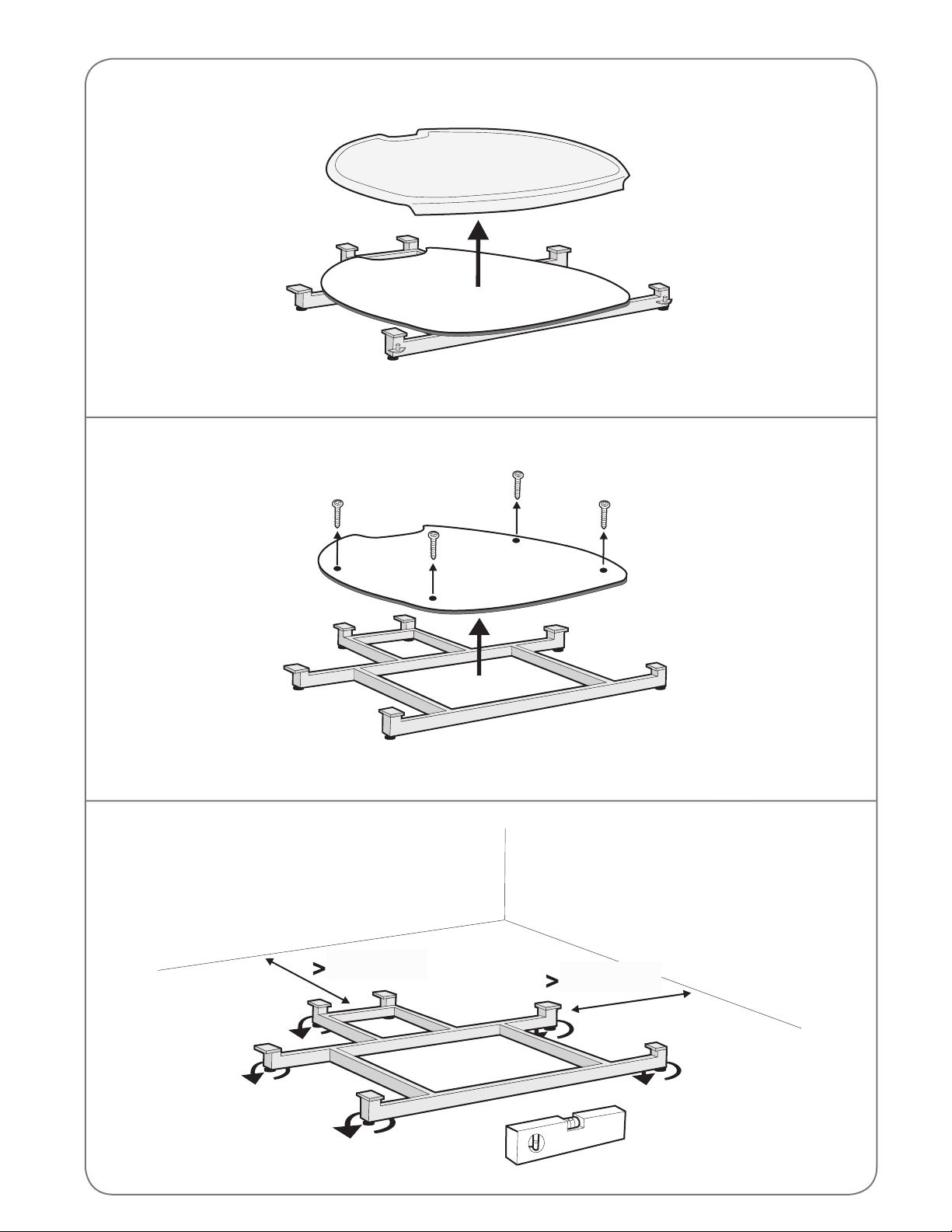

Assembly tanning unit.....................................................................61
Electrical diagrams.......................................................................78

3
Congratulations on the purchase of your ProSun tanning bed. Your new tanning bed
has been manufactured with the utmost care and attention and consists of high-quality
parts. All ProSun tanning beds have been developed to give you the best possible tan,
whilst complying with the strictest applicable FDA & UL/CSA standards.
RECOMMENDED
TANNING SCHEDULE
Sensitive Skin
SKIN TYPE
Light Skin
I
II
III
IV
Normal Skin
Dark Skin
Week 1 Week 2 Week 3 Maximum
Tanning Not Advised
2
3
4
4
5
6
8
9
10
12
12
12
MAXIMUM EXPOSURE TIME IN MINUTES
Burns easily & severely
Does not tan
Burns easily & severely
Tans minimally
Burns moderately
Tans moderately
Burns minimally
Tans well / above average
CERTIFIED LAMPS
X7/V579
The following lamps (or compatible)
have been certified for use with
this equipment:
CANOPY:
ProTech High Intensive R-UVA 160 Watt
ProTech High Intensive Dual XL R-UVA 180 Watt
BENCH:
ProTech High Intensive R-UVA 160 Watt
FACIALS (where applicable):
HPA 400 Watt
ProTech 25 Watt
HPA 1000 Watt
This product is in conformity with performance
standards for sun lamp products under
21 CFR PART 1040.20

4

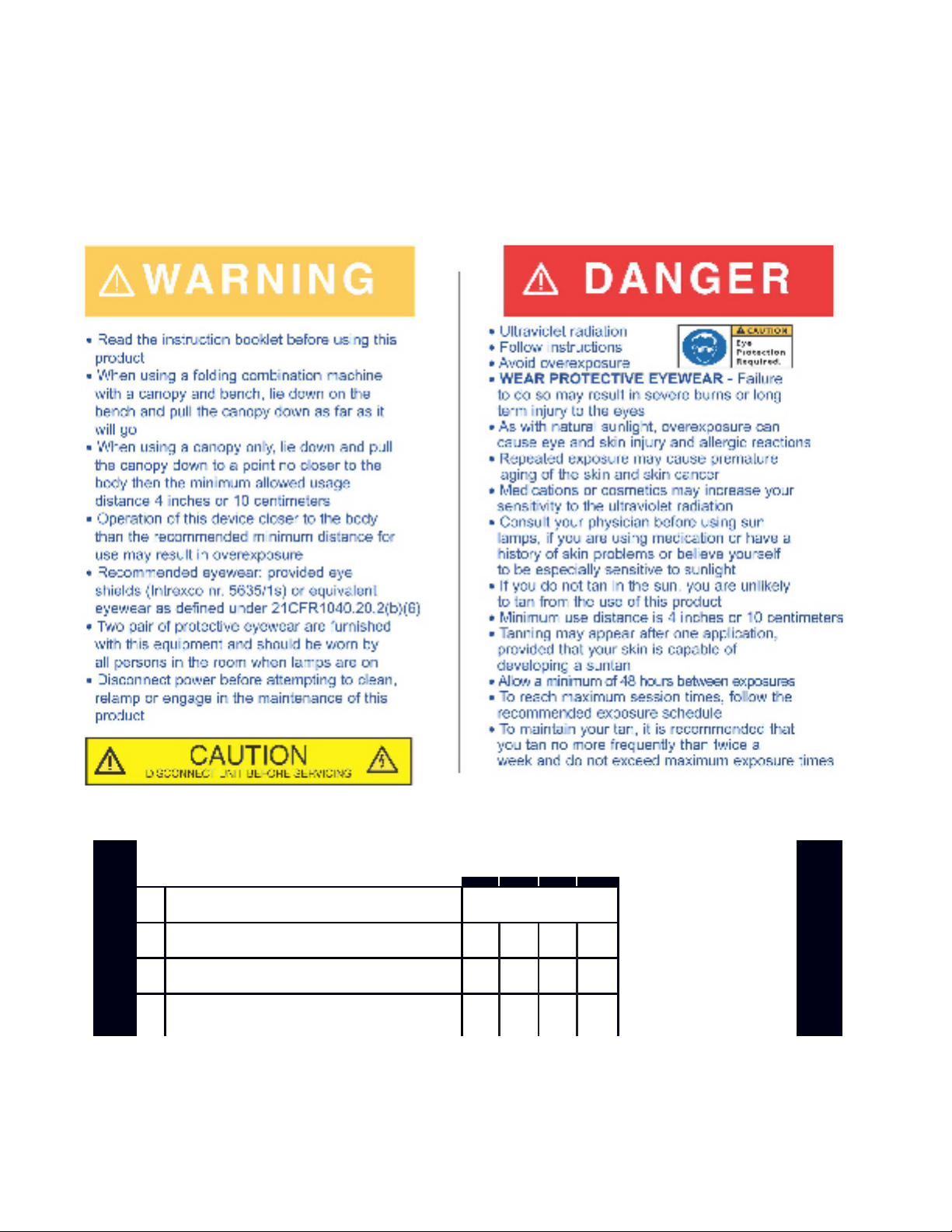

Read this first
Note:
Please consult enclosed tanning schedule for advised
tanning times.
Repairs may only be carried out by qualified personnel.
Always disconnect the main power at the circuit breaker
before servicing or repairing the unit.
1 Contact your authorised ProSun dealer immediately if this
unit does not function as outlined in this manual.
2 Do not operate this unit in a moist or humid space.
3 Always make sure the fuses can carry the load. This unit
has to be protected by ground fault circuit interrupter
(GFCI) of 0.03A.
4 Always disconnect the power to the unit at the wall breaker
when servicing or cleaning the in-side construction of
the cabine. Maintenance for which the procedure is not
described in this manual should only be done by a qualified
electrician. Never clean the electrical components with
fluids.
5 Ensure that the unit when opened does not touch the wall.
This will prevent damage.
6 Avoid having the acrylic sheets come into contact with
sharp objects.
7 This unit may not be operated if:
• theuserisnotwearingprotectiveuv-goggles
• oneormoreofthefansintheunitarenotfunctioning
properly
• thetimingmechanismisnotfunctioningproperly
• thetemperatureinsidethecabinis30°Corhigher
8 To ensure maximum tanning effectiveness, change the
acrylic sheet after every 1200 hours of operation.
9 To ensure maximum tanning effectiveness, replace the
lamps and the facial tanning lamps like indicated by the
manufacturer.
10 Check the environment regulations of your respective state
with regard to the proper manner in which the lamps are to
be disposed of.
11 Note: only a special acrylic cleaner may be used to clean
the acrylic sheet. Never use cleaners that contain alcohol,
as these can damage the acrylic sheet.
12 The UV-type of the tanning unit is indicated on the specifi-
cationsticker.
13 Ultraviolet radiation from the sun or UV appliances can
cause skin or eye damage. These biological effects depend
upon the quality and quantity of the radiation as well as the
skin and eye sensitivity of the individual.
14 The skin may develop sunburn after an excessive exposure.
Excessively repeated exposures to ultraviolet radiation from
the sun or UV appliances may lead to premature ageing of
het skin as well as increased risk of development of the
skin tumours.
15 The unprotected eye may develop surface inflammation
and in some cases, after a cataract operation for example,
damage may accur to the retina after eccessive exposure.
Cataracts may develop after many repeated exposures.
16 If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
17 Exchanging lamps and starters; remove the lamp by turning
this a quarter turn to the left. Remove the starters by turn-
ing these a quarter turn to the left. Placement of lamps and
starters in opposite order.
18 When installing the equipment, keep in mind the prescribed
minimum distances as described in the “Dimensions /
Placement” chapter.

5
Our tanning units are manufactured with the greatest atten-
tion and are of excellent quality.
Every Luxura is manufactured to meet the international
IEC/EN standards and carries the Kema seal of approval. We
provide a manufacturer's warranty of 1 year.
Your new sun bed has a manufacturer’s guarantee of 1 year,
which commences on the date of installation. Within the
warranty period all faults that are the result of material or
manufacturing errors will be repaired without cost. Please
contact your dealer for any warranty enquiries.
In order to make a claim under the terms of this guarantee,
you must be able to produce the original invoice or receipt
bearing the date of purchase. The type and serial number of
the appliance should also be indicated.
The warranty is subordinate to the national regulations accord-
ing to the warranty determination of
products.
Warranty
Units which have the type, serial number and/or other identi-
fication labels removed, damaged or altered.
Lamps, starters and acrylic sheets.
Damage due to purchaser abuse, neglect, transport, improper
use or improper maintenance.
Damage due to use of accessories not originally supplied by
ProSun or inferior accessories.
Damage due to installation, repair or assembly not done by
ProSun authorised personnel.
Damage due to fire, lightning, earth-quakes or other natural
disasters.
Not covered under
this warranty:
CongratulationsonthepurchaseofyourProSunsun
bed.Yournewsunbedhasbeenmanufacturedwith
theutmostcareandattentionandconsistsofhigh-
quality parts.
AllProSunsunbedshavebeendevelopedtogiveyou
thebestpossibletan,whilstcomplyingwiththestrict-
est applicable European standards.

6
10 Golden rules
for sensible tanning
These rules are in accordance with the European regulations concerning safe use of tanning equipment. We
advise you to inform your clients about these rules.
1 Before your client takes his or her tan in a tanning unit first
consult thoroughly the tanning table that you will find in
this book and follow its recommendations.
2 People have different reactions to sunlight. Somebody with
a pale complexion should take more care when tanning than
somebody with a darker complexion. Sun beds should not
be used by people:
- Whose skin displays signs of burning due to the simple
fact of being exposed to sunlight.
- Who have already been burned by the sun.
- Who have a skin condition or have or have had skin
cancer.
- Who are younger than 16 years.
With skin type 1.
3 Make sure that upon commencing a series of tanning
sessions your customers have a rest day following their
first tanning session. If there is no sign of any undesirable
skin reaction they can then continue with the series of
sessions.
4 Make sure that your customers do not tan more than once a
day. This applies to tanning on the sunappliance and tanning
in natural sunlight. The skin does not make a distinction
between the two either. Taking exposure to natural sunlight
into account.
5 Some medicines and beauty products contain substances
which can cause certain undesirable reactions when com-
bined with exposure to UV radiation. Other substances may
also sometimes have a similar effect. Below you will find
a list of substances which can react when combined with
exposure to UV radiation:
• Sulphonamide-invariousmedicinesincludingantibiotics
• Tetracyclines-inantibiotics,antiacnepreparations
• Nalidexineacid-inmedicationforinfectionoftheurinary
passages
• Chlorothiazide-indiuretics
• Sulphonylurea-indiabeticmedication
• Phenothiazines-anti-stressmedication
• Triacetyldiphenylisatine-inlaxatives
• Psoralenes-intanningaccelerators
• Cyclamates-insweeteners
• Para-aminobenzoicacid(PABA)-insunprotection
creams/oils
• Muskambrette,muskoil-inperfumes
• Bleachingagents-inwashingpowders/liquids
• Eosine-incolourings
• Halogenatedsalicylamide-inantifungalsubstances
6 When combined with exposure to ultraviolet light, cosmetic
products - perfumes and make-up, can cause the skin to
react. So take care to ensure that your customers skin is
clean before tanning. Some products penetrate deep into
the skin. Advise your customers to ensure that their skin
is clean when tanning. Recommend that they clean their
skin thoroughly a few hours before each tanning session, or
better still, recommend that they wear no make-up at all
the day before. Also advise your customers to remove any
jewellery before tanning.
7 Make sure that your customers do not use cream or oil
that contains a sun block or self-tanning lotion when
using the tanning equipment. These products contain
substances which influence tanning times and thus make
the prescribed times unreliable. Also make sure that your
customers do not use tanning pills in combination with a
series of tanning sessions or exposure to natural sunlight.
The combination of tanning pills and UV light can increase
the possibility of skin irritation and sunburn.
8 If the skin is red and taut a short time after the tanning ses-
sion it is likely to be sunburnt. Wait for these symptoms to
disappear before tanning again, revise the tanning plan and
reduce the length of the individual tanning sessions for the
customer in question. If tanning gives rise to undesirable
reactions that you cannot explain, stop the series of tanning
sessions and advise your customer to see their doctor if the
symptoms do not disappear within a short space of time.
9 Make sure that your customers always wear protective
goggles to protect their eyes - even if you may have seen
pictures of people tanning without using these goggles. UV
light which directly enters the eyes can cause eye disorders
(snow blindness, actinic conjunctivitis or cataracts).
10 Reduce the tanning time by 20% during the first 50 hours
that the (new) sunappliance is in use. During these first 50
hours the tubes do not emit the normal 100% energy but
120% energy. After the first 50 hours the tubes will emit the
normal capacity of between 95% to 100%.
Note:
If your customers are using medication, ask them to consult
their doctor before embaking on a series of tanning
sessions.

7
Operation
The machine is set up for standard use with an external timer or a coinbox. If the machine must function
without the external timer or coinbox, i.e. with an internal timer, the required tanning time will have to
be adjusted according to the following procedure.
Hold the buttons for “body cooling lower” and “body cooling higher” down together for 10 seconds.
After 10 seconds, the display will show “00” (tanning time).
By pressing the button “body cooling higher” you can increase the tanning time (maximum 30 minutes).
By pressing the button “body cooling lower” you can decrease the tanning time.
Pressing the “start” button confirms the adjustment.
When confirming, there will be a short electronic bleep tone.
If the use of an external timer is chosen, the indication “-A” will be displayed.
The use of an internal timer will be indicated by the display of “-H”.
Note
a. Should the set up need to be interrupted, this can be done by pressing the “stop” button.
b. If no adjustment is entered within 30 seconds, the operation will return to its original settings.
c. When using an external timer or a coinbox, the tanning time indicator must be set at 0.
Body cooling Body cooling
lower higher
Start
General:
+

8
Operation in combination with an external timer or coinbox:
Start
Stop
The machine starts up automatically if there is no “remote start” function on the external timer or coinbox. If this function is
available, the machine must be started by pressing the “start” button.
Note: If the external timer or coinbox does not have a “remote start” function, but the machine has to be started up using the
“start” button, you dealer will be able to set this up for you.
By pressing the “stop” button once, the machine’s operation will be paused. If the“stop” button is pressed several times, the ma-
chine will remain set at pause. The machine will only stop when the tanning time has expired.
If the machine is set at pause, it can be restarted by pressing the “start” button.
Note: The tanning time ascends numerically.
By pressing the “start” button once, the tanning time can be shortened.
The maximum tanning time will be indicated by the flashing numbers on the display.
The tanning time can be decreased or increased by using the “body cooling lower and higher” buttons.
By pressing the “start” button, the machine starts operating.
If during tanning the “stop” button is pressed once, the machine’s operation will be paused. The lights will go off and the ventilator
will continue for another three minutes. The tanning time continues to run down. The tanning session can be restarted at any time
by pressing the “start” button.
If the “stop” button is pressed a second time, the machine will start a compulsory after-cooling. The tanning session has now
finished.
Start
Operation without the use of an external timer or coinbox:
Start
Start
Stop
Body cooling Body cooling
lower higher

By pressing the “body cooling higher” button, the body cooling can be increased.
By pressing the “body cooling lower” button, the body cooling can be lowered.
Note: The body cooling function cannot be switched off because it is also used to discharge internal heat from the doors.
Error!
Internal timer is defect
Error!
Overheating door(s).
Error!
Communication fault between control and switch parts
Note: If a fault is reported, the electronics will give off bleep tones to alert you.
If one of the abovementioned faults appears on your display, you must not use the machine and remove the plug
from the socket. Contact your dealer for more guidance.
!
Fault reporting:
Other control functions:
Body cooling
higher
Body cooling
lower
9

In order to read out the counter of the tubes, the “stop” button and the “body cooling higher” button must be pressed
simultaneously for three seconds.
Timing indicator x 10 = working hours tubes
Example:
a. 759 hours is indicated as 75
b. 9760 is displayed alternately with 1 second intervals as: 9 - 76 - 9 - 76
By pressing the “body cooling lower” button for 10 seconds, the counter is reset at 0 hours.
The counter for the entire machine gives the total number of hours, including the ventilation time. By pressing the “stop
and body cooling lower” buttons simultaneously for three seconds, the timer can be read off the display.
Timing indicator x 10 = working hours tubes
Example:
c. 759 hours is indicated as 75
d. 9760 is displayed alternately with 1 second intervals as: 9 - 76 - 9 - 76
Note: This timer cannot be reset to “0” .
Reading out the Counters :
+
+
Body cooling
higher
Stop
A
Body cooling
lower
Stop Body cooling
` lower
B
C
D
10

11
Dimensions

12
Removing the acrylic sheets
Warning!
Before obtaining access to terminals, all supply
cicuits must be disconnected.

13
Technical data
V5 42 Intensive
Voltage 230V/1N~/PE/60Hz
Breaker 1 x 50 A
Voltage 230V/3~/PE/60Hz
Breaker 3 x 40 A
Lamps 42 x 180 W
Weight 530lb
Important Note
Operating any 220 Volt combination
at voltage levels below 210 Volts or
above 230 Volts constitutes an auto-
matic NULLIFICATION of the ProSun
factory warranty, because it could
cause damage to the unit's system.

14
Assembly
1
2
3
16 Inch
8 Inch

15
Montage
4

16
Assembly
5
6

17
Montage
7

18
Assembly
8

19
Montage
9
page 67

20
Assembly
10
(*) Remote Start
Remote (*)
Remote (*)
Cable
Studio
