Protekt AZ 640 Series User manual

ESSENTIAL FEATURES OF THE DEVICE
Addition 01/04.2018
AZ640 is an anchor device designed to create a point for the attachment of connecting and absorbing device and full body harness on
construction site, in places where fall risk is likely and it is not possible to install any other anchor point. Anchor device AZ640 is installed in
reinforced concrete in order to create a point for the attachment of personal fall protection equipment and fixed vertical rope access systems.
AZ640 is intended for the protection of a single person only. AZ640 can be used with a retractable type fall arrester compliant with EN 360. The
device has been tested and holds certificate in accordance with EN 795:2012 – Personal fall protection equipment. Anchor devices.
Requirements and testing. Class 1.
500 - 2000 mm
PROTEKT, 93-403 LODZ,
ul. Starorudzka 9, Polska,
TEL: [phone], FAX: [phone]
www.protekt.com.pl
TIME OF USAGE
Maximum time of usage for anchor device AZ 640 is 24 months from the date of installation and 48 months from the date of manufacture.
STORAGE AND TRANSPORT
Store anchor device in dry places, where the equipment cannot be in touch with aggressive materials or substances. Protect the device against
UV rays and high temperatures.
STORE ANCHOR DEVICE IN ORIGINAL PACKAGING.
CLEANING
Anchor device is cleaned by removing the remaining concrete or cement stuck to a visible part manually. Moreover any elements (stones,
sand) which may get onto webbing in a section with a steel D-ring for the attachment of personal fall protection equipment, are removed
manually or with compressed air.
NOTE
After a fall from a height or a damage, the anchor device must be removed or taken out of operation immediately. Webbing sling AZ 640 is
designed for one person only. Before use check condition of the device. DEVICES WITH MISSING OR ILLEGIBLE MARKING MUST BE
TAKEN OUT OF OPERATION AND REMOVED IMMEDIATELY.

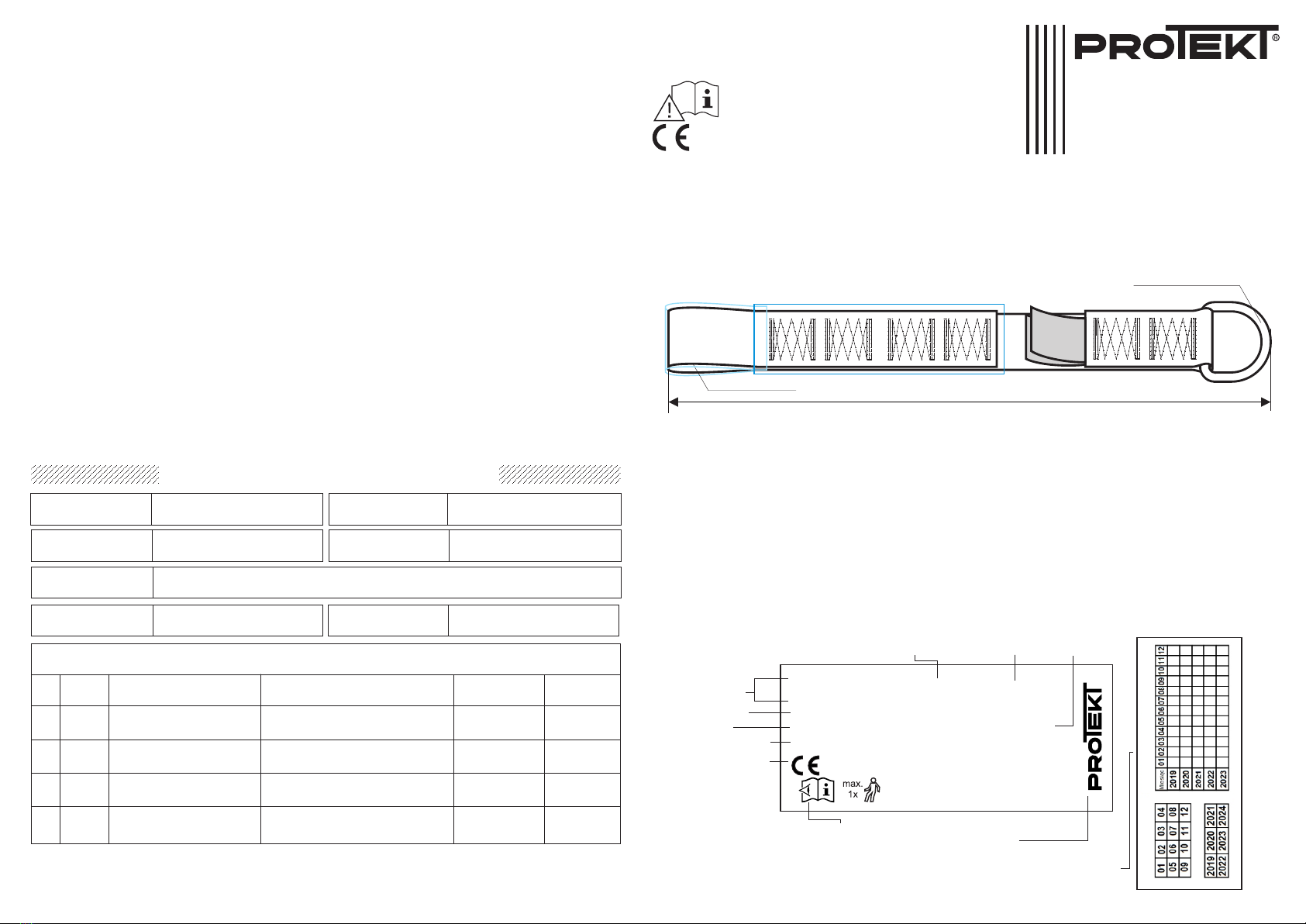

DEVICE MARKING
Device name
Reference number
Device type
European standard and year
CE mark and number of the
notified body controlling
manufacturing of the
equipment
Date and year of manufacture
Note: Read
Instruction Manual
Device's
manufacturer or
distributor mark Date of installation
Date of next
inspection
Length
Serial number
AZ 640
Instruction Manual
Ref.: AZ 640 xx
Carefully read the manual
before using the equipment.
Instruction Manual
of 10.04.2018
Anchor device
(xx - length code
from 0.5 m to 2.0 m)
EN 795:2012
1437
1437
European Certificate issued by
CENTRALNY INSTYTUT OCHRONY PRACY
ul. Czerniakowska 16, 00-701 Warszawa, Poland
nr 1437
Attachment loop
Attachment D-ring
OPERATION SHEET
REFERENCE
NUMBER
REASONS FOR INSPECTION
OR REPAIR
DEVICE NAME
MODEL
1
2
3
4
The company where equipment is stored is responsible for making entries in the Operation Sheet. The Operation Sheet should be completed before the
equipment is first put into operation. All information concerning protective equipment (name, serial number, date of purchase and date of putting into
operation, user name, information concerning repairs and inspections and withdrawal from use) must be included in the Operation Sheet of a particular
device. The sheet is completed by the person responsible for safety equipment in a given place of work. Equipment without a properly completed Operation
Sheet cannot be used.
SERIAL
NUMBER
DATE OF
MANUFACTURE
USER
NAME
DATE OF
PURCHASE
DATE OF PUTTING
INTO OPERATION
TECHNICAL INSPECTIONS
DATE OF
INSPECTION
NOTED DEFECTS, PERFORMED
REPAIRS, OTHER NOTES
DATE OF
SUBSEQUENT
INSPECTION
SIGNATURE
OF THE PERSON
RESPONSIBLE
!
possibility of falling and minimise the range of a free fall. The equipment anchoring point should be located above the users work
position. The shape and structure of the equipment anchoring point must provide a durable connection and prevent any random
disconnection. It is recommended to use certified and marked equipment anchoring points in accordance with EN 795.
!it is required to inspect the free space under the work-place on which individual fall preventive equipment is going to be used in
order to eliminate the possibility of hitting any objects or lower planes while stopping a fall. The amount of free space under the
work-place is specified in the operational instructions of the protective equipment to be used.
!while using the device, pay special attention to hazardous situations which may influence equipment operation and the safety of
users, including in particular:
- kinking and rubbing of lanyards on sharp edges;
- pendulum falls;
- current conductivity;
- any damage such as cuts, wear, corrosion;
- extreme temperature impact;
- negative impact of weather conditions;
- impact of aggressive substances, chemicals, solvents, acids.
!personal protective equipment must be transported in packaging which protects it against damage or water, for example in bags
made of impregnated material or in steel or plastic containers or boxes.
!personal protective equipment must be cleaned and disinfected in order to avoid damaging the material (raw material) it is made
of. Clean textile materials (slings, lanyards) with cleaning agents intended for soft materials. It can be cleaned manually or
washed in machines. It must be carefully rinsed. Plastic elements can only be cleaned with water. Equipment which becomes
wet during cleaning or while in operation must be carefully dried in natural conditions, away from heat sources. Metal parts and
mechanisms (springs, hinges, catches etc.) can be periodically greased in order to improve their operation.
!personal protective equipment should be stored in loose packaging in well-ventilated dry rooms and protected against the impact
of light, UV radiation, dust, sharp objects, extreme temperatures and caustic substances.
anchoring points (equipment) of fall preventive systems should have stable structure and their position should reduce the
AZ640 Date of manufacture:
10.2018
Serial number:
0000001
Length: XX m
The device can be used maximum
for 24 months from the date of
installation. No longer, however than
48 months from the date of production.
ANCHOR DEVICE
Ref. AZ640 XX
Anchor device type A
EN 795:2012 / A
Date of installation Date of next inspection
Year Month
Year

SOLID SLABS and WALLS should be considered beams.
For formwork of CEILINGS, in installation loop of webbing sling insert a steel rod with length of
min. 30cm and diameter of min. 10mm, and place it between truss beam and hollow bricks of
the ceiling (Fig. 6, 7). Attachment D-ring of device AZ 640 should be passed through truss beam
so that the rod in installation loop rests on rods of the beam. The other end with attachment D-
ring should be passed under hollow bricks of the ceiling and left until formwork is removed once
concrete has cured. Only then webbing sling can be used. To remove webbing sling AZ 640 just
use a sharp knife and cut the webbing to the concrete surface.
When planning a point of the device installation, please note that it should be located behind
user operating at the ceiling edge, therefore it is recommended to place the device 1m or 1.5m
from the ceiling edge.
DO NOT USE THE DEVICE UNTIL CONCRETE REACHES A STRENGTH OF 200 kg/cm2!
USER MANUAL
Check whether installation of webbing sling AZ 640 in construction site is consistent with safety and
health protection plan.
Otherwise person responsible for OHS in construction site should be notified on the need to modify
the previously adopted safety and health protection plan.
Before installation check condition of anchor device. In case of any doubt it should be removed
immediately. Webbing should have no losses in its width and thickness. No knots are allowed on
the webbing. Check if the device is provided with registered date of installation and whether
admissible time of usage is not exceeded. All anchor devices with missing label, unregistered date
of installation or exceeded time of usage must be taken out of operation IMMEDIATELY.
Personal fall protection set (connecting and absorbing device) should be connected to a buckle on
webbing sling AZ 640 by means of a connector (Fig. 1, 2, 3).

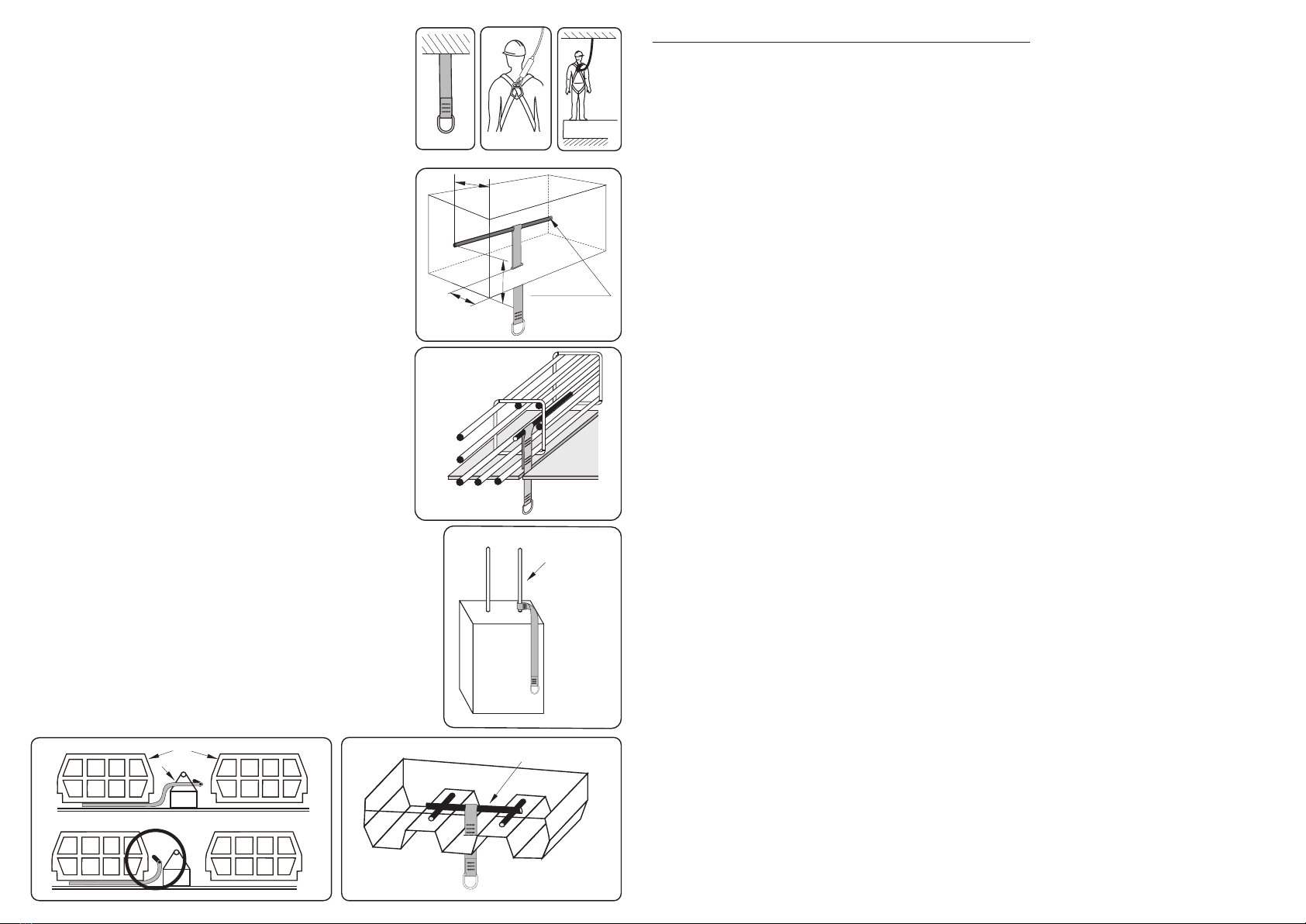

INSTALLATION INSTRUCTIONS
Anchor device AZ 640 should be installed in concrete with the end on installation loop side. The end
of webbing with attachment D-ring remains outside concrete so that on a later stage, selected
personal fall protection equipment is attached to it. Reinforcing bars should be used as an
attachment point for the loop (Fig. 4.1, 4.2).
On BEAM loops of the device are placed inside the reinforcement at such height so that after
formwork is removed, concrete edges match the double reinforcement area of webbing AZ640
(Fig. 4).
Steel rod with a minimum length of 30cm and minimum diameter of 10mm should be attached to the
reinforcement. Place anchor device AZ 640 between two formwork plates (upper or lower,
depending on availability) which should be slightly separated using a crowbar. Once placed, they
should be left so that formwork returns to its original position. Installation is easier when the above
steps are carried out with use of two formwork plates at the same time. During installation pay
particular attention so as not to damage webbing of the device.
On PILLARS loop of the device is attached directly on reinforcing bar of a pillar of the next ceiling.
Webbing should be attached near the pillar so that after covering the higher ceiling with formwork, it
is located between pillar and formwork (Fig. 5).
rys. 5
rys. 3
rys. 6
Minimum bar diameter 10mm, minimum bar length 300mm.
rys. 1
FORBIDDEN!!!
rys. 7
After the device has been used to arrest a fall from a height, remove the anchor device immediately and
withdraw it from use. Anchor device AZ640 is designed for protection of one person only.
All devices with missing marking or unregistered date of installation must be removed from construction
site IMMEDIATELY. Before webbing sling is used check if the device is in good condition, there are no torn
or missing fibres, threads, stitches). Avoid contact with aggressive substances such as acids.
Recommended work temperatures range from -30ºC to +50ºC. Do not attempt to repair anchor device. If it
has been damaged, remove it immediately. Check whether anchor device is fitted only with certified and
compatible elements of personal protective equipment. Before commissioning check whether installation
is correct.
Therefore load the installed anchor point in the place of attachment of personal fall protection equipment
with a force of 5kN for at least 30 seconds.
Strength of the ground should be min. 15kN.
Truss beam
Hollow bricks of ceiling
Place anchor device
AZ 640 directly
on reinforcing bar
100 mm
100 mm
100 mm
rys. 4.1
Reinforcing bar
- minimum diameter 10mm
- minimum length x 300mm.
rys. 4.2
rys. 2
FUNDAMENTAL RULES FOR USING PERSONAL PROTECTIVE EQUIPMENT
!
!personal protective equipment cannot be used by people whose health condition may influence their safety during everyday use
or emergency procedures.
!there must be a rescue operation plan which can be used whenever needed.
!it is forbidden to perform any modifications of the equipment without the written consent of the manufacturer.
!any repairs of the equipment may be performed only by its manufacturer or an authorised representative of the manufacturer.
!personal protective equipment must be used in conformity with its operational purpose.
!personal protective equipment is considered personal equipment and should be used by a single person only.
!make sure that all elements of the equipment that constitute the fall prevention system are properly mated prior to use. Perform
periodical inspections of connections and mating of equipment in order to avoid unintentional loosening or disconnecting.
!it is forbidden to use protective equipment if one of its elements is hampered by another during operation.
!all parts of the fall prevention equipment must be in accordance with appropriate regulations and equipment operational
instructions and binding standards:
- EN 361 for full body harnesses
- EN 353-1, EN 353-2, EN 354, EN 355, EN 360, EN 362 for fall prevention systems
- EN 795 for equipment anchor points (permanent anchor points)
- EN 358 for work positioning systems
!carry out a careful inspection of personal protective equipment prior to each separate use in order to check its condition and
operation. Inspections must be performed by the user.
!such inspections should check all equipment elements with particular attention paid to: any defects, excessive wear, corrosion,
points of tearing, cuts and improper operation. Particular attention must also be paid to each individual device:
- full body harnesses and work positioning belts: buckles, adjustment elements, fastening points (snap hooks), slings, seams,
loops;
- energy absorbers: hitch loops, slings, seams, body and connectors;
- lanyards and textile guides: lanyards, thimbles, connectors, adjustment elements, plaits;
- lanyards and steel guides: lanyards, wires, clamps, loops, thimbles, connectors, adjustment elements;
- retractable type fall arresters: lanyards or slings, correct operation of winding mechanism and locking mechanism, body,
shock-absorber, connectors;
- guided type fall arresters: device body and its correct movement along the guide, operation of locking mechanism, rollers,
bolts and rivets, connectors, safety shock-absorber;
- connectors (snap hooks): load-bearing body, riveting, main catch, operation of locking mechanism.
!personal protective equipment must be withdrawn from use and undergo a complete periodical inspection at least once a year
(after 12 months of use). Periodical inspection must be carried out by a qualified person responsible for periodical inspections of
safety equipment in a given place of work. Periodical inspections must be also carried out by the equipment manufacturer or an
authorised representative of the manufacturer. Such an inspection should check all equipment elements with particular attention
paid to: any defects, excessive wear, corrosion, points of tearing, cuts and improper operation (see the previous point).
!If protective equipment has a complex structure, for example retractable type fall arresters, periodical inspections should be
carried out only by the equipment manufacturer or its authorised representative. The date of the subsequent inspection shall be
specified after the periodical inspection has been completed.
!regular periodical inspections are essential in terms of equipment condition and safety of users only fully operational equipment
is able to provide safety.
!make sure that all labels on protective equipment (elements of this equipment) are legible while performing a periodical
inspection.
!all information concerning protective equipment (name, serial number, date of purchase and date of first operation, user name,
information concerning repairs and inspections and withdrawal from use) must be included in the Operation Sheet for a particular
device. The factory where equipment is stored is responsible for making entries in the Operation Sheet. The Sheet should be
completed by the person responsible for safety equipment in a given place of work. Equipment without a properly completed
Operation Sheet cannot be used.
!if equipment is exported to other countries, the provider must equip it with operational and maintenance instructions as well as
information concerning periodical inspections and repairs in the language of the country where the equipment is going to be used.
!personal protective equipment must be immediately withdrawn from use if there are any doubts concerning its condition or
operational correctness. Equipment can be reused after it has undergone a complete inspection carried out by the manufacturer
and written authorisation for reuse has been issued.
!if personal protective equipment was used to prevent a fall, it must be withdrawn from use and physically destroyed.
!a full body harness in accordance with EN 361 is the only accepted device for keeping a body in the personal protective
equipment against falls from a height.
!fall arresting systems can be connected only to full body harness fastening points (buckles, loops) marked with the capital letter
“A”.
personal protective equipment should be used only by people trained in operating it.
