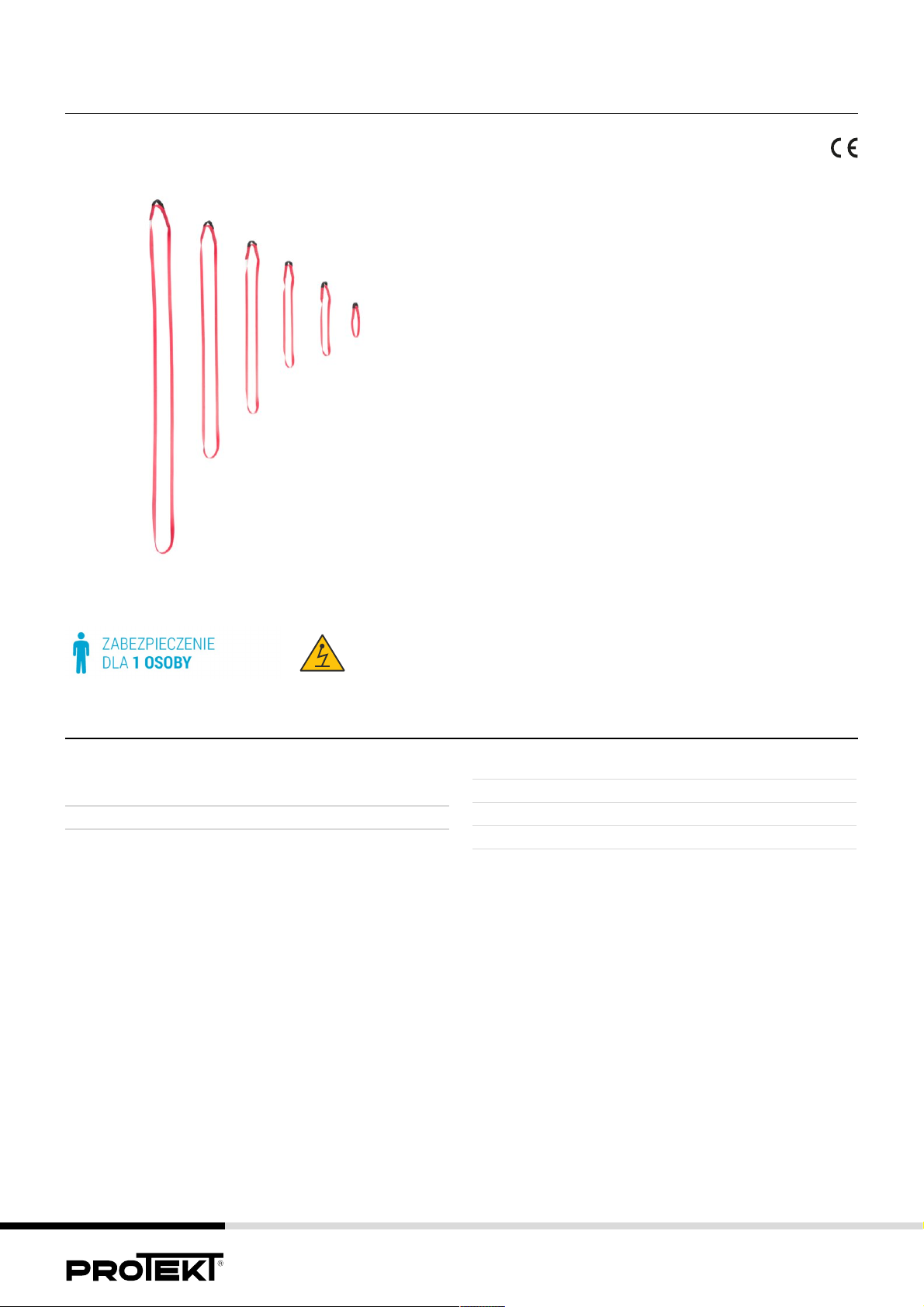

Protekt AZ 910 User manual

Webbing sling AZ 910 is:
1. a component of fall protection equipment – when
combined with an energy absorber (e.g. ABM) forms
connecting and absorbing device complying with EN 354,
2. a component of fall protection equipment, intended for
connection of connecting and absorbing device to a
structural anchor point.
MATERIAL
Tape polyester
Threads polyester
Max. number of users 1
Static strength 22 kN
Tape width 21 mm
Grubość taśmy 3 mm
AZ 910 Webbing sling
EN 354, EN 566, EN 795 Type B
SPECIAL FEATURES
PARAMETERS
PROTEKT Starorudzka 9, 93-403 Lodz
SALES DEPARTMENT Skromna 6, 93-405 Lodz, POLAND,
WWW.PROTEKT.PL

C
D
E
F
G
ed-2/02.02.2021
damages or consequences of an accident. If the user gives no consent to assume liability for any such risks, he/she
should not use this device. Webbing sling is designed for use only in combination with a fall arrest system, rather than
LIFTING EQUIPMENT. The device can be used as:
- anchor device - a component of fall protection equipment, designed to connect connecting and absorbing device.
or
- lanyard - a component of fall protection equipment, connected to an energy absorber. A fall protection equipment
formed by an energy absorber (compliant with EN 355), connected to webbing sling. The device (compliant with EN
354), after connecting to full body harness (compliant with EN 361) and structural anchor point (compliant with EN 795),
can be used as a basic fall arrest equipment. Total length of such component together with lanyard and energy absorber,
attachments and connectors cannot exceed 2m.
B. DESCRIPTION OF DEVICE
Webbing sling is formed by a section of 21 mm wide polyester textile webbing. Sewn ends form a closed loop. Length of
webbing sling is from 20 cm to 200cm.
1. seam
2. identity label of device
3. textile webbing
C. MARKING
1. Name (type) of device
2. Trade mark
3. Reference number*
4. Length of device
5. European standards (number/year/class)
6. Manufacturing serial number
7. Note: Read the manual
8. Date of next inspection
9. Minimum strength tested to EN 566
10. CE mark and number of the notified body controlling production of the equipment
11. Month/year of manufacture
12. Number of simultaneous users of the device
13. Marking of manufacturer or distributor of the device
*) xxx - marking of the length of device
e.g.: xxx = 050 - length of 50 cm
xxx = 200 - length of 200 cm
D. INSTALLING WEBBING SLING AS ATTACHMENT ELEMENT (EN 795)
1. Put the sling around a structural element (structural anchor point), e.g. steel beam - Fig. A
2. Connect webbing sling ends using an oval connector - Fig. B1 or
3. Guide one loop of the sling through the other - Fig. B2
4. Attach an energy absorbing and connecting component (e.g. energy absorber with lanyard, work rope of guided type
fall arresters, retractable type fall arresters, etc.) - Fig. C.
NOTE:
If the webbing sling is part of an energy absorbing and connecting component, the user should be equipped with energy
absorber which limits maximum values of dynamic forces applied on the user when arresting a fall to maximum 6kN.
Attention: Use only approved snap-hooks (EN 362).
WARNING! ALWAYS WORK WITH TIGHTENED LOCKING GEAR OF THE SNAP-HOOK.
ALWAYS USE AN ANCHOR POINT LOCATED ABOVE WORKPLACE
DO NOT USE ANCHOR POINTS OF SMALL THICKNESS OR WITH SHARP EDGES.
Structural anchor point to which webbing sling is connected, should be located above workplace, and its shape and
construction should prevent any accidental disconnection of webbing sling.
E. INSTALLING WEBBING SLING AS MOUNTAINEERING EQUIPMENT (EN 566)
Before using the device:
1. Read and understand this instruction manual.
2. Ensure proper training in correct usage.
3. Follow specific recommendations on capabilities and limitations in usage of the equipment.
4. Be aware of risks and assume the liability.
5. Check the webbing sling before any use for damages of the webbing and seams.
6. Remain under the attachment point.
Installing of webbing sling as mountaineering equipment must comply with instruction manuals of mountaineering
equipment and standards in force:
- EN 12275 - Connectors
- EN 12277 - Harnesses
- EN 567 - Rope clamps
- EN 958 - Energy absorbing systems for use in klettersteig (via ferrata) climbing.
WARNING! AVOID FALLS WITH ATTACHMENT CONNECTED.
F. TRIANGLE OF FORCES
Increasing an angle in triangle of forces causes increase of pressure on anchor points.
To prevent this use webbing sling of adequate length.
G. INSTALLING WEBBING SLING AS LANYARD (EN 354)
1. Connect one of snap-hooks on webbing sling to a selected structural anchor point with a strength of min. 12 kN
- directly - Fig. 1
- using connecting lanyard - Fig. 2 or pipe anchor - Fig. 3
2. Connect the other end of webbing sling to energy absorber using the other snap-hook - Fig. 4A
or by guiding one end of the sling through the other - Fig. 4B
3. Connect such energy absorbing and connecting component directly to front or dorsal attachment D-ring of full body
harness - Fig. 5
H. NOTE:
- When determining free space below work station necessary to arrest a fall, consider webbing sling as an additional
element that will extend the fall arrest distance.
- Total length of an energy absorbing and connecting component formed by webbing sling, energy absorber compliant
with EN 355 and snap-hooks and connectors, cannot exceed 2m.
- The user should reduce slack on the sling in the event of a potential risk of fall.
- The user must eliminate any and all risks in a situation (e.g. winding of webbing sling around the neck) when during the
use a fall is arrested, and the sling can be locked.
- The user should avoid leaving webbing sling between structural elements or in a situation when there is a risk of falling
beyond a sharp edge (e.g. roof edge).
- Webbing sling can be used within -30°C and 50°C.
- Do not use webbing sling on its own (without energy absorber) as a fall arrest device.
- Two separate webbing slings (both equipped with energy absorbers) cannot be used nearby (e.g. in parallel).
- Free end of twin webbing sling assembly connected to energy absorber cannot be attached to full body harness.
- Webbing sling can be used without energy absorber only as a rope which limits (prevents) possibility of the user to get
in a location where there is a risk of fall.
- Avoid twisting and deflection of legs
- Check legibility of markings on the device.
I. PERIODIC INSPECTIONS
At least once a year, after every 12 months of use, it is necessary to carry out periodic detailed inspection of the device.
Periodic inspection can be carried out by a properly qualified and skilled person. Conditions of the device's use may
influence the frequency of periodic inspections which may be carried out more than once a year. After 5 years of use, it
is recommended that periodic inspections are carried out by the manufacturer of the equipment or an entity authorised
by the manufacturer to carry out such inspections. All periodic inspections must be recorded in the identity card for the
device.
J. MAXIMUM TIME OF USAGE
WEBBING SLING
Date of manufacture: MM.YYYY
AZ 900
Length: XXX cm
Serial number: 0000001
EN 354:2010
EN 795:2012 Typ B
EN 566:2017
22 kN
Ref: AZ 900 xxx
Next inspection date
1
2
3
4
5
678
910 11 12 13
Max. 1 x
AB1 B2
18 kN
22 kN
C
LINA ROBOCZA USP BLOCMAX-RORIP
OK
16 kN 22 kN 10 kN
120°
100%
100%
90°
70% 70%
60°
60%
OK
60%
50%
OK
50%
12 kN 12 kN
12 kN
1 2 3 4B4A 5
EN - NOTE: Before use of this device please read and understand this instruction manual.
A. DESCRIPTION
Webbing sling is a component of fall arrest equipment and complies with EN 354:2010, EN 795:2012/B, and EN
566:2017 – Mountaineering equipment. Webbing sling is designed for use by one person only.
WARNING: Any operations carried out at a height, such as climbing, working or rescue actions are considered
dangerous and which can result in serious injuries, and even death. Person using this device is liable for any possible
B
A
EN WEBBING SLING
EN 566:2017
EN 354:2010
123
Ref: AZ 910 xxx
AZ 910
EN 795:2012/B
22 kN

The device can be used for 10 years from the manufacturing date.
NOTE: Maximum time of usage depends on intensity and environment of use. If the device is used in heavy conditions,
being exposed to frequent contact with water, sharp edges, extreme of temperatures or exposed to corrosive
substances, it may be necessary to withdraw the device after only one use.
K. WITHDRAWAL FROM USE
The device must be withdrawn from use immediately and destroyed if it has been used to arrest a fall, or failed a
periodic inspection or there are any doubts concerning its function.
L. ESSENTIAL PRINCIPLES FOR USE OF PERSONAL FALL PROTECTION EQUIPMENT
personal fall protection equipment should be used only by personnel trained in its use.
personal fall protection equipment must not be used by a person with medical condition that could affect safety of the
equipment user in normal and emergency use.
develop a rescue plan to be implemented during operation whenever necessary.
being suspended in personal fall protection equipment (e.g. after arresting a fall) please note symptoms of suspension
trauma.
to avoid negative effects of suspension make sure a corresponding rescue action plan is prepared. It is recommended to
use support tapes.
it is forbidden to make any alterations or additions to the equipment without prior written consent given by the
manufacturer.
any repair shall only be carried out by manufacturer of the equipment or an authorised representative.
personal fall protection equipment shall not be used for any purpose other than intended.
personal fall protection equipment provides individual protection and shall be used by one person only.
before each use make sure that all parts of fall protection system cooperate correctly. Periodically examine connections
and fitting of components of the equipment to prevent any accidental loosening or disconnection.
it is forbidden to use a combination of the equipment where function of any one component is affected by, or interferes
with the function of any other.
before each use of personal fall protection equipment carry out a detailed inspection to ensure that the device is
operable and operates correctly.
in particular, before use inspect all accessible elements of the equipment for any damages, excessive wear, corrosion,
abrasion, cutting or improper function. For individual devices pay particular attention to:
- in full body harnesses, sit harnesses and work positioning devices: buckles, regulating elements, attachment
points (buckles), webbing, seams, belt loops;
- in energy absorbers: attachment loops, webbing, seams, housing, connectors;
- in lanyards and textile guides: rope, loops, thimbles, connectors, regulating parts, splices;
- in lanyards and steel guides: rope, wires, clamps, loops, thimbles, connectors, regulating parts;
- in retractable type fall arresters: lanyard or webbing, retractor and locking mechanism for proper operation,
housing, energy absorber, connectors;
- in guided type fall arresters: body, proper guiding, locking mechanism for proper operation, rollers, bolts and
rivets, connectors, energy absorber;
- in metal parts (connectors, hooks, snap hooks): load-bearing body, rivets, main pawl, function of locking gear.
at least once a year, after each 12 months of use, personal fall protection equipment must be withdrawn from use to
carry out periodic detailed inspection. Periodic inspection can be carried out by a properly qualified and skilled person.
Also periodic inspection can be carried by manufacturer of the equipment or his authorized representative.
in some cases, if fall protection equipment has a complex design (e.g. fall arresters), periodic inspections can be carried
out by manufacturer of the equipment, or his authorized representative only. After the periodic inspection, date of the
next inspection should be marked.
regular periodic inspections are essential in respect of the equipment condition and safety of users which is dependent
on functionality and durability of the equipment.
during periodic inspection it is necessary to check the legibility of all markings on the equipment (identity label of the
device). Do not use the equipment if marking is illegible.
It is essential for the user's safety that the product is re-sold outside the original country of destination the reseller must
provide instructions for use, for maintenance, for periodic inspection and for repair in language of the country where the
product is to be used.
Personal fall protection equipment must be withdrawn from use and discarded immediately (or other procedures based
on instruction manual should be applied) if it has been used to arrest a fall.
full body harness compliant with EN 361 is the only device supporting user's body in fall arrest systems.
fall arrest system can be connected to attachment points (buckles, loops) on full body harness marked with capital letter
“A”
anchor point (device) of the fall protection equipment should have a stable structure and position so as to prevent a
possibility of the load fall and minimize a free fall distance. Anchor point of the equipment should be located above the
user's work station. The shape and construction of the anchor point shall not allow for a self-acting disconnection of the
equipment. Minimum strength of anchor point of the equipment should be 12kN. It is recommended to use certified and
marked anchor points of the equipment compliant with EN 795.
it is obligatory to verify the free space required under the user at workplace before each occasion of using the fall
protection system, so that, in case of a fall, there is no collision with the ground or other obstacle in the fall path. The
required free space should be determined on basis of the data given in the instruction manual of the equipment to be
used.
When using the equipment, inspect it on a regular basis, paying special attention to risks and damages affecting
operation of the equipment and the user's safety, and in particular to kinks and rope movement on sharp edges,
oscillatory falls, electrical conductivity, any damages such as cuts, abrasions, corrosion, influence of extreme
temperatures, negative influence of environmental factors, chemical substances.
personal fall protection equipment must be transported in a package (e.g.: bag made of moisture-proof textile or foil bag
or cases made of steel or plastic) to protect it against damage or moisture.
personal fall protection equipment should be cleaned without causing adverse effect on the materials used in the
production of the equipment. For textile materials (webbings, ropes) use agents suitable for delicate fabrics. Can be
washed in hands or in a washing machine. Rinse thoroughly. Clean energy absorbers using damp cloth only. Do not
immerse energy absorber in water. Wash textile products with water only. When the equipment becomes wet, either
from being in use or after cleaning, allow it to dry naturally, and keep it away from sources of heat. In metallic products
lubricate slightly some mechanical parts (springs, hinges, pawls, etc.) regularly to ensure their better operation.
personal fall protection equipment should be stored loosely packed in well-ventilated rooms, protected from direct light,
UV degradation, dust, sharp edges, extreme temperatures and aggressive chemical substances.
all parts of personal fall protection equipment must conform to instruction manuals for the equipment and standards in
force:
- EN 353-1, EN 353-2, EN 354, EN 355, EN 360 - for fall arrest systems;
- EN 362 - for connectors
- EN341, EN1496, EN1497, EN1498 - for rescue equipment
- EN 361 - for full body harnesses;
- EN 813 - for sit harnesses;
- EN 358 - for work positioning systems;
- EN 795 - for anchor devices.
Manufacturer:
PROTEKT - Starorudzka 9 - 93-403 Łódź - Poland
tel. [phone] - fax. [phone] - www.protekt.com.pl
Notified body responsible for EU type test certification in accordance with Regulation 2016/425:
PRS - No.1463, Polski Rejestr Statków S.A. al. gen. Józefa Hallera 126 80-416 Gdańsk, Poland,
Notified body responsible for supervision of manufacturing of the equipment:
APAVE SUD EUROPE SAS (no 0082) - CS 60193 - F13322 MARSEILLE CEDEX
IDENTITY CARD
SERIAL/BATCH NUMBER
It is the responsibility of the user organisation to provide the identity card and to fill in the
details required. The identity card should be filled in before the first use by a competent
person, responsible inthe user organization for protective equipment. Any information
about the equipment like periodic inspections, repairs, reasons of equipment's withdrawal
from use shall be noted into the identity card by a competent person in the user
organization. The identity card should be stored during a whole period of equipment
utilization. Do not use the equipment without the identity card.
MODEL AND TYPE OF EQUIPMENT
PERIODIC INSPECTION AND REPAIR HISTORY CARD
REFERENCE NUMBER
DATE OF MANUFACTURE
DATE OF FIRST USE
DATE OF PURCHASE
NEXT
INSPECTION
DATE
DATE OF
INSPECTION
REASON FOR
INSPECTION
OR REPAIR
DEFECTS,
CONDITION NOTED
REPAIRS CARRIED OUT
NAME AND SIGNATURE
OF COMPETENT
PERSON
USER NAME

EU DECLARATION OF CONFORMITY
PPE: Anchor device
Model: AZ 910
This declaration concerns the PPE from production batch with serial numbers
Manufacturer: PROTEKT, Starorudzka 9, 93-403 Lodz, Poland
This declaration of conformity is issued under the sole responsibility of the manufacturer:
PROTEKT, Starorudzka 9, 93-403 Lodz, Poland
Object of the declaration: Anchorage device type B in polyester webbing width 21 mm. On
one end a sewn buckle protected by a tubular sheath. Available length from 20 cm to 200
cm. Vertical use and only by one person.
The object of the declaration described in point 4 is in conformity with REGULATION (EU)
2016/425.
The PPE conforms to the requirements of EN 795:2012, EN 354:2010, EN 566:2006
The notified body APAVE SUDEUROPE SAS (n°0082) - CS60193 – 13322 MARSEILLE
CEDEX 16 – France performed the EU type-examination (Module B) and issued
the EC type-examination certificate: 0082/293/160/08/16/0293, 0082/293/160/08/16/0294,
0082/293/160/08/16/0295
The PPE is subject to the conformity assessment procedure module C2 under surveillance
of the notified body APAVE SUDEUROPE SAS (n°0082) - CS60193 – 13322 MARSEILLE
CEDEX 16 – France
Place and date of issue:
PROTEKT – 93-403 Łódz, Starorudzka 9, POLAND
tel.: [phone] • fax: [phone]
e-mail:[email protected] • www.protekt.com.pl
1.
2.
3.
4.
5.
6.
7.
8.
Signed for and on behalf of
PROTEKT company
Grzegorz Laszkiewicz
General Manager
Lodz, 18-05-2019
...............................
