Provision ISR I5PT-390IPX4 User manual

Precautions:
Please read this manual carefully before installing and operating the camera.
Please refer to the technical specs to confirm you are using a suitable power supply. Do
not use power supply with higher/lower rating than specified.
Do not attempt to disassemble the camera; in order to prevent electric shock, do not
remove any screws or covers.
There are no user-serviceable parts inside. Please contact the nearest service center if
there is any technical failure.
Avoid incorrect operation, shock vibration or heavy weight pressing which can damage
the camera.
Do not use corrosive detergent to clean the camera. If necessary, please use a soft dry
cloth to wipe dirt. For tough contamination, use neutral detergent. Any cleanser for high
grade furniture is applicable.
Avoid aiming the camera directly towards extremely bright objects such as the sun, as it
may permanently damage the image sensor.
Please follow the installation instructions.
Do not operate the camera in environments that exceeds the specified temperature,
humidity or power.
Keep away from any heat sources such as radiators, heat registers, stoves, etc.
Do not expose the product to the direct airflow of an air conditioner.
All pictures and examples used in the manual are for reference only.
Please use our production under the following environmental standards:

1
1. Product Overview
1.1 Features
1.1.1 Special Features:
●PT Capabilities: The camera is equipped with Pan/Tilt motors that allow movement range of
250°pan and 80°tilt.
●Motorized Vari-Focal with auto-focus: The camera is equipped with x4/10 optical zoom
lens and features accurate auto focus algorithm.
●Double stream: The camera support dual stream video streaming for different
requirements and applications.
●Supported network protocols: Support TCP/IP, PPPoE, DDNS, FTP, UPNP & Onvif
●ROI function: ROI (Region of interest) means that the marked ROI areas will be less
compressed than other areas especially in low bitrate conditions.
●OSD function: On screen display of selected information.
●All-weather outdoor design:
IP66 Protection standard
TVS 3000V Protection standard
1.1.2 Function Introduction:
●Movement proportional to zoom: higher zoom values will automatically reduce the camera
speed while on manual control.
●Auto movement functions:
256 presets slots.
Auto scan with left/right boundaries
4 patterns

2
1.2 Technical Specs:
Specifications
I5PT-390IPx4/x10
Camera
Video
Effective Pixels
1080P(1920X1080)
Electronic Shutter
1/25s ~ 1/30000s
Day & Night
ICR
Min. Illumination
0lux (IR ON)
Enhancement
Image Settings
AWB, AGC Adjustable
Selectable Exposure Modes
Sharpness, Saturation, Brightness & Contrast Adjustable
WDR Range
Digital WDR
Noise Reduction
2D/3D-DNR
Image Orientation
Mirror/Flip
Motion Detection
Yes
Compression
Video Compression
H.264
Resolution
50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)
Bit rate
32kbps-8Mbps
Encode Mode
VBR/CBR
Image Quality
Six levels under VBR; Free adjustment under CBR
Housing
Iris
Auto Iris
Water-proof
IP66
Bracket
Wall Bracket
Dimensions
153mm×93mm×130mm（L×W×H）
Weight(gross)
920g
PTZ
Optical Zoom
10X
IR Distance
50M
Pan Rotation Range
0〫~250 〫
Tilt Rotation Range
0〫~60 〫
Pan Speed
0.5〫~12 〫/s
Tilt Speed
0.5〫~10 〫/s
Preset Position
255
Connectivity
Network
RJ45
Power
DC Socket
Network
Remote Monitoring
IE Browsing
User Access
Supports simultaneous monitoring for up to 4 users
Network Protocol
TCP/IP, UDP, DHCP, RTSP, PPPoE, DDNS
ONVIF
Yes
Ethernet
100Mbps
Others
Power Supply
DC12V
Work Environment
-30℃~60℃, 10%~90% Humidity

3
1.4 OSD Menu operation
● Call up OSD menu
Call Preset 95 to enter the main OSD menu; call Preset 96 to close the OSD menu or
Select “Exit”
● Confirm
The “Left "and “Right "button is controlled by PTZ can change the required item, and
the changed item is the confirmed one without further confirmation. You can directly click
“Up" and “Down" button to go on your further operation. When setting the left and right
boundary for scan and pattern, you can click the “Focus Far" for confirmation.
● Cancel
The “up” and “down” button controlled by PTZ carry out the request for Further action;
meanwhile, it carries out the “Cancel” order for last operation.
2 Web Browse Operation Guide
2.1 Common Operations
Factory settings：
IP camera is a kind of network equipment, you need configure network IP address, gateway
and other information reasonably, and camera with default IP address in factory, and user could
change it according to their requirement.
Default IP address：192.168.0.99
Subnet mask：255.255.255.0
Gateway：192.168.0.1
WEB port：8000
Network parameters
Take the example of Windows XP operating system. Make sure the IP address in network

4
parameters of the user computer is in accordance with the one of the camera, they are in same
segment, the IP address in the same LAN cannot be the same, otherwise, it will interfere with
each other, causing the equipment couldn't operate normally.
After setting IP address, you could test whether it has been connected between the
computer and the camera by using the PING order from clicking the “start”-”run" button in the
bottom left corner. The format of the command: ping 192.168.0.99
If the screen shows like this:
As the picture shown above, it indicates that it has been successfully connected between
the computer and the camera. However, if the screen shows like this:
It indicates equipment is failure to install, you could check from the following aspects:
●If hardware connection is correct

5
●If computer TCP/IP is in the same segment as the camera
●If network forbid ping order, please connect network administrator

6
2.2 Web Login
2.2.1 Login
Enter IP address (default: 192.168.0.99) to open the interface, dialog box as follows comes out:
◆user name：Admin
◆password：Admin
◆Port：Default 8000

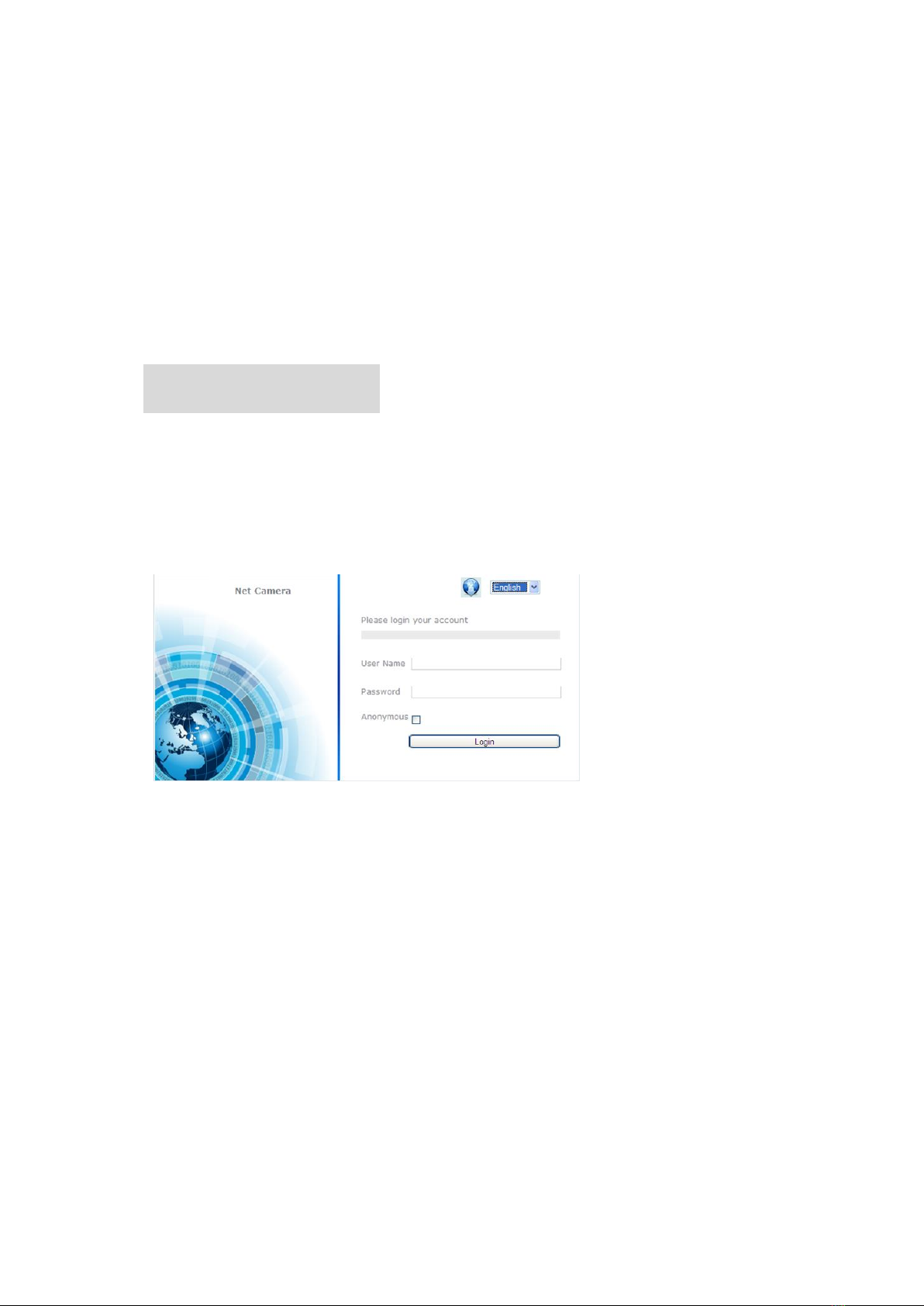

Picture 2.2.1-1 login interface

7
2.2.2 Download playing component
After you logged in, if the WEB browser indicates it is the first time of visiting or plug-in
reminds you of the update of the new version. （See 2.2.2-1). Double-click this plug-in and it
will remind you of the downloading process. Or you can double-click the icon at the top-right
corner of the login interface. Double-click the downloaded WebPluginInstaller.exe and start
install the playing plug-in for WEB browser, then confirm its installation as well as clicking the
“Next "button until finished. You need to return to the WEB browser screen and refresh the
display if you want to run this plug-in after installment, then you can watch the video.
The IP address again to the login screen after you have installed the plug-in and then input user
name, code, and then click the “login "button to enter the “preview "screen. See 2.2.3-1
Picture 2.2.3-1 Preview screen
Picture 2.2.2-1 Plug-in installation

8
Sheet 2.2.3-3 PTZ control screen information
In the preview screen, you can control the preview, video recording, snapshot, intercom and
the on/off of the sound. The size of the image can be adjusted according to the needs of the
user to set its original size; we have “4:3””16:9”or “self-adaptation "mode. Preview code
stream can be set as “main stream” ”sub stream". See 2.2.3-2
Click “camera "can open the control screen of the camera. See 2.2.3-3
Sheet 2.2.3-2 Preview screen information

9
Operation methods for preset position
1. Enter the screen of setting preset position, and it will show the current preset position.
2. Setting preset position: select the number of preset position, and then operate the control
panel of the camera, when the camera scene moves to the place you want to set, then click
the “save "key to save this preset position.
3. Call the preset position: click “call "and the set preset position can be called.
4. Delete preset position: click “delete” can clear the information of preset position.
5. Special function preset position: this kind of preset position can be called, but it cannot be
modified or deleted.
Operation methods for pattern scanning
1. Enter the pattern scan screen, and it shows the current pattern scan path. See 2.2.3-5
2. Start recording the scanning: click start to record the pattern scan, and control the movement
of the camera by the control panel.
3. Stop recording scanning: click save to save the scanning path.
4. Start and stop the pattern scan: click start to start the pattern scan, and click the stop key to
stop the pattern scan.
5. Delete the pattern scan: click delete key to delete the pattern scan.
Picture 2.2.3-5 Pattern settings
Picture 2.2.4 Sequence settings

10

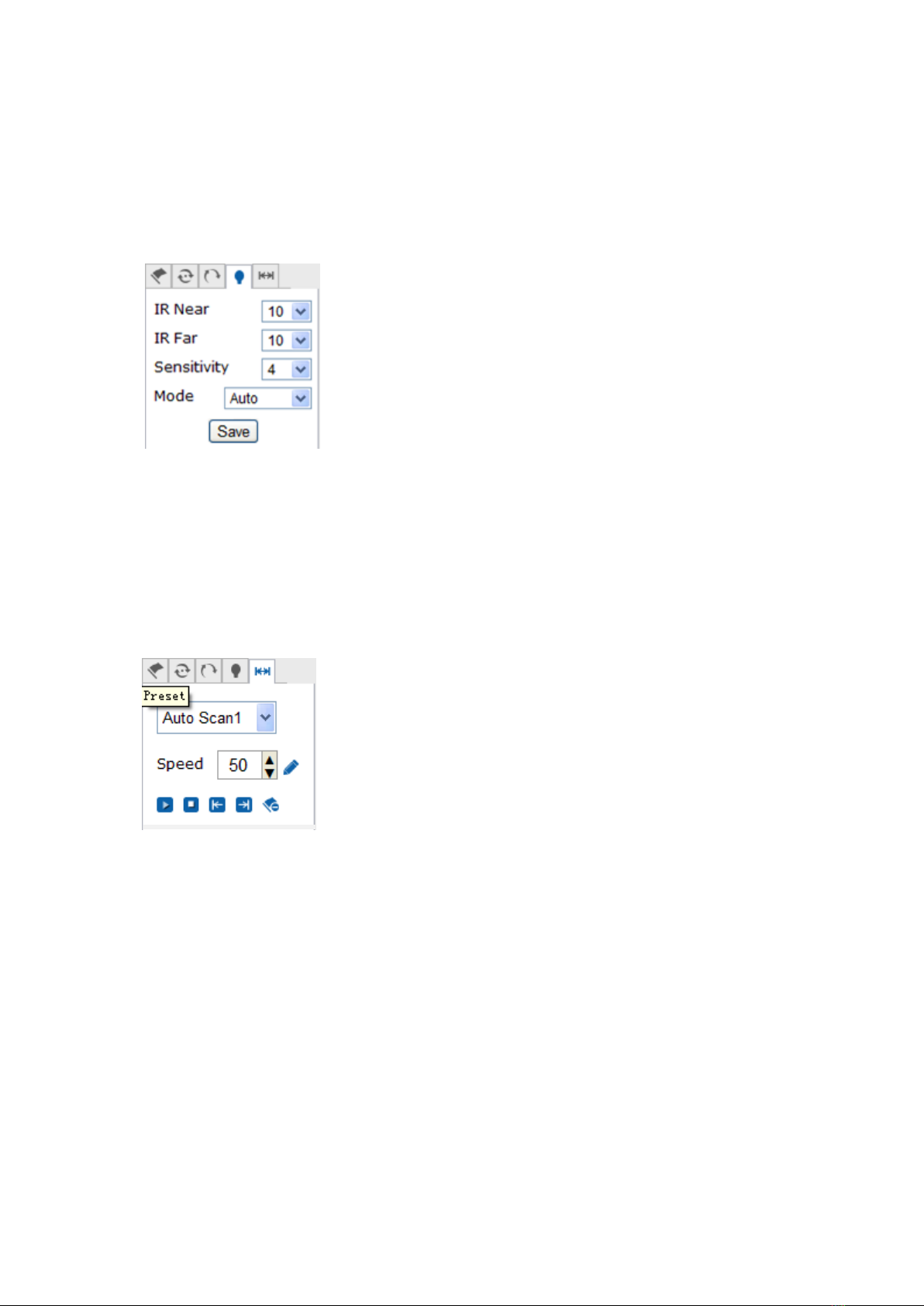

Operation methods for IR LED
Enter the IR LED setting screen, user can set the power of the low beam lights as 1~10
gear, the power of high beam lights, low beam lights compensation, enable illumination, IR
status setting. See 2.2.3-6
Picture 2.2.3-6 IR LED Setting Screen
Auto scanning setting
Enter the auto scan screen, user can set scan speed, left boundary, right boundary, start
scanning, stop scanning. Auto scanning include 8 scanning paths. See2.2.3-7
Picture 2.2.3-7 Auto scans settings
1. Scanning speed: from 1~100, the larger the gap between numbers, the more evident the
effect.
2.The left boundary and right boundary of scanning: first make the camera to stop and then
click the left boundary, and make the camera to stop and then click the right boundary,
finally click the start key and the camera will move in the range of the left and right limit, and
click the stop to stop the movement.
3. Other auto scanning path is as the same as the above setting methods

11
2.2.4 Playback
Click “playback” to enter the video searching playback screen. Playback screen can inquire,
playback and download effective video saved in the SD card of the camera.
Select the inquire type, start and end time, click the “search "key, and the eligible video files will
be displayed in the right box. Select it and double-click it to open, so the video files can be
playback. See 2.2.4-1.
Picture 2.2.4-1 video playback
Note: playback function can be used under the circumstance when the camera is with SD card.
If the camera has SD card, using it for the first time you must click the “storage "key to initialize
the SD card and setting the video-recording plan.
2.2.5 Log
Click “log” key to enter the log inquiring screen. Log screen can search, show and output the log
information stored in SD card of the camera.
Select the type of the log, and set the start and end time of the log-search. And click the search
key, and all the eligible log information will be displayed in the list. See 2.2.5-1. And click the
“save” key, you can save the log information to your local computer.

12
Picture 2.2.5-1 log record screen
2.2.6 Parameter Configuration
Click “configuration”, enter configuration interface. Configuration—local configuration as
picture 2.2.6-1, each item instruction as picture 2.2.6-2
Picture 2.2.6-1

13
2.2.6-2 configuration information

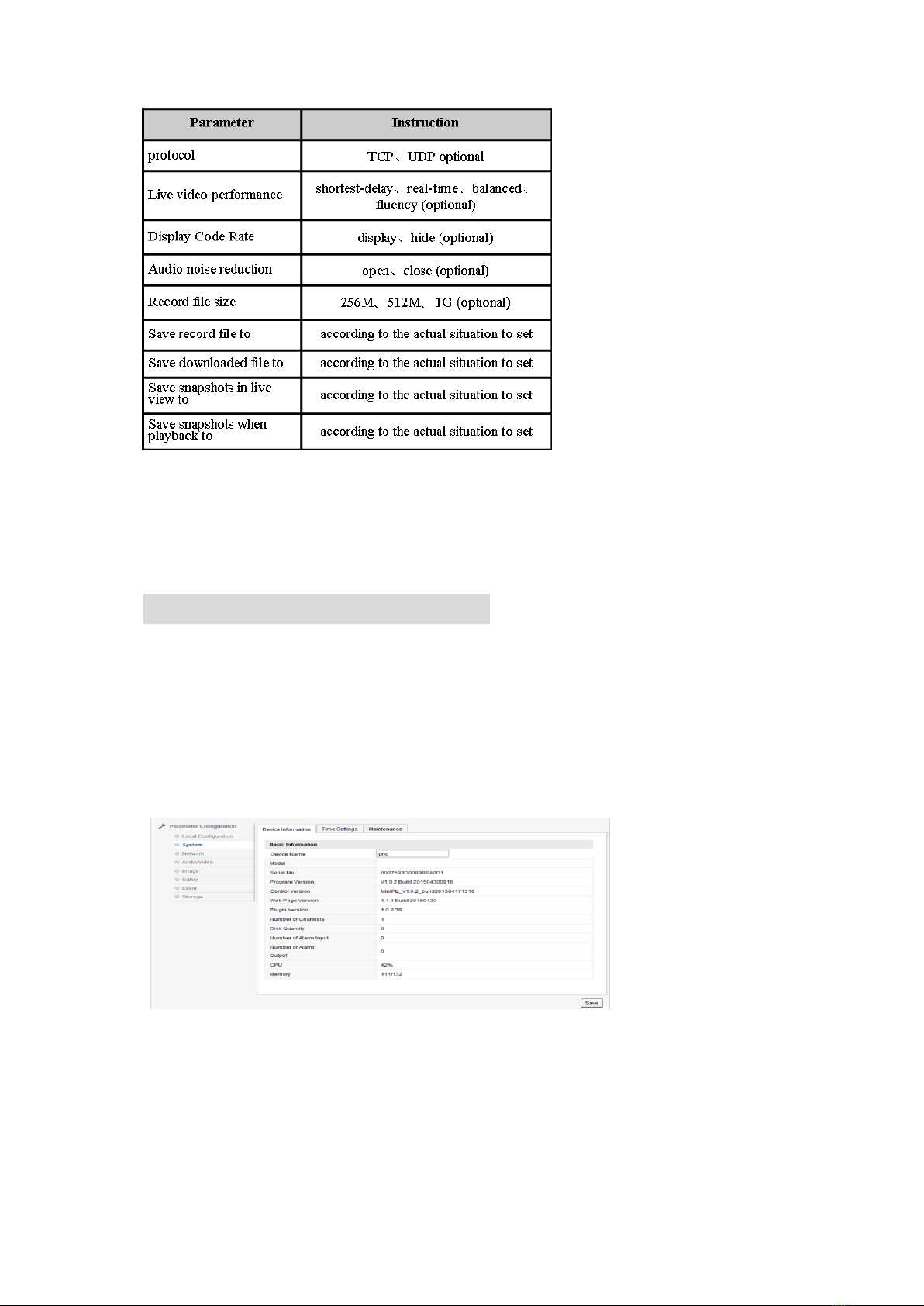

SYSTEM →DEVICE INFORMATION
In Device Information screen, users can set Device Name、Model、Serial No.、Firmware Version、
Encoding Version、Number of Channels、Number of HDDs、Number of Alarm input and output.
See picture 2.2.6-3
Picture 2.2.6-3 device information

14

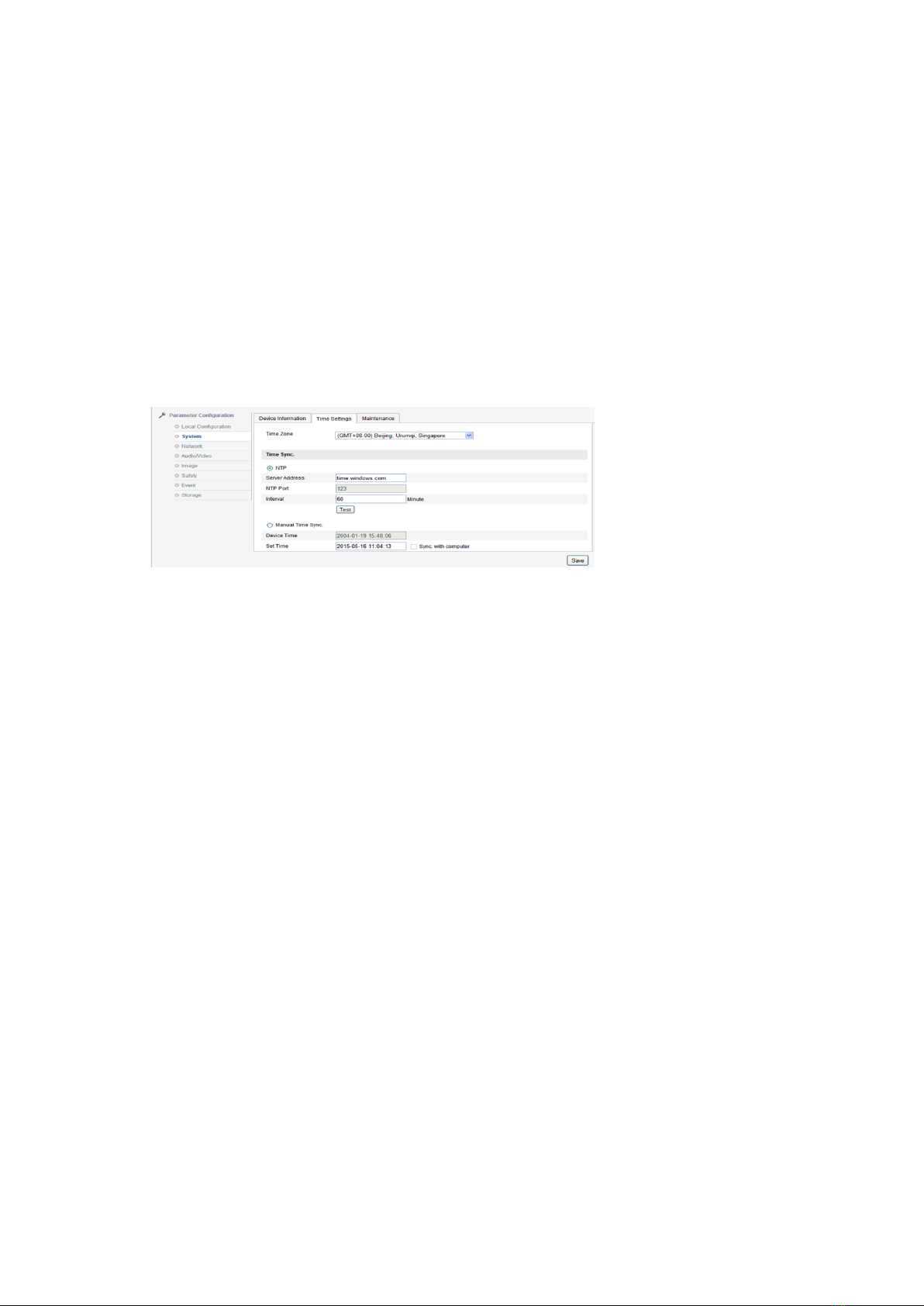

System→Time settings
In the Time Settings screen, time sync is operational. “Time Zone” shows the current IP
camera’s time zone, and that can be set according to the actual situations. For “Time Sync”,
set NTP server address、NTP port、Internal, the device will be time sync every once in a
while according to the setup. For “Manual Time Sync”, set time and check “Sync with
computer time”, and then the time of the camera syncs with the local PC. After changing
some parameters and click “save “to save the corresponding settings. See picture 2.2.4
Note：NTP port number is unchangeable
Picture 2.2.6-4 Time settings
System→Maintenance
Enter system maintenance interface, See picture 2.2.6-5
Click“reboot”reboot the device。Click“restore”restore device parameter , easily restore the
other parameters except IP address, subnet mask, gateway, 8000 port number, DNSS address
and user name management information. Click “Default” will completely restore device
parameter to default setting. Parameter import could lead to configuration file; parameter export
could lead to configuration file. (Click then will show hint of after 59 seconds will automatically
go to login interface)
Click “browse”, choose local upgrade file or upgrade catalogue, then click “upgrade” to
upgrade device version. “Status” shows the current upgrade progress, after the upgrade is
complete, you will be prompted to upgrade successfully
Note: The upgrading process will be 1 to 10 minutes; please don't disconnect the Power to
the device during the process. The device reboots automatically after upgraded.

15
Picture 2.2.6-5 System maintenance interface
Network →TCP/IP
In “TCP/IP” screen, users can set “IPv4 Address”,“IPv4 Subnet Mask”,“IPv4 Default

16
Gateway”,"IPv4 DNS Server""IPv4 mode". Ticking “auto", the device will obtain IP address
automatically. After changing some parameters you can click to save the corresponding settings.
See picture 2.2.6-6
Picture 2.2.6-6 TCP/IP interface
System→port
“Port” screen includes: “HTTP Port” （the default is 80）、“RTSP Port”（the default is 554）、
“HTTPS Port”(the default is 443).Through network access the device, users can set corresponding
port as needed. After modifying the parameters, click to save the settings. See picture 2.2.6-7
Note：Reboot the IP camera after modifying the parameters.
Network →DDNS
Picture 2.2.6-7 port configuration screen

17

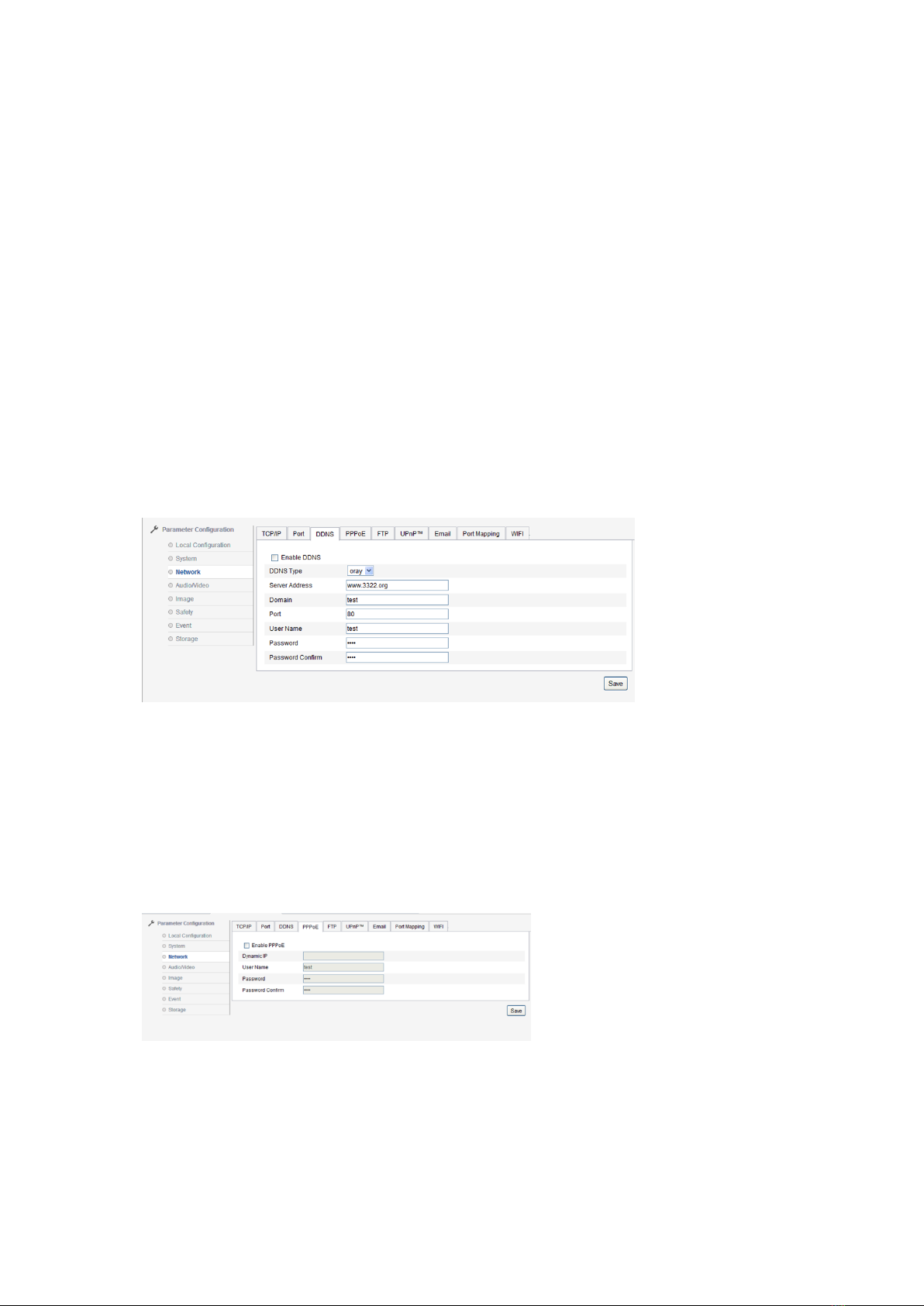

Enter DDNS setting screen，indicates enable DDNS function。DDS Type includes “Oray” or
“Noip”。See picture 2.2.6-8
Oray need to fill Server address, default open, server address is DNS server address software
operator, domain is the one which user apply for in software operator website, port can be set
according to configuration, user name and password is which user registered.
Noip operation is same as Oray.
After modifying related parameter, need to click “save” to save settings
Network →PPPoE
Tick“enable PPPoE” indicates PPPoE function。Input PPPoE user name and PPPoE password，
click“save”restart, camera will gain a public IP address.
After modifying related parameter, need to click “save” to save settings. See picture 2.2.6-9
Picture 2.2.6-9 PPPoE configuration

18
Note：PPPoE configuration enable default gateway is invalid；Parameter in network
settings is modified, need to reboot device.
Network→FTP
By setting FTP parameter, user could upload snapshot file to FTP server. See picture 2.2.6-
10
Server address, port is the corresponding ones in FTP server. Directory structure could be
set save path of file, “save in the root directory”, “save in the parent directory”, “save in the
child directory”, choosing parent directory including “use device name", "use device number”
“use device IP address”, child directory includes “use camera name", "use camera number”
After modifying related parameters, need to click “save" to save settings
Note：PPPoE configuration enable default gateway is invalid；Parameter in network settings
is modified, need to reboot device.
Network→FTP
By setting FTP parameter, user could upload snapshot file to FTP server. See picture 2.2.6-
10
Server address, port is the corresponding ones in FTP server. Directory structure could be
set save path of file, “save in the root directory”, “save in the parent directory”, “save in the
child directory”, choosing parent directory including “use device name", "use device number”
“use device IP address”, child directory includes “use camera name", "use camera number”
After modifying related parameters, need to click “save" to save settings
