PWMD and PWMDF
SERIES
User Manual and
Security Warnings

2
INTELECTUAL PROPERTY REGISTRY Nº 189487
ANY REPRODUCTION IS FORBIDDEN
ALL RIGHTS RESERVED ARE PROPERTY OF THE AUTHOR, ® PROWINCH 2014 - V8.0
PROWINCH LLC COMPANY WITH QUALITY MANAGEMENT SYSTEM
DISCLAIMERS
PROWINCH®
Prowinch® LLC declares that it has made available to the Customer each and every one of the security warnings related to the purchased product and that, as a result, it does not assume any
responsibility for any damages or losses that may be suered by the client or third parties. cause or as a direct or indirect consequence of the breach or omission of any of the instructions
or safety warnings contained in the User Manual and Security Warnings corresponding to the unit purchased.
In this sense, Prowinch® LLC will not be liable for accidents and / or damages to persons and / or property resulting from the negligent use of the product.
In no case does Prowinch® LLC assume any liability arising from the use of these voluntary recommendations, and does not oer any guarantee in relation to them. These recommendations
do not take precedence over the current safety regulations of the plant.
For purposes of enforcing the Warranty of the product purchased, Prowinch® LLC, will only be liable for any damage when it is possible to prove that the user has followed each and every
one of the warnings contained in the User Manual and Safety Warnings.
1. It is the sole responsibility of the Client / User to verify that the acquired equipment, products and accessories comply with the characteristics, capacities, elements, components, acces-
sories and other conditions for the use that the Client / user intends to give it.
2. It is also the sole responsibility of the Client / User to ensure that the equipment and products purchased are operated and maintained in safety conditions and by personnel duly trained
in the use thereof, also implementing all the security measures necessary for prevent accidents or damages to people or property and observing the indications and warnings of the cor-
responding manuals of use.
3. The possible support in the selection of the equipment, the capacities and characteristics required by the clients that Prowinch provides is delivered free of charge and provided based on
the information of use and requirements indicated by the Client itself, information that Prowinch does not It may not correspond to verify. In this way, it is in any case the sole and exclusive
responsibility of the Client -or who will use the equipment and products acquired- to ensure that they comply with the capabilities, characteristics, up-to-date maintenance and everything
necessary for a correct and safe operation in relation to the intended use.
4. For personnel lifting Prowinch recommends the use of winches with 4 brakes. The use of winches of 3 or less brakes or safety features lower than the maximum available, for personnel
lifting, is the sole responsibility of the customer.
5. In order to guarantee the safety of the users of the equipment, especially those of Personnel, it is necessary to carry out the inspections and maintenance of the equipment according to
the recommended frequency in relation to its work cycle, as it is described by the ASME B30 standards. It is mandatory to keep record and evidence the written and photographic reports
of: Maintenance, Start-up, Load Tests, Training, Certications, Inspections and Reports of failures and accidents.
6. The aforementioned reports must be sent by email to [e-mail] within the rst 7 calendar days that said event has occurred.
7. Compliance with the timely implementation of the mandatory activities described in points 6 and 7, plus all the activities mentioned in the corresponding rules applied, are the sole
responsibility of the user. Failure to comply with the foregoing, releases Prowinch from any type of Liability and Warranty to the team, customer, sta and / or user or any other liability that
could be attributed to Prowinch.
The information contained in this manual may contain technical errors or inaccuracies, Prowinch® LLC, is not responsible for errors typing, omission or incorrect information.
This manual is subject to change without prior notice. Download the latest version available at www.prowinch.com
Always check www.prowinch.com for latest information regarding this product.

3
INDEX
DISCLAIMERS 2
MODELS 4
GENERAL SAFETY WARNINGS 5
GENERAL 10
MAIN STRUCTURE & RUNNING PRINCIPLE 11
- Model CD1 & MD1 Electric Hoist 15
- Hoisting Mechanism 15
- Traversing Mechanism 23
- Electric Devices 26
INSTALLATION AND ADJUSTMENT 30
INSPECTION AND TEST 31
PRECAUTION AND TROUBLE-SHOOTING 32
STRUCTURAL FEATURES 34
ANNEX 56
TECHNICAL SPECIFICATIONS 66
WARRANTY 83

4

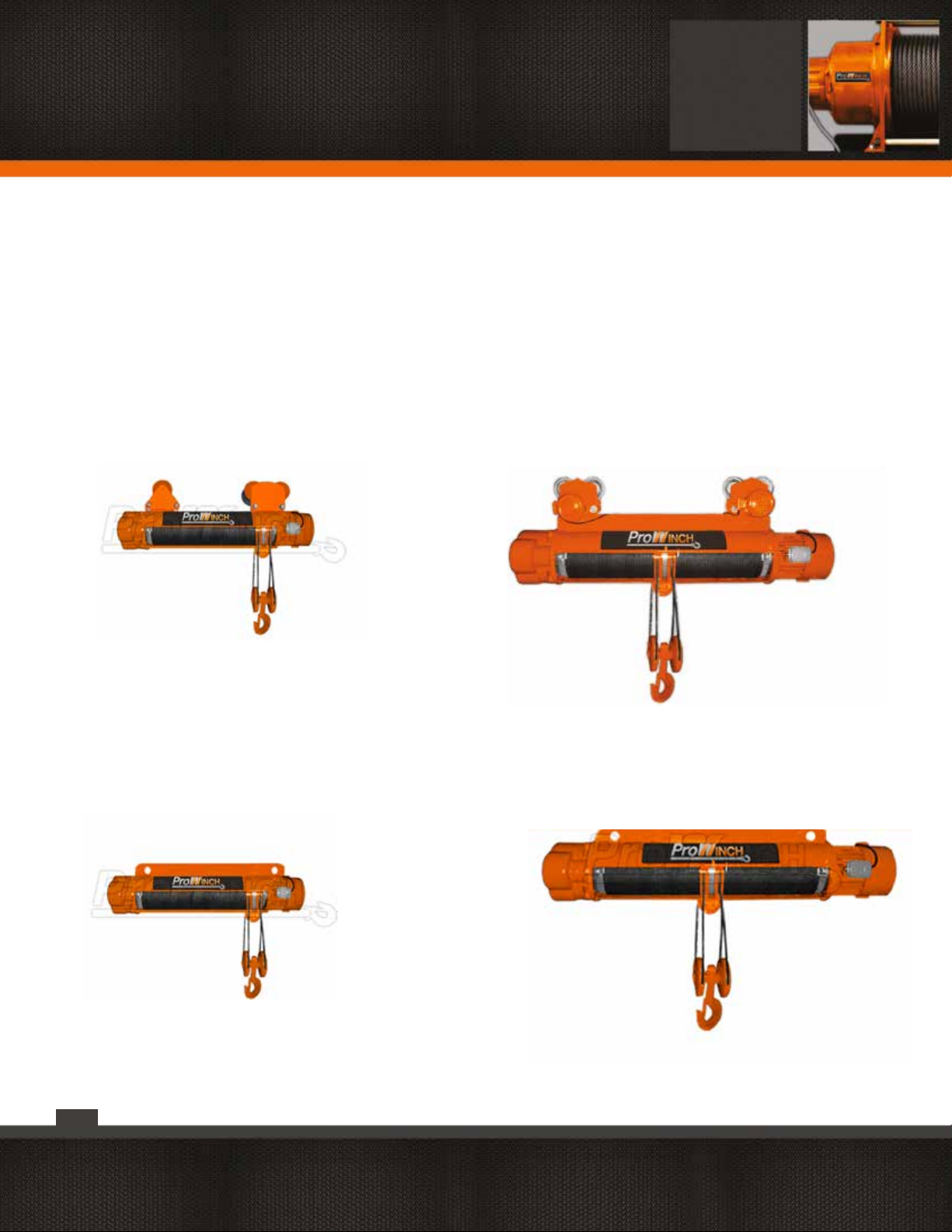

PROWINCH® PWMD AND PWMDF HOIST
MODELS
PWMD2T12M - PWMD3T24M – PWMD5T24M
PWMDF3T24M – PWMDF5T24M
PWMD10T24M – PWMD16T24M – PWMD20T24M
PWMD25T18M - PWMD50T12M - PWMD50T20M
PWMDF10T24M – PWMDF16T24M – PWMDF20T24M
PWMDF25T18M - PWMDF50T12M - PWMDF50T20M

5
“
“
Thank you for buying Prowinch’s professional
lifting equipment. This manual describes the
cautions and warnings regardin the operation
of this equipment. All the information
available in this document is up to date with
the latest informaction avaliable
Always use at least the following security equipmente when operating the Hoist:
GENERAL SAFETY WARNINGS
GENERAL SAFETY INSTRUCTIONS
Prowinch®’s Hoist is designed for delivering a safe and trustable service if it’s operated according to the instructions manual.
Respect all warnings for personnel and third party safety. The inadequate operation of the equipment may cause injuries or harm
the equipment. Read and understand this manual carefully before installation and commissioning of the equipment. Keep this
manual in a visible place for any consultation if needed.
With a compact structure, light weight and ease of use, PWR and PRWC models are preferred hoist for daily use in factories, mines,
sea port and warehouses.
The hoist may oer a great deal of strength. If it’s not used the right way may produce harm to users and may end up in wounds, in-
juries or death. In this manual you can nd symbols for caution, warnings or danger. Always consider the notes beside the symbols
for your own safety. A safety operation of this manual depends on you, the operator.

6
GENERAL SAFETY WARNINGS
DANGER
All operators and other users who are near the steel chain or near it’s load
projection, must wear the safety equipment for this equipment. This includes
gloves, helmet, safety shoes and eyes protection.
WARNING:
This symbol indicates a dangerous situation which if not avoid,may
cause minor or moderate wounds. It is also used for indicating
unsafe practices
DANGER:
This symbol indicates a dangerous situations which if not avoided,
may cause severe injuries or death.
DANGER
Always make sure to disconnect electrical feed when Operation is nished,
Equipment is not attended or not in use.

7
GENERAL SAFETY WARNINGS
1. When Operating:
- Make sure the hoist in optimal conditions to begin operation.
- Do not use any wire rope or hook that was not designed for the
unit you are using.
- To avoid an electrical discharge, make sure that electrical Hoist
is adequately grounded by certied personnel.
- Before loading the Hoist make sure works ne without load, in
all directions and for the complete traveling lengh.
- Do not lift weight with the edge of the hook.
- Do not change direction suddenly.
- Do not perform lifting with more than a Hoist at the same time.
- Never exceed the lifting weight capacity rated on the Hoist.
- Do not lift Humans or animals with this Hoist.
- Do not unwind all the wire rope from the Hoist’s drum, always
keep at least 5 turns of rope in it.
- This equipment is designed for vertical load lifting.
- Do not drag load.
- Do not lift load with any inclination from the vertical lift.
2. Wear appropriate clothing:
- Do not use any jewellery or loose clothes while operating the
Hoist, they might get attached to the Wire rope or hook.
- Wear leather gloves anytime you handle the hoist and the wire
rope.
- Operator should wear at least; gloves, safety shoes with non
slippery sole, Helmet and eye protection.
3. Keep a safe distance:
- Make sure that people are away from the hoist wire rope when
operating the equipment. It’s suggested that the distance betce
between personnel and the Hoist should be at least 1,5 times
the length of the hoist’s Wire Rope. If the rope breaks or gets
loose, may harm people causing injuries or death.
- Do not walk over the Wire Rope.
- Don walk under the hook or load.
- It’s necessary to make sure that all visitors and viewers surroun-
ding the equipment are away from the working area.
- Keep your balance at all times.
4. Do not use the Hoist over it’s maximum capacity:
- If the engine gets too hot, stop the hoist and let it cool for a
while. Refer to the Working Class Table of the Hoist.
- If the hoist stops during it’s operation, stop. Check load and
trolley.
- Do not exceed maximum load capacity
- Always refer to the maximum load capacity of the hoist, not
the hook.
5. Check damaged parts:
- Before use, do a full check of the hoist
- It’s necessary that only authorized and qualied personnel per-
form inspections to the equipment and parts.
6. Hoist Mainteinance and Repairs:
- In order to repair an equipment, use only original Prowinch®
parts, otherwise the operator may be in danger. The use of any
not original replacement part will cause the expiration of the
warranty.
- For security only a Prowinch® certied personnel perform rep-
arations to the equipment.
WARNING
Never lift Humans or Animals with this Hoist.

8
Handling precautions
1. Do not overload the Hoist. Make sure
you are trained for using this equipment
and doing it with the accepted load
weight.
4. Do not use the equipment to lift or
move people if the equipment is not de-
signed for that purpose.
7. Perform frequcuent inspections and
maintenance at least once a year.
5. Do not stand under the load, it may fall
and cause death.
8. Verify installation.
6. Do not use the hoist under the rain. Do
not wet the engine or the switch.
2. Check the electrical connections. Vol-
tage may vary if not properly connected
to power supply.
3. Check frequently the hoist’s steel
chain. in case of any damage, seek for re-
placement.
OVERLOAD
9. A heavy object must not stay up in the
air for an extended period of time, it may
cause girder deformation and/or cause
an accident. Deformation and is conside-
red a potential accident.
GENERAL SAFETY WARNINGS

9
Environmental precautions
When operated outdoor, a roof or shelter should be used for
extreme weather conditions: below -10º C or above 40º C
Avoid exposure to rain or extreme humidity. It may
cause rusting of the equipment
If used near chemicals, corrosive gas or explosives may cause an
explosion. Exposure to salt or acids may cause malfunctioning.
Exposure to sand may cause malfunctioning.
Warnings:
The following environmental conditions may cause mal functions in the equipment
GENERAL SAFETY WARNINGS

10
1.1 Application
Model CDI & MDI Electric Hoist is a kind of hoisting equipment widely used in industrial and mineral enterprises, railway, docks or
warehouse. With the features of compact structure, light and handy in volume and convenience to maintenance, it can be mounted
under single-beam bridge crane, straight or curved I-beam to lift loads or can be installed on the double-girder bridge crane taking
the role of hoisting mechanism. Also can be tted with gantry crane or used as a xed winch.
1.2 Security & Environment
This product is available for use in the site where the environmental temperature ranges-20ºC ~ +40ºC , but not suitable in hazadous
areas of explosion and ame, in the site full of acid gas or other corrosion gases and in the site with the relative humidity excess 85%.
It is not allowed to handle and transporting persons. In the circumstances of open air, necessary measure should be taken to protect
it from being wet.
A medium working rate FC25% is recommended for this product and the rate of power starting is 120 times/hr.
1.3 Meaning of hoist code
1.4 Type & Specications
The type and specications of CDI, MDI referring to Capital Data Table 1a & Table 1g.

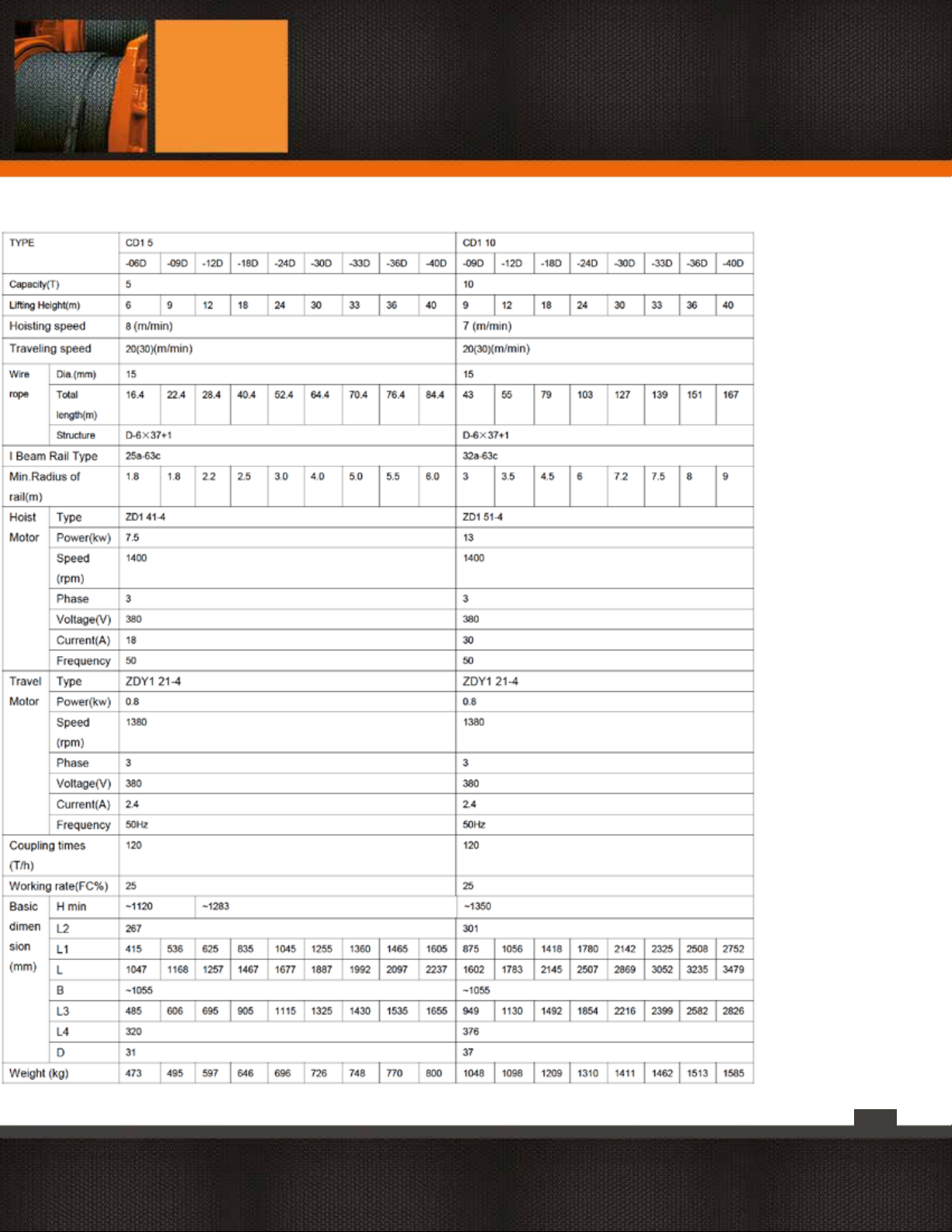

Table 1a-1d Capital Data & Dimension of Model CDI Electric Hoist

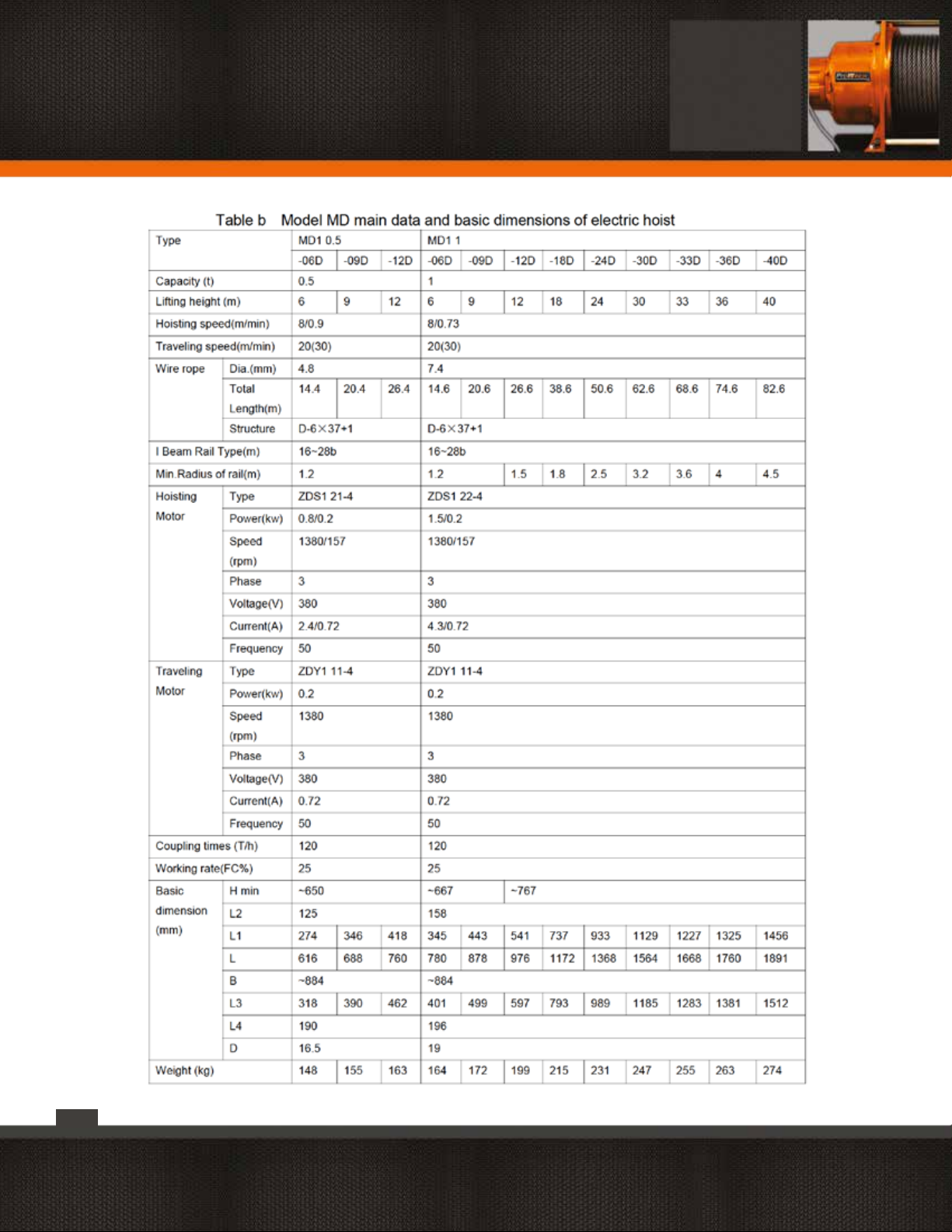

Table 1e-1g Capital Data & Dimension of Model MDI Electric Hoist
GENERAL
1. GENERAL

11
MAIN STRUCTURE &
RUNNING PRINCIPLE
2. MAIN STRUCTURE & RUNNING PRINCIPLE
2.1 Overall Structure of Model CDI & MDI Electric Hoist
Overall Structure of Model CDI & MDI Electric Hoist referring to g.1a~1g.
1.Cable Lead-in Device
2.Control Cabinet of Electric Devices
3.Electric Trolley
4.Traversing Reducer
5.Traversing Motor
6.Hook Device
7.Hoisting Motor
8.Power-cut Space Limiter
9.Space Limit Lever
10.Rope Guide Device
11.Stop Block
12.Hoisting Reducer
13.Drum Device
14.Balance Beam
15.Idle Trolley
Fig.1b Structure and Outline of Electric Hoist
Model CDI1t~5t, H=12m~40m
(part1~13 in Fig.lb are the same as those in Fig. 1a)
Fig.1a Structure and Outline of Electric Hoist
Model CDI1t~5t, H=6m~9m , CDI0.5t , H=6m~12m

12
16. Balance Wheel Device
Fig.1c Structure and Outline of Electric Hoist
Model CD110t, H=9m~40m
(apart from 16,1~15 in Fig.lc are the same as those
in Fig.1a,1b)
Fig.1d Structure and Outline of the Stationary
Electric Hoist, Model CDI, MDI
MAIN STRUCTURE &
RUNNING PRINCIPLE

13

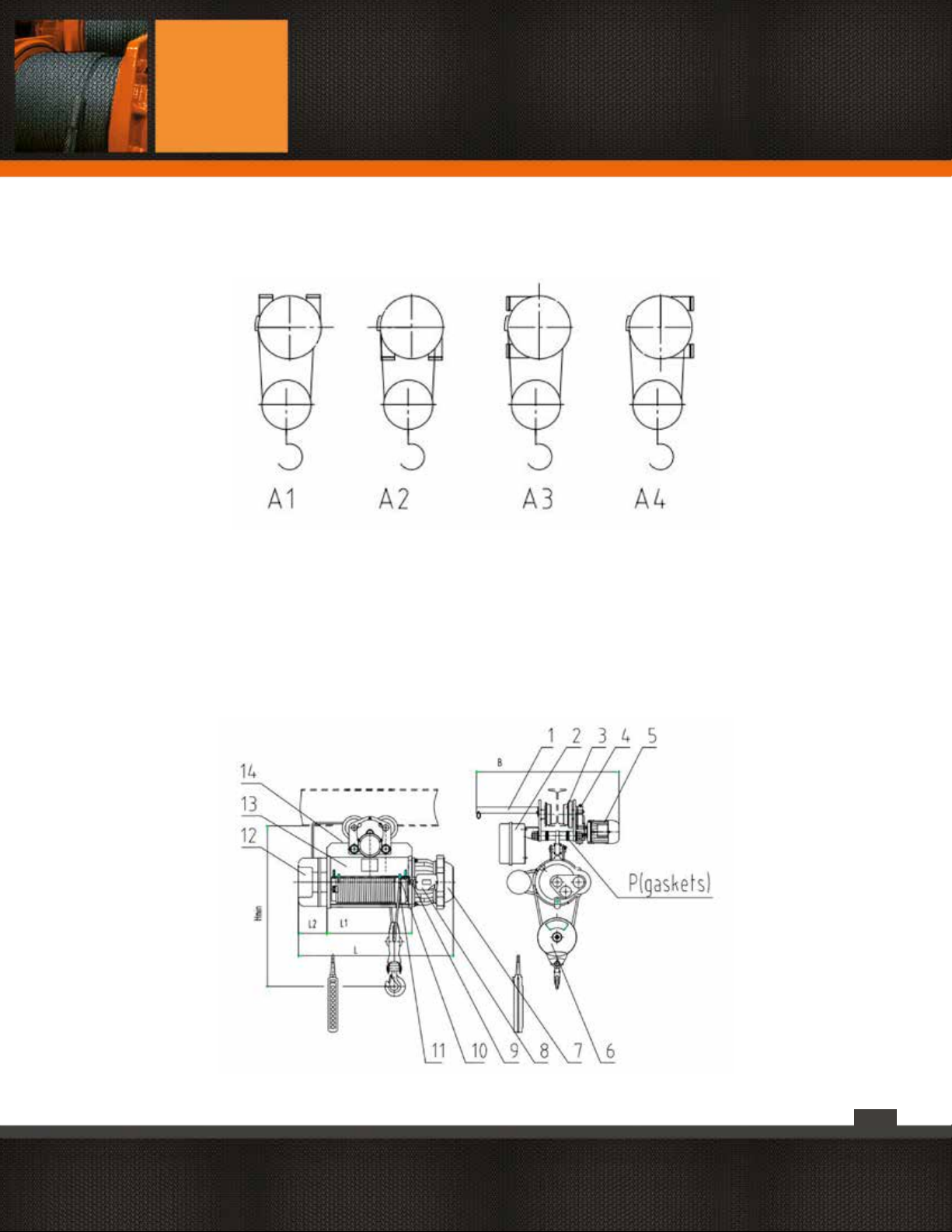

A1 is top mounting
A2 is bottom mounting
A3 is left mounting
A4 is right mounting
MAIN STRUCTURE &
RUNNING PRINCIPLE

14
14. Creep Lifting Motor
15. Balance Wheel Device
Fig.1f Structure and Outline of Electric Hoist Model
MD1 1t~5t, (H=12m~40m)
Fig.1g Structure Outline of Electric Hoist, Model
MD1 10t H=9m~40m
(apart from14~15,1~13 in Fig.lg are the same as
those in Fig.1a)
MAIN STRUCTURE &
RUNNING PRINCIPLE

15
2.2 Main structure and Running Principle of the Model CD1 & MD1 Electric Hoist
The hoist is formed of three parts. Hoisting Mechanism, Traversing Mechanism (stationary type has no trolley), Electric Control De-
vice.
MDI electric hoist is supplied with the base frame of CDI electric hoist. The hoisting motor is changed to double motor providing
normal and slow lifting speeds. The dierence between MDI & CDI hoist are only hoisting motor and electric control parts.
2.2.1 Hoisting Mechanism
The hoisting mechanism of MDI & CDI hoist referring to g.2.
The running principle is described as follows. The Hoisting Motor(11), through Flexible Coupling (8) , then the gears of the Reducer
(1), transmitted to the Hollow Shaft (2), then drives Drum (4) turning, cause the wire rope wound around the drum to draw the hook
device up and down.
The hoist with the lifting height H=6m,a Flexible Coupling (8) is adopted to connect the Motor Shaft (10) with the Input Shaft (3)
of the reducer. The exible coupling, consisting of a rubber ring lined with bre of high strength and two split half-couplings, can
absorb the impact load and make compensation for the installation errors. A Rope Guide Device (7) is provided to prevent the wire
rope from winding in disorder.
For the hoist with H≥9m, an Intermediate Shaft(6) and a Rigid Coupling(5) are provided.
For the hoist with H≥18m,a Support(9)(integral with the Right Cover) is used to prevent the long intermediate shaft from being
damaged and rotating roughly or bent caused by trembling as it is very long.
A transmitting mechanism of 3-stage outside meshed bevel gears is used for he reducer (See Fig.3). The gears and shafts are made
of alloy steel, quenched with carburization with the result of high strength and good wear-resistance. All the shafts are supported
by anti-friction bearings and well lubricated so that to have smooth transmission and ideal eciency.“ O ” oil-proof rubber gasket is
used for the sealing between the housing and the case to ensure leak-proof.
The conic rotor motor of the electric hoist Model CDI has a built-in brake device (See Fig.4& 5). Switching on the power, the conic
rotor produces a magnetic pulling force along axial, which overcomes the pressure of the spring
to make the fan brake wheel disengage from Rear-cover and allow the motor running. When the power is cut o the magnetic
pulling force disappears, the cone braking lining, which stuck on the fan brake wheel and eected by the spring pressure, engages
tightly with the Rear-cover to make the brake. This brake is very reliable and the wear-resistance good, blades are designed on
the fan brake wheel, playing the role of heat dissipation and cooling.
The hoisting motor of MDI electric hoist adopts a set of ZDSI double-motor group, the one consists of 3 parts (see Fig. 6 & 7a,( The
structure shown in the Fig.7b is used for the hoist of MDI 10t under some conditions.) those are Creep Hoisting Motor (1) (named
“small motor” in the following), Normal Hoisting Motor (2) (named“big motor” in the following), Creep Driving Mechanism (3). Their
running principle is introduced as follows.
MAIN STRUCTURE &
RUNNING PRINCIPLE

16
The small motor is connected with the big motor through the Creep Driving Mechanism. While the small motor is turned on, the
tapered brake in it is open.
The small motor runs at the speed of 1380 r/min., the speed is decreased by the Creep Driving Mechanism which drives the fan
braking wheel (combined with the rotor of big motor for running) and rotor of big motor turning together.
Understandable the speed of big motor is only 1/i( generally, approximate to 1/10)of the small motor. Turned on the big motor, the
brake is unclamped and the big motor runs at normal speed when the small motor is in the braking mode.
When the rated load is descending, the braking slide-down range S is specied as S≤V /100
In the formula: S—the braking slide-down range
V—The steady rising distance at rated load per minute
Do adjust if the slide exceeds the above-mentioned specications.
MAIN STRUCTURE &
RUNNING PRINCIPLE

17
MAIN STRUCTURE &
RUNNING PRINCIPLE

18
MAIN STRUCTURE &
RUNNING PRINCIPLE

19
MAIN STRUCTURE &
RUNNING PRINCIPLE

20
MAIN STRUCTURE &
RUNNING PRINCIPLE
