PT M705 User manual

OWNER'S MANUAL
WARNING: READ, UNDERSTAND AND
FOLLOW ALL INSTRUCTIONS AND
WARNINGS BEFORE OPERATING THIS
TOOL. FAILURE TO DO SO MAY RESULT
IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE AND WILL VOID
WARRANTY.
H.V.L.P. TOUCH-UP SPRAY GUN
Item Number M705

2
SPECIFICATIONS
Specifications are subject to change without notice
IMPORTANT SAFETY INFORMATION

WARNING! READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL.
FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
Air Pressure:..................................... 34 - 43 P.S.I.
Spray Pattern:..............................................3-4 in.
Spray Head & Needle:...............................1.2 mm
Cup Capacity:............................................. 200 cc
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power
tools in damp or wet locations. Don’t expose to rain. Keep
work area well lighted. Do not use electrically powered tools
in the presence of ammable gases or liquids. Always keep
work area free from obstructions and well ventilated.
3. Keep children away. Children must never be allowed in the
work area. Do not let them handle machines, tools, hoses or
extension cords.
4. Store idle equipment. When not in use, tools must be stored
in a dry location to inhibit rust. Always lock up tools and keep
out of reach of children and other untrained persons. Switch
o all unused electrical tools when stored. Tools are danger-
ous in the hands of untrained users.
5. WARNING! All persons in the work area must always
wear approved eye and ear protection and approved
breathing apparatus when this spray gun is in operation.
6. Work Safe. Do not wear loose clothing or jewelry that could
become caught by moving parts, causing injury. Operate tool
a safe distance from yourself and others in the work area.
Keep proper footing and balance at all times. Do not reach
over or across running machines, hoses, etc.
7. Stay alert. Watch what you are doing, use common sense. Be
sure all personnel are clear of the direction of the spray gun.
Do not operate any tool when you are tired.
8. Do not operate any tool if under the inuence of alcohol or
drugs. Read warning labels on prescriptions to determine if
your judgment or reexes are impaired while taking drugs. If
there is any doubt, do not operate any tool.
9. Never aim spray gun at anyone. Do not spray near sparks,
open flame, lit cigarettes, pilot lights, space heaters or any other
potential ignition source. DO NOT SMOKE IN WORK AREA.
10.Follow air source manufacturers directions for connection of
regulators, lters, and other accessories to air source. Do not
install quick couplers directly on tool as they put unnecessary
strain on the air inlet threads possibly causing them to wear
out prematurely. Instead, install them on a short length of air
hose attached to the tool.
Avg. Air Consumption (CFM):...........................3.1
Fluid Inlet (NPS): ...................................M14 x 1.0
Air Inlet (NPS):.............................................1/4 in.
Hose Size (ID): ............................................3/8 in.
11.Follow manufacturers instructions and safety information to
ensure safe handling and proper use of paints, lacquers, thin-
ners, base coats, etc. Do not use latex or other heavy paints.
They are not recommended for this spray gun.
12.Always disconnect spray gun from air source before
disassembly.
13.
WARNING! Solvents 1,1,1-Trichloroethane and Methylene
Chloride (Dichloromethane - sometimes called Methylchloride)
can chemically react with the Aluminum used in most spray
equipment creating an explosion hazard. Read the label or
data sheet from the material you intend to spray. NEVER use
any material containing these solvents. If unsure as to the
composition of your material, check with your supplier. Do not
use acids for cleaning.
14. Check for damaged parts. Before using any tool, any part that
appears damaged should be carefully checked to determine
that it will operate properly and perform its intended function.
Check for alignment and binding of moving parts; any broken
parts or mounting xtures; and any other condition that may
aect proper operation. Any part that is damaged should be
properly repaired or replaced by a qualied technician.
15. Maintenance. For your safety, maintenance should be
performed regularly by a qualied technician using original
PERFORMANCE TOOLS® replacement parts. Failure to do so
can lead to accidents for the operator. Use of any other parts
will void the warranty. Only use accessories intended for use
with this tool. Approved accessories are available from Per-
formance Tool®. Use only accessories that are recommended
by the manufacturer for your model. Accessories that may be
suitable for one tool may become hazardous when used on
another tool.
WARNING!
The warnings, cautions, and instructions discussed
in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator
that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator. Read and
understand all of the instructions provided in the instruction manual
of this product, as well as, any other tool (s) used with this product.
This instruction manual is intended for your benefit. Please read and follow the safety, installation, maintenance and troubleshooting steps
described within to ensure your safety and satisfaction. The contents of this instruction manual are based upon the latest product information
available at the time of publication. The manufacturer reserves the right to make product changes at any time without notice.

WARNING: Read and understand this entire instruction manual before attempting to assemble, install, operate or maintain this product.
Failure to comply with the instructions may result in serious personal injury and/or property damage!
The following signal words are used to emphasize safety warnings that must be followed when using this product:
DANGER:
Indicates an imminently hazardous situation
that, if not avoided, WILL result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation that,
if not avoided, COULD result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation that,
if not avoided, MAY result in minor or moderate injury.
NOTE: Indicates important information, which if not
followed, MAY cause damage to equipment.
SAFETY GUIDELINES / DEFINITIONS

3

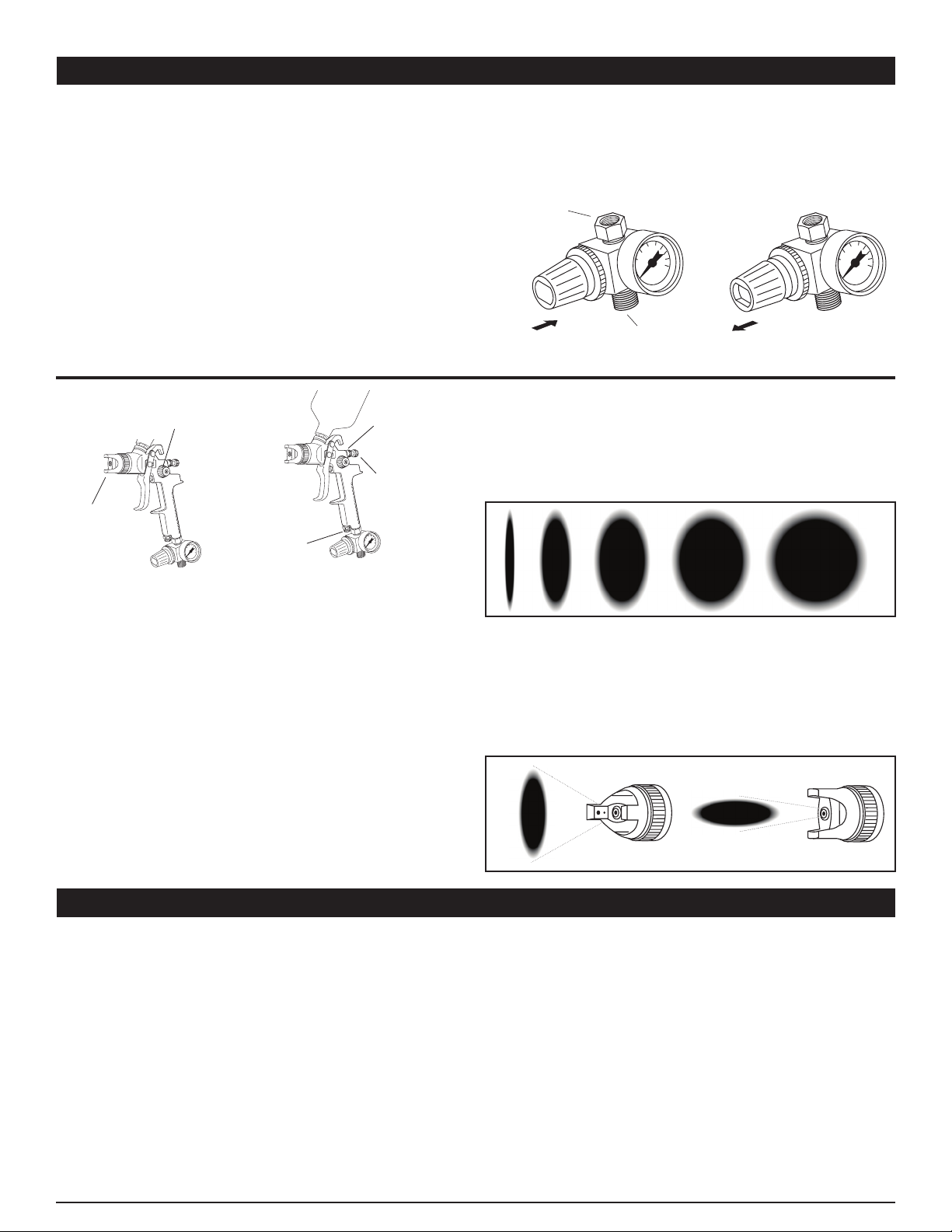

Step 3: Spray Pattern Controls
Pattern Shape - The shape of the spray can be adjusted
from a round pattern to a flat pattern by turning the Pattern
Control Knob. Turning knob in rounds the pattern, turning
knob out flattens the pattern.
Pattern Orientation - A flat or semi-round spray pattern
can be adjusted to any angle from horizontal to vertical by
turning the Air Nozzle. Pattern is perpendicular to “ears”
on nozzle. That is, when the ears are horizontal, the spray
pattern will be vertical and when the ears are vertical the
spray pattern will be horizontal.
Step 2: Air and Fluid Volume Controls
These two controls are used in conjunction with each other
to accurately adjust air/uid (Paint) ratio and will vary for
dierent paints. Changing one control Fluid Volume aects
the other so alternating back and forth between them to
ne tune your adjustment will yield optimum results.
Air Volume Control - Air volume is adjusted by turning the
Air Fluid Volume Control Knob. Turning knob in reduces
volume, turning knob out Control Knob increases volume.
Fluid Volume Control - Fluid volume is adjusted by
turning the Fluid Volume Control Knob. Turning knob in
decreases volume, turning knob out increases volume.
Once a satisfactory volume is set, you can lock the
adjustment by turning the lock nut in tight.
OPERATION
Step 1: Inlet Air Pressure Regulation
Assemble components of spray gun and connect to
clean air source as described above. Clean air source
is imperative to ensure peak performance. The use of
an in-line air lter is highly recommended to keep any
contaminants from entering the spray gun. Set inlet air
pressure to between 40 and 45 P.S.I. to begin adjustments.
(This is a good operating inlet pressure suitable for most
applications, however, depending on materials being
sprayed and other external factors such as temperature,
humidity, etc., you may need to come back to this step and
increase or decrease pressure as needed after attempting
adjustments in step 2.)
Inlet pressure is adjusted by turning the Pressure Regulator
Control Knob. Knob must rst be pulled out to unlock.
Turning knob clockwise increases pressure, turning knob
counter-clockwise decreases pressure. Once desired
pressure is reached, push the knob back in to lock.
CARE & MAINTENANCE
WARNING! Clean gun before and after each use.
To protect the precision machined internal parts and
ttings in this gun from corrosion during shipping, some
oils or other corrosion resistant agents may have been
applied. It is important to remove any such residue before
attempting to use the gun. To clean, place a small amount
of appropriate thinner into paint cup and spray through
gun while pulling and releasing trigger repeatedly. Wipe
exterior of gun, nozzles and paint cup. In some cases,
if the gun becomes clogged, disassemble completely
and soak all parts in thinner. After soaking, use wire and
cleaning brush to clear small internal passages. Check and
clean paint cup lter. Replace if worn.
A clean air source is imperative to ensure peak
performance. The use of an in-line air lter is highly
recommended to keep any contaminants from entering
the spray gun. Inspect all ttings and hardware to ensure
proper seating. Be sure air line ttings are tight with no
leaks. Replace any worn parts as necessary.
Check needle and nozzles for nicks, scratches or burrs.
Any such conditions will seriously impair performance.
Replace as necessary.
Regulated air out
to Spray Gun
Unregulated
air Inlet
Pressure Regulator
Control Knob Locked
Pressure Regulator
Control Knob Unlocked
Air
Nozzl
e
Spray Pattern
Control Knob
Fluid Volum
e
Control Knob
Fluid Volum
e
Lock Nut
Air
Volume
Control Knob

4
REPLACEMENT PARTS LIST
Call Customer service for replacement parts: 1-800-497-0552
REPLACEMENT PARTS LIST
# Description Qty. # Description Qty.
1. Gun body.......................................................... 1
2. O-ring 20 x 1.5.................................................. 1
3. Sealing Gasket ................................................. 1
4. O-ring 2 x 1.5.................................................... 1
5. Fluid packing nut .............................................. 1
6. Air Isolation Ring............................................... 1
7. Material Nozzle ................................................. 1
8. Locking Ring..................................................... 1
9. Air Nozzle Washer ............................................ 1
10. Locking Knob ................................................... 1
11. Air Cap.............................................................. 1
12. Air Valve Spring ................................................ 1
13. Air Valve Sealing Gasket................................... 1
14. Needle Valve ..................................................... 1
15. Air Valve Body .................................................. 1
16. O-ring 8 x 1.5.................................................... 1
17. Air Valve Sealing Screw .................................... 1
18. E-Clip................................................................ 1
19. E-Clip................................................................ 1
20. Trigger............................................................... 1
21. Trigger Pin......................................................... 1
22. Trigger Pin......................................................... 1
23. Air Inlet Bushing ............................................... 1
24. Air Valve Spring ................................................ 1
25. Gasket .............................................................. 1
26. O-ring 2.5 x 1.8................................................. 1
27. Air Valve Control Stem...................................... 1
28. Air Flow Control Knob ...................................... 1
29. Air Inlet Bushing ............................................... 1
30. E-Clip................................................................ 1
31. Spray Control Nut............................................. 1
32. Spray Regulator Screw..................................... 1
33. Pattern Control Knob........................................ 1
34. Screw................................................................ 1
35. O-ring 6 x 1.5.................................................... 1
36. Bearing ............................................................. 2
37. Needle .............................................................. 1
38. Needle Seat ...................................................... 1
39. Needle Spring................................................... 1
40. Needle Adjusting Seat ...................................... 1
41. Needle Adjsuting Screw ................................... 1
42. Sealing Gasket ................................................. 1
43. Paint Cup Coupler ............................................ 1
44. Cup Filter .......................................................... 1
45. Sealing Gasket ................................................. 1
46. Connecting Nut ................................................ 1
47. Gasket .............................................................. 1
48. Paint Cup.......................................................... 1
49. Connecting Screw ............................................ 1
50. Paint Cup Lid.................................................... 1

5

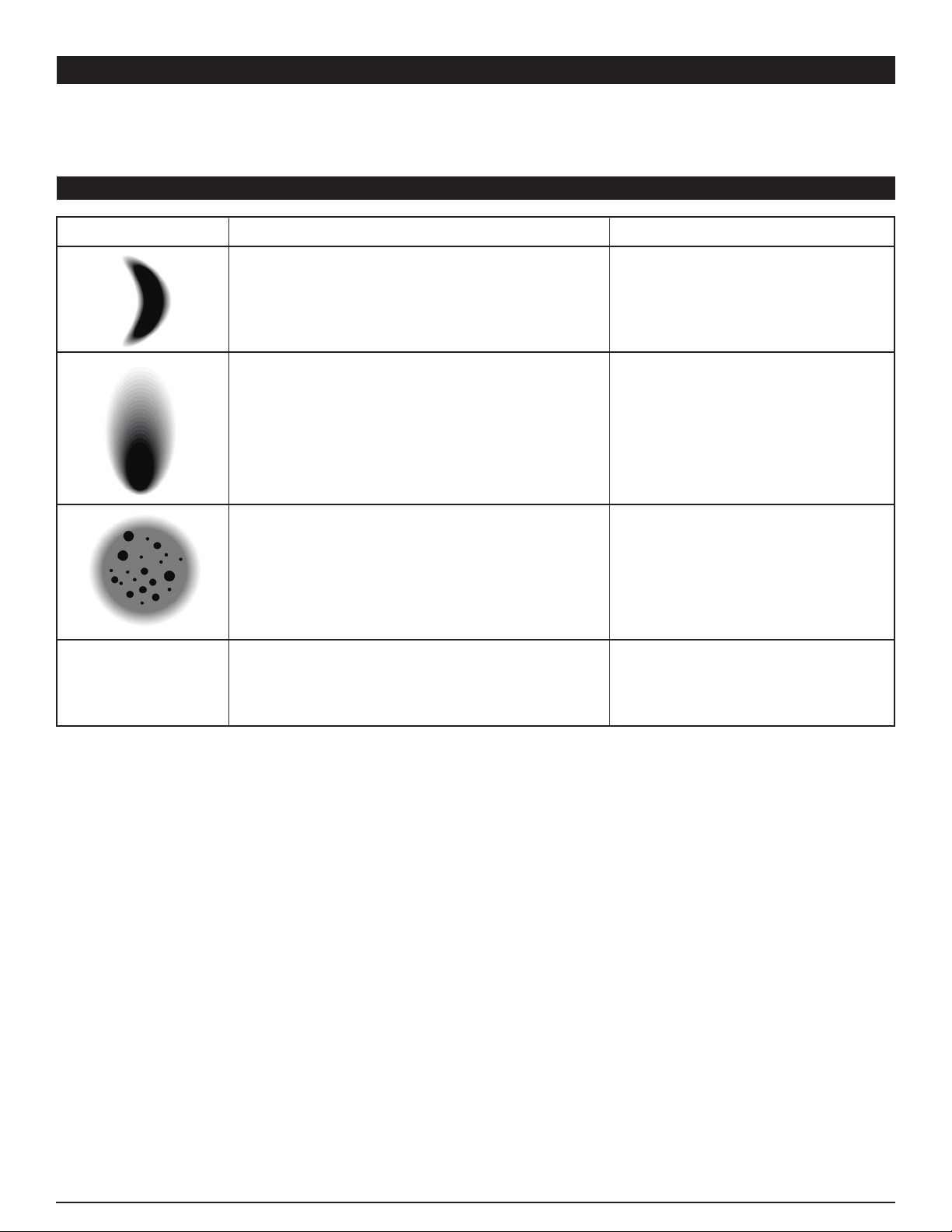

TROUBLESHOOTING
WARNING! - Disconnect spray gun from air source before making adjustments
NOTE: Problems listed above with more than one solution may have a combination of causes. Please be sure that all
solutions listed for each problem have been checked to eliminate possibility of further trouble. Sometimes solutions may
need to be repeated for best results.
Half-Moon Shaped Pattern
This is usually caused by clogged
air holes on the Air Nozzle ears.
1. Clean, tighten or replace
2. Clean, tighten or replace
Problem: Probable Cause: Solution:
Your spray gun was constructed with quality materials
and workmanship and will give you many years of trouble
free use when cared for as described in the "Care and
Maintenance" section on page 3. However, as with any
mechanical device, periodic adjustments are necessary to
maintain a peak level of performance. Should your spray
gun be displaying any of the following symptoms, the
simple procedures shown below will correct the problem.
Irregular or Offset Pattern
This can be caused by
1. A dirty or damaged Needle tip
or Fluid Nozzle
2. Clogged atomization holes on
Air Nozzle around the center
Spitting
1. Too little material in cup
2. Loose Fluid Nozzle
3. Damaged Needle Packing
4. Dirty or damaged Needle & Nozzle Set.
Carefully clean out holes with
wire after soaking in thinner.
1. Clean or replace Needle
or Fluid Nozzle.
2. Clean Air Nozzle
1. Refill cup
2. Tighten Nozzle
3. Replace Packing
4. Clean or replace parts
Material in cup bubbles or “Boils”
1. Loose, clogged or damaged Fluid Nozzle
2. Loose, clogged or damaged Air Nozzle

1 YEAR WARRANTY
PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These warranties give specific legal rights.
Except where prohibited by local law, the law of the State of Washington governs all warranties and all exclusions and limitations of warranties and
remedies. There may be other rights which vary from state to state.
PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under normal use and service. A defective
product may be returned for a free replacement within 90 days from the date of purchase, provided that product is returned to place of purchase
immediately after discovery of defect. After 90 days and up to one year from date of purchase, PERFORMANCE TOOL® will replace at no charge
any parts which our examination shall disclose to be defective and under warranty. These warranties shall be valid only when a sales receipt
showing the date of purchase accompanies the defective product or defective part (s) being returned. For part (s) after 90 days, please remit your
request, postage prepaid to:
PERFORMANCE TOOL, P.O. Box 88259 Tukwila, WA 98138
These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be replaced under normal use and
service. These warranties shall not apply to any product or part which is used for a purpose for which it is not designed, or which has been repaired
or altered in any way so as to affect adversely its
performance or reliability, nor shall these warranties apply to any product or part which has been subject to misuse, neglect, accident or wear and
tear incident to normal use and service.
PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in connection with its products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes no express or implied warranties
of any kind with respect to its products. In particular, PERFORMANCE TOOL® makes no implied warranty of merchantability and no implied
warranty of fitness for any particular purpose, except that for goods purchased primarily for personal, family or household use and not for
commercial or business use, PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise applicable, an implied
warranty of fitness for a particular purpose), but only for the particular qualities or characteristics, and for the duration, expressly warranted above.
The laws on limitation of implied warranties may differ from state to state, so the above limitations may not apply in all cases.
PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in any manner related to any product,
or to the design, use, or any inability to use the product. The sole and exclusive remedy for a defective product or part shall be the repair, or
replacement thereof as provided above. The laws on limitation of remedies or on consequential, incidental or special damages may vary from state
to state, so the above limitations may not apply in all cases.
© Copyright 2020 WILMAR CORPORATION, P.O. Box 88259 Tukwila, WA 98138
