User Manual
MHD44TP
PTN HDBaseT Matrix Switchers 4x4
All Rights Reserved
Version: MHD44TP20131.0

HDBaseT Matrix Switchers 4x4
PTN Electronics Limited www.PTN-electronics.com
NOTICE: Please read this user manual carefully before using this product.
Update History
Version
Date
Update Content
1.0
2013.05.29
First version.
This manual is only for operation instruction only, not for any maintenance usage.
The functions described in this version are updated till May 2013. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
This manual is copyright PTN Electronics Limited. All rights reserved. No part of
this publication may be copied or reproduced without the prior written consent of
PTN Electronics Limited.
All product function is valid till 2013-05-29.

HDBaseT Matrix Switchers 4x4
PTN Electronics Limited www.PTN-electronics.com
Table of Contents
1. Introduction.................................................................................................................1
1.1 Introduction to MHD44TP..................................................................................1
1.2 Features ............................................................................................................1
1.3 Package Contents.............................................................................................1
2. Introduction of Product Appearance............................................................................2
2.1 Front Panel of MHD44TP ..................................................................................2
2.2 Rear Panel of MHD44TP...................................................................................3
2.3 Connection with RS232 Communication Port....................................................4
2.4 Twisted Pair Cable Connection..........................................................................5
3. System Connection.....................................................................................................5
3.1 Usage Precautions............................................................................................5
3.2 System Diagram................................................................................................6
3.3 Connection Procedure.......................................................................................6
3.4 System Applications ..........................................................................................7
4. Application Solution ....................................................................................................7
5. System Operations .....................................................................................................9
5.1 Usage of IR Remote..........................................................................................9
5.2 RS232 Control.................................................................................................10
5.3 USB Firmware Updating..................................................................................12
6. Specification .............................................................................................................13
7. Panel Drawing ..........................................................................................................14
8. Troubleshooting & Maintenance ...............................................................................15
9. Safety Operation Guide ............................................................................................16
10. After-sales Service..................................................................................................17

HDBaseT Matrix Switchers 4x4
PTN Electronics Limited 1www.PTN-electronics.com
1. Introduction
1.1 Introduction to MHD44TP
MHD44TP is a 4x4 HDBaseT matrix switcher, including 4 HDMI inputs, 4 HDBaseT
outputs, 2 local HDMI outputs, 4 de-embedded stereo audio & 4 de-embedded digital
audio outputs. It enables cross-point switching from any input to any output, and
supports high resolution 1080P, HD3D. The HDBaseT output works with TPHD402PR,
to transmit HDMI, IR, RS232 and POE over a Cat5e/Cat6 cable. And its transmission
distance can up to 60 meters.
1.2 Features
HDTV compatible with High Definition Transmission resolution up to
1920*1200@60Hz, support 1080P, HD3D.
HDCP Compliant and DVI compatible, supporting DVI1.0.
Powerful EDID&HDCP management.
HDBaseT outputs, to transmit HDMI, IR&RS232 to 60 meters long distance over a
Cat5E/6 cable.
POE supports, provides power for all the receivers connected to HDBaseT outputs.
Supports multiple control ways, including front panel, RS232, IR and optional TCP/IP
control (works with PTNET).
IR OUT signal switching follow with video signal, also can be broken away from
video switching.
Supports remote control from receiver by IR&RS232.
Supports centralized IR control to control all the remote display devices.
Supports PCM, Dolby, and DTS5.1 surround.
LCD indicator shows connection status, switching status, HDCP status, and output
resolution.
1.3 Package Contents
1 x MHD44TP
2 x Mounting ears
1 x Power adapter (DC48V)
1 x IR remote
1 x Power cord
1 x RS232 cable
1 x CAT5e twisted pair
8 x Captive screw connectors
4 x Plastic cushions
1 x User manual
Notes：Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

HDBaseT Matrix Switchers 4x4
PTN Electronics Limited 2www.PTN-electronics.com
2. Introduction of Product Appearance
2.1 Front Panel of MHD44TP
Figure 1 Front Panel of MHD44TP
No.
Name
Description
①
Firmware
Micro USB port for update firmware.
②
Power
Indicator
Keep light when power on.
③
IR Receiver
Receive control signal from IR remote.
④
LCD
Indicator
Real-time shows system status.
⑤
INPUTS/
Menu
buttons
Normal mode: Input buttons, ranging from "1" to "4".
Inquire mode: Press “AV”more than 3 seconds to enter
this mode. to change different menus, to
change different channels.
⑥
Function
buttons
AV synchronal button: To transfer AV and IR signal
synchronously by the switcher.
Example: To transfer both AV and IR signals from input
channel No.1 to output channel No.3.
Operation: Press buttons in this order “1”, “AV”, “3”.
ALL outputs button: To transfer one input to all outputs.
Example: To transfer both AV and IR signals from input
channel No.1 to all output channels.
Operation: Press buttons in this order “1”, “ALL”
EDID management button: manually capture and copy
the EDID data from output device to input port.
Example: To capture and copy the EDID data from output
channel No.4 to input channel No.2.
Operation: Press buttons in this order “EDID”, “2”, “4”
⑦
OUTPUTS
Output buttons, ranging from "1" to "4".

HDBaseT Matrix Switchers 4x4
PTN Electronics Limited 3www.PTN-electronics.com
With the front control panel, the switcher could be control directly and rapidly by
pressing the buttons under below format.
“Input Channel” + “AV” + “Output Channel”
“Input Channel”: Fill with the number of input channel to be controlled.
“Output Channel”: Fill with the number of output channels to be controlled.
2.2 Rear Panel of MHD44TP
Figure 2 Rear Panel of MHD44TP
No.
Name
Description
①
IR ALL IN
IR control signal input port, connect with IR receiver, pass
through to all the HDBaseT ports to control the remote
devices.
②
HDMI
INPUTS
Type A female HDMI connectors.
③
IR OUT
Connect with IR transmitter, to send out the IR signal from
the HDBaseT port. These IR OUTs make up a IR matrix
with the IR INs on the HDBaseT receivers, and all can be
switched synchronously with the AV signal, or
separately switching.
④
OUTPUTS
IR IN: Connect with IR receiver, fixed IR input for the
output, cannot be switched. It makes up an IR
transmission with the IR OUT on the corresponding
HDBaseT receiver.
HDMI: Split HDMI output for local monitoring.
COAX: HDMI de-embedded digital audio output.
HDBaseT: Works with receivers using HDBaseT
technology, such as TPHD402R, TPHD402PR. It can

HDBaseT Matrix Switchers 4x4
PTN Electronics Limited 4www.PTN-electronics.com
pass through AV, IR and RS232 signal to 60m distance.
Meanwhile, it can provide power for the receivers which
support POE.
RS232: RS232 port to communicate with the RS232 port
on corresponding HDBaseT receiver.
AUDIO: HDMI de-embedded stereo audio output
⑤
RS232
The serial port for unit control, 9-pin female connector.
⑥
Power
Indicator
Keep light when power on.
⑦
48V DC
Connect with 48V DV power adaptor.
⑧
GROUND
Connect to grounding, make the unit ground well.
⑨
TCP/IP
TCP/IP port for unit control, optional function.
⑩
IR EYE
Connect with extended IR receiver, use the IR remote to
control MHD44TP.

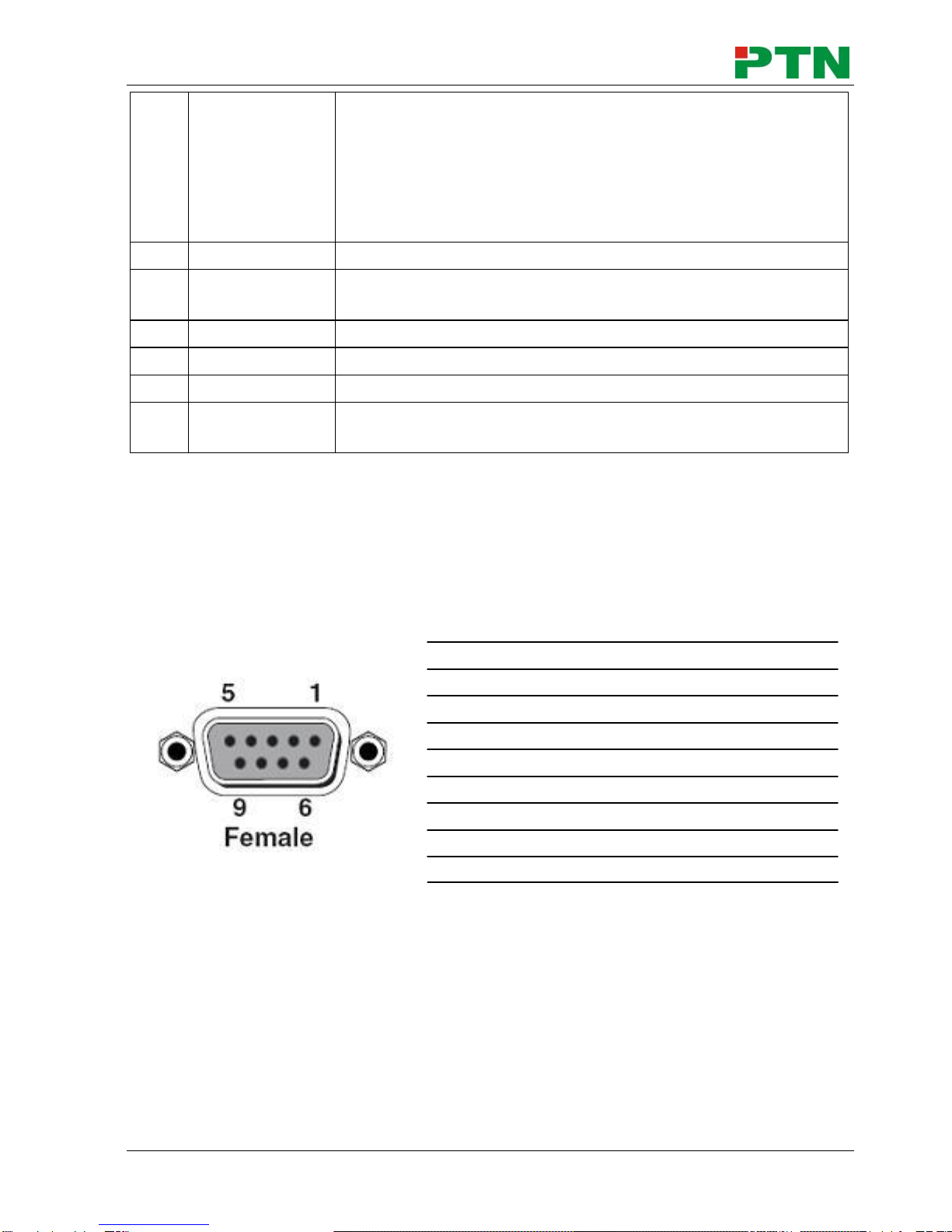

2.3 Connection with RS232 Communication Port
Except the front control panel, MHD44TP can be controlled by far-end control system
through the RS232 communication port. This RS232 communication port is a female
9-pin D connector. The definition of its pins is as the table below.
No. Pin Function
1 N/u Unused
2 Tx Transmit
3 Rx Receive
4 N/u Unused
5 Gnd Ground
6 N/u Unused
7 N/u Unused
8 N/u Unused
9 N/u Unused
