PUK HYDROSWING 01 LED User manual

ASSEMBLY AND OPERATING INSTRUCTIONS:
HYDROSWING 01 LED
-Power consumption : 9W
-Voltage :24Vdc
-Color Temperature : 3000K
-Lumen output: 050Lm
-Lens Type : 30°
-Insulation class: III
-IP protection: IP65
-Gross weight: 2kg
Made in Italy
COD. 601101
COD. 601102
COD. 601101
-replace the damaged protective glass
-glass features: plane float glass - safety tempered
-getting rid of as urban waste forbidden
-separate collection is mandatory when the product is at the
end of its life
-very low voltage feeding with security tran-
sformer
-Complete protection from dust and water jets
IP65
NB: These assembly instructions must be given to end users for correct maintenance and so that they know how to change the bulb.
The a liance must not be tam ered with or transformed and it must be installed and used as su lied and in com liance with the
National Rules on Installations. Any non-com liant installations will invalidate all forms of guarantee. The com any cannot be held
res onsible for damage caused by incorrect assembly.
IK 07
THE WARRANTY IS FALLING IN THE FOLLOWING CASES:
) Malfunctions due to improper use of the product, modifications, repairs inadeguate, negligence on the part of the
installer / electrician, failure to assembly instructions and / or data plate;
2) Installations in plants not comply with the general safety;
3) Damage caused by natural causes such as lightning, fire or flooding;
4) Damage caused by wiring / connections with IP degree lower than the selected product.
5) Damage occurring during shipment of the product. In these cases the damage will be to charge and notify the car-
rier;
6) The warranty covers only the integrity of the product and NOT any costs of removal of the same;
HYDROSWING 02 LED
-Power consumption : 2x9W
-Voltage :24Vdc
-Color Temperature : 3000K
-Lumen output: 2x 050Lm
-Lens Type : 2x30°
-Insulation class: III
-IP protection: IP65
-Gross weight: 2,5kg
COD. 601102

Recommendations
) verify that the equipment used to connect our devices to enjoy
all the guarantees required under European law;
2) use the cables, connectors and quality materials for electrical wiring;
3) Products with IP65/68 degree make the wiring / connections with accessories
provide the same degree IP of the selected product (available in the catalog);
4) In the case of installations outside is not recommended to install the power supplies in the
formwork and / or in the junction box without adequate protection
Relam ing and maintenance:
-The relamping must be done with maximum attention avoiding to dirty the sealing gasket and its contact surface. It is
therefore necessary before
opening the fixture to carefully wipe the floodlight then unscrew the round frame by the proper key
-it is essential to do a frequent cleaning of the glass and of the outer surface of the fixture to avoid build up of mud and
dirtiness resulting in dangerous
overheating due to uncorrect light and heat dissipation. Clean carefully the glass screen removing limestone deposits
by means of a scraper.
.The re lacement must be done by a qualified electrician.

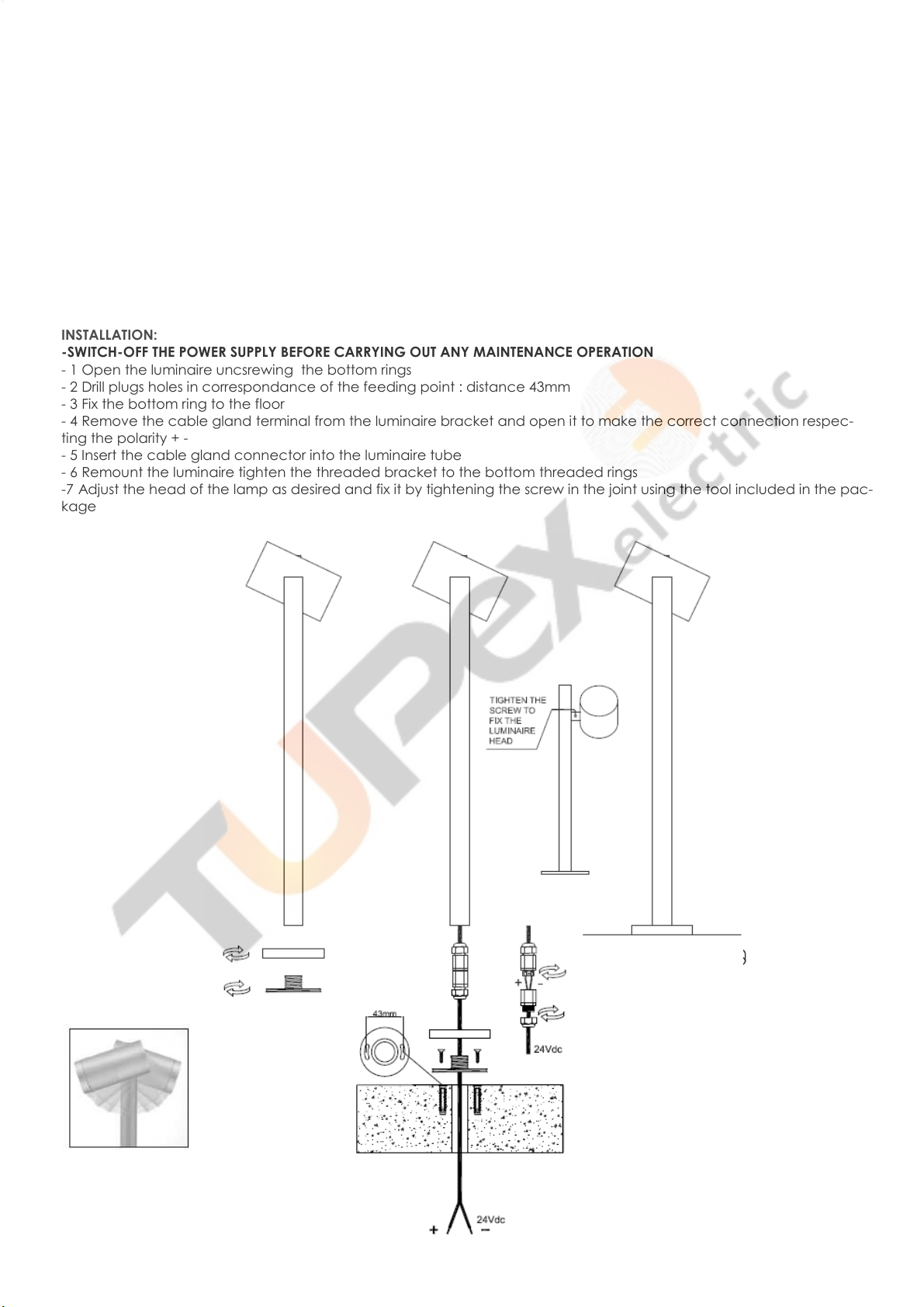

INSTALLATION:
-SWITCH-OFF THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE OPERATION
- Open the luminaire uncsrewing the bottom rings
- 2 Drill plugs holes in correspondance of the feeding point : distance 43mm
- 3 Fix the bottom ring to the floor
- 4 Remove the cable gland terminal from the luminaire bracket and open it to make the correct connection respec-
ting the polarity + -
- 5 Insert the cable gland connector into the luminaire tube
- 6 Remount the luminaire tighten the threaded bracket to the bottom threaded rings
-7 Adjust the head of the lamp as desired and fix it by tightening the screw in the joint using the tool included in the pac-
kage
