Pullman WD20LSSO User manual

20L WET & DRY
VACUUM WITH
OUTRIGGER
1100W WD20LSSO
IDEAL FOR:
Motels & Hotels
Workshops & Garages
Restaurants & Cafes
Offices
PATENTED
TECHNOLOGY
Australian Patent Application No: 2013900442

Always switch off the cleaner and remove the plug from the mains power supply before cleaning your
appliance, when not in use or attempting any maintenance task. The cleaner must only be connected
to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for
its intended purpose as described in this instruction manual.
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
2. Children should be supervised to ensure that
they do not play with the appliance.
3. To prevent electrical shock, do not immerse
the appliance, power cord or power plug into
water or other liquids.
4. To prevent electrical shock, do not use the
vacuum cleaner outdoors.
5. Always check the power cord before use,
the power cord and the plug should be in a
good condition and must not be damaged.
If the power supply cord is damaged
or defective, it must be replaced by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
6. Do not unplug by pulling on the power cord.
To unplug, grasp the plug not the power
cord. Use only Australian and New Zealand
electrical safety approved extension cords.
7. Do not pull or carry the appliance by the
power cable, use the power cable as a
handle or pull the power cable around
shaft edges or corners. Avoid running the
appliance over the power cable.
8. Ensure the appliance is switched off
before unplugging.
9. Do not handle or operate the appliance
with wet hands and follow electrical safety
precautions at all times.
10. Extreme caution should be exercised when
using the appliance on stairs.
11. Do not attempt to change the attachments
while the appliance is plugged in to mains
power supply. Switch off and remove
plug from mains power supply. Use only
manufacturer’s recommended accessories.
12. Do not operate the vacuum cleaner too
close to the heaters, radiators and other
hot surfaces.
13. Do not use the appliance to pick up
flammable items or combustible liquids
(i.e. petrol, hot ashes cigarettes, matches,
explosive materials or anything burning) or
use in areas where such substances and
items may be present.
14. Do not use the appliance to pick up toxic
materials (i.e. chlorine bleach, ammonia).
15. Ensure the appliance is disconnected from
the main power supply before connecting
the hose to the unit.
16. Do not operate or use the appliance without
dust bag and/or filters in place while dry
vacuum cleaning.
17. Before vacuuming, remove any large or shaft
objects from the floor or cleaning surface in
order to prevent damage to the filter.
SAFETY PRECAUTIONS AND WARNING:
IMPORTANT
WHEN USING YOUR VACUUM CLEANER, BASIC PRECAUTIONS SHOULD ALWAYS
BE OBSERVED, INCLUDING THE FOLLOWINGS;
2

18. If the air inlet, floor head or the telescopic
tube is blocked, switch off the cleaner
straight away and remove from the main
power. First clear the blocked object before
attempting to start the cleaner vacuum again.
19. Do not leave the appliance unattended when
it is connected to a mains power socket.
20. Before carry out any maintenance service
or cleaning the filters, always switch off the
vacuum cleaner and disconnect the plug
from power supply.
21. Keep ends of the hose, telescopic tube
and other openings away from your face
and body.
22. Do not use the vacuum cleaner if it is
damaged or breaks down. Check the
electrical regularly for defects. If connection
cables, electrical hoses, electrical contacts
and electric tubes are damaged, have them
replace immediately.
23. Never clean the vacuum cleaner or any of
the electrical parts, especially the electrical
connections with water or liquid cleaners.
24. Never attempt to make any modifications
electrically to the vacuum cleaner.
25. Always store the appliance indoors in a cool
and dry place.
26. Damage caused by improper use or by not
observing the instructions in this manual will
void warranty.
BEFORE YOU BEGIN
1. Do not operate the vacuum cleaner too close to heaters, radiators, and other
hot surfaces.
2. Before inserting the plug into the wall, make sure your hand is dry.
3. Before turning on the vacuum cleaner, remove any large or sharp objects from
the floor or cleaning surface in order to prevent damage to the filter.
4. When you want to pull the plug from the wall, do not use the power cable, gently
pull the plug from the power socket.
5. If the hose inlet or telescopic tube are blocked, you should switch off the cleaner
straight away and remove from mains power. First clear the blocked substance
before attempting to start the vacuum cleaner again.
This machine is equipped with a cable restraint, cord and plug. In the event that either of these
parts get damaged, it must be repaired by a qualified technician.
3
PULLMAN 20L WET & DRY VACUUM WITH OUTRIGGER WD20LSSO

KNOW YOUR PRODUCT
Technical Information
Model: WD20LSSO
240V ~ 50HZ
110 0W MA X
1000W NOM
Noise Level: 75dbA
10. 11. 12. 13. 14.
2.
3.
6.
9.
7.
11.
5.
4.
1.
8.
17.
1. On/Off Switch
2. Handrail
3. Tank
4. Handle
5. Connection Latches
6. Rear Wheel
7. Castor Wheels
8. Hose Inlet
9. Power Cord & Cable
Restraint (not shown)
10. Hose Assembly
11. 2 Piece Chrome Tube
12. Wet Pick Up Floor Tool
13. Crevice Tool
14. Dusting Brush
15. Extension Cord
16. Gulper Floor Tool
17. Outrigger Attachment
16.
15.
4

KNOW YOUR PRODUCT (CONTINUED)

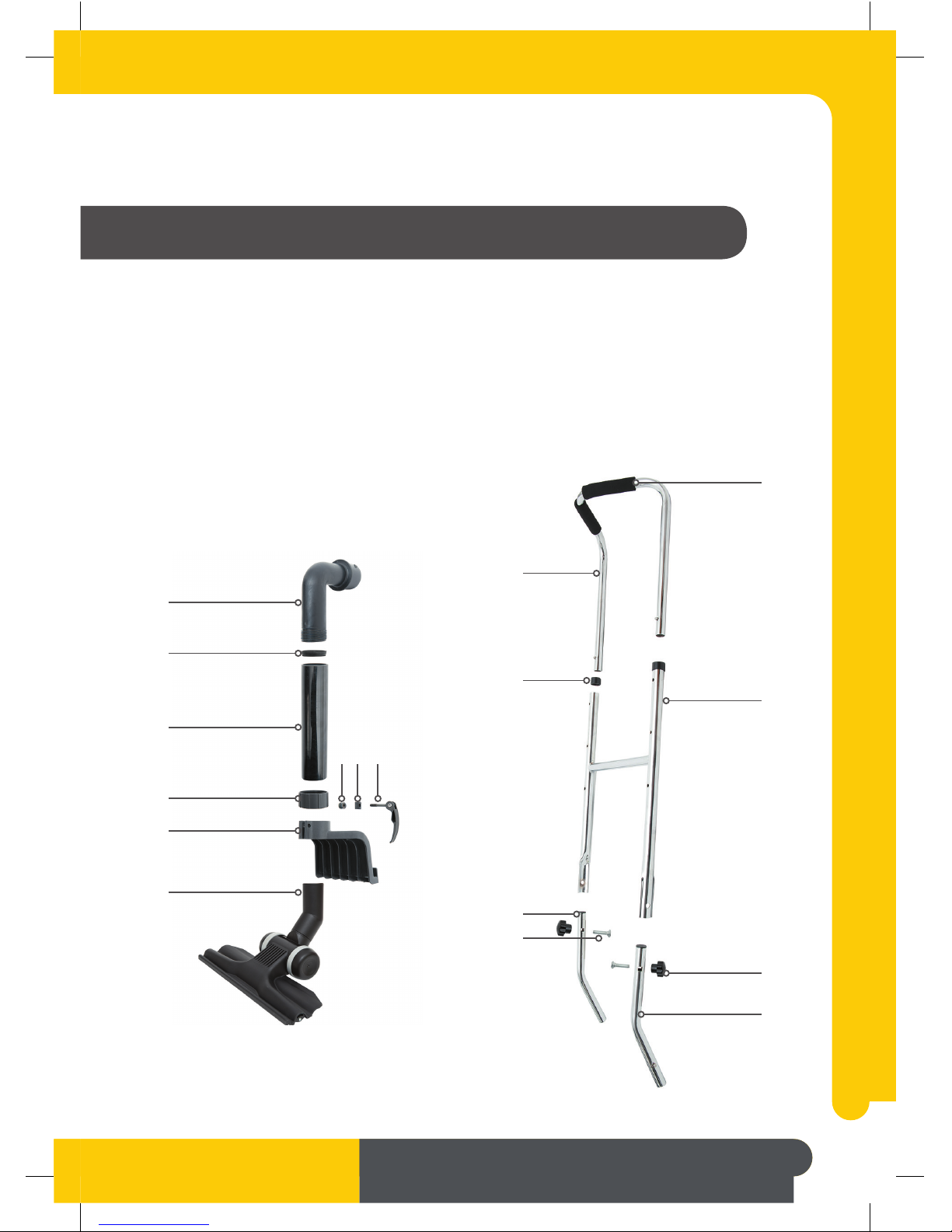

1. Bend Tube
2. Rubber Ring
3. Connect Tube
4. Lock Knob
5. Fixed Support
6. Nut
7. Spacer
8. Locker
9. Gulper
10. Upper Extension Tube
11. Handle Grip
12. Protective Cover
13. Lower Extension Tube
14. Plastic Cap
15. Bolt
16. Star Knob
17. Fixed Tube
1.
2.
3.
4.
5.
9.
6. 7. 8.
10.
12.
14.
15.
13.
11.
17.
16.
NOTE: Items #1 - #4 and Items #6 - #10
will be pre-assembled.
5
PULLMAN 20L WET & DRY VACUUM WITH OUTRIGGER WD20LSSO

1. Disconnect latches on side of machine and remove
the canister lid.
2. Remove blue plastic cover inside and underneath
the tank.
3. Install castor wheels into the hole on the base and
push hard to secure the wheels.
ASSEMBLY
The cleaner should be switched off and disconnected from the mains power supply before you start
to assemble.
4. Replace the canister lid (with the power cord facing
the opposite direction of the hose inlet) and connect
the latches.
6

ASSEMBLY (WITH GULPER OUTRIGGER)
Assemble the handle as per diagram shown.
1. Insert handrail into the frame of the trolley.
2. Assemble bolt and screw star grip knob
(M8) according.
3. The handrail is telescopic and can be adjusted in
accordance with user height. There are
3 different height options.
- Choose the handrail height required.
- Push down on the locking pins on the handrail
(both left and right sides) and slide the handrail
up or down.
- Ensure locking pins are engaged into the locking
holes on each side of the handrail.
4. For storage, the handrail can also be folded down
over the lid of the cleaner.
Part 1
11.
13.
15.
16.
14.
12.
18.
17.
11. Upper Extension Tube
12. Handle Grip
13. Protective Cover
14. Lower Extension Tube
15. Plastic Cap
16. Bolt
17. Star Knob
18. Fixed Tube
1. Insert the bend tube pre-assembly into the hose inlet
on the cleaner.
Part 2
7
PULLMAN 20L WET & DRY VACUUM WITH OUTRIGGER WD20LSSO

2. Install the fixed support pre-assembly onto the
cleaner and connect the bend tube assembly.
3. Insert the Gulper Floor Tool into the
Outrigger Assembly.
4. Turn locker to the left to secure the Gulper
Floor Tool.
5. Once assembled as per diagram, start the cleaner
by pressing the On/Off switch.
ASSEMBLY (WITH GULPER OUTRIGGER)
Part 2 (Continued)
8

ASSEMBLY (CONTINUED)
Cable Restraint
IMPORTANT – ENSURE EXTENSION CORD IS FITTED TO THE RESTRAINT CORRECTLY
AND THAT THE RESTRAINT IS FITTED TO THE TROLLEY PROPERLY.
1. Connect extension cord to the cable on
the machine. Make a loop at 40cm on the
extension cord.
2. Feed loop up through cable restraint opening.
3. Place extension cord over top of hook.
Pull down on cord to lock on hook.
4. Pull down on the extension cord firmly to
ensure it does not slip.
9
PULLMAN 20L WET & DRY VACUUM WITH OUTRIGGER WD20LSSO

ASSEMBLY (WITH HOSE)
Part 1
1. Connect the 2-piece chrome tube together.
2. Connect the handle on the hose to the tube.
3. Connect the tube to the Gulper Floor Tool or
Wet Pick Up Floor Tool.
10

ASSEMBLY (WITH HOSE)

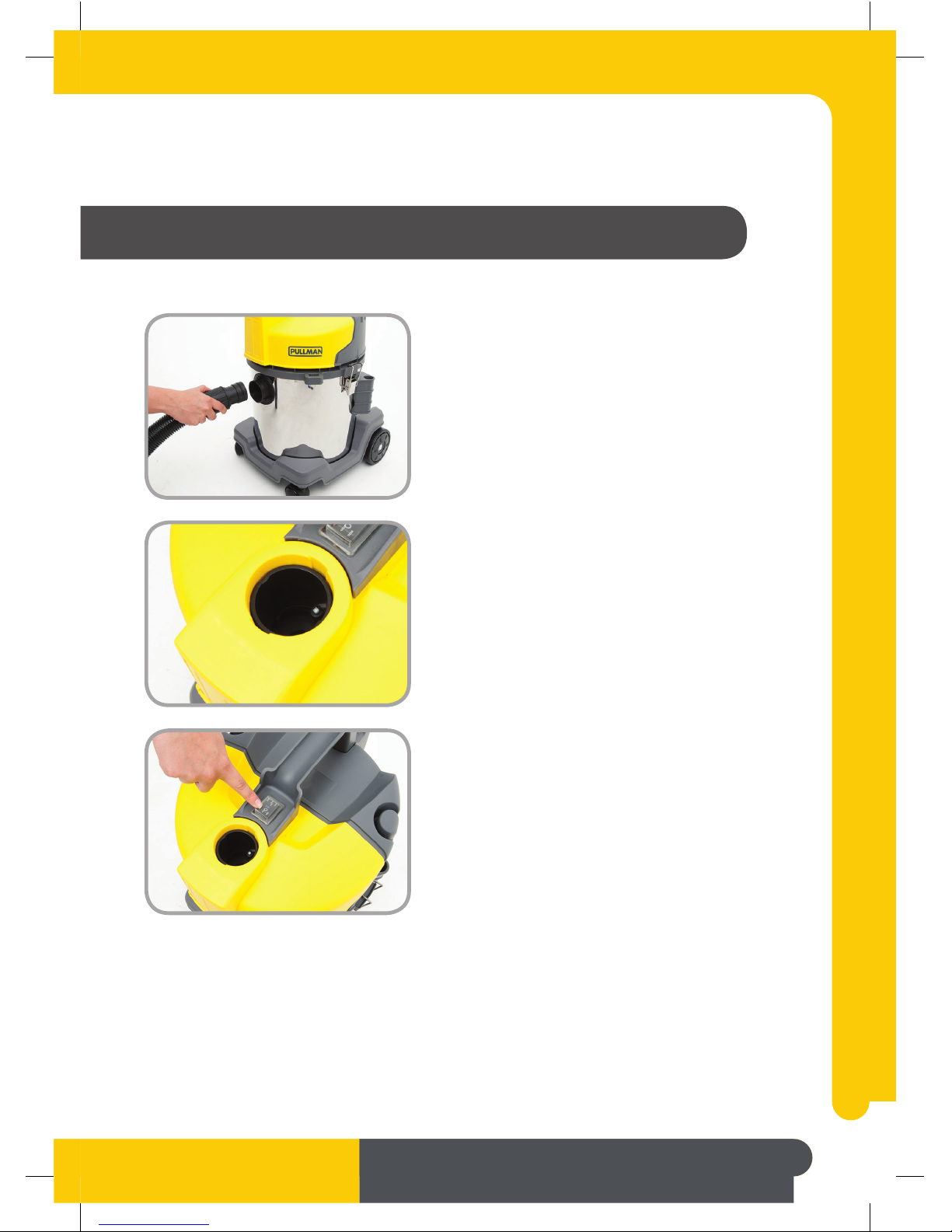

1. (a) For vacuuming, insert the hose end into the hose
inlet. Turn clockwise to lock the hose in place.
2. Start the cleaner by pressing the On/Off switch.
IMPORTANT! The On/Off switch is equipped with a water-proof cover. If the
water-proof cover is broken, please contact your nearest Pullman agent for
service/repair.
Part 2
(b) For blower function connect the hose end into
the blower port. Turn the hose clockwise to lock
the hose in place.
11
PULLMAN 20L WET & DRY VACUUM WITH OUTRIGGER WD20LSSO

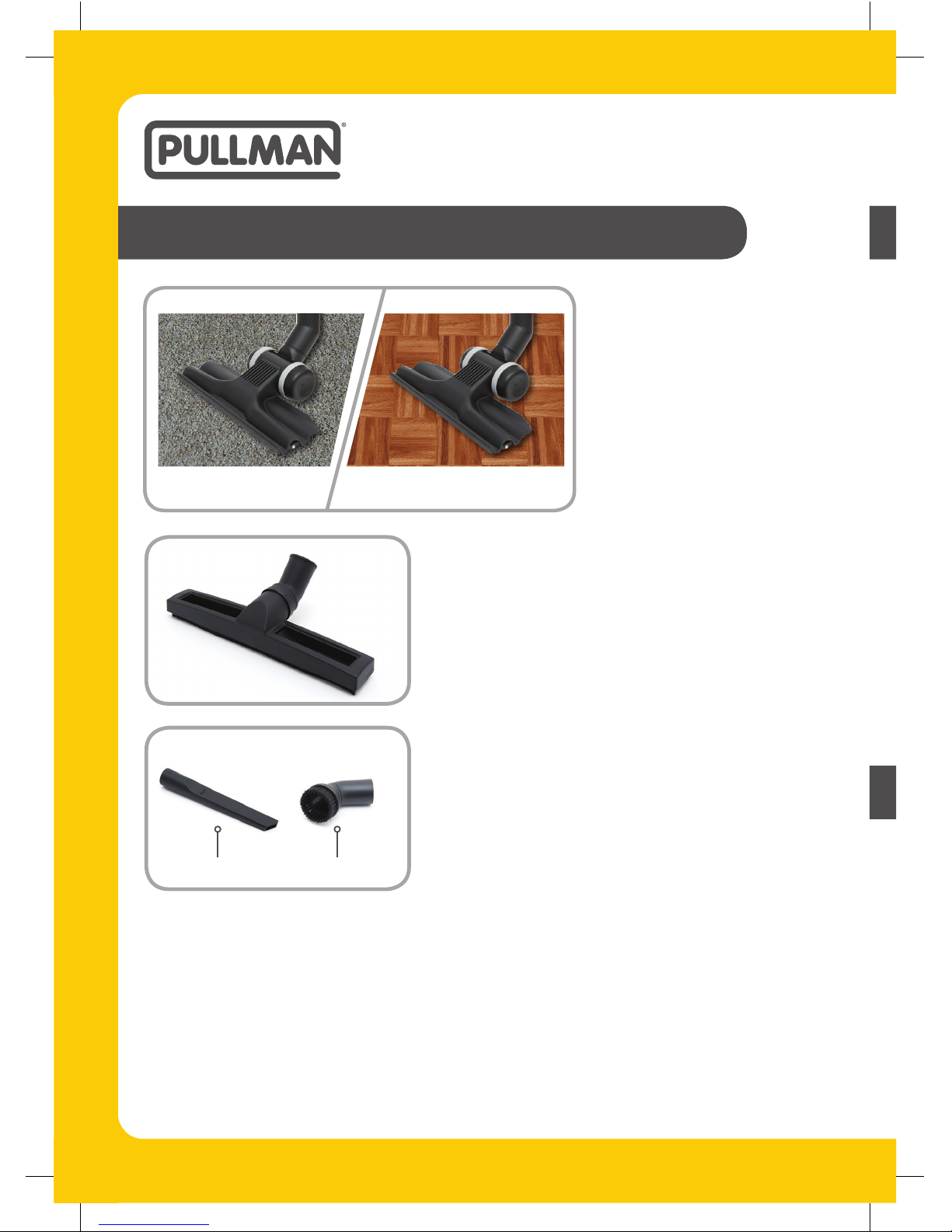

ACCESSORIES
The wet pick-up tool is ideal for
wet applications.
Crevice Tool Dusting Brush
The Gulper Floor Tool is ideal
for cleaning on carpets and
hard floors.
Fitting the dusting brush and crevice tool
To fit the accessories to the tube, gently insert the
tube into the top of the dusting brush or crevice tool.
Dusting Brush – ideal for cleaning furniture, curtains
and upholstery
Crevice Tool – ideal for cleaning in tight spaces
Carpet Hard Floors
12

MAINTENANCE
ATTENTION: DISCONNECT FROM MAINS POWER SUPPLY BEFORE DOING ANY
MAINTENANCE WORK. IF PROPER CARE IS TAKEN TO MAINTAIN YOUR CLEANER,
MOTOR MAINTENANCE IS UNNECESSARY. HOWEVER WE RECOMMEND THAT
YOUR CLEANER IS SERVICED ONCE A YEAR.
1. Remove the mesh from around the HEPA Filter.
OPERATION
1. Ensure the HEPA Filter and mesh is always fitted before the cleaner is used.
2. This cleaner can be used with or without a dust bag.
3. If using a dust bag please ensure it is fitted properly before use.
4. Once the dust bag is full we recommend a new dust bag be fitted.
Dry Vacuum Cleaning
Wet Vacuum Cleaning
1. Ensure the HEPA Filter and dust bag is removed before the cleaner is used.
2. Clean the tank after each use. Avoid leaving dust or dirty water in the tank.
3. Wipe the machine inside and out from time to time, using only luke warm water. Before use always
examine the power cable for cuts and/or damage. Follow Maintenance Instructions.
4. Wet pick up accessories should be washed periodically.
13
PULLMAN 20L WET & DRY VACUUM WITH OUTRIGGER WD20LSSO

MAINTENANCE (CONTINUED)
2. Twist the locking knob with an anti-
clockwise force
to remove the filter.
3. Wash and clean the HEPA Filter and mesh
carefully using luke warm water.
4. Dry by airing.
40°C
max
24hr
5. Place the filter and mesh back into the
cleaner. Twist the locking knob clockwise
to lock into position.

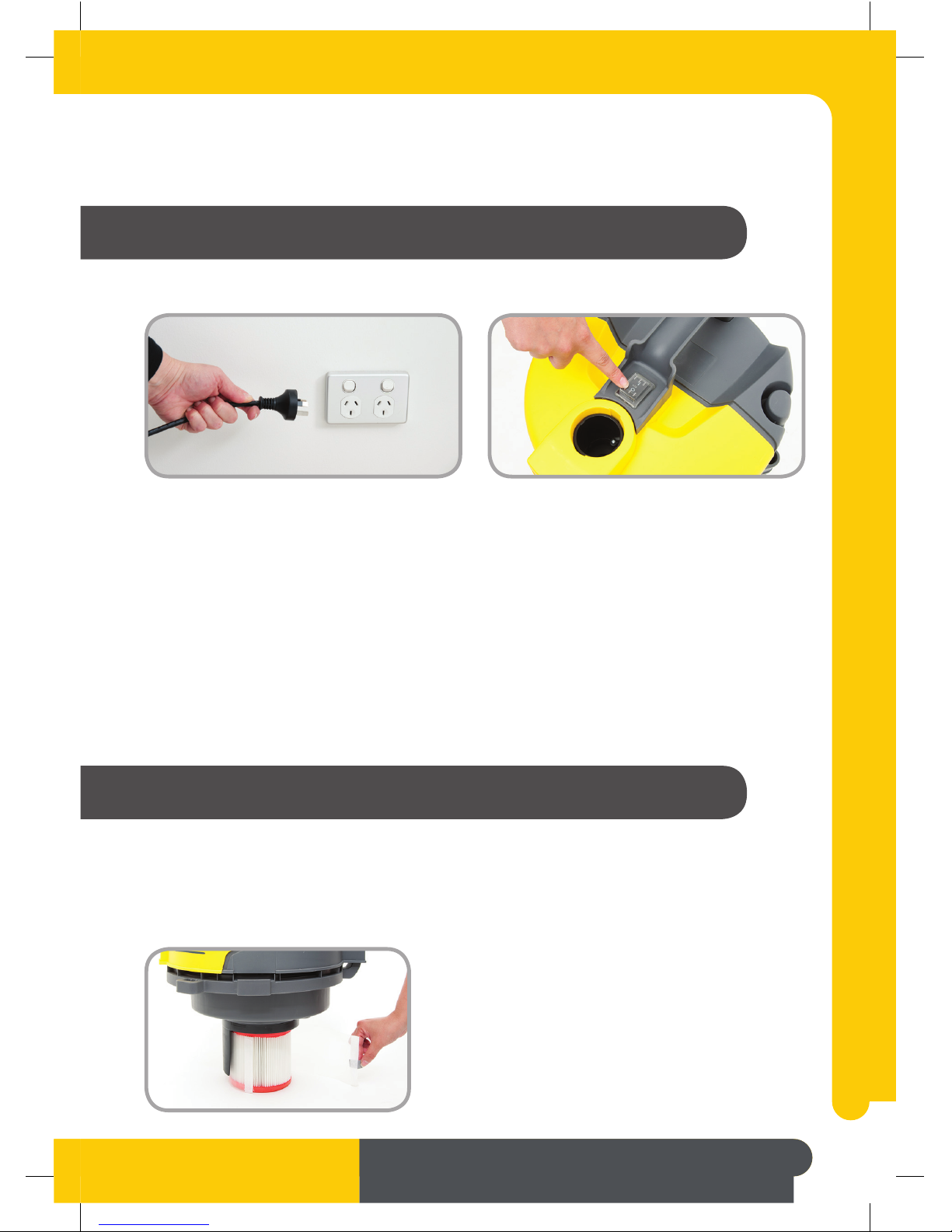

Cleaning the Tank
1. Disconnect the latches on the side of the cleaner and remove the canister lid.
2. Remove dust bag. Replace with a new bag if needed.
3. Empty the tank and clean inside of it thoroughly. Use luke warm water only.
14

TROUBLESHOOTING
CUSTOMER CARE
TROUBLE POSSIBLE CAUSE REMEDY
Suction weakens or
cleaner runs hot Clogged filter Brush dirt from filter. If condition continues, change filter.
Air Leak Check all fittings for tight fit (floor tool, hoses,
etc.). Check that tank cover is sealed properly.
Obstruction in hose or
floor tool Check floor tool, hose, etc. for obstructions,
and remove if present.
Misting in the exhaust air Saturated filter Remove saturated filter and the filter mesh.
For customer service or product enquiries please contact 1800 815 270
PRODUCT NUMBER PRODUCT DESCRIPTION
33151805 HEPA Filter
32200833 Dust Bag
32200842 Cloth Filter
31151795 Handle Assembly 20L
31151796 Outrigger Assembly
33151804 Tank 20L
33500397 Castor Wheel
33500396 Rear Wheel
15
PULLMAN 20L WET & DRY VACUUM WITH OUTRIGGER WD20LSSO

International Cleaning Solutions Pty. Ltd.
ACN 119 462 798
Level 1, Building 2, Brandon Business Park
530 Springvale Road, Glen Waverley, Victoria 3150
Pullman is a registered trademark.
Contact International Cleaning Solutions Pty. Ltd. for your
nearest authorised service centre on 1800 815 270.
[email protected]
V1 0913
Your Pullman cleaner has a
one year parts and labour
warranty against product
defects and failures when
the product is used in
accordance with the terms
and conditions of this
warranty statement.
The cleaner must be operated in accordance with
these instructions. This cleaner is not designed for
the collection of vitreous building material including
particle board, construction products and similar
products such as wood/fibres, cement, fillers,
fibre glass etc or excessive or frequent sand. The
infrequent pick-up of these materials in these
circumstances may be harmful to your cleaner and
may void the manufacturer’s warranty.
Accessories and consumables including dust bags
and filters, unless defective in manufacture, are not
subject to this warranty. In order to prolong the life
of accessories and consumables, regular care and
maintenance is recommended.
When properly used and cared for, your cleaner
will render excellent service; refer to the instruction
manual for further details, as misuse or failure to
follow the instructions makes this warranty void.
In the event of service or advice being needed,
please contact International Cleaning Solutions Pty
Ltd, ACN 119 462 798, Level 1, Building 2 Brandon
Business Park, 530 Springvale Rd, Glen Waverley,
VIC 3150. Customer Care: 1800 815 270.
The decision to repair or replace the cleaner is at the
sole discretion of International Cleaning Solutions
Pty Ltd. If International Cleaning Solutions Pty Ltd
decide to repair or replace the cleaner, it will do so
at its own cost.
International Cleaning Solutions Pty Ltd is unable
to accept responsibility under this warranty for
any repair work not carried out by an authorised
International Cleaning Solutions Service Agent or
from the use of non-genuine parts. If any part is
no longer available or manufactured, International
Cleaning Solutions will replace it with a genuine
functional replacement part. This warranty does
not apply to the cost of replacing any parts of the
product due to normal wear and tear, alterations,
improper installation, physical abuse, misuse or
accidental damage. Any transportation costs
involved in the repair of defective parts shall be
borne by the claimant.
If proof of purchase cannot be provided at the time
of a warranty claim or service, any work carried
out on the cleaner is chargeable. The repair or
replacement of the cleaner under this warranty
does not extend the original period of warranty.
The benefits conferred by this warranty are
in addition to all other rights and remedies in
respect of the product as outlined under the
Competition and Consumer Act and other State
and Territory laws.
“Our goods come with guarantees that cannot
be excluded in the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.”
Conditions of warranty
