Pulsar APS-V User manual

APS-V Battery Charger
Manual

Content
Description
Package Contents
Battery Charging
Precautions
Recommendations for Use
Specifications
Legal Compliances and Disclaimers

Description
APS-V charger is designed to charge APS 5/3/2 rechargeable batteries used with Pulsar
devices and supports USB Power Delivery fast charging technology for APS 5 batteries using
a standard charging kit (USB Type-C cable, power adapter).

Package Contents
APS-V charger
Power adapter
USB Type-C Cable
Operating Manual

Battery Charging

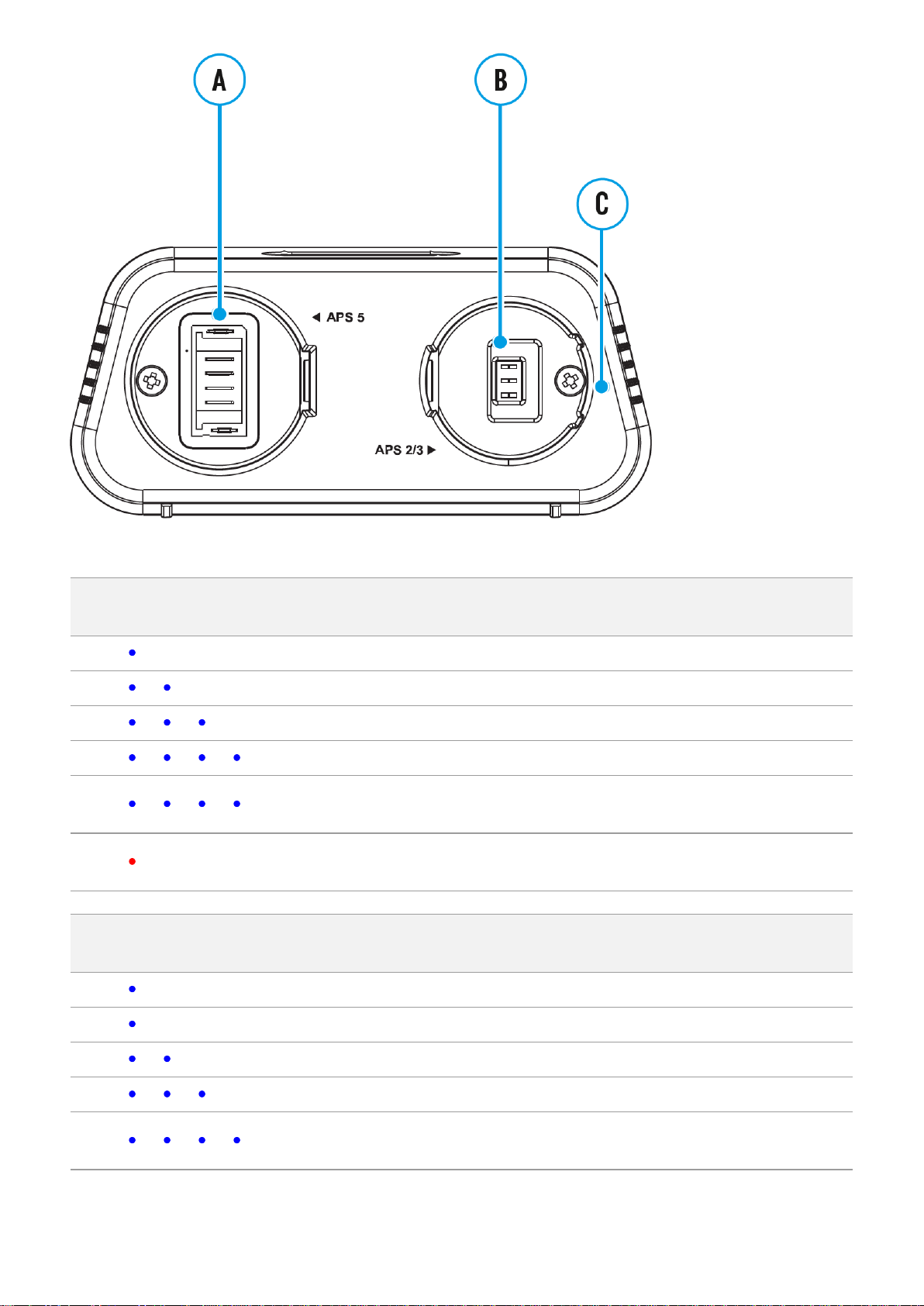

1. Insert the battery* (1) along the guide to the stop into the APS-V charger slot (4) (see.
Fig.).
2. Connect the plug of the USB Type-C cable (7) to the USB Type-C connector of the
power adapter (3).
3. Connect the other end of the USB Type-C cable to the USB Type-C connector (5) of the
charger (4).
4. Plug the power adapter (3) into a socket 100-240 V (6) (110 V socket for US).
5. LED indication (2) displays battery charging level (see Table).
6. Two batteries can be charged at the same time. Slot Ais for APS 5 batteries. Slot Bis
for APS 3 and APS 2 batteries.

LED indication (2) in the battery
charging mode Battery Level
Battery level is from 0% to 25%
Battery level is from 26% to 50%
Battery level is from 51% to 80%
Battery level is from 81% to 99%
The battery is fully charged. It can be
disconnected from the charger.
Defective battery. It is forbidden to use
the battery.
LED indication (2) in the standby
mode** Battery Level
Battery level is from 0% to 25%
Battery level is from 26% to 50%
Battery level is from 51% to 80%
Battery level is from 81% to 99%
The battery is fully charged. It can be
disconnected from the charger.

Defective battery. It is forbidden to use
the battery.
* Purchased separately or supplied as package contents of a device.
** Standby mode – an operating mode in which batteries are inserted into the charger, but the
power adapter is not connected. In this mode, the indication is on for 10 seconds.
Attention!When charging an APS 5 battery with a power adapter that does not support USB
fast charging technology, the charge time increases and it is indicated by a slow flashing LED
light.
Attention! The charger heats up during fast charging. Excess heat is removed through the
radiator and does not affect the device operation.

Precautions
Always use this charger or APS 5 charger (for APS 5) or APS charger (for APS 3 and
APS 2) supplied with the device to charge APS 5/3/2 batteries. Using the unsuitable
charger can cause irreparable damage to the battery and fire.
Do not charge the battery immediately after brining it from cold to warm. Wait at least 30
minutes for the battery to warm up.
Do not leave the battery unattended while charging.
Do not use the charger if it has been modified or damaged.
Do not leave the battery in a charger connected to the network after charging is complete.
Do not expose the battery and charger to high temperatures and naked flame.
Do not disassemble or deform the battery or charger.
Do not drop and strike the battery and charger.
The charger is not designed to be immersed in water.
Keep the charger out of the reach of children.

Recommendations for Use
The battery is to be charged at an ambient temperature of 0 °C...+35 °C (+32 °F…+95
°F). Otherwise, lifespan of the battery will decrease significantly.
Do not use the charger at temperatures outside the range of 0 °C...+35 °? (+32 °F…+95
°F).

Specifications
APS-V
SKU 79186
Power adapter input voltage 100-240 V ? (110 V for US)
Power adapter output voltage and
current 5 V ? 2 A / 9 V ? 3 A
APS-V charger input voltage and
current 5 V ? 2 A / 9 V ? 3 A (Slot A)
Rated output voltage 4.2 V ?
Battery compatibility APS 5/3/2
Charging temperature range 0 °?...+35 °? (+32 °F…+95 °F)
Dimensions 77x52x37 (3 x 2.05 x 1.46 inches)
Weight 0.13 kg (4.59 oz)

Legal Compliances and
Disclaimers
Improvements may be made to the design and software of this product to enhance its user
features.
