Pulsar 78199 User manual

Forward FN455S
Manual

Content
Specifications
Description
Package Contents
Features
Components and Controls
Button Operation
Using the Battery Pack
Battery Charging
Battery Installation
Safety Measures
External Power Supply
Operation
Operating Features
Installing Digital Module on the Optical Device
Installing Pulsar 5x30 Monocular on to the Digital Module
Powering on and Image Setting
IR Illuminator
Installing the IR Illuminator
Removing the IR Illuminator
Status Bar
Quick Menu Functions
Main Menu Functions
Enter the Main Menu
Icon Brightness
Microphone
Wi-Fi Settings
General Settings
Auto Shutdown
Device Information
Bluetooth
Video Recording and Photography
Wi-Fi Function

Display-Off Function
SumLight™ Function
Wireless Remote Control
Descriptions of Controls
Remote Control Activation
Using the Weaver Rail
Stream Vision 2
Firmware Update
USB Connection
Technical Inspection
Technical Maintenance and Storage
Troubleshooting
Legal Compliances and Disclaimers

Specifications
FN455S
Model FN455S
SKU 78199
Optical Characteristics 
Lens focus, mm 50
Relative aperture, D/f 1:1
Field-of-view (Horizontal), ° 6.3
Field-of-view (Horizontal), m
per 100 m 11
Detection Range (animal
height 1.7 m), m/y 500/546.8
Minimum Focusing Distance,
m/y 5
Recommended daylight optics
magnification, x 2-8
Electronic Specifications 
Sensor type / resolution CMOS HD 1280X720
Display type / resolution AMOLED 1746x1000
Detachable IR Illuminator 
Type / wavelength, nm LED 940
Operational Characteristics 
Power Supply, V 3.1-4.2
Battery type / Capacity / Rated
Output Voltage Li-Ion Battery Pack IPS7 / 6400 mAh / DC 3.7 V

External Power Supply Micro USB type B (5V)
Max. Battery Pack Life at t =
22 °C (Wi-Fi off, IR off), Hour 9
Degree of protection IP code
(IEC60529) IPX7
Operating temperature, °C -25 - +50
Overall Dimensions (with
battery and monocular),
mm/inch 273х136х77 / 10.75x5.35x3.03
Weight (with battery and
monocular), kg/oz 1 / 35.3
Video Recorder 
Video/Photo Format .mp4 / .jpg
Built-in Memory 16 GB
Wi-Fi Channel* 
Frequency 2.4 GHz
Standard 802.11 b/g
*Reception range may vary depending on various factors: the presence of
obstacles, other Wi-Fi networks.

Description
The Forward FN455S digital night vision device is designed for various
areas of application, including hunting surveillance, security activities, night
photography and video recording.
The digital module included in the Forward FN455S package can be
mounted on lenses of various daytime optical instruments using special
adapters, enabling them to be used for night-time observation.
To get started, see the sections:
Battery Charging
Battery Installation
Installing Digital Module on the Optical Device
Installing Pulsar 5x30 Monocular on to the Digital Module
Powering on and Image Setting

Package Contents
Digital module
Pulsar 5x30 Monocular
Carrying Case
Wireless Remote Control
IPS7 Battery Pack
Battery Pack Charger
Power Adapter
USB Cable
Quick Start Guide
Lens-Cleaning Cloth
Warranty Card
Neck strap

Features
1280X720 HD sensor
Enhanced night-time sensitivity
Simple transformation of a daytime optical device into night device.
Preserves the benefits of daytime optics in night-time conditions
Comfortable use in a wide range of daytime optical magnifications
Invisible long-range IR Illuminator
SumLight™ enhanced sensitivity firmware
Detection distance of up to 500m
Instant power up
Built-in video
Power from quick-release, high-capacity B-pack rechargeable batteries
Four-point mounting system with automatic clamp
Wireless remote control
Wi-Fi integration with iOS and Android devices
Remote firmware updates
Fully waterproof (IPX7)
Extreme operating temperature range (-25 °C – +50 °C / -13 °F – +122
°F)
MicroUSB Power Bank charging
Storing photos and videos in Cloud when using the Stream Vision 2 App

Components and Controls


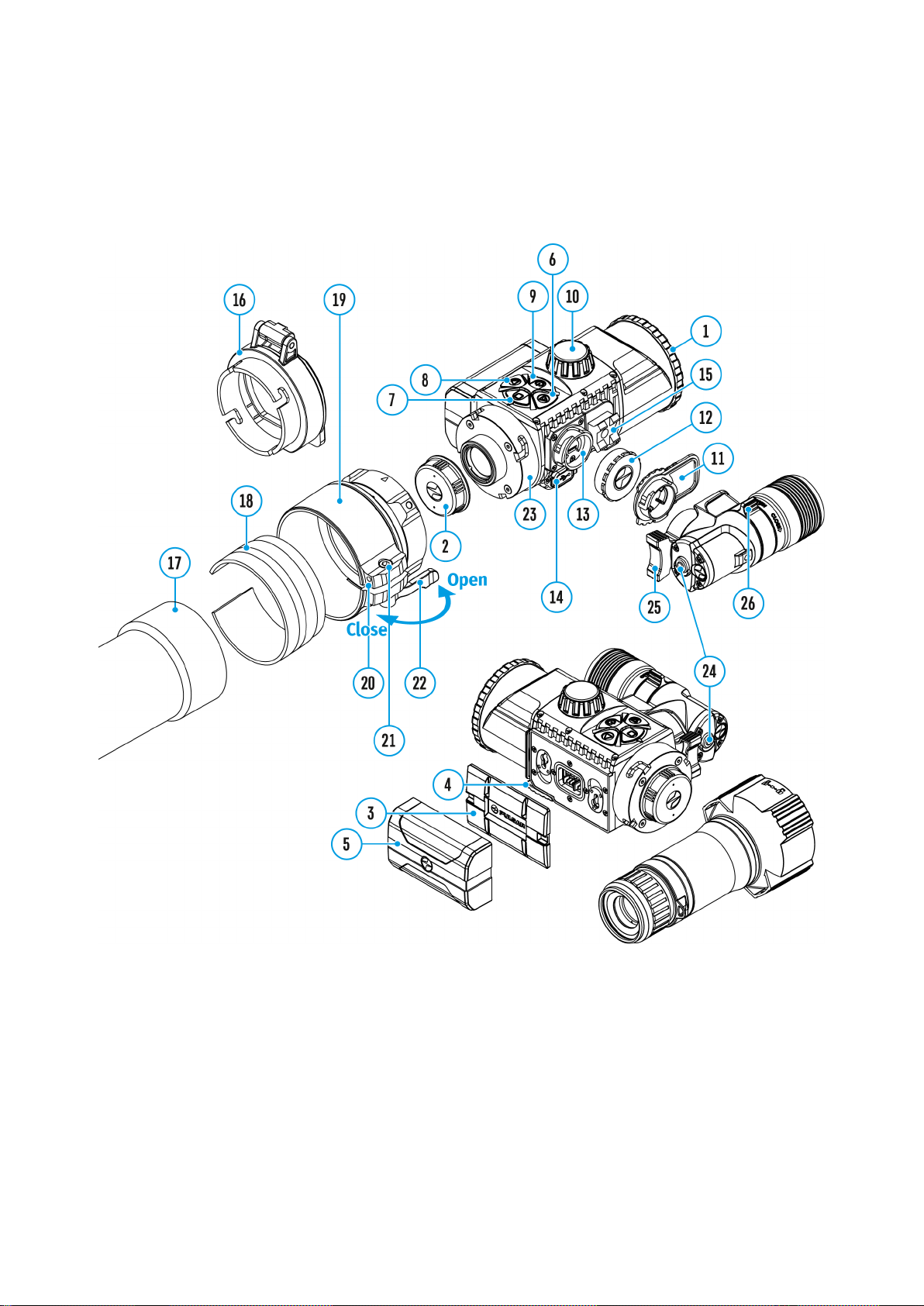

1. Lens cover
2. Eyepiece cover
3. Battery compartment cover
4. Battery locking lever
5. Battery pack
6. RIGHT button

7. M (MENU) button
8. LEFT button
9. ON/OFF button
10. Lens focus knob
11. IR illuminator cover
12. IR illuminator connector cap
13. Connector for installing IR illuminator
14. MicroUSB port
15. Weaver rail
16. Adapter cover*
17. Optical device lens
18. Insert*
19. Adapter*
20. Tightening screw*
21. Screw*
22. Adapter lever*
23. Mounting area
24. IR button
25. IR illuminator arm
26. IR illuminator lens lock knob
*Items of Cover Ring Adapter FN (available separately)

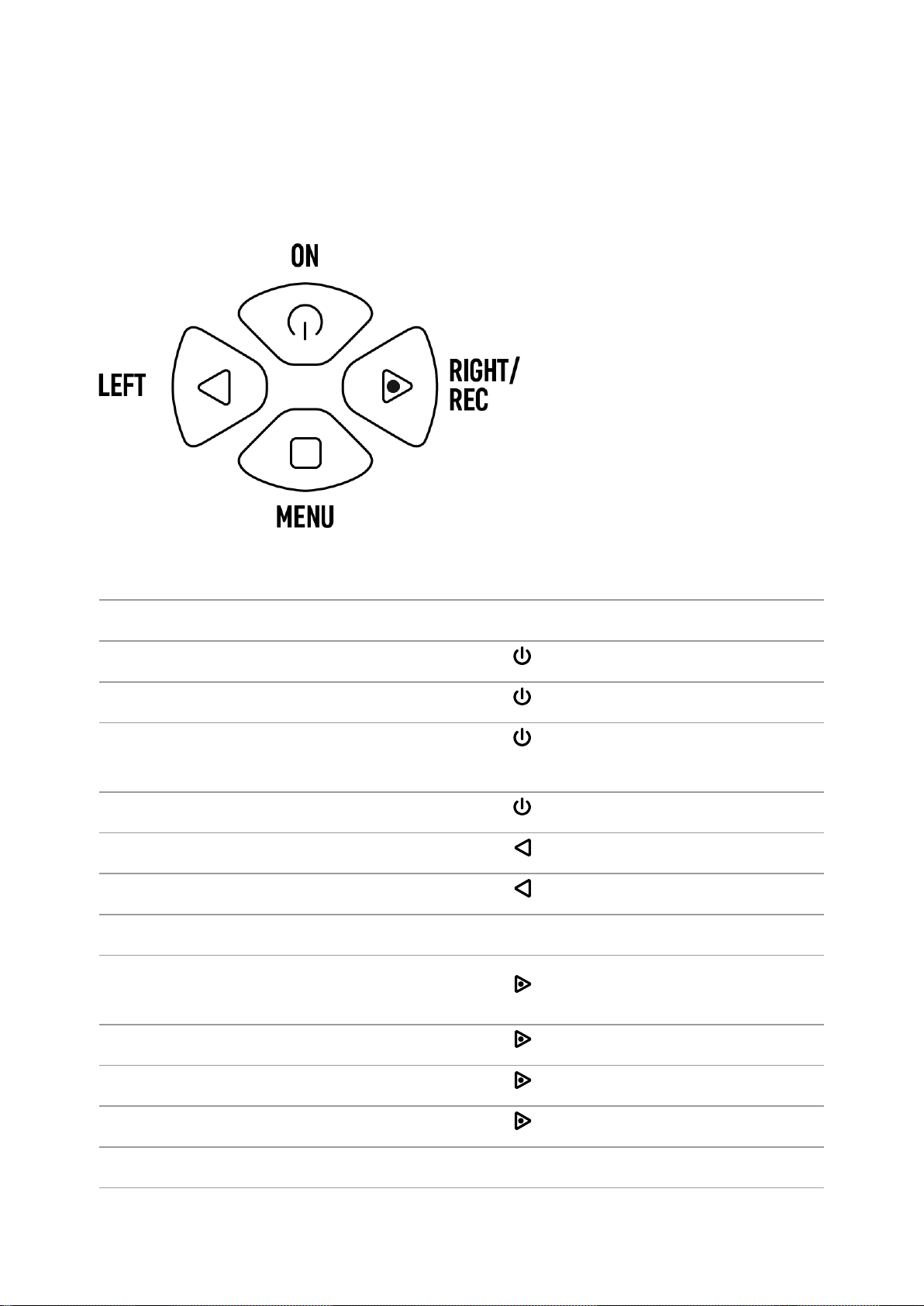

Button Operation

Operation Button
Power device on short press
Power device off long press for 3 secs
Turn display off long press for less than 3
secs
Turn display on short press
Turn on/off SumLight™ short press
Turn on/off Wi-Fi long press
VideoRecorder Button
Start/pause/resume video
recording short press
Stop video recording long press
Switch to video/photo mode long press
Capture Photo short press
Main Menu Button

Enter main menu long press
Navigation
downwards/counterclockwise short press
Navigation upwards/clockwise short press
Confirm value short press
Exit submenu without
confirming selection long press
Exit main menu long press
Quick Menu Button
Enter quick menu short press
Switch between quick menu
options short press
Increase value short press
Reduce value short press
Exit quick menu long press

Battery Charging
The device is supplied with a rechargeable IPS7 Lithium-ion Battery Pack
which allows the attachment to be used for up to 9 hours. Charge the
battery before first use.

Charging
Step 1. Install the battery into the charger
1. Raise the lever(27) of the charger.
2. Install the Battery Pack (5) into the charger.
3. Click the lever (27).

Step 2. Сheck the current battery level
Upon installation, a green LED indicator (28) on the charger will start to
glow and begin flashing:
- once if the battery charge ranges from 0% to 50%.
- twice if the battery charge ranges from 51% to 75%.
- three times if the battery charge ranges from 76% to 100%.
When the indicator is continuously green, the battery is fully charged.
Disconnect the charger from the mains and disconnect the battery from
the charger.
If the battery charger indicator is constantly red when the battery is
inserted, the charge level is probably below the permissible level (the
battery has been in a discharged state for a long period of time). Leave
the battery in the charger for a long period of time (up to several hours),
then remove and reinsert.
If the indicator begins to flash green, the battery is good.
If it continues to show red, the battery is defective. Do not use this
battery!
The LED indicator (28) will display the battery charge status:
LED Indicator (28) Battery Charge Status
Battery is empty
Image not found or type unknown Battery is full
Step 3. Сonnect the charger to the mains supply
1. Attach the microUSB plug of the USB cable(30) to the microUSB
connector (29) on the charger.
2. Connect the USB plug on the cable(30) to the power adapter (31).
3. Plug the power adapter(31) into a 100-240V (32) socket.
4. When the indicator (28) is continuously green, the battery is fully
charged. Disconnect the charger from the mains.

Battery Installation


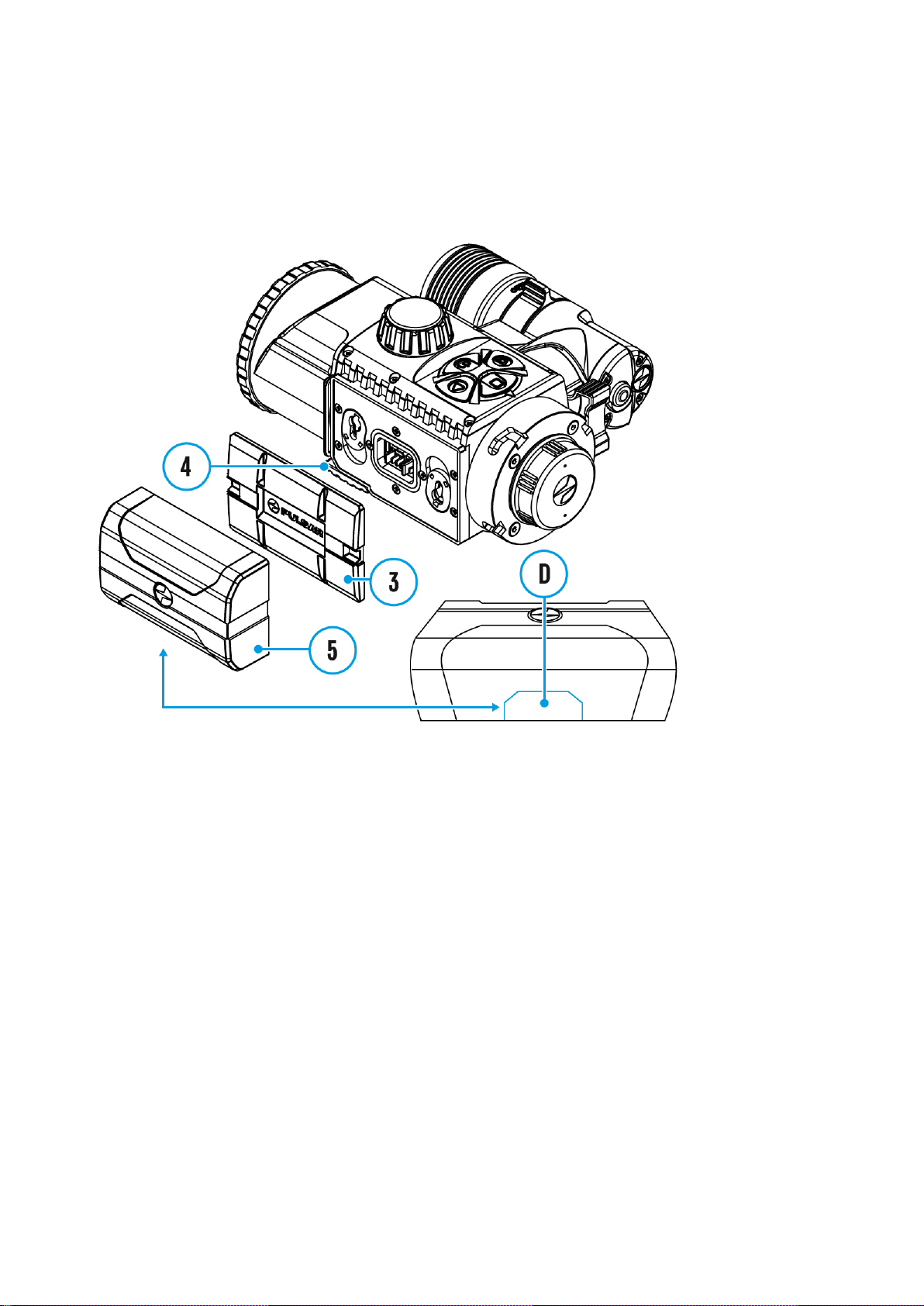

1. Lower the lever (4).
2. Remove the protective cover of the battery compartment (3).
3. Insert the battery(5) into the slot designed for it on the device body so
that the element (D) is pointing downwards.
4. Lock the battery in place by raising the lever (4).

Safety Measures
Do not use the charger if it has been modified or damaged.
Do not leave a battery unattended during charging.
Do not leave the battery in a charger connected to the mains after
charging is complete.
The battery should be charged at a temperature between 0° C and +45°
C, otherwise the battery life will be significantly reduced.
Do not charge the battery immediately after bringing it from the cold
into a warm atmosphere. Wait 30–40 minutes for the battery to warm up.
Do not expose the battery to high temperatures or naked flame.
Do not submerge the battery in water.
The connecting of third-party devices with an energy consumption
greater than permissible is not recommended.
The battery is equipped with a short circuit protection system. However,
situations that may lead to short circuiting should be avoided.
Do not dismantle or deform the Battery Pack.
Do not subject the Battery Pack to shocks or falls.
When using the battery at negative temperatures, battery's capacity
decreases, this is normal and is not a defect.
The batteries should be partially charged (50 to 80 %) for long-term
storage.
Store the battery out of the reach of children.

External Power Supply
Show device diagram
External power is supplied from an external source, such as a 5V Power
Bank.
1. Attach the external power source to the USB connector(14) on the
device.
2. The device will switch to operation from the external power supply,
while the IPS7 battery will be gradually recharged.

3. A battery icon will appear on the display showing charge level as a
percentage.
4. If the device is connected to a computer, network adapter or power
bank that does not conform to the BC1.0 battery charger standard, an
IPS7 battery will not begin charging: the external power icon only will
be displayed .
5. If the device is operated from an external power source and the IPS7
battery is not connected, an icon is displayed .
6. Once the external power source is disconnected, the adapter will begin
functioning on battery power.
Attention! Charging Power Bank IPS7 batteries at air temperatures below 0
°C can result in reduced battery life. When using external power, connect
Power Bank to the switched-on device, which have worked for several
minutes.

Operating Features
The Forward FN455S device is designed for long-term use. Please follow
these guidelines to ensure long life and maximum performance:
Before using the attachment make sure you mount it according to the
instructions in the Installing Digital Module on the Optical Device
and Installing Pulsar 5x30 Monocular on to the Digital Module
sections.
Power off the device after use.
Do not repair or dismantle an attachment under guarantee by yourself!
The device can be used over a wide range of temperatures. If the device
has been operated in the cold and brought into a warm room, do not
remove it from its carrying case for at least 2-3 hours; this will prevent
condensation forming on the external optical elements.
Inspect and maintain the device regularly to ensure trouble-free
operation and to avert and eliminate the cases of premature wear and
tear and failure of components.
