Pure-Pro super 380 User manual

Super 380
PRO
P
URE
DRINKING WATER SYSTEM
REVERSE OSMOSIS SYSTEM
19
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Type of product
Date of purchase
Name Tel
Address
Memo
01 Introduction of Super 380
02 What is Reverse Osmosis
03 Components& Selections
04 Cartridge filters
05 The parts of
07 Installation diagram
12 Change filters
13 Change RO membrane
14 Operation regulations
16 FAQ
17 Maintenance checking list
19 Memo
Super 380
06 Tubing connection diagram
USER'S MANUAL
Super 380 High Capacity Reverse Osmosis System
Super380

01
PURE-PRO REVERSE OSMOSIS SYSTEM
18
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Introduction of Super 380 Maintenance checking list

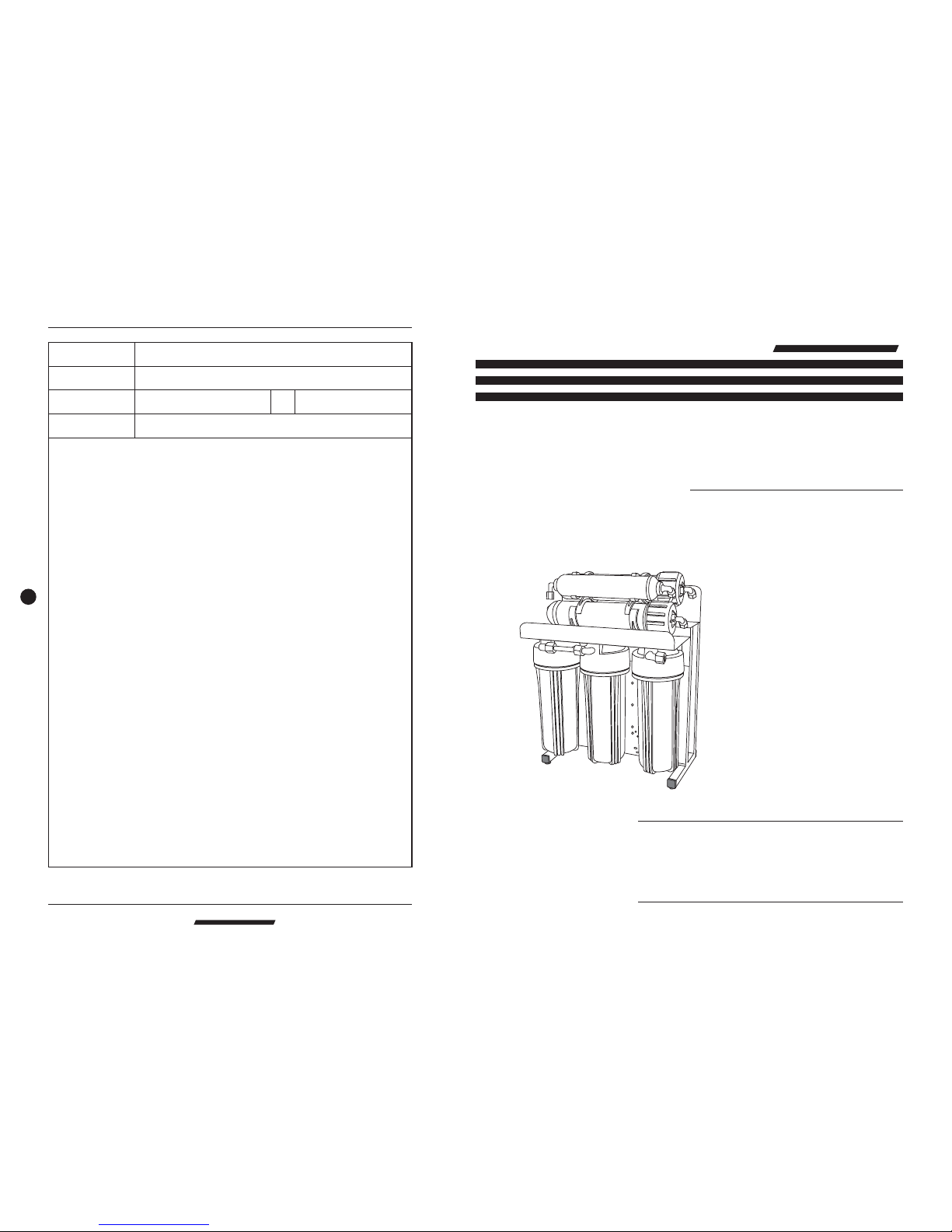

¨Super 380 - High Capacity Reverse Osmosis System
A high capacity, low cost system. Perfect for offices or small factory. Designed for
commercial and residential application. It is suitable for manufacturing,
restaurants, food processing industries, shopping centers, schools and hotels.
Provides high quality drinking water with capacity up to 380 gallons per day. Can
be installed under or next to kitchen sink. Designed for the direct flow, No tank
required, provides maximum output, while taking up minimum space.
System is equipped with High Flow Booster Pump for increased water production
capacity.
Production: 380gpd
Operation Pressure : 10 - 80 psi
Available in : 110 volt, 220volt, 240volt. ( 50 / 60 Hz)
Weight (System) : 18 kg
Dimensions: 38.0 (L) x 25.5 (W) x 46.0 (H) cm
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 6th stage Other items
5th stage
~
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System
¨Specifications
¨Features
200 Gallons Per Day Membrane (2 pcs)
High Flow Booster Pump
Direct flow for 380 Gallons Per Day / 1470 Liters Per Day
FDAApproved Polypropylene Made Flat Cap Housings.
Comes with attractive designer faucet
Build in electrical shut off valve to prevent any damage of the membrane.
All hardware included
Completely Assembled, 100% Factory Tested and Sterilized Ready for
Installation.

17
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 6th stage Other items
5th stage
~

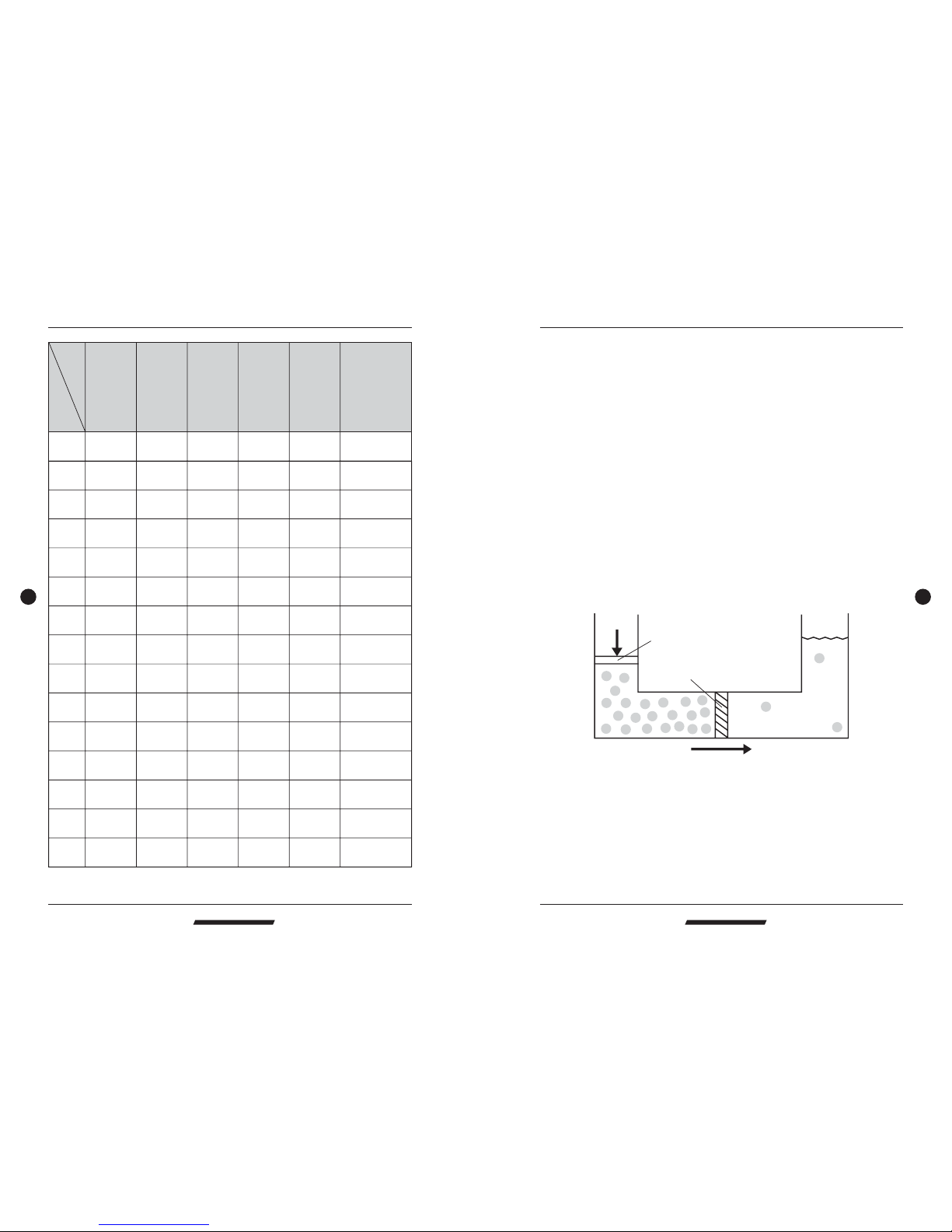

Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly it will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow is reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening out the salts and other contaminants.
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System

03
PURE-PRO REVERSE OSMOSIS SYSTEM
16
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
3/8 deliver-valve
Components & Selections
Long reach faucet
20G water storage tank
Housing wrench
half-circle
Feed water connector
7 meters tubing white
RO membrane x 2

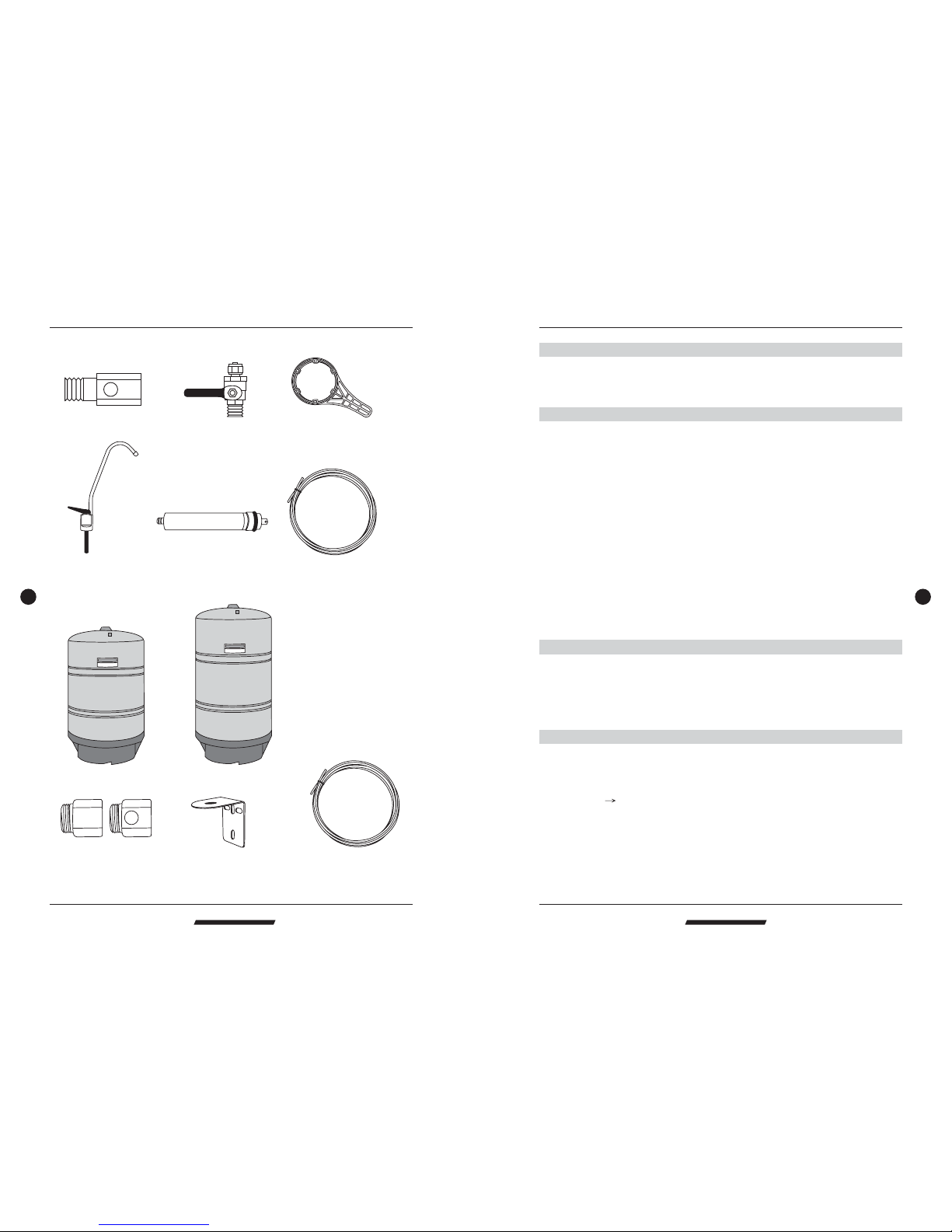

¨Components
¨Selections
6/8 hot &cold water
deliver-valve
standing faucet
bracket
3/8 extended RO
tubing white
Q: What is the guarantee on the PurePro system ?
Q: What factors affect the quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved Solids (TDS)
Membrane
Q:
Q:
The PurePro System (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
There are four major variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommended is 85 F.
3. -The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes RE1812-70 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
0 0
0
0
My RO system is not making any water. What should I do?
1.Make sure you plug in electricity.
2.Check the water supply. Make sure it's on.
3.Check if pumps work well.
If none of above occur, please contact a technician at the nearest shop for
assistance.
1.Switch off the water supply and turn on the faucet.
2.Check the water flow from the faucet. If water stop coming out, check the
water storage tank.
Water tank still has water: the tank water pressure is under regular water
pressure give pressure to the tank.
Why can't my water storage tank make enough water?
FAQ
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System
30G water storage tank

15
PURE-PRO REVERSE OSMOSIS SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
A.With everything connected, turn on the water check for leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on first time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink top faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOT USE FIRST TANK OF WATER.***
G.Close the sink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
1.Do not use hot water (over 45 C)!
2.Do not freeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drain out pure water.
0
Operation regulation
3 Months
1 Year
1 Year
Stage 1
Stage3
Stage 2
Stage 4~5
200GPD TFC
membrane 2 pcs
Stage 6
Post
Carbon Filters
Cartridge Filters Filter Description
3 Months
3 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particles and rusts.
This granular activated carbon filter is composed
of high-performance activated carbon that
removes free chlorine, odor, organic
contaminants, pesticides and chemicals that
contributed to taste and odor.
This block carbon filter is composed of high-
performance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals that contributed to taste and odor.
NSF approved. This post carbon filter is designed
to improve taste. It removes any residual
impurities and odors from the tank and provides a
finer conditioning of pure water.
Block
Carbon Filter
Service Life
Cartridge Filters
5 micron
Sediment Filter
Granular Activated
Carbon Filter
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System
200 Gallon Per Day Membranes are now
available in residential sizes. Designed to
perform in operating conditions similar to most
standard under-the-counter home RO units, the
TW30-1812-200 forms a tight fit in most standard
residential housings.

05
PURE-PRO REVERSE OSMOSIS SYSTEM
14
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM

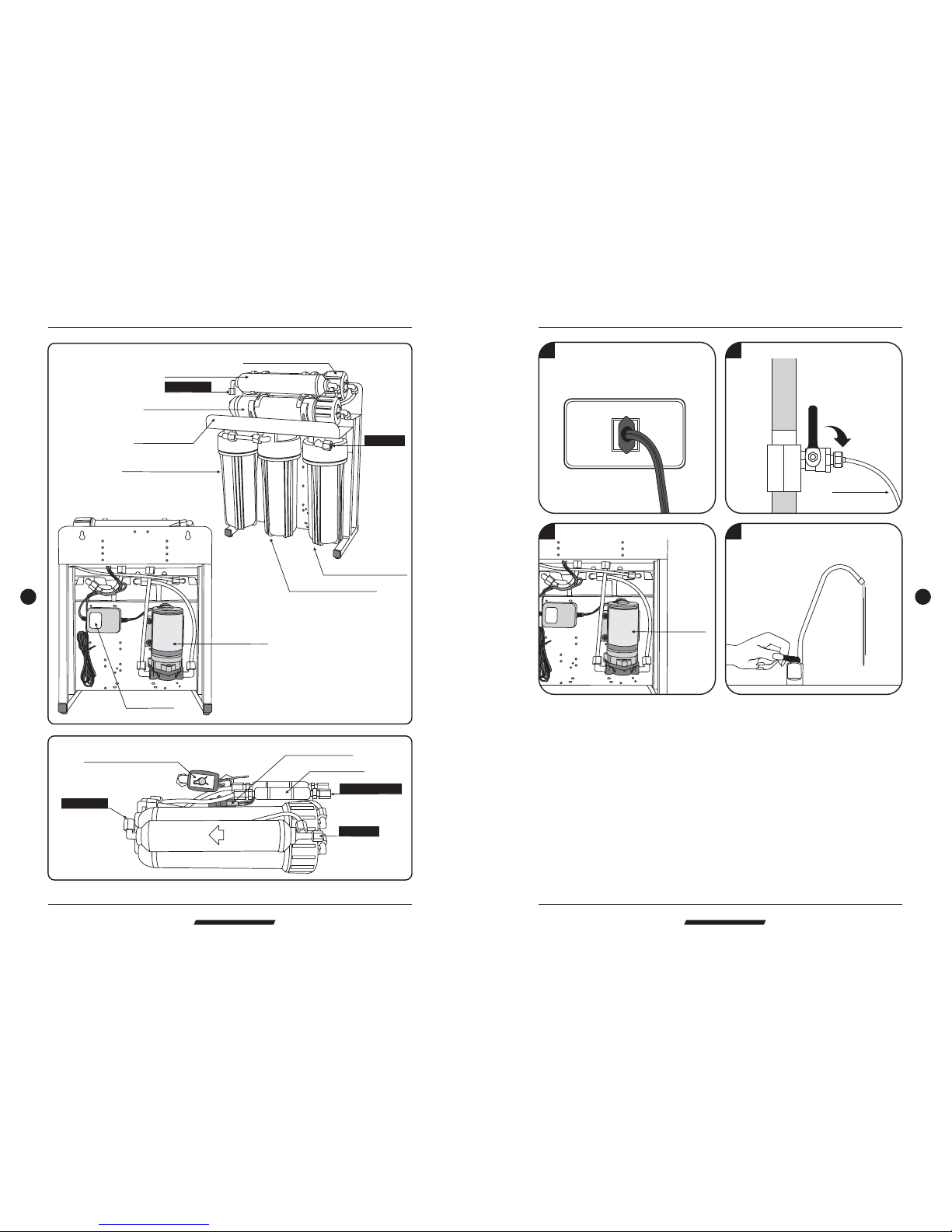

ThepartsofSuper380
3rd stage filter housing
Flow restrictor
Tank shut-off switch
To the faucet
To the tank
Operation regulation
4For the first time operation when
changing the filters, water should
run for at least 20 minutes before
drinking it.
1Plug in electricity.
3Pumps start to function.
booster
pump
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System
1st stage filter housing
2nd stage filter housing
RO membrane housing
Post carbon filter
Input water
To the faucet
RO system main
housing bracket
2Turn on water source.
To RO system
RO membrane housing
Booster pump
Transformer
To drain out tube
Electronic solenoid valve

To RO system
06
PURE-PRO REVERSE OSMOSIS SYSTEM
13
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
21
3
PRO
RE
NG WATE R SYSTEM
Jaco nuts
O
Change membrane
3Loose the Jaco fitting anti-clockwise. 4Open the RO membrane housing
anti-clockwise.
5Take out the old RO membrane with
a handy tool.
6Insert a new RO membrane.
1Unplug electricity.
Faucet Input water
Drain out
Tubing connection diagram
1
2
3
In
Drain out
To faucet
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System
2Turn off water source.

1.Loosen the fitting nuts and the cap from the RO membrane housing as shown in
the picture. Unpack the RO membrane and insert to its housing (rubber gasket
towards to the open end). When completed, tighten up the cap with the RO
membrane housing and the jaco fittings.
2.Turn off the water supply. Loosen the stainless steel pipe connector.
PRO
RE
NG WATER SYSTEM
3.Get feed water connector and connect it to the stainless steel pipe as in the
picture 2.
Jaco nuts
Cold
Installation diagram
PURE-PRO REVERSE OSMOSIS SYSTEM
07
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
To tankTo faucet
3Unplug electricity.
6Loose the fitting nuts at point 1,2,3.
Take out the jaco fittings, and seal
it up with the Teflon tape again.
Replace the new pre-filters.
4Open the housings clockwise.
7After changing filters, let water run
for about 15 minutes to clear the
filters.
Change filters

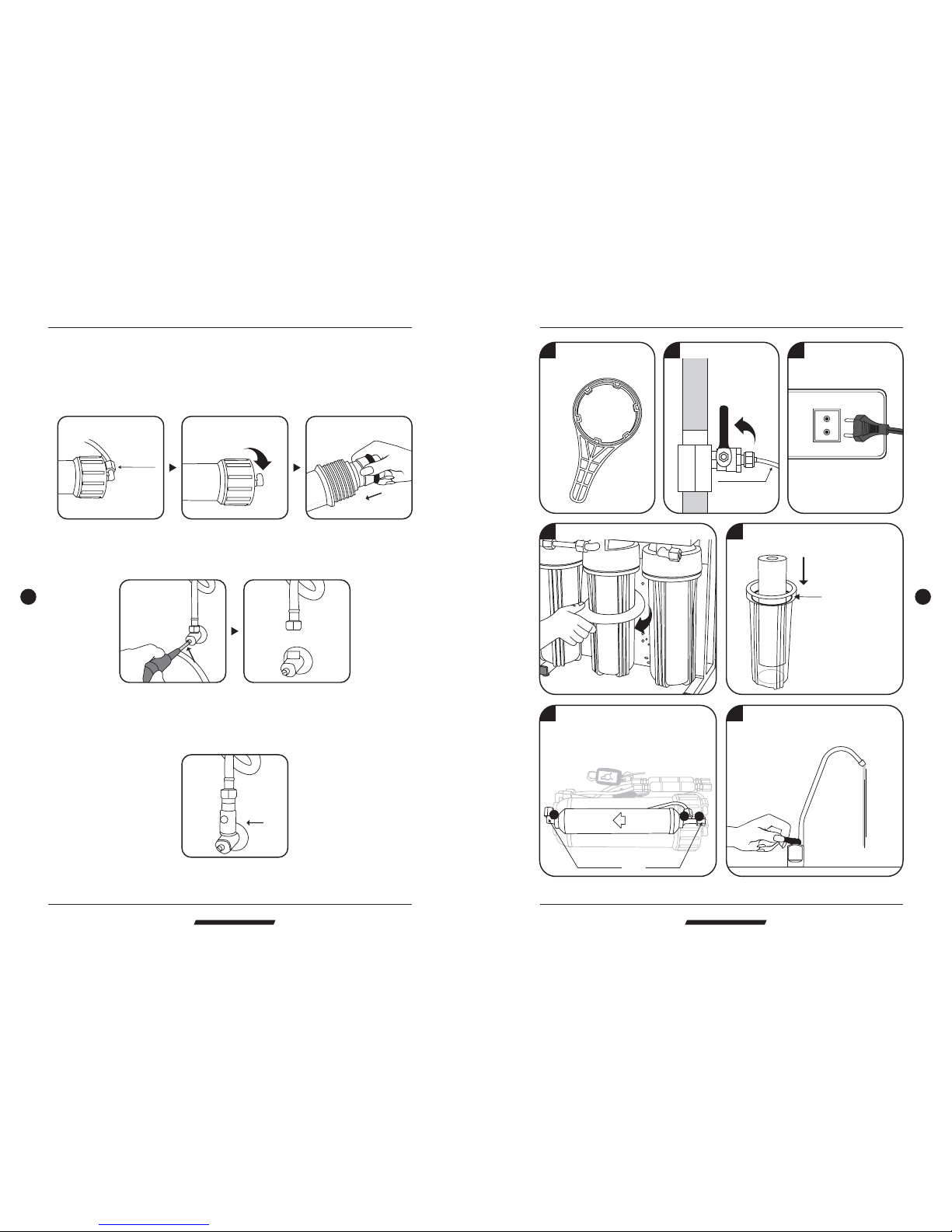

1Have a half-circle
housing wrench
ready.
12
3
12
PURE-PRO REVERSE OSMOSIS SYSTEM
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System
To RO system
2Turn off water source.
Be sure tighten with
O-ring to prevent
from leaking.
5Insert new filter.

PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
11 08
PURE-PRO REVERSE OSMOSIS SYSTEM
4.Get deliver valve and seal it with Teflon tape for 14 circles. Then connector it
with the feed water connector.
5.Get tubing white, connect it with deliver valve and the inlet water supply (as
point 1 on page 06)
Installation diagram
9.Take tubing white. Wear the concave type screw on tubing white and insert the
tubing shroud as shown in the picture. Connect the tubing top with the faucet
end. Then connect the tubing end to the last stage filter (as point 3 on page 06)
10.Make sure that you complete No. 1 to No. 9. If so, switch on water supply and
plug in electricity.
PS. Do not use drink water from the first made water in the tank.
Installation diagram
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System

PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
09 10
PURE-PRO REVERSE OSMOSIS SYSTEM
6.Take tubing white again, connect it with the drain out (as point 2 on page 06)
7.Use an electric drill and drill an approximately 1 cm hole through the
kitchenware table.
Installation diagram

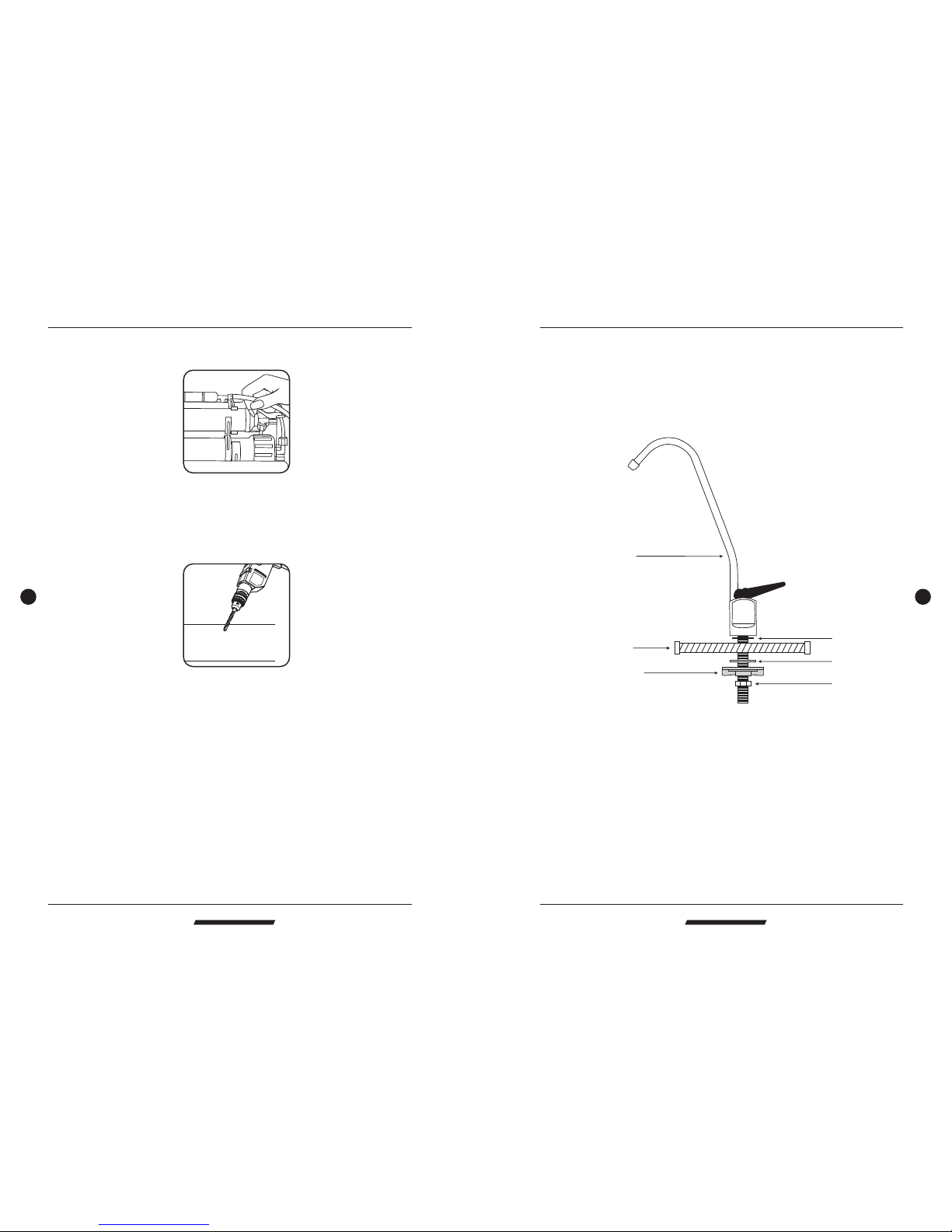

8.Take out the faucet and its components. Install the faucet and the rubber gasket
to the kitchenware table. Install the rest of component as shown in the picture.
Installation diagram
Faucet
Kitchenware table
Twisted plastic locker
Rubber gasket
Flat metal piece
Screw locker
PS. To suit your kitchenware table, you can choose to have twisted plastic locker
or screw locker to be installed for your faucet.
Super 380 High Capacity Reverse Osmosis System Super 380 High Capacity Reverse Osmosis System
