INSTRUCTION MANUAL

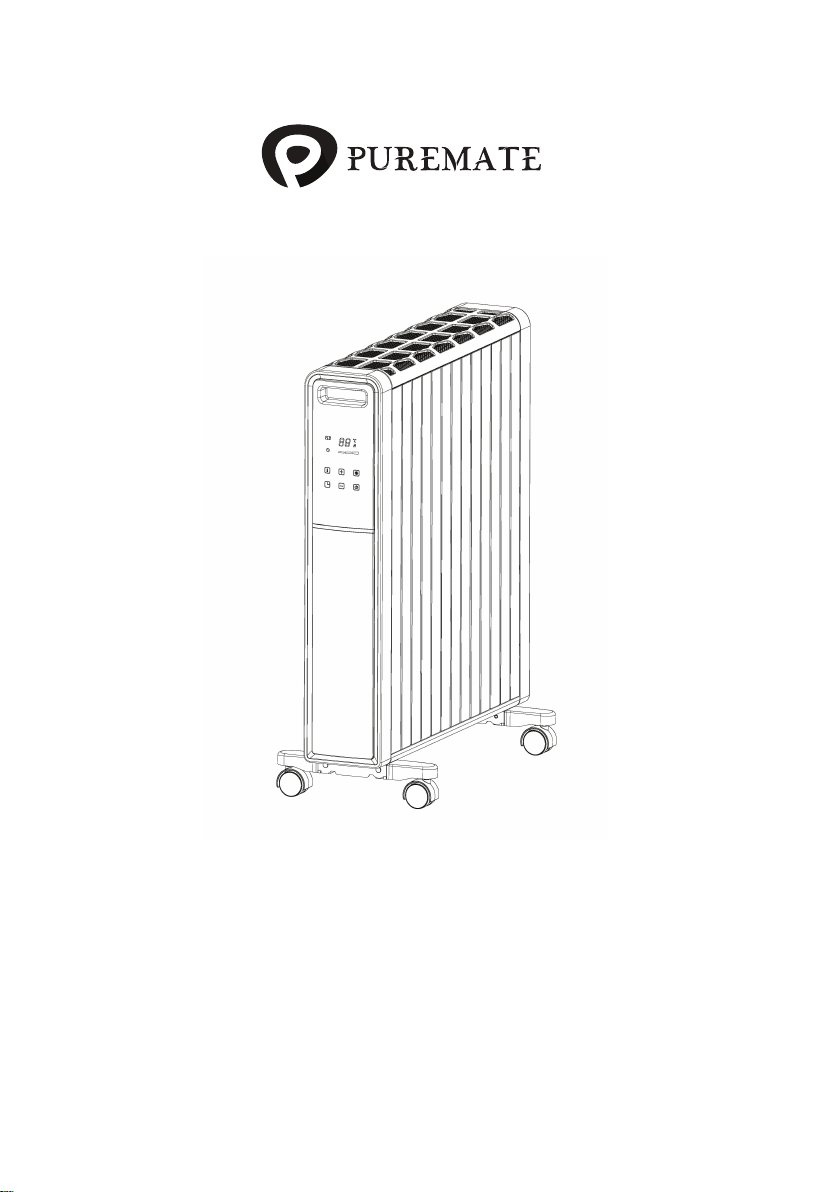

DIGITAL CONVECTION HEATER
Model NO: PM1530

English 1
WARNING: To avoid the risk of electrical shock, fire or injury to people, always
make sure the heater is unplugged from the electrical outlet before relocating,
servicing, or cleaning it.
- Never leave this unattended while in use. Always turn the heater off and unplug
when not in use.
- Do not use near water or expose the heater to water. - Keep the heater out of
reach of children and pets. Children should be supervised to ensure that they do
not play with the heater.
- Do not use the heater while sleeping or place it near a person who is sleeping.
- Do not place this heater near flammable materials, surfaces or substances. Keep
combustible materials, such as furniture, pillows, bedding, papers, clothes, and
curtains at least 3 feet (0.9m) from the heater.
- Use the heater in a well-ventilated area.
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Use gloves or oven mitts to avoid serious injury. Allow the heater to
thoroughly cool before handling.
- Never insert fingers or metal objects into the vents or openings of the heater.
- Never cover the heater. Do not use this heater to dry or heat clothes.
- Do not cover the power cord. Arrange the cord where it will not be a trip hazard.
- To avoid a circuit overload when using this heater, do not operate another
highwattage heater on the same electrical circuit.
- The heater should not be used in a room of which the floor area is less than 5 m².
- Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons.
- Allow the heater to completely cool before handling or cleaning it.
- Ensure the heater is in the "0" OFF position and the power cord is unplugged
from the electrical outlet before cleaning the heater.
- Do not allow water or other liquids to run into the interior of the heater, as this
could create a fire and/or electrical hazard.
- Do not use any abrasive cleaners or solvents, as heater damage will occur.
SAFETY INSTRUCTIONS
This product is only suitable for well insulated spaces or occasional use.

English 2
- This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
- If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
- The heater must not be located immediately below a socket-outlet.
- CAUTION – if using an extension lead please ensure you do not exceed
the maximum rated running wattage/load of the extension lead.
CAUTION: This heater is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. Use gloves or oven mitts to avoid serious injury. Allow the
heater to thoroughly cool before handling.
WARNING: To avoid overheating never cover the heater. Do not use this heater
to dry or heat clothes.
TIP-OVER PROTECTION
OVERHEAT PROTECTION
This heater is protected with a safety switch that turns off the appliance auto-
matically when the heater falls over, or is at an excessive angle from the
horizontal. This helps prevent accidents, and the heater will resume operation
when it is put back upright.
This heater is protected with overheat protection that switches off the appliance
automatically in case of severe overheating. In this case, unplug the appliance,
wait about 30 minutes for it to cool and remove any possible cause of overheat-
ing, eg. something covering the heater. Check for damage to the appliance, the
cord and the plug. If there is no damage, plug the unit back in and switch it on
as described above. If the heater still does not turn on, please contact
Customer Service for assistance.
Note: When the product start heating, stop heating, or change power,
there will be click sound because of the expansion and contraction of iron
sheet, it is normal. The sound will disappear after a few minutes.

English 3
Turn the heater upside-down on a scratch-free and stable surface to prevent
damage to the paint finish or your floor surfacing.
-Turn the heater upside-down
-Pull down the wheel bases to both outsides ,see Fig 1.
Only operate the heater after the wheel bases are pulled down as below picture.
COMPONENTS
1.Heater body
2. Front handle
3. Control panel & Display
4. Wheel base
5. Rear handle
6. On/off power switch
7. Cable storage
8. Remote control storage
CONTROL PANEL & REMOTE CONTROL
1. Thermostat Button
2.Temperature & Time Increase Button
3. Power/Mode Button
4. Timer Button
5.Temperature & Time Decrease Button
6. Stand-By Button
ASSEMBLY
2 5
6
7
8
3
1
4
1 2 3
4 5 6

English 4
• Press the on/off power switch located on the rear of the heater to turn the
appliance on. The appliance is now in stand-by mode.
• Press the Stand-by button via the appliance or the remote control to turn on the
heater. The heater will start working under High power.
• Press the Power/Mode button this will cycle from High, Medium, Low power and
Eco mode.
- Under Low power, Medium power and High power setting, the heater will keep
working controlled by thermal cut-out.
- Eco mode the heating power will adjust automatically from high to medium to
low when the room temperature is approaching the set temperature.
Setting the Thermostat:
Anti-frosting setting: 5°C
Desired temperature setting rang:10 °C - 30 °C
1. Press the Power/Mode button to set the power mode.
2. Press the thermostat button the temperature digit will blink.
3. Use the “+”and “-” buttons to set the desired temperature.
4. The setting temperature digit will stop blinking and the setting temperature will
appear on screen. The heater will maintain the air temperature in the room by
switching on and off automatically.
Please note: If the thermostat is not set, the default temperature is 300C.
1. Press the on/off power switch to turn the appliance on. The appliance will be in
Stand-by mode.
2. Press the Timer button and the start hour digit (0.0) will blink.
3. Use the “+”and “-” buttons to set the heater operation time between
1 and 24 hours.
Once the time is selected the digits will stop blinking.
4. After the timer is set, select the power mode and temperature setting.
5.The heater will automatically turn on when the time runs out at the desired
temperature and power mode.
OPERATING INSTRUCTIONS
Please note: No matter under any power mode to set the temperature,
after thermostat setting, the heater will work under ECO mode only.
Timer :
Auto power on
Note: This function will automatically turn on the heater after the set
period of time (1 to 24 hours from the time the function is set).

English 5
Please Note: A beep sound is emitted at every key press. To turn off the
buttons’ beep sound, press both “+” and “-” buttons for 3 seconds. If want to
recover the beep sound, press both buttons for 3 seconds again.
• Press the Stand-by button until sleep mode is selected and the control panel
screen goes off.
• Press the on/off switch to turn the appliance off completely.
1. When heater is working, press the Timer button and the start hour digit (0.0)
will blink.
2. Use the “+”and “-” buttons to set the heaters operation time between
1 and 24 hours.
Once the time is selected the digits will stop blinking.
3. The heater will automatically shut off when the time runs out.
SPECIFICATION
Rated Voltage: 220-240V~50Hz
Power Consumption: 2000W (Highest heat output),
667W (Minimum heat output)
Heater Dimensions: 55.3X25.5X64.5cm
Box Dimensions: 61X16.3X73.5cm
Net Weight: 12.7kgs
Auto power off
Note: This function should will automatically shut off the heater after
the set period of time (1 to 24 hours from the time the function is set)
Turning the Appliance Off
CLEANING & MAINTENANCE
1. Unplug and let the appliance cool before cleaning.
2. Gently clean the outside surface and the control panel of the appliance with
a damp lint-free soft cloth.
3. If dust is present within the slits of the device, it is recommended to use of
a vacuum cleaner.
4. Do not use harsh detergents, chemical cleaners or solvents as they may
damage the appliance.
The appliance should be regularly cleaned in accordance with the
following instructions:

English 6
At the end of the product life cycle, you should not throw this
machine into the normal household garbage but bring the product
to a collection point for the recycling of electrical and electronic
equipment.
DISPOSAL OF THIS DEVICE
Item
Symbol
Value
Unit
Item
Unit
Heat output Model: PM1530
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat output
Pnom 2.0 kW
manual heat charge control, with
integrated thermostat No
Minimum heat output
(indicative) Pmin 0.667 kW
manual heat charge control with
room and/or outdoor temperature
feedback
No
Maximum continuous
heat output Pmax,c 2.0 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
No
Auxiliary electricity consumption
fan assisted heat output
No
At nominal heat output
elmax
N/A
kW
Type of heat output/room temperature
control
(select one)
At minimum heat output
elmin N/A kW
single stage heat output and no
room temperature control No
In standby mode elSB 0.00017 kW
Two or more manual stages, no
room temperature control No
with mechanic thermostat room
temperature control No
with electronic room temperature
control Yes
electronic room temperature
control plus day timer No
electronic room temperature
control plus week timer No
Other control options (multiple selections
possible)
room temperature control, with
presence detection
No
room temperature control, with
open window detection No
with distance control option
No
with adaptive start control
No
with working time limitation
Yes
with black bulb sensor
No
Contact details
Super Tech Health Ltd, 129 Shady Lane, Great Barr, Birmingham, B44 9ER,
[email protected], 01212709423
