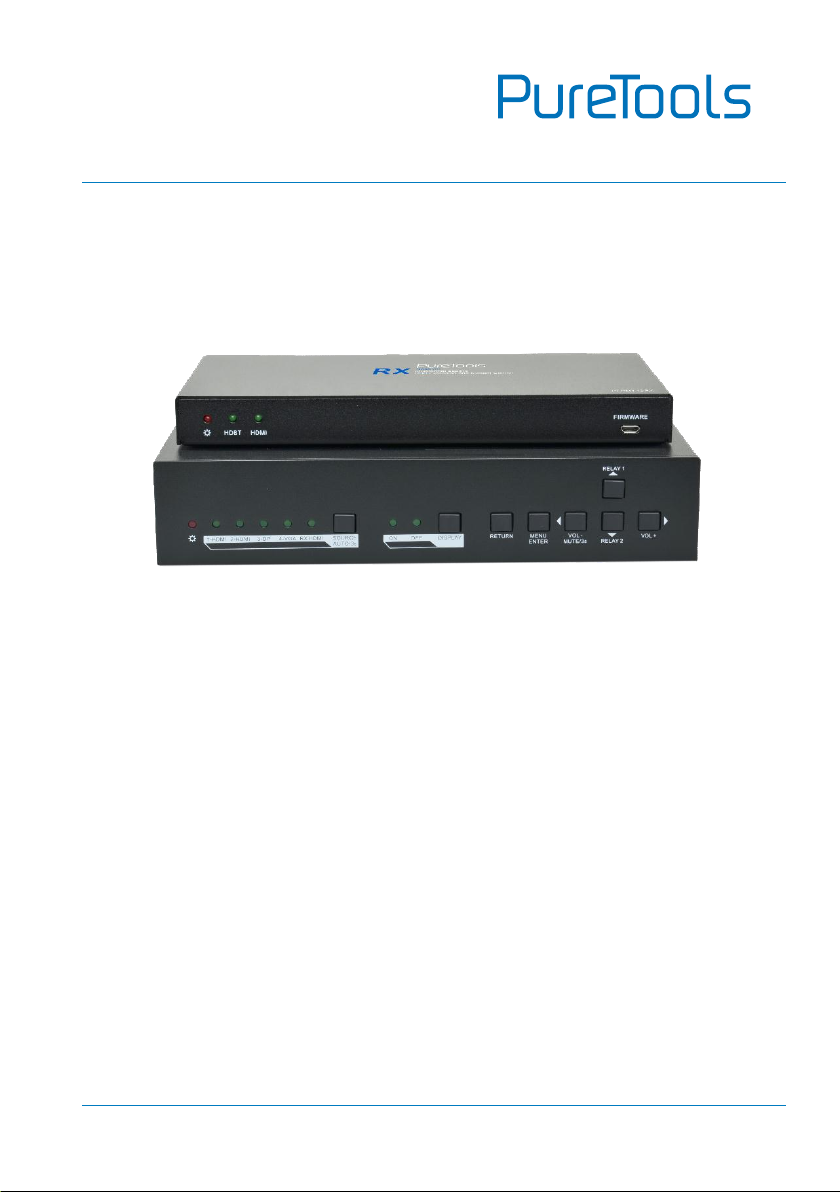

PureTools PT-PSW-42 User manual

User Manual
PT-PSW-42
User Manual
Teleconference Switcher Multiformat Scaling, 4K (30Hz 4:4:4), USB
Extension and System Control
Model PT-PSW-42
Designed in Germany
© 2017 PureLink GmbH All rights reserved. VersionV1.0

User Manual
PT-PSW-42
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different model layouts and specifications are subject
to the physical product.
This manual is for operation instructions only, not for any maintenance usage.
In the constant effort to improve our product, we reserve the right to make changes in
functions or parameters without prior notice or obligation.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

User Manual
PT-PSW-42
REACH | 1907/2006/EU
ROHS | 2011/65/EU
PureLink hereby declares that this product PureTools PT-PSW-42 complies with
Directives 1907/2006/EU und 2011/65/EU.
EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive)
PureLink GmbH hereby declares that this product PureTools PT-PSW-42 complies
with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration
of Conformity is available at the following Internet address:
http://www.purelink.de/ce/4251364706893_CE.pdf

User Manual
PT-PSW-42
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing
material for possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the
module immediately.
Do not twist or pull by force ends of the optical cable. It can cause
malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the
power to the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

User Manual
PT-PSW-42
Contents
Introduction..................................................................................................................................1
Introduction to PT-PSW-42............................................................................................1
Feature................................................................................................................................ 1
Package List .......................................................................................................................2
Panel Description........................................................................................................................3
Transmitter.........................................................................................................................3
Front Panel .............................................................................................................3
Rear Panel...............................................................................................................4
Receiver..............................................................................................................................5
Front Panel .............................................................................................................5
Rear Panel...............................................................................................................6
System Connection.....................................................................................................................7
Usage Precaution..............................................................................................................7

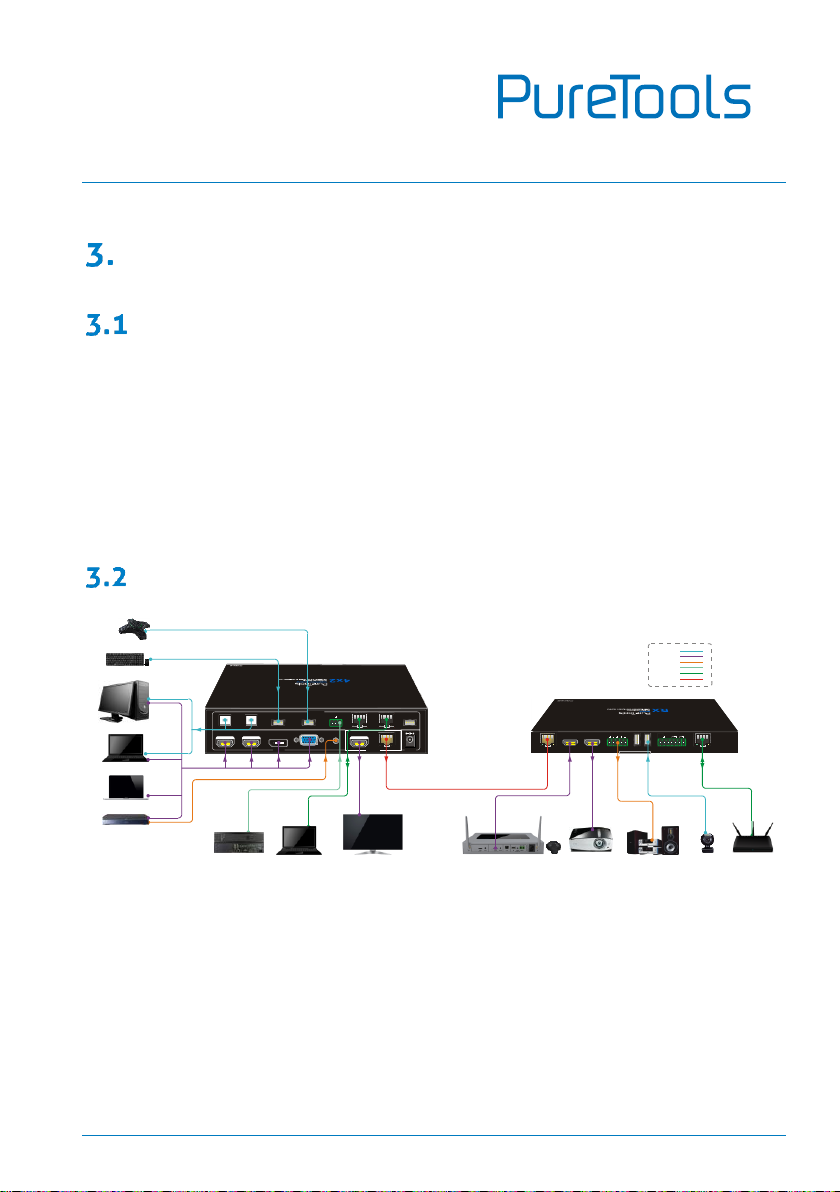

System Diagram................................................................................................................7
Button Control..............................................................................................................................8
Manual Switching .............................................................................................................8
Auto Switching..................................................................................................................9
Volume Adjustment.......................................................................................................10
RS232 Control........................................................................................................................... 11

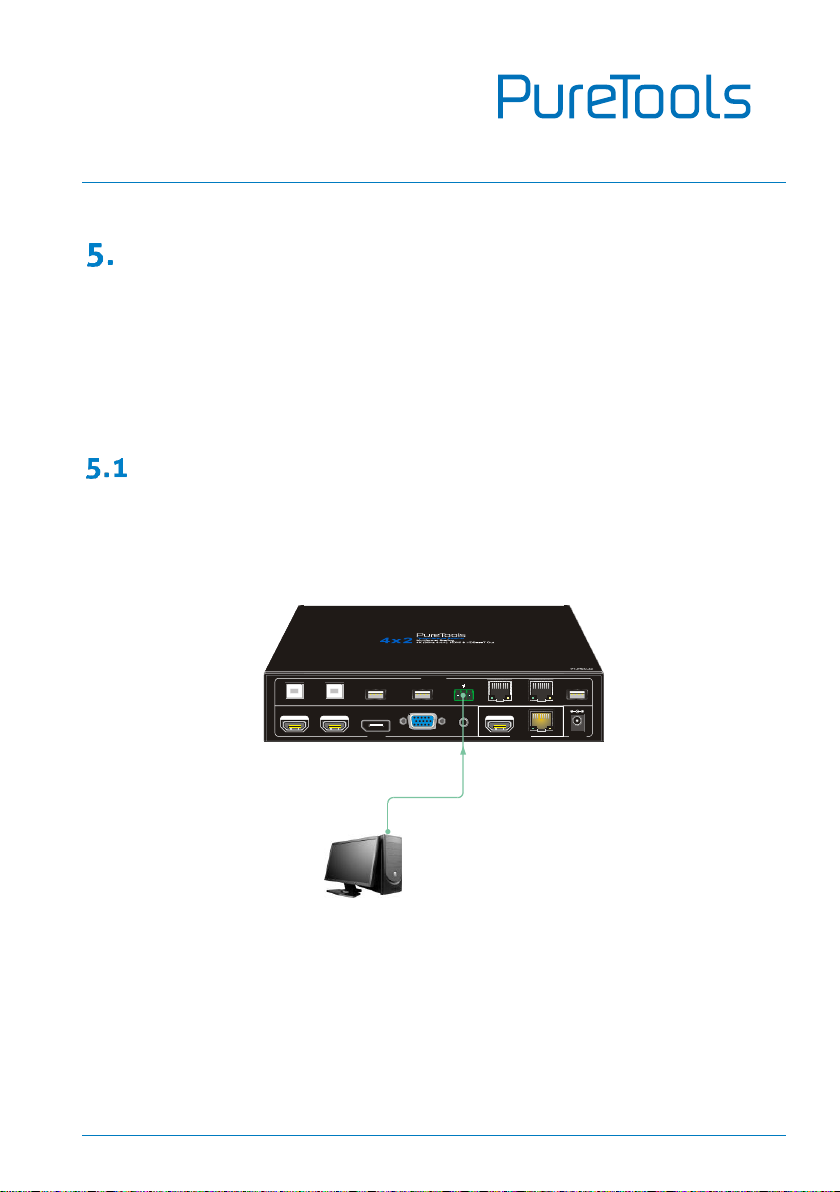

RS232 Connection..........................................................................................................11

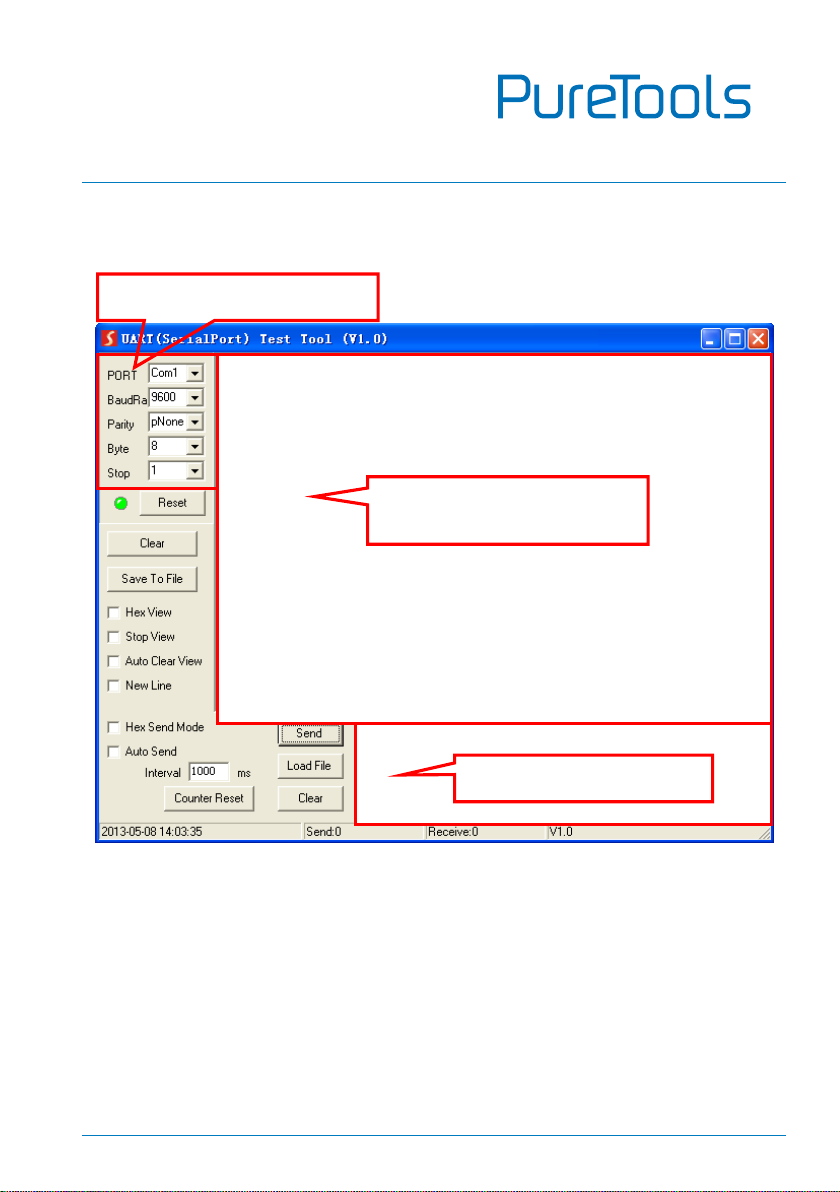

RS232 Control Software ...............................................................................................12
RS232 Command............................................................................................................14
Source Switching ............................................................................................... 14
Audio Adjusting.................................................................................................. 15
Output Resolution ............................................................................................. 16

User Manual
PT-PSW-42
Auto Power-off Setup....................................................................................... 17
CEC Command .................................................................................................... 18
Relay Control ...................................................................................................... 19
EDID Configuration ........................................................................................... 19
Device Setup....................................................................................................... 19
OSD Control............................................................................................................................... 20
Picture...............................................................................................................................20
Setup .................................................................................................................................21
GUI Control ................................................................................................................................ 23
Control Menu...................................................................................................................24
Configuration Menu.......................................................................................................25
RS232 Control Menu......................................................................................................28
Password Menu...............................................................................................................30
GUI Update.......................................................................................................................31
Specification.............................................................................................................................. 32
Transmitter.......................................................................................................................32
Receiver............................................................................................................................33
Panel Drawing........................................................................................................................... 34
Troubleshooting & Maintenance ....................................................................................... 35
After-Sales Service ................................................................................................................ 36

User Manual
PT-PSW-42
1
Introduction
Introduction to PT-PSW-42
This PT-PSW-42 is a conferencing system codec kit supporting resolutions up to
4K@30Hz 4:4:4 and HDCP 2.2. It includes Transmitter and Receiver, providing AV
switching, resolution converting ranging from 720p to 3840x2160@30Hz, audio de-
embedded, and USB extension, plus system control. All video, audio, control, USB and
Ethernet signals can be transmitted over a single CATx cable up to 100m.
The kit provides five video inputs such as HDMI, VGA and DP. To simplify meeting
room device management, the kit offers LAN for Ethernet and USB ports for devices
extension, four on the transmitter and two on the receiver. It supports a variety of 2.0
USB devices like camera, microphone and keyboard as well as other HID devices.
It also allows users to control system functionality via WEB GUI, RS232 and CEC.
Additionally, users can control the rise and fall of projector screen over relay port.
This is an ideal solution for meeting spaces using PC-based conferencing system
codecs such as Skype@, WebEx@ and GoToMeeting@, etc.
Feature
Supports resolution converting ranging from 720p to 4k x 2k @30Hz 4:4:4.
Ensures display of content-protected media and interoperability with other HDCP
compliant devices.
Provides a variety of interfaces to simplify room devices management.
Supports PCs, USB devices like keyboard, webcam, MIC for conference system.
Extend the transmission distance of USB signals.
Two USB type B for connection to host, four USB type A for HID devices like
webcam, mic and keyboard.
Automatically detect active inputs when sources are connected or there is a
change in source power status.
HDBaseT technology extend video, audio, control command and Ethernet signal
up to 100m.

User Manual
PT-PSW-42
2
Ethernet can be imported from either Receiver or Transmitter, providing LAN
accessibility for users.
Audio can be de-embedded out from AUDIO OUTPUT.
Allows connected displays to be controlled via CEC commands or front panel
buttons.
Ensures EDID communication between sources and display.
Relay commands can be triggered to control relay devices such as the projector.
Package List
Transmitter
1 x PT-PSW-42-TX Transmitter
2 x Mounting Ears with 4 Screws
4 x Plastic Cushions
1 x Power Adapter (24VDC,2.71A)
Receiver
1 x PT-PSW-42-RX Receiver
2 x Mounting Ears with 2 Screws
4 x Plastic Cushions
1 x 5-pin Phoenix Connector
1 x 7-pin Phoenix Connector
1 x User Manual
Note ： Please confirm if the product and the accessories are all included, if not, please
contact your distributor.

User Manual
PT-PSW-42
3
Panel Description
Transmitter

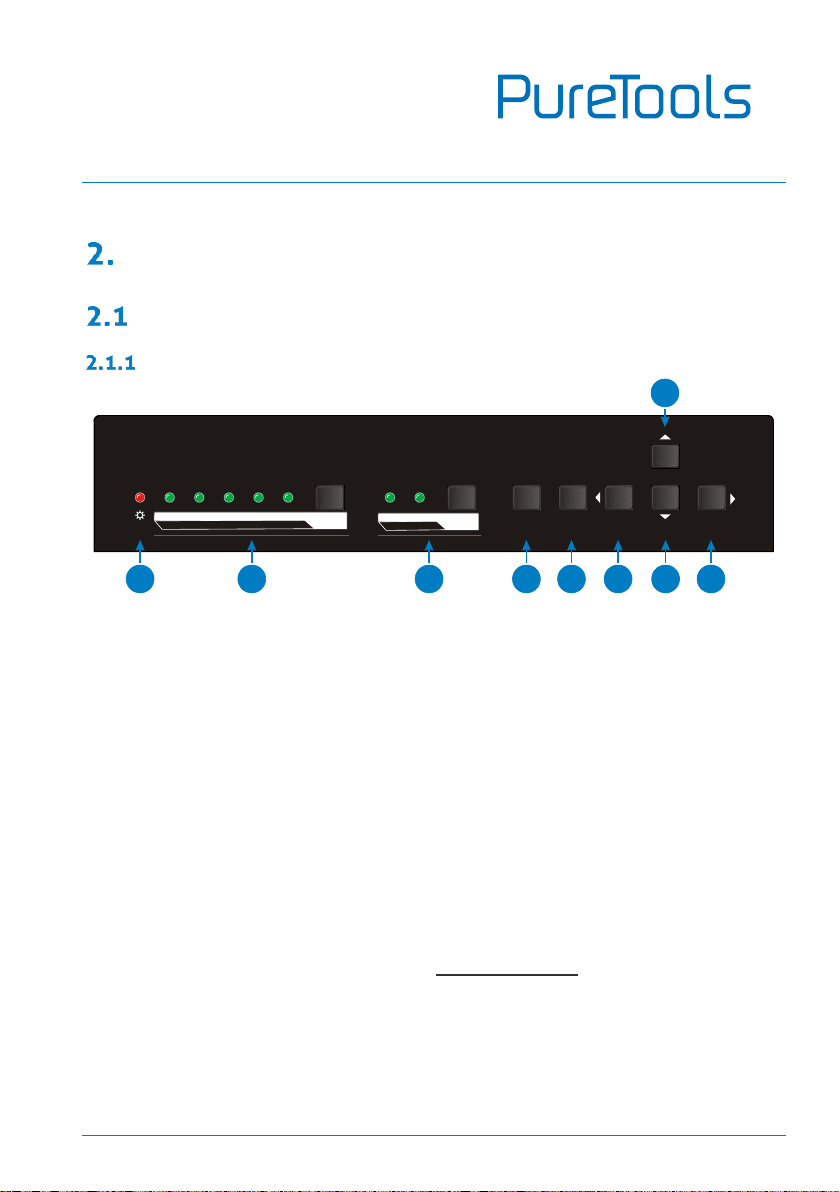

Front Panel
①POWER LED: The LED illuminates red when power is applied, or orange when the
auto-switching mode is chosen.
②INPUT LED & SOURCE SELECTOR:
1-HDMI: The LED illuminates green when 1-HDMI input signal is chosen.
2-HDMI: The LED illuminates green when 2-HDMI input signal is chosen.
3-DP: The LED illuminates green when 3-DP input signal is chosen.
4-VGA: The LED illuminates green when 4-VGA input signal is chosen.
RX HDMI: The LED illuminates green when the HDMI input signal on Receiver is
chosen.
SOURCE SELECTOR: Press this button to select input source signal, or long-
press for 3 seconds or more to enable auto-switching mode.
For more details, please refer to the 4 Button Control.
③DISPLAY CONTROL: Press this button to turn on/off the displays, and then the
activity LED ON/OFF will illuminates green.
④RETURN: Return key for OSD.
⑤MENU/ENTER: Menu or Enter key for OSD.
RX HDMI SOURCE
AUTO/3s
1-HDMI 2-HDMI 4-VGA3-DP OFF DISPLAYON MENU
ENTER
RETURN
RELAY 1
VOL +
VOL -
MUTE/3s RELAY 2
1234568
7
9

User Manual
PT-PSW-42
4
⑥VOL-/MUTE: Press this button to turn down the audio output volume, or long-
press 3 seconds or more to mute / Left key for OSD.
⑦RELAY 1: Press this button to raise projector screen. / Up key for OSD.
⑧RELAY 2: Press this button to lower projector screen. / Down key for OSD.
⑨VOL+: Press this button to turn up the audio output volume. / Right key for OSD.

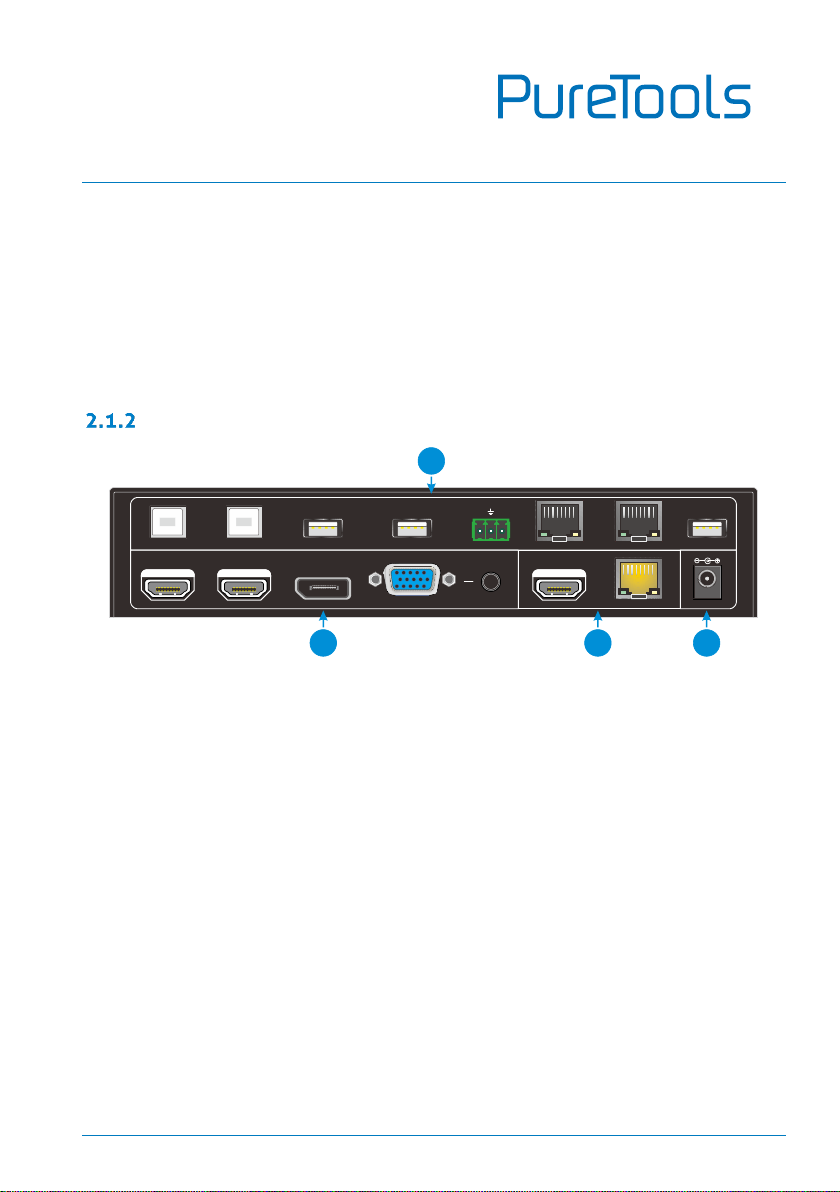

Rear Panel
①INPUT:
VIDEO: 2 HDMI inputs, 1 DP input and 1 VGA input.
AUDIO 1 VGA auxiliary audio input.
②OUTPUT
HDMI: HDMI video output port.
HDBT: Support PoC. Connect with HDBaseT Receiver to transmit AV signal, IR
or RS232 control signal.
③CONTROL
PC1&PC2: Two Type-B USB ports, only one can be used to connect with PC, and
the two priority: PC1>PC2.
DEVICE 1& DEVICE 2: Two Type-A USB ports, connect with USB HID devices.
RS232: Serial port, 3-pin phoenix connector, connect with a control device
(such as PC).
HDMI
DC 24VINPUT
1-HDMI 2-HDMI 3-DP 4-VGA HDBT
RS232
Tx Rx
PC 1 DEVICE 1 TCP/IP LAN
OUTPUT
FIRMWARE
CONTROL
PC 2 DEVICE 2
AUDIO
124
3

User Manual
PT-PSW-42
5
TCP/IP: RJ45 connector, connect with PC to control this system via web-based
GUI.
LAN: Ethernet port for extending network signal.
Note: Please notice warning signs. The LAN port can’t be connected with HDBT port.
FIRMWARE: Type-A USB port for updating system firmware or loading
customized EDID data.
④DC 24V: DC barrel connector for connecting the included power adapter.
Receiver
Front Panel
①POWER LED: The LED illuminates red when power is applied.
②HDBT LED: The LED illuminates green when HDBT input signal present.
③HDMI LED: The LED illuminates green when HDMI input signal present.
④FIRMWARE: Type-A USB port for updating system firmware.
FIRMWARE
HDBT HDMI
1234

User Manual
PT-PSW-42
6
Rear Panel
①HDBT IN: Connect to the HDBT OUT port on Transmitter via CAT5e/6a/7 cable,
support PoC technology.
②HDMI IN: HDMI input port.
③HDMI OUT: HDMI output port.
④AUDIO OUT: Stereo balanced L/R audio output port.
⑤DEVICES: Two Type-A USB ports, connect with USB HID devices.
⑥RS232: Serial port, 3-pin phoenix connector, connect with the display device (such
as projector) needed to be control via RS232 commands.
⑦RELAY1 & RELAY2: Connect with relay device (such as projector screen) to control.
⑧LAN: Ethernet port, work with the LAN port on Transmitter to extend network
signal.
Note: Please notice warning signs. The LAN port can’t be connected with HDBT port.
HDBT IN HDMI IN HDMI OUT AUDIO OUT
L R
DEVICES
12
Tx Rx
CONTROL
Relay1 Relay2
LAN
123458
67

User Manual
PT-PSW-42
7
System Connection
Usage Precaution
System should be installed in a clean environment, preferably at ambient
temperature or within given working temperature range (see page 32 &33 for
limits).
All of the power switches, plugs, sockets and power cords should be insulated.
All devices should be connected before power on.
System Diagram
HDMI
DC 24VINPU T
1-HDM I 2-HD MI 3-DP 4-VGA HDBT
RS232
Tx Rx
PC 1 DEVIC E 1 T CP/IP LAN
OUTPUT
FIRMW ARE
CONTR OL
PC 2 DEVIC E 2
AUDIO
DC 12V
DEVICES
Tx Rx
CONTR OLHDBT I N HDMI I N HDMI OU T L+R OUT
Relay 1 Relay 2
LAN
1 2
Wir eless B YODTVLaptop
DVD
MacBook
Laptop
PC
USB M icrop hone
Wir eless Key board and M ouse
Cen tral Control Sys tem Pro jecto r Speaker USB Ca mera
Video:
Audio:
RS232:
HDBaseT:
Ethernet:
USB:
Router

User Manual
PT-PSW-42
8
Button Control
Front panel buttons can be used for signal switching, OSD, volume adjusting.
Manual Switching
Press the SOURCE/AUTO button to select one input source for Transmitter, press
again to select next source, switching sequentially between 1-HDMI, 2-HDMI, 3-DP
and 4-VGA. The corresponding LED illuminates green.
The Receiver also features one HDMI input port, if you need to output the source
signal via its HDMI output port. The following is an example.
LED Status
Description
Status 1
The 1-HDMI LED illuminates green,
other source LEDs are gone.
The 1-HDMI is selected as input
source. The input signal will be
transmitted to all video output
ports of Transmitter and
Receiver.
Status 2
The 2-HDMI and RX HDMI LEDs
illuminate green, other source LEDs
are gone.
The 2-HDMI is selected as
input source for Transmitter.
The input signal will be
transmitted to all video
output ports of Transmitter.
The HDMI input signal on
Receiver will be only
transmitted to the HDMI
output port of Receiver.
RX HDMI SOURCE
AUTO/3s
1-HDMI 2-HDMI 4-VGA3-DP
RX HDMI SOURCE
AUTO/3s
1-HDMI 2-HDMI 4-VGA3-DP

User Manual
PT-PSW-42
9
Follow the below steps to switch to the status 2 from status 1.
①Press the SOURCE/AUTO button once to select 2-HDMI, and then release this
button.
②Press the SOURCE/AUTO button continuously until the RX HDMI LED illuminates
green to select the HDMI input for Receiver.
Auto Switching
Long-press SOURCE/AUTO button for 3 seconds or more to enable auto-switching
mode, and the auto-switching mode abides by the following principles:
New input
Once detecting a new input signal, the Transmitter would switch to this new signal
automatically.
Once connecting a source device to the HDMI IN port of Receiver, the Receiver will
switch to this source to output HDMI signal via HDMI OUT port automatically.
Rebooting device
The Transmitter have the ability to save the last configuration before losing
power. If the last switching mode is auto-switching, once rebooted, the switcher
will automatically enter auto-switching mode, then detect all inputs and
memorize their connection status for future rebooting using. If the last displayed
signal is still available, the unit will output the signal. If not, the unit will detect all
the input signals with priority from 1-HDMI to 4-VGA. When detected the first
signal, it will transfer to output.
Signal removal
Once removing the current display signal, the Transmitter will detect all input
signals with priority from 1-HDMI to 4-VGA. It will transfer the signal firstly
detected to be available to output devices.

User Manual
PT-PSW-42
10
Note:
Auto-switching function works only when inputting new signal, removing a signal or
power rebooting.
The HDMI input source on Receive cannot be selected under auto-switching mode.
Volume Adjustment
The Receiver features audio output ports for connecting speaker or AV amplifier.
Press the VOL+ or VOL- button on Transmitter to turn up or turn down the volume.
Meantime, it sends CEC commands to the display to turn up or down the display
volume.

User Manual
PT-PSW-42
11
RS232 Control
As RS232 commands can be transmitted to Receiver from the Transmitter, so it is able
to control the Transmitter or the third-party device (such as projector) on Receiver
from local.
The baud rate support 2400, 4800, 9600(default), 19200, 38400, 57600 or 115200.
RS232 Connection
There are two RS232 control modes.
Control Transmitter
HDMI
DC 24 VINP UT
1-HDMI 2-HDMI 3-DP 4-VGA HDBT
RS232
Tx Rx
PC 1 DEV ICE 1 TCP/ IP LAN
OUTPUT
FIRMWARE
CONTROL
PC 2 DEV ICE 2
AUDIO
PC

User Manual
PT-PSW-42
12
Control Third-party Device
RS232 Control Software
Installation/uninstallation
Installation Copy the control software file to the computer connected with the
Scaler Switcher.
Uninstallation Delete all the control software files in corresponding file path.
Basic Settings
First to connect the Transmitter with all input devices and output devices needed,
then to connect it with a PC which is installed with RS232 control software. Double-
click the software icon to run this software. Here we take the software
CommWatch.exe as example. The icon is showed as below:
DC 12 V
DEVICES
Tx Rx
CONT ROLHDBT I N HDMI I N HDMI O UT L+R OU T
Rela y1 Rel ay2
LAN
1 2
HDMI
DC 24 VINPU T
1-H DMI 2- HDMI 3-DP 4-VG A HDBT
RS23 2
Tx Rx
PC 1 DEVI CE 1 TCP/ IP LAN
OUTPUT
FIRM WARE
CONTROL
PC 2 DEVI CE 2
AUDI O
PC Projector

User Manual
PT-PSW-42
13
The interface of the control software is showed as below:
Please set the parameters of COM number, bound rate, data bit, stop bit and the
parity bit correctly, and then you are able to send command in Command Sending
Area.
Parameter Configuration area
Monitoring area, indicates if
the command sent works.
Command Sending area

User Manual
PT-PSW-42
14
RS232 Command
Communication protocol: RS232 Communication Protocol
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
The end mark of command is “<CR><LF>”.
Source Switching
Command
Function
Feedback Example
SWIN H1
Switch to 1-HDMI input.
Switch to HDMI1
SWIN H2
Switch to 2-HDMI input.
Switch to HDMI2
SWIN DP
Switch to 3-DP input.
Switch to DP
SWIN VG
Switch to 4-VGA input.
Switch to VGA
SWIN
RXHDMI
Switch to RX HDMI input.
Switch to RX HDMI
AUTO 01
Enable auto-switching.
Auto Switching
AUTO 00
Enable manual-switching.
Manual Switching
?GET IN
Get the input source of Transmitter.
(HDMI1,HDMI2,DP,VGA)
TX Device Input: HDMI1
Get the input source of Receiver.
(HDMI,HDBT)
RX Device Input: HDMI
?GET AUTO
Get the switching mode.
Manual Switching/Auto
Switching
VGAA
Auto-adjust the input parameter (VGA
only).
VGA Input Auto
