PVI Industries 150L-250 A-PVIF Instruction Manual

1 PV500-47C 06/12
INSTALLATION & MAINTENANCE MANUAL
TRICONWATER HEATER
MODELS (150, 180, 200) (L, SS) (250, 300) A-PVIF
Installation and service must be performed by a qualified service installer, service agency or the gas supplier.
IMPORTANT: THIS MANUAL CONTAINS INFORMATION REQUIRED FOR INSTALLATION, OPERATION AND
MAINTENANCE OF THIS EQUIPMENT. READ AND FOLLOW THE INFORMATION IN THIS MANUAL AND ALL OTHER
PROVIDED INSTRUCTIONS, LABELS AND MARKINGS BEFORE INSTALLING, OPERATING OR SERVICING THIS UNIT.
TO THE INSTALLER: After installation, these instructions must be given to the equipment user or left near the appliance.
SPECIAL INSTRUCTIONS TO THE OWNER: Retain this manual for future reference. These instructions contain
important information that will help you in maintaining and operating this appliance.
PVI INDUSTRIES, LLC - Fort Worth, Texas 76111 - Web www.pvi.com - Phone [phone]

2 PV500-47C 06/12
TABLE OF CONTENTS
1. Safety Considerations
2. Standard Features and Equipment
2.1 Performance
2.2 Pressure Vessel
2.3 Heat Exchanger
2.4 Code and Standards
2.5 Burner, Operating Controls & Safeties
2.6 Warranty and Service Policy (see warranty and service policy for details)
2.7 Miscellaneous
3. Product Descriptions
4. Water Heater Installation
4.1 Checking Equipment Before You Install
4.2 Codes
4.3 Electrical Requirements
4.4 Handling and Location
4.5 Service Clearances
4.6 Clearances to Combustible Surfaces
5. General Piping Guidelines
5.1 Inlet and Outlet Connections
5.2 Building Return Piping
6. Condensate Drain, Trap & Disposal
6.1 Condensate Neutralization System (optional)
7. Gas Supply and Piping
7.1 Gas Train and Controls Certification
7.2 Gas Control Trains
7.3 Inlet Pressure
7.4 Manifold Pressure
7.5 Gas Piping Size
7.6 Appliance Isolation during Gas Supply Piping Pressure Test
7.7 Gas Connection
8. Combustion and Ventilation Air
8.1 Equipment Located in Confined Spaces
8.2 Maximum Allowed Remote Combustion Air Inlet Length
8.3 Remote Combustion Air Cap
8.4 Vertical or Horizontal Remote Air Duct Termination
8.5 Remote Air Consideration for Combined Remote Air Ducting
9. Venting
9.1 Venting the TRICON
9.2 Maximum Category IV Vent Length
9.3 Vertical or Horizontal Vent Termination
9.4 Combining Category IV Vents

3 PV500-47C 06/12

10. Operating and Safety Controls
10.1 Temperature and Pressure Relief Valve(s)
10.2 Operating Temperature Control
10.3 High Water Temperature Limit Control
10.4 Cathodic Protection
10.5 Electronic Low Water Cut-off (optional)
11. TEMPTRAC Electronic Controller Panel
11.1 Principal of Operation
11.2 Upper LED Readout
11.3 Lower LED Readout
11.4 Control Buttons
11.5 To View the Setpoint
11.6 To Change the Setpoint
11.7 To Change Other Parameters
11.8 LED Display Alarm Messages
12. Remote Connections – Terminal Strip
12.1 Making BMS/BAS Remote Connection for Analog and Binary Signals
12.3 Terminal Functions
13. Sequence of Operation
14. Initial Startup
14.1 Initial Startup Requirements
14.2 Tools and Instrumentation Required
14.3 Resources
14.4 On Site Considerations
14.5 Startup Procedure
15. Troubleshooting Guide
16. Replacement Parts
16.1 Control Panel
16.2 Control Panel Components
16.3 Burner Assembly
16.4 Burner Assembly Components
17. Periodic Maintenance
18. Recommended Maintenance Schedule
Warranty forms ship separately with each product.

4 PV500-47C 06/12
1 SAFETY CONSIDERATIONS
WARNING: If the information in the supplied manual(s) is not followed exactly, a fire, explosion or exposure to
hazardous materials may result, causing property damage, personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electric switch; do not use any phone in your building.
Immediately call your gas supplier from a location away from your building and the smell of gas. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This product contains, or may come to contain materials that have been identified as carcinogenic, or possibly carcinogenic
to humans. Before installing, servicing or removing this product, read and follow the supplied instructions.
WARNING: Installation and service must be performed by a qualified installer, service agency or the gas supplier,
who must read and follow the supplied instructions before installing, servicing or removing this appliance. Refer to
the information contained in this manual. Improper installation, adjustment, alteration, service or maintenance can
cause property damage, personal injury, exposure to hazardous materials or loss of life.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the unit and to replace any part of the control system, all gas controls and all other items
affecting safe appliance operation and which has been under water.
WARNING: In an emergency shut the main gas supply valve to the appliance from a location safely away from the
emergency. Failure to follow these instructions can cause property damage, personal injury, and exposure to
hazardous materials or loss of life.
PRODUCT SAFETY INFORMATION
REFRACTORY CERAMIC FIBER PRODUCT WITH CRYSTALLINE SILICA
WARNING: This product contains or may come to contain crystalline silica, which has been identified by the
International Agency for Research on Cancer (IARC) as carcinogenic to humans. This product also contains
refractory ceramic fibers, which have been identified by the IARC as possibly carcinogenic to humans. Avoid
breathing fiber particulates and dust.
RISKS:
Air borne fibrous insulation is a possible cancer hazard by inhalation.
Airborne crystalline silica may cause silicosis (lung disease) by inhalation.
May cause temporary irritation to eyes, skin, and respiratory tract.
PRECAUTIONARY MEASURES:
Minimize airborne fibers with engineering controls.
Use NIOSH/MSHA approved respirators as required (see MSDS).
Wear long sleeved, loose-fitting clothing, eye protection and gloves.
FIRST AID MEASURES: (If any of the irritations listed persists, seek medical attention)
Eyes: Flush with water.
Skin: Wash with soap and warm water.
Ingestion: Do not induce vomiting. Get medical attention if gastrointestinal symptoms develop.
Inhalation: Remove to fresh clean air.
WARNING: If you are unfamiliar with the safe handling of refractory ceramic fiber products, or if you wish additional
information prior to beginning any disassembly of the water heater or boiler that might expose refractory ceramic
fiber materials, contact: Unifrax Corporation, 2351 Whirlpool Street, Niagara Falls, NY 14305-2413, 1-800-322-2293.
IDENTIFICATION OF REFRACTORY CERAMIC FIBER MATERIALS (RCF):
The burner, lower tank and upper and lower flue collector assemblies utilize RCF material. (The RFC materials are located
within the product and not generally exposed except during service, disassembly or assembly.)

5 PV500-47C 06/12
IMPORTANT SAFETY NOTE
It takes only 5 seconds of skin contact with 140°F water to cause a
second degree burn! You must protect against high water temperatures at all
lavatories, tubs, showers and other points of hot water contact.
Accidental scalding from high water temperatures is a greater
risk in some types of installations. Some examples are:
HOMES FOR THE MENTALLY HANDICAPPED
HOMES FOR THE PHYSICALLY HANDICAPPED
HOSPITALS AND NURSING HOMES
ELDER CARE FACILITIES AND REST HOMES
ORPHANAGES AND CHILD CARE FACILITIES
OTHER INSTALLATIONS - WHERE RESPONSE TO CONTACT WITH HOT
WATER MAY BE SLOWER OR WHERE THE DANGER OF HOT WATER
CONTACT IS GREATER
Thermostatically controlled mixing valves must be used in the
design of the potable hot water system.
Potable hot water should be tempered to no more than
110°F when used for bathing or other personal uses.
Good engineering practice mandates the use of thermostatically controlled
mixing valves set at 120°F or less to keep the delivered water temperature
below scalding temperatures.

6 PV500-47C 06/12
2 STANDARD FEATURES AND EQUIPMENT
2.1 Performance
87% thermal efficiency at full fire from 40° to 140°F
Up to 92% thermal efficiency with modulation
< 20 ppm NOx
Ducts direct combustion air up to 100 equivalent feet through 6-inch diameter material (requires UL approved
vent cap, see optional equipment list)
Vents up to 100 equivalent feet through 6-inch diameter material
2.2 Pressure Vessel
AquaPLEX(unlined duplex alloy)
Storage tank ASME stamped and National Board registered for 150 psi MAWP
Nonferrous, removable fittings at all tank connections
Hand hole cleanout
Fiberglass insulation
Steel jacket panels with industrial-grade finish
Drain valve
2.3 Heat Exchanger
Three-pass, fire tube design
AquaPLEXfire tubes
2.4 Codes And Standards
Intertek / ETL listed to US and Canadian safety standards
Intertek / ETL listed for use with stainless steel Category IV vent material
Intertek / ETL certified as low-lead compliant
FM compliant
ASHRAE 90.1 compliant
2.5 Burner, Operating Controls & Safeties
Pre-mix surface burner with self-adjusting, proportionate gas/air ratio
UL 795 compliant gas train
Electronic flame safeguard with pre- and post-purge
Combustion sequence panel lights including lockout
Programmable electronic operating control with digital temperature readouts,
adjustable to 70°F to 180°F
Immersion temperature limiting device (high limit control)
ASME-rated temperature and pressure relief valve
NEMA-1 control enclosure
Terminals for remote on-off
Flame failure audible alarm and indicating light with remote contacts
Seamless VFD modulation with 10-1 turndown
2.6 Warranty and Service Policy (see warranty or service policy for details)
10-Year tank warranty (PV 627)
3-Year scale failure warranty (PV 563)
First-year cost-free service policy (PV 551)
10-Year chloride-induced stress corrosion cracking warranty (PV 8083)
2.7 Miscellaneous
Factory authorized startup
Vent termination cap, 6-inch diameter (larger cap optional)
Factory-equipped for connection to direct inlet air (requires UL listed vent termination cap, see options list)
Condensate “P” trap (provided for field installation)
Direct inlet air filter

7 PV500-47C 06/12

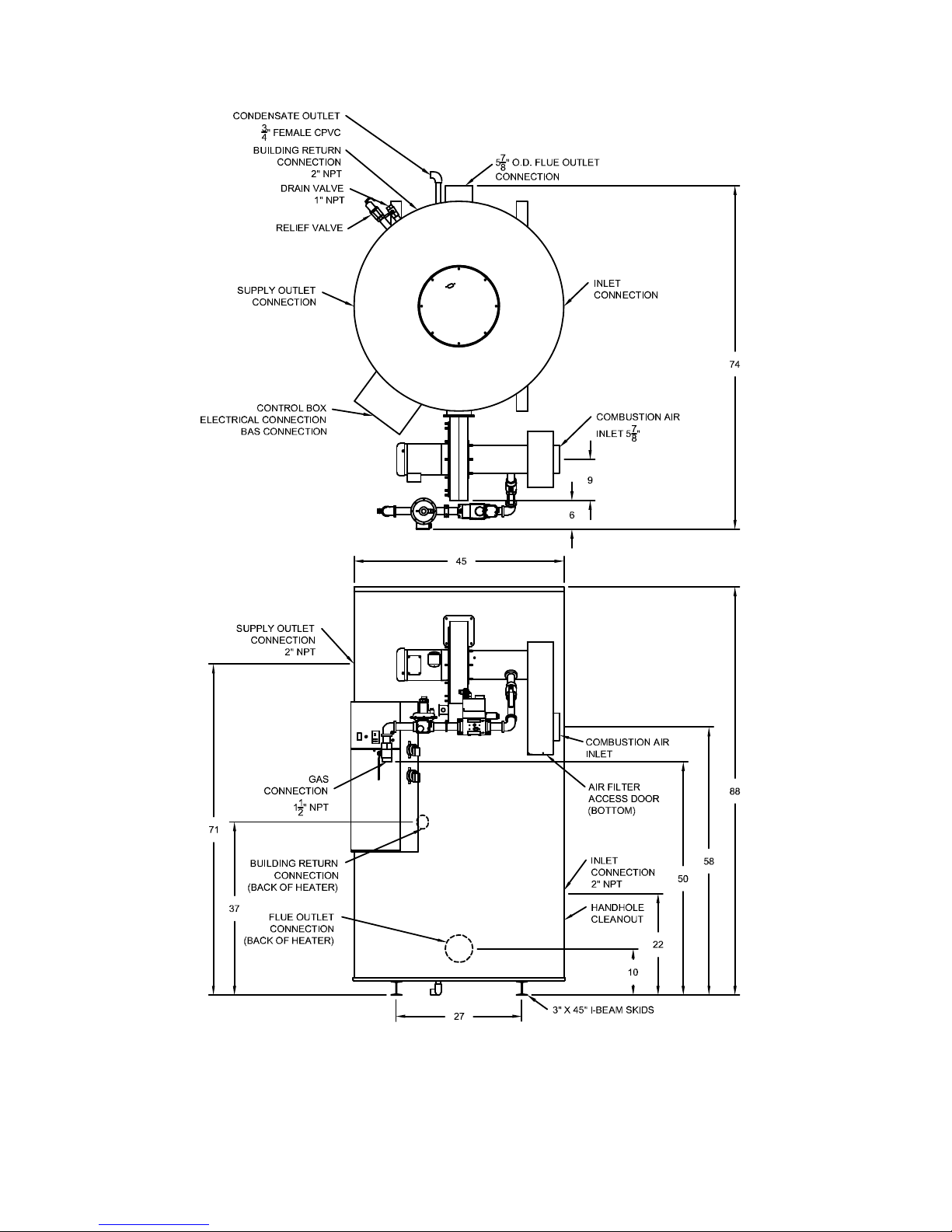

3 PRODUCT DESCRIPTION Component, Controls and Connection Locations
(Locations May Vary)
250 SERIES

8 PV500-47C 06/12
300 SERIES

9 PV500-47C 06/12
4 WATER HEATER INSTALLATION
4.1 Checking Equipment Before You Install
Inspect the unit completely upon receipt from the freight carrier before signing the bill of lading. Inspect the
appliance and all accompanying parts for signs of impact or mishandling. Verify the total number of pieces shown
on packing slips with those actually received. Contact the freight carrier immediately if any damage or shortage is
detected.
4.2 Codes
The equipment must be installed in accordance with those installation regulations in force in the local area where
the installation is to be made. Authorities having jurisdiction must be consulted before installation is made. In the
absence of such requirements, the installation shall be in accordance with the instructions in this manual, appliance
markings and supplemental instructions and in compliance with the latest edition of the National Fuel Gas Code,
ANSI Z223.1. Where required by the Canadian authority having jurisdiction, the equipment must be installed in
accordance with the latest edition of the Installation Code for Gas Burner Appliances and Equipment CAN/CSA
B149.1 and/or B149.2 and applicable Provincial Regulations. All appliances conform to the latest edition of the
ASME Boiler and Pressure Vessel Code, Section IV, Part HLW.
4.3 Electrical Requirements
See appliance rating decal for electrical service requirements. The appliance must be electrically supplied and
grounded in accordance with the requirements of the authority having jurisdiction or in the absence of such
requirements, with the latest edition of the National Electrical Code ANSI/NFPA No. 70. In Canada, the electrical
service must conform to local electrical codes and/or CSA C22.1, Canadian Electrical Code, Part 1.
All wiring between the unit and field installed devices must be made with type T copper wire.
Line voltage wire exterior to the appliance must be enclosed in approved conduit or approved metal clad cable.
To avoid serious damage, DO NOT energize the unit until the system and appliance is full of water.
4.4 Handling and Location
WARNING: Use industry standard safe rigging methods, such as including the use straps and spreader
bars and lifting from the water heater base skid assembly, when attempting to lift or move this product.
Failure to follow industry safe rigging methods could result in property damage, serious injury or death.
1 Check the data decal on the appliance. Be sure the electrical, water, oil, or gas supply is adequate for the
installation.
2 Carefully remove all shipping supports and bracing.
3 These units are suitable for indoor installation only.
4. Installing the water heater on a 4 inch to 6 inch housekeeping pad is recommended to ensure proper
condensate drainage.
5. Locate the unit so that if water connections should leak, water damage will not occur. When such locations are
unavoidable, install a suitable drain pan, and plumb pan to ensure adequate drainage in the event of a leak.
Under no circumstances is the manufacturer responsible for water damage in connection with this unit, or any of
its components. The manufacturer’s warranty does not cover water damage.
6. Protect associated electrical components and electrical connections from water (dripping, spraying, rain, etc.)
during appliance operation and service.
7. Place the appliance on a level, non-combustible floor. Concrete over wood is not considered non-combustible.

10 PV500-47C 06/12
8. Do not install on carpet or other combustible floor coverings. If installation over a combustible floor is required,
follow these guidelines:
Use a base of hollow clay tile or concrete blocks from 8" to 12" thick and extending 24" beyond the sides.
Place the blocks in line so that the holes line up horizontally to provide a clear passage through the blocks.
Install 1/2” fireproof millboard with a 20-gage sheet metal cover over the block base.
Center the unit on the base. Also follow this procedure if electrical conduit runs through the floor, and
beneath the appliance. A field-installed base must meet all local fire and safety code requirements.
4.5 Service Clearances
Allow sufficient space to provide adequate clearances on all sides for service and inspection. At least 24” above the
water heater is required for filter replacement (if equipped) and burner/gas control service, 18” at left and right sides
of the appliance. Optional equipment may increase the clearance requirements. Allow sufficient space for installing
and servicing connections such as water, gas, vent, combustion air, electrical, pump and other auxiliary equipment.
4.6 Clearances To Combustible Surfaces
Minimum 1” clearance must be provided from any vent surface to adjacent combustible material. The minimum
clearances to unprotected combustible material are 24” be provided at the front, 8” be provided at the rear and 8” at
top, left and right sides of the appliance.
5 GENERAL PIPING GUIDELINES
5.1 Inlet and Outlet Connections
1. Use only non-ferrous water piping and fittings. Do not use galvanized pipe or fittings. Use of ferrous or
galvanized pipe or fittings can cause rust to form.
2. Install shut-off valves and unions on the inlet and outlet water piping for servicing. Use caution when
threading pipe nipples into tank connections to prevent cross threading, or over-tightening. Always use a
back-up wrench on tank nipples when tightening unions, valves, etc.
3. Insulate hot water and return circulation lines. Insulate cold water supply lines if subject to freezing during
shutdown periods. IMPORTANT: Do not use the plumbing connected to the appliance as a ground for
welding or any other purpose.
4. Pipe the drain valve to a suitable open drain.
5.2 Building Return Piping
To maximize water heater efficiency, connect the building return (≈5 gpm) directly to the return fitting located at the
rear of the tank.

11 PV500-47C 06/12
SINGLE WATER PIPING
SINGLE STORAGE WATER HEATER WITH SUPPLEMENTAL STORAGE TANK

12 PV500-47C 06/12
TWO WATER HEATERS WITH REVERSE RETURN PIPING
6 CONDENSATE DRAIN, TRAP & DISPOSAL
The TRICON water heater is designed to produce significant amounts of condensate because of its high efficiency.
Condensate occurs naturally when water vapor in combustion gases is cooled below the dew point. A 3/4” NPT
drain connections is provided. A trap with three inches of standing water below the bottom of the heater (3” above
the base of the I-Beam skids), and no higher than the bottom of the heater must be field installed as part of the
condensate piping.
WARNING: A trap with three inches of standing water as described in these instructions must be included
as part of the condensate piping system. This trap is required to keep hazardous products of combustion
from continually entering the room through the condensate piping. Failure to provide this trap can cause,
personal injury, exposure to hazardous materials or loss of life.
1. Installing the water heater on a 4 inch to 6 inch housekeeping pad is recommended to ensure proper
condensate drainage.
2. Attach a 3/4” CPVC pipe from the heater condensate to a 3” CPVC trap and on to a suitable floor drain or
collection system. Each condensing appliance must drain separately. Do not combine condensate drains from
multiple condensing appliances into a single drain pipe.
3. Each condensate drain must contain a trap or siphon/pigtail to provide at least 3 inches of standing water, to
prevent flue gas flow through the condensate piping. To construct the trap, connect to the 3/4” condensate
drain, route the piping downward until the standing water in the trap is not higher than the bottom of the water
heater.
4. Install the condensate plumbing as shown in the following diagram.
5. All condensate plumbing must be protected from freezing. Do not locate the condensate piping such that an ice
dam of frozen condensate can block the outlet.

13 PV500-47C 06/12

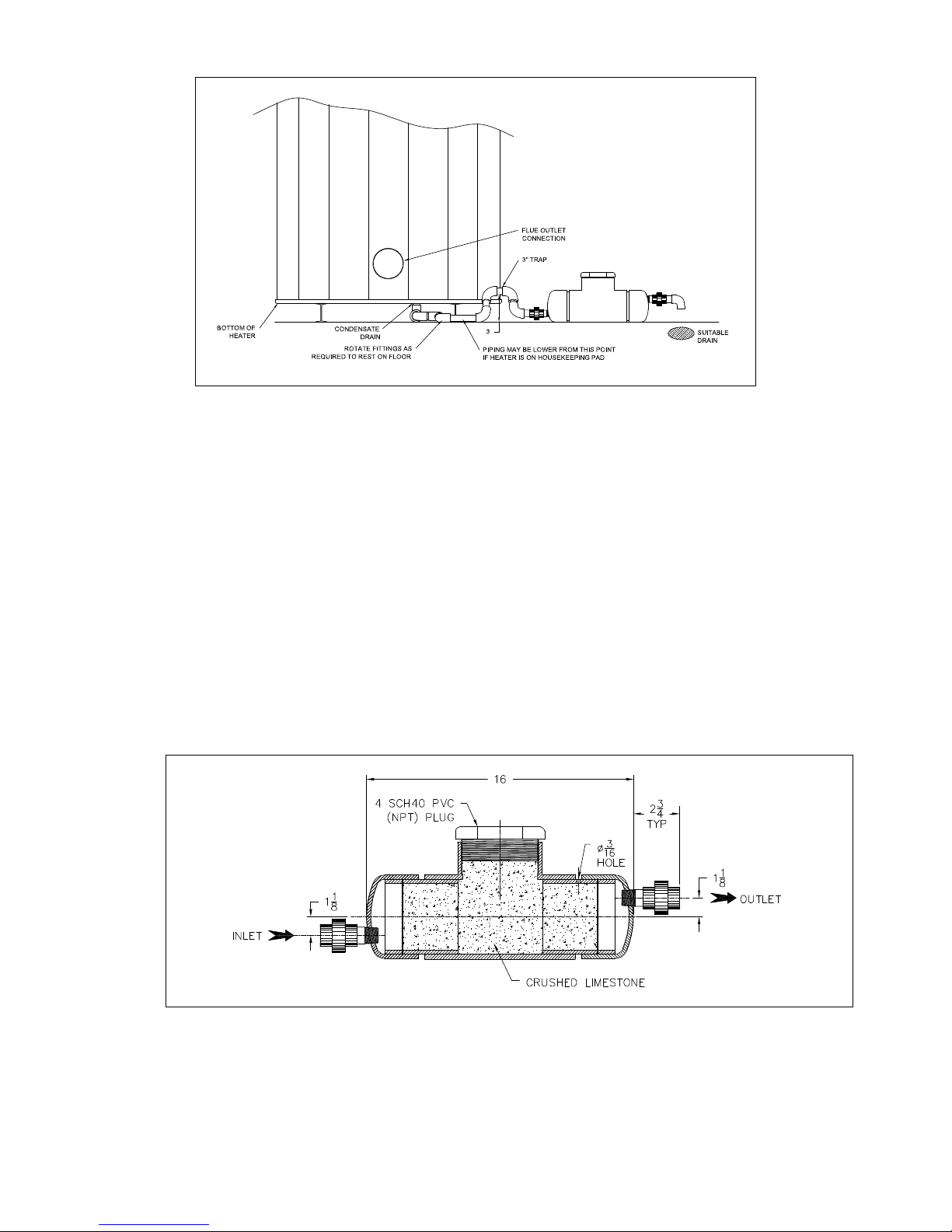

Condensate Piping and Trap with Optional Condensate Neutralizer
6.1 Condensate Neutralization System (optional)
Although only slightly acidic (3-5 PH), condensate can be routed through an optional Condensate Neutralization
System (see image below) to become pH neutral allowing for disposal into any drain or sewer system without
concern for corrosion. Condensate slowly flows through a neutralization bath filled with renewable crushed
limestone becoming neutralized thus avoiding chemical treatment or dilution using substantial quantities of tap
water. To obtain a Condensate Neutralization System, please contact your local PVI representative.
1. Follow the steps 1 through 4 in the Condensate Drain, Trap & Disposal section above.
2. Locate the Condensate Neutralization System in the condensate piping, as shown in the FIELD INSTALLED
CONDENSATE DIAGRAM above.
3. Position with removable crushed limestone fill-cap in vertical position only. The bottom of the condensate
neutralization system outlet pipe must not be higher than the bottom of the water heater.
4. For proper operation, the water heater condensate outlet must be plumbed with CPVC plastic pipe to the lowest
fitting of the Condensate Neutralization System, connecting to the “INLET” as shown in the graphic below.
5. Keep the Condensate Neutralization System closed at all times, except for maintenance.
Optional Condensate Neutralization System
WARNING: Keep the Condensate Neutralization System closed at all times the appliance is operating. The
system must remain closed to prevent hazardous products combustion from continually enter the room.
Failure to keep the Condensate Neutralization System closed can cause property damage, personal injury,
exposure to hazardous materials or loss of life.

14 PV500-47C 06/12
7 GAS SUPPLY AND PIPING
Verify that the type of gas specified on rating plate is supplied to the unit. This unit is orificed for operation up to
2000 feet altitude. Appliance Btuh output derates 4% per 1000 feet elevation above sea level. Consult Factory for
installations above 2000 feet elevation.
7.1 Gas Train and Controls Certification
NOTE: The gas train and controls assembly provided on this unit have been tested under the applicable American
National Standard to comply with safety and performance criteria such as proper ignition, combustion and safety
shutdown operation.
7.2 Gas Control Trains
All models include gas control trains with the following components: main manual shutoff valve, two safety shutoff
valves, proportionator regulator and a final manual valve with the manifold pressure tap on the side of the valve.
These components may be separate or two or more may be combined in a common housing.
CAUTION: Do not adjust or remove any screws or bolts on gas train control components which are sealed
with a red or blue colored compound. Doing so will void all approvals and warranties.
7.3 Inlet Pressure
Measure at the inlet pressure tap located at the main gas cock. The inlet pressure must remain within the minimum
and maximum values while the unit is at rest and while the unit is operating at maximum firing rate.
7.4 Manifold Pressure
Measure at the pressure tap located downstream side of the manual valve closest to the burner. The rated manifold
pressure appears on the product data label located near the front of the appliance.
7.5 Gas Piping Size
Use the values in “Convert Fittings To Equivalent Straight Pipe” to add the equivalent straight pipe for each elbow or
tee to obtain the total distance from the meter.
Use this corrected total distance from the meter for determining the suggested pipe size in the “Single Unit
Installation Suggested Gas Pipe Size” table.
*Multiplier for Propane: 1.57
**Multiplier for alternate pressure drops: 0.3" W.C. 0.77; 1.0" W.C. 1.41; 2.0" W.C. 2.00; and 4.0" W.C. 2.82.
INLET PRESSURE NAT. GAS LP
Maximum Static Pressure (Inches-Water Column) 14" 14"
Minimum Flow Pressure (Inches-Water Column) 4.5" 11"
CONVERT FITTINGS TO EQUIVALENT STRAIGHT PIPE
Diameter Fitting (inches) ¾" 1" 1¼" 1½" 2" 3" 4" 5"
Equivalent Length of Straight Pipe (feet) 2' 2' 3' 4' 5' 10' 14' 20'
Equivalent Feet
From Meter
SINGLE UNIT INSTALLATION SUGGESTED PIPE SIZE
Maximum Capacity for Natural Gas*
MBTU/HR Based on 0.5" W.C. Pressure Drop**
1-1/4" 1-1/2" 2" 2½" 3" 4"
25 860 1320 2475 3900 7000 -
40 660 990 1900 3000 5300 -
60 - 810 1520 2400 4300 -
80 - 690 1300 2050 3700 -
100 - 620 1150 1850 3250 6700
125 - - 1020 1650 2950 6000
150 - - 950 1500 2650 5500
175 - - 850 1370 2450 5000
200 - - 800 1280 2280 4600

15 PV500-47C 06/12
7.6 Appliance Isolation during Gas Supply Piping Pressure Test
1. The appliance and its provided manual shutoff valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of ½ PSI (3.5 kPa).
2. The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ PSI (3.5
kPa).
3. The appliance and its gas connection must be leak-tested before placing it in operation.
7.7 Gas Connection
1. Safe operation of unit requires adequate gas supply with the required static and dynamic (flow) pressures.
Actual piping selection depends on many variables that must be carefully considered by the gas piping system
designer.
Do not select gas pipe sizes based only on the supplied tables. These tables are for use by the gas piping
system designer as a reference in checking pipe size selections.
2. Gas pipe size may be larger than heater connection.
3. Installation of a union is suggested for ease of service.
4. Install a manual main gas shutoff valve, outside of the appliance gas connection and before the appliance
provided appliance manual shutoff gas valve, when Codes require.
5. The gas system installer should clearly identify the emergency shut-off device.
6. A sediment trap (drip leg) MUST be provided in the inlet of the gas connection to the unit.
7. The code compliant vent limiters are designed and must respond to pressure changes in the installation
environment, as opposed to outdoor pressure. For proper operation, do not connect to outdoor atmosphere.
MULTIPLE UNIT INSTALLATIONS GAS PIPING SIZE CHART
Maximum Capacity of Pipe in Thousands of BTU’s per hour for gas pressures of 14 Inches Water Column (0.5
PSIG) or less and a pressure drop of 0.05 Inch Water Column (Based on NAT GAS, 1025BTU’s per Cubic
Foot of Gas and 0.60 Specific Gravity).
Nominal Iron
Pipe Size,
Inches
Length of Pipe in Straight Feet
10 20 30 40 50 60 70 80 90 100 125 150 175 200
3/4 369 256 205 174 155 141 128 121 113 106 95 86 79 74
1 697 477 384 328 292 267 246 256 210 200 179 164 49 138
1 1/4 1400 974 789 677 595 543 502 472 441 410 369 333 308 287
1 1/2 2150 1500 1210 1020 923 830 769 707 666 636 564 513 472 441
2 4100 2820 2260 1950 1720 1560 1440 1330 1250 1180 1100 974 871 820
2 1/2 6460 4460 3610 3100 2720 2460 2310 2100 2000 1900 1700 1540 1400 1300
3 11200 7900 6400 5400 4870 4410 4000 3800 3540 3300 3000 2720 2500 2340
4 23500 16100 13100 11100 10000 9000 8300 7690 7380 6870 6150 5640 5130 4720

16 PV500-47C 06/12
8 COMBUSTION AND VENTILATION AIR
Provisions for adequate combustion and ventilation air to the mechanical room must be in accordance with Section
5.3 “Air for Combustion and Ventilation” of the latest edition of the National Fuel Gas Code, ANSI Z223.1 and/or
CAN/CSA B149, Installation Codes or applicable provisions of the local building codes.
8.1 Equipment Located In Confined Spaces
Equipment located in confined spaces requires two openings installed within 12” (30.5 cm) from the top and bottom
of the room to assure adequate combustion air and proper ventilation. The total input of all gas utilization equipment
installed in the room must be used to determine the required minimum air volume needed for combustion,
ventilation and dilution of flue gasses.
All Air From Outdoors:
Each opening requires a minimum free area of 1 square inch per 4000 Btu/hr input if directly communicating
with the outdoors or communicating to the outdoors through vertical ducts.
Each opening requires a minimum free area of 1 square inch per 2000 Btu/hr input if communicating with the
outdoors through horizontal ducts.
All Air From Inside The Building:
Each opening requires a minimum free area of 1 square inch per 1000 Btu/hr input, but not less than 100
square inches (0.06 m2).
Combination Of Air From The Indoors And From The Outdoors:
Refer to National Fuel Gas Code, ANSI Z223.1 and/or CAN/CSA B149, Installation Codes or applicable
provisions of the local building codes.
NOTE: This unit may be installed with a remote air intake system which uses a make-up air duct to draw
combustion air directly from outdoors.
WARNING: Adequate clean combustion air must be provided to the appliance. Under no circumstances
should the appliance ever be under a negative pressure. Particular care should be taken when exhaust
fans, compressors, air handling units, etc. may rob air from the appliance. The combustion air supply must
be completely free of any chemical or fumes, which may be corrosive to the appliance. Some common
chemical fumes to avoid are fluorocarbons and other halogenated compounds, most commonly present as
refrigerants or solvents, such as Freon, trichloroethylene, perchlorethylene, chlorine, etc. These chemicals,
when in contact with the equipment or when burned, form acids which quickly attack the tubes, flue
collector, stack and other appliance and auxiliary equipment. The result of inadequate clean combustion air
or negative pressure can be premature unwarranted product failure or unsafe operation producing carbon
monoxide that could escape into the building. Exposure to carbon monoxide can lead to injury or death.
8.2 Maximum Allowed Remote Combustion Air Inlet Length (Equivalent Length)
A vertical or horizontal remote air inlet system can be connected to this appliance without modification. The
maximum length of field supplied single wall pipe, such as galvanized ventilation pipe, is shown in the chart below
titled Maximum Air Inlet Duct Equivalent Length. Use metal tape or RTV sealant to seal each pipe joint.
Maximum Air Inlet Duct Equivalent Length
Duct Size 6” Duct 7” Duct 8” Duct 9” Duct
Max Equivalent Length 100 feet 130 feet 250 feet 450 feet
To determine the maximum straight length of duct allowed, use the Duct Fitting Equivalent Length chart below to
find the total equivalent length for all duct fittings in your combustion air system. Then subtract this number of feet
from the total equivalent length allowed in Maximum Air Inlet Duct Equivalent Length chart above. The sum of this
calculation is the maximum length of straight duct allowed. If a longer length is required, repeat the calculation using
a larger duct size. No additional deduction is required for the addition of the duct system terminal.

17 PV500-47C 06/12
Duct Fitting Equivalent Length
Duct Pipe: 6” Duct 7” Duct 8” Duct 9” Duct
90º Elbow 8 feet 9 feet 10 feet 11 feet
90º Long Radius Elbow 5 feet 5 feet 5 feet 6 feet
45º Elbow 5 feet 5 feet 5 feet 5 feet
The following remote air duct information is provided for use in design calculations, if needed.
Remote Air Duct Specifications
Input Mbtu Required
Air (SCFM) Max Duct Loss (inches Water)
1500 325 0.784
1800 390 1.11
2000 433 1.356
8.3 Remote Combustion Air Cap
A UL Listed air intake vent termination cap MUST be attached to the remote combustion air vent termination to
adequately protect the combustion air inlet from wind and weather. A UL Listed air intake termination cap is
available from PVI Industries and may have shipped with the water heater as a purchased option.
8.4 Vertical or Horizontal Remote Air Duct Termination
Air inlet and exhaust vents should terminate in the same wind pressure area whenever possible.
Air inlet must be located no less than 3 feet (0.91m) below the exhaust terminal if they are within 10 feet (3.05
m) of each other.
If terminating through the roof, the air inlet must terminate at least 12 inches (0.3 m) above roof level and at
least 12 inches (0.3 m) above snow levels.
If terminating through a sidewall, the air inlet must terminate at least 12 inches (0.3 m) above grade and/or at
least 12 inches (0.3 m) above normal snow levels.
Vertical Remote Air Horizontal Remote Air
8.5 Remote Air Consideration for Combined Remote Air Ducting
Each water heater MUST have separate intake piping. Consult factory for common air intake pipe sizing.

18 PV500-47C 06/12
9 VENTING
9.1 Venting the TRICON:
TRICON models are designed for operation only with stainless steel venting listed by UL, ULC, ETL or CSA for
Category IV, positive pressure, gas appliance venting. Follow the vent manufacturer’s instructions for installation,
sealing, supporting and terminating their vent system. Do not use plastic venting of any type. Do not use a
barometric damper with the TRICON positive pressure vent.
WARNING: Use only stainless steel venting listed by a nationally recognized testing laboratory for Category
IV, positive pressure, gas appliance venting. Use of plastic pipe of any type or use of venting materials
other than specified in these instructions can result in failure of the venting system and/or exposure to
carbon monoxide which can result in property damage, personal injury or death.
WARNING: Do not vent this water heater into an existing or traditional gas vent or chimney or combine the
vent with any other appliance. Such venting could result in failure of the venting system and/or exposure to
carbon monoxide which can result in property damage, personal injury or death.
9.2 Maximum Category IV Vent Length (Equivalent Length)
A vertical or horizontal remote Category IV vent system must be used with this appliance. The maximum length of
field supplied Category IV vent is shown in the chart below titled Category IV Vent Equivalent Length.
Maximum Category IV Vent Equivalent Length
Vent Size 6” Vent 7” Vent 8” Vent 9” Vent
Max Equivalent Length 100 feet 130 feet 250 feet 450 feet
Pipe fittings reduce the maximum allowable vent length. Use the Category IV vent manufacturer’s equivalent length
deduction for all elbows, terminations, etc. If the information is not readily available from the vent manufacturer, use
the Vent Fitting Equivalent Length chart below to find the total equivalent length for all vent fittings in your
combustion air system. Then subtract this number of feet from the total equivalent length allowed in Maximum
Category IV Vent Equivalent Length chart above. The sum of this calculation is the maximum length of straight vent
allowed. If a longer length is required, repeat the calculation using a larger vent size. When using this chart, no
additional deduction is required for the addition of the vent system terminal.
The following vent information is provided for use in design calculations, if needed.
Venting Specifications
Input Mbtu Products of Combustion
Volume (cfm) Max Vent
Press. “W.C.
1500 350 1.7
1800 420 2.0
2000 467 2.0
Vent Fitting Equivalent Length
Vent Pipe: 6” Vent 7” Vent 8” Vent 9” Vent
90º Elbow 8 feet 9 feet 10 feet 11 feet
90º Long Radius Elbow 5 feet 5 feet 5 feet 6 feet
45º Elbow 5 feet 5 feet 5 feet 5 feet

19 PV500-47C 06/12
9.3 Vertical or Horizontal Vent Termination:
1. The vent terminal must have a minimum clearance of 4 feet (1.22 m) horizontally from, and in no case be
located above or below, unless a 4 foot (1.22 m) horizontal distance is maintained from electric meters, gas
meters, regulators and relief equipment.
2. The vent cap must terminate at least 3 feet (0.91 m) above any forced air inlet within 10 feet (3.05 m).
3. The vent shall terminate at least 4 feet (1.22 m) below, 4 feet (1.22 m) horizontally from or 1 foot (0.3 m) above
any door, window or building air inlet to the building.
4. The vent system shall terminate at least 1 foot (0.3 m) above grade and at least 1 foot (0.3m) above possible
snow accumulation levels and shall terminate at least 7 feet (2.13 m) above grade when located adjacent to
public walkways or gathering areas.
5. To avoid a blocked flue condition, keep the vent cap clear of snow, ice, leaves, debris, etc.
6. The vent must not exit over a public walkway, near soffit vents or crawl space vents or other areas where
condensate or vapor could create a nuisance or hazard or cause property or could be detrimental to the
operation of regulators, relief valves or other equipment.
7. A horizontal vent must extend one foot beyond the wall.
8. A horizontal vent terminal must not be installed closer than 3 feet (0.91m) from an inside corner of an L-shaped
structure.
9. A vertical vent must exhaust outside the building at least 3 feet (0.91m) above the point of the exit and at least 2
feet (0.61 m) above the highest point of the roof within a 10-foot (3.05 m) radius of the termination.
10. A vertical termination less than 10 feet (0.91 m) from a parapet wall must be a minimum of 2 feet (0.61 m)
higher than the parapet wall.
9.4 Combining Category IV Vents
Combined TRICON Category IV gas vent systems must incorporate an Exhausto or Tjernlund variable speed,
modulating, mechanical draft inducer capable of maintaining the appropriate negative draft at the end of the
common flue, to assure that all water heaters in the combined vent system operate with a negative draft. Do not
exceed negative 0.25” W.C. See “Combining Vents with a Draft Inducer” illustration below.
WARNING: Do not connect multiple water heaters vents into a single unpowered or fixed speed powered
vent. This could cause unsafe operation and the potential for poisonous carbon monoxide to enter
occupied areas. Such improper installation can cause property damage, personal injury, exposure to
hazardous materials or loss of life.
Conventional Venting Through the Wall Venting Combining Vents with a Draft Inducer

20 PV500-47C 06/12
10 OPERATING AND SAFETY CONTROLS
WARNING: Turn off all electrical service to the appliance when accessing the limit or other controls located
inside the control cabinet. This cabinet contains High Voltage wiring and terminals. If the electrical service
is not turned off and these terminals are touched, a dangerous shock causing personal injury or loss of life
could occur. Close and fasten the control cabinet cover before restoring electrical service to the appliance.
10.1 Temperature and Pressure Relief Valve (s)
A Temperature and Pressure Relief Valve(s) sized in accordance with the ASME Boiler and Pressure Vessel Code
is installed in the tank.
WARNING: Secure the relief valve pipe to a suitable floor drain such that very hot water does not openly
splash during a significant relief valve discharge. If the relief valve pipe is not routed and secured to a
suitable drain, hot water discharge can result in property damage, scalding and personal injury or loss of
life.
The drain pipe may not be smaller than the relief valve opening and must be secured to prevent it from lifting
out of the drain under discharge pressure.
CAUTION: Do not install a reducing coupling, valve or other restriction in the T&P relief valve(s)
discharge line. The discharge line shall allow complete drainage of the valve and line. Relief valves should be
manually operated at least once a year.
Thermal Expansion - A relief valve that periodically discharges may result from thermal expansion, if the water
heater is installed in a system closed by components, such as a backflow preventer or check valve in the cold
water supply. These systems must be provided with means to control expansion. Contact a water heater or
plumbing professional to resolve this situation.
CAUTION: Do not plug the relief valve, as this will eliminate the critical water temperature and pressure
protection it provides.
10.2 Operating Temperature Control
An adjustable digital operating control is located in the front control panel. The control is factory pre-set at
approximately 120ºF. To adjust the setpoint to deliver the desired water temperature, press and release the Set 1
key on the face of the control. When setpoint adjustment is enabled, use the arrow keys to adjust the set point to
the desired system temperature. See TempTrac Electronic Controller Panel in this manual for more information.

10.3 High Water Temperature Limit Control
Appliances are equipped with adjustable limit and high limit controls to control the maximum discharge water
temperature. These controls are located inside the control cabinet and are accessed by removing the bottom cover.
The high limit control is optionally available as the manual reset type and may be reset by pressing the limit reset
button accessible through the control panel cover. Pressing the reset on the High Limit Control will not cause the
control to reset until the water temperature has dropped below the set point of the manual reset High Limit Control.
The Lower Limit is of the auto reset type and can be dial adjusted to operate just above the set point of the main
Operating Temperature Control.
10.4 Cathodic Protection
PVI water heaters do not utilize cathodic protection. However, in hot water systems utilizing cathodic protection,
hydrogen gas can be produced when the hot water system has not been used for a long period of time (generally
two weeks or more). Hydrogen gas is extremely flammable. To prevent the possibility of injury under these
conditions, one of the hot water system faucets should be opened for several minutes before using any electrical
device connected to the hot water system. If hydrogen is present, there will be an unusual sound such as air
escaping through the pipe as the hot water begins to flow. Do not smoke, have open flames or turn electrical
switches on or off near the faucet at the time it is open.
10.5 Electronic Low Water Cut-Off (Optional)
When the water level is above the electrode position in the tank, the reset pushbutton will energize the control (LED
will be lit). The control remains energized until the water level recedes below the electrode position (LED will not be
lit). Unless otherwise specified, there is a three-second time delay on decreasing level. Water level must be below
tank probe location for full three seconds before control de-energizes.
