Pyle PDKWM102U User manual

4 1
www.PyleUSA.com www.PyleUSA.com
HANDHELD MICROPHONE
Operation
14
23
1. Grille (Capsule inside)
2. Display of frequency
3. Power ON/OFF Switch
4. Battery Compartment / Cover
1. Open battery cover. Install the provided 2pcs 1.5V A A batteries and then close
the cover. Pay attention to the correct polarity.
2. Slide power switch to ON position, display will be illuminated.
3. Now receiver RF indicator should light (Please conrm frequency of microphone
same as that of receiver before operation).
4. During operation if display is extinguished, this indicates the battery is Iow.
Please replace new battery.
5. If the microphone is not going to be used for any length of time, please slide
power switch to OFF position and remove the battery.
SPECIFICATIONS
Overall System
Frequency:
Group 1: 1A (517.6MHz) +1B (533.7MHz)
Group 2: 2A (521.5MHz) +2B (537.2MHz)
Frequency Response: 80~20000Hz at ±3dB
Frequency Stability: 30 ppm
Modulation Mode: FM
Maximum Deviation: +/-55 KHz
Audio Dynamic Range: >100dB
S/N: >100dB
T.H.D: <0.5%
Operating Range: 50M
Operation Temperature: -68°F~122°F
Receiver
Mirror Image Rejection: >50dB
LINE Input Sensitivity: 380mV/-8.5dB
MIC Input Sensitivity: 5mV/-46dB
LINE Input Impedance: 20 K
MIC Input Impedance: 50 K
Power Supply: DC 12V/200mA
Power Dissipation: <800mW
Handheld Microphone
Mic Capsule: Dynamic
Antenna: Built-in Housing
RF Output: <10mW
Spurious Emission: <-40dB
Power Supply: 2x 1.5V A A Batteries
Power Dissipation: <250mW

2 3
www.PyleUSA.com www.PyleUSA.com
1. Power Indicator: The indicator will be illuminated when the receiver is
powered ON.
2. Power Switch: Press to switch the receiver power to ON and OFF.
3. ECHO: Rotate the echo knob to your desired level.
4. TONE: This control is used to adjust the bass, treble quality of the microphone.
The bass is decreased and treble is increased when the control turned
clockwise. The bass is increased and treble is decreased when the control
turned counter clockwise.
5. RF 1/2: The indicator will be illuminated when wireless microphone is on.
6. W/MIC1/W/MIC2: Rotate to adjust volume of wireless microphone
1/2 and wired dynamic M I C 1/2.
7. MIC 1/2: Insert the 6.3mm MIC plug of wired dynamic MIC(not provided) into
MIC 1/2 jack.
8. ANT 1/2: Receiving antenna of wireless microphone.
9. Audio output jack (RCA type): Connect this set of RCA Jack to Active
Speakers, Hi Fi system, etc. to output the nal mix of music and microphone.
10. AF OUT: Connect this jack to MIC IN of your amplier to output the nal mix of
music and microphone.
11. Audio Input Jack (RCA type): Connect this set of RCA jacks to an audio
source with RCA output such as DVD, Streamer etc. to bring in the music.
12. Aux In (3.5mm stereo type): Connect this jack to an audio source with
phone out such as computer, iPad, mobile phone etc. to bring in the music.
13. DC IN jack: Connect DC jack of supplied AC / DC adapter to this jack.
To bring in music, connect audio source to L/R RCA INPUT jack on the back of
receiver with the provided RCA cables(white and red) if your audio source has
RCA output, such as DVD, Streamer etc.
Or connect audio source to AUX IN jack on the back of receiver with the
provided 3.5mm/3.5mm cable if your audio source has 3.5mm phone out, such as
iPad, Smartphones, Tablets, Laptops, Computers, etc.
Connection
AUX IN
AF OUT
Audio Input
DVD, Streamer etc. RCA Output
L
R
Computers etc.
OR
Phone Out
Audio Output
Both the ¼ inch AF OUT jack and the left/right RCA output jacks on the back
of receiver output the nal mix of music and microphone. To output the sound
you need to have an additional audio device (speaker or amplier) .
Connect the left/right RCA output jacks on back of receiver to RCA input jacks
on active speaker with supplied RCA cables. Or connect the ¼ inch AF OUT jack
on the back of receiver to MIC input jack on amplier with supplied ¼ inch cable.
L
R
RCA input
Active Speaker
OR
Amplier
MIC IN
Passive Speaker
Audio
Input
Audio
Output
1. After connecting the receiver to Amplier(or Speaker) and Audio source,
connect the provided AC/DC adapter to the receiver.
2. Turn the receiver power on. Power indicator will be illuminated.
3. Turn the microphones power on. RF indicators on receiver will light.
4. Turn on your Amplier(or Speaker) and Audio source.
5. Adjust Tone, Echo, MIC volume and music volume to your desired level.
Music volume need to be adjusted via your Audio source.
6. Now you are ready to sing!
Operation

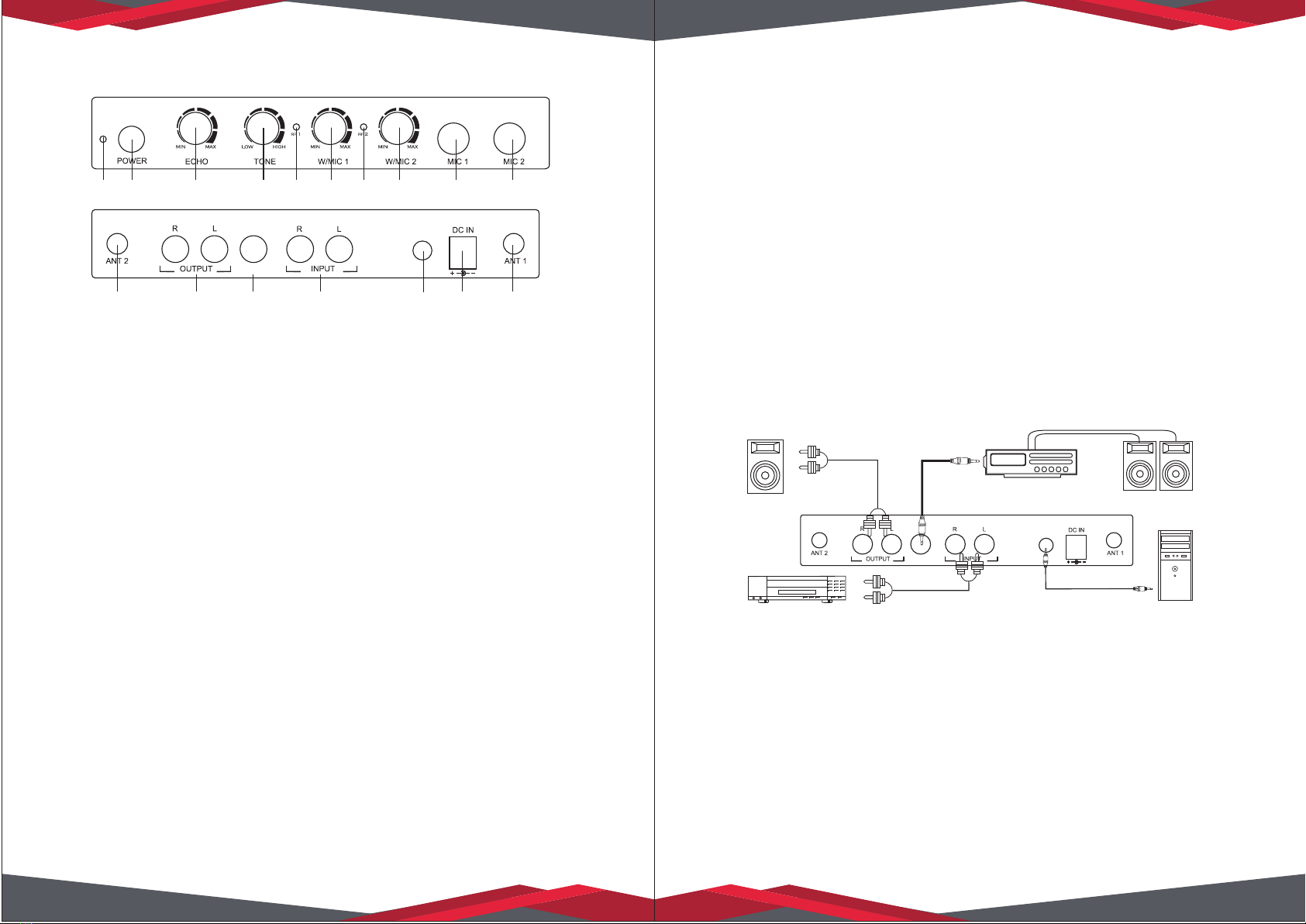

RECEIVER
23 4 56567 7
11 12 13 8
8 9
1
10
AUX IN
AF OUT
Front
Rear
