Q3 Innovations CA2010 User manual

Owner’s Manual
© 2010 Q3 Innovations v112410
CA2010

TABLE OF CONTENTS
INTRODUCTION .................................................................................1
Intended Use .......................................................................................1
Overview..............................................................................................1
Effects of Alcohol .................................................................................1
PREPARATION ...................................................................................3
Installing the Battery ............................................................................3
Inserting a New Mouthpiece ................................................................3
COMPONENTS DIAGRAM .................................................................4
OPERATION .......................................................................................5
READ THE RESULTS .........................................................................6
ERROR MESSAGES ..........................................................................6
PRECAUTIONS ..................................................................................7
SPECIFICATIONS ...............................................................................8
MAINTENANCE CHECK ....................................................................8
ACCESSORIES ..................................................................................9
VERIFICATION AND CALIBRATION .................................................9
WARRANTY ......................................................................................10
DISCLAIMER ....................................................................................11

INTRODUCTION
Intended Use
This breath alcohol tester is intended to measure alcohol in human
breath. Readings from this device are used to determine alcohol
intoxication. The accuracy of this device has been proven at a Blood
Alcohol Concentration (BAC) of 0.008 and 0.032. Accuracy at a BAC
greater than .032 has not been established.
Overview

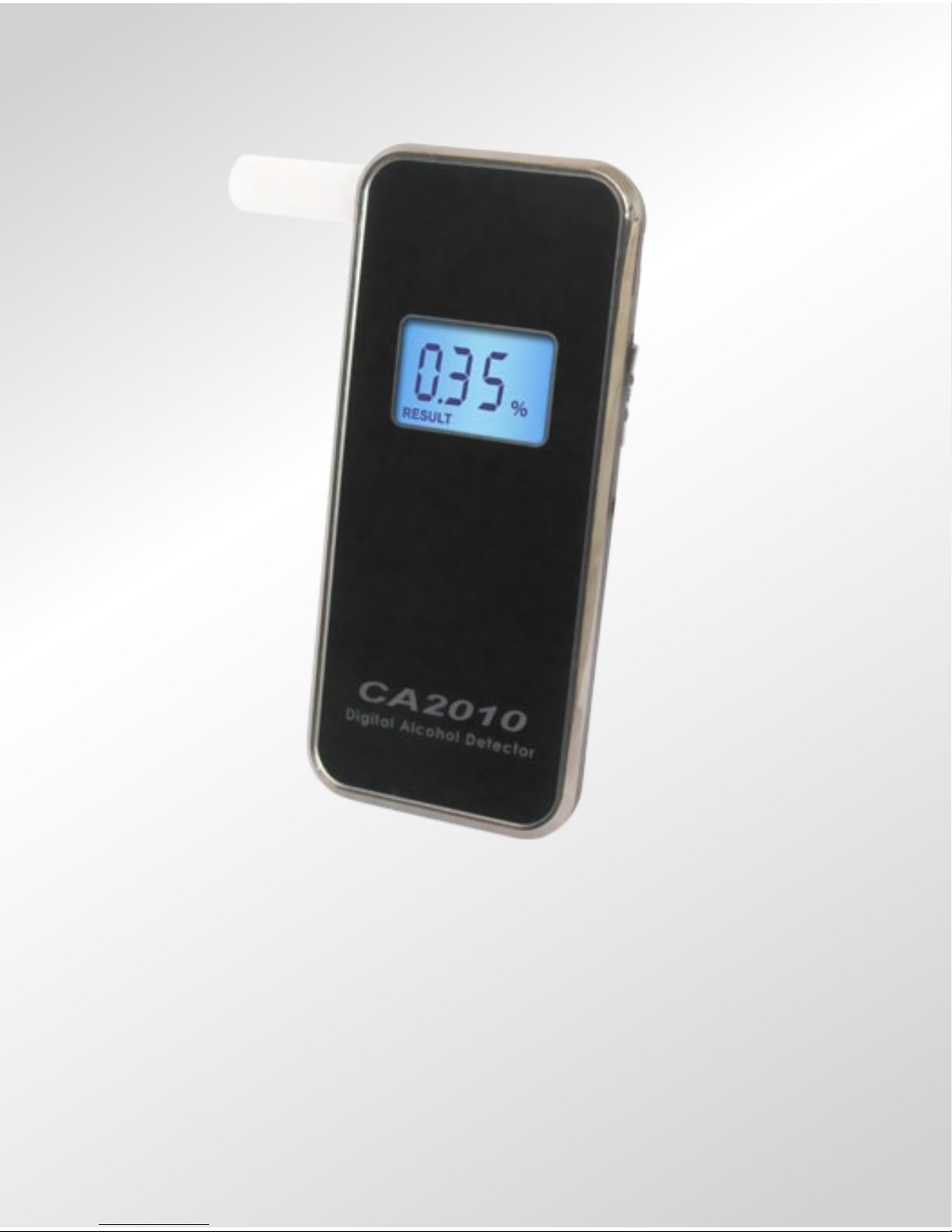

The CA2010 is a breath alcohol tester designed to test for the
presence of alcohol in the breath. This product estimates blood alcohol
concentration (BAC) in seconds. Please read this entire manual before
use.
Effects of Alcohol
Variations among people and other factors, such as altitude and air
temperature, affect the degree of intoxication. Some people may
become intoxicated at low BAC levels. A low BAC on a breath alcohol
tester does not mean that a person’s reaction times can respond to
any emergency. You should not drink alcohol and drive or use any
machines after consuming alcohol. There is no safe way to drive under
the inuence of alcohol. Even one drink can make you unsafe.
1

2
BAC Dose-Specic Effects 1
0.020-0.039% 2Generally no loss of coordination. Slight joy or loss of shyness.
Depressant effects are not clear.
0.040-0.069%
General feelings of well-being, relaxation, shyness is reduced and
sensation of warmth. Joy. Some minor impairment of reasoning and
memory. Lowering of caution. Driving skills may be impaired.
0.070-0.099%
Slight impairment of balance, speech, vision, reaction time, and hearing.
Joy. Judgment and self-control are reduced. Caution, reason and
memory are impaired. Driving skills are always impaired.
0.100-0.129%
Major impairment of motor coordination and loss of good judgment.
Speech may be slurred. Balance, vision, reaction time and hearing will
be impaired. Joy.
0.130-0.159%
Gross motor impairment and lack of physical control. Blurred vision and
major loss of balance. Joy reduced and state of feeling unwell begins
to appear.
0.160-0.249% Anxiety, restlessness predominates. Nausea may appear. Appearance
of a “sloppy drunk.”
0.250%-0.299% Needs assistance in walking. Total mental confusion. State of feeling
unwell with nausea and some vomiting.
0.300%-0.399% Loss of consciousness.
0.400% + Onset of coma. Possible death due to respiratory arrest. 3
1 Bailey, William J., Drug Use in American Society, 3rd ed., Minneapolis: Burgess, 1993.
2 Some individual’s may experience impairment at BAC levels at .03% or even lower.
3 Death can occur at a lower BAC level in some individuals.
DO NOT DRINK ALCOHOL AND DRIVE
ALWAYS USE A DESIGNATED DRIVER
AFTER DRINKING ALCOHOL
BE SAFE AND RESPONSIBLE

3
PREPARATION
Installing the Battery
Apply a small amount of pressure on the battery cover located on the
back of the unit. Push down and slide away from the unit to release the
cover. Install one (1) 9V alkaline battery and slide cover back in place.
Inserting a New Mouthpiece
Insert a new mouthpiece rmly into the BREATH PIPE IN hole on the
left side of the product. Insert a new mouthpiece before each test.
CA2010
Digital Alcohol Detector
READY
MOUTHPIECE
CA2010
Digital Alcohol Detector
0 4 2
%
MOUTHPIECE
BREATH PIPE IN
PUSH

4
COMPONENTS DIAGRAM
CA2010
Digital Alcohol Detector
0 . 0 0
%
RESULT
MOUTHPIECE BREATH OUT
DO NOT COVER
WHILE TESTING
ON/OFF POWER
SWITCH
DC ADAPTER
SOCKET
BATTERY
COMPARTMENT
COVER
(BACK)
DISPLAY
WINDOW

5
OPERATION
Wait 20 minutes after the test subject smokes, eats, or drinks alcohol
before testing. Failure to wait 20 minutes can give inaccurate BAC
readings and harm the sensor.
Step 1) Insert a new mouthpiece each time you test another individual.
Step 2) SLIDE UP AND HOLD the ON/OFF power switch for 1 second until
you hear the startup tones. The device will display “On” and count
from 000 to 100% as it prepares the sensor for testing.
Note: The device will restart a count if the sensor is not ready within the
rst count.
Step 3) When you hear a SINGLE BEEP and the unit displays
“READY - - -” take a DEEP BREATH, wrap your lips around the new
mouthpiece and BLOW STEADILY (for at least 5 seconds) until a
DOUBLE BEEP sounds to signal completion of the testing. Do not
cover the BREATH OUT hole.
Note: If you do not blow within 30 seconds the device will display “Off”
and power down. Continue from step 2.
Step 4) A circling line will display for approximately 5 seconds followed by
“RESULT”, your estimated BAC, and a long beep.
Note: The unit’s backlight will turn from blue to red, display “WARN”, and
play alarm tones when the result is higher than 0.05% BAC.
Note: If you consumed very little alcohol, your actual concentration may
be below 0.01% BAC and the unit will display 0.00% BAC and emit a long
beep.
Note: After the result has been displayed for 20 seconds the device will
display “Off” and power down.
Step 5) For more testing, wait two (2) minutes and repeat steps 1-4.

6
READ THE RESULTS
The result is an estimate of the subject’s BAC. A breath alcohol tester
cannot determine the exact BAC in the blood of the subject. Correlation
between BrAC and BAC depends on many factors, such as temperature
and health conditions. Only use this device to screen for the presence
of alcohol.
Many people consider a 0.02% or greater a positive test for alcohol in
“zero tolerance” screening. Most states have 0.08% as the legal BAC
limit for tasks such as operating a motor vehicle. Some states prohibit
driving commercial vehicles or any vessel with a 0.04% BAC or higher.
Many states prosecute individuals for driving under the inuence at any
level.
ERROR MESSAGES
Error Message Cause and Course of Action
The unit displays “WARN” and plays alarm tones when
the result is higher than 0.05% BAC.
The unit did not detect an even alcohol concentration in
the breath sample. This can occur if the user varies the
blowing force when performing a test or if the exhaust port
is obstructed. Repeat operation steps 1 – 6 to perform
another test.
The unit displays “Hot” and plays alarm tones when it
has detected a very high alcohol concentration (above
0.40% BAC).
Battery power is low. Install a new 9V alkaline battery.
Note: Any of these errors will turn the unit’s backlight red.

7
PRECAUTIONS
1. Wait at least 20 minutes after drinking, smoking and eating before
testing.
2. Do not test in strong winds or in a closed room with smoke or
alcohol present.
3. When the unit displays “bAt”, install one (1) new 9V alkaline battery.
4. Do not blow smoke, food or liquid into the unit.
5. Only use the unit in a temperature range of 10 - 40°C or 50 - 104°F.
Operation above or below this range may affect the results.
6. Do not leave the unit connected to the AC/DC outlet when the unit is
not being used.
7. Avoid testing in the presence of any substances that contain methyl
alcohol, isopropyl alcohol or acetone. These substances may
interfere with the results of the test.
8. Conditions that increase the amount of ketones on the breath, such
as diabetes and low caloric intake, may cause a false positive test
(showing a non-zero reading when subject hasn’t had any alcohol).
9. BAC changes over time depending on many factors. BAC at one
time can differ from BAC a few minutes later.
10. Do not use this unit with an ignition interlock device or while inside a
vehicle.
11. You cannot use the results of this unit in court of law.
12. Do not use this unit to determine if you or anyone else can operate
any vehicle or machinery.
13. Do not let yourself or anyone else drink and drive. Always use a
designated driver when you or anyone else drinks alcohol.

8
SPECIFICATIONS
Dimensions 4.88” x 2.19” x .75” (12.4 cm x 5.6 cm x 1.9 cm)
Weight 2.2 oz (63 g) without battery; 3.7 oz (105 g) with battery
Housing Shock resistant, molded plastic
Power Supply One (1) 9V alkaline battery
Battery Life 200 - 300 tests 1
Sensor Technology Sensitive Semiconductor Sensor
Blowing Time 5 seconds
Response Time 3 seconds 1
Digital Display 3 digits (0.00% BAC)
Operating Temperature 10 - 40°C (50 - 104°F)
Detection Range 0.00% - 0.40% BAC
Air Sample 5 seconds
Operation 1 button
Warranty 1 Year Limited Warranty
Calibration Required periodically. Visit www.q3i.com.
1 Estimates, results may vary.
MAINTENANCE CHECK
This feature is to check periodically to ensure the sensor is in good
working condition. This test should be performed without any
alcohol intake.
Step 1) SLIDE UP AND HOLD the ON/OFF power switch for 5
seconds until the device displays “CAL” and begins counting
from 000 to 100% as it prepares the sensor for testing.

9
Step 2) WAIT until the unit displays “READY CAL” and you hear a
SINGLE BEEP.
Step 3) Take a DEEP BREATH AND BLOW STEADILY (for at least 5
seconds) until a DOUBLE BEEP sounds to signal completion
of the testing. Do not cover the BREATH OUT hole.
Step 4) WAIT approximately 5 seconds until the unit displays
“RESULT” and your pollution check result will be displayed
using one of the responses below:
PAS - No pollutants were detected in your device.
CAL - Pollutants were detected. Please contact the Q3 Service
Center for instruction. (backlight will turn red)
ACCESSORIES
Visit our online store at www.q3ats.com to purchase the following
accessories.
• Mouthpieces
• 12 Volt DC Adapter
• Wall Adapter
• Soft Carry Pouch
• Hard Case
VERIFICATION AND CALIBRATION
Calibration of the CA2010 occurs during manufacturing using advanced
alcohol simulation equipment. The manufacturer passes known
alcohol concentrations through the sensor to set baseline values for
testing. During testing, the unit compares users’ breath samples to
these baseline values. If the verication determines that the BAC is not
consistent with actual BAC levels, a technician calibrates the unit. The
accuracy of breath alcohol testers can uctuate over time, depending on
frequency of use and operating conditions.

10
If the unit is providing inconsistent results or unusually high or
low readings, the unit may need calibration. A technician should
recalibrate this unit at least every six to twelve months. More
frequent calibrations may be required depending on frequency of
use; such as once per month if the unit is used daily.
Please visit www.alcohawk.com or call 888-399-1687 for calibration or
support.
ONE-YEAR LIMITED WARRANTY
Q3 Innovations (Q3I) warrants this unit to be free from defects in
workmanship or material (excluding calibration) under normal use for
ONE (1) YEAR from the date of retail purchase by the original buyer
(”Warranty Period”).
The warranty covers parts and labor on covered repairs and
ground freight back to the customer (USA only). Except as
provided above, Q3I provides this product “as is.”
If a defect arises and Q3I receives a valid claim within the Warranty
Period, at its option, Q3I will either (1) repair the product, (2)
exchange the product with a product that is new or which has
been built from new or serviceable used parts and functionally
equivalent to the original product, or (3) refund the purchase price
of the product. If a refund is given, the returned product becomes
Q3I’s property. The warranty does not cover shipping to Q3I. The
warranty is void if anyone tampers or abuses the unit.
This warranty is limited to the original consumer purchaser and can not
be transferred to any other owner.
For warranty service please follow these instructions:
1. Call 888-399-1687 or email [email protected] to obtain an RMA
number. Return the unit postage paid, insured and in proper box.
2. You should obtain a proof of delivery receipt. You must pay the cost

11
for shipping the unit to us.
3. You must enclose the following with the unit:
a. The completed RMA form (available at
www.alcohawk.com/support)
b. Your name, return address and description of the problem. (No
PO Box)
c. Your phone number to reach you during the day.
d. A copy of your sales receipt or invoice.
DISCLAIMER
Q3I makes no warranties, expressed or implied, as to the ability of this
unit to determine whether, or to the extent to which, a test subject’s
mental or physical functionality, or judgment, is impaired by blood
alcohol including whether the test subject is intoxicated, under any
denition of that word. Q3I expressly disclaims any liability for incidental,
special, or consequential damages of any nature under any legal theory.
Any act or failure to act based upon a reading from this product is at
the test subject’s or user’s own risk. Q3I assumes no responsibility for
consequences to users or test subjects who use this product and are
later under the inuence of alcohol or to have had their judgment or
any mental or bodily function impaired by alcohol. Correlation between
BrAC and BAC depends on many variables, such as temperature and
health conditions of the test subject. A safe or low BAC reading does not
mean that the test subject’s physical or mental performance or judgment
(including reaction times) can respond to any emergency encountered.
A breath alcohol tester cannot determine the exact concentration of
alcohol in the blood of a test subject.
Q3I does not warrant that the operation of the product will be error-
free. Q3I is not responsible for any consequences arising from failure
to follow instructions or relating to the product’s use. This warranty
does not apply: (a) to consequences caused by accident, abuse,

12
tampering, misuse, ood, re, earthquake or other external causes; (b)
to consequences caused by operating the product outside the permitted
or intended uses described by Q3I; (c) to consequences caused by
service performed by anyone who is not a representative of Q3I or a Q3I
Authorized Service Provider; or (d) to a product or part that has been
modied to alter functionality or capability without the written permission
of Q3I.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE
REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS,
WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR
IMPLIED. AS PERMITTED BY APPLICABLE LAW, Q3I SPECIFICALLY
DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS.
IF Q3I CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED
WARRANTIES, THEN TO THE EXTENT PERMITTED BY LAW ALL
SUCH WARRANTIES ARE LIMITED TO THE DURATION OF THE
EXPRESS WARRANTY AND TO THE REPAIR OR REPLACEMENT
SERVICE AS DETERMINED BY Q3I IN ITS SOLE DISCRETION.
Q3I does not authorize any Q3I reseller, agent, or employee to make
any modication, extension, or addition to this warranty. If anyone
determines any terms to be illegal or unenforceable, the legality or
enforceability of the remaining terms shall not be affected or impaired.
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO
THE MAXIMUM EXTENT PERMITTED BY LAW, Q3I IS NOT
RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES UNDER ANY LEGAL THEORY,
INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF
REVENUE OR INCOME; LOSS OF ACTUAL OR ANTICIPATED
PROFITS (INCLUDING LOSS OF PROFITS FROM A CONTRACT);
LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS;
LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF
GOODWILL, OR LOSS OF REPUTATION.

13
Some countries, states and provinces do not allow the exclusion or
limitation of incidental or consequential damages or allow limitations
on how long an implied warranty or condition may last, so the above
limitations or exclusions may not apply to you. This warranty gives
you specic legal rights, and you may also have other rights that vary
by country, state or province. This limited warranty is governed by
and construed under the laws of the country where the product was
purchased.
DO NOT DRINK ALCOHOL AND DRIVE
ALWAYS USE A DESIGNATED DRIVER
AFTER DRINKING ALCOHOL
BE SAFE AND RESPONSIBLE

© 2010 Q3 Innovations v112410
Q3 INNOVATIONS
Personal Safety & Monitoring Devices
2349 Jamestown Ave., Suite #4 • Independence, IA 50644
Tel: [phone] • Fax: [phone]
Sales Email: [email protected] • Service Email: [email protected]
www.alcohawk.com
