QABA 340-004 User manual

ASSEMBLY INSTRUCTION
INffa076_US
READ AND SAVE THIS INSTRUCTION FOR FUTURE USE
340-004

PACKING DETALS:TOTAL 2BOXES
BOX-1/2BOX-2/2
NO. PARTS QTY NO. PARTS QTY
A
D
F
B
C
E
2
2
3
4
4
4
Hardware Kit
-1-

A
B
C
D
F
E
G
H
I
J
L
K
-2-

L4
J4
E4
D2
C4
B4
A2
H4
G4
F3
I16
+1 (spare)
K12
+1 (spare)
M8 * 50 round head screw
with M8 cap-typed nut
M12 * 80 screws with flat pad
and spring pad and M12 nut
M6 plastic source screw
M10 plum screw
Beech sticks Adjusting rod Support Rod
Main anchor Lengthened foot Bottom support Rod
M18 spring latch
M12 * 30 screw with flat
pad and spring pad
-3-

1.Place part D then install part E on both ends of part D respectively,
and lock it by J;
INSTALLATION DIAGRAM:
-4-

2. Install part C on part D according to the required position, connect and
lock it with I;
3. Install part F on parts D&E, connect and lock with K;
-5-

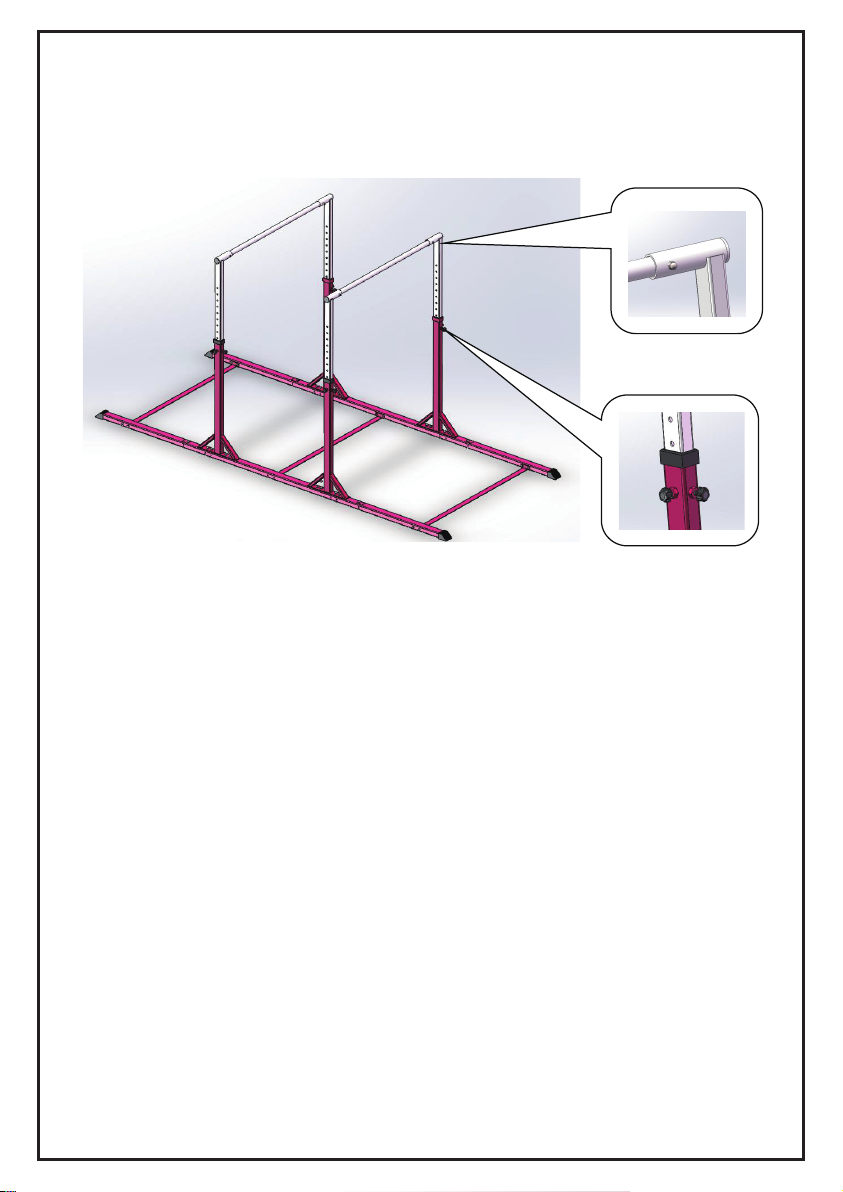

4. Connect parts A and B with L and lock it, put it into Part C, adjust the
ideal height and use G and H to lock it;
5. When you need to adjust the height, you can loosen G and H, and pull
B to adjust height;
WARNING！
1. Misuse and abuse of this product can cause serious injury.
2. Read the instructions before using the product.
3. Inspect before use and replace worn, defective or missing parts.
4. Only allowed for adults to install and be used by adults’ supervision.
5. Place it on a flat surface, check all the parts are well connected before
use.
6. Product for Age: 3+.
7. Maximum total weight 120KG; Single root can bear 60KG.
-6-
