QEI ePAQ-9405 User manual

UG-1084
ePAQ-9405 User’s Guide
December 2018

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 by QEI
UG-1084 ePAQ-9405 User’s Guide
ALL RIGHTS RESERVED
NOTICE
The information in this document has been carefully checked and is believed to be
accurate. However, no responsibility is assumed or implied for inaccuracies.
Furthermore, QEI reserves the right to make changes to any products herein
described to improve reliability, function or design. QEI does not assume liability
arising out of the application or use of any product or circuit described herein; neither
does it convey any license under its patent rights nor the rights of others.
This manual and all data contained constitutes proprietary information of QEI and
shall not be reproduced, copied or disclosed to others, or used as the basis for
manufacture without written consent of QEI
45 Fadem Road
Springfield, NJ 07081
Phone: [phone]
Fax: [phone]
Web Site: www.qeiinc.com

UG-1084 ePAQ-9405 User’s Guide
ePAQ-9405 User’s Guide Revisions  i
Revisions
Revision
Description
Date
A
Initial Release
April 19 2016
B
Client and Server updates.
April 29, 2016
C
Formatting Update
June 6, 2017
D
Changed QEI Address
Dec. 7, 2018

UG-1084 ePAQ-9405 User’s Guide
ePAQ-9405 User’s Guide Contents  i
Contents
1Description................................................................................1
2Specifications...........................................................................2
3Input Power Connections ........................................................4
4Switches....................................................................................4
4.1 Power Switches...................................................................4

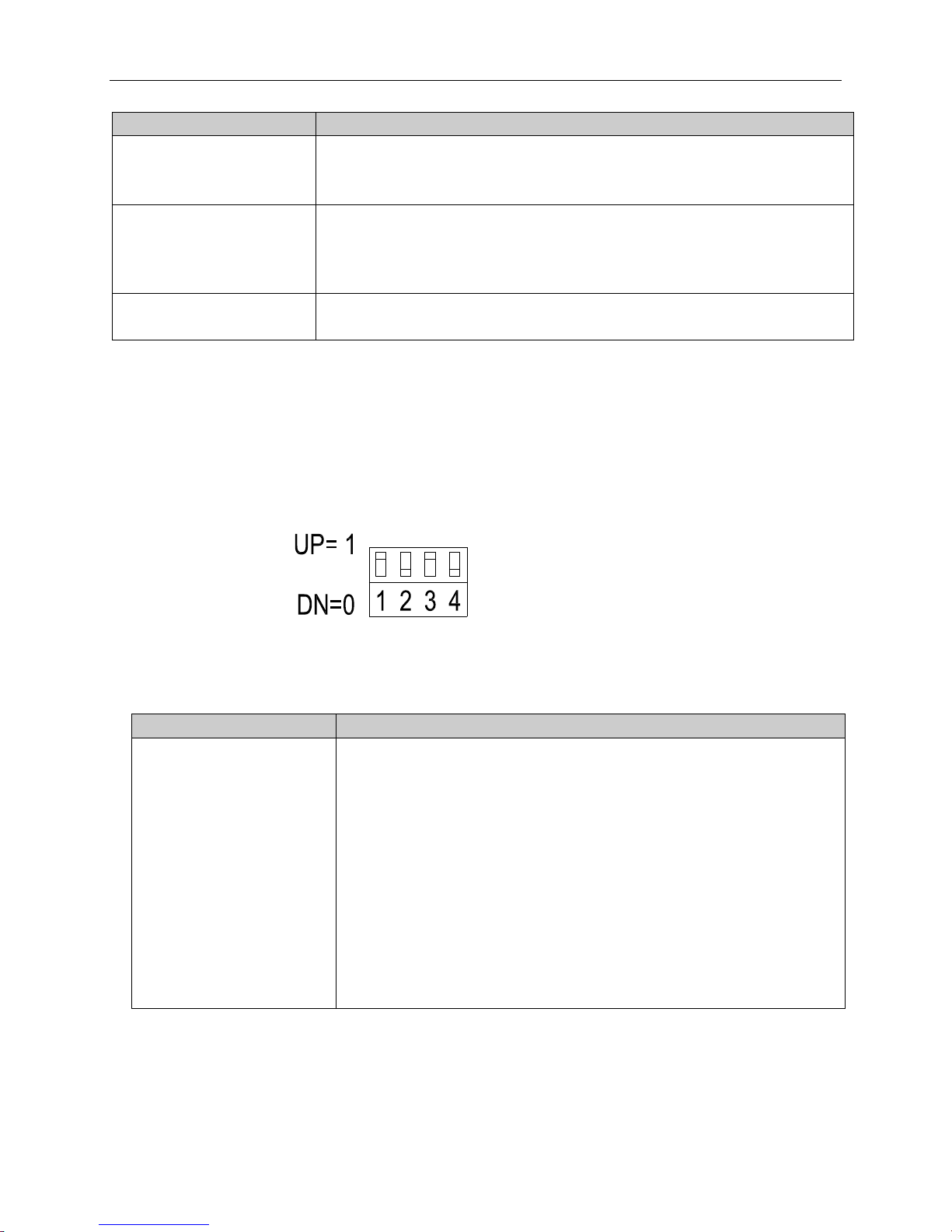

4.2 Dip Switches........................................................................5
5Jumper Settings .......................................................................6
6LED Indications ........................................................................6

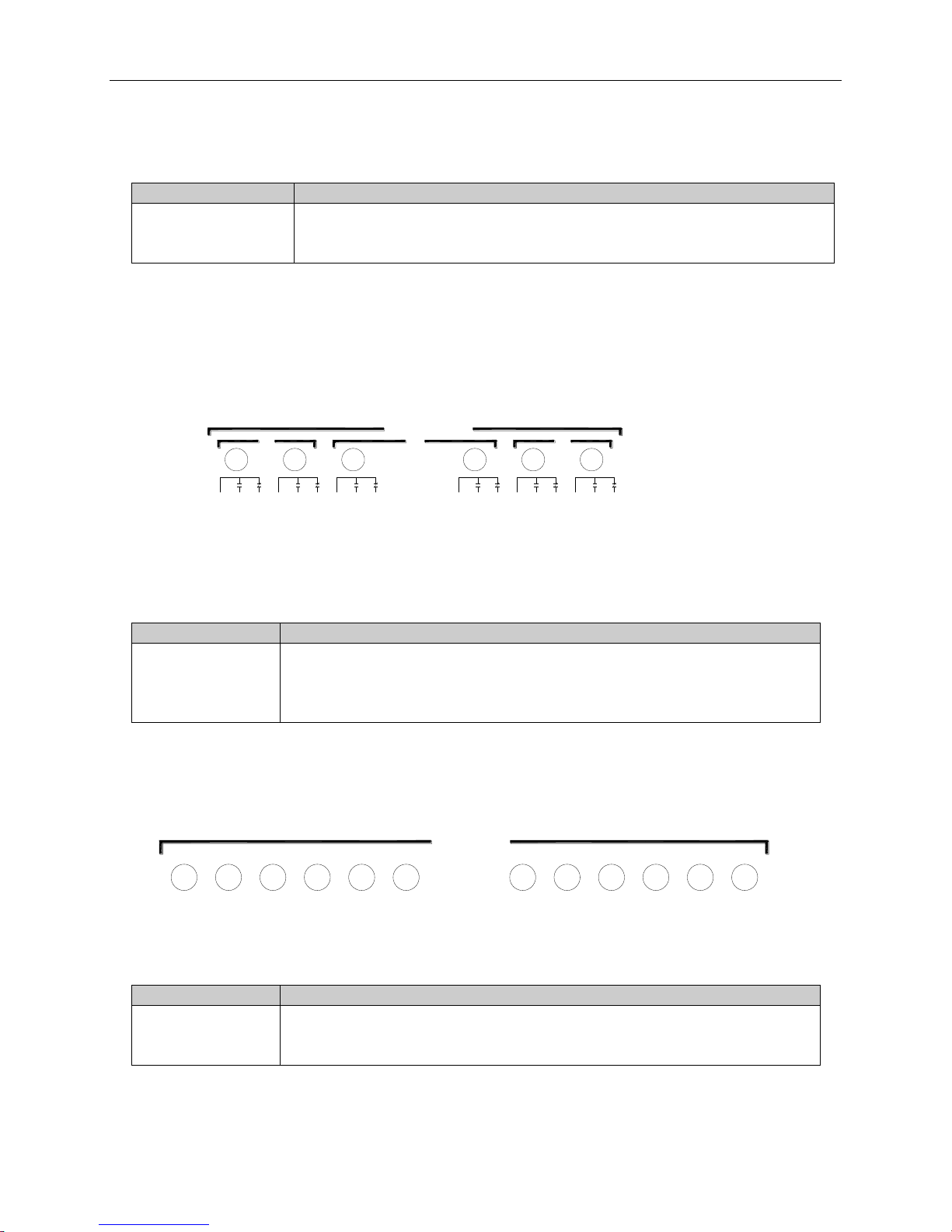

6.1 Control LEDs.......................................................................6
6.2 Status LEDs.........................................................................6
6.3 Irig Activity LED ...................................................................7
6.4 L/R (Local/Remote) LED......................................................7
6.5 Logic Pwr and Heartbeat LEDs............................................8
6.6 Comm Port LEDs.................................................................8
7Communications Ports............................................................9
7.1 Port 1 (J3): USB Maintenance Panel ..................................9
7.2 Port 2 (J4): RS-232..............................................................9
7.3 Port 3 (J5): Fiber Optic.......................................................10

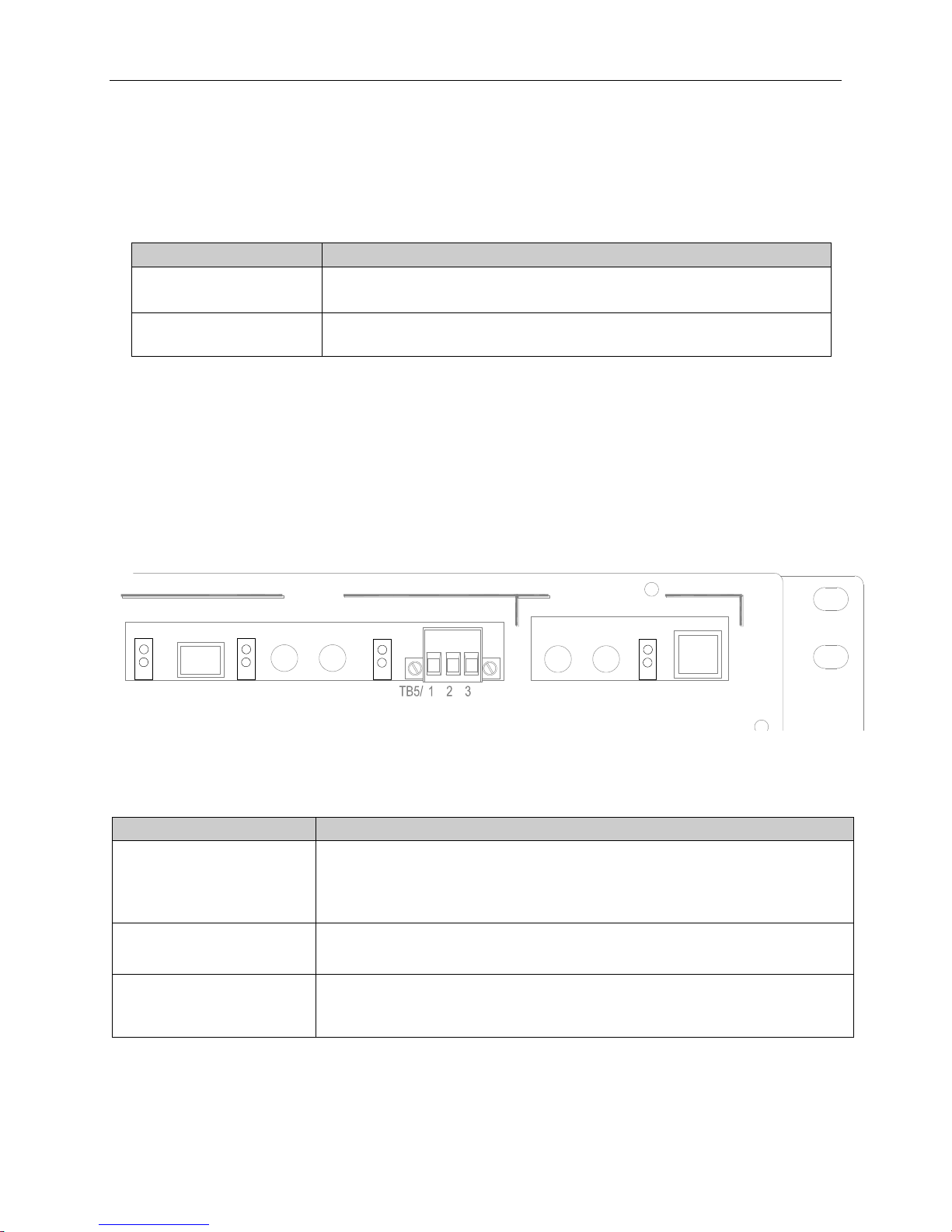

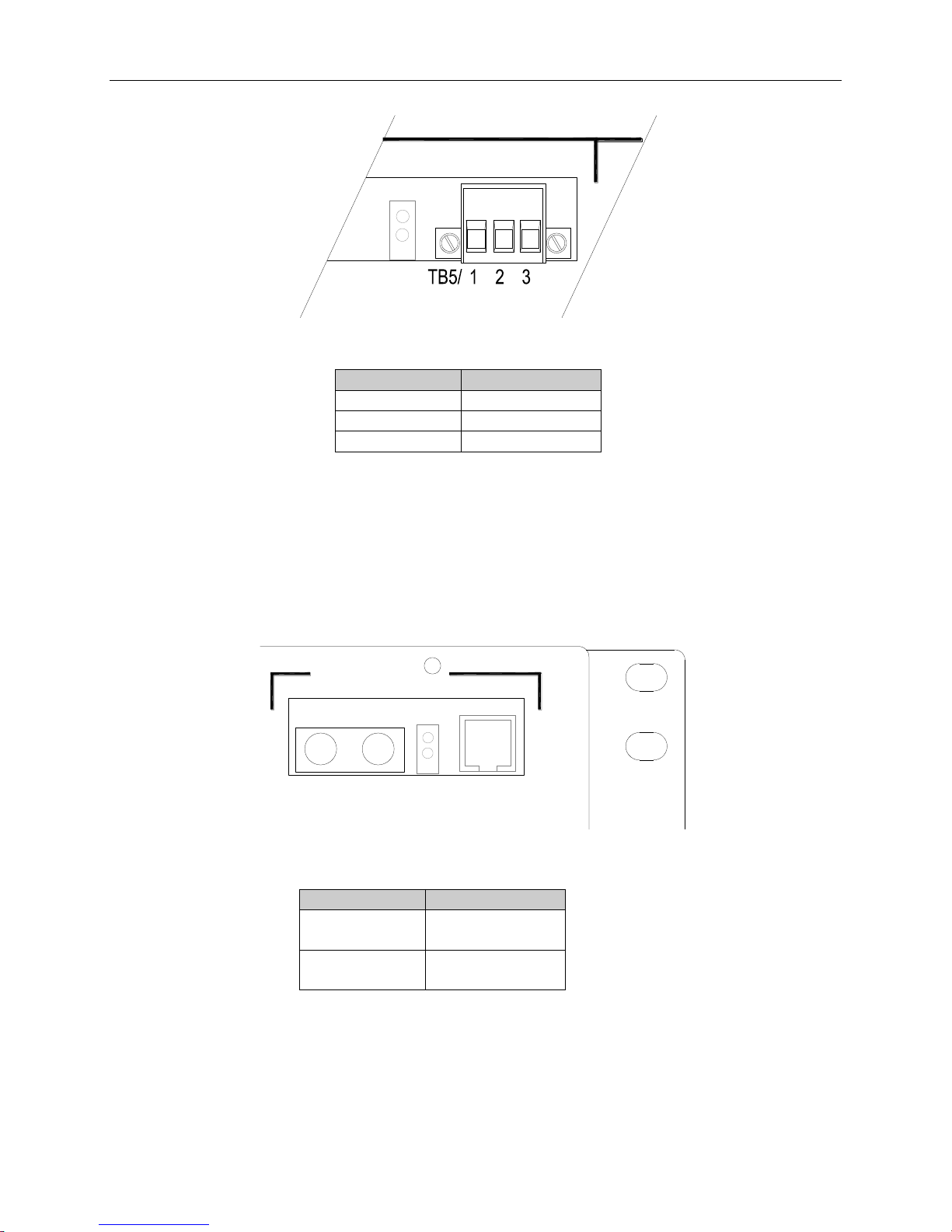

7.4 Port 4 (TB5): RS485..........................................................10
7.5 Port 5 (J6 or J7): Ethernet 100BaseFX / 100BaseT...........11
7.6 Port 6 (J1 or J2 or TB4): Irig-B Time Sync.........................12
8Controls...................................................................................13
8.1 Momentary Form 1C Controls............................................13
8.2 Momentary Form 1X or 1A Controls...................................14
8.3 Latching Form 1C Control Connections.............................15
9Status ......................................................................................16
9.1 Status Keying Source........................................................17
9.2 Status Connection Diagram...............................................17
10 Analogs ...................................................................................18
10.1 Analog Connections...........................................................18
11 Firmware / Software ...............................................................19
11.1 Communications Protocols ................................................19
12 Mechanical Outline.................................................................20
13 Other Related Documentation...............................................21
14 Ordering Information..............................................................21

UG-1084 ePAQ-9405 User’s Guide
15 Test Panel ...............................................................................23
15.1 Introduction........................................................................23
15.2 Requirements....................................................................23
15.3 Functional Test Capability..................................................24
15.3.1 Analog Monitoring...............................................24
15.3.2 Status Monitoring................................................24
15.3.3 Accumulator Monitoring ......................................24
15.3.4 Control Operation................................................24
15.3.5 Set Point Operation.............................................25
15.3.6 Master-Remote Communications Monitoring ......25
15.3.7 Security Features................................................25
15.4 Getting Started ..................................................................25
15.4.1 Preparing to Install USB Driver ...........................25
15.4.2 Installing the USB Driver.....................................25
15.4.3 Configuring “HyperTerminal”...............................26
15.4.4 Local Test Panel Connection (USB Port) ............26
15.4.5 Remote Test Panel Connection (Ethernet Port) ..27
15.5 Security .............................................................................27
15.6 Help for Test Panel Commands.........................................28
15.7 DATE and TIME Commands .............................................29
15.8 Reading Analog Values (RA).............................................29
15.9 Reading Status Values (RS)..............................................30
15.10 Reading Accumulator Values (RC)................................31
15.11 Relay Control.................................................................32
15.11.1On Relay Operation (CN)....................................32
15.11.2Off Relay Operation (CF)....................................33
15.12 Communication Checks.................................................33
15.12.1CONFIG Command ............................................33
15.12.2PRX Command...................................................34
15.13 Displaying Dip Switch States (DIP)................................35
15.14 Displaying the Software Version (VER)..........................35
15.15 TP Command ................................................................35
15.16 SOE Command .............................................................35
15.16.1SOE....................................................................36
15.16.2SOE [point-number] ............................................36
15.16.3SOE count ..........................................................36
15.17 TABLES Command .......................................................37
15.18 SEC Security Logger.....................................................37
15.19 ETH Command..............................................................38
15.20 PROFILE Command......................................................38
15.21 SAVE <A or B> Command.............................................39
15.22 RESTORE <A or B> Command.....................................39
15.23 12BIT/16BIT Commands ...............................................39

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 QEI Description  1
1 Description
The ePAQ-9405 is a communications gateway and distributed I/O module, in a 19 in. 2U
enclosure (rack-mount or DIN-mount). It provides 12 status inputs, 4 analog Inputs, and 3
momentary or latching control points.
Hardware communications ports include RS-232, Fiber, RS-485, and 10/100 Ethernet
(via copper or Fiber). An IRIG port (unmodulated IRIG via RS-485 or Fiber;
modulated IRIG via BNC connector) and a USB maintenance port are also provided.
ePAQ-9405 communications protocols includes DNP 3, Modbus, and QUICS Servers, as
well as DNP 3, Modbus, PLCC, Event Logger, and Web Access Clients.
I/O and input power connections are via plug-in terminal blocks. Front panel mounted
power and local/remote rocker switches are provided, as are dip switches for address
settings. LEDs provide indications for status, controls, local/remote and communications
port activity.
The ePAQ-9405 provides highly secure control and monitoring of status points with 1
msec Sequence of Events (SOE) and time tagging in critical environments where
highly secure operation is required.
Local diagnostics and configuration are accomplished via a Maintenance Port (USB)
connection to a PC. The maintenance port is used to send/read configuration
settings and perform diagnostic functions.
Features include a real-time clock with power-failure backup circuitry (no battery
replacement required). The clock can be synchronized by an IRIG-B receiver through
BNC, RS485 or fiber optic port or through its DNP3 communication ports from a
Master Station or Data Concentrator.
Input power options include 12/24/48/125Vdc, as well as 120/240/277Vac. A
local/remote switch is included for controls. LEDs provide indications for
communication port activity, status point keying, CPU heartbeat, system 3V power,
and local/remote switch position.
All of the operations of the ePAQ-9405 are under software control. The program
resides in dedicated non-volatile program (FLASH) memory area.
The ePAQ-9405 is configured using QEI’s ConfigWiz 2.0 Configuration Program, and
a ePAQ-9405 Template. Refer to the ConfigWiz 2.0 User’s Guide (UM-2018) and
the ePAQ-9405 addendum contained in the same manual.

ePAQ-9405 User’s Guide UG-1084
2  Specifications Copyright © 2017 QEI
2 Specifications
General
Description
Microprocessor
Atmel ARM9 32-bit Processor.
Communications Ports
Port 1: Maintenance
Interface
USB
Connector
Type B (J3)
Port 2: RS-232
Interface
RS-232 TX, RX, RTS, CTS & COM.
Protocols
Asynchronous Bit or Byte Oriented
Bit Rate
1200 to 115.2Kbps
Connector
RJ45 (J4)
Port 3: Fiber Optic
Interface
TX, RX
Protocols
Asynchronous
Bit Rate
1200 to 115.2Kbps
Connector
ST, multimode (J5) (FL optic)
Port 4: RS-485
Interface
RS-485 A+, B- Earth Ground
Protocols
Asynchronous , Bit or Byte Oriented
Bit Rate
1200 to 115.2Kbps
Connector
3 pin terminal block , TB5
Port 5: 100BaseFX
Interface
Ethernet IEEE 802.3u compliant
Protocols
IP (TCP, UDP)
Bit Rate
Up to 100 Mbps
Connector
ST, multimode (J6)
Port 5: 10/100BaseT
Interface
Ethernet IEEE 802.3 compliant, Auto MDI/MDI-X
Protocols
IP (TCP, UDP)
Bit Rate
Up to 100 Mbps
Connector
Shielded RJ45 (J7)
Port 6: Irig-B Interface
Interface
Fiber Optic, RS485, BNC
Protocol
Irig-B
Connectors
ST, multimode (J1), 3-pin terminal block (TB4), BNC Jack (J2)
Control Point Interface
Addressability
3 points (momentary on/off pairs or single on/off latching).
Contact Rating
10A @ 240VAC. (See ordering information)
Drive Voltage
30 VDC, nominal
Control Pulse Duration
Programmable (250 msec., default)
Safety
One relay operation at a time
Connector
Two (2) 9-pin terminal blocks (TB2A, TB2B)
Status Point Interface
Addressability
12 points
Keying Voltage
12, 24, 48, 125 VDC

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 QEI Specifications  3
Input Current
Approx. 4 mA per point
Protection
Optically coupled, 1500 VDC between inputs and logic common
Surge Withstand to IEEE 37.90.1 SWC
Indication
One LED per status input point, input is on when lit.
Connector
Three (3) 12-pin terminal blocks (TB3A, TB3B, TB3C)
Status Keying Source
Connector
TB3C, pins 9,10 = (+); pins 11,12= (-)
Options
Important: See ordering information and “Keying Source”
section elsewhere in this guide.
Analog Point Interface
Addressability
4 points
Scaling options
0-1mA, 0-20mA, 0-5Vdc
Power Input
Voltage
12,24,48,125VDC. 120/240/277VAC (Note 1)
Current
18VA max.
Connector
6-pin terminal block (TB1)
Note 1: 277VAC Tol +/- 5% Max; Other Inputs +/- 10%
Environment
Temperature
-40 to +85oC
Humidity
5 to 95% @ +70oC, non-condensing
Physical Dimensions
Mounting Dimensions
17.3” W x 3.5” H x 5.0” D without mounting brackets
19.0” W x 3.5” H x 5.0” D w/ rack mounting brackets
17.3” W x 3.5” H x 5.3” D w/ DIN mounting brackets

ePAQ-9405 User’s Guide UG-1084
4  Input Power Connections Copyright © 2017 QEI
3 Input Power Connections
The ePAQ-9405 accepts a variety of input voltage sources, such as 12, 24, 48, and
125Vdc. The unit may also be powered by 120, 240 or 277Vac.
Input power connections are made at terminal block TB1:
H+L- L- H+
TB1 PIN#
Name
Description
1
Chassis Connection
2
Chassis Connection
3
L-
DC Neg / AC Neut
4
L-
DC Neg / AC Neut
5
H+
DC Pos / AC Line
6
H+
DC Pos / AC Line
4 Switches
4.1 Power Switches
The ePAQ-9405 includes front panel mounted toggle switches for power on/off and
local/remote functions. A front panel fuse is also provided.
:
L/R
FUSEPOWER
E
S
U
F
E
S
S
U
F
E
U
F

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 QEI Switches  5
FRONT PANEL LABEL
POWER
Turns the ePAQ on and off
I = Power on
O = Power off
L / R
Local/Remote switch. When in Local mode, relay operation is
disabled.
I = Remote
O = Local (L/R Led will be on, indicating local mode)
FUSE
48/125V Input = 1 Amp Slo-Blo 250VAC (QEIP/N 10-003669-001)
12/24V Input = 2 Amp Slo-Blo 250VAC (QEIP/N 10-003669-026)
4.2 Dip Switches
One bank of four DIP switches is available through the front panel. Dip switches are
used for application specific options (see the appropriate ConfigWiz 2.0 addendum
for further information). The exception is switch 1, which is used for safe boot mode.
OPTIONS
FRONT PANEL LABEL
Options
Dip switch bank of 4 switches.
Switch 1 = UP = Safe Mode Boot on power cycle as follows:
Ethernet IP default set to 100BaseT port (J7).
IP Address = 192.168.1.199
Passwords disabled.
Servers and Clients disabled.
Note: Configuration tables are not erased in Safe Mode Boot.
Tables can still be read or written.
Swtches 2 thru 4 = future use.

ePAQ-9405 User’s Guide UG-1084
6  Jumper Settings Copyright © 2017 QEI
5 Jumper Settings
JUMPER
Function
JP1
Watchdog. Factory installed jumper on Communications Board
(near CPU board). Must be present for proper operation. Do not
remove.
6 LED Indications
6.1 Control LEDs
1 2 3
CONTROL
There are six LEDs arranged as three Trip/Close pairs for the three control points.
LED Name
Function
CONTROL 1- 3
Control Relay Output Indication LEDs. For each LED pair :
Left LED indicates TRIP relay coil is energized.
Right LED indicates CLOSE relay coil is energized.
6.2 Status LEDs
There are twelve LEDs for the twelve status points.
6125114103 92 81 7
STATUS
LED Name
Function
STATUS 1- 12
Status Indication LEDs.
LED on indicates that the corresponding status point is keyed.

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 QEI LED Indications  7
6.3 Irig Activity LED
A single LED located beneath Irig BNC connector J2 indicates Irig activity whenever
a valid Irig signal is received on a ePAQ Irig port:
(J2)
RxTx (J1)
ACTIVITY
IRIG
PORT 6
IRIG
RS-485
LED Name
Function
IRIG ACTIVITY
IRIG-B Activity LED. This LED turns on whenever a valid IRIG-B
time-sync message is received by the ePAQ via unmodulated Fiber
(J1) or RS485 (TB4) input, or via modulated input (J2).
6.4 L/R (Local/Remote) LED
A single LED turns on whenever the Local/Remote switch is in the “Local” position:
F
U
E
F
U
S
S
E
F
U
S
E
POWER FUSE L/R
LED Name
Function
L / R
“Local”mode indication LED. This LED turns on whenever the L/R
(Local/Remote) switch is placed in the “Local” position. In Local
mode, controls are disabled.

ePAQ-9405 User’s Guide UG-1084
8  LED Indications Copyright © 2017 QEI
6.5 Logic Pwr and Heartbeat LEDs
A dual LED array indicates logic power PWR (upper LED) and CPU activity, or
heartbeat HBT (lower LED):
LED Name
Function
PWR
Upper LED indicates CPU logic power is active when lit.
HBT
Lower LED. This LED flashes on and off at a one second rate
(approx.) when the CPU is active and functional.
6.6 Comm Port LEDs
Four dual LED arrays indicate activity on the communications serial ports (TX/RX
data) and Ethernet ports (High Speed, Link/Network Activity):

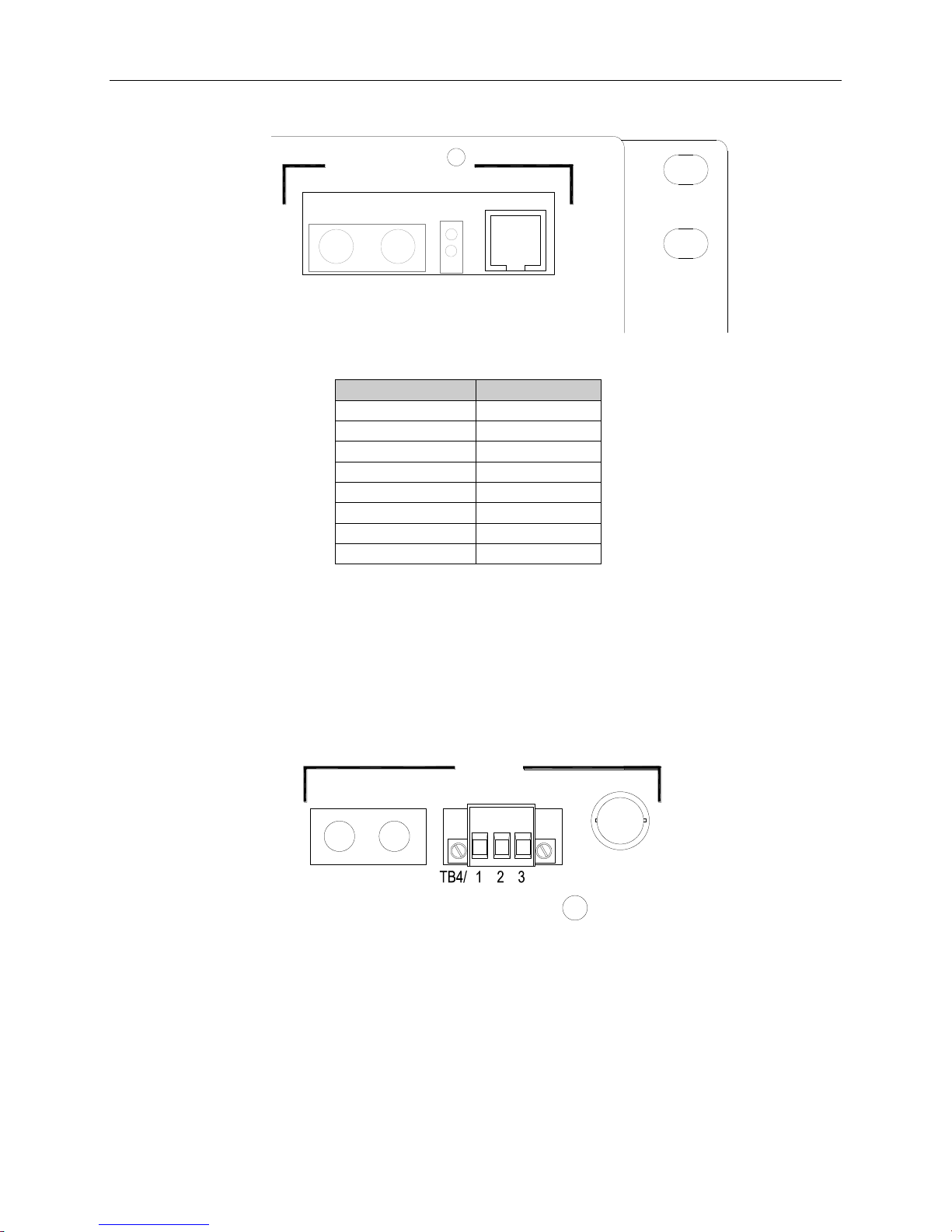

L/A
HS
R
TR T
RS-232
(J4) Tx Rx
Tx Rx
(J5) (J6) 10/100
(J7)
ETHERNET
PORT 5
COMM.
PORT 3PORT 2 PORT 4
R
TRS-485
LED Name
T
R
Dual LED arrays indicate TX and RX data for communications ports
2, 3, and 4. The arrays are located to the left of each port. The upper
LED of each array indicates data transmitted out from the port. The
lower LED indicates data received by the port.
HS
High Speed (upper LED). This LED indicates when the Ethernet port
is communicating at 100 Mbps (LED on) or 10 Mbps (LED off).
L/A
Link/Activity (lower LED). This LED indicates activity on the ethernet
CAT5 or Fiber cable connected to ethernet port 5. LED on indicates
activity present.

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 QEI Communications Ports  9
7 Communications Ports

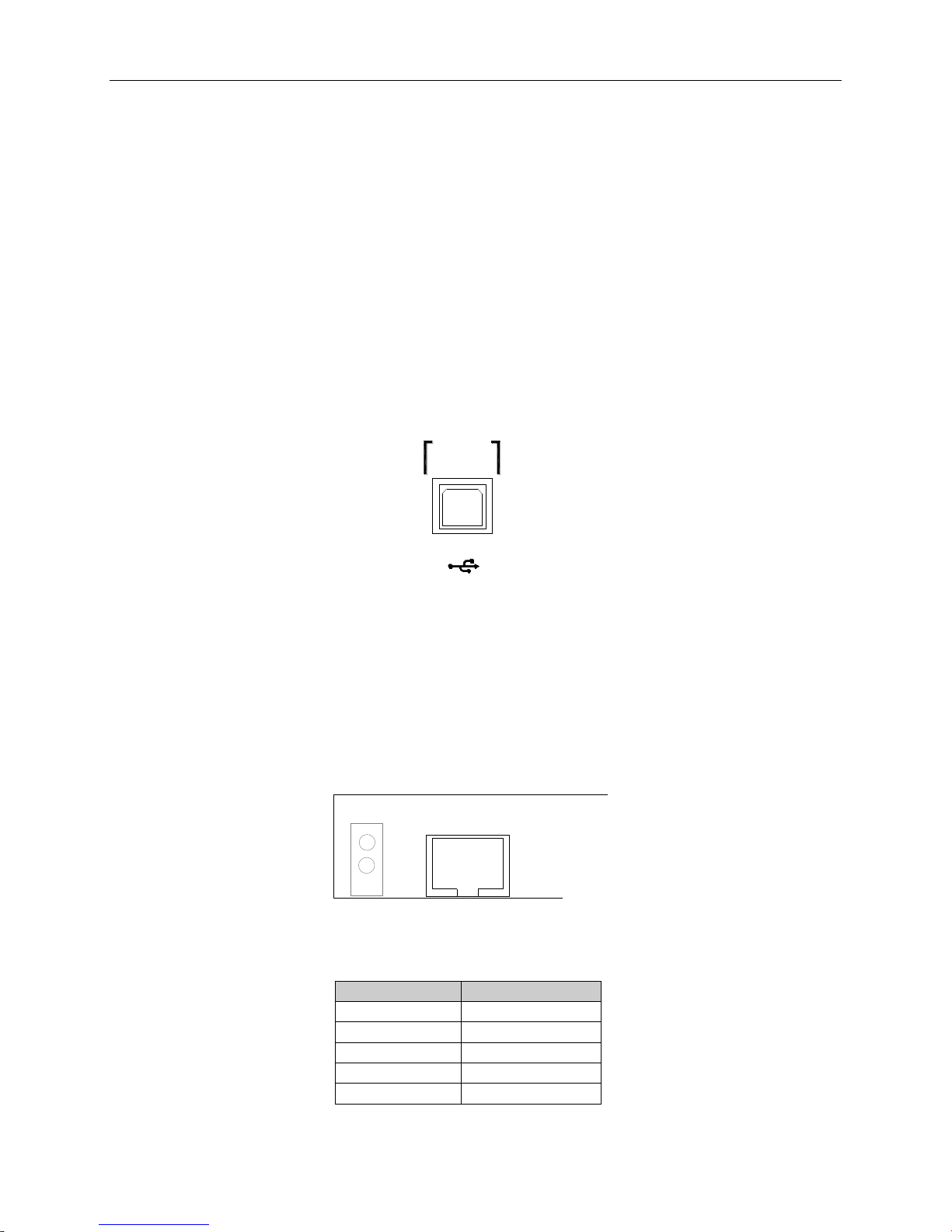

7.1 Port 1 (J3): USB Maintenance Panel
This port is a standard USB type B port for connection to a PC. It is used as a
Maintenance Port, to program and troubleshoot the ePAQ-9405. Using a PC with a
USB port and a straight USB type A-B cable, the ePAQ can be accessed in one of
two ways, 1) via ConfigWiz 2.0, to download configurations and flashload program
link files, 2) via Hyperterminal (or other such terminal emulator program), to gain
access to included test panel functions.
For a list of available functions, refer to the Test Panel section in this user guide.
(J3)
MAINT
PORT 1
7.2 Port 2 (J4): RS-232
An 8-pin RJ45 connector (pin 1 bottom left) is used for connections to an external
communications device, such as a RS-232 interface modem or radio. RS-232
signals in this connector are:
RS-232
(J4)
PORT 2
R
TPIN 1 PIN 8
RJ45 PIN #
Signal Name
1
RTS
2
PTT
3
TXD
4
COM
5
COM

ePAQ-9405 User’s Guide UG-1084
10  Communications Ports Copyright © 2017 QEI

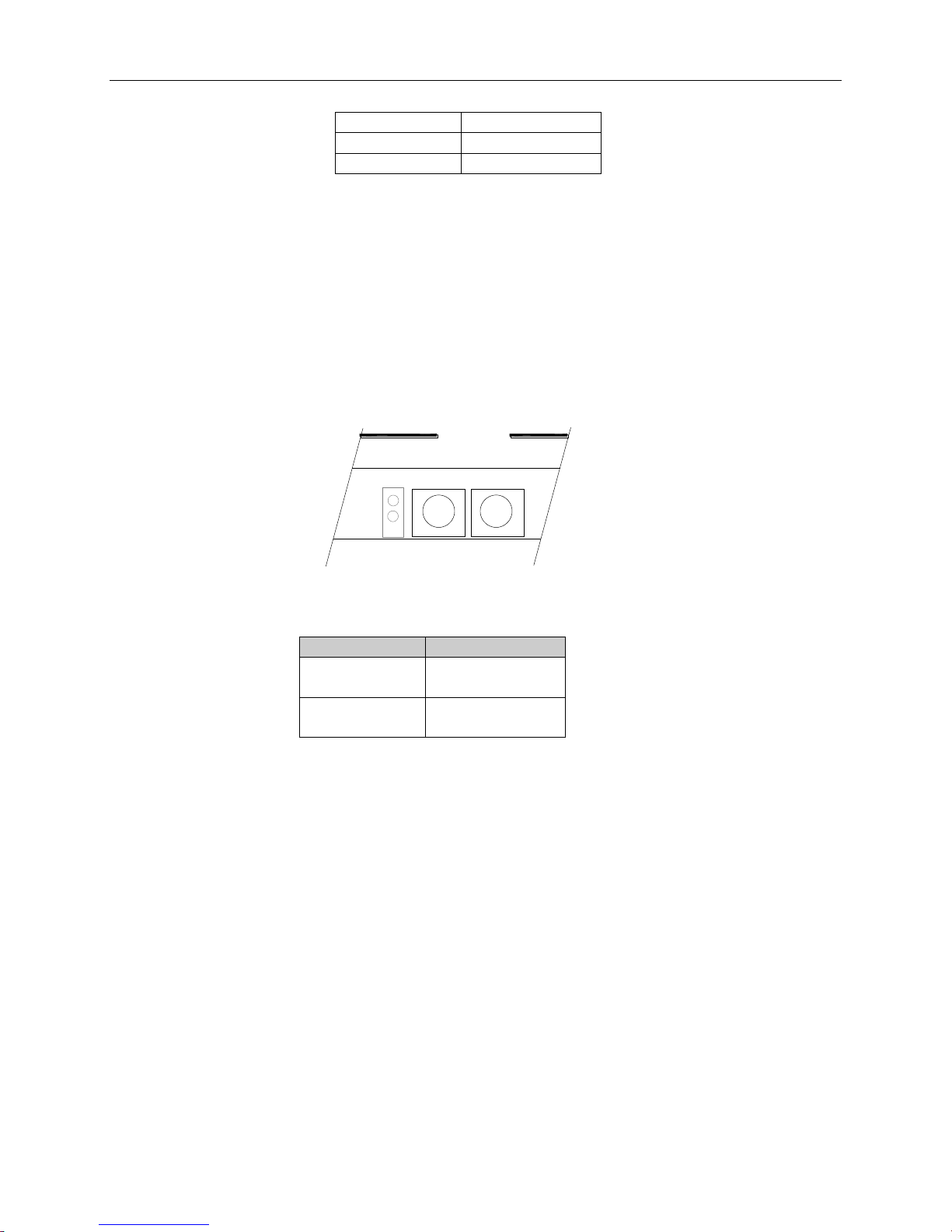

6
RXD
7
-
8
CTS
The Push-to-Talk (PTT) signal can be used to key an external radio, if needed. This
pin is in the form of an open collector output.
7.3 Port 3 (J5): Fiber Optic
This generic fiber optic serial communications port has one transmitter (TX) and one
receiver (RX). It supports multimode fiber using ST connectors. A wide variety of
communications bit rates can be supported.
R
TTx Rx
(J5)
COMM.
PORT 3
J5 ST Jacks
Signal Name
TX
Transmit data
output.
RX
Received data
input.
7.4 Port 4 (TB5): RS485
This port is a standard 2 wire RS-485, and conforms to the RS-485 specification. It
uses surge suppression circuitry to clamp any input voltage transient and noise to
chassis ground.
The port is capable of supporting multiple devices over a single twisted pair of wires.
A 3 terminal plug-in terminal block is used for connections to external communication
equipment.

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 QEI Communications Ports  11
R
T
PORT 4
RS-485
TB5 Pin #
Signal
1
Shield
2
Data A+
3
Data B-
7.5 Port 5 (J6 or J7): Ethernet 100BaseFX / 100BaseT
This single port accepts either a multimode fiber transceiver with ST connectors (J6),
or a shielded RJ45 jack for CAT5 cable (J7). It supports either 100BaseFX Ethernet
over fiber, or 100BaseT Ethernet over copper. Do not use both connectors at once.
L/A
HS
Tx Rx
(J6) 10/100
BASET
(J7)
ETHERNET
PORT 5
J6 ST Jacks
Signal Name
TX
Transmit data
output.
RX
Received data
input.

ePAQ-9405 User’s Guide UG-1084
12  Communications Ports Copyright © 2017 QEI
L/A
HS
Tx Rx
(J6) 10/100
BASET
(J7)
ETHERNET
PORT 5
J7 RJ45 PIN #
Signal Name
1
TX+
2
TX-
3
RX+
4
-
5
-
6
RX-
7
-
8
-
7.6 Port 6 (J1 or J2 or TB4): Irig-B Time Sync
This single port accepts input from an Irig-B receiver for time syncing the internal
ePAQ-9405 timeclock. Time sync Input can come from an either an unmodulated or
modulated Irig-B source.
(J2)
RxTx (J1)
ACTIVITY
IRIG
PORT 6
IRIG
RS-485

UG-1084 ePAQ-9405 User’s Guide
Copyright © 2017 QEI Controls  13
J1 (Fiber)
Signal Name
TX
Fiber Transmit Data Out
RX
Fiber Receive Data In
J2 (BNC)
Inner conn
Signal
Outer conn
Common
TB4 (RS485)
1
Shield
2
A+
3
B -
8 Controls
The ePAQ-9405 includes three control points. Each control point can be configured
as a pair of momentary relays (one for “trip” and one for “close”) or as a single
latching relay (trip/close). See the ordering information to choose controls as
momentary or latching on a per point basis.
8.1 Momentary Form 1C Controls
Momentary Form 1C control points use two sets of form 1C (SPDT) contacts (one
set for Trip, the other set for Close) at the terminal blocks:
For the illustration above, T= Trip LED, C = Close LED. The relay contact schematics
above the terminal blocks are shown with relays in the un-energized state.

ePAQ-9405 User’s Guide UG-1084
14  Controls Copyright © 2017 QEI

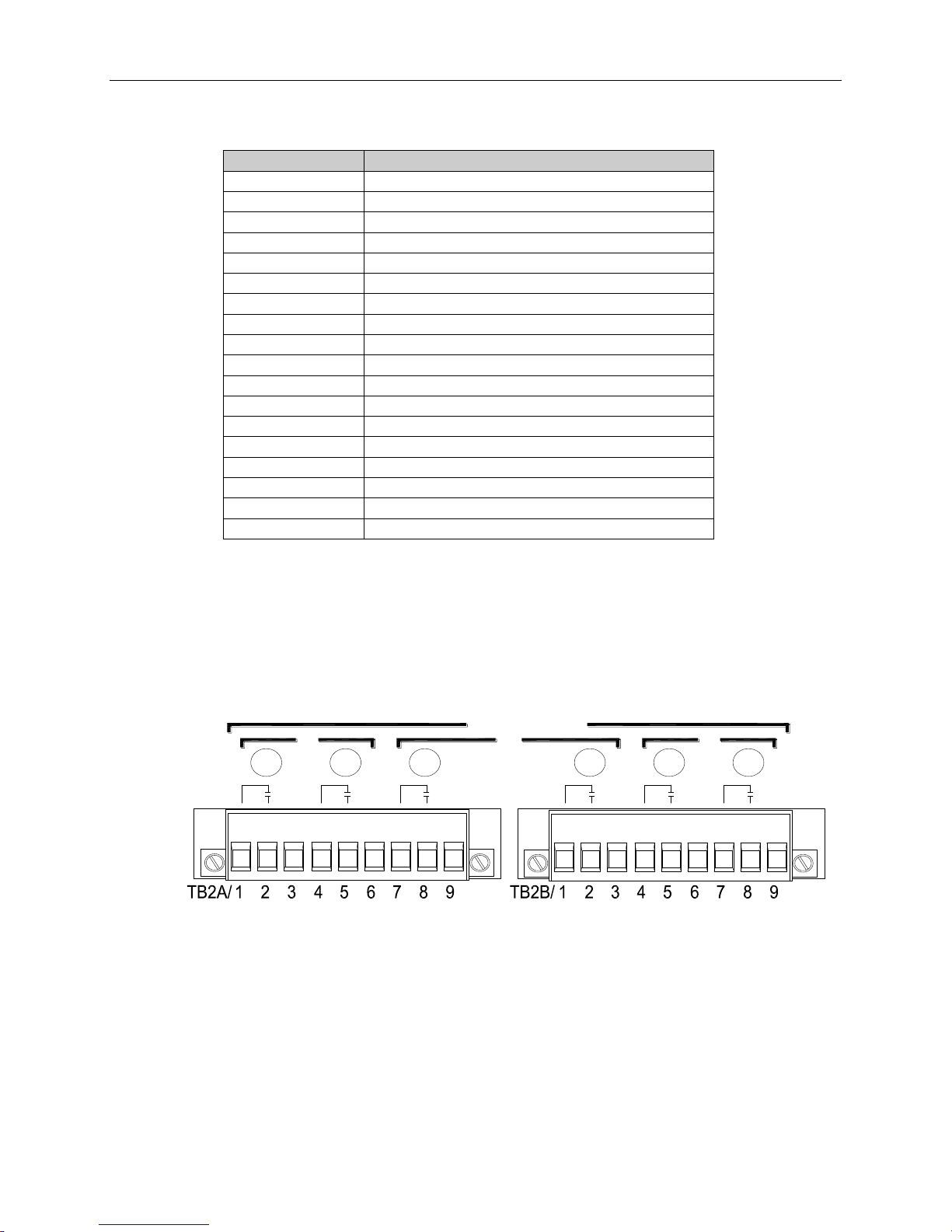

Momentary form 1C connections:
Connection
Name
TB2A-1
Control Point #1 Trip COM
TB2A-2
Control Point #1 Trip N.O.
TB2A-3
Control Point #1 Trip N.C.
TB2A-4
Control Point #1 Close COM
TB2A-5
Control Point #1 Close N.O.
TB2A-6
Control Point #1 Close N.C.
TB2A-7
Control Point #2 Trip COM
TB2A-8
Control Point #2 Trip N.O.
TB2A-9
Control Point #2 Trip N.C.
TB2B-1
Control Point #2 Close COM
TB2B-2
Control Point #2 Close N.O.
TB2B-3
Control Point #3 Close N.C.
TB2B-4
Control Point #3 Trip COM
TB2B-5
Control Point #3 Trip N.O.
TB2B-6
Control Point #3 Trip N.C.
TB2B-7
Control Point #3 Close COM
TB2B-8
Control Point #3 Close N.O.
TB2B-9
Control Point #3 Close N.C.
8.2 Momentary Form 1X or 1A Controls
Momentary Form 1A or 1X (Double-Make) control points use two sets of form 1A
(SPST) contacts (one set for Trip, the other set for Close) at the terminal blocks:
C
CT
T
C
T32
CONTROL
1
For the illustration above, T= Trip LED, C = Close LED. The relay contact schematics
above the terminal blocks are shown with relays in the un-energized state.
