QNAP TVS-1582TU-i7-32G Instructions for use

QNAP Turbo NAS
TVS-1582TU Hardware User Manual
© 2017. QNAP Systems, Inc. All Rights Reserved.

2
Thank you for choosing QNAP products! This user manual provides description of the
hardware of the Turbo NAS and relevant guideline of certain functions. Please read carefully
and strictly adhere to the instructions of the manual.
This user manual is applicable to the following Turbo NAS model:
TVS-1582TU
NOTE
•The “Turbo NAS” is hereafter referred to as “NAS”.
•The product you purchased may not support certain functions dedicated to specific
models.
•All features, functionality, and other product specifications are subject to change
without prior notice or obligation.
•Information presented is subject to change without notice.
•No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, mechanical, electronic, photocopying,
recording, or otherwise, without prior written permission of QNAP Systems, Inc.
•QNAP and the QNAP logo are registered trademarks of QNAP Systems, Inc. Other
products and company names mentioned herein may be the trademarks of their
respective companies.

3
DISCLAIMER
In no event shall QNAP Systems, Inc. (QNAP) liability exceed the price paid for the product
from direct, indirect, special, incidental, or consequential damages resulting from the use
of the product, its accompanying software, or its documentation. QNAP makes no warranty
or representation, expressed, implied, or statutory, with respect to its products or the
contents or use of this documentation and all accompanying software, and specifically
disclaims its quality, performance, merchantability, or fitness for any particular purpose.
QNAP reserves the right to revise or update its products, software, or documentation
without obligation to notify any individual or entity.
Note:
Back up your system periodically to avoid any potential data loss. QNAP disclaims any
responsibility of all sorts of data loss or recovery.
Should you return any components of the NAS package for refund or maintenance,
make sure they are carefully packed for shipping. Any form of damages due to
improper packaging will not be compensated.

4
Regulatory Notice
FCC Class A Notice
The TVS-1582TU complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will be required to
correct the interference at his own expense.
Modifications: Any modifications made to this device that are not approved by QNAP
Systems, Inc. may void the authority granted to the user by the FCC to operate this
equipment.

5
CE NOTICE
The TVS-1582TU complies with CE compliance classes A.
RESTRICTED ACCESS LOCATION
This equipment must be only located where both of the following apply:
Only authorized and knowledgeable personnel can access the equipment
Access to the equipment is restricted through the use of lock and key or other means of
security and this access is controlled by those in charge of the location.

6
Symbols in this document
Warning
This icon indicates the instructions must be strictly followed. Failure
to do so could result in injury to human body or death.
Caution
This icon indicates the action may lead to disk clearance or loss OR
failure to follow the instructions could result in data damage, disk
damage, or product damage.

7
Table of Contents
Table of Contents ...............................................................................................7
Safety Warnings.................................................................................................8
Chapter 1. NAS Specifications .........................................................................9
1.1 HARDWARE SPECIFICATIONS...........................................................................9
1.2 REAR COMPONENTS...................................................................................11
Chapter 2. Power Button and Reset Button Behavior ....................................12
Chapter 3. LED and Alarm Buzzer Specifications ...........................................14
3.1 LED ....................................................................................................14
3.2 BEEP ALARM ...........................................................................................16
Chapter 4. Upgrade Memory on QNAP Turbo NAS (RAM Module Installation)17
Chapter 5. Expansion Card Installation .........................................................22
Chapter 6. Install and Hot-swap Hard Drives ................................................26
6.1 HARD DRIVE BAY NUMBERING ......................................................................26
6.2 INSTALL HARD DRIVES ...............................................................................27
6.3 RAID RECOVERY -HOT-SWAP HARD DRIVES.....................................................30
6.4 RAID RECOVERY -ACCIDENTALLY REMOVAL OF HEALTHY HARD DRIVE (QTS)...............32
Chapter 7. Install Power Supply Unit and Redundant Power Supply Mode ....34
Technical Support ............................................................................................37
GNU GENERAL PUBLIC LICENSE .......................................................................38

8
Safety Warnings
1. The NAS can operate normally in temperatures of 0ºC–40ºC (32ºF -104ºF) and
relative humidity of 5%–95%. Please make sure the environment is well-ventilated.
2. The power cord and devices connected to the NAS must provide correct supply voltage
(100W, 90–264V).
3. Do not place the NAS in direct sunlight or near chemicals. Make sure the temperature
and humidity of the environment are in optimized level.
4. Unplug the power cord and all connected cables before cleaning. Wipe the NAS with a
dry towel. Do not use chemical or aerosol to clean the NAS.
5. Do not place any objects on the NAS for the server’s normal operation and to avoid
overheat.
6. Use the flat head screws in the product package to lock the hard disks in the NAS when
installing hard disks for proper operation.
7. Do not place the NAS near any liquid.
8. Do not place the NAS on any uneven surface to avoid falling off and damage.
9. Make sure the voltage is correct in the location where the NAS is installed. Contact the
distributor or the local power supply company for the information.
10. Do not place any object on the power cord.
11. Do not attempt to repair the NAS in any occasions. Improper disassembly of the
product may expose the users to electric shock or other risks. For any enquiries,
please contact the distributor.
12. The NAS should only be installed in the server room and maintained by the authorized
server manager or IT administrator. The server room is locked by key or keycard
access and only certified staff is allowed to enter the server room.
Warning:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions.
Do NOT touch the fan inside the system to avoid serious injuries.

9
Chapter 1. NAS Specifications
Caution: Any unauthorized modifications performed on QNAP products will result in
the warranty being voided. QNAP is not responsible for any form of damage or loss of data
caused by such modifications. Unauthorized modifications include, but are not limited to,
changes made to the default system firmware, installation of unofficial third party
applications, and changes to the hardware performed by unauthorized technicians.
1.1 Hardware Specifications
TVS-1582TU-i5-16G TVS-1582TU-i7-32G
CPU Intel® Core™ i5-7500 3.4GHz
Quad-core Processor
Intel® Core™ i7-7700 3.6GHz
Quad-core Processor
Memory 16GB DDR4 UDIMM RAM (8GB x
2)
32GB DDR4 U
DIMM RAM (8GB x
4)
Maximum
Memory 64GB (16GB x 4) 64GB (16GB x 4)
Flash Memory 512MB DOM 512MB DOM
CPU Replaceable No No
Memory
Replaceable Yes Yes
Hard Drive Slots 9 x 2.5"/3.5" HDD/SSD
6 x 2.5" SSD
9 x 2.5"/3.5" HDD/SSD
6 x 2.5" SSD
Drive Interface SATA 6Gbps/3Gbps;
Hot-swappable
SATA 6Gbps/3Gbps;
Hot-swappable
LAN 2 x 10GbE SFP+ Ports
4 x 1GbE RJ45 Ports
2 x 10GbE SFP+ Ports
4 x 1GbE RJ45 Ports
Thunderbolt 4 x Thunderbolt™ 3 Ports4 x Thunderbolt™ 3 Ports
USB 4 x USB 3.0 Ports (Rear)
4 x USB 2.0 Ports (Rear)
4 x USB 3.0 Ports (Rear)
4 x USB 2.0 Ports (Rear)
HDMI HDMI 1.4b HDMI 1.4b
LED Indicators
10GbE, System Status, LAN,
Storage Expansion, 2.5" SSD,
3.5" HDD
10GbE, System Status, LAN,
Storage Expansion, 2.5" SSD,
3.5" HDD

10
Buttons Power, Reset Power, Reset
System Warning Buzzer Buzzer
Form Factor 2U Rackmount 2U Rackmount
Dimensions (H x
W x D)
88 x 442.5 x 530.5 mm
3.46 x 17.42 x 20.89 inch
88 x 442.5 x 530.5 mm
3.46 x 17.42 x 20.89 inch
Weight NAS: 14.18kg (31.26lb)
Shipping: 21.41 kg (47.20 lb)
NAS: 14.18kg (31.26lb)
Shipping: 21.41 kg (47.20 lb)
Sound Level
(dB)*
Sound pressure (LpAm)
(bystander position): 53.9 dB
(with 9 x ST2000VN000 and
6 x ST500LT012 installed)
Sound pressure (LpAm)
(bystander position): 53.9 dB
(with 9 x ST2000VN000 and
6 x ST500LT012 installed)
Temperature 0 to 40˚C 0 to 40˚C
Relative Humidity
5~95% non-condensing,
wet bulb: 27˚C
5~95% non-condensing,
wet bulb: 27˚C
Power Supply Redundant Power: Input
90~264VAC; 450W x 2
Redundant Power: Input
90~264VAC; 450W x 2
PCIe Slots
1 x PCIe Gen3 x 8
2 x PCIe Gen3 x 4
Slot 1: 2 x Thunderbolt™ 3 Ports
Slot 2: 2 x Thunderbolt™ 3 Ports
Slot 3: 2 x 10GbE SFP+ Ports
1 x PCIe Gen3 x 8
2 x PCIe Gen3 x 4
Slot 1: 2 x Thunderbolt™ 3 Ports
Slot 2: 2 x Thunderbolt™ 3 Ports
Slot 3: 2 x 10GbE SFP+ Ports
Fan 4 x 6 cm Smart Cooling Fan 4 x 6 cm Smart Cooling Fan

11
1.2 Rear Components
Component
1 4 x 1GbE Ports
2 PCI Port 3 : SFP+ 10GbE Ports x 2 (PCIe Gen3 x4)
3 PCI Port 2 : Thunderbolt™ 3 Ports x 2 (PCIe Gen3 x8)
4 PCI Port 1 : Thunderbolt™ 3 Ports x 2 (PCIe Gen3 x4)
5 Redundant PSU
6 4 x USB 2.0 Ports
7 4 x USB 3.0 Ports
8 HDMI Port
9 COM Port

12
Chapter 2. Power Button and Reset Button Behavior
Power button: Press to turn on or turn off.
System Power button
(Turn on)
Power button
(Hardware turn
off)
Power button
(Force turn off)
All models Press once 1.5 sec 5 sec
Reset button: Press to reset the system settings.
System Basic system reset Advanced system reset

13
(1 beep) (2 beeps)
All models 3 sec 10 sec
Basic system reset (3 sec)
Press the reset button for 3 seconds, a beep sound will be heard. The following settings are
reset to default:
System administration password: admin
TCP/IP configuration: Obtain the IP address settings automatically via DHCP
TCP/IP configuration: Disable Jumbo Frame
TCP/IP configuration: If port trunking is enabled (dual LAN models only), the port
trunking mode will be reset to “Active Backup (Failover)”.
System Port: 8080 (system service port)
Security Level: Low (Allow all connections)
VLAN will be disabled.
Service binding: All the NAS services run on all available network interfaces.
Advanced system reset (10 sec)
Press the reset button for 10 seconds; you will hear two beeps at the third and the tenth
seconds. The NAS will reset all the system settings to default as it does by web-based
system reset in “Control Panel” > “System” > “Backup / Restore” > “Restore to Factory
Default”, except all the data is reserved. The settings such as the users, user groups, and
the network share folders previously created will be cleared. To retrieve the old data after
the advanced system reset, create the same network share folders on the NAS and the data
will be accessible again.

14
Chapter 3. LED and Alarm Buzzer Specifications
3.1 LED
The LED indicators of the NAS indicate the system status and information. When the NAS is
turned on, check the following items to make sure the system status is normal. Note that
the following LED information is applicable only when users have properly installed the hard
drive, and connected the NAS to the network and the power supply.

15
LED LED Status Description
(1) 10 GbE
Green The 10GbE network expansion card is installed.
Off No 10GbE network expansion card is installed.
(2)
System
Status
Flashes green and
red alternately
every 0.5 sec
•The hard drive on the NAS is being formatted.
•The NAS is being initialized.
•The system firmware is being updated.
•RAID rebuilding is in process.
•Online RAID capacity expansion is in process.
•Online RAID level migration is in process.
Red
•The hard drive is invalid.
•The disk volume has reached its full capacity.
•The disk volume is going to be full.
•The system fan is out of function.
•An error occurs when accessing (read/write) the disk data.
•A bad sector is detected on the hard drive.
•The NAS is in degraded read-only mode (2 member drives
fail in a RAID 5 or RAID 6 configuration, the disk data can
still be read).
•Hardware self-test error.
Flashes red every
0.5 sec
The NAS is in degraded mode (one member drive fails in
RAID 1, RAID 5 or RAID 6 configuration).
Flashes green
every 0.5 sec
•The NAS is starting up.
•The NAS is not configured.
•A hard disk drive is not formatted.
Green The NAS is ready.
Deep flashes of
orange The NAS is in sleep mode.
Off All the hard drives on the NAS are in standby mode.
(3) LAN Orange
The disk data is being accessed from the network and a
read/write error occurs during the process.
Flashes orange The NAS is connected to the network.
(4)
Storage
Expansion
Port
Status
Off No expansion enclosures are detected.
Orange Expansion enclosures are detected.

16
(5) HDD
Flashes red The NAS is being accessed from the network.
Red A hard drive read/write error occurs.
Flashes green The disk data is being accessed.
Green The hard drive can be accessed.
3.2 Beep Alarm
The beep alarm can be disabled in “Control Panel” > “System” > “Hardware” > “Audio
Alert”.
Audio Alert Frequency Description
1 Short beep
(0.5 sec) Once
•The NAS is starting up.
•The NAS is being shut down (software
shutdown).
•The user presses the reset button to
reset the NAS.
•The system firmware has been
updated.
3 short beeps
(0.5 sec each) Once The NAS data cannot be copied to the
external storage device from the front
USB port.
3 long beeps
(1.5 sec each) Every 5 minutes The system fan is out of function.
2 long beeps
(1.5 sec each ) Once
•The disk volume is going to be full.
•The disk volume has reached its full
capacity.
•The hard drives on the NAS are in
degraded mode.
•The user starts the hard drive
rebuilding process.
•A hard drive is plugged in or out.
1 long beep
(1.5 sec) Once
•The NAS is turned off by force
shutdown (hardware shutdown).
•The NAS has been turned on and is
ready.

17
Chapter 4. Upgrade Memory on QNAP Turbo NAS (RAM Module
Installation)
Warning:
The following instructions should only be performed by an authorized or trained
technician.
Strictly adhere to the instructions in this section to install RAM modules in NAS. Failure
to do so could result in property damage, bodily harm or even death.
The TVS-1582TU allows users to upgrade the memory in their QNAP NAS devices. Ensure
that the type of RAM is compatible with the NAS before installing.
To determine how much memory is currently in the system:
1. Log into QTS as administrator
2. Go to “Control Panel” > “System” > “System Status”.
3. Check for Total memory under System Information.
To upgrade memory:
1. Power off the NAS. Wait for device to fully power down.
2. Disconnect power cord(s), network cable(s), and any other cables attached to the
device.
3. Before opening the NAS, wear an antistatic wrist strap and connect the crocodile clamp
to ground to prevent electrostatic discharge from damaging equipment.
4. Loosen the 2 screws on the back of the NAS located on the handle.

18
5. Pull the handle outwards to remove the motherboard drawer.

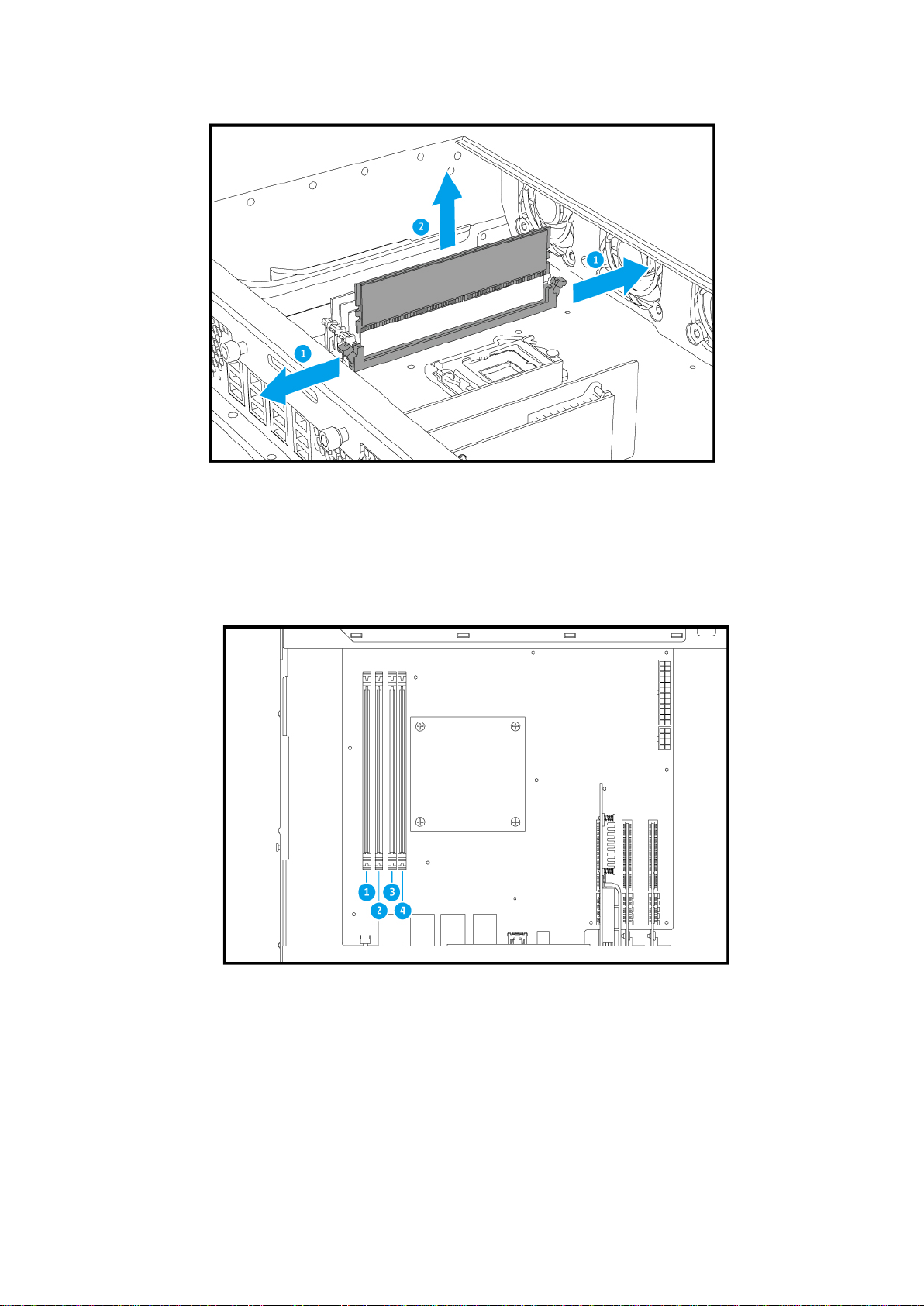

6. Unlock the RAM slot by pressing down on the retention clamps on the sides of the RAM
slot. If replacing RAM, remove existing module from socket.

19
7. Install new RAM:
i. Grip the new RAM on the edges to avoid touching contacts or circuitry on the
module.
ii. Line up the notch on the RAM to the break in the slot. Ensure that first RAM module
is inserted into slot 1.
iii. Set the stick into the slot and apply equal pressure onto both ends of the stick until
the clamps on the side click and fully lock the RAM in.

20
8. Slide the motherboard drawer back into the NAS and pull the handle up to close
enclosure and insert screws on the handle.
