QOLSYS IQ SMART PLUG QZ2101-840 User manual

Dimensions: 43MM x 43MM x 45MM
!
Input Voltage: 110-230VAC 50/60HZ
Max Current: 13A!
Rated Input Current:!
10A, 110-230V, 50/60Hz Continuous load current!
16A, 110-230V, 50/60Hz Instantaneous load current
Operating Temperature: 32°F~104°F
Storage Temperature: 32°F~140°F!
Range: Up to 195’ outdoors, Up to 98’ indoors
DESCRIPTION

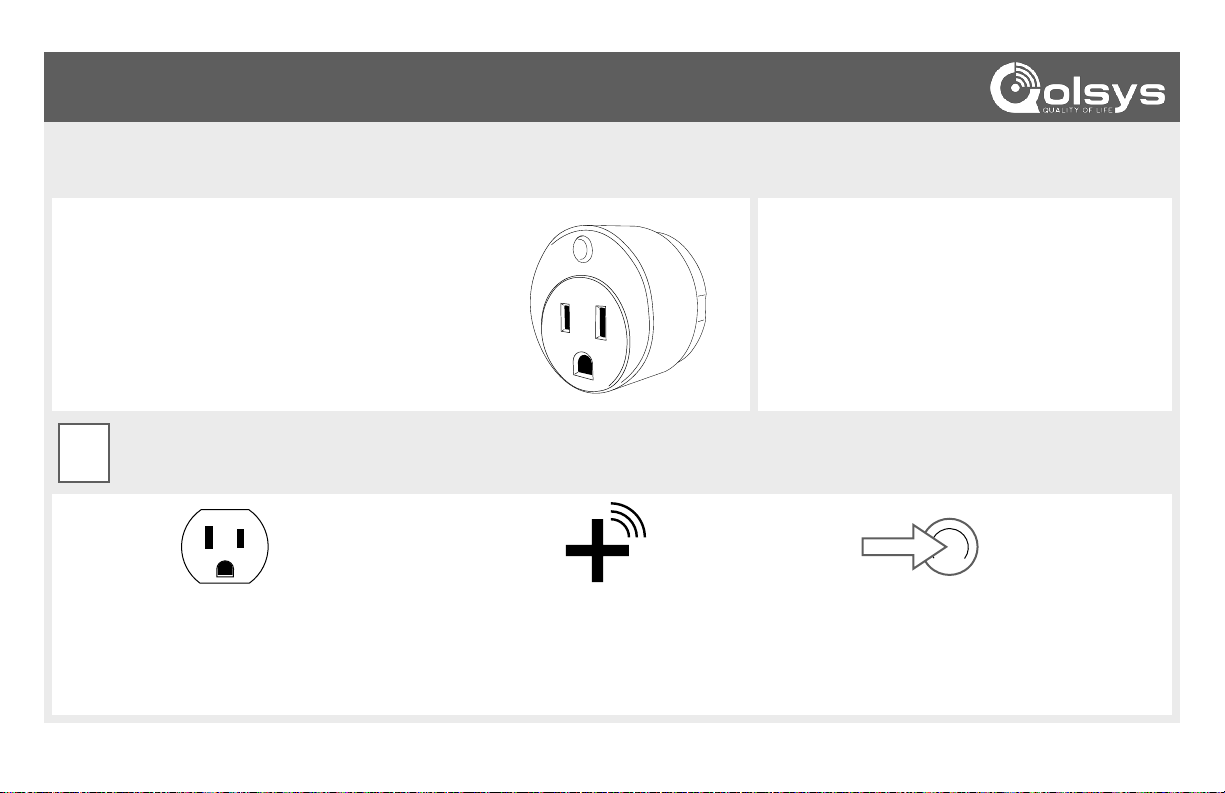

IQ SMART PLUG QUICK INSTALL GUIDE
SPECIFICATIONS
The Smart Plug is an intelligent device that
can be controlled remotely. Monitor voltage,
current, instant power or accumulated power
from your smart device.
This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
LEARN
INTO
PANEL
STEP
1
Plug Smart Plug into an
outlet close to the panel
Select “Add Device" under
Z-Wave device installation
Press the button three times in
1.5 sec to “enroll” the device
PLEASE NOTE: PAIRING THE IQ SMART PLUG NEAR THE IQ PANEL IS FOR CONVENIENCE ONLY. ONCE IQ SMART PLUG HAS
BEEN SUCCESSFULLY PAIRED IT CAN BE MOVED ANYWHERE WITHIN ACCEPTABLE RANGE (APPROX 100 FEET OPEN AIR)
x3

READING
LED
INDICATOR
Tech[email protected]
Qolsys Inc. proprietary.
Reproduction without permission is not permitted.
STEP
2
Document#: IQSP—QG-01-19
Revision#: 1/28/19
Issue Date: JAN 2019
Qolsys Product #: QZ2101-840
FCC ID: 2ASYY-W335019A
IC: 24969-S335019A
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute
interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.
CONTACT TECH SUPPORT
GOT QUESTIONS?
LED Color
LED Display Status
Description
Green
Blink 5 times in 2 seconds
Inclusion Mode
Light On
Plug Powered On
Pink
Blink 5 times in 1 second
Powered on, no Z-Wave inclusion
Blue
Blink 5 times in 2 seconds
Exclusion Mode
Blink 5 times in 300ms
Z-Wave included plug added to power
Yellow
Light ON
Current Overload Warning
Red
Blink One Time
Plug needs reset. Hold button for 10-15 seconds
Blinking once per second
Current Overload Shutdown
