Quadra-Fire DISCOVERY-I User manual

7039-174K
1August 13, 2018
L’installation et les réparations de cet appareil doivent être effectués par
des techniciens autorisés. Hearth & Home Technologies recommande
des professionnels formés dans les usines de HTT ou certifiés NFI.
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
DISCOVERY I WOOD APPLIANCE
AUTOMATIC COMBUSTION CONTROL
(ACC)
MODEL:
DISCOVERY-I
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over re and generate
poisonous gases (i.e. carbon monoxide).
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrare.com
Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrare.com
If the information in these instructions is not
followed exactly, a re could result causing
property damage, personal injury, or death.
WARNING
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void your
warranty.
• Comply with all minimum clearances to combustibles
as specied. Failure to comply may cause house
re.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
WARNING
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.

7039-174K
2August 13, 2018
Discovery I
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
1 Important Safety Information.............3
A. Appliance Certication ...................... 3
B. BTU & Efciency Specications ............... 3
C. Mobile Home Approved...................... 4
D. Glass Specications ........................ 4
E. Non-Combustible Materials ................... 4
F. Combustible Materials ....................... 4
G. Sleeping Room ............................ 4
H. California - Prop65 ......................... 4
2 Getting Started ....................................5
A. Design and Installation Considerations .......... 5
B. Fire Safety ................................ 5
C. Negative Pressure.......................... 5
D. Tools And Supplies Needed .................. 6
E. Inspection of Appliance and Components ........ 6
F. Removal of Appliance from Shipping Materials .... 6
G. Install Checklist ........................... 7
3 Dimensions and Clearances..............8
A. Appliance Dimensions ...................... 8
B. Hearth Protection Requirements .............. 9
C. Clearances to Combustibles ................. 10
4 Chimney Systems ............................. 11
A. Locating Your Appliance & Chimney ........... 11
B. Chimney Termination Requirements ........... 12
C. 2-10-3 Rule ............................. 12
D. Chimney Height / Rise and Run .............. 13
E. Venting Components ...................... 13
F. Chimney Systems ......................... 13
G. Installing Chimney Components .............. 15
H. Proper Draft.............................. 15
5 Appliance Set-Up ..............................16
A. Outside Air Kit Installation .................. 16
B. Decorative Panel Removal & Installation ....... 17
C. Door Handle Assembly ..................... 18
D. Blower (Optional) ......................... 18
6 Mobile Home Installation..................19
7 Reference Materials..........................20
A. Service & Maintenance Log ................. 20
B. Accessories .............................. 21

7039-174K 3August 13, 2018
Discovery I
The Quadra-Fire Discovery I Wood Appliance meets the U.S. Environmental Protection Agency’s crib wood emission
limits for wood appliances sold after May 15, 2015.
A. Appliance Certication B. BTU & Efciency Specications
Model: Discovery I Wood Appliance
Laboratory: OMNI Test Laboratories, Inc.
Report No & Date: 0061WS070S
Type: Listed Room Appliance, Solid Fuel
Type
Standard:
UL1482-11 (R2015)and ULC S627-
00 and (UM) 84-HUD, Mobile Home
Approved.
EPA Certication #: 664
EPA Certied Emissions: 2.1 grams per hour
*LHV Tested Efciency: 78.7%
**HHV Tested Efciency: 72.9 %
***EPA BTU Output: 12,000 to 28,800 / hr.
****Peak BTU/Hour
Output: 44,000
Vent Size: 6 inches
Firebox Size: 1.4 cubic feet
Recommended Wood
Length: 16 inches
Fuel Orientation: Front-to-Back
Fuel Seasoned Cord Wood
*Weighted average LHV (Low Heating Value) efciency
using Douglas Fir dimensional lumber and data collected
during EPA emission test. LHV assumes the moisture is
already in a vapor state so there is no loss in energy to
vaporize.
**Weighted average HHV (High Heating Value) efciency
using Douglas Fir dimensional lumber and data collected
during EPA emission test. HHV includes the energy
required to vaporize the water in the fuel.
***A range of BTU outputs based on EPA Default
Efciency and the burn rates from the low and high EPA
tests, using Douglas Fir dimensional lumber.
****A peak BTU out of the appliance calculated using the
maximum rst hour burn rate from the High EPA Test and
the BTU content of cord wood (8600) times the efciency.
NOTE: This installation must conform with local codes. In the absence of local codes you must comply with (UM) 84-HUD and
NFPA211 in the U.S.A. and CAN/CSA-B365 Installation Codes in Canada.
This wood appliance needs periodic inspection and repair for proper operation. Consult the owner’s manual for further
information. It is against federal regulations to operate this wood heater in a manner inconsistent with the operating
instructions in the owner’s manual.
1 Important Safety Information

7039-174K
4August 13, 2018
Discovery I
D. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
C. Mobile Home Approved
G. Sleeping Room
H. California - Prop65
• This appliance is approved for mobile home installations;
when not installed in a sleeping room and when an outside
combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame of
the mobile home with #8 copper ground wire.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
F. Combustible Materials
Material made of/or surfaced with any of the following
materials:
- Wood - Compressed Paper
- Plant Fibers - Plastic
- Plywood/OSB - Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
E. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel - Plaster
- Brick - Iron
- Concrete - Tile
- Glass - Slate
Materials reported as passing ASTM E 136, Standard Test
Method for Behavior of Metals, in a Vertical Tube Furnace
of 750° C.
Hearth & Home Technologies WILL NOT warranty
appliances that exhibit evidence of over-ring. Evidence of
over-ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated bafe and other interior components
NOTE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter its
products, their specications and/or price without
notice.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if
supplied with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided
by, the following actions:
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
When installed in a sleeping room it is recommended that
a smoke and/or CO alarm be installed in the bedroom. The
size of the room must be at least 50ft³ per 1,000 Btu/hr
stove input, if the stove exceeds the room size, out air must
be installed.

7039-174K 5August 13, 2018
Discovery I
Install Guide
2 Getting Started
A. Design and Installation Considerations
Consideration must be given to:
• Safety
• Convenience
• Trafc ow
• Chimney and chimney connector required
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. If you are not
using an existing chimney, place the appliance where there
will be a clear passage for a factory-built listed chimney
through the ceiling and roof.
We recommend that a qualied building inspector and
your insurance company representative review your plans
before and after installation.
If this appliance is in an area where children may be near
it is recommended that you purchase a decorative barrier
to go in front of the appliance. Remember to always keep
children away while it is operating and do not let anyone
operate this appliance unless they are familiar with these
operating instructions.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult insurance carrier, local building, re ofcials
or authorities having jurisdiction about restrictions,
installation inspection, and permits.
CAUTION
NOTICE: HEARTH & HOME TECHNOLOGIES ASSUMES
NO RESPONSIBILITY FOR THE IMPROPER
PERFORMANCE OF THE APPLIANCE SYSTEM
CAUSED BY:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney between
14-16 feet (4.26-4.88m) measured from the base of
the appliance.
C. Negative Pressure
B. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A re extinguisher to
contend with small res resulting from burning embers.
3. A CO detector should be installed in the room with the
appliance.
4. A practiced evacuation plan, consisting of at least two
escape routes.
5. A plan to deal with a chimney re as follows:
In the event of a chimney re:
a. Evacuate the house immediately
b. Notify re department.
WARNING
Asphyxiation Risk.
• Negative pressure can cause spillage
of combustion fumes, soot and carbon
monoxide.
• Appliance needs to draft properly for
safety.
WARNING
Asphyxiation Risk.
• Do NOT connect this appliance to a
chimney ue servicing another appliance.
• Do NOT connect to any air distribution duct
or system.
May allow ue gases to enter the house.
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks

7039-174K
6August 13, 2018
Discovery I
To minimize the effects of negative air pressure:
• Install optional outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
• Basement installations should be avoided
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
Reciprocating saw
Framing material
Pliers
High temp caulking material
Hammer
Gloves
Phillips screwdriver
Framing square
• Remove appliance and components from packaging
and inspect for damage.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
E. Inspection of Appliance and Components
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided
by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
Flat blade screwdriver
Electric drill and bits
Plumb line
Safety glasses
Level
Tape measure
Misc. screws and nails
7/16 socket or wrench
1/2-3/4 in. length, #6 or #8 self-drilling screws

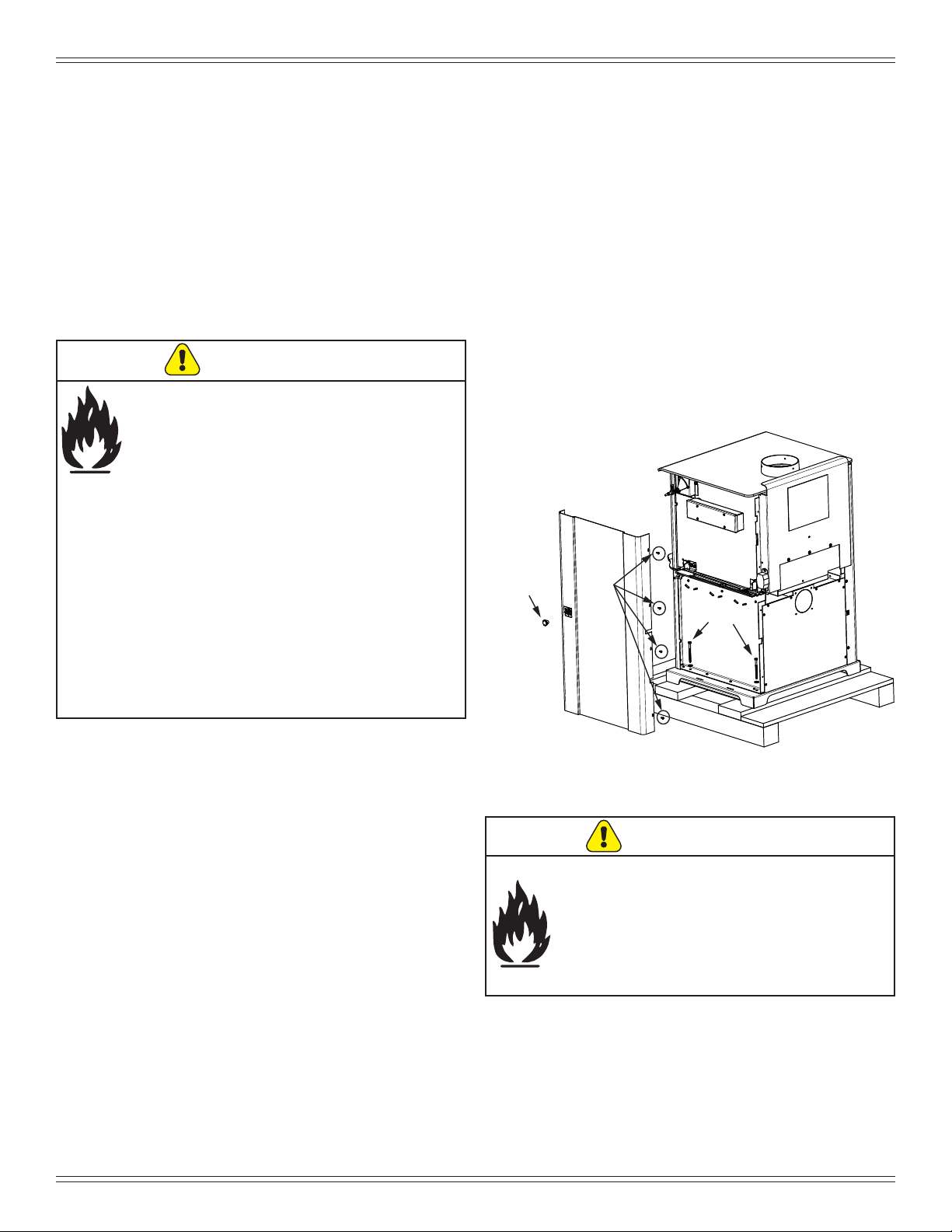

1. Remove box and 2x4 structural boards being careful
not to damage product.
2. Remove Start Up Air Control Knob by turning
counterclockwise.
3. Using Phillips screwdriver remove four screws from
back of appliance; set aside. Pull side panel off; set
aside (Figure 6.1).
4. Using a 7/16 socket or open end wrench, remove two
lag bolts and washers attaching appliance to pallet and
discard.
5. Reassemble side panel assembly (Figure 6.1).
6. Reattach Start Up Air Control Knob to appliance.
7. Repeat steps 3 through 5 for other side of appliance.
8. Carefully pull appliance off of pallet and put in desired
location following Hearth Pad and Clearance to
Combustibles on pages 8 & 9.
F. Removal of Appliance from Shipping
Materials
Start Up
Air Control
Knob
Lag bolts
x2
Side
Panel
Phillips
screws
x4
Figure 6.1
Fire Risk.
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING

7039-174K 7August 13, 2018
Discovery I
G. Install Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not istead of, the instructions contained in this installation manual.
Customer:
Date Installe:
Lot / Address:
Location of Appliance:
Installer:
Dealer / Distributor Phone #:
Serial #:
Model:
WARNING! Risk of Fire or Exposion! Failure to install appliance according to these instruction can lead to a fire or explosion.
Appliance Install
Verified clearances to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Roof flashing installed and sealed.
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installtion is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible ____________________________ by _____________________ on ___________
(Builder / Gen. Contractor) (Installer) (Date)
_________________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
________________________________________________________________________
___________________________________________________________________________________
___________________________________________________________________
___________________________________________________________________________________
____________________________________________________________________________________
YES IF NO, WHY?
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________

7039-174K
8August 13, 2018
Discovery I

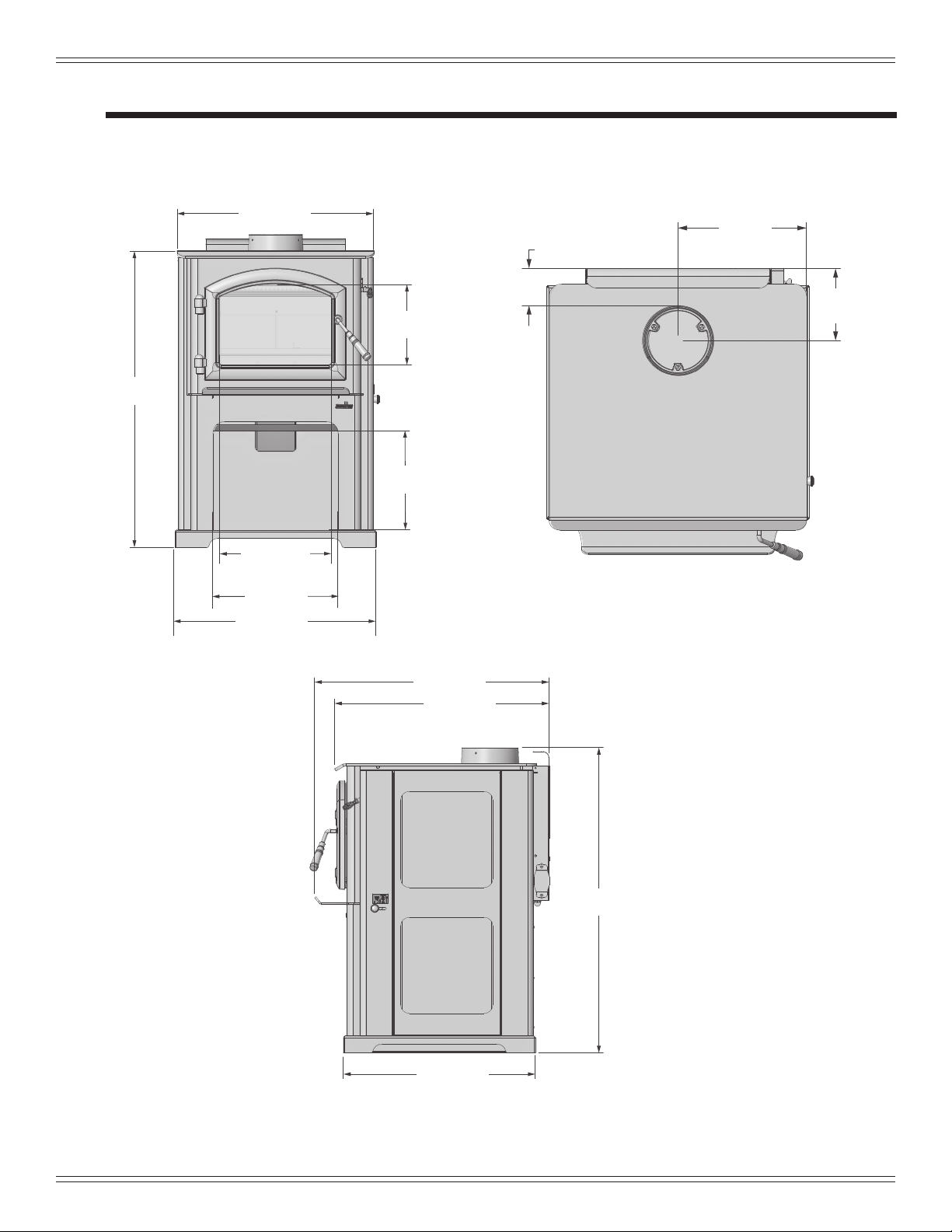

21-3/4 in [552mm]
35-3/4 in
[907mm]
24-3/8 in [618mm]
26-5/8 in [675mm]
Figure 8.1 Front View
Figure 8.3 Side View
9-1/4 in
[233mm]
24-1/8 in [613mm]
33-7/8 in
[860mm]
23-5/8 in [600mm]
13-1/2 in [343mm]
11-1/2 in
[292mm]
15 in [381mm]
Figure 8.2 Top View
11-7/8 in
[300mm]
6-3/4 in
[170mm]
3-1/2 in
[89mm]

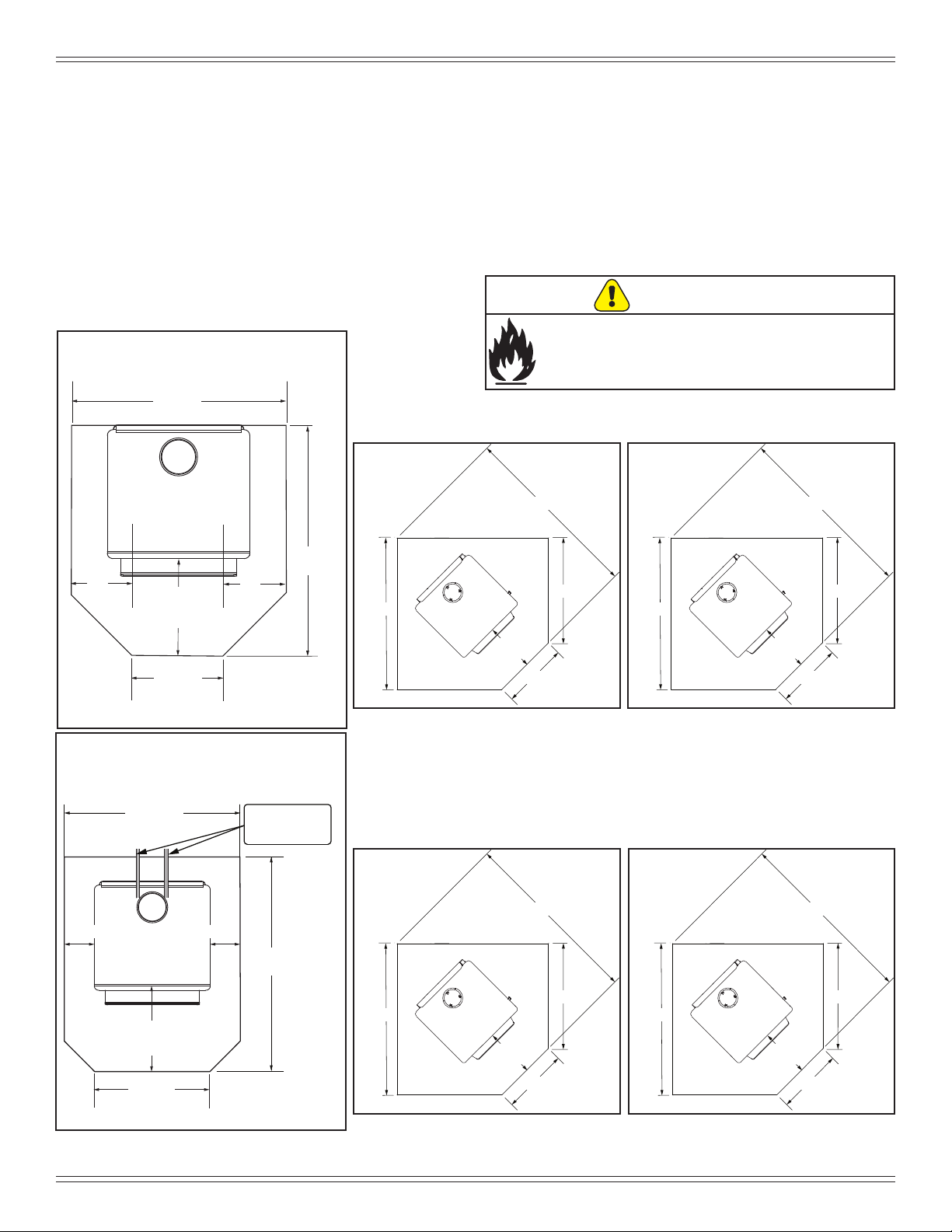

3 Dimensions and Clearances
A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)

7039-174K 9August 13, 2018
Discovery I
Figure 9.1
B. Hearth Protection Requirements In Canada, similar oor protection must be provided 18
inches (457mm) in front and 8 inches (203mm) from the
sides and rear of the appliance unless the hearth pad is
placed against the wall (Figure 9.2). Then the clearance
may be reduced using double wall pipe and the Clearance
to Combustibles table listed on page 10.
*Exception: Non-combustible oor protector must extend
beneath the ue pipe when installed with horizontal venting
and extend 2 inches (51mm) beyond each side; See
Figure 9.2
Figure 9.4
Figure 9.3
Figure 9.2
Figure 9.5
Figure 9.6
EMBER PROTECTION: It is necessary to install a Type I
oor protector.
Floor protector must be non-combustible material,
extending beneath appliance with a minimum of 16 inches
(406mm) in front of glass and 8 inches (203mm) to both
sides of the fuel loading door. Open the door and measure
8 inches (203mm) from the side edge of the opening in the
face of the appliance. *See exception.
WARNING
Fire Risk.
Hearth pads must be installed exactly as specied.
High temperatures or hot embers may ignite
concealed combustibles.
Corner hearth pad dimensions with single wall pipe
Corner hearth pad dimensions with double wall pipe
USA, minimum at wall hearth
pad dimensions
*Canada, at wall hearth pad
dimensions with double wall
horizontal venting
**this dimension will vary depending
installation.
16 in
from fuel door
opening
16 in
from fuel door
opening
Fuel loading door
29-5/8 in
minimum
29-5/8 in
minimum
39 in
minimum
8 in
8 in
8 in8 in
13-5/8 in
minimum
13-5/8 in
minimum
203mm203mm
457mm
from fuel door
opening
1006mm
minimum
1080mm
minimum
600mm
minimum
600mm
minimum
Must extend 51mm
beyond each side of
pipe (shaded area) to
the wall thimble.
Must extend 51mm
beyond each side of
pipe (shaded area) to
the wall thimble.
USA
16 in.
from the fuel door
opening
47-3/4 in
60-5/8 in
38-1/8 in
13-5/8 in
CANADA
457mm
from the fuel door
opening
1338mm
1592mm
914mm
600mm
USA
16 in.
from the fuel door
opening
46-3/4 in
59-1/4 in
37-1/8 in
13-5/8 in
CANADA
457mm
from the fuel door
opening
1312mm
1556mm
888mm
600mm

7039-174K
10 August 13, 2018
Discovery I
C. Clearances to Combustibles
BACKWALL / SIDEWALL
A B
C
D
EF
F
E
CORNER INSTALLATION
C
ALCOVE TOP VIEW
GA
ALCOVE SIDE VIEW

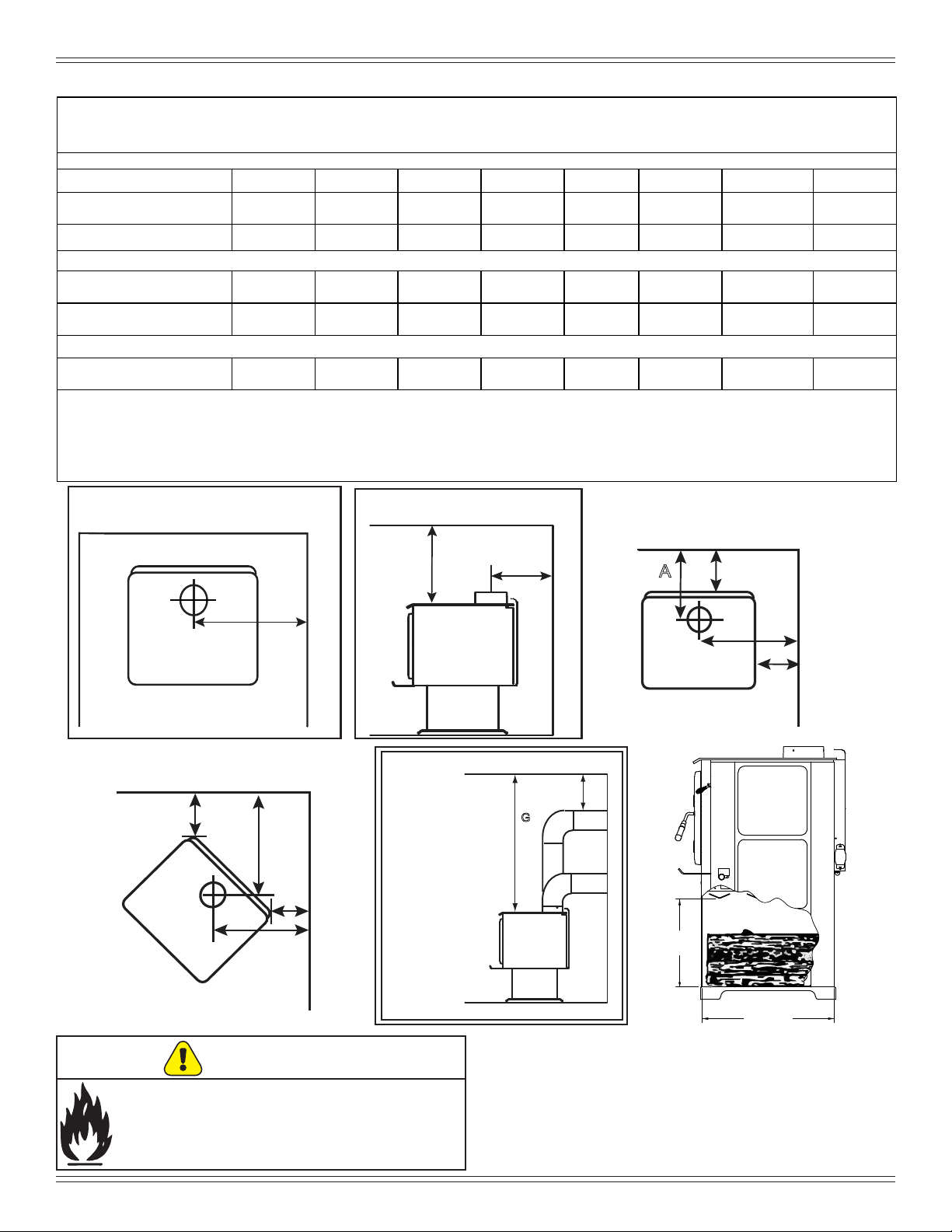

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters)
Note: A, C, and F Dimensions are to the center of the flue collar
DISCOVERY- I
INSTALLATION: FULL VERTICAL
A B C D E F G H*
SINGLE WALL PIPE
18 (457) 11 (275) 24-1/2 (622) 13 (330) 8-1/2 (216) 20 (508) 56 (1422) N/A
DOUBLE WALL PIPE
11-3/4 (298) 5-3/4 (146) 23 (584) 10-1/2 (267) 7-1/2 (191) 19 (483) 43 (1092) N/A
INSTALLATION: 90 DEGREE ELBOW OFF TOP OF APPLIANCE THROUGH BACKWALL
SINGLE WALL PIPE
17 (432) 10 (254) 23-1/2 (597) 12 (305) 8-1/2 (216) 20 (508) 56 (1422) 9-1/2 (241)
DOUBLE WALL PIPE
12-1/2 (318) 5-1/2 (140) 24-1/2 (622) 13 (330) 7-1/2 (191) 19 (483) 43 (1092) 5 (127)
INSTALLATION: ALCOVE
DOUBLE WALL PIPE
12-1/2 (318) 5-1/2 (140) 24-1/2 (622) 13-1/2 (343) N/A N/A 43 (1092) 5 (127)
For alcove only: Six inch diameter listed Double wall air insulated connector pipe with UL103 HT listed factory built Class A
chimney or masonry chimney. Maximum depth of Alcove shall be no more than 48 inches (1219mm) and the referenced
alcove clearances. Canada must comply with CAN/ULC-S269 M87 for the 650° factory built chimney.
* FOLLOW PIPE MANUFACTURES CLEARANCES AS REQUIRED
G
90° OFF TOP
UP & OUT CEILING
CLEARANCE
H
TOP OF APPLIANCE
TO CEILING
CLEARANCE
11-1/2 in.
(292mm)
21 in. (533mm)
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having
jurisdiction
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING

7039-174K 11August 13, 2018
Discovery I
4 Chimney Systems
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 11.1
A. Locating Your Appliance & Chimney
Location of the appliance and chimney will affect
performance. As shown in Figure 11.1 the chimney
should:
• Install through the warm space enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes
the affects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor
and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your ue problem.

7039-174K
12 August 13, 2018
Discovery I
Toit incliné
3 m (10 pi) ou plus
914 mm (3 pi) minimum
Moins de 3 m (10 pi)
610 mm (2 pi) minimum
914 mm (3 pi) minimum
Mur ou parapet
Toit plat

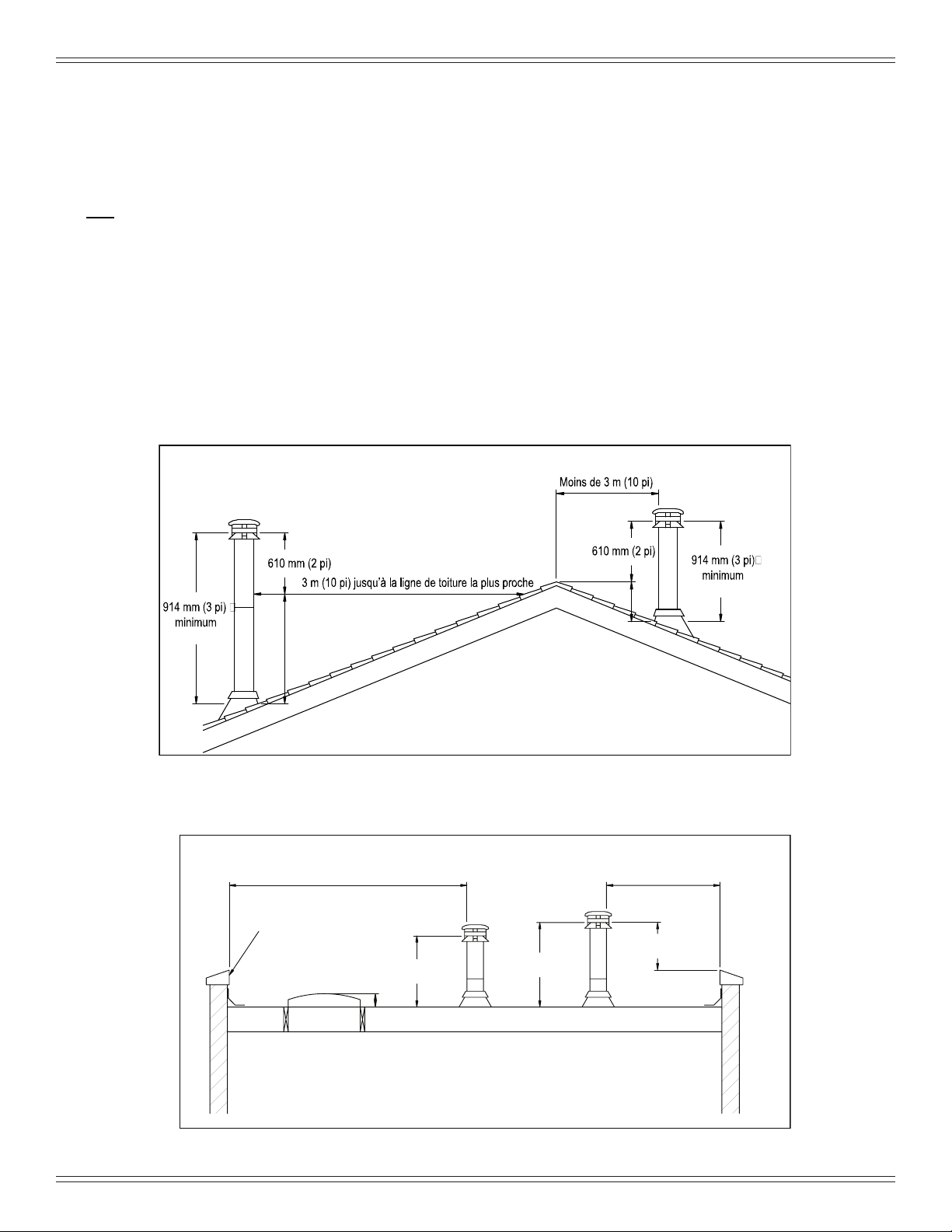

Figure 12.1
Figure 12.2
C. 2-10-3 Rule
These are safety requirements and are not meant to
assure proper ue draft.
This appliance is made with a 6 inch (152mm) diameter
chimney connector as the ue collar on the appliance.
• Changing the diameter of the chimney can affect draft
and cause poor performance.
• It is not recommended to use offsets and elbows at
altitudes above 4000 feet above sea level and or when
there are other factors that affect ue draft.
B. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
ashing and terminating the chimney (Figure 12.1 & 12.2).
• Must have an approved and Listed cap
• Must not be located where it will become plugged by
snow or other material
• Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the roof
within 10 feet (305cm).
• Must be located away from trees or other structures
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions affect
performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: LOCATING THE APPLIANCE IN A BASEMENT
OR IN A LOCATION OF CONSIDERABLE AIR
MOVEMENT CAN CAUSE INTERMITTENT
SMOKE SPILLAGE FROM APPLIANCE. DO NOT
LOCATE APPLIANCE NEAR
• Frequently open doors
• Central heat outlets or returns

7039-174K 13August 13, 2018
Discovery I
NOTE: In Canada when using a factory-built chimney it
must be safety listed, Type UL103 HT (2100
o
F)
CLASS “A” or conforming to CAN/ULC-S629M,
STANDARD FOR 650oC FACTORY-BUILT
CHIMNEYS.
F
loor
Pr
otector
Chimney
Connector
Insulated "T "
Flashing
Listed Termination Cap
Trim Collar on
Inside Wall Listed Chimney
Storm Collar
Wall Support
Roof Brace (if required)
Thimble

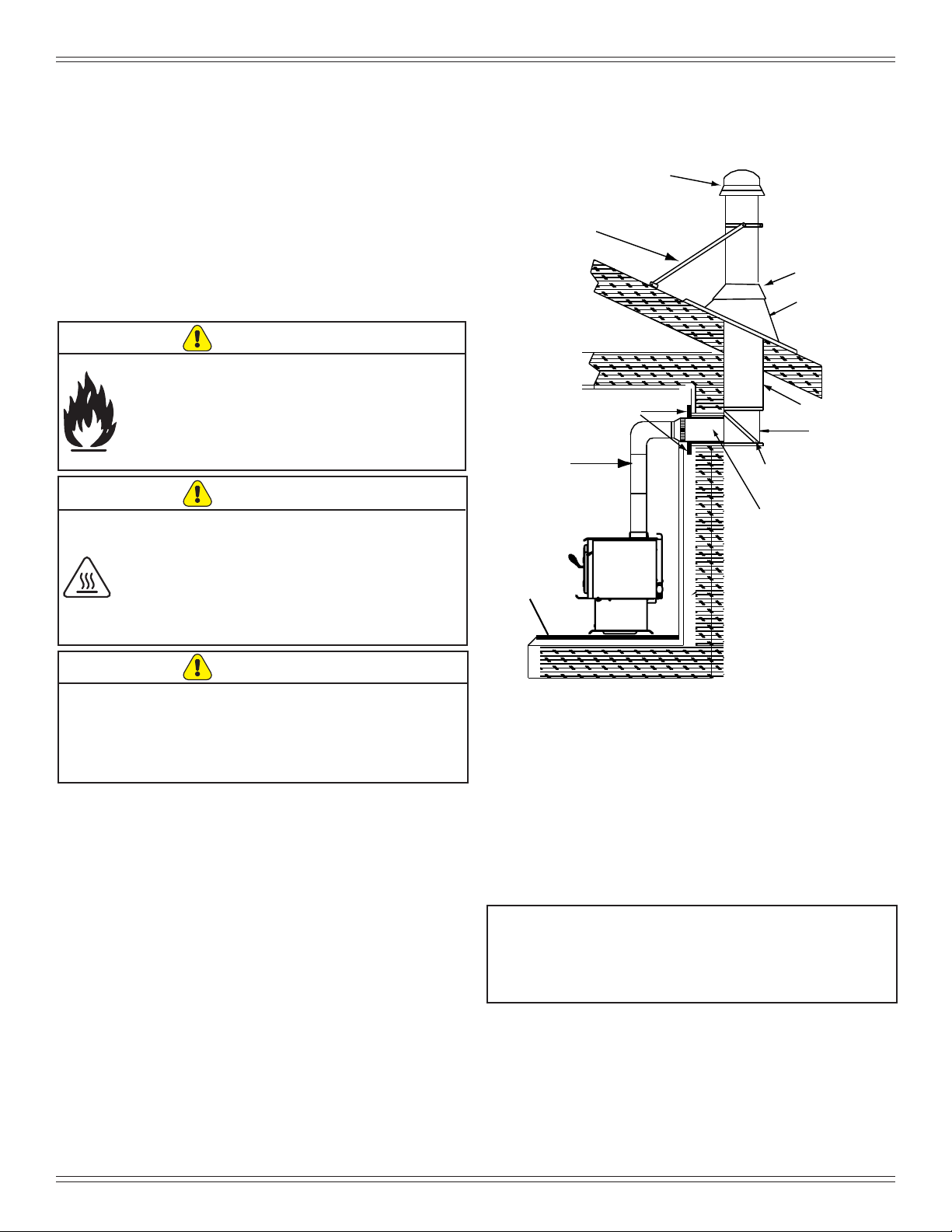

Figure 13.1 Prefabricated Exterior Chimney
E. Venting Components
Chimney Connector:
It is also known as ue pipe or appliance pipe. The
chimney connector joins the appliance to the chimney. It
must be a 6 inch (152mm) minimum diameter 24 gauge
mild steel black or 26 gauge blued steel, or an approved
air-insulated double wall venting pipe.
Thimble:
A manufactured or site-constructed device installed in
combustible walls through which the chimney connector
passes to the chimney. It is intended to keep the walls
from igniting. Site constructed thimbles must meet NFPA
211 Standards. Prefabricated must be suitable for use with
selected chimney and meet UL103 Type HT Standards.
Follow instructions provided by the manufacturer for
manufactured thimbles for masonry chimney and
prefabricated chimneys.
F. Chimney Systems
Prefabricated Metal Chimney
• Must be minimum 6 inch (152mm) diameter (ID) high
temperature chimney listed to UL 103 HT (2100oF) or
ULC S629M.
• Must use components required by the manufacturer for
installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation.
D. Chimney Height / Rise and Run
This product was designed for and tested on a 6 inch
(152mm) chimney, 14 to 16 feet (420-480cm) high,
(includes appliance height) measured from the base of the
appliance. The further your stack height or diameter varies
from this conguration, the greater the likelihood it may
affect performance.
Chimney height may need to be increased by 2 - 3% per
each 1000 feet above sea level. It is not recommended to
use offsets or elbows at altitudes above 4000 feet above
sea level or when there are other factors that affect ue
draft.
Chimney:
The chimney can be new or existing, masonry or
prefabricated and must meet the following minimum
requirements and as specied in Section 4F.
Fire Risk.
Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch
(152mm) UL103 HT.
WARNING
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance TO A
CHIMNEY FLUE SERVICING ANOTHER
APPLIANCE.
• DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
May allow ue gases to enter the house.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this
appliance. For assistance or additional information consult
a qualied installer, service agency or your dealer.
WARNING

7039-174K
14 August 13, 2018
Discovery I
Floor
Protector
Chi
mney
Conne
ctor
Ceiling Support
Listed Chimney
Listed Termination Cap
Storm Collar
Flashing
Figure 14.1 - Prefabricated Interior Chimney
Thimble
Site constructed for masonry chimney installation:
Components
A minimum length of 12 inches [305mm] (longer for thicker
walls) of solid insulated factory-built chimney length
constructed to UL 103 Type HT 6 inch (152mm) inside
diameter. Chimney needs to extend a minimum of 2 inches
(51mm) from the interior wall and a minimum of 1 inch
(25mm) from the exterior wall.
Wall spacer, trim collar and wall band to t solid pack
chimney selected.
Minimum 8 inch (203mm) diameter clay liner section (if not
already present in chimney) and refractory mortar.
When jurisdiction requires install approved chimney liner in
masonry chimney.
Air Clearances
• Masonry chimney clearance must meet NFPA 211
minimum requirement of 2 inches (51mm) to sheet
metal supports and combustibles.
• Minimum of 1 inch (25mm) clearance around the
chimney connector.
• Top of wall opening is a minimum of 13-1/2 inches
(343mm) from ceiling or 4-1/2 inches (114mm) below
minimum clearance specied by chimney connector
manufacturer. NFPA 211 minimum vertical clearance of
18 inches (457mm) from chimney connector and ceiling
or minimum recommended by chimney connector
manufacturer (Figure 14.2).
Instructions:
1. Open inside wall at proper height for the chimney
connector to entry the masonry chimney (Figure 14.2).
2. Entry hole to masonry chimney must be lined with
an 8 inch (203mm) minimum diameter clay liner, or
equivalent, secured with refractory mortar.
3. Construct a 17 inch x 17 inch (432mm x 432mm)
outside dimension frame from 2 x 2 framing lumber to
t into wall opening. Inside opening of frame should
be no less than 14 inch x 14 inch (356mm x 356mm)
(Figure 14.2).
4. Attach the wall spacer to the chimney side of the frame.
5. Nail the frame into the wall opening. The spacer
should be on the chimney side.
6. Insert the section of the solid insulated chimney into the
outer wall of the masonry chimney.
7. Tightly secure the length of the solid insulated chimney
with the wall band to the masonry chimney.
8. Insert a section of chimney connector into the chimney.
Make sure it does not protrude past the edge of the
clay chimney liner inside the chimney.
9. Seal the end of the chimney connector to the clay liner
with refractory mortar.
10. Install trim collar around the sold pack chimney section .Figure 14.2
1.5”
1.0”
2.0”
2.0”
1.5”
14.0” ID
17.0” OD
ceiling
Minimum18.0”
NFPA 211
13.5” below ceiling to top
of opening
1.0”
8.0”
1.5 2x2 framing stud
2.0 min air clearance
1.0 min air clearance
4.5
or top of opening is a min.of
4.5” below min.clearance
specified by connector mfg.
Center of Hole
Thimble
C
L
C
L
Wall
Include depth
of hearth pad

7039-174K 15August 13, 2018
Discovery I
Trim Collar
Chimney Section
with 2 inch
(51mm)
Clearance to
Combustibles
Chimney
Connector
Fire Clay Flue
Liner
with Airspace
Masonry
Chimney
Wall Band to
Secure Chimney
Section
Wood Studs Used
for Framing - Spaced
2 inch (51mm)
clearance from
Masonry Chimney
Wall Spacer
Solid Pack Chimney with Metal Supports as a Thimble
Figure 15.1
Fire Risk.
Do NOT pack insulation or other combustibles
between spacers.
• ALWAYS maintain specied clearances around
venting and spacers.
• Install spacers as specied.
Failure to keep insulation or other material away
from vent pipe may cause re.
WARNING
Flue Gas
Direction
Crimped
End
Toward
Appliance
Secure pipe sections with a
minimum of 3 screws
Figure 15.3 Chimney Connector (Appliance Pipe)
Chimney Flue
Liner
Fireclay
Liner or
Equivalent
Masonry Chimney
Constructed to NFPA 211
Wall Spacer
Wall Band
Trim Collar
Chimney
Connector
1 inch (25mm) Air
Space to Chimney
Section
Min. Clearance
2 inch (51mm)
Min. Chimney Clearance to
Wall Spacer and
Combustibles - 2 inch (51mm)
Chimney Section
Figure 15.2
Solid Pack Chimney with Metal Supports as a Thimble
(Cont’d)
G. Installing Chimney Components
Chimney Connector
Single wall connector or appliance pipe.
This must be at least 24 gauge mild steel or 26 gauge blue
steel. The sections must be attached to the appliance and
to each other with the crimped (male) end pointing toward
the appliance. All joints, including the connection at the ue
collar, should be secured with 3 sheet metal screws. Make
sure to follow the minimum clearances to combustibles.
Where passage through the wall, or partition of combustible
construction is desired in Canada, the installation shall
conform to CAN/CSA-B365.
Factory-built listed chimney connector (vented).
A listed connector (vented) must be used when installing
this appliance in a mobile home. The listed connectors
must conform to each other to ensure a proper t and seal.
H. Proper Draft
To be sure that your Quadra-Fire insert burns properly, the
chimney draft (static pressure) should be approximately
-0.10 inches water column (W.C.) during a high burn and
-0.04 inches W.C. during a low burn, measured 6 inches
(152mm) above the top of the insert after one hour of
operation at each burn setting.
WARNING
Fire Risk.
Follow Chimney Connector Manufacturer’s
Instructions for Proper Installation.
ONLY use connector:
• Within the room, between appliance and ceiling or
wall.
Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to combustibles

7039-174K
16 August 13, 2018
Discovery I
5 Appliance Set-Up
USA
Figure 16.2 - Floor Installation
A. Outside Air Kit Installation
A source of air (oxygen) is necessary in order for
combustion to take place. Whatever combustion air is
consumed by the re must be replaced. Air is replaced via
air leakage around windows and under doors. In homes
that have tightly sealed doors and windows, an outside air
source is needed. An optional Outside Air Kit is available.
Optional OAK-ACC includes:
Termination cap, (2) wire ties, ex adapter, and fasteners
Items Needed for Installation (not supplied)
• 4 inch ex aluminum pipe, or if using alternate material,
then it shall be made from durable, non-combustible,
heat resistant material up to 350oF. Cut the pipe to the
required length for your installation.
• Phillips head screw driver
• Silicone sealant
• Drills and saws necessary for cutting holes through the
wall or ooring in your home.

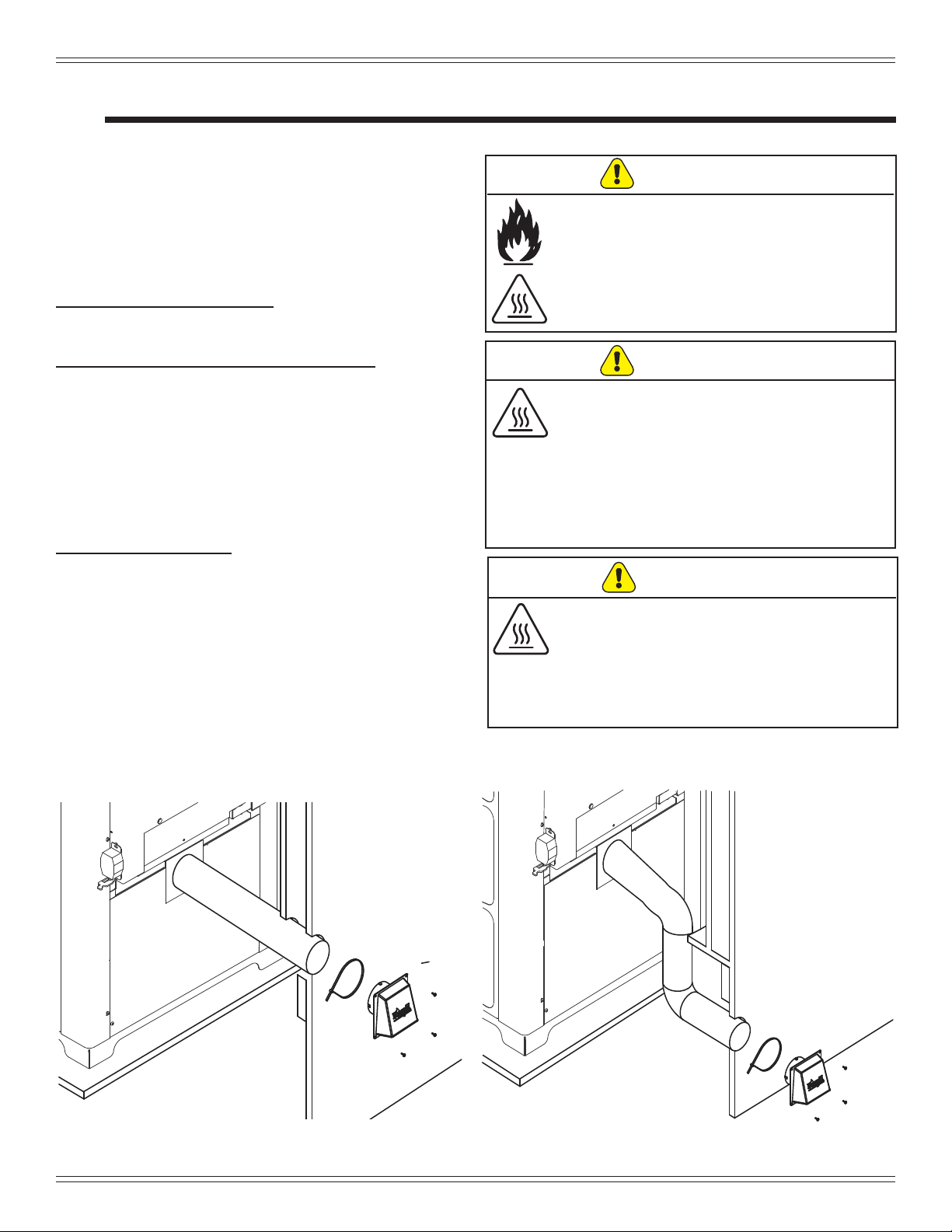

Installation Instructions
1. Remove all materials from packing box.
2. Floor & Rear Installation: Cut a 4 inch (102mm) hole
in outside wall or oor to accommodate outside air
piping. Use 4 inch (102mm) aluminum metal ex or
rigid piping to directly connect outside air to appliance
intake. Use the supplied termination cap with a rodent
screen. Seal between the wall (or oor) and the pipe
with silicone to prevent moisture penetration.
Figure 16.1 - Rear Installation
Fire Risk.
Asphyxiation Risk.
Do not draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
• Close proximity to exhaust vents or chimneys
Fumes or odor may result
WARNING
Asphyxiation Risk.
Outside air inlet must be located to prevent
blockage from:
• Leaves
• Snow or ice
• Other debris
Block may cause combustion air starvation
Smoke spillage may set off alarms or irritate
sensitive individuals.
WARNING
Asphyxiation Risk.
Length of outside air supply duct shall NOT
exceed the length of the vertical height of the
exhaust ue.
• Fire will not burn properly
• Smoke spillage occurs when door is opened
due to air starvation.
WARNING

7039-174K 17August 13, 2018
Discovery I
Figure 17.5
Figure 17.1
WARNING!
Use only noncombustible materials as a decorative tile.
B. Decorative Panel Removal & Installation
Your appliance ships with two different side options, one is
a solid side panel (Figure 17.1) and tile side panel (Figure
17.2). There are two of each and no left or right side, these
can be changed at anytime.
The appliances are being shipped with a solid side panel
securing clip on both sides. Please remove and discard
pins prior to use (Figures 17.3).
Solid Side Panel Removal
1. Remove solid panel from side by lifting up and pulling
away from appliance (use a at tool to pry from bottom
if needed). Figure 17.4
NOTE: 300 degree F high temp paint can be use to repaint
the solid side panel only! DO NOT use on the rest
of appliance this requires 1200 degree F high temp
paint.
Tile Panel Installation
2. Remove tile frame from side by lifting up and pulling
away from appliance (Figure 17.4 reference solid
side panel removal).
3. Stack non-combustible material tiles in tile frame as
shown in Figure 17.2.
4. Reattach tile frame Figure 17.5.
Tile Dimensional Requirements:
Max Thickness: 5/16”
Max Length/Width: 11-7/8” square
Min Length/Width: 11-11/16” square
1
Figure 17.4
3
Figure 17.2
Securing
Clip
Figure 17.3

7039-174K
18 August 13, 2018
Discovery I

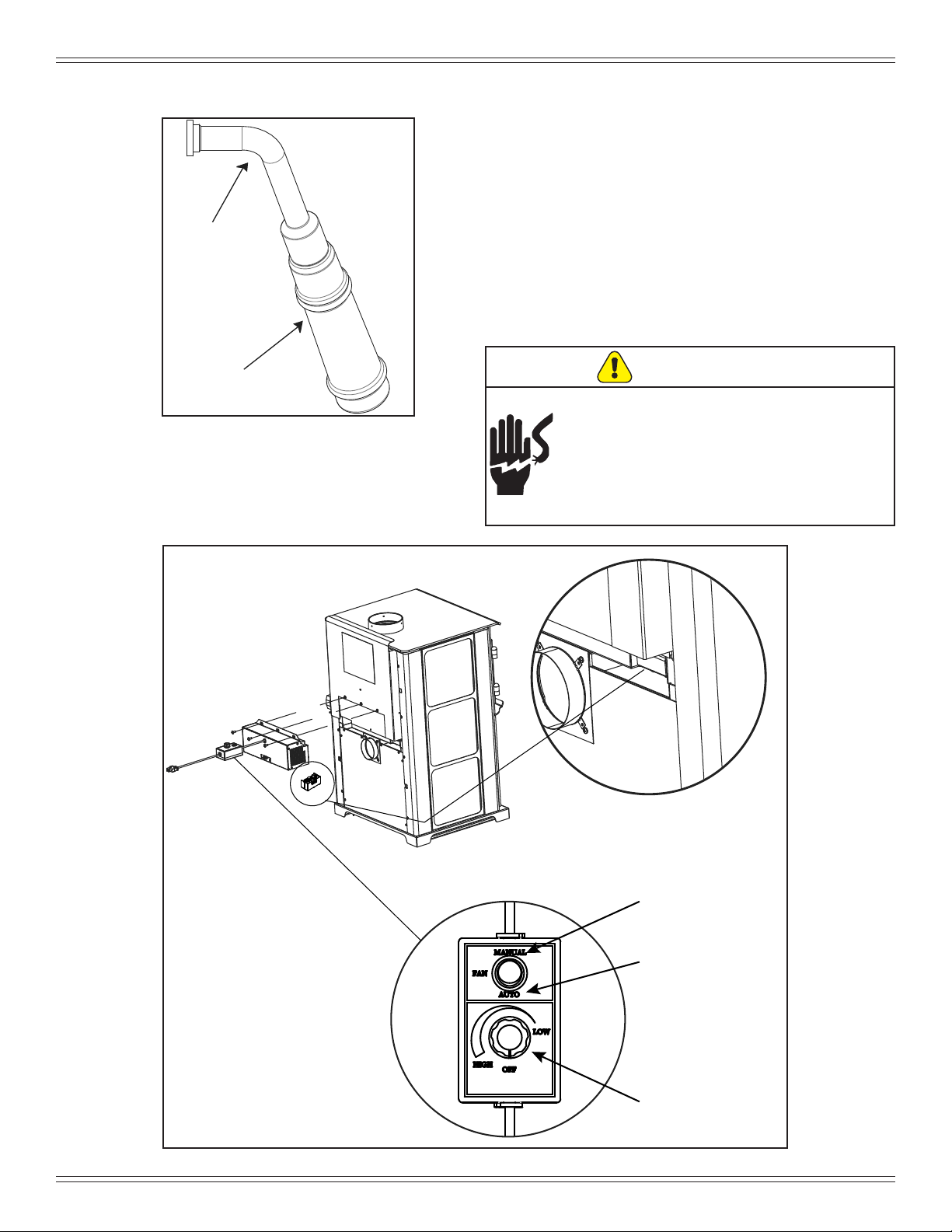

D. Blower (Optional)
Tools Required: #2 Phillips head screwdriver
1. Locate bolts supplied with the blower.
2. Align holes in mounting ange of blower with bolt holes
in appliance. Blower should be positioned at bottom of
rear outer skin as shown in Figure 18.2
3. Re-insert and tighten bolts, securing blower onto outer
wall of appliance.
4. Place the bracket containing the snap disc and magnet
under the bottom left rear corner.
See Owner’s Manual for detailed operating instructions for
the blower and snap disc.
Figure 18.2
MANUAL: Overides the
Snap Disc
AUTO: Fan will turn
ON/OFF Automatically
by the Snap Disc
Controls the Fan Speed
Figure 18.1
Door Handle
Fiber Handle
C. Door Handle Assembly
1. Install ber handle to door handle rod.
Shock Risk.
• Do NOT remove grounding prong from plug.
• Route cord away from appliance.
• Do NOT route cord under or in front of
appliance.
• Plug directly into properly grounded 3 prong
receptacle.
CAUTION

7039-174K 19August 13, 2018
Discovery I
6 Mobile Home Installation
You must use a Quadra-Fire Outside Air Kit Part
OAK-ACC; which is available from you dealer, for
installation in a mobile home.
1. An outside air inlet must be provided for combustion.
2. Appliance must be secured to the mobile home
structure by bolting the legs to the oor.
3. Appliance must be grounded with #8 solid copper
grounding wire or equivalent and terminated at each
end with N.E.C. approved grounding device.
4. Appliance must be installed with an approved UL103
HT ventilated chimney connector, UL103 HT chimney,
and terminal cap with spark arrestor. Never use a
single wall connector (appliance pipe) in a mobile home
installation. Use only double-wall connector pipe,
Dura-Vent DVL, Selkirk Metalbestos DS or Security
DL double-wall connector or any listed double-wall
connector pipe.
5. In Canada, this appliance must be connected to a 6
inch (152mm) factory-built chimney conforming to CAN/
ULC- 629M, STANDARD FOR FACTORY BUILT
CHIMNEYS.
6. Follow the chimney and chimney connector
manufacturer’s instructions when installing the ue
system for use in a mobile home.
7. Maintain clearance to combustibles.
8. Floor protection requirements must be followed
precisely.
9. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the exterior of the structure.
NOTE: Offsets from the vertical, not exceeding 45°,
are allowed per Section 905(a) of the Uniform
Mechanical Code (UMC). Offsets greater than 45°
are considered horizontal and are also allowed,
providing the horizontal run does not exceed 75%
of the vertical height of the vent. Construction,
clearance and termination must be in compliance
with the UMC Table 9C. This installation must also
comply with NFPA 211.
NOTE: Top sections of chimney must be removable to
allow maximum clearance of 13.5 feet (411cm)
from ground level for transportation purposes.
Asphyxiation Risk.
NEVER INSTALL IN A SLEEPING ROOM.
Consumes oxygen in the room.
WARNING
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE
HOME FLOOR, WALL AND CEILING/ROOF MUST BE
MAINTAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural
integrity.
10. Burn seasoned cord wood only. Other types of
fuels may generate poisonous gases (e.g., carbon
monoxide).
11. If appliance burns poorly while an exhaust blower is on
in home, (i.e., range hood), increase combustion air.
12. Installation shall be in accordance with the
Manufacturers Home & Safety Standard (HUD) CFR
3280, Part 24.

7039-174K
20 August 13, 2018
Discovery I
Date of Service Performed By Description of Service
7 Reference Materials
A. Service & Maintenance Log
