Quadra-Fire QV36DB Assembly instructions

1Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
oranyotherappliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Donotuseanyphoneinyourbuilding.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Model:
QV36DB Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Printed in U.S.A. Copyright 2005
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. And foreign patents pending.
Please contact your Quadra-Fire dealer with any
questionsor concerns.For thenumberof yournearest
dealer,please call1-800-926-4356
Quadra-Fire, a brand of Hearth & Home Technologies Inc.
1445 North Highway, Colville, WA 99114

2 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
!

3Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts List ....................................................................... 4
Section 1: Approvals and Codes............................................... 7
ApplianceCertification................................................................... 7
Installation Codes.......................................................................... 7
HighAltitude Installations............................................................... 7
Section 2: Getting Started ......................................................... 8
Introducing the Quadra-Fire Gas Fireplaces................................. 8
Pre-installationPreparation........................................................... 8
Section 3: Installing the Fireplace .......................................... 10

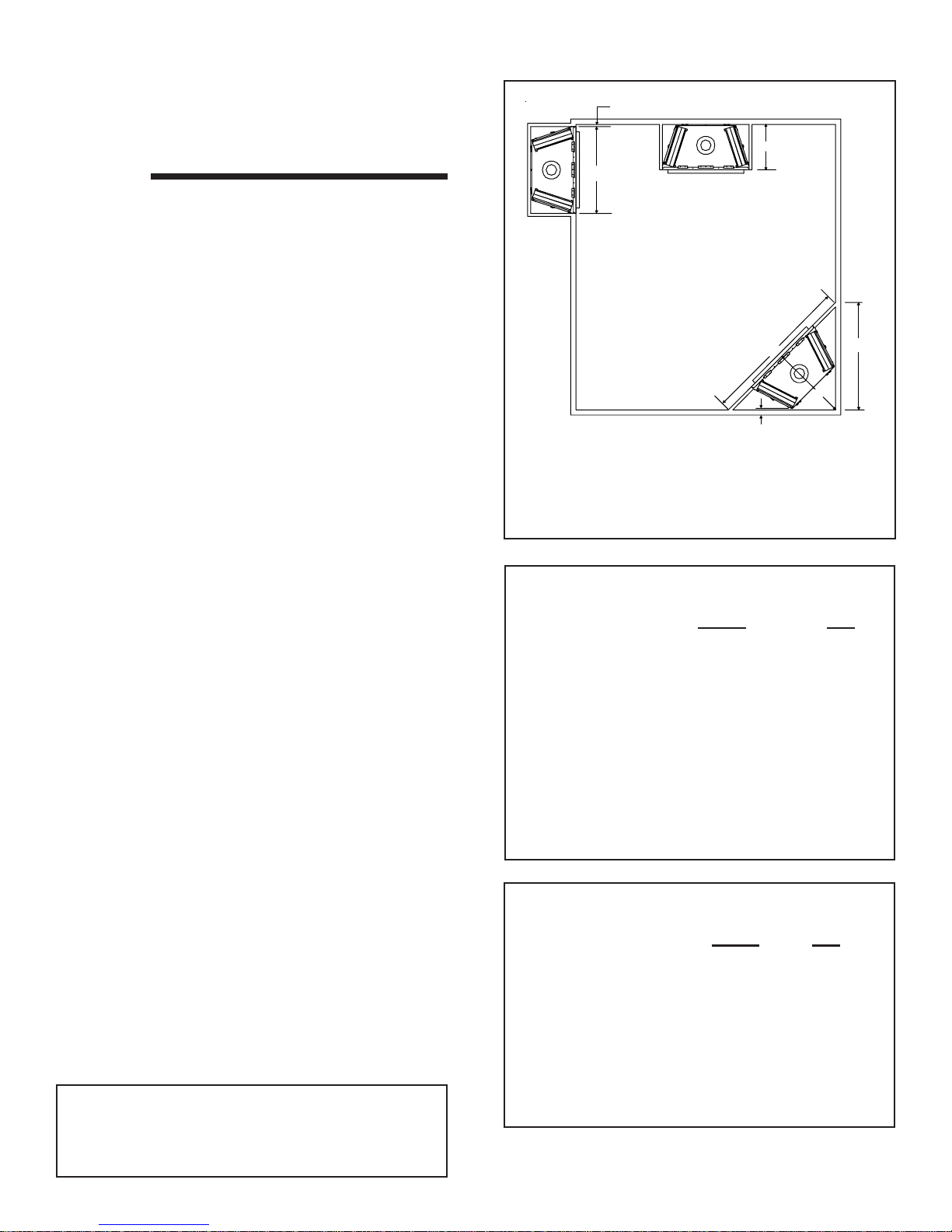

Step 1 Locating the Fireplace ................................................. 10
Step 2 Framing the Fireplace...................................................11

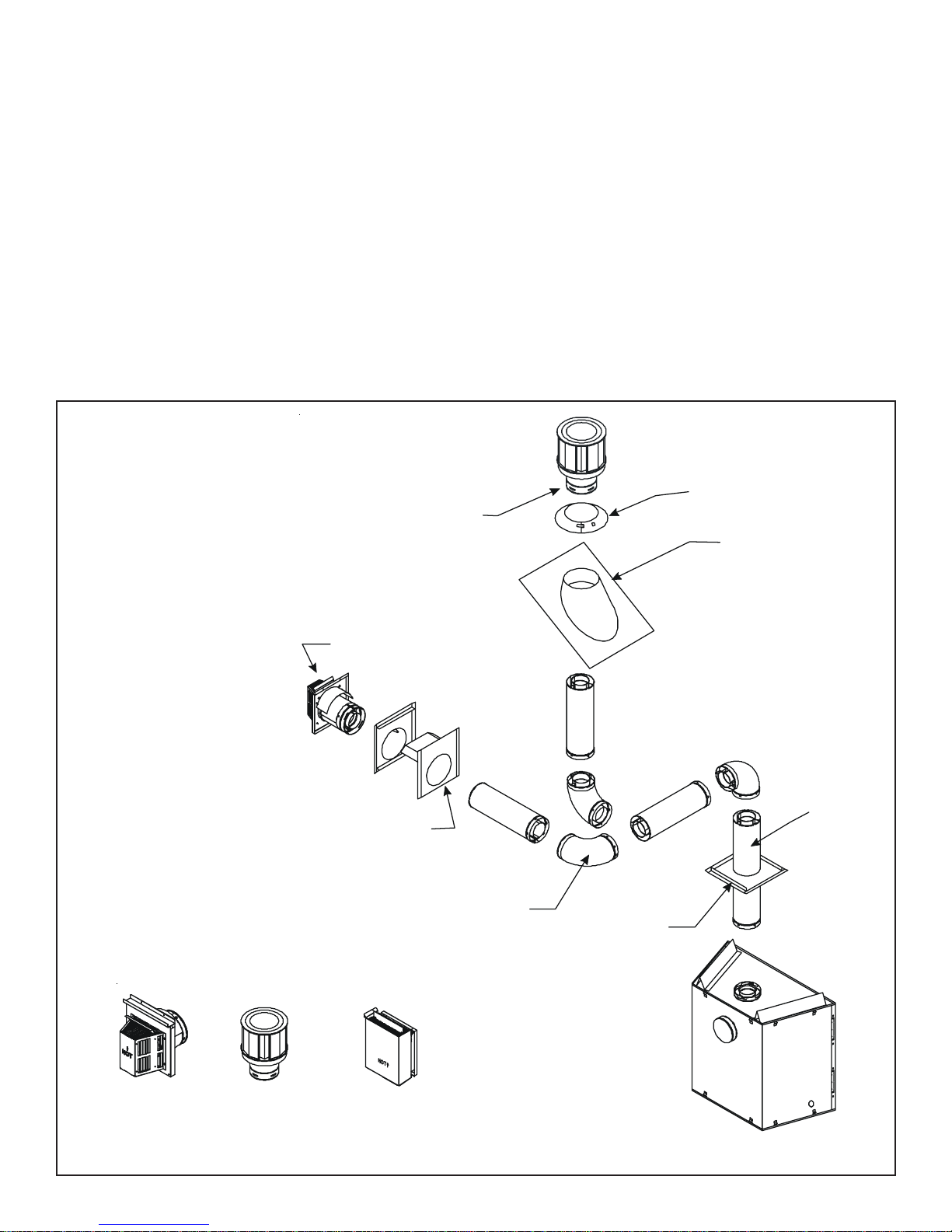

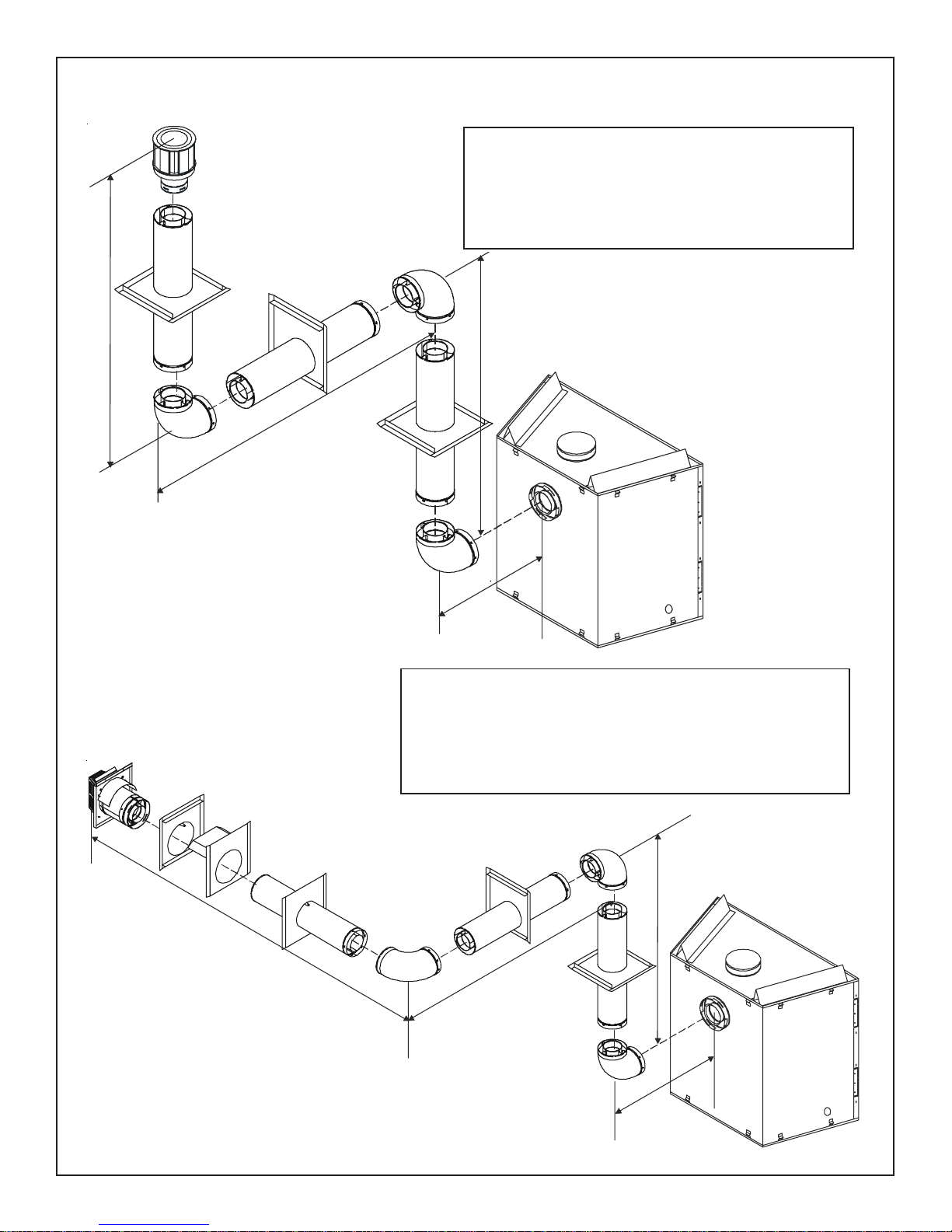

Step 3 Installing the Vent System............................................ 13
A. Vent SystemApprovals........................................... 13
B. Installing Vent Components.................................... 20
C. Vent Termination .................................................... 23
Step 4 Positioning, Leveling,and
Securing the Fireplace................................................. 26
Step 5 The Gas Control Systems........................................... 26
Step 6 The Gas Supply Line ................................................... 27
Step 7 Gas Pressure Requirements ...................................... 27
Step 8 Wiring the Fireplace .................................................... 28
Step 9 Finishing ...................................................................... 29
Step 10 Installing Trim, Logs, and Ember Material.................... 30
Installing theTrim......................................................... 30
Shutter Settings........................................................... 30
Positioning the Logs .................................................... 30
Placing the Ember Material.......................................... 30
Glass Specifications .................................................... 30
Step 11 Before Lighting the Fireplace ....................................... 30
Step 12 LightingtheAppliance .................................................. 31
Step 13 Lighting the Fireplace .................................................. 32
After theInstallation ..................................................................... 32
Section 4: Maintaining and Servicing Your Fireplace. ........ 32
Section 5: Troubleshooting. ................................................... 33
Limited Lifetime Warranty. ....................................................... 35
Î
Î= Containsupdated information.
Î
Î

7Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Appliance Certification
The fireplacemodel discussedin thisInstallers Guidehas
been tested to certification standards and listed by the
applicablelaboratories.
Certification
MODEL: QV36DB
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace
STANDARD: ANSIZ21.88-2000·CSA2.33-M00·UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Inthe absenceof localcodes,the fireplaceinstallation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates)or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric CodeANSI/NFPANo. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
This model may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
HighAltitude Installations
U.L.Listed gasappliances aretestedand approvedwithout
requiringchanges forelevations from0 to2,000 feetin the
U. S.A. and in Canada.
Wheninstalling thisappliance atan elevationabove 2,000
feet, it may be necessary to decrease the input rating by
changingthe existingburner orificeto asmaller size.Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000and4500 feetin Canada.If theheatingvalue
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
Ifinstallingthis applianceat anelevation above4,500 feet
(in Canada), check with local authorities.

8 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Introducing the Quadra-Fire Gas Fireplace
Quadra-Firedirectvent gasfireplaces aredesigned toop-
erate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
notedotherwise, appliesto allmodels andgas controlsys-

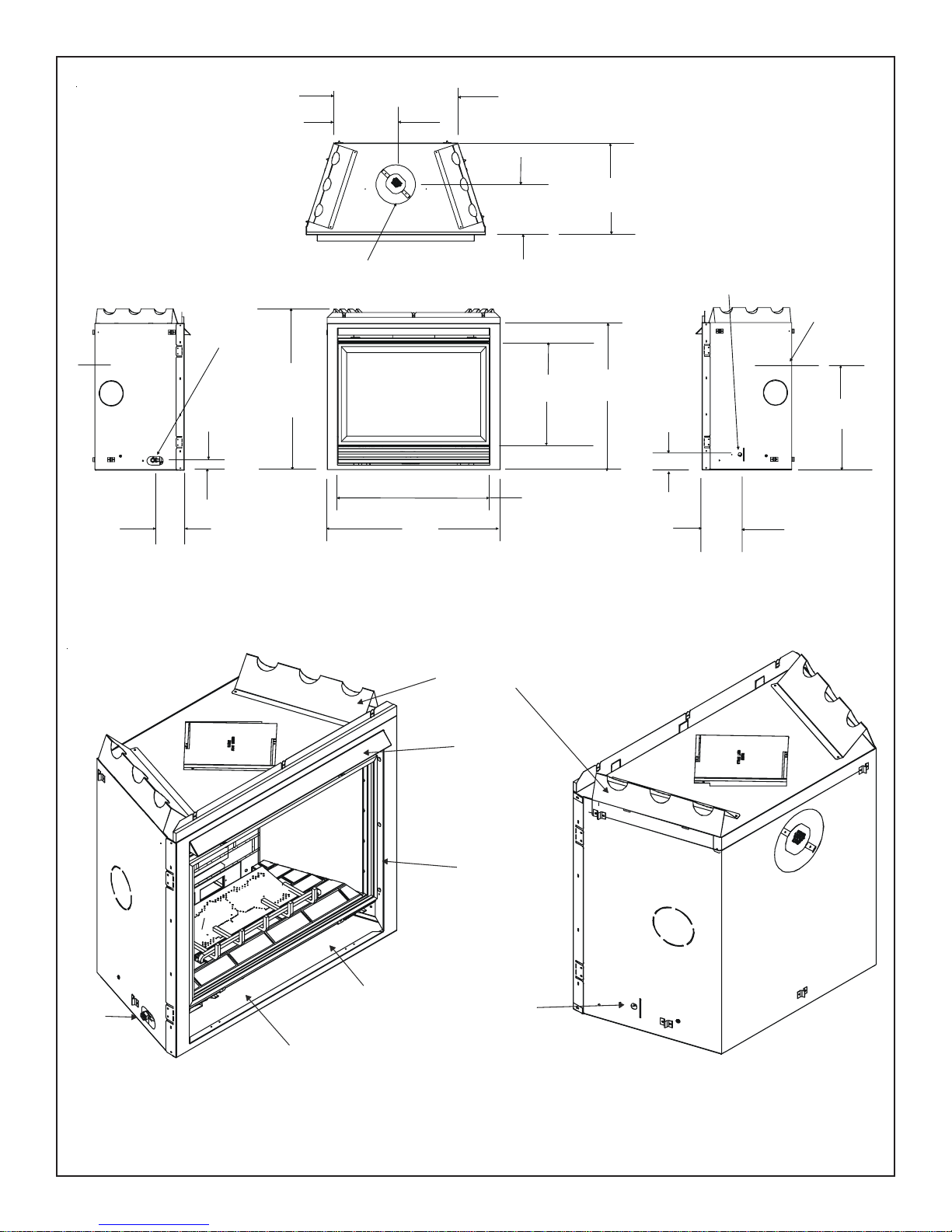

tems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
Thisgasfireplace andits componentsare testedand safe
when installed in accordance with this Installers Guide.
Reportto yourdealer anyparts damagedinshipment, par-
ticularlythecondition ofthe glass.Do not install any unit
with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
2Getting Started
The Hearth& HomeTechnologies Warranty will be voided
by, and Hearth & Home Technologies disclaims any
responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/or useofany componentpart notmanu-
facturedand approvedbyHearth& HomeTechnologies,
not withstanding any independent testing laboratory or
otherpartyapprovalofsuchcomponentpartoraccessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•Theventsystem configurationto beused.
•Gas supply piping.
•Electricalwiring.
•Framingandfinishingdetails.
•Whether optional accessories—devices such as a fan,
wallswitch,or remotecontrol—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplaceshouldbe installedon ametal orwood panelthat
extends the full width and depth of the fireplace.

9Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Figure 1. Diagram of the QV36DB
41 1/8
[1044mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
8 5/8
[219mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
8 5/8 [219mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]
TOP
STANDOFFS
HOOD
TRIM
DOOR
ELECTRICAL
ACCESS
GAS
CONTROLS
RATING
PLATE AND
LABELS
GAS
LINE
ACCESS -

10 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
3Installing the Fireplace
Step 1. Locating the Fireplace
For space and clearance requirements for locating a fire-
place within a room see Figure 2.
ABCD E
42” 22” 36” 51” 72”
For minimum clearances, see the direct vent termination
clearance diagrams on pages 24 and 25 in this manual.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top.................................. 2 1/2 ............63.7
Bottom ..............................1/2............... 13
Sides ................................. 1 ................ 25
E
1/2“ MIN. (13mm)
D
B
A
C
1” MIN. (25mm)
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimumclearance toaperpendicular wall
extendingpast theface ofthefireplace isone inch(25mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
NOTE:The distancefrom theunitto combustiblecon-
struction is to be measured from the unit outer wrap
surfaceto thecombustible construction,NOTfromthe
screw heads that secure the unit together.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/orits ventsystem. Vertical ventsthat run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTIONOFTHE CHASEMAYVARYWITH THE
TYPE OF BUILDING. THESE INSTRUCTIONSARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES. THEREFORE,YOURLOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTSFOR THESESTEPS.
Factory-builtfireplace chasesshouldbeconstructed in the
manner of all outside walls of the home to prevent cold air
draftingproblems. Thechase shouldnot breakthe outside
buildingenvelopeinany manner.
Thismeans thatthe walls,ceiling,base plateandcantilever
floorof thechaseshould beinsulated.Vaporand airinfiltra-
tionbarriers shouldbe installedinthe chaseasper regional
codesfor therestof thehome.Additionally, werecommend
thatthe insidesurfacesbe sheetrockedand tapedformaxi-
mum air tightness.
Tofurtherpreventdrafts,the firestops shouldbe caulkedto
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburning unitsif theyarerequired.
THECHASESHOULDBECONSTRUCTEDSOTHATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ...................................1/2 ..................... 13
Sides .................................1/2 ..................... 13
SurroundSides*.................. 0 ....................... 0
Top................................... 3 1/2 ................... 89
Ceiling**............................. 31 .................... 787
* See Figure 3
**The clearancetothe ceilingismeasuredfromthetop
of the unit, excluding the standoffs (see Figure 35).

11Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ............. 42”*
B. .........38 1/2”
C. ............... 22”
D. ........ 42-3/4”
E. .........27 7/8”
Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplaceframing canbebuilt beforeor afterthefireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelow showsframingreference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILSBEFOREFRAMING.
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
Shows center of
10” x 12” vent framing
holes for top and rear vent-
ing. The center of the hole is one
(1) inch (25.4mm) above the center
of the horizontal vent pipe.
D
E
A
B
C
WALL
STUD
3 1/2”
3 ”
Noncombustible zone is defined
by 3” above the elbow for the
entire width and depth (behind
the front header) of the firebox.

12 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
NOTE: PIPES OVERLAP 1-1/4 INCHES
AT EACH JOINT.

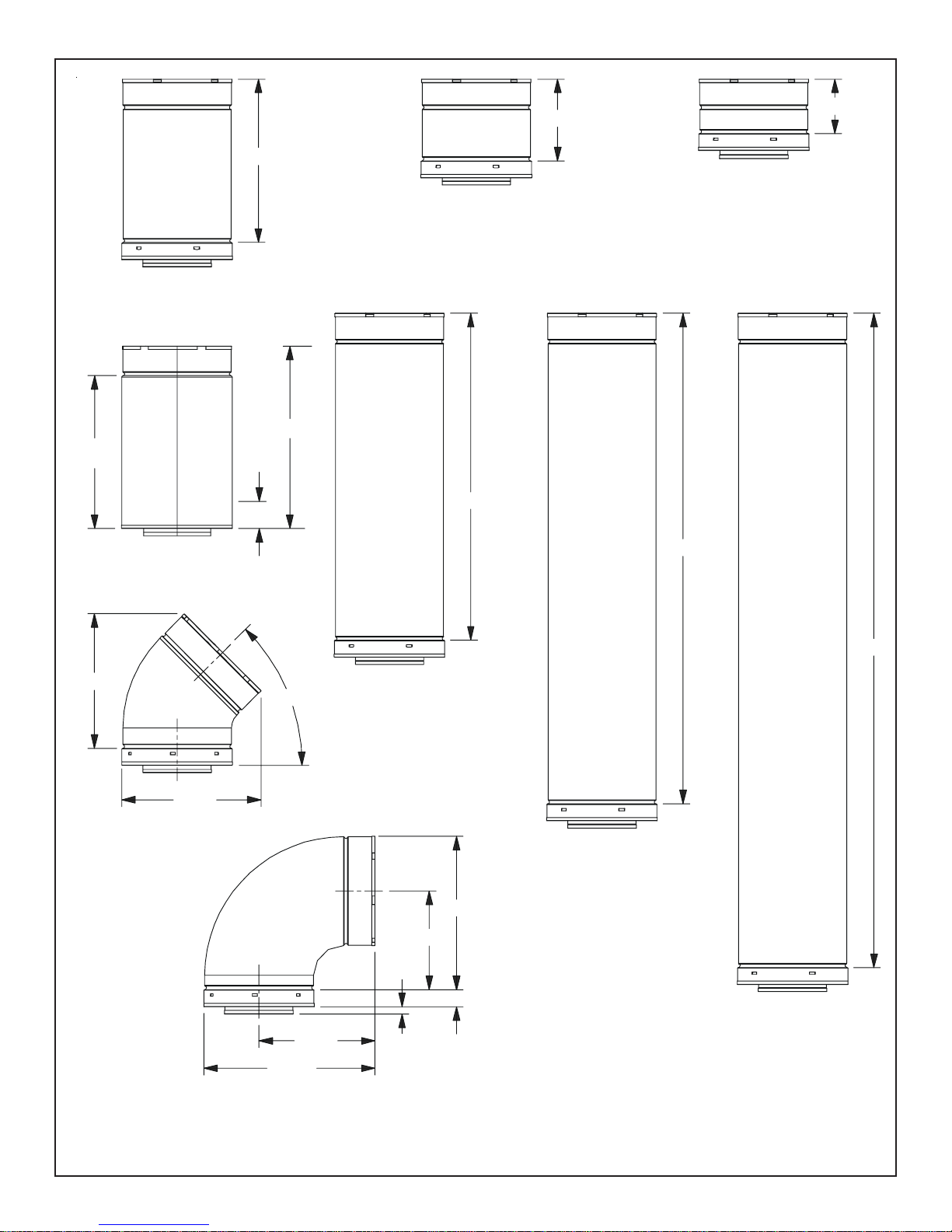

Figure 4.
DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

13Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thismodel isapproved touse DVP-seriesdirect ventpipe
components and terminations (see Figures 4 and 5).Ap-
provedvent systemcomponents arelabeled foridentifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosedwall. Thereis norequirementfor inspectionopen-
ingsat eachjoint withinthe wall.There isno requiredpitch
forhorizontal ventruns. NO OTHER VENTING SYSTEMS
OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each
vent termination kit and should be used in conjunction
with this Installers Guide. The flame and ember appear-
ance may vary based on the type of fuel burned and the
venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionshipsof verticalrise tohorizontal runin ventconfigura-
tions using 90° elbows MUST BE strictly adhered to. The
risetorunrelationshipsare shownin theventing drawings
andtables.Refertothediagrams onthenextseveralpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel hasvent startingcollarson boththetopand the
back of the unit. Depending upon the installation, decide
whichONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must re-
main on the starting collar NOT used.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
PIPE LENGTH
CEILING
FIRESTOP
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
(Required to have a minimum of 3
feet of vertical in the vent system)
DVP-TVHW
DVP-TRAP DVP-TB1
Terminations Kits

14 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05

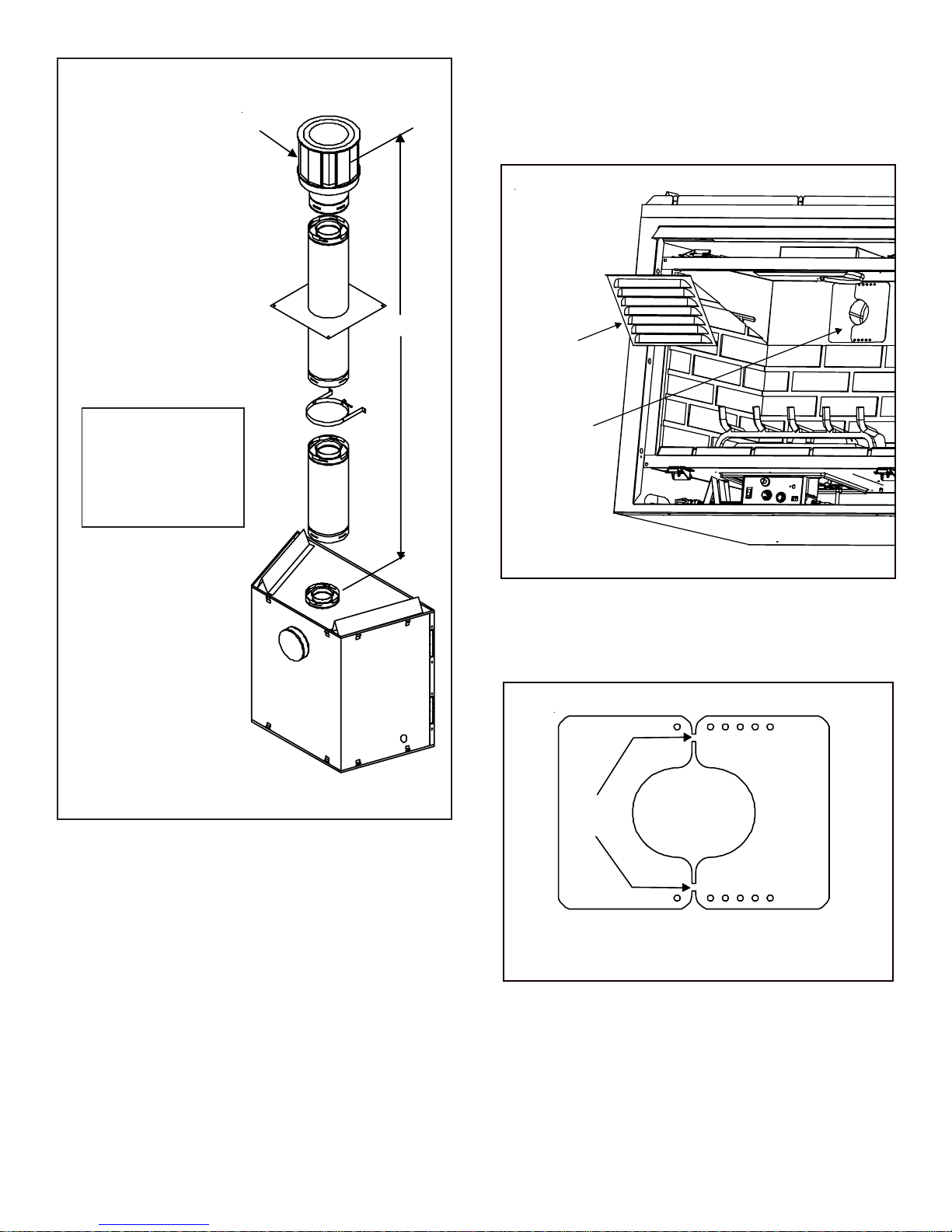

Figure 6. Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)
CAP
V
Flue Restrictor Instructions
1. Remove Exhaust Shield using a 1/4” nut driver by
removing the four screws securing it in place (see
Figure 7).
Figure 8. Flue Restrictor
BREAK
HERE
Figure 7
EXHAUST
SHIELD
FLUE
RESTRICTOR
2. Break the Flue Restrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 8).
NOTE:Onvertical ventingconfigurations over10 feetinstall
thefluerestrictor (385-128).See fluerestrictor installation
instructions.

15Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
HORIZONTALVENTING
KitNo. H Max. Run
DVP-TRAP 24" (610 mm)
Figure 10. Corner Installation
NOTE: This model is tested and approved to use
45° elbows in corner installations. However, 90°
elbows will result in better performance.
45-DEGREE
ELBOW
90-DEGREE
ELBOWS
H
3. Match the amount of vertical you have in the sys-
tem with the chart to find the appropriate position
to set the Flue Restrictor.
1 2 3 4 5
SETTINGS
1 2 3 4 5
Figure 9
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4'1111
8' 2 2 2 1
15' 2 3 2 2
20'3333
25'3333
30'3333
35'3333
40' 3 3 3 3
4.Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws (see Fig-
ure 9).
5. Reinstall the Exhaust Shield.

16 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Figure 12.
Venting with One 90° Elbow
NOTE: If a 90oelbow is first attached to the unit,
themaximum horizontalrun is3-feet (914mm).
VENTINGWITH ONE (1)90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
V+H=40’MAX.(12.4MM) H = 20' MAX.(6.2m)
VENTINGWITH ONE (1)90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H= 8' MAX. (2.4m)
NOTE:Onvertical ventingconfigurations where
thevertical componentisover 10feetinstall the
flue restrictor included in the manual bag
assemblyto improveflame appearance.
Figure 11. Venting with One 90° Elbow
NOTE:Forcornerinstallations:A6-inch(152mm)
section of straight pipe may need to be attached
to the fireplace before a 90o elbow, to allow the
ventpipe toclear thetop standoffs.
V
H
H
V
H
V

17Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 5´MAX. (1.52m)
2' MIN. (610mm) 10´MAX.(3.1m)
3' MIN. (914mm) 15´MAX. (4.65m)
4' MIN. (1.22m) 20´MAX.(6.2m)
V+H+H1= 40' MAX.(12.4m) H+H1= 20´ MAX. (6.2m)
V+V1+H= 40' MAX.(12.4m)
Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 =40´MAX.(12.4 m) H= 8´ MAX. (2.48m) H+H
1
=20´ MAX. (6.2m)
Figure 13. Venting with Two 90° Elbows
H
1
V
H
V
V
1
H
H
1
H
V

18 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Figure 15. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V H H + H1 + H2
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
H
V
H
1
V
1
H
H
1
H
2
V

19Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX.(3.1m)
3' MIN. (914mm) 15'MAX.(4.65m)
4' MIN. (1.22m) 20'MAX.(6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX.(1.52m)
2' MIN.(610mm) 10' MAX.(3.1m)
3' MIN.(914mm) 15' MAX.(4.65m)
4' MIN.(1.22m) 20' MAX.(6.2m)
H+H1= 20'MAX. (6.2m)
NOTE:V+V1+H+H1=40'MAX.(12.4m)
Figure 16. Venting with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1

20 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Figure 17
B. Installing Vent Components
After determining which set of starting collars will be used
(toporrear),followventinginstructionsaccordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (see Figure 17).
Followthe ventconfiguration tablesaccordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING:THE TOPHEATSHIELD(INSIDETHE
FIREBOX) MUST REMAIN ATTACHED IF THE
VENT SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 17.
Venting Out the Top Vent
Removethetwoscrewsinthetopventcollarsealcapand
remove the top vent collar seal cap and the two pieces of
insulationinsidethe toptwo startingcollars (SeeFigure 17).
Remove the heat shield from inside the TOP five inch flue
fromoutsideof thefirebox.
You havetotakethe glassoffagain forpositioningthe logs
whentheunit isfinallyinstalledin placeand finishedaround
it. Reinstall the glass door. Attach vent system to the top
starting collars.
WARNING: FAILURE TO REMOVE INSULA-
TION IN THE SET OF COLLARS YOU ARE US-
ING COULD CAUSE A FIRE.
WARNING: THE REAR VENT COLLAR SEAL
CAPMUSTREMAINATTACHED TO THEREAR
VENTCOLLARS IF THE VENTSYSTEMISATTACHED
TOTHE TOPSTARTINGCOLLARS. SEE FIGURE 17.
WARNING: YOU MUST LEAVE THE INSULA-
TIONINPLACEINTHE SET OF COLLARS YOU
ARE NOT USING.
!
!
!
!
Cut the seal cap
strapandremove white
gasketmaterial.
CUT
HERE
Venting Out Rear Venting Out Top
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars of
thefireplace:
• Make sure that the fiberglass gasket supplied in the
manual bag seals between the first 8 inch (203mm)
vent component and the outer fireplace wrap. Using 2
self-tapping screws from the manual bag secure that
gasket to the outer wrap (see Figure 18).
Figure 18. Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP
DVP PIPE:
2. Assembling Vent Sections
Refer to Cinch Pipe and Termination Cap installation in-
structions.
1. Attaching the Venting to the Fireplace
Refer to Cinch Pipe and Termination Cap installation in-
structions.
!
WARNING: ENSURE THAT THE FIBERGLASS
GASKETSUPPLIEDWITHTHEFIREPLACESEALS
BETWEEN THE FIRST VENT COMPONENT AND
THE OUTER FIREPLACE WRAP.
If the installation is for a termination cap attached directly
tothe fireplace,skip tothe sections,Install Firestops and
Vent Termination.
3. Continue Adding Vent Components
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRES THE USE OF A HEAT
SHIELD ABOVE THE FIRST 900ELBOW IN THE
VENTING SYSTEM.
!

21Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05

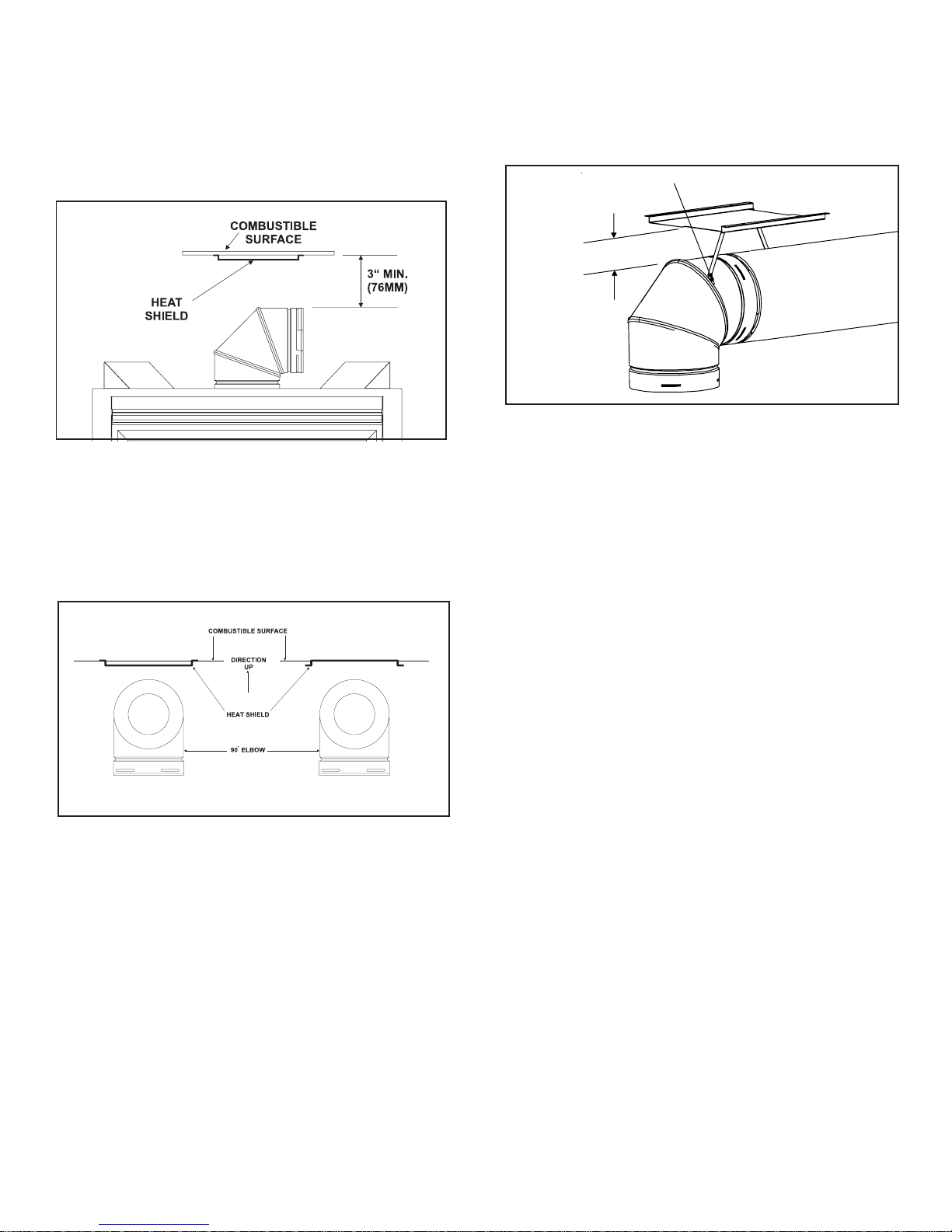

Figure 19
• Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
• Ensurethat eachsucceedingvent componentissecure-
ly fitted and locked into the preceding component in the
vent system.
• 90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s verticalaxis.Ifanel-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
Figure 20
CORRECT INCORRECT
2. Fastenthe shieldin placeusing thepilotholes provided
in the part. The shield should be oriented such that the
13 1/8 inch dimension (longest dimension) is running in
thesamedirectiontheelbowispointing.Theshieldshould
becentered directlyabove theelbow,andpositionedso
that it creates a 1/2 inch airspace between the shield
and the combustible surface. See Figure 20.
• If the combustible materials are not in place at the time
of install the elbow heat shield may be screwed to the
exhaust pipe (see Figure 21). Cut the tabs as shown
andbend down.Securethe heatshield tothe pipemain-
taining 3” to 4” between the pipe and shield.
To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surfaceofthe elbowto anycombustible surfaceabove.
If the distance is more than 4 inches, the heat shield is
NOT required. If it is 4 inches or less, the heat shield IS
REQUIRED.Installperthefollowingsteps.SeeFigure19.
Figure 21.
3”
(76mm)
SCREW
Refer to Cinch Pipe and Termination Cap installation in-
structions.
4. Install Support Brackets
RefertoCinchPipe andTerminationCap installationinstruc-
tions.

22 Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
5. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sidesof acombustible wallthrough whichthevent passes.
NOTE: Model DVP-TRAP does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
eitherinterioror exteriorwalls:
• Cuta 10-inchby12-inch (254mmx 305mm)holethrough
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
• Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
• The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
• Continuethe ventrun throughthe firestops.

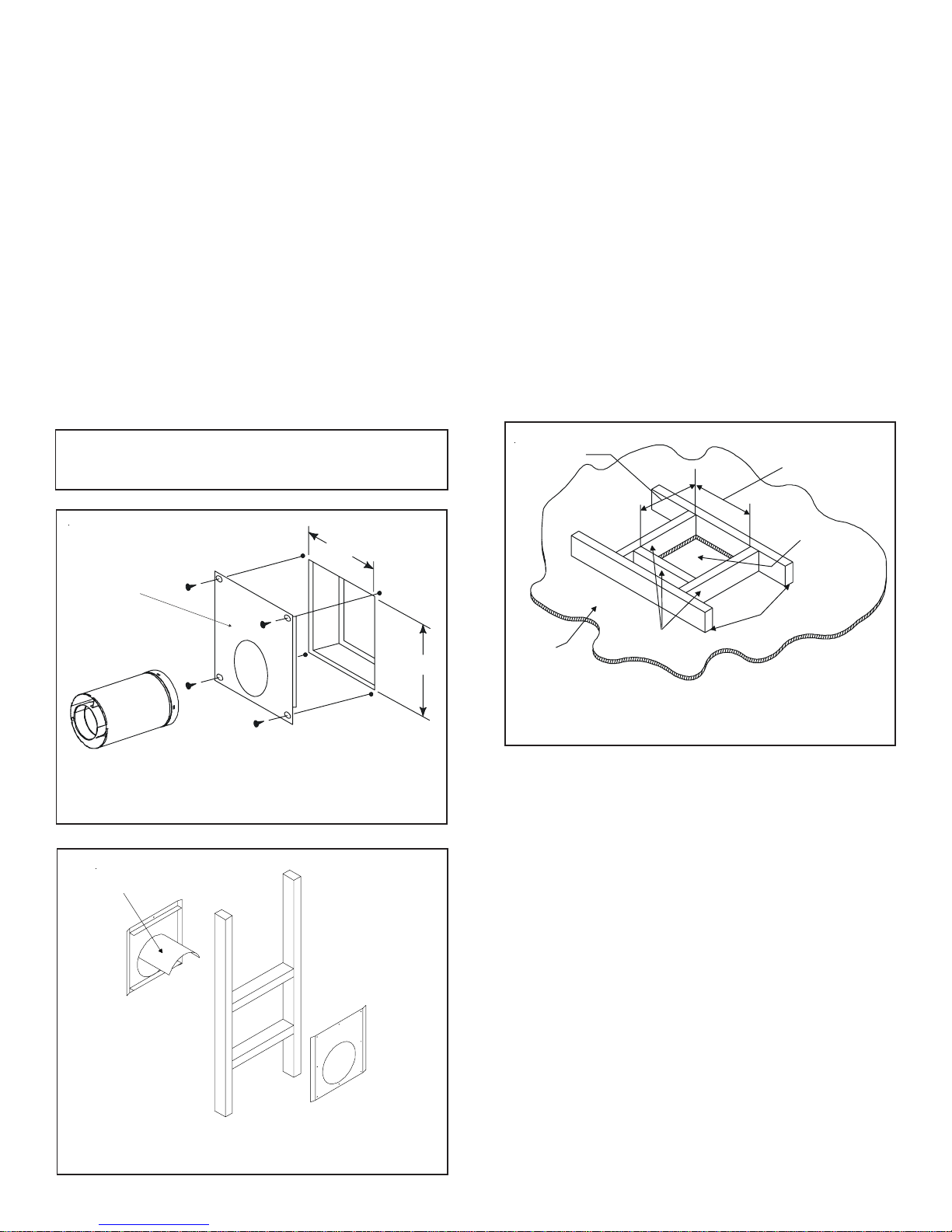

Figure 22. 10" x 12" Hole and Vent Pipe
Figure 23. Heat Shield, Interior & Exterior Firestops
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
10"
12"
INTERIOR
WALL SHIELD
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
Toinstallfirestopsforvertical runsthatpassthroughceilings:
• Positiona plumbbob directlyover thecenter ofthe verti-
calvent component.
• Mark the ceiling to establish the centerpoint of the vent.
• Drill a hole or drive a nail through this centerpoint.
• Check the floor above for any obstructions, such as wir-
ingor plumbingruns.
• Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
• Cutan 10-inchx10-inch (254mmx 254mm)holethrough
theceiling,using thecenterpoint previouslymarked.
• Framethe holewith framinglumberthe samesize asthe
ceiling joists.
If the area above the ceiling is NOT an attic, position and
securetheceilingfirestopon theceilingsideof thepreviously
cutandframedhole.
Figure 24. 10" x 10" Hole & New Framing Members
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10" (254mm)

23Quadra-Fire • QV36DB • 2017-900 Rev. C • 5/05
Figure 25. Ceiling Firestop (Ceiling Side)
Ifthe areaabove theceilingIS an attic,positionand secure
thefirestopontopof thepreviously framedhole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
Figure 26. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
Figure 27. Trapezoid Termination Cap
7 1/4”
(184mm)
!
C. Vent Termination
Refer to Cinch Pipe and Termination Cap installation in-
structions.
Horizontal Termination
• Theterminationkit shouldpass throughthe wallfirestops
fromtheexterior ofthe building.
• Adjust the termination cap to its final exterior position
on the building and interlock the flue sections.
!
WARNING: VENTING TERMINALS SHALL NOT
BE RECESSED INTOA WALL OR SIDING. VENT
TERMINATION CLEARANCES MUST BE FOL-
LOWEDTOAVOIDFIRE DANGER.SEE VENT TER-
MINATIONMINIMUMCLEARANCESDIAGRAM ON
FOLLOWING PAGE.
WARNING: THE TERMINATION CAP MUST BE
POSITIONED SO THAT THE ARROW IS POINTING
UP.
