Quadra-Fire COLUMBIA BAY User manual

Columbia Bay Insert

Quadra-Fire is a registered trademark of Hearth & Home Technologies. Product specications and pric-
ing subject to change without notice. The Quadra-Fire Columbia Bay Insert direct vent gas appliance is
tested and listed by OMNI-Test Labs, Inc., of Beaverton, Oregon and is approved for Canada and USA
to ANSI Z21.88-2002/CSA 2.33-2002, Vented Gas Fireplace Heaters, and applicable sections of UL307b
“Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles”, and CAN/CGA
2.17-M91 “Gas Fired Appliances for Use at High Altitudes.” 899-4840 05/03

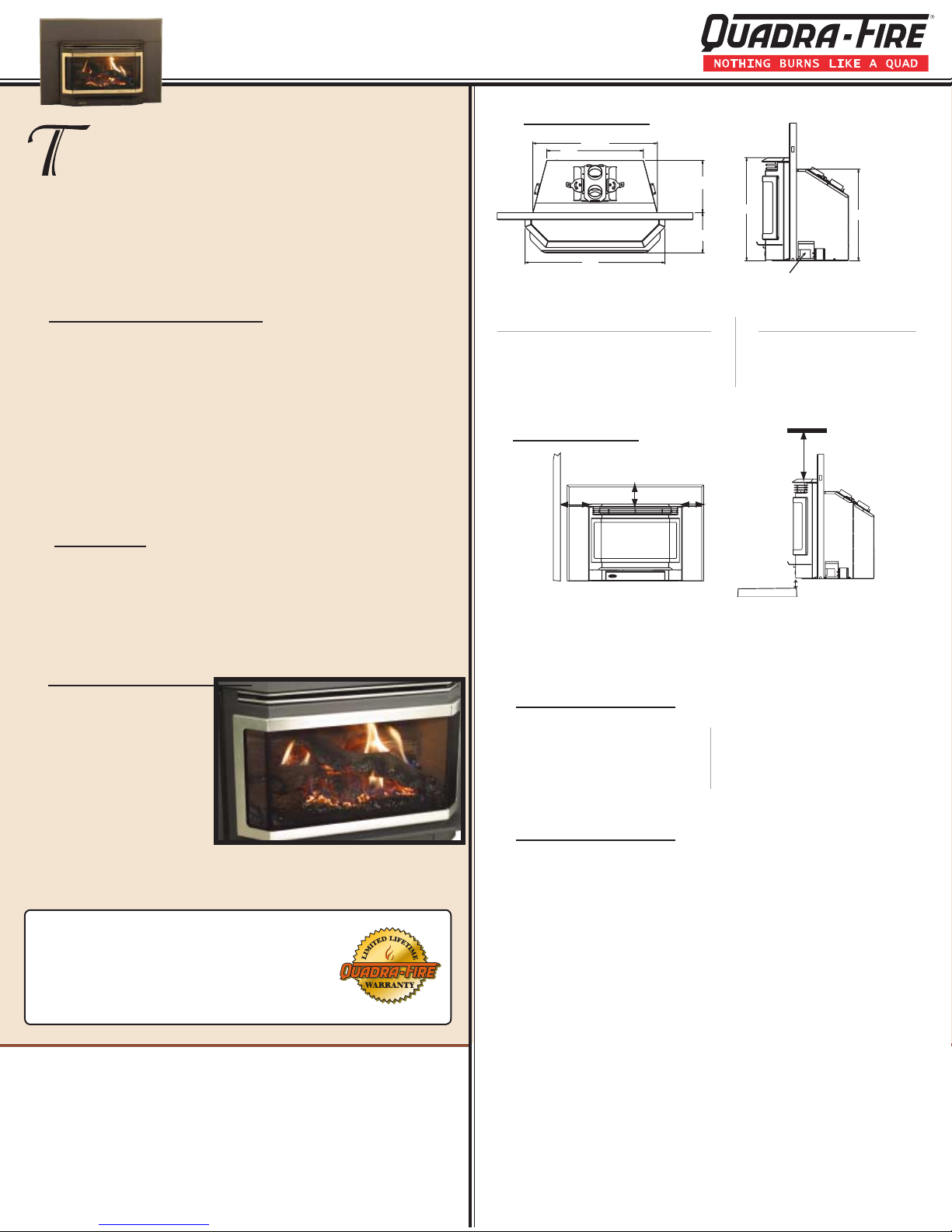

MINIMUM FIREBOX OPENING
Height - Front: 19” Rear: 13 1/2”
Width - Front: 26” Rear: 20”
Depth - Top: 13” Bottom: 13”
imensions
D
learances
C
Width ..................................29”
Height ..........................21 1/2”
Depth .........................19 3/16”
Shipping Weight.........146 lbs.
Flue Size................3” co-linear
Standing Pilot Ignition ..... Yes
Mobile Home Approved .. Yes
Bedroom Approved ..........Yes
echnical Data
T
erformance
P
Heating Capacity.................Up to 1,500 sq. ft.*
BTU Input NG .....................22,000 - 30,000
BTU Input LP.......................23,000 - 30,000
Efciency NG.......................83%
Efciency LP ........................84%
Convection Blower..............160 cfm
IMPORTANT - READ BEFORE YOU INSTALL!
Refer to the Owner/Installation Manual for complete clearance requirements and specica-
tions. The images and descriptions in this brochure are provided to assist you in product
selection only.
*Heating capacity rating is to be used as a guideline only and may differ slightly due to
climate, building construction and condition, amount and quality of insulation, location of
the heater, and air movement in the room.
Visit our Website at www.quadrare.com
tandard Features
S
ptions
O
Available From:
Columbia BayInsert
• Door Crown in Gold or Satin Nickel
• Rod Grille in Gold or Satin Nickel
• Three Panel Sizes with Gold or Satin Nickel Trim
• Thermostatic Remote Controls
• Wall Thermostat
• Expansive bay window
• TrueGlow burner
• PyroGlo “real wood” logs
• Black door/rod grille
• Ceramic brick refractory interior
• Durable steel construction
• Automatic 160 cfm variable speed blower
• Manufactured home approved
• Bedroom approved
• Limited lifetime warranty
rueGlow Burner
T
Quadra-Fire offers a limited Lifetime Warranty on our
gas heating appliances to the original purchaser for
the lifetime of the appliance, to be free from defects
in material and workmanship. See your authorized
Quadra-Fire dealer for details.
Rocker switch & wiring, Electrical Connection,
and Gas Connection accessible here.
19
21-1/2"
10-7/8"
8-5/16"
29"
20" 25-7/8"
Up to 8" Deep Mantel:
13" From Top of Stove
A.
B
CD
SIDE WALL
16"
HEARTH
1.5"
A Top Plate to 8” Deep Mantel ...............13”
B Top Plate to 3/4” Trim Above.............10”
C Top Plate to Side Wall...........................10”
D Top Plate to 3/4” Trim at Sides.............7”
PANEL SIZES
Standard ... 28 1/2” x 40”
Medium ............31” x 44”
Large .................33” x 46”
he Columbia Bay Insert from Quadra-Fire turns an ordinary
replace into a thing of beauty, and a night at home into
family memories around the re. Enjoy the romantic glow
from a re so real you’ll be looking for the woodpile. Door crowns
and grilles in gold or satin nickel add the perfect nishing touch to
the view through the large bay window. You’ll also enjoy the high ef-
ciency and outstanding performance of the Columbia Bay Insert.
The TrueGlow Burner, an
exclusive from Quadra-Fire,
sets a new standard for
realism. The ceramic burner
is molded from real wood
pieces and coals. Flames rise
from gas ports distributed
throughout the glowing coal
bed and lower logs, produc-
ing an incredibly active and
varied re. No need to hide the burner anymore -- the TrueGlow
burner proudly takes center stage, with an appearance that is phe-
nomenal whether it’s burning or not.
