Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

Installation Manual

Installation and Appliance Setup

INSTALLER: Leave this manual with party responsible for use and operation.

OWNER: Retain this manual for future reference.

NOTICE: DO NOT discard this manual!

In the Commonwealth of Massachusetts installation must be

performed by a licensed plumber or gas tter.

See Table of Contents for location of additional Commonwealth

of Massachusetts requirements.

Models:

QFI30FB-IFT

QFI35FB-IFT

This appliance may be installed as an OEM

installation in manufactured home (USA

only) or mobile home and must be installed

in accordance with the manufacturer’s

instructions and the Manufactured Home

Construction and Safety Standard, Title 24

CFR, Part 3280 in the United States, or the

Standard for Installation in Mobile Homes,

CAN/CSA Z240 MH Series, in Canada.

This appliance is only for use with the type(s)

of gas indicated on the rating plate. This

appliance is not convertible for use with other

gases, unless a certied kit is used.

• DO NOT store or use gasoline or other am-

mable vapors and liquids in the vicinity of this

or any other appliance.

• What to do if you smell gas

- DO NOT try to light any appliance.

- DO NOT touch any electrical switch. DO

NOT use any phone in your building.

- Leave the building immediately.

- Immediately call your gas supplier from

a neighbor’s phone. Follow the gas sup-

plier’s instructions.

- If you cannot reach your gas supplier, call

the re department.

• Installation and service must be performed

by a qualied installer, service agency, or the

gas supplier.

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

DANGER

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

A barrier designed to reduce the risk of

burns from the hot viewing glass is provided

with this appliance and shall be installed for

the protection of children and other at-risk

individuals.

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

Safety Alert Key:

• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.

• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.

• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

• NOTICE: Used to address practices not related to personal injury.

Table of Contents

Installation Standard Work Checklist ....................3

1 Product Specic and Important Safety Information

A. Appliance Certication ............................4

B. Glass Specications ..............................4

C. BTU Specications ...............................4

D. High Altitude Installations ..........................4

E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 4

F. Combustible Materials Specication .................4

G. Electrical Codes ................................. 4

H. California ......................................4

2 Getting Started

A. Design and Installation Considerations ............... 5

B. Tools and Supplies Needed ........................5

C. Inspect Appliance and Components ..................5

3 Framing and Clearances

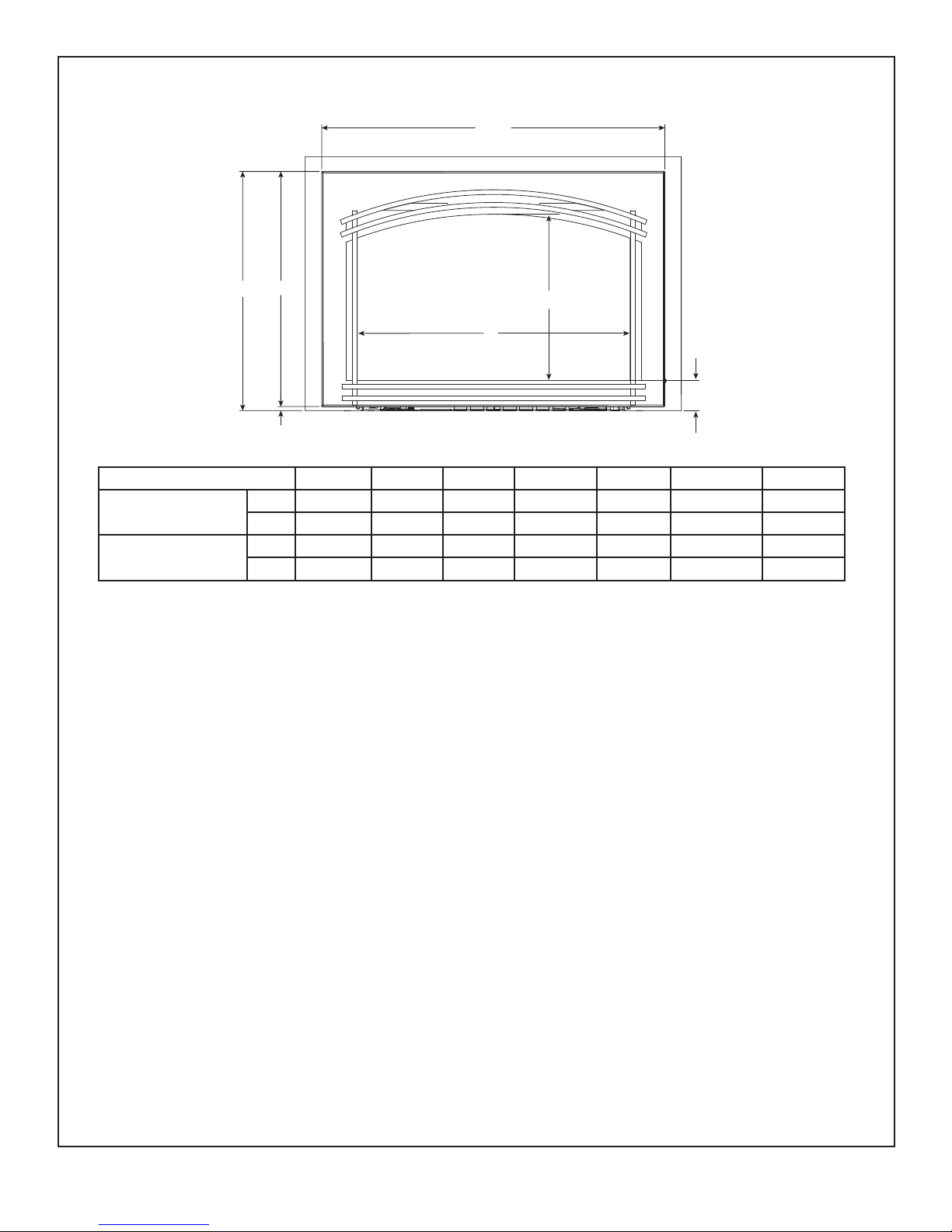

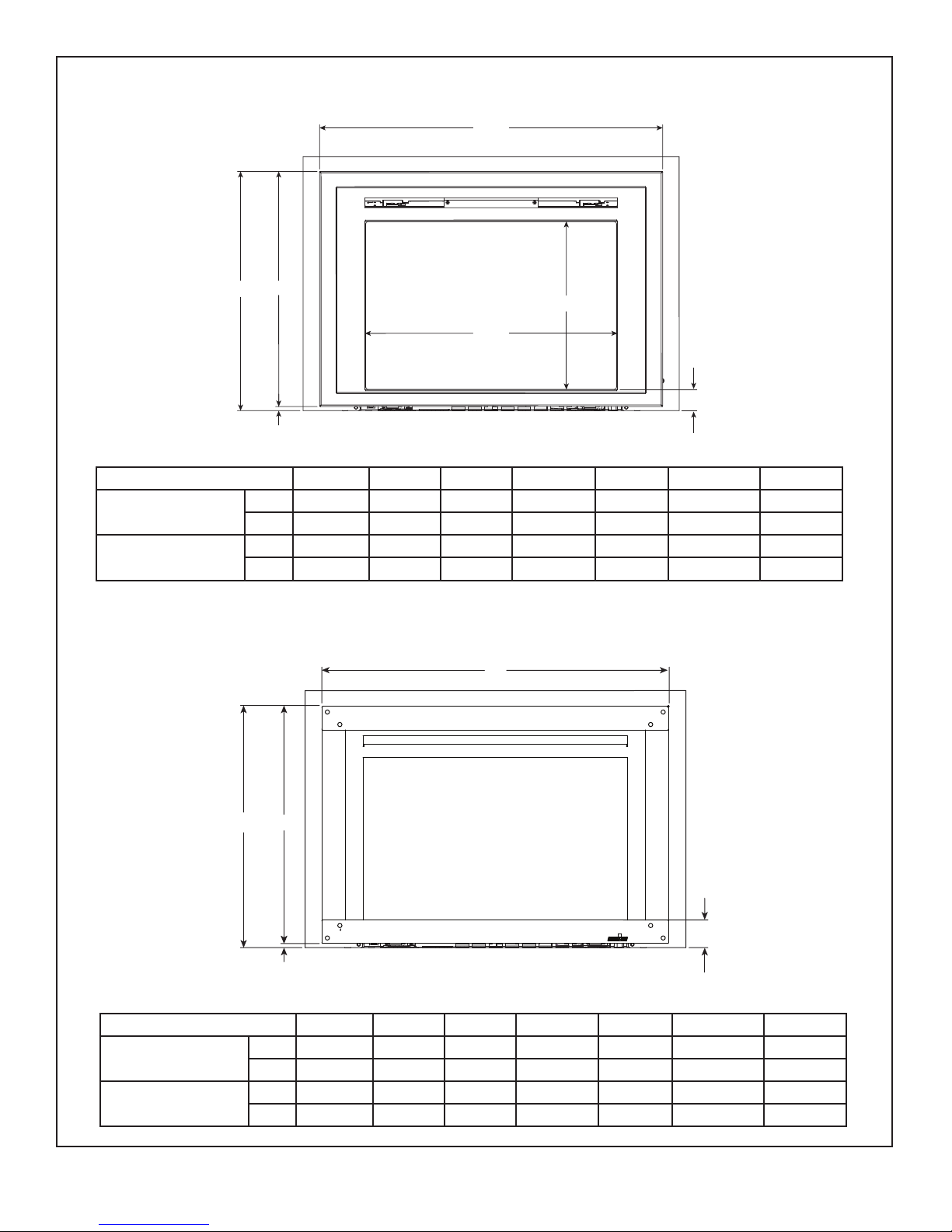

A. Appliance/Decorative Front Dimension Diagram ........ 6

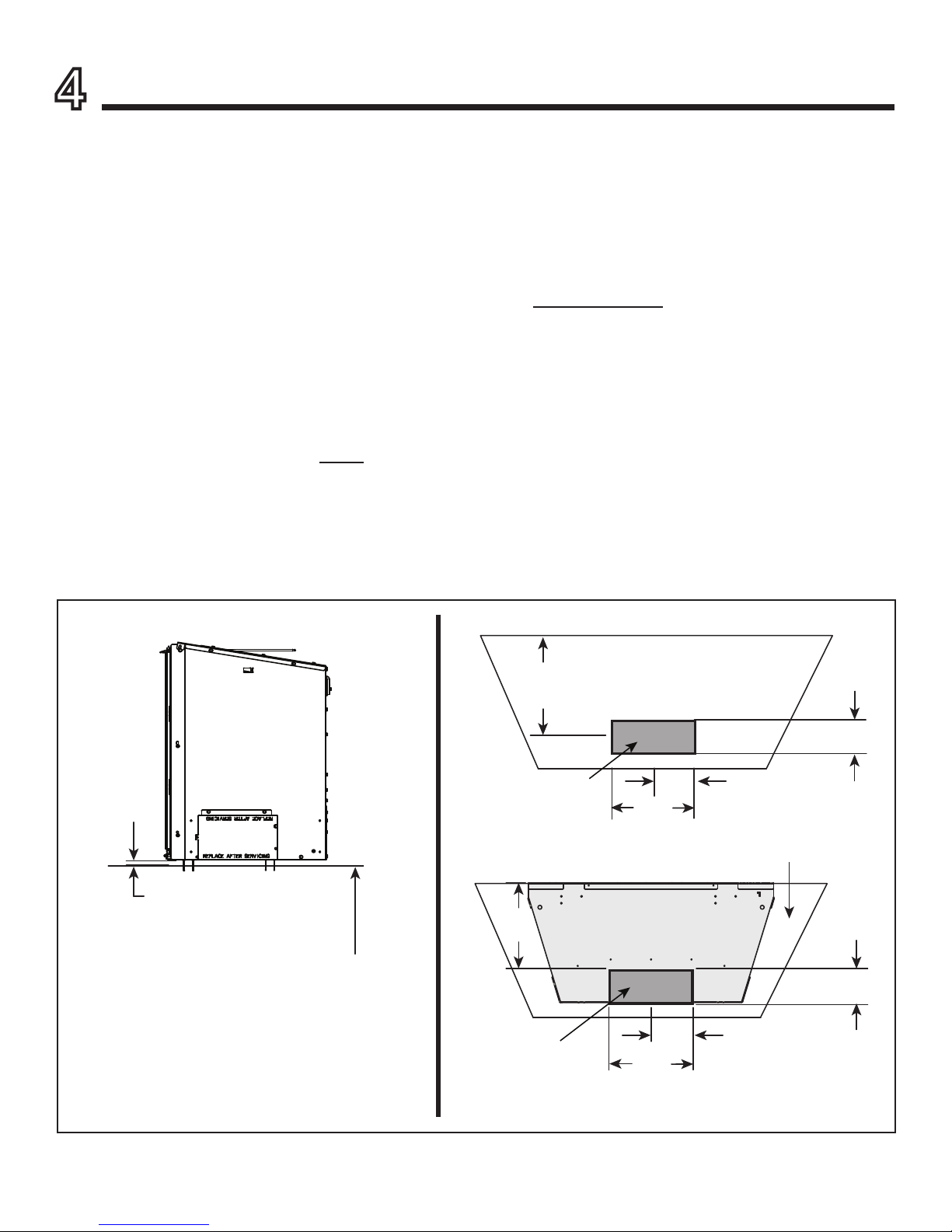

4 Fireplace Size Requirements

A. Minimum Fireplace Opening .......................9

5 Termination Location and Vent Information

A. Vent Termination Minimum Clearances .............. 11

6 Installation Preparation

A. Cleaning ......................................12

B. Flue Damper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

C. Gas Line ......................................12

D. Fireplace Conversion Notice ...................... 12

E. Electrical Outlet Box .............................12

7 Installing Vent Pipe and Appliance

A. Vent Limits ....................................13

B. Venting Components ............................13

C. Connecting Vent Pipe ............................14

D. Placing, Securing and Leveling the Appliance 15

E. Installing Adaptor and Termination Cap ..............16

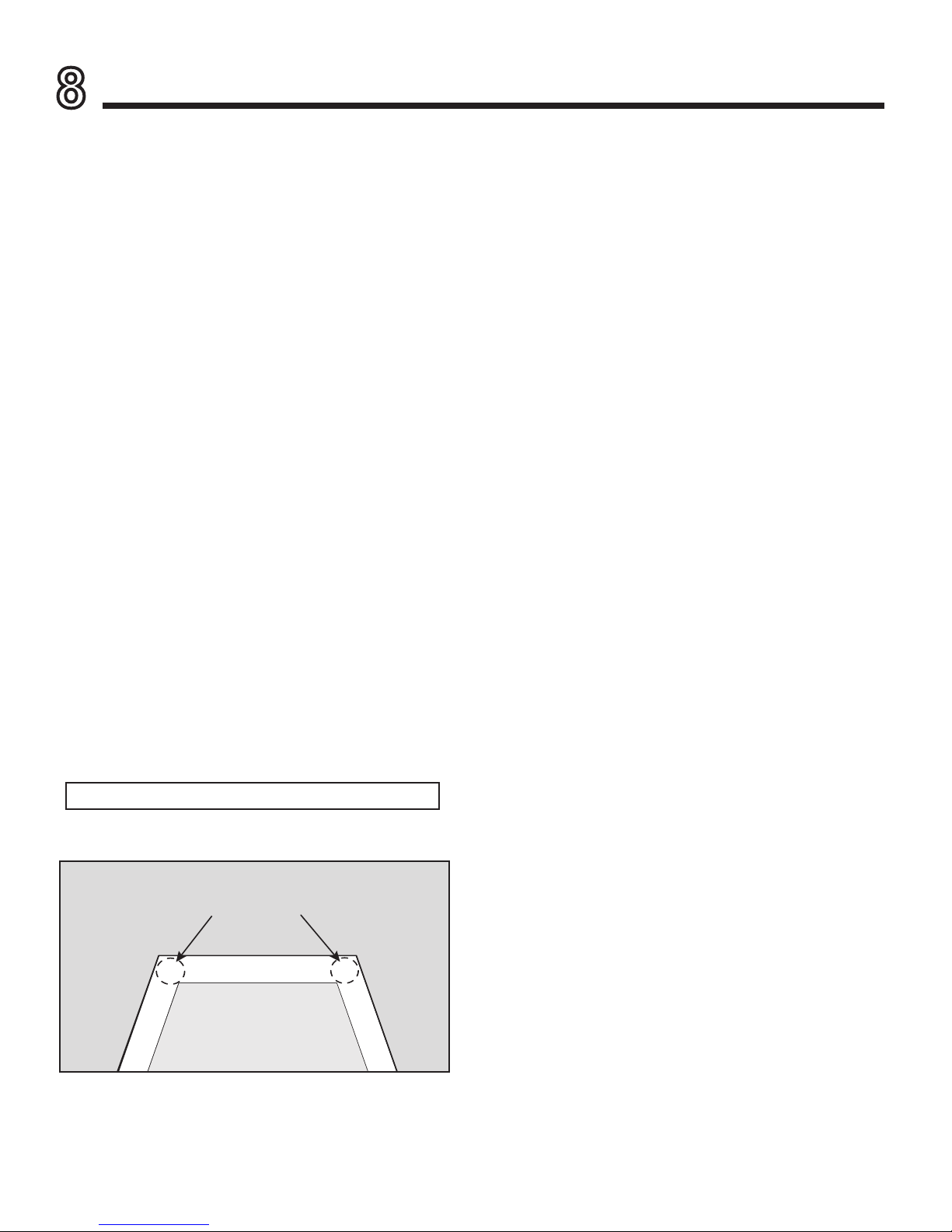

8 Electrical Information

A. General Information .............................18

B. Wiring Requirements - IntelliFire™ Touch Ignition System

Wiring ........................................19

9 Gas Information

A. Fuel Conversion ................................21

B. Gas Pressure ..................................21

C. Gas Connection ................................21

D. High Altitude Installations .........................21

E. Air Shutter Setting ..............................22

10 Finishing

A. Mantel and Wall Projections .......................23

11 Appliance Setup

A. Fixed Glass Assembly ...........................24

B. Remove the Shipping Materials ....................25

C. Inspect Firebox .................................25

D. Clean the Appliance .............................25

E. Accessories ...................................25

F. Place the Lava Rock ............................ 26

G. Ember Placement ............................... 26

H. Install the Log Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 27

I. IntelliFire™ Touch Control System Setup .............33

J. Install Decorative Front/Surround. . . . . . . . . . . . . . . . . . . 33

K. Appliance Break-In ..............................33

L. Heat Management ..............................34

12 Reference Materials

A. Vent Components ...............................35

B. Accessories ...................................36

 = Contains updated information.



Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

Installation Standard Work Checklist

Customer:

Lot/Address:

Model (circle one): QFI30FB-IFT, QFI35FB-IFT

Date Installed:

Location of Fireplace:

Installer:

Dealer/Distributor Phone #

Serial #:

Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective

action needed _____________________________________________________________________________________

_________________________________________________________________________________________________

Comments Communicated to party responsible ____________________ by ______________________on ___________

(Builder / Gen. Contractor/) (Installer) (Date)

Appliance Install YES IF NO, WHY?

Verify replace is clean and remove/block open damper/modify

damper for vent pipe clearance (Pg. 12) . __________________________

Appliance is leveled and secured (Pg. 15). __________________________

Venting/Chimney Section 7 (Pg. 13-17)

Exhaust stainless steel ex is properly formed and routed through

existing replace damper. ___________________________

Vent intake and exhaust liners are properly installed to the correct collars,

sealed and secured to top plate and to the termination cap. ___________________________

Termination cap installed, secured and sealed to top plate. ___________________________

Electrical Section 8 (Pg. 18-20)

Unswitched power (110-120 VAC) provided to the appliance. ___________________________

Switch wires properly installed. ___________________________

Gas Section 9 (Pg. 21-22)

Proper appliance for fuel type. ___________________________

Was a conversion performed? ___________________________

Leak check performed and inlet pressure veried. ____________________________

Veried proper air shutter setting for installation type. ___________________________

Finishing Section 10 (Pg. 23)

Combustible materials not installed in non-combustible areas. ___________________________

Veried all clearances meet installation manual requirements. ___________________________

Mantels and wall projections comply with installation manual requirements. ___________________________

Appliance Setup Section 11 (Pg. 24-33)

All packaging and protective materials removed (inside & outside of appliance). ___________________________

Refractories, logs, media and embers installed correctly. ___________________________

Glass assembly installed and secured. ___________________________

Accessories installed properly. ___________________________

Surround or decorative front properly installed. ___________________________

Manual bag and all of its contents are removed from inside/under

the appliance and given to party responsible for use and operation. ___________________________

Fireplace warning plate is attached to the existing woodburning replace. ___________________________

Remote control is programmed, functions veried using remote control

instructions. ___________________________

Started appliance and veried no gas leaks exist. ___________________________

2555-982 5/18

= Contains updated information.

Hearth & Home Technologies recommends the following:

• Photographing the installation and copying this checklist for your le.

• That this checklist remain visible at all times on the appliance until the installation is complete.

This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this

installation manual.

WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions can

lead to a re or explosion.

ATTENTION INSTALLER:

Follow this Standard Work Checklist

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

A. Appliance Certication

E. Non-Combustible Materials Specication

Material which will not ignite and burn. Such materials are

those consisting entirely of steel, iron, brick, tile, concrete,

slate, glass or plasters, or any combination thereof.

Materials that are reported as passing ASTM E 136,

Standard Test Method for Behavior of Materials in

a Vertical Tube Furnace at 750 ºC shall be considered

non-combustible materials.

F. Combustible Materials Specication

Materials made of or surfaced with wood, compressed pa-

per, plant bers, plastics, or other material that can ignite

and burn, whether ame proofed or not, or plastered or

unplastered shall be considered combustible materials.

G. Electrical Codes

NOTICE: This appliance must be electrically wired

and grounded in accordance with local codes or, in the

absence of local codes, with National Electric Code

ANSI/NFPA 70-latest edition or the Canadian Electric

Code CSA C22.1.

• A 110-120 VAC circuit for this product must be pro-

tected with ground-fault circuit-interrupter protection,

in compliance with the applicable electrical codes,

when it is installed in locations such as in bathrooms

or near sinks.

1 Product Specic and Important Safety Information

MODELS: QFI30FB-IFT, QFI35FB-IFT

LABORATORY: Underwriters Laboratories, Inc. (UL)

TYPE: Direct Vent Heater

STANDARD: ANSI Z21.88-2017 • CSA 2.33-2017

This product is listed to ANSI standards for “Vented Gas

Fireplace Heaters” and applicable sections of “Gas Burn-

ing Heating Appliances for Manufactured Homes and

Recreational Vehicles”, and “Gas Fired Appliances for

Use at High Altitudes”.

Quadra-Fire gas inserts are designed for installations into

solid fuel masonry or factory built replaces that have been

installed in accordance with the National, Provincial, State

and local building codes. Fireplaces are to be constructed

of non-combustible materials and, in the absence of local

or regional codes, meet criteria of NFPA 211. No additional

outside air source is required.

NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.

This appliance is tested and approved as either supplemen-

tal room heat or as a decorative appliance. It should not be

factored as primary heat in residential heating calculations.

NOTICE: This installation must conform with local codes.

In the absence of local codes you must comply with the

National Fuel Gas Code, ANSI Z223.1-latest edition in

the U.S.A. and the CAN/CGA B149 Installation Codes in

Canada.

C. BTU Specications

D. High Altitude Installations

NOTICE: If the heating value of the gas has been reduced,

these rules do not apply. Check with your local gas utility

or authorities having jurisdiction.

When installing above 2000 feet elevation:

• In the USA: Reduce input rate 4% for each 1000 feet

above 2000 feet.

• In CANADA: Input ratings are certied without a

reduction of input rate for elevations up to 4500 feet

(1370 m) above sea level. Please consult provincial

and/or local authorities having jurisdiction for

installations at elevations above 4500 feet (1370 m).

Check with your local gas utility to determine proper

orice size.

B. Glass Specications

This appliance is equipped with 5 mm ceramic glass with

an anit-reective coating. Replace glass only with 5 mm

ceramic glass. Please contact your dealer for replace-

ment glass.

Models

(U.S. or Canada)

Maximum

Input

BTU/h

Minimum

Input

BTU/h

Orice

Size

(DMS)

QFI30FB-IFT

(NG) (0-2000 FT) 36,000 18,500 33

QFI30FB-IFT

(Propane) (0-2000 FT) 36,000 19,000 50

QFI35FB-IFT

(NG) (0-2000 FT) 40,000 20,000 31

QFI35FB-IFT

(Propane) (0-2000 FT)) 38,000 19,000 49

WARNING: This product and the fuels used to

operate this product (liquid propane or natural

gas), and the products of combustion of such fuels, can

expose you to chemicals including benzene, which is

known to the State of California to cause cancer and

reproductive harm. For more information go to: www.

P65Warnings.ca.gov.

H. California

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

2 Getting Started

C. Inspect Appliance and Components

• Carefully remove the appliance and components from

the packaging.

• The vent system components and decorative doors and

fronts may be shipped in separate packages.

• If packaged separately, the log set and appliance grate

must be installed.

• Report to your dealer any parts damaged in shipment,

particularly the condition of the glass.

• This product is factory-equipped with an IntelliFire™

Touch remote control, which was paired to the appliance

at the factory. This specic remote control needs to

remain with the contents of the manual bag. Do not

install batteries in the remote control until performing the

nal appliance setup and checklist.

•Read all of the instructions before starting the instal-

lation. Follow these instructions carefully during the

installation to ensure maximum safety and benet.

WARNING! Risk of Fire or Explosion! Damaged parts

could impair safe operation. DO NOT install damaged, in-

complete or substitute components. Keep appliance dry.

Hearth & Home Technologies disclaims any responsibility

for, and the warranty will be voided by, the following actions:

• Installation and use of any damaged appliance or vent

system component.

• Modication of the appliance or vent system.

• Installation other than as instructed by Hearth & Home

Technologies.

• Improper positioning of the gas logs or the glass door.

• Installation and/or use of any component part not approved

by Hearth & Home Technologies.

Any such action could cause a re hazard.

WARNING! Risk of Fire, Explosion or Electric Shock!

DO NOT use this appliance if any part has been under

water. Call a qualied service technician to inspect the

appliance and to replace any part of the control system

and/or gas control which has been under water.

Improper installation, adjustment, alteration, service or

maintenance can cause injury or property damage. For

assistance or additional information, consult a qualied

service technician, service agency or your dealer.

A. Design and Installation Considerations

Quadra-Fire gas inserts are designed for installations into

solid fuel masonry or UL127 listed factory built replaces.

No additional outside air source is required.

Installation MUST comply with local, regional, state and na-

tional codes and regulations. Consult insurance carrier, local

building inspector, re ofcials or authorities having jurisdic-

tion over restrictions, installation inspection and permits.

Prior to installing the gas insert:

• Ensure chimney is constructed of non-combustible

materials.

• Ensure chimney is clean and in good working order.

• Ensure that all chimney cleanouts t properly to prevent

air leakage into chimney.

• Ensure combustible mantel and surround clearances

comply with insert requirements.

• Ensure all joints are properly engaged and the chimney

is properly secured.

• Determine minimum replace size. See Section 4.A.

• Determine gas supply piping requirements.

• Determine electrical wiring requirements.

• Determine nishing details.

• Determine whether optional accessories—devices such

as a wall switch or remote control—are desired.

Installation and service of this appliance should be performed by

qualied personnel. Hearth & Home Technologies recommends

HHT Factory Trained or NFI certied professionals.

B. Tools and Supplies Needed

Before beginning the installation be sure that the following

tools and building supplies are available.

Tape measure Pliers

Hammer Phillips screwdriver

Voltmeter Electric drill and bits (1/4 in.)

Gloves Safety glasses

Level Reciprocating saw

Manometer Flat blade screwdriver

Noncorrosive leak check solution

1/2 - 3/4 in. length, #6 or #8 Self-drilling screws

Caulking material (300 ºF minimum continuous exposure

rating)

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

3 Framing and Clearances

A. Appliance/Decorative Front Dimension Diagram

Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 4.

Figure 3.1 Appliance Dimensions

*Dimensions H, O, F and I are measured to the surround brackets.

Note: Location N on Figure 4.1 is measuring the appliance depth, for installation depth reference Location O. See

also Figure 4.2.

MODEL DIMENSIONS

Location QFI35FB-IFT QFI30FB-IFT

Inches Millimeters Inches Millimeters

A33-13/16 859 29-3/8 746

B 25 635 21 533

C10-11/16 271 8-11/16 221

D3-11/16 94 3-11/16 94

E4-3/8 111 4-1/4 108

F* 14-3/4 375 13-1/4 337

G6-3/4 172 6-3/4 172

H* 34-5/8 880 30 762

I* 13-3/8 340 11-7/8 302

J1-7/8 48 1-7/8 48

K1-5/16 33 1-5/16 33

MODEL DIMENSIONS

Location QFI35FB-IFT QFI30FB-IFT

Inches Millimeters Inches Millimeters

L2-1/8 54 2-1/8 54

M5-3/4 145 4-1/2 114

N16-5/8 422 15-1/8 384

O* 17-7/8 454 16-3/8 416

P 24-3/8 619 22-3/8 568

Q19-7/8 505 17-7/8 454

R31-3/8 797 26-11/16 678

S2-5/16 59 2-1/4 57

T4-1/2 108 4 101

U21-3/4 552 20 508

GAS

ACCESS

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

FIRESCREEN DECORATIVE FRONTS

Figure 3.2 Decorative Front Dimensions - Firescreen and Mission Full View

MISSION FULL VIEW DECORATIVE FRONTS

A B C D E F G

FS-FBQF30-XX in. 28 17-3/4 2-9/16 36-1/2 25-3/4 25 3/4

mm 711 451 65 927 654 635 19

FS-FBQF35-XX in. 30 19-7/8 2-9/16 38-1/2 27-3/4 27 3/4

mm 762 505 65 978 705 686 19

A B C D E F G

MFV-FBQF30-XX in. 28 17-3/4 2-9/16 36-3/4 25-3/4 25-1/4 3/4

mm 711 451 65 933 654 641 19

MFV-FBQF35-XX in. 30 19-7/8 2-9/16 38-3/4 27-3/4 27-1/4 3/4

mm 762 505 65 984 705 692 19

E F

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

FORGED ARCH DECORATIVE FRONTS

A B C D E F G

FA-FB30-BK in. 29-3/4 17-7/16 3-1/2 37-1/8 25-3/8 24-5/8 3/4

mm 756 443 89 943 645 625 19

FA-FB35-BK in. 29-3/4 20-1/16 3-1/4 38-1/2 27-3/4 27 3/4

mm 756 510 83 978 705 686 19

Figure 3.3 Decorative Front Dimensions - Forged Arch

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

4 Fireplace Size Requirements

A. Minimum Fireplace Opening

Minimum replace opening requirements are shown in

Figure 4.2.

WARNING! Risk of Fire or Burns! Provide adequate

clearance around air openings and for service access.

Due to high temperatures, the appliance should be locat-

ed out of trafc and away from furniture and draperies.

• The rebrick (refractory), glass doors, screen rails, screen

mesh and log grates can be removed from a factory

built rebox in order to gain minimum gas insert opening

requirements.

• Any smoke shelves, shields and bafes may be removed

from the factory built rebox if attached with mechanical

fasteners.

• The appliance may not be placed directly on the base

of the outer wrap, a 1/4 in. airspace MUST be provided

between the insert and the oor of the outer wrap. Use

the levelling legs to raise the insert a minimum of 1/4

in.. The original replace may never be returned to solid

fuel in this condition. The sidewalls and top structure

of the rebox may not be altered with the exception of

removable bafes and dampers.

1/2 IN. MINIMUM LEVELING HEIGHT

RECOMMENDED - 1/4 IN. REQUIRED

12 IN.

5 IN.

6 IN.

11-1/4

IN.

TOP VIEW

SIDE VIEW

EXISTING FACTORY-BUILT FIREBOX

QFI30FB-IFT

QFI35FB-IFT

METAL FLOOR OF EXISTING

FACTORY-BUILT FIREBOX

THIS SECTION OF

METAL FLOOR

HAS BEEN REMOVED

METAL FLOOR OF EXISTING

FACTORY-BUILT FIREPLACE

REMOVE THIS

SECTION OF

METAL FLOOR

5 IN.

11-1/4

IN.

6 IN.

12 IN.

Figure 4.1-A Figure 4.1-B

• The metal oor of the factory-built replace may be

removed to facilitate the installation of the insert.

• Cutting of any sheet metal parts of the replace in which

the gas replace insert is to be installed is prohibited,

except the oor as tested for and as noted above and in

Figure 4.1-B.

• A minimum 1/2 in. gap from the bottom of the

appliance to the metal oor of the factory-built rebox

is RECOMMENDED for optimal fan performance. See

side view in Figure 4.1-A.

• If the recommended 1/2 in. leveling leg height can not be

achieved, a section of the factory-built metal oor may

be removed. See Figure 4.1-B and see Section 10.A for

clearance under appliance.

Note: The metal warning plate, noting that the factory-built

replace has been converted for use with a gas replace

insert, must be afxed to the appliance. It is included in

the manual bag assembly.

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

Figure 4.2 Fireplace Opening

In addition to these dimensions, also reference Clearances and Mantel Projections (Section 10.A)

MINIMUM FIREBOX OPENING SIZE

Location

QFI35FB-IFT QFI30FB-IFT

Inches Millimeters Inches Millimeters

A Rear Width 25-1/2 648 21-1/2 546

BFront Width 35-1/8 892 30-1/2 775

CHeight-Front 24-5/8 625 22-5/8 575

D Height-Rear 22-1/4 565 20-1/2 521

E** Unit Depth 18-1/8 460 16-5/8 422

F Venting Depth 13-3/8 340 11-7/8 302

* Note: If exhaust collar on insert and replace damper do not line up, add 4 Inches (102 mm) to minimum

replace height for bends in vent pipe.

**Unit depth is measured to the back of the surround to give the depth needed for installation.

E**

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

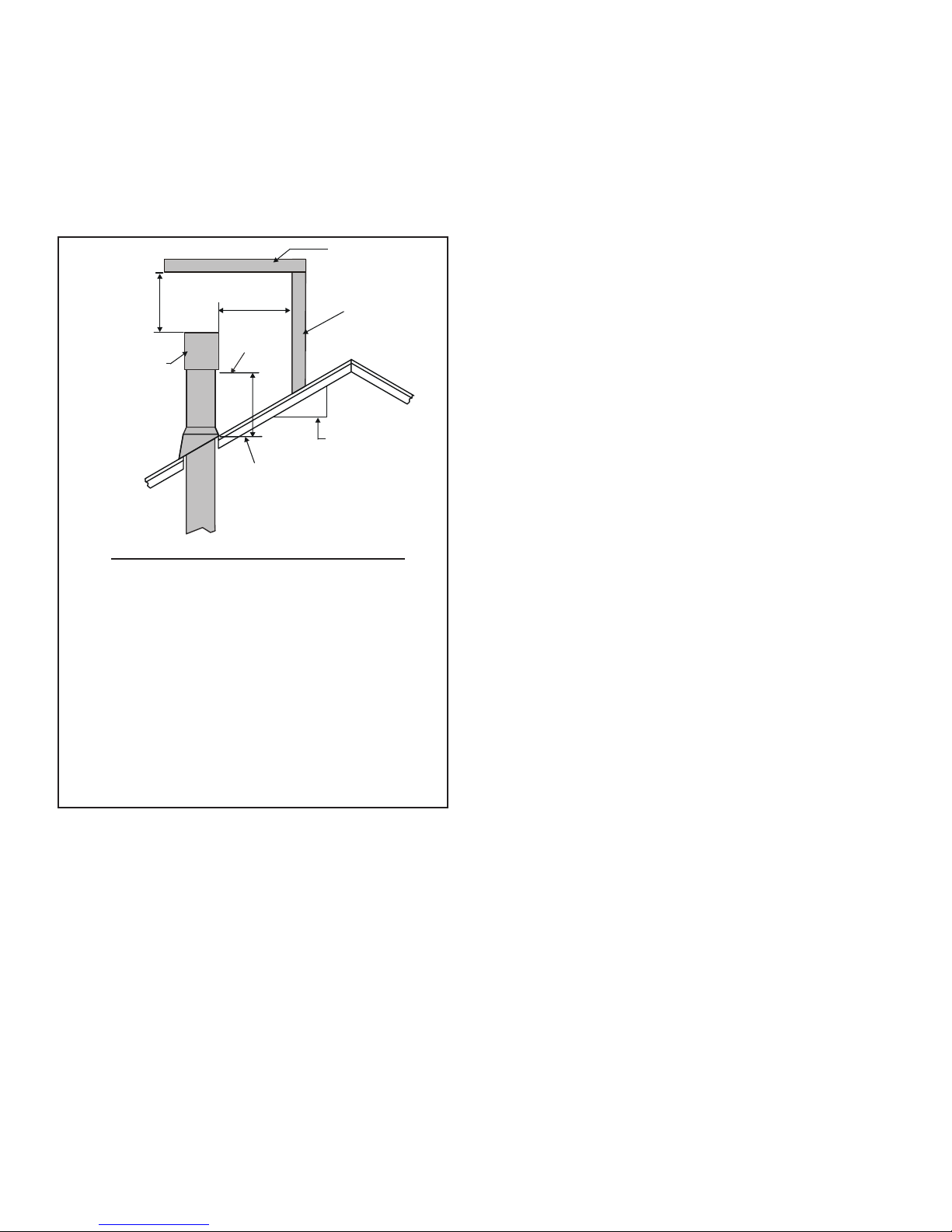

A. Vent Termination Minimum Clearances

Roof Pitch H (Min.) Ft.

Flat to 6/12...........................................................1.0*

Over 6/12 to 7/12 .................................................1.25*

Over 7/12 to 8/12 .................................................1.5*

Over 8/12 to 9/12 .................................................2.0*

Over 9/12 to 10/12 ...............................................2.5*

Over 10/12 to 11/12 .............................................3.25

Over 11/12 to 12/12 .............................................4.0

Over 12/12 to 14/12 .............................................5.0

Over 14/12 to 16/12 .............................................6.0

Over 16/12 to 18/12 .............................................7.0

Over 18/12 to 20/12 .............................................7.5

Over 20/12 to 21/12 .............................................8.0

Figure 5.1 Minimum Height From Roof To Lowest Discharge

Opening

* H minimum may vary depending on regional snowfall.

Refer to local codes.

HORIZONTAL

OVERHANG

VERTICAL

WALL

GAS DIRECT VENT

TERMINATION CAP

ROOF PITCH

IS X/ 12

LOWEST

DISCHARGE

OPENING

2 FT.

MIN.

20 INCHES MIN.

H (MIN.) - MINIMUM HEIGHT FROM ROOF

TO LOWEST DISCHARGE OPENING

5 Termination Location and Vent Information

Fire Risk.

Maintain vent clearance to combustibles as

specied.

• DO NOT pack air space with insulation or other

materials.

Failure to keep insulation or other materials away

from vent pipe could cause overheating and re.

WARNING

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

6 Installation Preparation

Prepare the existing solid fuel masonry or factory built

non-combustible rebox for installation.

A. Cleaning

Prior to installing the gas insert:

• Ensure that the woodburning replace cavity is clean

and free of ash, soot, and other debris.

B. Flue Damper

Fully lock the solid fuel replace’s ue damper in the open

position, OR completely remove it.

C. Gas Line

Note: If the factory built replace has no gas access hole

provided, an access hole of 1 in. (25 mm) diameter or less

may be drilled through the lower sides or bottom of the

rebox in a proper workmanship - like manner. This access

hole must be plugged with non-combustible insulation after

the gas supply line has been installed.

• Install gas line into rebox cavity.

• Check local codes and gas line sizing requirements

following NFPA51. See Section 9.

• It is recommended that extra length of gas line be

installed within the existing wood burner or masonry

replace to allow removal of the insert for future servicing

needs.

E. Electrical Outlet Box

An outlet box may be installed in a bottom back corner of

the existing solid fuel masonry or factory built replace to

permit blowers or other optional accessories to be used.

Alternatively, the supplied power cord may be routed out

onto the hearth to a nearby outlet.

D. Fireplace Conversion Notice

Permanently attach the label with the following warning to

the inside lower back of the replace rebox into which the

insert is being installed. Silicone or mechanical fasteners

may be required to properly secure the label.

WARNING! Risk of Fire! This replace has been con-

verted for use with a gas replace insert only and cannot

be used for burning wood or solid fuels unless all original

parts have been replaced, and the replace re-approved

by the authority having jurisdiction.

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

B. Venting Components

CAUTION! Risk of Cuts/Abrasions/Flying Debris.

Wear protective gloves and safety glasses during instal-

lation. Sheet metal edges are sharp.

The vertical vent termination system installed on this model

includes:

• One 3 ft. section stainless steel exible pipe (included

with insert).

• One length of 3 in. exible vent pipe for exhaust air

(included with vent kit).

• One length of 3 in. exible vent pipe for combustion air

(included with vent kit).

• One pipe-to-cap adaptor (included with vent kit).

• One vertical termination cap (included with vent kit).

• Installation instructions for use in venting installation

(included with the vent kit).

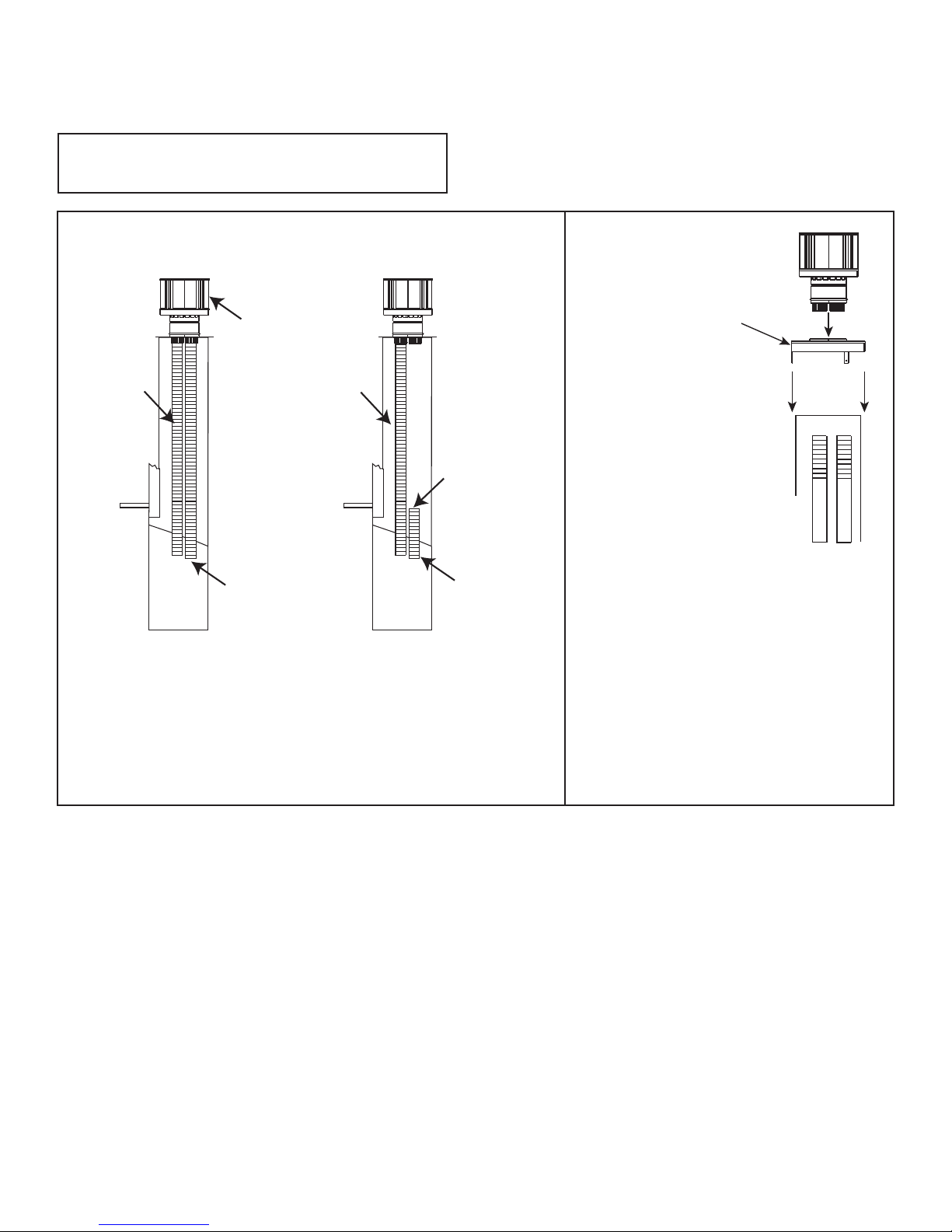

Figure 7.1

WARNING! Risk of Fire/Explosion/Asphyxiation! Do

NOT connect this gas appliance to a chimney ue serving

a separate solid fuel or gas burning appliance.

• Could impair safe operation of this appliance or other

appliances connected to the ue.

• Vent this appliance directly outside.

• Use separate vent system for this appliance.

Horizontal venting is NOT allowed.

Vertical terminations are measured to top of chimney.

This appliance is listed for use with LINK-DV systems

and components only. It is permissible to extend venting

above existing chimney (within specied maximum verti-

cal limits) using SLP series or Dura Vent GS series 4 in. x

6-5/8 in. gas direct-vent pipe. Connection is made using

DV-46DVA-GK.

A. Vent Limits

The abbreviations listed in this vent table key are used in

the vent diagrams.

Description

Minimum Vertical Run Length 10 ft.

Maximum Vertical Run Length 50 ft.

CAUTION! ALL vent specications MUST be followed.

This product is tested and listed to these specications.

Appliance performance will suffer if specications are not

followed.

EXHAUST

AIR

VENT PIPE

TERMINATION

CAP

EXHAUST STARTING COLLAR

STARTING COLLAR BRACKET

INLET AIR STARTING COLLAR

INLET AIR

VENT PIPE

ADAPTER

V = 10 FT. MINIMUM

50 FT. MAXIMUM

NOTE: TO ACHIEVE OPTIMUM PERFORMANCE,

MINIMIZE OR AVOID BENDS IN EXHAUST VENT

PIPE.

EXHAUST

COLLAR

INLET

COLLAR

HANDLE

REQUIRED 3 FT.

STAINLESS STEEL

SECTION

EXHAUST

STARTING

COLLAR

INLET AIR

STARTING

COLLAR

STARTING

COLLAR

BRACKET

LOCKING

FLANGE

7 Installing Vent Pipe and Appliance

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

C. Connecting Vent Pipe

Reference instructions in the termination kit.

• Install the 3 in. exible vent pipe(s) down through the

chimney.

• Secure the exhaust exible vent pipe to the 3 foot section

stainless steel flexible vent pipe using the factory-

installed 3 in. collar in the stainless steel section of pipe

(see Figure 7.1).

• Secure the stainless exible vent pipe to the exhaust

starting collar on top of the appliance with three screws.

• Use 3 screws to attach the section of inlet air vent to

the inlet collar on the collar slide plate. See Figure 7.1.

NOTE: The collar slide plate may be removed from

appliance to aid installation.

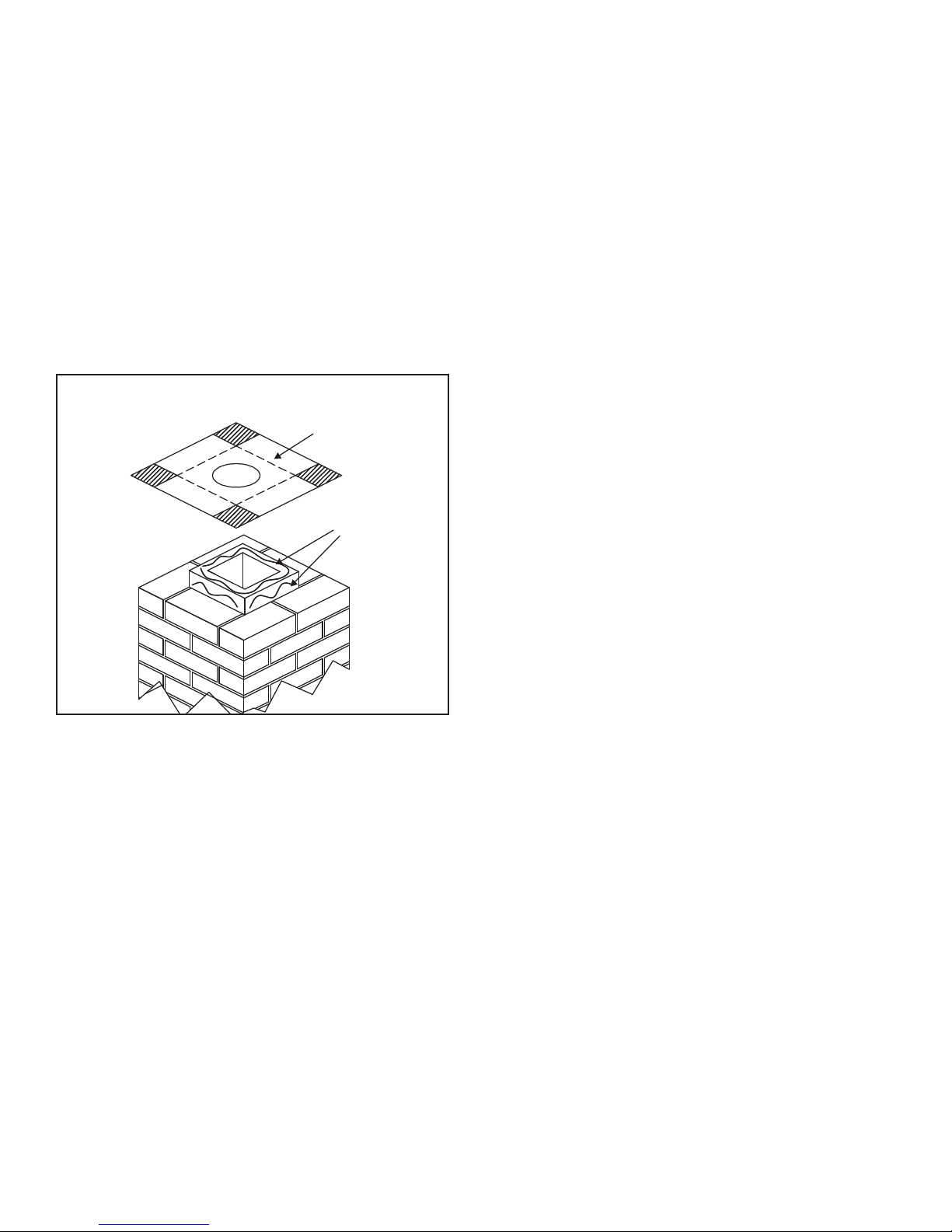

Figure 7.2

CUT AND BEND

FLASHING AS NEEDED

TO FIT CHIMNEY

SEALANT

ADHESIVE

• Trim chimney top plate to minimize excess overhang or

bend over ue tile (see Figure 7.2).

• Place 3/8 in. bead of 300 ºF silicone on ue tile top.

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

WARNING! Risk of Fire! Only an approved Hearth &

Home Technologies surround may be used to cover inte-

gral grills on solid fuel burning replaces. No other com-

ponents such as shrouds, sheetmetal plates, etc., may be

used to seal off vents.

WARNING! Risk of Explosion! Failure to position the

parts in accordance with these diagrams or failure to use

only parts specically approved with this appliance may

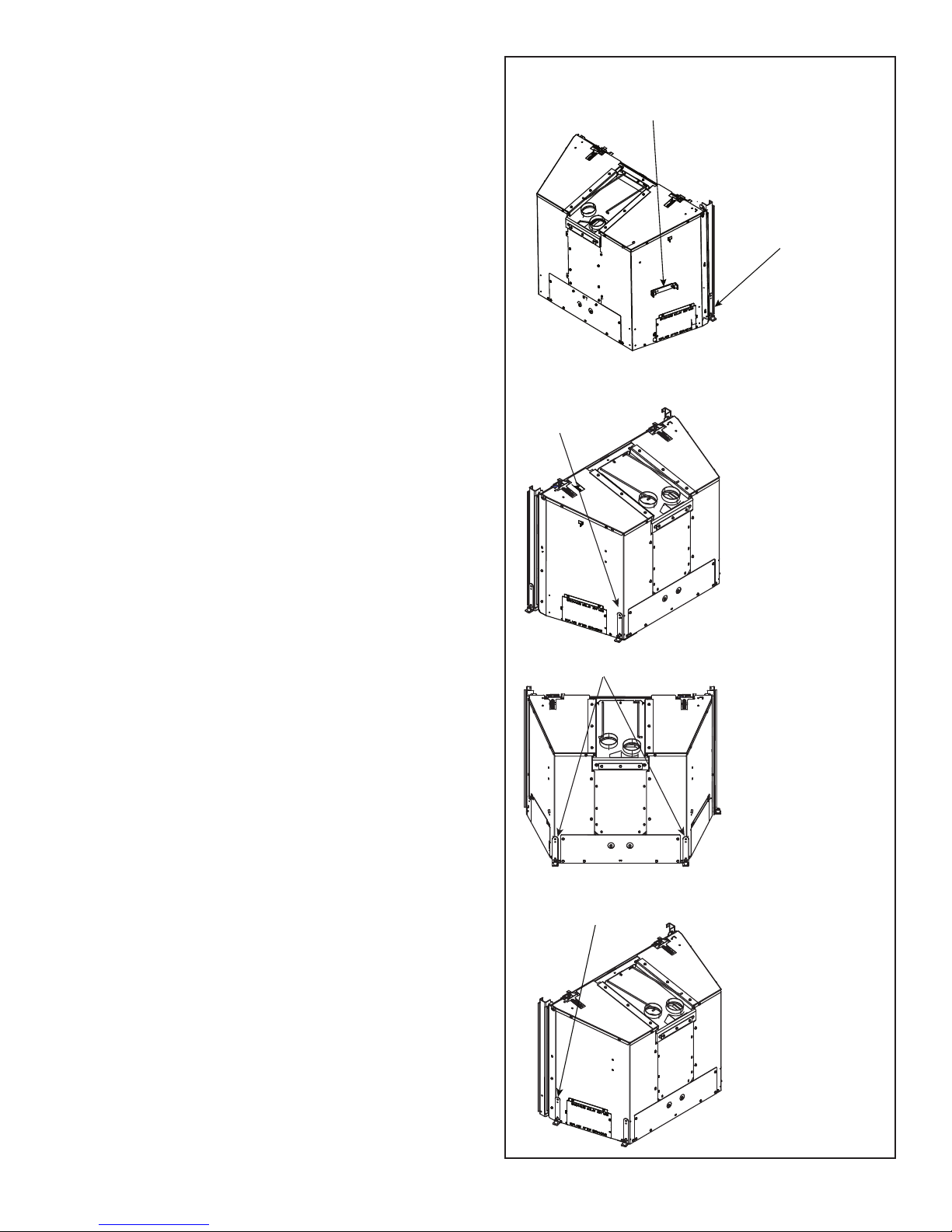

result in property damage or personal injury. Figure 7.3

D. Placing, Securing and Leveling the

Appliance

WARNING! Risk of Explosion/Combustion Fumes!

Connect vent sections per installation instructions.

• The 3 foot section of stainless steel exible pipe MUST

be attached directly to the exhaust collar on the collar

slide plate.

• Connect exhaust vent pipe ONLY to exhaust starting

collar and termination cap center collar.

• Connect inlet air vent ONLY to inlet air collar on

appliance and either the termination cap inlet air collar

OR terminate within chimney.

• DO NOT allow vent to sag below connection point to

appliance.

• Remove rear leveling legs from shipping position and

relocate to one of the positions shown in Figure 7.3.

Remove both screws that secure the leveling leg to the

side of the appliance. Turn the leveling leg around so

that the foot is facing out and downward. Line up the

two holes on the leg with the holes on the appliance and

secure with screws. See Figure 7.3.

• Front leveling legs are shipped with surround and may

be installed in one of two locations. See Figure 7.3.

• Install insert (without surround attached) into existing

replace while pulling collar slide plate forward.

• Install gas line into hole provided on side.

• Secure collar slide plate to appliance by placing locking

handle into position with locking tabs (see Figure 7.1)

and secure with #8 screw.

• Level the appliance from side to side and front to back.

Adjust leveling bolts to desired vertical position so

appliance is level. Use the leveling bolts included with

the manual bag.

• A minimum 1/2 in. gap from the bottom of the appliance

to a metal surface is recommended for optimal fan

performance. See Figure 4.1-A and Figure 4.1-B.

• Position any excess exible vent pipe back up into

chimney without sagging. Twist and push flex vent

together to shorten.

• Attach surround. Follow instructions for surround

installation included with the front.

• Push insert into the opening so that it tightly overlaps the

replace opening.

REAR LEVELING LEGS

SHIPPED IN THIS

POSITION

THE FRONT LEVELING

LEGS ARE SHIPPED

WITH THE SURROUND.

THEY SHOULD BE

INSTALLED AS SHOWN.

LOCATION A

REAR LEVELING LEGS MAY BE RELOCATED

TO LOCATION A OR LOCATION B

LOCATION B

FRONT LEVELING LEGS MAY BE

MOVED TO THIS LOCATION

Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18

E. Installing Adaptor and Termination Cap

CAUTION! Risk of Cuts/Abrasions/Flying Debris.

Wear protective gloves and safety glasses during instal-

lation. Sheet metal edges are sharp.

For installation of termination cap see minimum vent

heights for various pitched roofs (see Figure 7.4) .

To install adaptor see Figure 7.5.

Figure 7.4 Minimum Height from Roof to Lowest Discharge
