Quadra-Fire SANTAFEI-MBK User manual

1 7019-229C June 25, 2015
NOTICE: DO NOT DISCARD THIS MANUAL
SANTA FE PELLET INSERT STOVE
Model(s):
SANTAFEI-MBK
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
Owner’s Manual
Operation & Care
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney con-
nector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
WARNING
CAUTION
Tested and approved for wood pellets and corn pellets.
Burning of any other type of fuel voids your warranty.
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fire officials or authorities having juris-
diction about restrictions, installation inspection, and permits.

2 7019-229C June 25, 2015
Santa Fe Pellet Insert

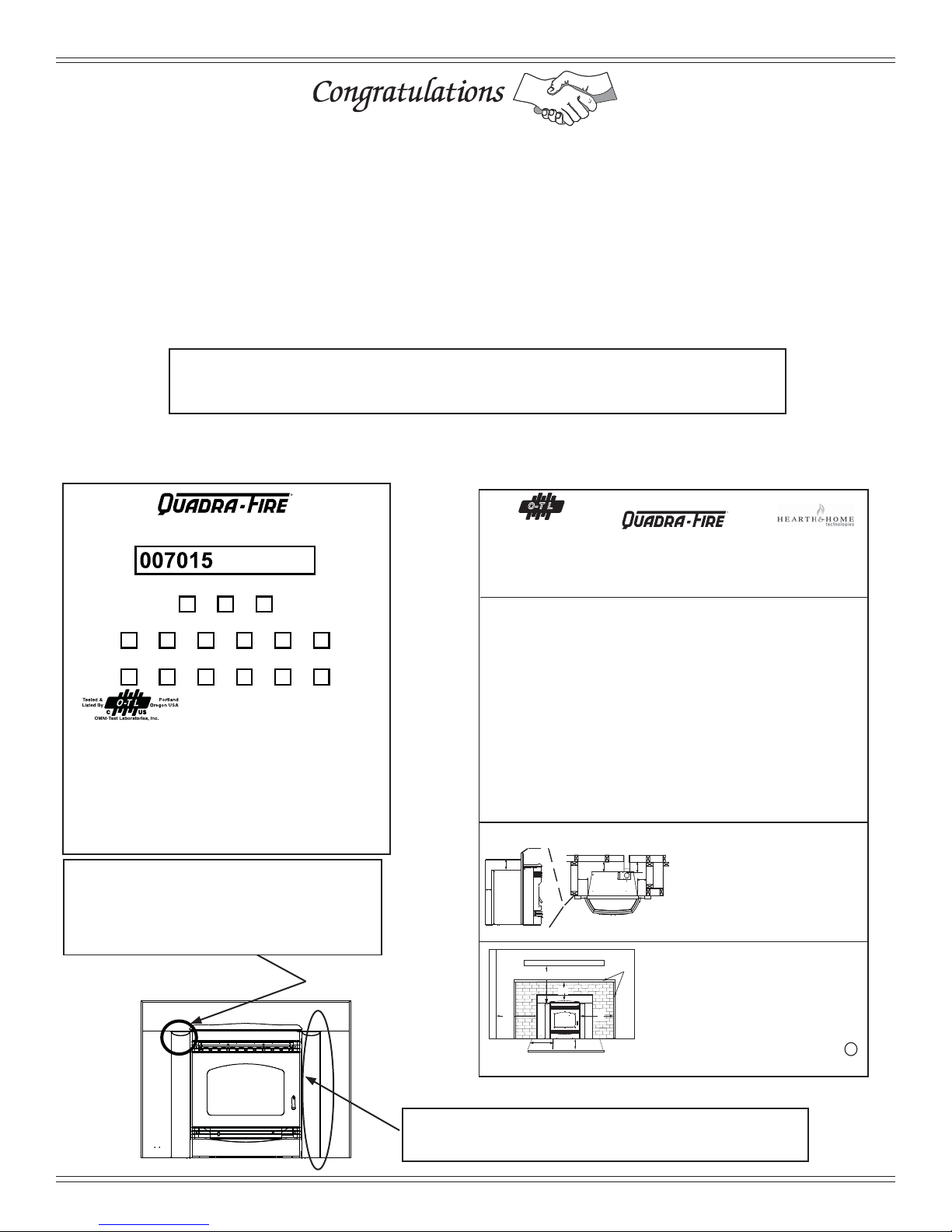

B. Sample of Serial Number / Safety Label
LOCATION: On chain behind right access panel & Behind left access panel
SAMPLE:
SERIAL NUMBER LABEL
LOCATION:
Behind left access panel.
SAMPLE: CLEARANCE TO COMBUSTIBLES LABEL
LOCATION: On chain behind right access panel
2015 2016 2017
JAN FEB MAR APR MAY JUNE
JULY AUG SEPT OCT NOV DEC
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with 2015 particulate emission standards
at 1.8 g/hr EPA Method 28 and 5G. Not approved for sale
after May 15, 2020.
Input Rating: 38,700 Btu’s/hr
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER L'ÉTIQUETTE
SANTA FE PELLET INSERT
SERIAL NO. / NUMÉRO DE SÉRIE
Report / Rapport: 061-S-77c-6.2
THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER OPERATION.
CONSULT THE OWNER’S MANUAL FOR FURTHER INFORMATION. IT IS AGAINST FEDERAL
REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH THE
OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.
Report No.
#061-S-77d-6.2
7019-223D
SAFETY LABEL
R
Santa Fe Pellet Insert-MBK
1445 Highway North, Colville, WA 99114
Manufactured by:
www.quadrafire.com
Listed Solid Fuel Room Heater/Pellet Type Insert. Also suitable for Mobile Home Installation. This appliance has been tested
and listed for use in Manufactured Homes in accordance with OAR 814-23-9000 through 814-23-909.
Tested to: ASTM E-1509-2004, ULC S628-93, ULC /ORD-C1482-M1990 Room Heating Pellet Burning Type, (UM) 84-HUD FOR
USE
ONLY WITH PELLETIZED WOOD OR SHELLED FIELD CORN FUEL. Do not use any other type of fuel. OMNI-Test Laboratories,
Inc. has determined that this appliance complies with Canadian StandardsAssociation (CSA) B415.1 and Title 40 of the
U.S. Code of Federal Regulations, Part 60, SubPart AAA.OMNI-Test Laboratories Accrediations: The Standards
Council of Canada, theAmerican National Standards Institute, and the U.S. Environmental ProtectionAgency.
Route power cord away from unit. Do not route cord under or in front of appliance.
DANGER:
Risk of electrical shock. Disconnect power supply before servicing. Replace glass only with 5mm ceramic available
from your dealer.
To start, set thermostat above room temperature, the appliance will light automatically. To shutdown, set thermostat to below room
temperature. Forfurther instruction referto owner's manual.
KEEP VIEWING ANDASH REMOVAL DOORS TIGHTLY CLOSED DURING OPERATION.
PREVENT HOUSE FIRES
Install and use only in accordance with manufacturer's installation and operating instructions. CONTACT LOCAL BUILDING
OR FIRE OFFICIALSABOUT RESTRICTIONSAND INSTALLATION INSPECTION IN YOUR AREA.
WARNING - FOR MOBILE HOMES: Do not install appliance in a sleeping room. An outside combustion air inlet must be
provided. The structural integrity of the mobile home floor, ceiling and walls must be maintained.
Refer to manufacturer's instructions and local codes for precautions required for passing chimney through a combustible wall
or ceiling. Inspect and clean vent system frequently in accordance with manufacturer's instructions.
Do Not Connect This Unit to a Chimney ServingAnother Appliance.
Use a 3" or 4" diameter type "L" or "PL" venting system.
Input Rating: 30,000 BTU/HR.
Electrical Rating:
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 AMPS.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
AS A BUILT-IN UNIT
ATop of Hopper Top Vent 2.0 in. 51mm
Rear Vent 2.5 in. 64mm
B Side of Hopper Top/Rear Vent 2.0 in. 51mm
CBack of Hopper Top/Rear Vent 2.5 in. 64mm
D
Vent Pipe to Combustible Top/ Rear Vent 3.0 in. 76mm
A
CB
D
C
B
0 in. Clearance To Exposed SectionAnd Face Trim
Masonry or Zero Clearance
Max. Mantel Depth: 12 in. (305mm)
SIDE WALL
MANTEL
B
D
A
E
F
Face Trim
C
DO NOT REMOVE THIS LABEL
AInsert side to combustible side wall 16 in. 406mm
B Insert top to mantel 12 in. 305mm
CInsert top to max. 2.25 in. to top face trim 4.75 in. 121mm
D
Insert side to max. 2.25 in. to side face trim 10 in. 254mm
EHearth extension to from door opening - front
6 in . 152mm
F Hearth extension from side of door opening 6 in. 152mm
*When constructing floor protection for your pellet appliance, any
parts or materials used, must be non-combustible.
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
A. Congratulations
Hearth & Home Technologies welcomes you to our tradition
of excellence! In choosing a Quadra-Fire appliance, you
have our assurance of commitment to quality, durability, and
performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum opera-
tion of our stoves, inserts and fireplaces. And yet we are
old-fashioned when it comes to craftsmanship. Each unit
is meticulously fabricated and gold and nickel surfaces are
hand-finished for lasting beauty and enjoyment. Our pledge
to quality is completed as each model undergoes a quality
control inspection.
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction
and Welcome to the Quadra-Fire Family!

June 25, 2015 7019-229C 3
Santa Fe Pellet Insert
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
A. Congratulations..................................................................2
B. Sample of Serial Number / Safety Label............................2
C. Warranty Policy .................................................................4
1 Listing and Code Approvals ............. 6
A. Appliance Certification......................................................6
B. BTU & Efficiency Specifications........................................6
C. Glass Specifications.........................................................6
D. Electrical Rating................................................................6
E. Mobile Home Approved ....................................................6
2 Operating Instructions ...................... 7
A. Fire Safety .........................................................................7
B. Non-Combustible Materials ...............................................7
C. Combustible Materials.......................................................7
D. Fuel Material and Fuel Storage........................................7
E. General Operating Information.........................................8
F. Before Your First Fire........................................................8
G. Starting Your First Fire.....................................................8
H. Fire Characteristics...........................................................9
I. Feed Rate Adjustment Instructions....................................9
J. Ignition Cycles...................................................................9
K. Insert Removal..................................................................9
L. Clear Space ......................................................................10
M. Frequently Asked Questions............................................10
3 Maintenance and Service.................11
A. Quick Reference Maintenance Chart................................11
B. General Maintenance and Cleaning.................................12
C. High Ash Fuel Content Maintenance.................................14
D. Thermostat Battery Installation and Replacement.............15
4 Troubleshooting Guide.................... 16
5 Service Parts Replacement............. 17
A. Blower Replacement..........................................................17
B. Baffle & Brick Replacement...............................................18
C. Re-installing Baffle & Brick Set..........................................18
D. Igniter Replacement ..........................................................20
E. Glass Replacement ...........................................................20
6 Reference Materials......................... 21
A. Component Functions .......................................................21
B. Component Locations........................................................23
C. Exploded Drawings & Service Parts..................................24

4 7019-229C June 25, 2015
Santa Fe Pellet Insert
Hearth & Home Technologies Inc.
LIMITED LIFETIME WARRANTY
H
earth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for
H
HT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
W
ARRANTY COVERAGE:
H
HT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
o
f the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance
w
ill be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo-
n
ents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period,
H
HT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its
o
bligations under such warranties by replacing the product itself or refunding the verified purchase price of the product
i
tself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty
i
s subject to conditions, exclusions and limitations as described below.
W
ARRANTY PERIOD:
W
arranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
a
uthorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
f
ollowing the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period fo
r
parts and labor for covered components is produced in the following table.
T
he term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for
g
as appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These
t
ime periods reflect the minimum expected useful lives of the designated components under normal operating conditions.
See conditions, exclusions, and limitations on next page.
Parts Labor Gas Wood Pellet EPA
Wood Coal Electric Venting
XXXXXXX
All parts and material except as
covered by Conditions,
Exclusions, and Limitations
listed
XXX Igniters, electronic components,
and
g
lass
XXXXX Factor
y
-installed blowers
X Molded refractor
yp
anels
XFire
p
ots and burn
p
ots
5
y
ears 1
y
ear X X Castin
g
s and baffles
7 years 3 years X X X Manifold tubes,
HHT chimne
y
and termination
10
y
ears 1 year X Burners, logs and refractory
Limited
Lifetime 3yearsXXXXX Fireboxandheatexchanger
XXXXXXX All replacement parts
be
y
ond warrant
yp
eriod
Warranty Period HHT Manufactured Appliances and Venting
1 Year
Components Covered
3 years
2 years
90 Days
C. Warranty Policy

June 25, 2015 7019-229C 5
Santa Fe Pellet Insert
WARRANTY CONDITIONS:
 


 
 !
"

 "

This warranty is void if:
 #!!
$#!!!!!
"
 %
 !

!
LIMITATIONS OF LIABILITY:
 '*'!!*
!!!!!!
+8
*+!

;!<=<>$
<<=<?>@$KN<NOQRU!Z[<8?$<=>@<88U@@?<8$<@?<U@@?Q
8><\<N<@<?<N]@$?$\?QZ>R<NU@@?Q8RZ<N$N]@$?$\<
<=>@<88<NU@@?Q8><\<NO$K<
WARRANTY EXCLUSIONS:
^
 !
*
 N!!!!!!!
*
 @%
^!!"!"!!!!-

 Z*!!-

 N^_`q!!
!!;_{q
;_|q;_}q-
!!!!!!~
;_q!+!!
!"#!*
;_q;_q
*
;_q*;
~_q
 ?#!%
 #*
 '*'-
-
!!


6 7019-229C June 25, 2015
Santa Fe Pellet Insert
Model Santa Fe Pellet Insert
Laboratory OMNI Test Laboratories, Inc.
Report No. 061-S-77d-6.2
Type Solid Fuel Room Heater/Pellet Fuel
Burning Type Insert
Standard ASTM E1509-2004, ULC S628-93 and
ULC/ORD-C1482-M1990 Room Heater
Pellet Fuel Burning Type and (UM) 84-
HUD, Mobile Home Approved
FCC Complies with Part 15 of FCC Rules.
Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
The Quadra-Fire Santa Fe Pellet Insert meets the U.S.
Environmental ProtectionAgency’s emission limits for pellet
inserts sold after May 15, 2015.
This pellet insert needs periodic inspection and repair for
proper operation. It is against federal regulations to operate
this pellet insert in a manner inconsistent with operating
instructions in this manual.
1 Listing and Code Approvals
A. Appliance Certification
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products, their
specifications and/or price without notice.
NOTE: This installation must conform with local codes. In
the absence of local codes you must comply with the ASTM
E1509-2004, ULC S628-93, ULC/ORD-C-1482-M1990,
(UM) 84-HUD
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualified
installer, service agency or your dealer.
Quadra-Fire is a registered trademark of Hearth & Home
Technologies.
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved by
Hearth & Home Technologies.
• Operating appliance without fully assembling all components.
• Operatingappliance withoutlegsattached (ifsupplied withunit).
• Do NOT Overfire - If appliance or chimney connector glows,
you are overfiring.
Any such action that may cause a fire hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
B. BTU & Efficiency Specifications
C. Glass Specifications
This stove is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
D. Electrical Rating
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 Amp
E. Mobile Home Approved
• This appliance is approved for mobile home installa-
tions when not installed in a sleeping room and when
an outside combustion air inlet is provided.
• The structural integrity of the mobile home floor, ceil-
ing, and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home and use only Listed pellet vent
Class “L” or “PL” connector pipe.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
EPA Certification #: 940-14
EPA Certified Emissions: 1.8 grams per hour
*LHV Tested Efficiency: N/A
**HHV Tested Efficiency: N/A
***EPA BTU Output: 8,500 to 28,200 / hr.
****BTU Input: 11,600 to 38,700 / hr.
Vent Size: 3 or 4 inches, “L” or “PL”
Hopper Capacity: 45 lbs.
Fuel Wood Pellets
* Weighted average LHV efficiency using data collected during
EPA emissions test.
**Weighted average HHV efficiency using data collected during
EPA emissions test.
***A range of BTU outputs based on EPA Default Efficiency and
the burn rates from the low and high EPA tests.
****Based on the maximum feed rate per hour multiplied by
approximately 8600 BTU’s which is the average BTU’s from a
pound of pellets.

June 25, 2015 7019-229C 7
Santa Fe Pellet Insert
User Guide
2 Operating Instructions
A. Fire Safety
To provide reasonable fire safety, the following should be
given serious consideration:
• Installatleast one smoke detector andCOmonitoron each
floor of your home.
• Locatedetectorsawayfrom the heating applianceandclose
to the sleeping areas.
• Follow the detector’s manufacturer’s placement and
installation instructions and maintain regularly.
• A CO detector should be installed in the room with the
appliance.
• Conveniently locate a Class A fire extinguisher to contend
with small fires.
• In the event of a hopper fire:
• Evacuate the house immediately.
• Notify fire department.
B. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel - Plaster - Glass - Tile
- Brick - Iron - Slate - Concrete
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750° C.
C. Combustible Materials
Material made of/or surfaced with any of the following
materials:
- Compressed Paper - Wood - Plywood/OSB
- Sheet Rock (drywall) - Plastic - Plant Fibers
Any material that can ignite and burn: flame proofed or not,
plastered or un-plastered.
D. Fuel Material and Fuel Storage
Pellet fuel quality can greatly fluctuate. This appliance has
been designed to burn a wide variety of fuels, giving you the
choice to use the fuel that is most economical in your region.
Hearth&HomeTechnologiesstronglyrecommendsonlyusing
Pellet Fuel Institute (PFI) certified fuel.
Fuel Material
• Made from sawdust or wood by-products
• Shelled field corn & other biomass fuels
• Depending on the source material it may have a high or
low ash content.
Higher Ash Content Material
• Hardwoods with a high mineral content
• Fuel that contains bark
• Standard grade pellets, high ash pellets, corn and other
biomass fuels
Lower Ash Content Material
• Softwoods
• Fuels with low mineral content
• Premium grade pellets
Shelled Field Corn
• Must be 15% or less moisture content.
• Must be clean and free from debris
• Never burn corn straight from the field
• Stalkparts,excessivefinesandcob remnants, etc. will clog
the auger mechanism
WARNING
Fire Risk.
• Do not operate appliance before reading and
understanding operating instructions.
• Failure to operate appliance properly may cause a
house fire.
• Cornwith excessive grain dust must be screened by sifting
with 3/16 inch (4.7mm) mesh screening
Clinkers
Minerals and other non-combustible materials such as sand
willturnintoahard,glass-likesubstancecalleda clinker when
heated in the firepot.
Trees from different areas will vary in mineral content. That
is why some fuels produce more clinkers than others.
Moisture
Alwaysburn dry fuel. Burning fuel with high moisture content
takes heat from the fuel and tends to cool the appliance,
robbing heat from your home. Damp pellet fuel can clog the
feed system.
CAUTION
Do not burn fuel that contains an additive; (such as
soybean oil).
• May cause hopper fires
• Damage to product may result
Read the ingredients list on the package. If you are
buying corn the only ingredient that should be listed is
corn.
WARNING
Risk of Chemical Poisoning!
Do NOT burn treated seed corn
• Chemical pesticides are harmful or fatal if swallowed
• Burning treated seed corn will void your warranty

8 7019-229C June 25, 2015
Santa Fe Pellet Insert
E. General Operating Information
1. Thermostat Calls For Heat
The appliance is like most modern furnaces; when the
thermostat calls for heat, your appliance will automatically
light and deliver heat. When the room is up to temperature
and the thermostat is satisfied, the red call light will shut off
and the appliance will shut down. The red call light is located
behind the left access panel.
2. Heat Output Controls
This appliance is equipped with a heat output control switch
that has three settings or burn rates; low, medium and high.
Theappliancewillturn on and off as the thermostatdemands.
When the thermostat calls for heat, the appliance will always
start up on High. After burning approximately 4 minutes, the
appliance will then burn at the rate at which it was originally
set. If the appliance is set at one of the lower settings, it
will run quieter but takes longer to heat up an area than if it
were set at a higher burn rate. Regardless of the burn rate,
when the area is warm enough to satisfy the thermostat, the
appliance will shut off.
Figure 8.1
HIGH
MED
LOW
RESET
BUTTON
F. Before Your First Fire
1. First,makesureyourappliance has beenproperlyinstalled
and that all safety requirements have been met. Pay
particular attention to the fire protection, venting and
thermostat installation instructions.
2. Double check that the ash drawer and firebox are empty!
3. Checkthepositionofthethermocouple,located above the
firepot,andmakesure that it protrudes approximately3/4
inch (19mm) into the firepot.
4. Close the front door.
G. Starting Your First Fire
1. A thermostat is required for proper operation of this
appliance, except for corn. At this time, fill the hopper
with pellets, set the thermostat to its lowest setting. Plug
the power cord into nearby outlet.
2. The exhaust blower will stay on for approximately 18
minuteseventhoughthethermostatisnotcallingforheat.
This is normal.
3. Locate the heat output control switch on the lower right
side of the firebox in front of the right access panel. Set
to the HIGH setting and then adjust the thermostat to
its highest setting. The red call light will be on which is
located on the front of the junction box behind the left
access panel. This indicates the thermostat is calling for
heat. Figure 9.1.
4. The fuel feed system and the igniter should now be on.
5. For your first fire it will be necessary to press the reset
button once a minute until pellets start to drop into the
firepot, then press button 1 more time. This will fill the
feed system and allow the appliance to begin dropping
pellets. The appliance will continue to run as long as the
thermostat is calling for heat.
6. Oncetheappliancehasignited,letit burnforapproximately
15 minutes, then set the thermostat to the desired room
temperature. Adjust the heat output control switch to the
desired setting.
CAUTION
Tip of thermocouple must be in contact with the inside
end of the thermocouple cover.
Missed ignitions can occur.
WARNING
Fire Hazard.
Keep combustible materials, gasoline and other
flammable vapors and liquids clear of appliance.
• Do NOT store flammable materials in the appliance’s
vicinity.
• NEVER USE GASOLINE, GASOLINE-TYPE LANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE
IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELLAWAY
FROM THE HEATER WHILE IT IS IN USE.
• DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS
SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL.
• DO NOT USE CHEMICALS OF FLUIDS TO START THE
FIRE.
• Combustible materials may ignite.
WARNING
Fire Risk
Do NOT operate appliance:
• With appliance door open.
• Firepot floor open.
• Cleaning slide plates open.
Do NOT store fuel:
• Closer than required clearances to combustibles to appliance
• Within space required for loading or ash removal.

June 25, 2015 7019-229C 9
Santa Fe Pellet Insert
WARNING
Fire Risk.
• High ask fuels, or lack of maintenance, can
cause the firepot to fill with ash and clinker. If the
firepot fills to the top, immediately shut down the
appliance and clean.
• Failure to do so could result in smoking, sooting
and possible hoper fires.
I. Feed Rate Adjustment Instructions
The feed adjustment control rod is factory set, and should
be adequate for most fuels. The set screw is located at the
bottom of the hopper and set loose at the factory so the fuel
adjustment control rod will slide by only loosening the wing
nut. Do not re-tighten bottom set screw.
However, if the flame height is too high or too low, you will
needto adjust the feed rate. Waituntiltheappliance has been
burning for 15 minutes before making your adjustments and
a llow 15 minutes for feed adjustment to take effect. Make
adjustments in approximately 1/2 inch increments.
1. Loosen the wing nut. Figure 9.2.
2. Adjust the fuel adjustment control rod towards the "+"
symbol to increase the feed rate and flame height or
towards the "-" symbol, to decrease the feed rate and
flame height.
3. Re-tighten the wing nut.
Figure 9.1
Junction Box
Cut Away
LEFT SIDE
Junction Box, Front
Power
Cord
Recepticle
Terminal Block
Center 2 Screws
for Thermostat
Wires or Remote
110 Outlet for
Remote
Control Only
(unfused)
Fuse
Red Call
Light
Finger Hole
in Rod
Wing Nut
Figure 9.2
H. Fire Characteristics
A properly adjusted fire with the heat output control button
set on “HIGH” has a short active flame pattern that extends
out of the firepot approximately 4 inches (102mm). If the fire
hastall flames with black tails and seemssomewhat lazy, the
feed rate will need to be reduced. If the fire is not 4 inches
(102mm) tall, increase the feed rate. A medium and low
setting will give a shorter flame. The flame will rise and fall
somewhat. This is normal.
J. Ignition Cycles
1. Duringeachignition cycle, it is normaltosee some smoke
in the firebox. The smoke will stop once the fire starts.
2. Theconvectionblower will automatically turn on after your
appliance has reached the set temperature. This blower
transfers heat from your appliance into the room, and will
continue to run after the thermostat has stopped calling
for heat until the appliance has cooled down.
3. Occasionally the appliance may run out of fuel and shut
itself down. When this happens, the red call light will be
on. Torestartit,fillthehopper and press the reset button.
When you press the reset button the red call light will go
out. Release the button and the light will come back on.
Youshouldseeafireshortly. Ifnot,followtheinstructions
on page 8, “Starting Your First Fire”.
K. Insert Removal
In the case that service or inspection is required the unit may
need to be removed from the wall.
1. Unit must be unplugged before removal of unit is possible.
Unplug the unit from its power source.
2. Remove insert surround from unit, to ease the process of
removal.
3. Unclip the exhaust transition from the exhaust outlet in the
back of the unit. This is what connects the venting to the
unit. Removal of the clips will allow you to remove the unit
from the wall without damaging or adjusting the venting.
4. Slideunitfrom the wall androtateeither direction asneeded.
Back side of Firepot
Firepot floor left open
Figure 9.3 - DO NOT LEAVE FIREPOT FLOOR OPEN

10 7019-229C June 25, 2015
Santa Fe Pellet Insert
Odors and vapors released during initial operation.
• Curing of high temperature paint.
• Open windows for air circulation.
Odors may be irritating to sensitive individuals.
CAUTION
M. Frequently Asked Questions
ISSUES SOLUTIONS
1. Metallic noise 1. Noise is caused by metal expanding and contracting as
it heats up and cools down, similar to the sound pro-
duced by a furnace or heating duct. This noise does not
affect the operation or longevity of your appliance.
2. Ash build-up on glass 2. This is normal. Clean the glass.
3. Glass has turned dirty 3. Excessive build up of ash. The lower burn settings will
produce more ash, the higher burn settings produce
less. The more it burns on low the more frequent clean-
ing of the glass is required.
4. Fire has tall flames with black tails and is lazy 4. The flame height adjustment needs to be reduced or
the firepot needs cleaning. Heat exchanger or exhaust
blower needs cleaning.
5. Excessive smoky start-up 5. Either the firepot is dirty or there is too much fuel at
start-up and not enough air.
6. Large flame at start-up 6. This is normal. Flame will settle down once the fire is
established. Some smoke is normal.
7. Mechanical Noise 7. The floor of the firepot in the auto-clean system may
make some noise as it scrapes the ash into the ash
pan.
CONTACT YOUR DEALER for additional information regarding operation and troubleshooting.
Visit www.quadrafire.com to find a dealer.
L. Clear Space
Mantel: Avoid placing candles and other heat-sensitive
objects on mantel or hearth. Heat may damage these objects.
NOTICE: Clearances may only be reduced by means ap-
proved by the regulatory authority having jurisdiction.
Fire Risk.
Keep combustible materials, gasoline and other
flammable vapors and liquids clear of appliance.
• Do NOT store flammable materials in the
appliance’s vicinity.
• DO NOT USE GASOLINE, LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO
START OR “FRESHEN UP” A FIRE IN THIS HEATER.
•DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS
SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL.
•DO NOT USE CHEMICALS OR FLUIDS TO START THE
FIRE.
• Keep all such liquids well away from the heater while it is in
use.
• Combustible materials may ignite.
WARNING
Fire Risk.
Do NOT place combustible objects in front of the
appliance. High temperatures may ignite cloth-
ing, furniture or draperies. Maintain a minimum
clearance of 3 feet (914mm) in front of appliance.
WARNING

June 25, 2015 7019-229C 11
Santa Fe Pellet Insert
3 Maintenance and Service
When properly maintained, your fireplace will give you
many years of trouble-free service. Contact your dealer to
answer question regarding proper operation, troubleshoot-
ing and service for your appliance. Visit www.quadrafire.
com to find a dealer. We recommend annual service by a
qualified service technician.
A. Quick Reference Maintenance Chart
NOTICE: These are recommendations. Clean more frequently if you encounter heavy
build-up of ash at the recommended interval or you see soot coming from the
vent. Not properly cleaning your appliance on a regular basis will void your
warranty.
Cleaning or Inspection Frequency Daily Weekly Every 2
Weeks Monthly Yearly
Ash Pan - Burning Wood Pellets Every 5 bags of fuel OR X
Ash Pan - Burning Alternate Fuels Every 1 bag of fuel OR X
Ash Removal from Firebox More frequently depending on the
fuel type or ash build-up OR X
Auto-Clean Inspection More frequently depending on the
fuel type OR X
Blower, Combustion (Exhaust) More frequently depending on the
fuel type OR X
Blower, Convection More frequently depending on the
operating environment OR X
Door Latch Inspection Prior to heating season OR X
Firebox - Prepare for Non-Burn Season At end of heating season OR X
Firepot - Burning Softwood Pellets Every 5 bags OR X
Firepot - Burning Hardwood Pellets Every 3 bags OR X
Firepot - Burning Alternate Fuels Every 1 bag OR X
Glass When clear view of firepot
becomes obscured OR X
Heat Exchanger & Drop Tube Every 1 ton of fuel OR X
Hopper Every 1 ton of fuel or when chang-
ing fuel types OR X
Venting System More frequently depending on the
fuel type OR X
Shock and Smoke Hazard
• Turn down thermostat, let appliance completely
cool and exhaust blower must be off. Now you can
unplug appliance before servicing.
• Smoke spillage into room can occur if appliance is not cool
before unplugging.
• Risk of shock if appliance not unplugged before servicing
appliance.
CAUTION
This pellet insert has a manufacturer-set minimum low burn
rate that must not be altered. It is against federal regulations
to alter this setting or otherwise operate this pellet insert in a
mannerinconsistentwith operating instructions inthismanual.

12 7019-229C June 25, 2015
Santa Fe Pellet Insert
timeyoucleanthefirebox. Remembertoplacethe ash
and debris into a metal or non-combustible container.
e. The 2 cleaning slide plates must be fully closed when
cleaning is complete.
4. Cleaning Ash Drawer
• Frequency: Weekly or every 5 bags of fuel
• By: Homeowner
Locate the ash drawer underneath the firepot and
slide the ash drawer straight out. Empty into a non-
combustible container and re-install ash drawer.
5. Disposal of Ashes
• Frequency: As needed
• By: Homeowner
Ashes should be placed in a metal container with a
tight-fitting lid. The closed container of ashes should
be placed on a non-combustible floor or on the ground,
well away from all combustible materials, pending final
disposal.
Ifthe ashes aredisposed of by burial in soil or otherwise
locally dispersed, they should be retained in the
closed container until all cinders have been thoroughly
cooled.
B. General Maintenance and Cleaning
1. Types of Fuel
Dependingon the type of fuelyou are burning willdictate how
often you have to clean your firepot.
Ifthefuel you are burning hasa high dirt or ashcontent or you
are burning shelled field corn, it may be necessary to clean
the firepot more than once a day.
Dirty fuel will cause clinkers to form in the firepot. Aclinker is
formed when dirt, ash or a non-burnable substance is heated
to 2000F (1093C) and becomes glass-like. See page 14 in
this section for more details on fuels with high ash content.
2. Cleaning Firepot with Cleaning Rod & Firepot
Clean-Out Tool
• Frequency: Daily or more often as needed
• By: Homeowner
a. The appliance must be in complete shutdown and
cool and the exhaust blower off. NOTE: If you are
just cleaning the firepot, there is no need to unplug the
insert.
b. Pull firepot cleaning rod OUT and IN a couple of times
to help shake debris loose. See page 13.
If rod is hard to pull, it may be necessary to use your
firepotclean-outtooltochipawaymaterialthathasbuilt
uponthebottomplateof the firepot and to push out any
clinkers. Largerclinkers may have to be removed from
the top of the firepot. Corn clinkers can be especially
difficult to break up.
c. The firepot floor plate must be fully closed when
finished. See Figure 9.3 on page 9.
3. Ash Removal from Firebox
• Frequency: Weekly or more frequently depending on
ash build-up
• By: Homeowner
a. There must not be any hot ashes in the firebox during
cleaning so allow the appliance to completely cool.
Frequent cleaning of the ash in the firebox will help
slow down the build-up of ash in the exhaust blower
and vent system.
b. Plug in your appliance, if unplugged, and turn the
thermostat on and immediately shut it off to start the
exhaust blower on its cycle time. It will pull fly ash out
the exhaust instead of into the room.
c. Open door. There are 2 cleaning slide plates to the
left and right of the firepot with finger holes. Pull both
slide plates out and sweep the remaining ash from the
firebox into the 2 open holes. A paint brush works well
for this. Close slide plates.
d. This ash is deposited in the same ash drawer as the
firepotdebris.Theash drawer should be emptied every
Disposal of Ashes.
• Ashes should be placed in metal container with tight
fitting lid.
• Ashesshould be retained in closed container untilall
cinders have thoroughly cooled.
WARNING
WARNING
Fire Risk.
• NEVER pull firepot cleaning rods or cleaning slide
plates when appliance is operating. Hot pellets
may fall into ashpan and may start a fire or have
mis-starts due to lack of vacuum.
WARNING
Fire Risk.
• The cleaning slide plates must be fully CLOSED
when appliance is operating. Hot pellets may fall
into ash pan and start a fire.

June 25, 2015 7019-229C 13
Santa Fe Pellet Insert
Figure 13.1
Cleaning
Rods
10 Heat Exchanger Tubes
WARNING
Heat exchanger cleaning rods may be warm to
the touch. For safety purposes wear gloves.
Do not pull heat exchanger cleaning rods
while appliance is operating.
Push cleaning rods IN when done, DO NOT
leave cleaning rods OUT. Injury can occur.
6. Cleaning Heat Exchanger Chambers
• Frequency: Weekly or every 1 ton of fuel
• By: Homeowner
T he amount of ash buildup in the firebox will be a good guide
to determine how often you should clean the heat exchang-
ers.
a. Allow the appliance to completely cool down before
pulling the cleaning rods. Turn the thermostat on and
then immediately off to start the exhaust blower on its
cycle time. It will pull fly ash out the exhaust instead
of into the room.
b. Locatethe2exposedrodsdirectly underneath the heat
exchanger tubes. Figure 13.1.
c. To clean, pull the rods straight out until it stops,
approximately 8 inches (203mm). Slide the rods OUT
and IN a couple of times.
7. Cleaning Beneath Heat Exchanger
• Frequency: Monthly or every 1 ton of fuel
• By: Homeowner
A more thorough cleaning is needed to remove the excess
ash that is left behind from the use of the cleaning rods for
the heat exchanger tubes. The ash will be resting on the
back of the baffle.
This will require removing the baffle and cast brick set.
Please refer to pages 17 for a detailed explanation of remov-
ing the baffle and brick set.
NOTE:Thereare heavy dutyvacuumcleaners specifically
designed for solid fuel appliance cleaning.
8. Cleaning the Glass
• Frequency: When clear view of the firepot is obscure
• By: Homeowner
a. Appliance must be completely cool before cleaning
glass.
b. Use a damp paper towel or any non-abrasive glass
cleaner. Wipe off with dry towel.
9. Door Latch Inspection
• Frequency: Prior to heating season
• By: Homeowner
The door latch is non-adjustable but the gasketing between
theglassandfireboxshould be inspected periodically to make
sure there is a good seal.
NOTE: There is no gasket on the bottom of glass.
10. Cleaning the Hopper
• Frequency: Monthly or every 1 ton of fuel
• By: Homeowner
After burning approximately 1 ton of fuel you will need to
clean the hopper to prevent sawdust build-up. A combina-
tion of sawdust and pellets on the auger reduces the amount
of fuel supply to the firepot. This can result in nuisance shut-
downs and mis-starts.
1. The appliance must be in complete shutdown. Allow the
appliance to completely cool down.
2 Empty the hopper of any remaining pellets.
3. Vacuum the hopper and feed tube.
Handle glass assembly with care.
When cleaning glass:
• Avoid striking, scratching or slamming glass.
• Do NOT clean glass when hot.
• Do NOT use abrasive cleaners.
CAUTION
• Use a hard water deposit glass cleaner on white film.
• Refer to maintenance instructions.
Glass
Handle glass with care.
• Inspect the gasket to ensure it is undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
assembly removed.
WARNING
• Do NOT operate with glass cracked, broken or scratched.
Glass

14 7019-229C June 25, 2015
Santa Fe Pellet Insert
11. Cleaning Exhaust Blower - Requires No Lubrication
• Frequency: Yearly or as needed
• By: Quality Service Technician/Homeowner
a. Remove left & right brick. The exhaust blower is behind
therightbrick. Vacuumthisareathoroughly. See page
17 for removing bricks. Re-install bricks when done.
12. Cleaning Convection Blower - Requires No
Lubrication
• Frequency: Yearly or as needed
• By: Qualified Service Technician
• Task: Contact your local dealer.
13. Soot and Fly Ash: Formation & Need for Removal
in Exhaust Venting System.
• Frequency: Yearly or more frequently depending on
ash build-up
• By: Qualified Service Technician/Homeowner
The products of combustion will contain small particles of
fly-ash. The fly-ash will collect in the exhaust venting system
and restrict the flow of the flue gases. Incomplete combus-
tion, such as occurs during startup, shutdown, or incorrect
operation of the room heater will lead to some soot formation
which will collect in the exhaust venting system. The exhaust
venting system should be inspected at least once every year
to determine if cleaning is necessary.
The venting system may need to be cleaned at least once a
year or more often depending upon the quality of your fuel or
if there is a lot of horizontal pipe sections. Ash will build up
more quickly in the horizontal sections.
14. Preparing Firebox for Non-Burn Season
• Frequency: At the end of the heating season
• By: Homeowner
a. Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is off.
b. Remove all ash from the firebox and vacuum thoroughly.
c. Paint all exposed steel, including cast-iron.
• UsetheTouch-Uppaintsuppliedwiththeappliance;
or,
• Purchase paint from your local dealer.
• Must use a high-temperature paint made specifi-
cally for heating appliances.
C. High Ash Fuel Content Maintenance
• Frequency: When the ash build-up exceeds more
than half way up the firepot.
• By: Homeowner
Poor quality pellet fuel, or lack of maintenance, can create
conditions that make the firepot fill quickly with ashes and
clinkers.
This condition makes the appliance susceptible to overfilling
the firepot with pellets which may result in smoking, sooting
and possible hopper fires. Figure 14.1 shows an example
where the firepot overfills, pellets back up into the feed tube
and ash has accumulated in the firebox.
An inefficient and non-economical method of burning of fuel
caused by poor quality pellet fuel is shown in Figure 14.2.
The correct flame size when good quality, premium pellet
fuel is burned is shown in Figure 14.3.
If the ash buildup exceeds the half way point in the firepot
IMMEDIATE ATTENTION AND CLEANING IS REQUIRED.
Ash Build Up in Firebox
Pellets Back Up
In Feed Tube
Firepot Overfills
Tall, Lazy Flame, Orange in Color
Incorrect
Correct Flame Size, Yellow/White in Color
Correct
Figure 14.1
Figure 14.2
Figure 14.3
WARNING
Fire Risk
- High ash fuels, or lack of maintenance, can
cause the firepot to overfill. Follow proper shutdown
procedure if ash build up exceeds half way point.
- Failure to do so could result in smoking, sooting
and possible hopper fires.

June 25, 2015 7019-229C 15
Santa Fe Pellet Insert
D. Thermostat Battery Installation and
Replacement
NOTE: 2 AA batteries are included with the thermostat
and must be installed before the appliance can be oper-
ated.
Install fresh batteries immediately when the REPLACE
BATTERY warning begins flashing. The warning flashes
about two months before the batteries are depleted.
Even if the warning does not appear, you should replace
batteries once a year.
If batteries are inserted within two minutes, the time and
day will not have to be reset. All other settings are perma-
nently stored in memory.
Figure 15.1
Press and pull to remove

16 7019-229C June 25, 2015
Santa Fe Pellet Insert
With proper installation, operation, and maintenance your appliance will provide years of trouble-free service. If you do experience a prob-
lem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the corrective action to be taken.
This troubleshooting guide can only be used by a qualified service technician.
Error Message Possible Cause Corrective Action
Bad wall control or control board
3 wires have loose connections or installed
wrong
Replace wall control or control board
Check connections
BAD TC DROP TUBE
(TC = Thermocouple) Drop tube thermocouple is broken or leads are
reversed Check connections
Replace thermocouple
BAD TC FIREPOT
(TC = Thermocouple) Firepot thermocouple is broken or leads are
reversed Check connections
Replace thermocouple
SNAP DISC TRIPPED Overheat sensor (snap disc) has tripped
Convection blower may need cleaning
Turn power off to appliance and manually
reset snap disc then turn power back on
Clean convection blower if needed
VACUUM SW ERROR
(SW = Switch) Vacuum switch is bad
Vacuum hose is plugged/disconnected
Check connections. Bypass vacuum with
jumper wire, if runs, switch is bad. Replace
switch
Check vacuum hose
COMB BLOWER JAMMED Combustion blower is blocked/jammed Remove blockage
Replace blower if necessary
Must unplug appliance to clear error
AUGER JAMMED Auger jammed, feed motor bad Pull the feed system and inspect
Clear jam and Press Retry
MISSED IGNITION Igniter bad or poor harness connection
Out of fuel or fuel is bridging in hopper
Faulty firepot thermocouple connection has
shorted.
Check connections, if OK replace igniter
Break up bridging pellets. Refill hopper
Replace the thermocouple
Press Retry
MIN FIREPOT TEMP Out of fuel Refill hopper
Add handful of pellets to firepot to prime it
Press Retry
MAX DROP TUBE TEMP Appliance in over-heat condition
Flame height set too high
Components may need cleaning
Confirm setting matches burning fuel
Adjust flame height
Clean the firebox, heat exchanger, convec-
tion blower, firepot and ash pan
CONV BLOWER JAMMED Convection blower blocked/jammed Remove blockage
Replace blower if necessary
Must unplug appliance to clear error
CHECK ASHPAN Auto-clean jammed
Auto-clean switch is bad
Linkage has become disconnected
If ashpan is empty, check for a jam. Use a
screw driver and firmly push in the firepot
floor holes and flex spring and push toward
home to release jam
Replace switch
Reconnect linkage
SCREEN GOES BLANK Static discharge or nearby lightning or
Electric fast transients at the input mains Wait 25 seconds and press any key to
refresh the screen.
Hopper lid not closed all the way
Switch is out of adjustment (auger will not
function)
Close the lid. If that didn’t work replace the
switch
Adjust or replace switch
Firebox door is not latched properly Adjust or replace door switch
Out of fuel Check the fuel level, if OK the switch may be
out, replace switch
4 Troubleshooting Guide

June 25, 2015 7019-229C 17
Santa Fe Pellet Insert
5 Service Parts Replacement 2. Convection Blower Replacement
a. The blower is located at the bottom rear of the insert.
If an outside air kit is also installed, you will first need
to remove the outside air flange by removing the 2
screws using a Phillips head screwdriver. You do not
need to remove the flex pipe from the flange.
b. Remove panel set and disconnect flue.
c. Pull appliance out onto the hearth.
d. Remove left access panel and then slide out left side
panel of appliance to expose the convection blower.
Loosen wing nut on the vacuum switch and remove
vacuum switch to allow room to remove the blower.
e. Disconnect the wires from the blower. The wires
comingfrom the wiring harnessare purple &white and
the wires from the blower are black.
f. The blower is held in place with a magnet. A wing
nut and plate are installed at the factory for shipping
purposes only. This can be removed once the
appliance is installed. Lift up blower from the magnet
and remove.
g. Re-install in reverse order.
Wing nut & plate
installed for shipping
purposes only.
Discard
Magnet attached to
bottom of blower
Blower
locator plate
A. Blower Replacement
1. Combustion (Exhaust) Blower Replacement
a. Remove panel set and disconnect flue.
b. Pull appliance out onto the hearth.
c. Remove right access panel and then slide out right
side panel of appliance, held in place with 2 screws,
to expose the exhaust blower.
d. Disconnect the white and blue wires from the blower.
e. Remove blower mounting screws (not housing bolts),
Figure 17.2, from blower housing and remove blower.
The replacement blower is shipped with a housing. If
youdo not need the housing, discard it. If you do need
tothereplace the housing youwill also need to replace
the gasket. See Service Parts starting on page 24 for
the part number.
f. Re-install in reverse order.
Exhaust Blower
Figure 17.1
Blue Wire
White Wires
Housing Bolts
Blower Mounting
Screws
Figure 17.2 Figure 17.3

18 7019-229C June 25, 2015
Santa Fe Pellet Insert
Brick is flush against back wall
Notches
exposed
C. Re-installing Baffle & Brick Set
1. Place right brick in behind the right bracket, and then
slide to the left so the tabs are behind the center brick.
Figure 18.4.
2.
The brick will be flush against the back wall and notches
exposed in the side bracket. Figure 18.5.
3. Lift slightly and pull the right edge of the brick forward until
it stops and then drops down into both top and bottom
notches of right bracket and locks into place. Figures
19.1 and 19.2.
4. Repeat for left brick.
5. Insert baffle into top front inside the firebox and pull for-
ward. Then raise up the bottom end and insert baffle tab
into slot on the top of the right bracket to lock into place.
Figure 19.3. Place the left side hook at the bottom of the
baffle over the top edge of brick for stability. Figure 19.4.
6. The baffle does not completely cover the top of the firebox.
There is an opening on the left as shown in Figure 19.5.
Tabs
Figure 18.4
Figure 18.5
B. Baffle & Brick Replacement
1. Follow proper shutdown procedures in Section 10.
2. The top baffle has a hook on the bottom left side that
rests on the top lip of the cast brick. There is a tab on
the bottom right side that hooks into the side bracket.
Remove the top baffle by first pulling the baffle forward
until back edge drops down. Then slide baffle back until
the front edge clears the shelf that it had been resting on.
Figure 18.1.
3 . The top baffle must be removed before you can remove
the right and left brick. Remove the right brick by hold-
ing top lip of brick and lifting up, then push outside edge
back. Slide brick to the right until it is flush with the firebox.
Rotate the inside edge of the brick forward and remove
brick. Repeat for left brick. Figure 18.2.
Remove Right
& Left Brick
Hookon
left side Tab on
right side
Vacuum
Exhaust Area
Right Brick
Removed
Figure 18.1
Figure 18.2
Figure 18.3

June 25, 2015 7019-229C 19
Santa Fe Pellet Insert
Figure 19.2
Hook on
left side Tab on
right side
Figure 19.3
Figure 19.4
Figure 19.5
Lift brick, pull forward at an angle
and drop down into notches
Figure 19.1
Re-installing Baffle & Brick Set (Cont’d)

20 7019-229C June 25, 2015
Santa Fe Pellet Insert
D. Igniter Replacement
a. Shutdowntheappliancebyturning down thethermostat
and let the appliance completely cool down. After the
appliance has cooled down, unplug it and remove the
ash drawer.
b. The wire leads to the igniter are connected to the wire
harness with 1/4 inch (6mm) male / female spade
connectors. Thesewireswillpullforwardapproximately
4 to 5 inches (102mm to 127mm) through the grommet
at the back of the ash drawer chamber. Disconnect
the spade connections and remove the igniter from the
chamber. Loose the thumb screw and slide igniter out.
c. Install new igniter into the chamber and tighten the
thumb screw. Re-connect the wires to the 2 leads with
the spade connectors.
d. Pushexcesswireleadsbackthroughthegrommet,one
wire at a time, to take-up the 4 to 5 inches (102mm to
107mm) previously pulled out. This will keep the wires
out of the way of the ash drawer. Double check that
the igniter wires are clear of any movement, i.e. ash
drawer, firepot cleaning rod, cleaning slide plates, etc.
f. Re-install the ash drawer and then re-install the side
panel and re-connect the power.
E. Glass Replacement
a. The door handle and face must be removed
first. Follow instructions found on page 18 of the
installation manual.
b. Removedoorfrom the insert andlay on a flat surface
face down.
c. Using a screwdriver, tap the bottom of the rope
retainer rod to push it up out of the hole. The top
end of the rod will slide up. Swing the rod toward
you from the bottom and remove the rod. Repeat for
other side.
d. Remove old glass and replace with new glass.
e. Slide the retainer rod into the top hole first, and then
line up the bottom crimped end with the hole in the
door. Thecrimpedendmustbeparallelwiththeglass
in order to insert it into place. Figure 20.2.
Figure 20.1
Crimped end must be
parallel with the glass
Crimped end
at the bottom
Slide this
end in first
Rope Retainer
Rods
Glass
Figure 20.2
Igniter
Igniter Bracket
Thumb Screw
• Glass is 5mm thick high temperature heat-resis-
tant ceramic glass.
• DO NOT REPLACE with any other material.
• Alternate material may shatter and cause injury.
WARNING
