Quadra-Fire SANTAFE-MBK Safety guide

R
www.quadra re.com 7050-128B September 3, 2009
SANTA FE PELLET STOVE
Owner’s Manual
Installation and Operation
SANTAFE-MBK
Model:
WARNING
Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage,
bodily injury or even death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Do not over re - If any external part starts to
glow, you are over ring. Reduce feed rate.
Over ring will void your warranty.
• Comply with all minimum clearances to com-
bustibles as speci ed. Failure to comply may
cause house re.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re of c ials or authorities having
jurisdiction about restrictions, installation inspection,
and permits.
CAUTION
Tes ted and approved for wood pellets and shelled
e ld corn fuel only. Burning of any other type of fuel
voids your warranty.
CAUTION
O-T L
Tested and
Listed by
Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual with
party responsible for use
and operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT
DISCARD
WARNING
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as replace.
• A lert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
fl a mmable materials.
• Keep clothing, furniture, draperies and other
fl a mmable materials away.
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.

Page 2 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
Hearth & Home Tec hnologies welcomes you to our tradition
of excellence! In choosing a Quadra-Fire appliance, you
have our assurance of commitment to quality, durability, and
performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation of
our stoves, inserts and replaces. And yet we are old-fash-
ioned when it comes to craftsmanship. Each unit is meticu-
lously fabricated and surfaces are hand- nished for lasting
beauty and enjoyment. Our pledge to quality is completed
as each model undergoes a quality control inspection.
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.

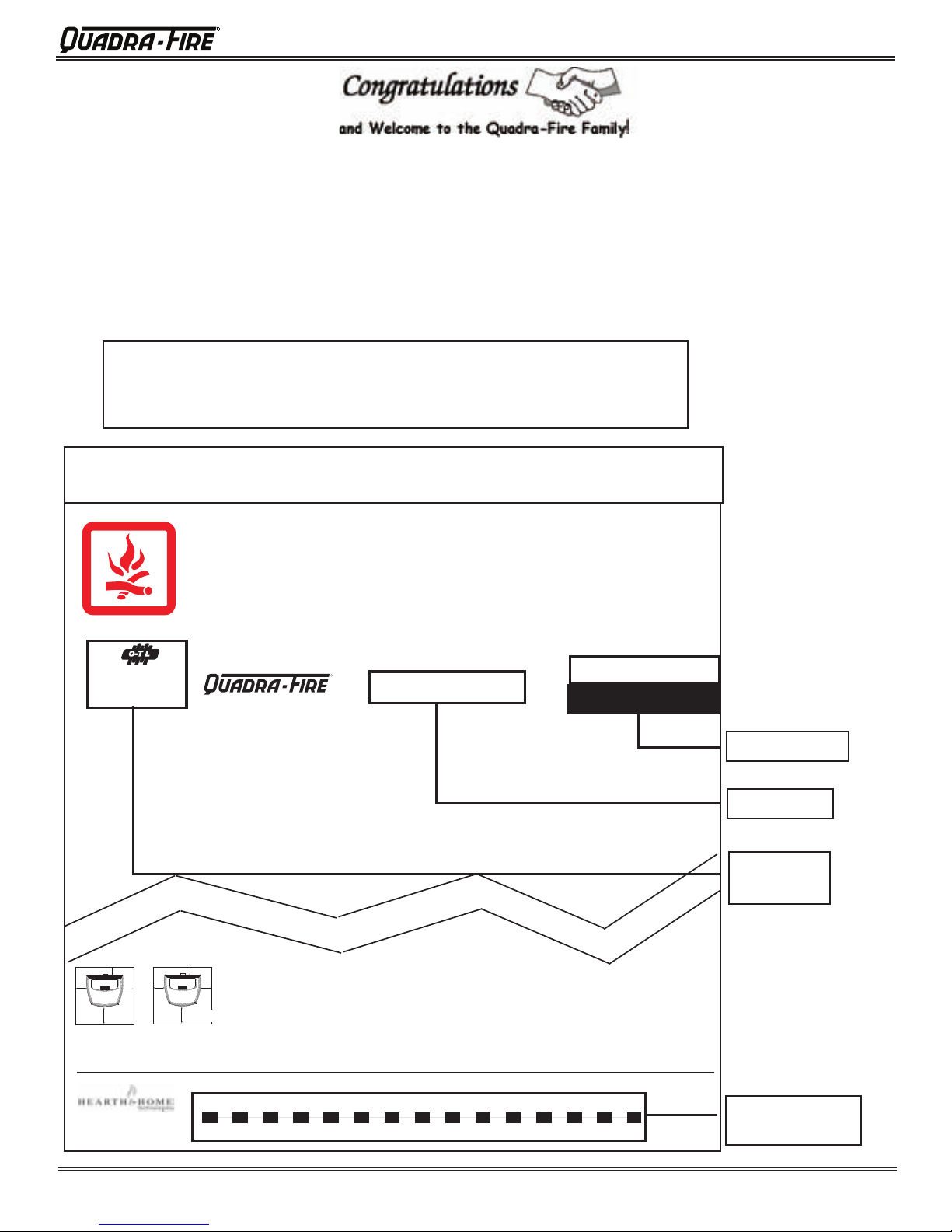

SAMPLE: CLEARANCE TO COMBUSTIBLES LABEL
LOCATION: Back side of left side panel.
Manufactured
Date
Serial Number
Model Name
Test Lab &
Report No.
Listed Solid Fuel Room Heater/Pellet Type. Also suitable for Mobile Home
Installation. This appliance has been tested and listed for use in Manufactured Homes
in accordance with OAR 814-23-9000 through 814-23-909.
Tested to: ASTM E1509-95, ULC S627-00, ULC/ORD-C1482-M1990 Room Heating
Pellet BurningType, (UM) 84-HUD FOR USE ONLY WITH PELLETIZED WOOD OR
SHELLED FIELD CORN FUEL.
Input Rating: 30,000 Btu's/hr
Electrical Rating: 115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 AMPS.
Route power cord away from unit. Do not route cord under or in front of appliance.
DANGER: Risk of electrical shock. Disconnect power supply before servicing. Replace
glass only with 5mm ceramic available from your dealer. To start, set thermostat above
room temperature, the stove will light automatically. To shutdown, set thermostat to below
room temperature. For further instruction refer to owner's manual.
Keep viewing and ash removal doors tightly closed during operation.
U.S. ENVIRONMENTAL PROTECTION AGENCY
This model is exempt from EPA certification under 40 CFR 60.531 by definition [Wood Heater (A) "Air-to-Fuel Ratio"].
2009 2010 2011 JAN FEB MAR APR MAY JUNE JULY AUG SEPT OCT NOV DEC
7050-129
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER L'ÉTIQUETTE
Made in China./Fait Aux Chine
CAUTION : HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN, CLOTHING AND
FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. SEE NAMEPLATE AND INSTRUCTIONS.
Operate this unit with fuel hopper lid closed. Failure to do so may result in emissions products' combustion from the
hopper under certain conditions. Maintain hopper seal in good condition. Do no over fill the hopper.
ATTENTION: CHAUD LORS DE L'OPÉRATION. NE PAS TOUCHER. GARDEZ LES ENFANTS ET LES VÊTEMENTS LOIN DE
L'ESPACE DÉSIGNÉ DE L'INSTALLATION. LE CONTACT PEUT CAUSER DES BRÛLURES À LA PEAU. VOIR L'ÉTIQUETTE ET
LES INSTRUCTIONS. Opérez cet appareil avec le couvercle de la trémie fermé. Le défaut de ne pas suivre les instructions peut résulter,
sous certaines conditions, en une combustion des émissions des produits venant de la trémie. Ne pas remplir la trémie trop pleine.
Testé à: ASTM E1509-95, ULC S627-00, ULC/ORD-C1482-M1990 Room Heating. Pellet Burning Type,
(UM) 84-HUD POUR USAGE AVEC LES BOULETTES DE BOIS OU DE COMBUSTIBLE DE MAIS
ÉCOSSÉ DES CHAMPS.
Puissance de Rendement: 30,000 Btu's/hr
Puissance Électrique: 115 VAC, 60 Hz, Début 4.1 Amps, Courir 1.1 Amps,
Éloignez le fil électrique de l'appareil. Ne pas faire passer le fil électrique au dessus ou en dessous de l'appareil.
DANGER: Il y a risque de décharge électrique. Déconnectez le fil électrique de la prise de contact avant le service.
Remplacez la vitre seulement avec une vitre céramique de 5 mm disponible chez votre fournisseur.
Pour allumer, monter la température du thermostat au dessus de la température de la pièce, le poêle s'allumera
automatiquement. Pour éteindre, descendre la température du thermostat en dessous de la température de la
pièce. Pour des instructions supplémentaires, référez vous au manuel du propriétaire. Gardez la porte
d'ouverture et la porte des cendres fermées hermétiquement durant l'opération.
Appareil de chauffage de combustible solide/de type de boulettes. Accepté dans l'installation dans
les maisons mobiles. Cet appareilaété testé et enregistré pour l'usage dans les Maisons Mobiles
en accord avec OAR 814-23-9000 jusqu'à 814-23-909.
1445 Highway North
Colville, WA 99114
Manufactured by:Fabriqué par:
R
Report/Rapport
061-S-74-6.2
SERIAL NO. /NUMÉRO DU
Santa Fe Pellet Stove
The non-combustible floor protector must be 1/2" (13mm) minimum
thickness, "k" value=0.49, Type II thermal protection R = 1.0 or
greater.
FLOOR PROTECTION / PROTECTION DU SOL
* Non-combustible floor protection must extend beneath the flue
pipe when installed with horizontal venting or under the Top Vent
Adapter with vertical installation. RECOMMENDED IN USA;
REQUIRED IN CANADA
Le protecteur de plancher doit être d'un minimum de 1/2" (13mm) d'épaisseur,'k"
value = 0.49, Type II thermique R=1.0 au une plus grande de matériel
incombustible ou équivalent.
*Un protecteur incombustible de plancher doit s'étendre sous le conduit de
cheminée pour une installation de ventilation horizontale ou sous un adapteur de
ventilation de dessus pour une installation verticale.
ÉTATS-UNIS-RECOMMANDÉ; CANADA - REQUIRENT.
www.quadrafire.com
007
O-T L
Tes ted and
Listed by
Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
G= 2 in.
H*=2 in.
I = 6 in.
G
I
*H
G
USA
G
I
*H
G
G= 203mm.
H*=51mm.
I = 457mm.
CANADA
SAMPLE
NOTE: Consult insurance carrier, local building inspector, fire
officials or authorities having jurisdiction over restrictions,
installation inspection and permits.

R
September 3, 2009 7050-128B Page 3
Santa Fe Pellet Stove
Section 1: Listing and Code Approvals
A. Appliance Certi cations .. . . .. . . . . . . . .. . . . . . . .4
B. Mobile Home Approved .. . .. . . . . . . . .. . . . . . . ..4
C. Glass Speci cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. Electrical Rating .................................. 4
E. BTU & Ef ciency Speci cations . . . . . . . . . . 4
Section 2: Getting Started
A. Design, Installation & Location
Considerations ....................................5
B. Locating Your Appliance & Chimney . . 6
C. Thermostat Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
D. Draft ....................................................6
E. Negative Pressure .. .. ... ... .. ... .. ... ... .. ... .. 6
F. Fire Safety .......................................... 7
G. Tools & Supplies Needed ...................7
H. Inspect Appliance & Components
and Pre-Use Check List ......................7
Section 3: Dimensions & Clearances

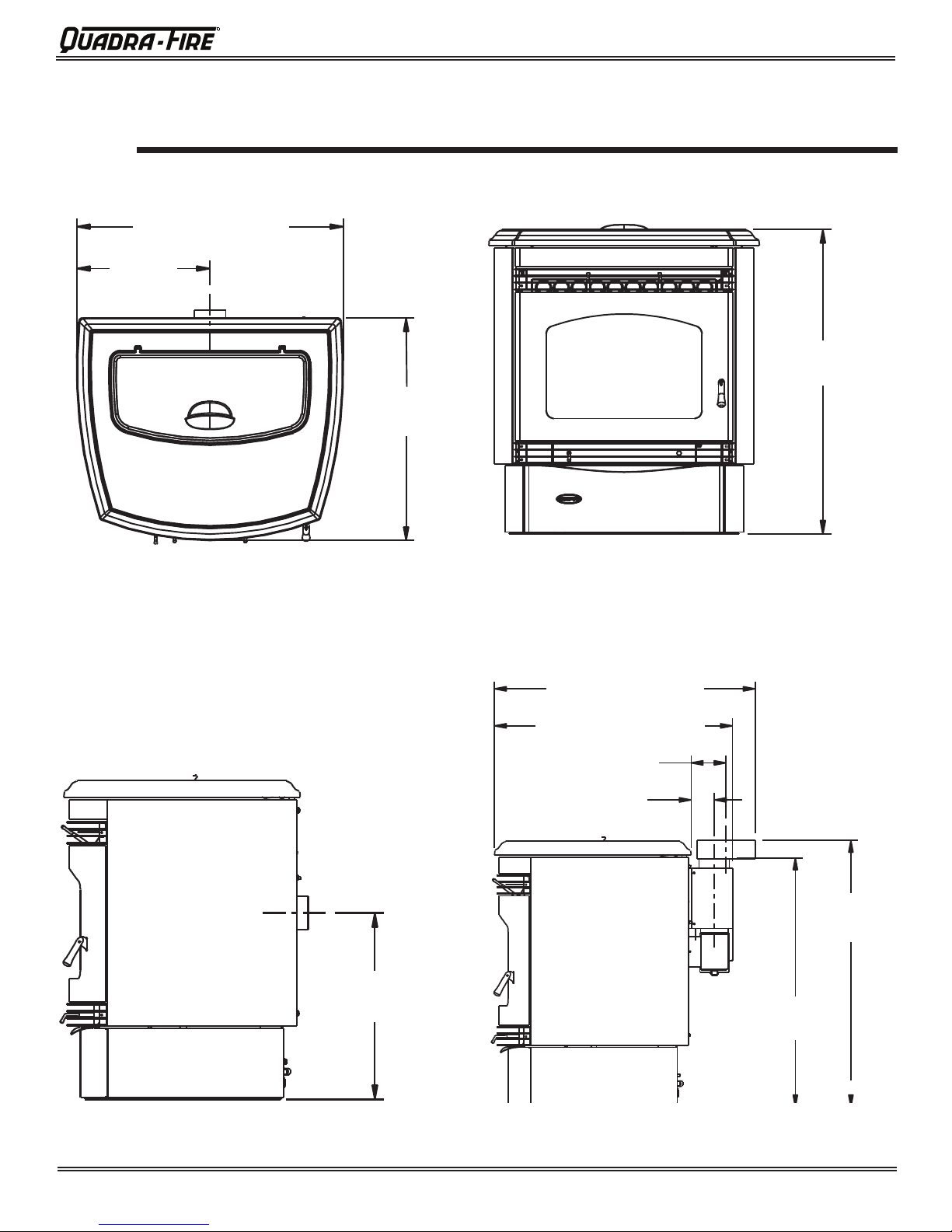

A. Appliance Dimensions ........................8
B. Clearances to Combustibles ...............9
C. Hearth Requirements..........................10
Section 4: Vent Information
A. Chimney & Exhaust Connection . . . . . . . . . 11
B. Venting Termination Requirements ....11

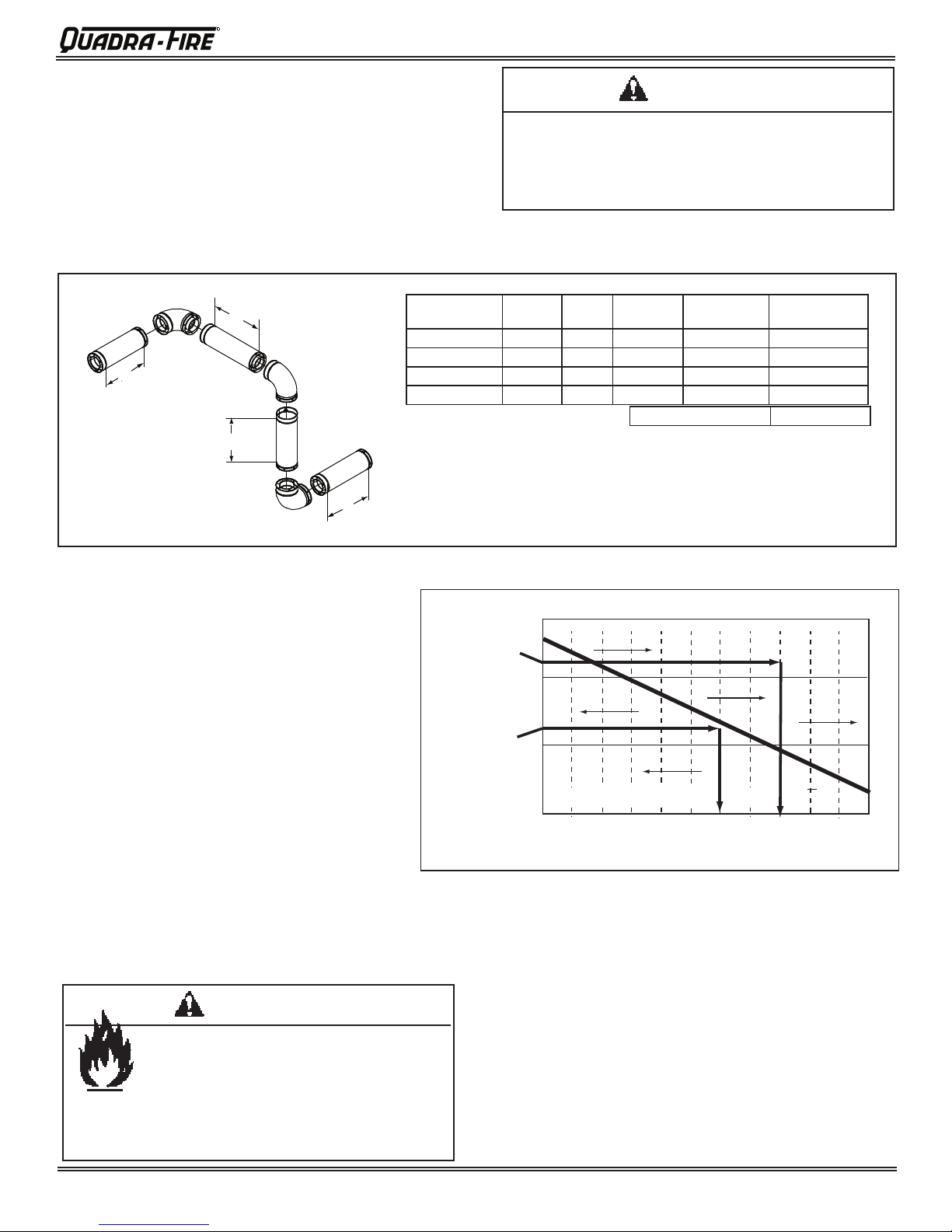

C. Equivalent Feet of Pipe . . . . . . . . . . . . . . . . . . . . . . . 12
D. Pipe Selection Chart ............................12
Section 5: Venting Systems

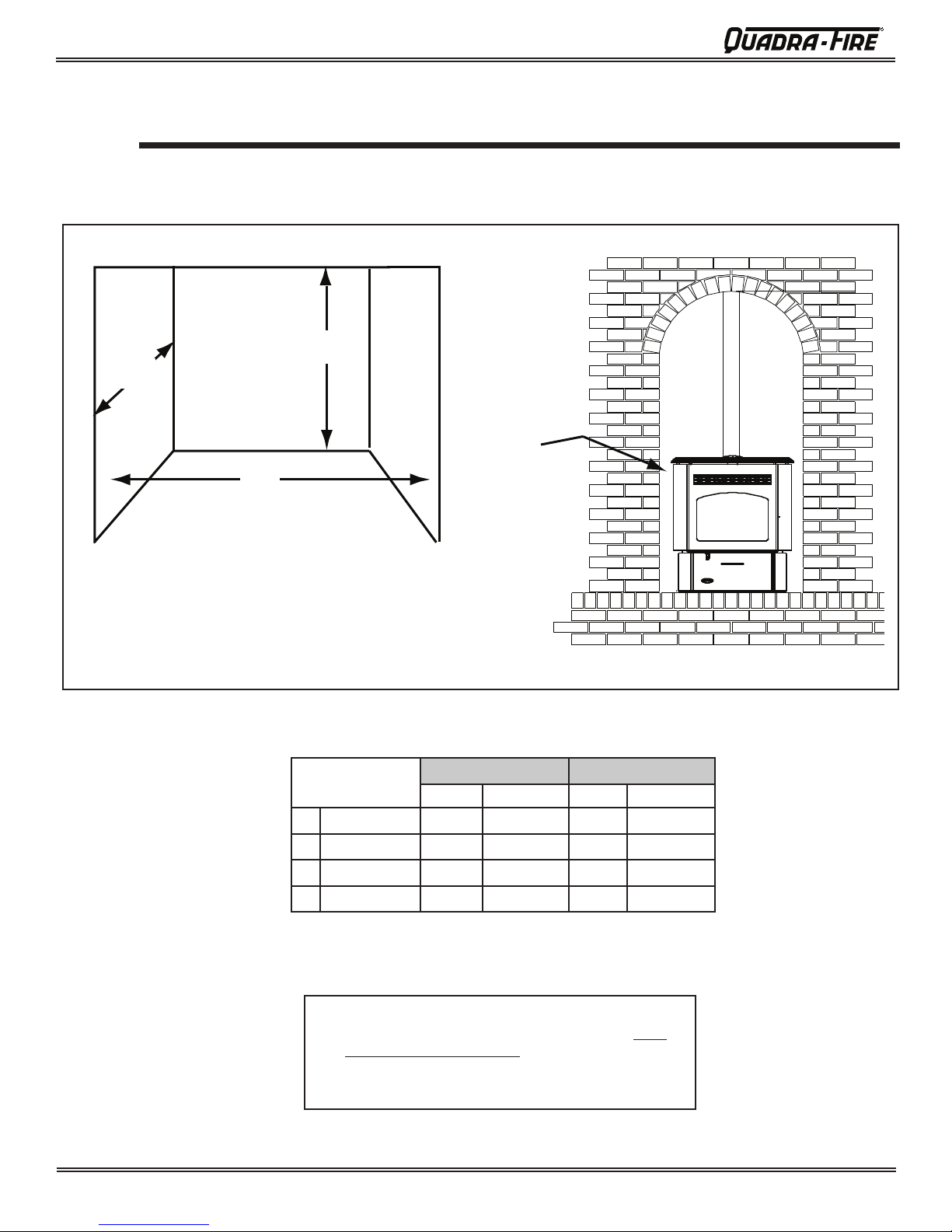

A. Alcove ................................................. 13

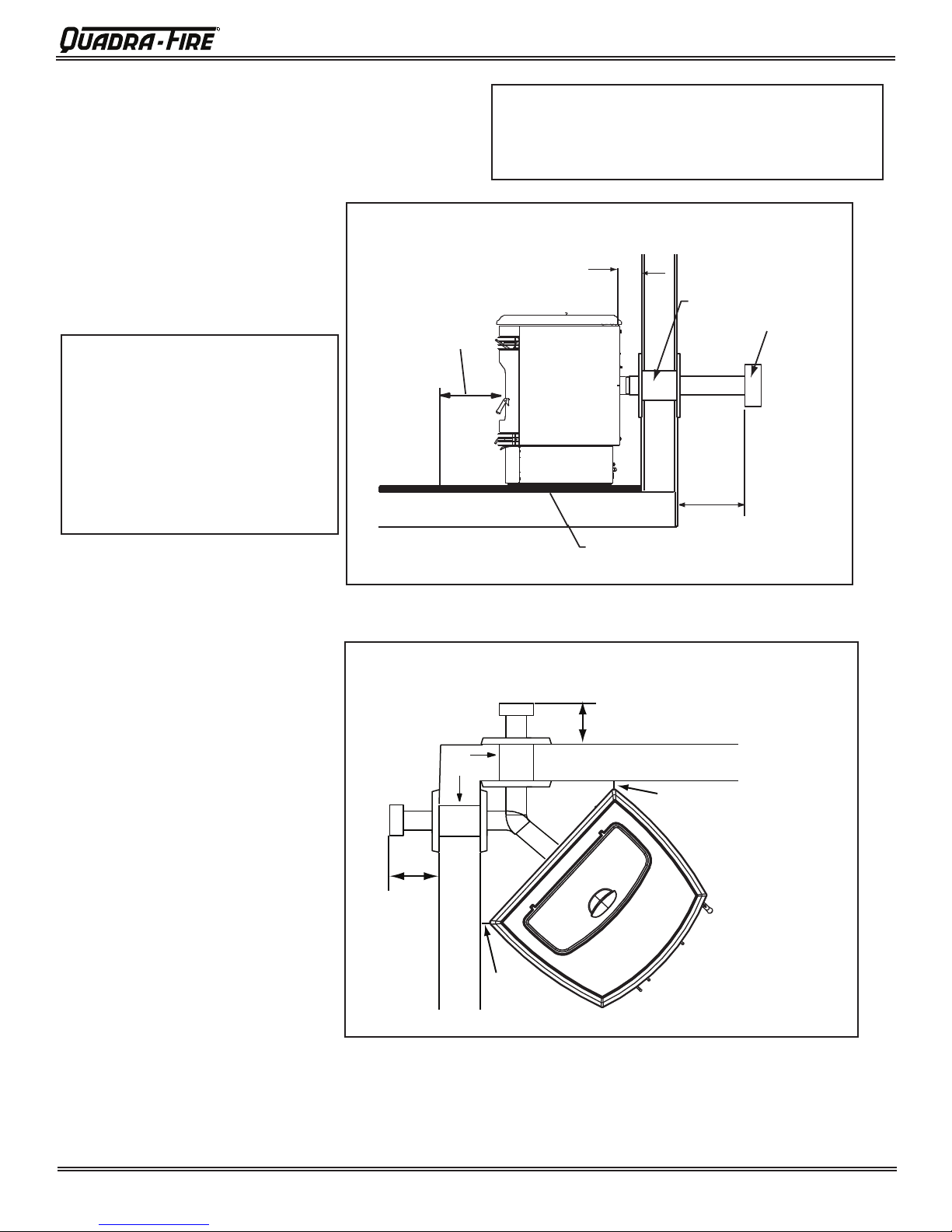

B. Through the Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

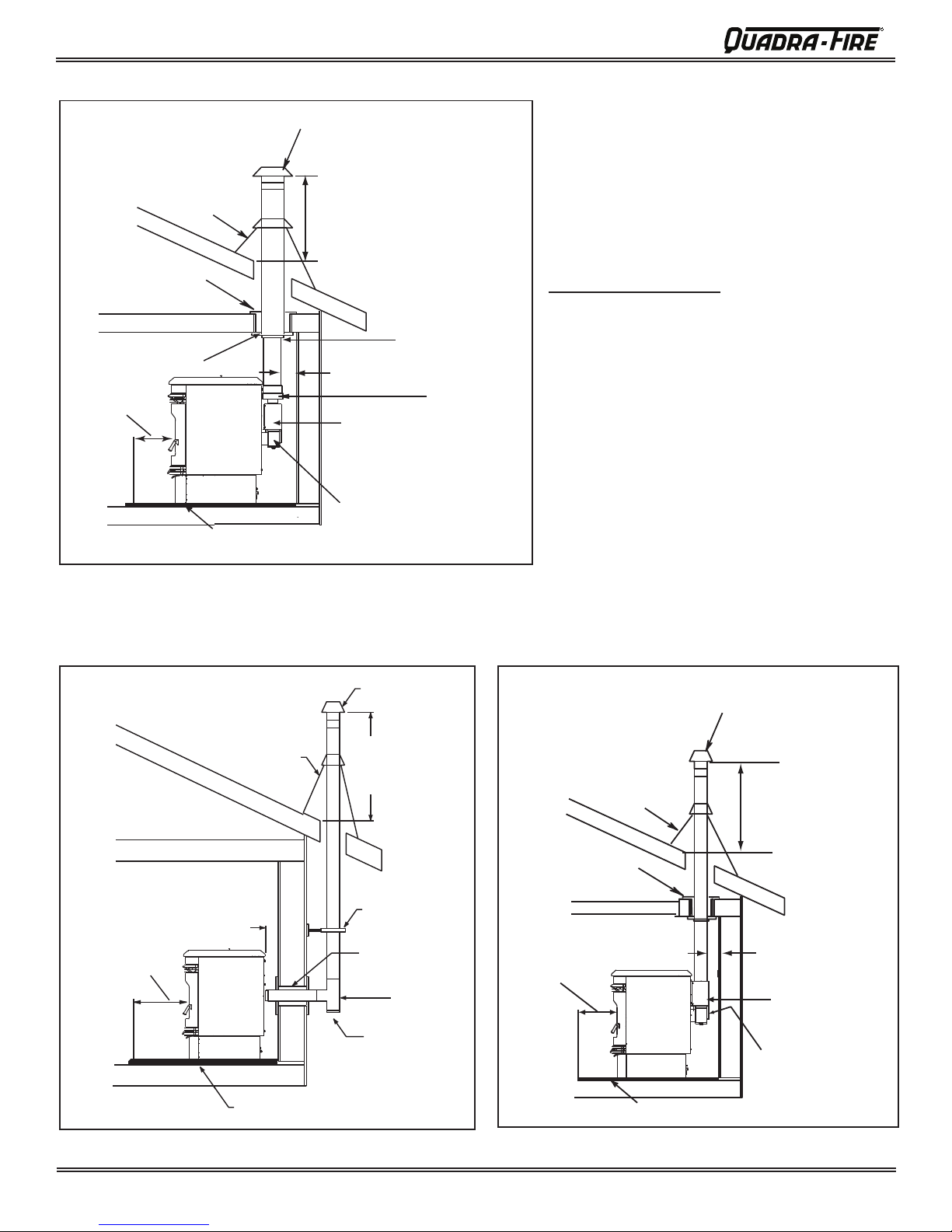

C. Vertical Into Existing Class A Chimney 15
D. Through the Wall & Vertical - External 15
E. Vertical - Internal
F. Masonry .............................................. 16
G. Alternate Masonry ...............................16
Section 6: Mobile Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 7: Appliance Set-Up

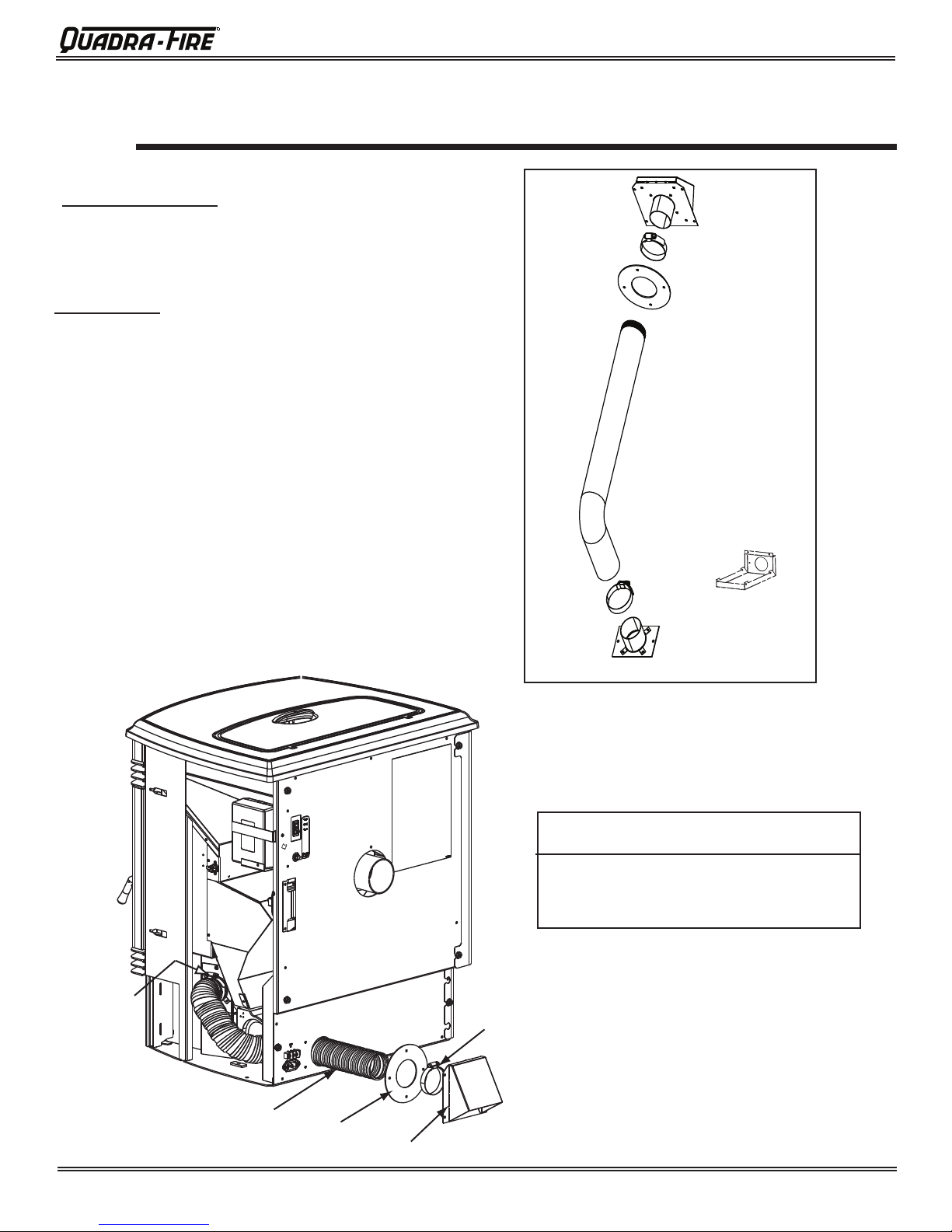

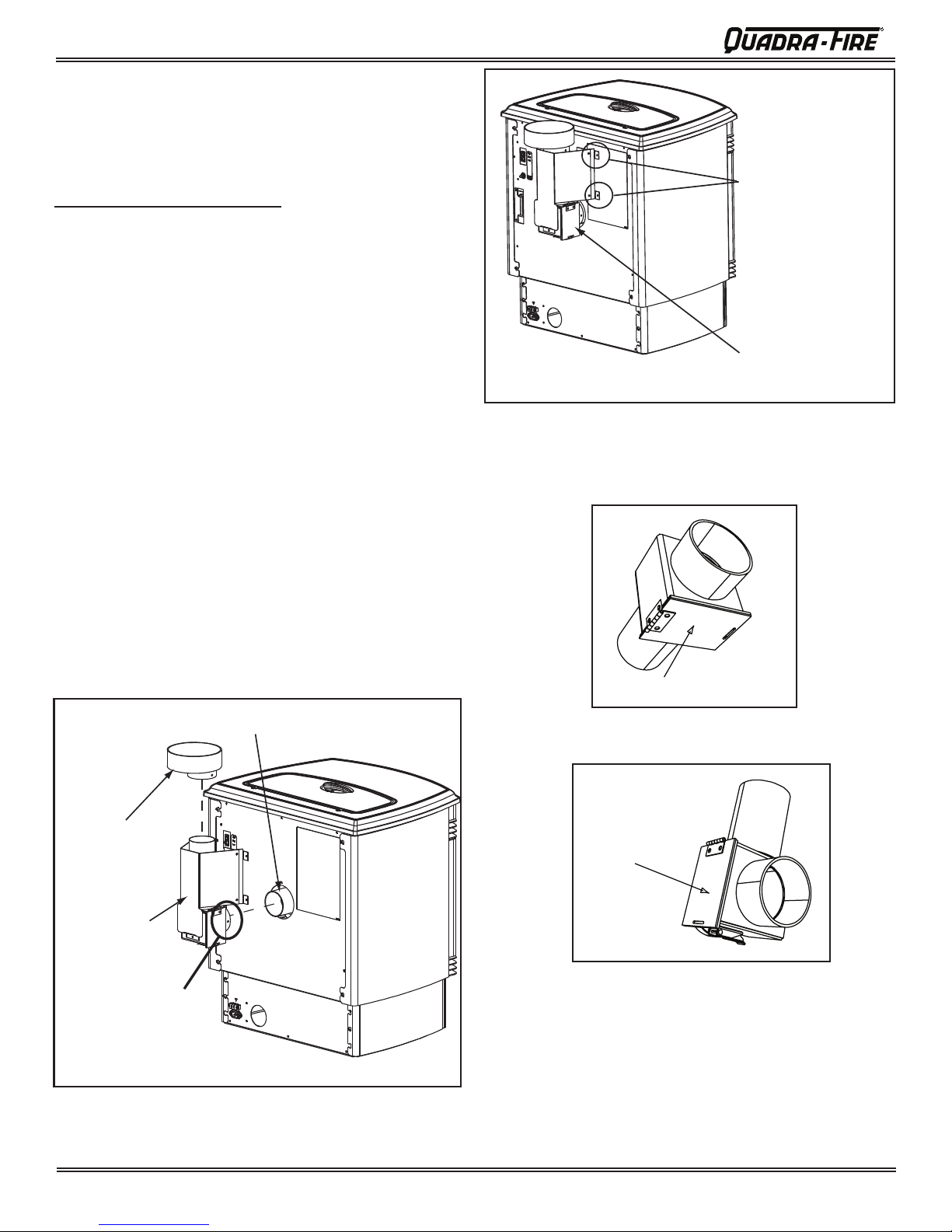

A. Outside Air Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
B. Top Vent Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

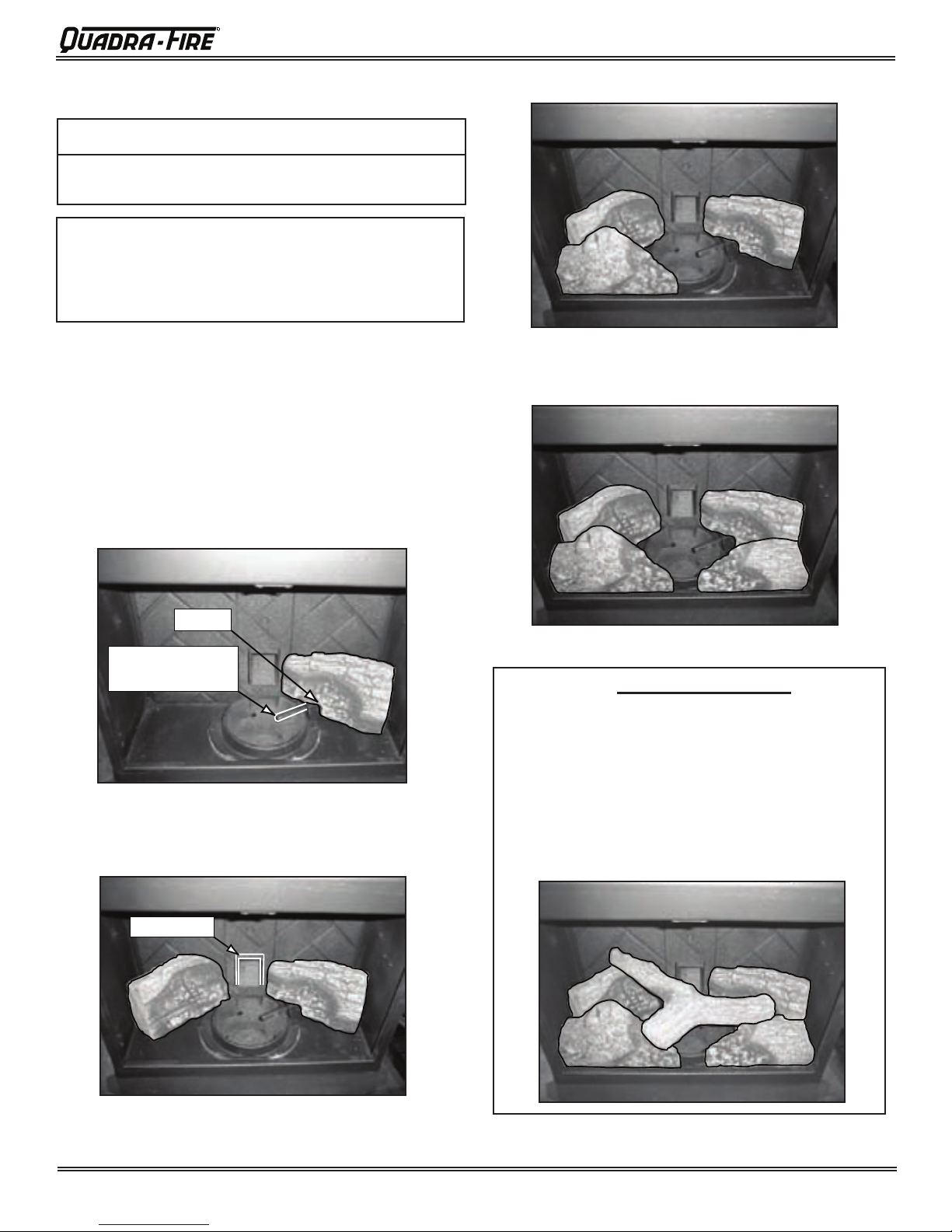

C. Log Set Placement ..............................20
D. Grille & Trim Ring Installation .............21
E. Thermostat Installation ........................22
Section 8: Operating Instructions
A. Fuel Size, Material & Storage .............23
B. General Operation Information ...........24
C. Before Your First Fire ......................... 24
D. Starting Your First Fire . . . . . . . . . . . . . . . . . . . . . . . . 24
E. Fire Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
F. Feed Rate Adjustment .......................25
G. Ignition Cycles .................................... 25
H. Frequently Asked Questions...............26
Section 9: Troubleshooting ............................ 27-29
Section 10: Maintaining & Servicing Appliance
A. General Maintenance & Cleaning . ......30-33
B. High Ash Fuel Content Maintenance .. 34
C. Blower & Snap Disc #2 Replacement . 35-36
D. Igniter Replacement ............................37
E. Baffl e & Brick Removal .......................37
F. Baffl e & Brick Replacement ................ 38
G. Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Section 11: Reference Material
A. Component Functions.........................40-41
B. Component Locations .........................42
C. Exploded Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
D. Service Parts & Accessories . . . . . . . . . . . . . . . 44-47
E. Service & Maintenance Log . .. .. .. . . . .. .. . . 48-49
E. Warranty Policy ...................................50-51
G. Contact Information .............................52
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the replace or to property.

Page 4 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
1Listing and Code Approvals
A. Appliance Certification
C. Glass Specifications
E. BTU & Efficiency Specifications
This appliance is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside
combustion air inlet is provided.
The structural integrity of the mobile home fl oor, ceiling, and
walls must be maintained. The appliance must be properly
grounded to the frame of the mobile home and use only listed
pellet vent Class “L” or “PL” connector pipe.
A Quadra-Fire Outside Air Kit must be installed in a mobile
home installation.
B. Mobile Home Approved
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with the
ASTM E1509-95, ULC S627-00, ULC/ORD-C-1482-
M1990, (UM) 84-HUD,
D. Electrical Rating
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 Amps
*BTU output will vary, depending on the brand of fuel you
use in your stove. Consult your Quadra-Fire dealer for
best results.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products,
their speci cations and/or price without notice.
Particulate Emis-
sions Rating: 0.7 grams / hr
*BTU Output: 8,000 - 30,000 / hr
Heating Capacity: up to 1,500 sq. ft. depending
on climate zone
Hopper Capacity: 60 lbs
Fuel: Wood Pellets or Shelled Corn
Shipping Weight: 240 lbs
Model: Santa Fe Pellet Stove
Laboratory: OMNI Test Laboratories, Inc.
Report No. 061-S-74-6.2
Type: Solid Fuel Room Heater/Pellet
Fuel Burning Type
Standard: ASTM E1509-95 and ULC
S627-00, ULC/ORD-C1482-
M1990 Room Heater Pellet Fuel
Burning type and (UM) 84-HUD,
Mobile Home Approved.

R
September 3, 2009 7050-128B Page 5
Santa Fe Pellet Stove
2Getting Started
A
. Design, Installation & Location Consider-
ations
Warning! Risk of Fire Damaged parts could impair safe
operation. Do NOT install damaged, incomplete or substitute
components.
1. Appliance Location
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, re
of cials or authorities having jurisdiction over restrictions,
installation inspection and permits.
It is a good idea to plan your installation on paper, using
exact measurements for clearances and fl oor protection,
before actually beginning the installation
Consideration must be given to:
• Safety, convenience, traf c fl o w
• Placement of the chimney and chimney connector.
• If you are not using an existing chimney, place the appli-
ance where there will be a clear passage for a factory-
built listed chimney through the ceiling and roof.
• Installing an optional outside air kit would affect the loca-
tion of the vent termination.
CAUTION! If burning shelled field corn, you must use ap-
proved venting specifically designed for corn to prevent corro-
sion or degradation. Follow the instructions from the venting
manufacturer.
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, sof ts, porch roofs, adjacent walls
• Landscaping, vegetation

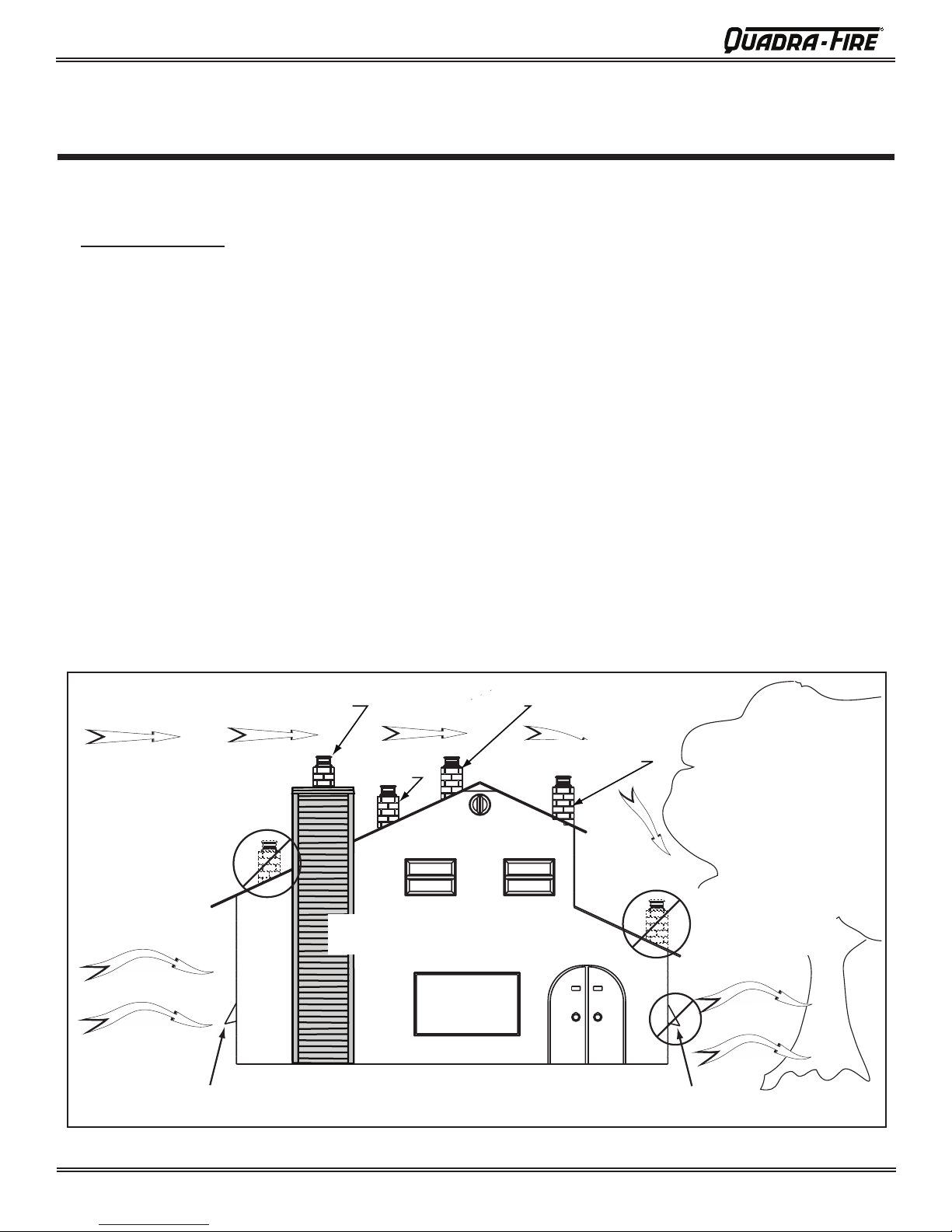

When locating vent and venting termination, vent above roof
line when possible.
Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended:
Outside Air Intake
on windward side
NOT recommended:
Outside Air Intake
on leeward side
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible
NOTICE: Locating the appliance in a location of
considerable air movement can cause intermittent smoke
spillage from appliance. Do not locate appliance near:
• Frequently open doors
• Central heat outlets or returns
Figure 5.1

Page 6 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
C. Thermostat Location
The thermostat’s location will have some effect on the
appliance’s operation. When the thermostat is located close
to the appliance, it may require a slightly higher temperature
setting to keep the rest of the house comfortable. If the
thermostat location is in an adjacent room or on a different
fl o or level, you will notice higher temperatures near the
appliance.
CAUTION
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTON DUCT
OR SYSTEM.
Fire Hazard.
WARNING
• Do not operate appliance before reading
and understanding operating instructions.
• Failure to operate appliance properly may
cause a house re.
Location of the appliance and chimney will affect
performance.
• Install through the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the re.
• Penetrate the highest part of the roof. This minimizes the
effects of wind loading.
• L ocate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
• Minimize the use of chimney offsets.
• Consider the appliance location relative to fl oor and ceiling
and attic joists.
• Take into consideration the termination requirements on
Page 11.
B. Locating Your Appliance & Chimney
D. Draft
Draft is the pressure difference needed to vent appliances
successfully. When an appliance is drafting successfully, all
combustion byproducts are exiting the home through the
chimney.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the chimney
system caused by:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
E. Negative Pressure
WARNING! Risk of Asphyxiation! Negative pressure can
cause spillage of combustion fumes and soot.
Negative pressure results from the imbalance of air avail-
able for the appliance to operate properly. It can be stron-
gest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion appliances
and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed

R
September 3, 2009 7050-128B Page 7
Santa Fe Pellet Stove
H. Inspect Appliance & Components and
Pre-Use Check List
Reciprocating Saw
Channel Locks
Hammer
Phillips Screwdriver
Tap e Meausre
Plumb Line
Level
Framing Material
Hi-temp Caulking Material
Gloves
Safety Glasses
Framing Square
Electric Drill & Bits (1/4”)
1/4” Self-Tapping Screws
May also need:
Vent Support Straps
Venting Paint
Tools and building supplies normally required
for installation, unless installing into an existing
masonry fi
replace:
G. Tools And Supplies Needed
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
1. Place the appliance in a location near the
nal installation area and follow the proce-
dures below:
2. Open the appliance and remove all the parts
and articles packed inside the Component
Pack. Inspect all the parts and glass for ship-
ping damage. Contact your dealer if any irregu-
larities are noticed.
3. All safety warnings have been read and fol-
lowed.
4. This Owner’s Manual has been read.
5. Floor protection requirements have been met.
6. Venting is properly installed.
7. The proper clearances from the appliance and
chimney to combustible materials have been
met.
8. The masonry chimney is inspected by a profes-
sional and is clean, or the factory built metal
chimney is installed according to the manufac-
turer’s instructions and clearances.
9. The chimney meets the required minimum
height.
10.
All labels have been removed from the glass
door.
11.Plated surfaces have been wiped clean, if
applicable.
12. Thermostat or remote has been installed.
13. A power outlet is available nearby.
• Installation and use of any damaged appliance.
• Modi cation of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied with
unit).
• Do NOT Over re
Or any such action that may cause a fire hazard.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
Fire Risk.
F. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
• Install at least one smoke detector on each fl oor of your
home.
• Locate smoke detector away from the heating appliance
and close to the sleeping areas.
• Follow the smoke detector manufacturer’s placement and
installation instructions and maintain regularly.
• Conveniently locate a Class A re extinguisher to contend
with small res.
• In the event of a hopper re:
• Evacute the house immediately.
• Notify r e department.

Page 8 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
3Dimensions and Clearances
A. Appliance Dimensions
Figure 8.2- Front View
Figure 8.1 - Top View
Figure 8.3 -Side View Figure 8.4 - Side View with Top Vent Adapter
25-1/2 in. (658mm)
12-3/4 in.
(324mm)
21-1/4 in.
(540mm)
28-11/16 in.
(729mm)
16-3/4 in.
(426mm)
28-1/8 in. (715mm)
25-11/16 in. (653mm)
3-3/4 in. (95mm)
2-1/2 in. (64mm)
28-3/4 in.
(73mm)
26-7/8 in.
(683mm)

R
September 3, 2009 7050-128B Page 9
Santa Fe Pellet Stove

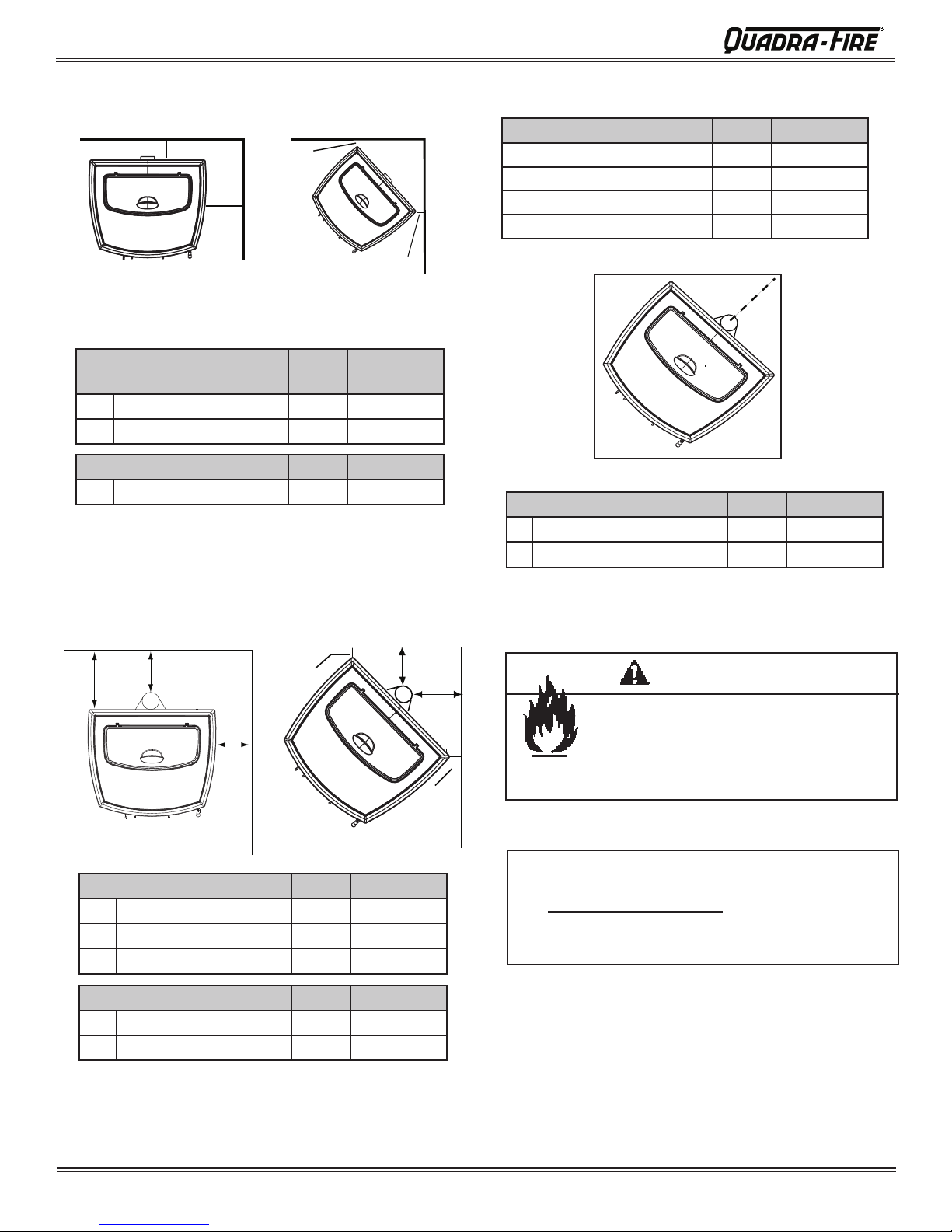

Straight Back Against
Wall
Inches Millimeters
ABack Wall to Appliance 2 51
BSide Wall to Appliance 6 152
Corner Installation Inches Millimeters
CWalls to Appliance 2 51
Vertical Installation Inches Millimeters
DBack Wall to Flue Pipe 3 76
ESide Wall to Cast Top 6 152
FBack Wall to Appliance 7 178
Installations with:
3 to 3 inch Top Vent Adapter and
3 to 6 inch Offset Adapter
Corner Installation Inches Millimeters
GWalls to Appliance 2 51
HSide Wall to Flue Pipe 3 76
Alcove Installation Inches Millimeters
Minimum Alcove Height 43 1092
Minimum Alcove Side Wall 6 152
Minimum Alcove Width 38 965
Maximum Alcove Depth 36 914
Dimension to Corner Inches Millimeters
IFlue Center Line 8-1/2 217
JBack of Top Vent Adapter 9-1/8 232
B. Clearances to Combustibles (UL and ULC)
Fire Risk.
Comply with all minimum clearances to
combustibles as speci ed.
WARNING
Failure to comply may cause house re.
NOTE:
• Illustrations refl
ect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
J
I
C
L
C
C
D
E
F
G
G
H
A
B

Page 10 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
*L Exception for Horizontal Installations:
USA INSTALLATIONS: The non-combustible fl oor protector
must be 1/2 inch (13mm) minimum thickness, “k” value = 0.49.
Floor protection requires Type II thermal protection R = 1.0 or
greater.
A non-combustible fl oor protection extending beneath the
fl u e pipe is recommended with horizontal venting or under
the top vent adapter with vertical installation. Figure 10.2.
CANADA INSTALLATIONS: A non-combustible fl o or pro-
tection extending beneath the fl ue pipe is r
equired with
horizontal venting or under the top vent adapter with vertical
installation.
Must extend 2 inches (51mm) beyond each
side of pipe (shaded area)

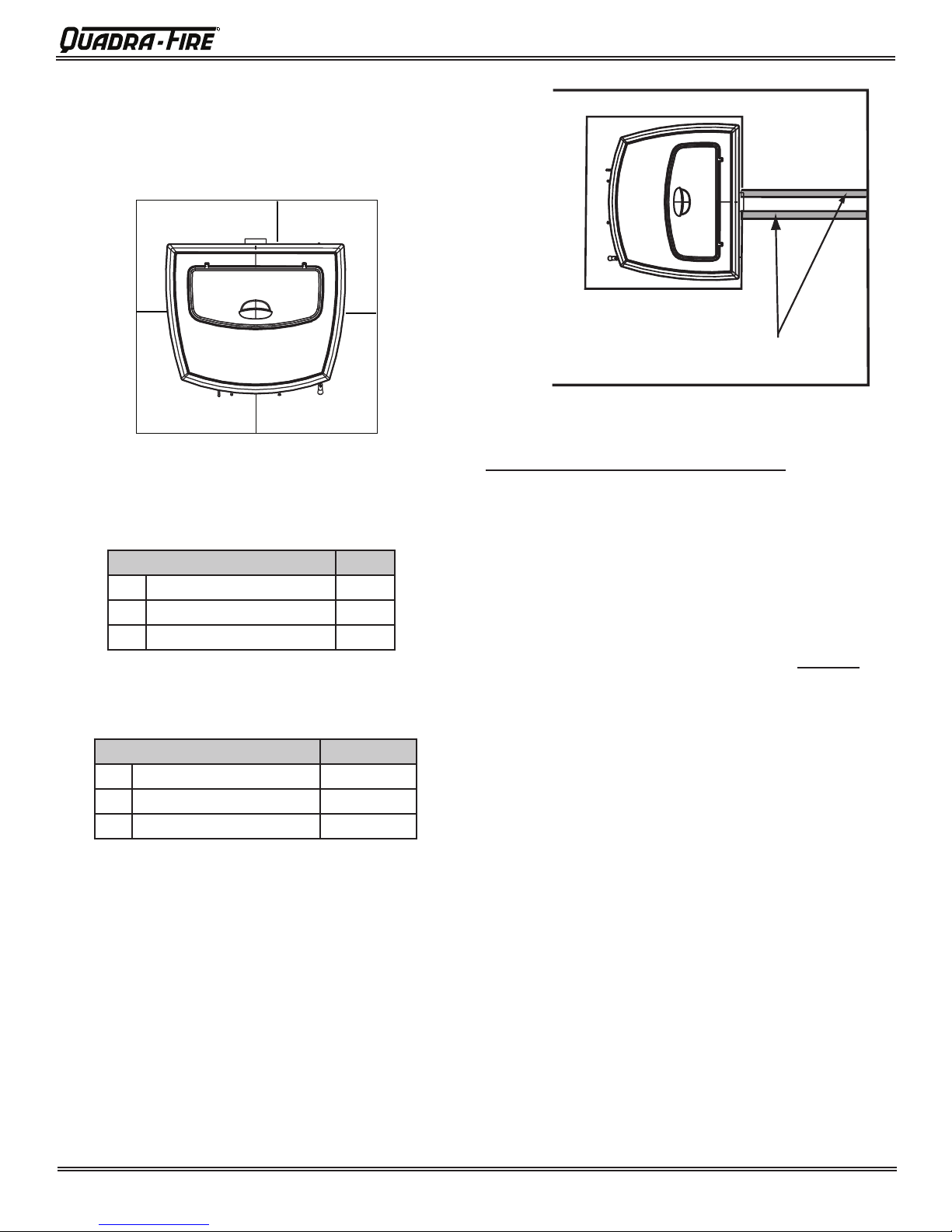

C. Hearth Pad Requirements (UL and ULC)
Use a non-combustible fl oor protector, extending beneath
appliance and to the front, sides and rear as indicated.
Measure front distance “M” from the surface of the glass
door.
Hearth Pad Requirements Inches
KSides 2
L* Back 2
MFront 6
L*
K
K
M
Figure 10.2
Figure 10.1
Hearth Pad Requirements Millimeters
KSides 203
L* Back 51
MFront 457
USA Hearth Pad Requirements
Canada Hearth Pad Requirements

R
September 3, 2009 7050-128B Page 11
Santa Fe Pellet Stove
Do not terminate vent in any enclosed or semi-enclosed
area such as a carport, garage, attic, crawl space, under a
sun deck or porch, narrow walkway or closely fenced area,
or any location that can build up a concentration of fumes
such as a stairwell, covered breezeway, etc.
CAUTION
A. Chimney and Exhaust Connection
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type "L" or "PL" venting system. It can be vented
vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent. If using
the 3 inch (76mm) vertical To p Vent Adapter Kit or the 3
to 6 inch (76-152mm) Top Vent Offset Adapter, use Listed
double wall fl ue connector. A Quadra-Fire Outside Air Kit
must be used with manufactured home installations.
3. Residential: The 3 inch (76mm) vertical To p Vent Adapter
Kit and the 3 to 6 inch (76-152mm) Top Vent Offset Adapter
are tested to use 24 gauge single wall fl ue connector or
Listed double wall fl ue connector to Class A Listed metal
chimneys, or masonry chimneys meeting International
Conference of Building Of cials (ICBO) standards for solid
fuel appliances.
4. INSTALL V
ENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Secure exhaust venting system to the appliance with at
least 3 screws. Also secure all connector pipe joints with
at least 3 screws through each joint.
6. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST
VENTING SYSTEM OF THIS UNIT.
7. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
NOTE: All pipe must be welded seam pipe whenever pos-
sible. Seal pipe joints with high temperature silicone (500°F
[260°C] minimum rated only). Do not put silicone inside
of pipe.
NOTE: If burning shelled field corn, you must use approved
venting specifically designed for corn. Follow the instruc-
tions from the venting manufacturer.
B. Venting Termination Requirements
1. Ter mination must exhaust above air inlet elevation. It
is recommended that at least 60 inches (1.5m) of verti-
cal pipe be installed when appliance is vented directly
through a wall. This will create a natural draft, which
will help prevent the possibility of smoke or odor venting
into the home during a power outage. It will also keep
exhaust from causing a nuisance or hazard by exposing
people or shrubs to high temperatures. The safest and
preferred venting method is to extend the vent vertically
through the roof.
2. Distance from doors and opening windows, or gravity or
ventilation air inlets into building:
a. Not less than 48 inches (1.2m) below;
b. Not less than 48 inches (1.2m) horizontally from;
c. Not less than 12 inches (305mm) above.
3. Distance from permanently closed windows;
a. Not less than 12 inches (305mm) below; horizontally
from or above.
4. Distance between bottom of termination and grade should
be 12 inches (305mm) minimum. This is conditional
upon plants in the area, and nature of grade surface.
The grade surface must be a non-combustible material
(i.e., rock, dirt). The grade surface must not be lawn.
Distance between bottom of termination and public
walkway should be 7 feet (2.13m) minimum.
5. Distance to combustible materials must be 24 inches
(610mm) minimum. This includes adjacent buildings,
fences, protruding parts of the structure, roof overhang,
plants and shrubs, etc.
6. Termination Cap Location (Home Electrical Service)
• Side-to-side clearance is to be the same as minimum
clearance to vinyl inside corners.
• Clearance of a termination cap below electrical service
shall be the same as minimum clearance to vinyl sof-
t s.
• Clearance of a termination cap above electrical service
will be 12 inches (305mm) minimum.
• Location of the vent termination must not obstruct or
interfere with access to the electrical service.
4Vent Information
Vent surfaces get HOT, can cause burns if
touched. Non-combustible shielding or guards
may be required.
WARNING
WARNING
ONLY use connector:
• Within the room, between appliance and ceiling or wall.
Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to combustibles
Fire Risk.
Follow Chimney Connector Manufacturer’s
Instructions for Proper Installation.

Page 12 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this appli-
ance. For assistance or additional information consult a
quali ed installer, service agency or your dealer.
WARNING
The chart will help you in determing proper vent-
ing size according to the equivalent feet of pipe
calcuated above and the altitude above sea level
of this installation. Figure 12.2.
Locate the calculated equivalent feet of pipe on
the vertical left side of the chart. Move to the
right horizontally on the chart until you reach
your altitude above sea level.
If you fall below the diagonal line, 3 or 4 inch (76
to 102mm) pipe may be used. If it is anywhere
above the diagonal line, a 4 inch (102mm) diam-
eter pipe is required.
The chart reveals that a 90° elbow is 5 times as
restrictive to the fl ow of exhaust gases under
positive pressure as 1 foot of horizontal pipe, and
a foot of horizontal pipe is twice as restrictive as
a foot of vertical pipe.
D. Pipe Selection Chart
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size.
Figure 12.1.
C. Equivalent Feet of Pipe
3 ft
(914mm)
2 ft (609mm)
2 ft (609mm)
2 ft (609mm)
Example of 3 Elbow-Rear Vent Termination Calculaton
Figure 12.1
Pellet Venting
Component
# of
Elbows
Feet of
Pipe
Multipled
By
Equivalent
Feet
Components
Equivalent Feet
90o Elbow or Tee 3 X 515
45o Elbow X3
Horizontal Pipe 7X17
Vertical Pipe 2 X 0.5 1
Total Equivalent Feet 23
Note: This is a generic example and is not
intended to represent any speci c fuel type.
Figure 12.2
3 in. or 4 in. (76mm or 102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only
10
Example 1
Example 2
Example 1: If the equivalent length of pipe is 23 feet with
altitude of 8,000 feet you must use 4 inch (102mm) diameter
type “L” or “PL” vent.
Example 2: If the equivalent length of pipe is 12 feet with
altitude of 6,000 feet you may use 3 or 4 inch (76 to 102mm)
diameter type “L” or “PL” vent
Fire Risk.
• Only LISTED venting components may be
used.
• NO OTHER vent components may be used.
Substitute or damaged vent components may
impair safe operation.
WARNING

R
September 3, 2009 7050-128B Page 13
Santa Fe Pellet Stove
5Venting Systems
NOTE:
• Illustrations refl ect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
A. Alcove
Figure 13.1
All minimums listed are to a combustible surface.
Minimum Maximum
Inches Millimeters Inches Millimeters
AHeight 43 1092 n/a n/a
BWidth 38 965 n/a n/a
CDepth n/a n/a 36 914
DTo Side Wall 6 152 n/a n/a
A
C
B
D

Page 14 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
B. Through The Wall
Horizontal termination cap must be a minimum of 12 inches.
(305mm) from the wall. Approved for mobile home instal-
lations. Must use 3 or 4 inch (76-102mm) “L” or “PL” listed
pellet venting or listed double wall pipe and a Quadra-Fire
Outside Air Kit in mobile homes.
NOTE:
In Canada, where passage through a wall or partition of
combustible construction is desired, the installation shall
conform to CAN/CSA-B365
Figure 14.1
Figure 14.2
45 Degree
Wall
Thimble
Illustration shows venting going in both directions.
Choose which one is best for your installation.
2 in. (51mm)
Minimum
2 in.
(51mm)
Minimum
6 in.
(152mm)
Minimum
6 in. (152mm)
Minimum
Straight Out
6 in.
(152mm)
Minimum
Non-combustible Hearth Pad
Wall
Thimble
Horizontal
Termination
Cap
2 in.
(51mm)
Minimum
6 in.
(152mm)
Minimum
From Glass
NOTICE:
Please note that while the minimum
clearance for the termination cap is 6
inches (152mm) there is the possibly
of soot buildup around the termina-
tion area. If this occurs we suggest
to move the termination further away
from the house to prevent it.

R
September 3, 2009 7050-128B Page 15
Santa Fe Pellet Stove
We recommend a minimum of 60 inches (1.5m)
vertical, however above the eave is preferred.
Both installations are approved for mobile home
installations. Must use 3 or 4 inch (76 to 102mm)
“L” or “PL” Listed pellet venting or Listed double
wall pipe and Quadra-Fire Outside Air Kit in mobile
homes. Single wall pipe is approved for residential
installations only.
Air Clearance to Pipe:
This appliance was tested with standard 3 inch
(76mm) Listed pellet clearance pipe to combus-
tibles.
Pellet pipe manufactures Listed reduce clearance
pipe may be use for reduce clearance from 3 inch
(76mm) air clearance to no less than 1 inch (25mm)
air clearance to combustibles for approved Listed
pellet pipe.
Follow stove pipe manufactures listed air clearances
to combustibles and installation instructions for all
reduced air clearances installations.
C. Vertical into Existing Class A Chimney
D. Through The Wall & Vertical - External
Firestop
Flashing
Rain Cap
6 in.
(152mm)
Minimum.
Non-combustible Hearth Pad
3 in. (76mm) Minimum.
Cleanout Cover
24 in. (610mm) Minimum
Ceiling Support
6 in. (152mm) Flue
Connector
6 in. (152mm) Class A
Chimney Connector
Adapter
3 in. to 6 in.
(76-152mm)
Top Vent Kit
Non-combustible Hearth Pad
Clean-out Cover
Tee
Wall Thimble
Support
Bracket
every 60 in.
(1.5m)
24 in.
(610mm)
Minimum
Rain Cap
Flashing
2 in. (51mm) minimum
6 in. (152mm)
Minimum
Figure 15.1
Figure 15.2
Firestop
Flashing
Rain Cap
6 in.
(152mm)
Min.
Non-combustible Hearth Pad
3 in. (76mm) Min.
12 in.
(305mm)
Minimum
3 in. to 3 in.
(76-76mm)
Top Vent Kit
Clean-out Cover
on other side
E. Vertical - Interior - Typical Installation

Page 16 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
Fire Risk

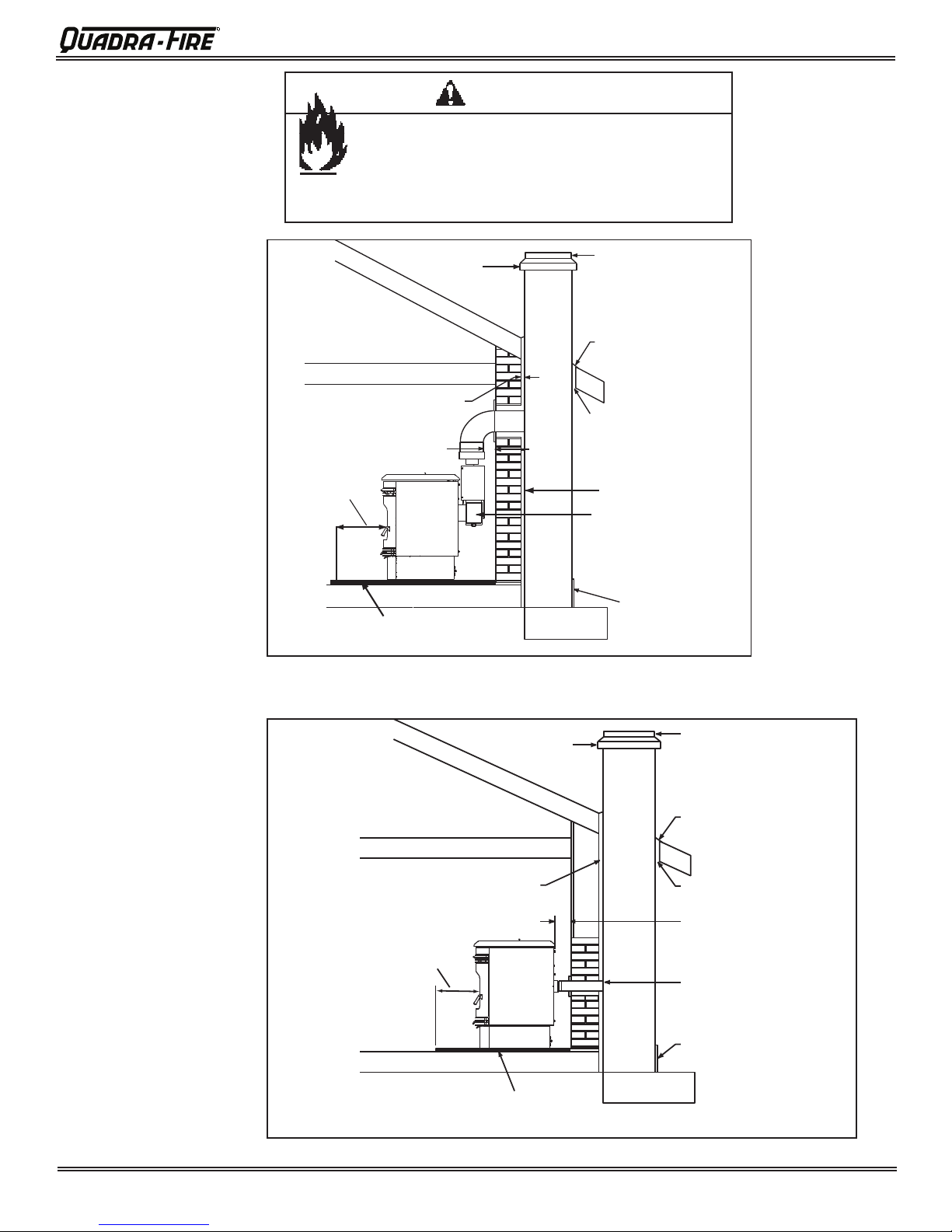

Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch (152mm) UL103 HT.
WARNING
F. Masonry
G. Alternate Masonry
Non-combustible Hearth Pad
Airtight
Cleanout Door
Cleanout cover
Sheathing
3 in. (76mm) Minimum
1 in. (25mm) Clearance
Flashing
Fireclay flue
Liner with Airspace
Concrete Cap
1 in. (25mm) Clearance
with Firestop
6 in. (152mm)
Minimum
Non-combustible
Hearth Pad
Airtight Clean-out
Door
Sheathing
2 in. (51mm) Minimum
Flashing
1 in. (25mm) Clearance
1 in. (25mm)
Clearance with
Firestop
6 in. (152mm) Minimum
Fireclay Flue Liner
with Airspace
Concrete Cap
Figure 16.1
Figure 16.2

R
September 3, 2009 7050-128B Page 17
Santa Fe Pellet Stove

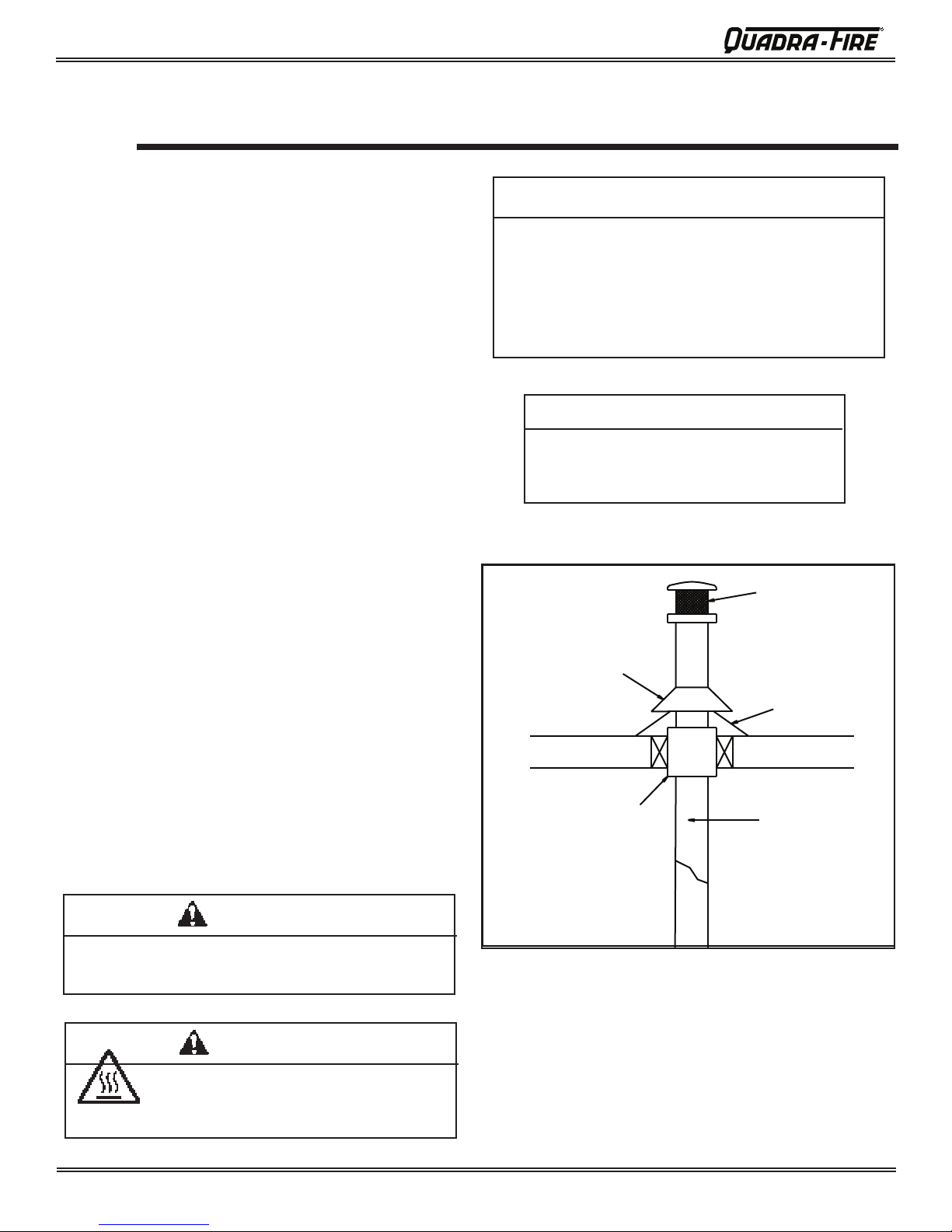

6Mobile Home
1. An outside air inlet must be provided for the combustion
air and must remain clear of leaves, debris, ice and/or
snow. It must be unrestricted while the appliance is
in use to prevent room air starvation which causes
smoke spillage. Smoke spillage can also set off smoke
alarms.
2. The combustion air duct system must be made of
metal. It must permit zero clearance to combustible
construction and prevent material from dropping into
the inlet or into the area beneath the dwelling and
contain a rodent screen.
3. The appliance must be secured to the mobile home
structure by bolting it to the fl oor (using lag bolts).
Use the same holes that secured the appliance to the
shipping pallet.
4. The appliance must be grounded with #8 solid copper
grounding wire or equivalent, terminated at each end
with an NEC approved grounding device.
5. Refer to Clearances to Combustibles and fl oor pro-
tection requirements on pages 9 & 10 for listings to
combustibles and appropriate chimney systems.
6. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the the exterior of the structure.
7. Follow the chimney manufacturer’s instructions when
installing the vent system for use in a mobile home.
8. Installation shall be in accordance with the Manufactur-
ers Home & Safety Standard (HUD) CFR 3280, Part
24.
Installation must comply with Manufactured Home and
Safety Standard (HUD), CFR 3280, Part 24.
WARNING
You must use a Quadra-Fire Outside Air Kit
for installation in a mobile home.
A. Mobile Home Installation
Spark Arrestor Cap
Roof Flashing
Storm Collar
Joist Shield/Firestop Approved Class “L”
or “PL” Pellet Vent
Figure 17.1
CAUTION
Never draw outside combustion air from:
• Wall, fl oor or ceiling cavity
• Enclosed space such as an attic or garage
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAIN-
TAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural
integrity.
NEVER INSTALL IN A SLEEPING ROOM.
Consumes oxygen in the room.
WARNING
Asphyxiation Risk.

Page 18 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
7Appliance Set-Up
A. Outside Air Kit Instructions
Flex Hose
Hose Clamp
Collar Assembly
Trim Ring
Termination
Cap Assembly
Hose Clamp
Air Intake Channel
(Discard)
Parts Included in Kit: 1 piece of 2 inch x 3 foot fl
ex hose,
2 hose clamps, 1 air intake channel1 collar assembly, 1
termination cap assembly, 1 trim ring, 12 screws. (Discard
air channel it is not need for this appliance).
1. Measure distance from fl oor to air vent opening in stove
and mark location on wall.
Use saw to cut opening in wall. Cut a 2-1/2 to 3 inch
(64-76mm) opening on inside wall and a 3 to 3-1/2 inch
(76-89mm) opening on outside of house.
2. Remove cover plate and then install the collar assem-
bly.
3. Use hose clamp to secure fl ex pipe to collar assembly.
4. Slide trim ring over fl ex pipe and run pipe through wall.
5. Attach hose to outside termination cap with second hose
clamp.
6. Secure termination cap to outside surface.
6. Secure trim ring to interior wall.
Tools Needed: Phillips head screwdriver; wire cutters; hole
saw or jig saw.
CAUTION
Never draw outside combustion air from:
• Wall, fl oor or ceiling cavity
• Enclosed space such as an attic or garage
Figure 18.2
Ter mination Cap
Hose Clamp
Trim Ring
Flex Hose
Collar
Assembly
Figure 18.1

R
September 3, 2009 7050-128B Page 19
Santa Fe Pellet Stove
3 to 3 inch Top Vent Adapter
3 to 6 inch Top Vent Offset Adapter
1. Put a layer of high temperature silicone on the 3
inch (76mm) exhaust outlet. Do not put silicone
inside of pipe. Figure 19.1
2. Slide the top vent adapter onto the rear exhaust
outlet and adjust the assembly to a vertical position.
Figure 19.1.
3. Drill 4 holes with #26 drill bit (provided) into the
back of the appliance using the outer shield as a
pattern (make sure the assembly is vertical). Figure
19.2.
4. Install the 4 mounting screws.
5. Drill 2 holes with #26 drill bit through the rear
exhaust outlet using the 2 holes already in the short
horizontal pipe in the top vent adapter as a guide.
Install the 2 screws. Figure 19.1.
6. Install the vent pipe into the top vent adapter (be
sure to silicone all joints).
7. To clean the top vent adapter open the clean-out
cover. Figure 19.2.
B. Top Vent Adapter Installation
Silicone Rear
Exhaust Outlet
3 to 6 inch
Offset Adapter
Use Hole on Each
Side as Drilling Guide
3 to 3 inch Top
Vent Adapter
Drill Holes in back of
stove and secure with 4
screws, 2 on each side
Clean-Out Cover
Figure 19.2
Figure 19.1
Installing the Top Vent Adapter
C. Rear Vent and Rear Vent to Top Vent
Adapter Installation
Clean-Out Cover
Clean-Out Cover
Figure 18.3 - Rear Vent Adapter
Figure 18.4 - Rear to Top Vent Adapter - 90o
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Do not put silicone inside of
pipe. Figure 19.1.
2. Slide the adapter onto the rear exhaust outlet and adjust
the assembly to the appropriate position.
3. Install the vent pipe into the adapter (be sure to silicone
all joints)

Page 20 7050-128B September 3, 2009
Santa Fe Pellet Stove
R
D. Optional Log Set Placement Instructions
Figure 20.1
4 PIECE LOG SET INSTALLATION
OPTIONAL TOP LOG
Figure 20.2
Figure 20.3
CAUTION
Logs are FRAGILE. Use extreme care when handling or
cleaning logs.
NOTE:
Due to the abrasive nature of a pellet appliance re, the
logs are not covered under warranty. Any placement varia-
tion other than shown here can cause excessive heat and
shall void the appliance warranty.
1. Place the right rear log as shown. There is a notch in the
bottom of the log for clearance for the thermocouple and
thermocouple cover (ceramic protection tube). Figure
20.1.
2. Continue placing the last 3 logs around the repot as
show in Figures 20.2, 20.3 and 20.4.Be careful not to
block the drop tube in the back of the rebox where pel-
lets feed into the repot.
Place the top log over the repot. It will be about
2- 1/2 inches (64mm) above the repot when in
place. Notice the position of the top log as it rests
on the 3 logs in a stable position to prevent it from
falling into the repot.
The charred area on the back of the top log faces
the back, not the front. Figure 20.5.
Drop Tube
Notch
Thermocouple
Cover
Figure 20.4
Figure 20.5
