Quadratec QuadraTop 11113.2435 User manual

QuadraTop® Complete Soft Top
for 2018-Current
4 Door Jeep®Wrangler JLU
Item #11113.2435
Loss of vehicle control involves risk of death or serious injury, particularly to
parts of your body not restrained within vehicle. This product is intended for
weather protection only and should not be relied upon to contain occupants
in the event of an accident or to protect from either ground contact or falling
objects. To reduce risk of accident or injury:
•ALWAYS WEAR SEATBELTS
• Always keep head, arms & body parts within vehicle.
• Fully secure or stow the soft top before driving according to instructions.
Never try to latch or fold soft top while driving. Do not use if damaged or
worn.
• Read and follow all instructions & warnings accompanying this product, in
your vehicle owner’s manual and O󰀨 Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while install-
ing or maintaining this product.
PART LIST:
TOP DECK/HEADER AND REAR BOWS ASSEMBLY QTY 1
DRIVER SIDE QUARTER WINDOW QTY 1
PASSENGER SIDE QUARTER WINDOW QTY 1
REAR WINDOW QTY 1
CENTER BOW ASSEMBLY QTY 1
DRIVER SIDE DOOR SURROUND QTY 1
PASSENGER SIDE DOOR SURROUND QTY 1
DOOR SURROUND RUBBER QTY 8
DOOR SURRUND SCREWS QTY 1
REQUIRED TOOLS:
SAFETY GLASSES
SOCKET WRENCH
10MM SOCKET & DRIVER
PHILLIPS HEAD SCREW DRIVER
This Replacement Top kit is designed to t on your 4 Dr Jeep® Wrangler when
the original soft top or hard top has been completely removed. Before begin-
ning your installation of this product, you will need to remove your existing soft
top fabric, hardware or Hard top.
WARNING
CAUTION
NOTICE
DOOR SURROND KNOBS QTY 8
TAILGATE BAR QTY 2
TAILGATE BAR CORNER MOUNTS QTY 4
CORNER MOUNTS SHORT KNOBS QTY 8
REAR BOW SCREWS AND NUTS QTY 4
REAR BRACKET SCREWS & NUTS QTY 2
REAR MAIN BRACKET SCREWS AND NUTS QTY 2
4MM ALLEN WRENCH QTY 1
REAR MAIN BRACKET SCREW M8 QTY 4
5MM ALLEN WRENCH QTY 1

Important Safety information
Your QuadraTop® Complete Soft Top is
intended to be used with other Quadra-
Top Products to increase the fair weath-
er enjoyment of your o-road capable
vehicle. Before installation,
please take a moment to review the
following safety information and installa-
tion instructions. Important safety infor-
mation is generally preceded by one of
three signal words indicating the
relative risk of injury.
The signal words mean:
a hazardous situation which, if not avoided, could result in death or serious in-
jury. You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
WARNING
CAUTION
NOTICE
a hazardous situation which, if not avoided, could result in minor or moderate
injury. You CAN be moderately HURT and also may su󰀨er property damage if
you don’t follow instructions.
Careful attention is required to this instruction or operation but does general-
ly not relate to personal injury. Damage to your Quadratec® product or other
property may result if you don’t follow instructions.
Before you begin Installation:
We are excited that you have chosen
the QuadraTop Complete Soft Top. This
high-quality soft top is designed to
provide protection from the elements
and a stylish look on your Jeep®.
For a smooth t and ease of installation, this top should be installed at tem-
peratures above 72 degrees. Below this temperature, the fabric may contract an
inch or more making it di󰀩cult to install. We highly recommend taking the top
out of the package and letting it sit inside a warm place or direct sunlight for
1-2 hours before you install the top. When warm, this top will install quickly.
NOTICE
2
Once the components are removed
from the shipping box, locate the front
and rear door surround components
and accessories as shown in FIG1.
Passenger Side Door Surround
Driver Side Door Surround
Knobs
4mm Allen Wrench

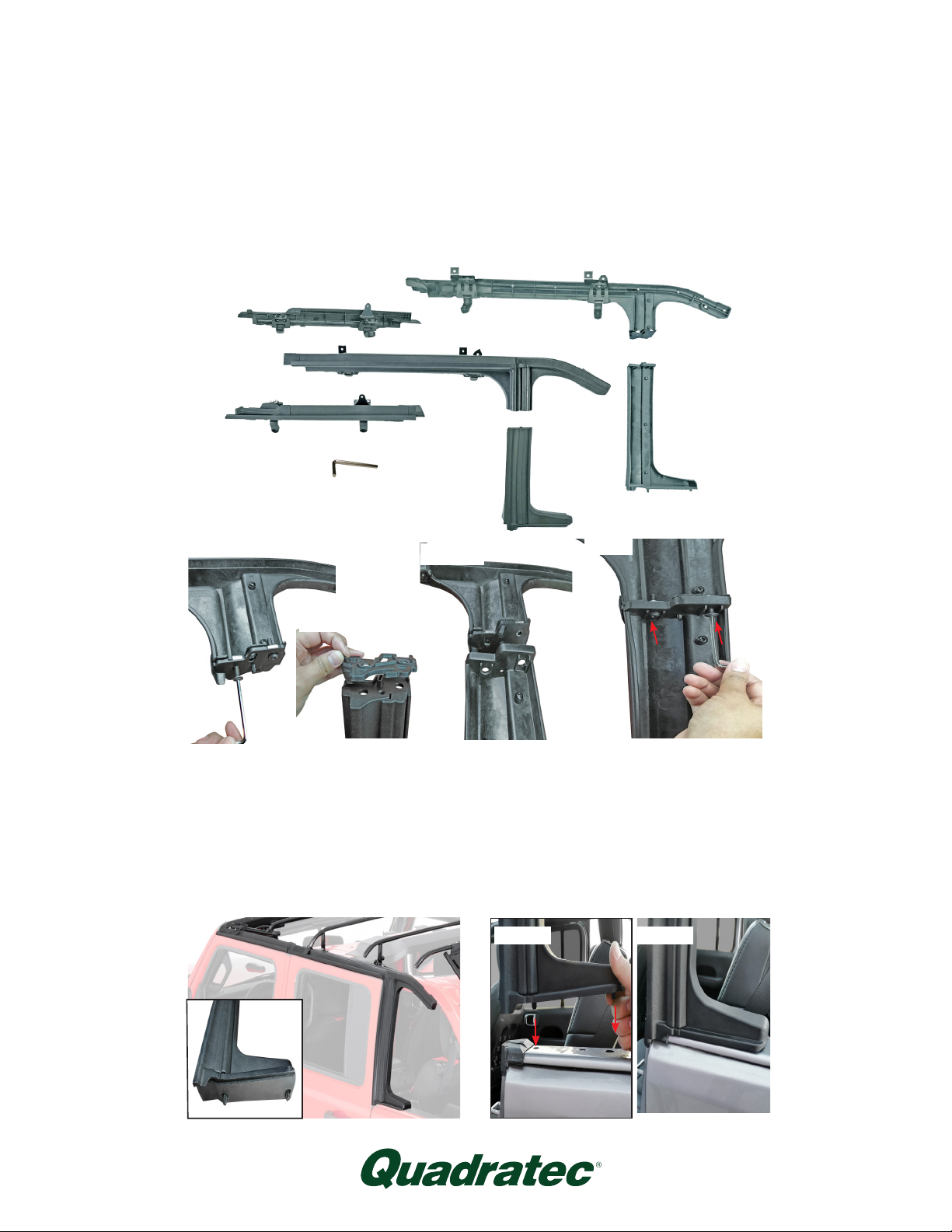

Step 1: Un-packing & Organizing the Door Surrounds:
Put on safety glasses. Carefully remove all the contents of the large shipping
box onto a table top or on the ground on top of a soft towel.
Carefully remove the contents of each
box organizing them as shown in Fig.1
making sure the passenger side and
driver’s side components are separated.
When unpacking, carefully check to
make sure all parts are included. If any
part is missing or broken, please call
Quadratec customer service at
800-745-6037. Please note that it is
important that you become familiar with
the installation process of this top by
reading the following instruction sheet
and warnings thoroughly.
FIG 1

Step 3: Install Rear Door Surround
3
FIG 2
Passenger
side Pillar
Assembly
Driver
side Pillar
Assembly
Passenger side Rear Over-
Door Assembly
4mm Allen
Wrench
Passenger Front door surround
Driver Front door surround
Driver side Rear Over-Door Assembly
FIG 3 FIG 5
FIG 3A
Remove these screws and set aside.
Place the rubber seal on the driver’s
side pillar assembly (Fig 3A) Line up
the Driver side pillar assembly and the
driver side rear over door assembly as
shown in g 4. Insert the screws and
tighten using the included 4mm Allen
wrench securing the two pieces (g 5).
Step 2: Rear Over-Door Surround
Assembly
Locate the driver’s side rear over door
assembly, the driver’s side Pillar assem-
bly, The Rubber seal and the 4mm Allen
head wrench (Fig 2). On the driver’s
side rear over door assembly, there are
two screws installed for shipping (Fig 3)
Locate the assembled Driver’s side rear
door surround (Fig 6). On the bottom of
the vertical pillar portion of the assem-
bled door surround are two pins as
shown in FIG 7 that will be inserted into
the body tub.
Insert these pinsinto the body tub as
shown in FIG’s 8 & 9.
Repeat this procedure on the passen-
ger side rear door surround.
FIG 4
FIG 6
FIG 8 FIG 9
FIG 7

4

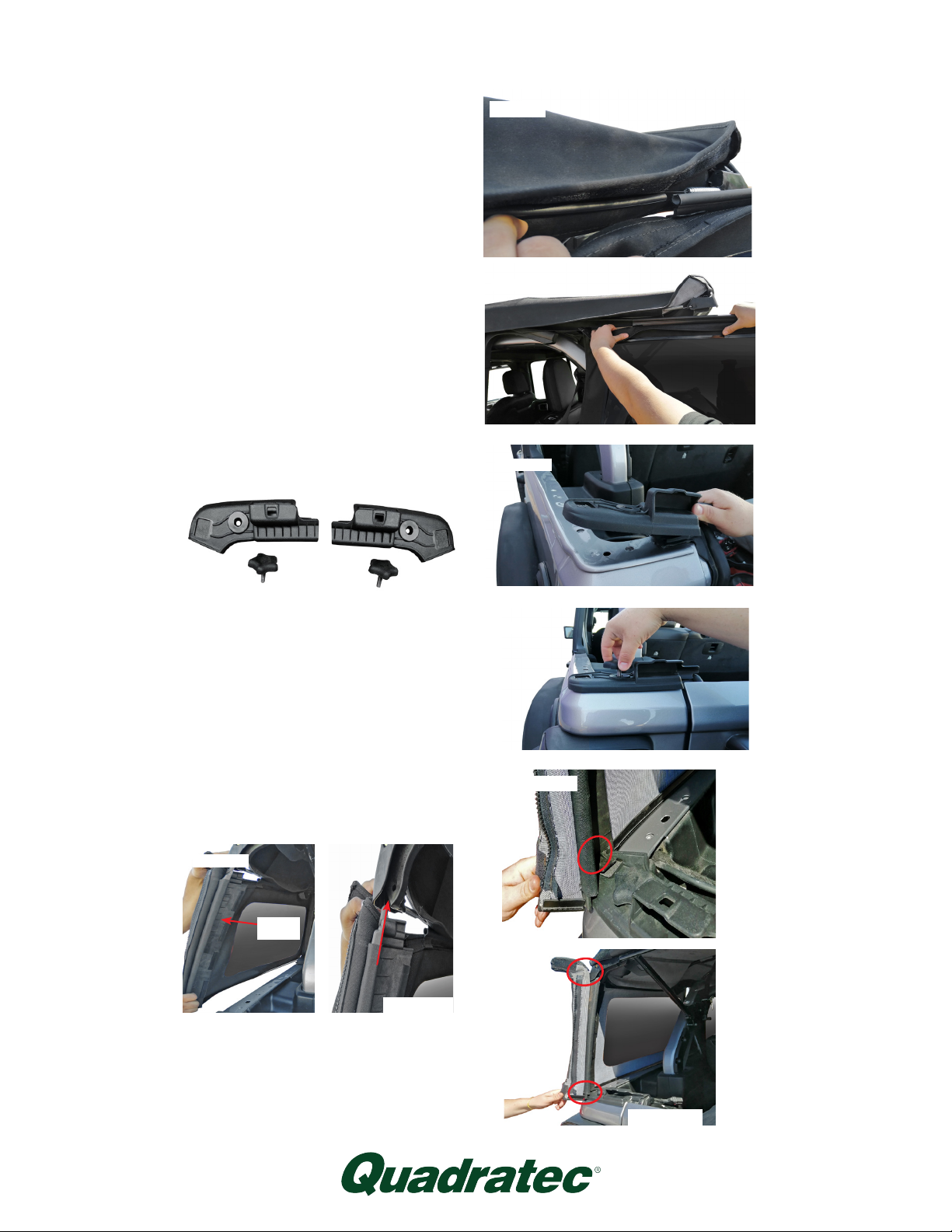

Step 4: Secure Front & Rear
Door Surrounds to the Roll Bar
Locate the two sets of screw knobs
and the driver’s side front and rear
door surrounds. There should be 2
sets of four knobs. These knobs
go on the front and rear holes of
the Brackets previously installed in
step 3 on the door surrounds. Line up
the front driver’s side door surround
bracket holes with the vertical holes
in the over door horizontal roll bar.
Slip the front two knobs through the
brackets holes in the front door sur-
round (FIG's 10 &11) lining it up with
the hole in the top of the surround
bracket on top of the front horizontal
roll bar.
If you use a rolling motion while you
push the brackets on it will be easier
to install. Loosely tighten each of the
knobs securing the front door surround.
Line up the rear end of the front door
surround with the front of the rear door
surround as shown in g 12. Make sure
the rear door surround seals are on top
of the front Door Surrounds as shown
in Fig 13. Line up the rear door sur-
round bracket holes with the vertical
holes in the rear horizontal roll bar.
FIG 10
FIG 11
FIG 12
FIG 13
Note: if you have difficult lining up
the top of the knobs with the upper
bracket hole, you can remove the
installed top brackets covering the
top hole to get a better view of how
the screw lines up. Repeat on the
passenger side of the vehicle.

5
Step 5: Installing the Center Bows
#1 & #2
Locate the center bow #1 (Fig 14).
Each Bow has been labeled to make
identification easier. Loosen the
screws holding on the top brackets.
With the help of a friend, place the
Quick release end on the bottom of the
bow leg over the second vertical brack-
et (Fig 15). Pull the quick release knob
out and push the bow down mounting
the quick release to the bracket.
The quick release knob is spring load-
ed so you should here a “click” when it
is secure in the bracket (Fig 16). once
the bow is installed, tighten the bow
mount bracket on the door surround.
Repeat this bow mounting on the other
side of the vehicle and then repeat
the above procedure with center bow
#2 (FIG 14). Tighten down the door
surround knobs on each side of the
vehicle securing the Door surrounds
and the two bows.
FIG 14
Center Bow #1 Center Bow #2
FIG 15 FIG 16

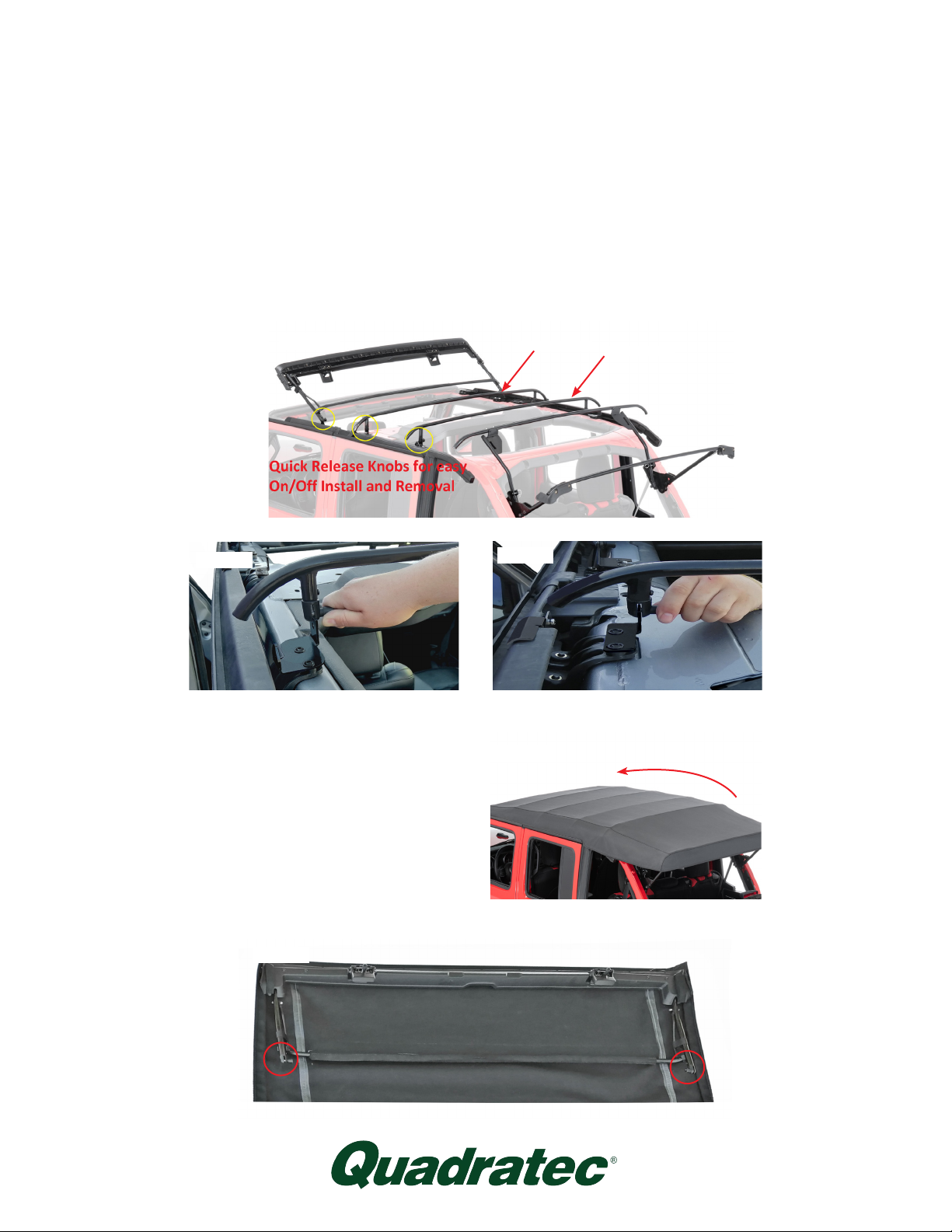

Step 6: Installing the Deck and Front
Windshield Header
With the help of a friend you will need
to lay the entire top deck assembly
onto the vehicle with the topping fabric/
vinyl facing up and the front header
resting on the windshield (Fig 17). Lo-
cate the two rear bow arms attached to
the front windshield header circled in
FIG 18
FIG 17
FIG 18

6
The front header should now easily rest
on top of the windshield when folded
down.

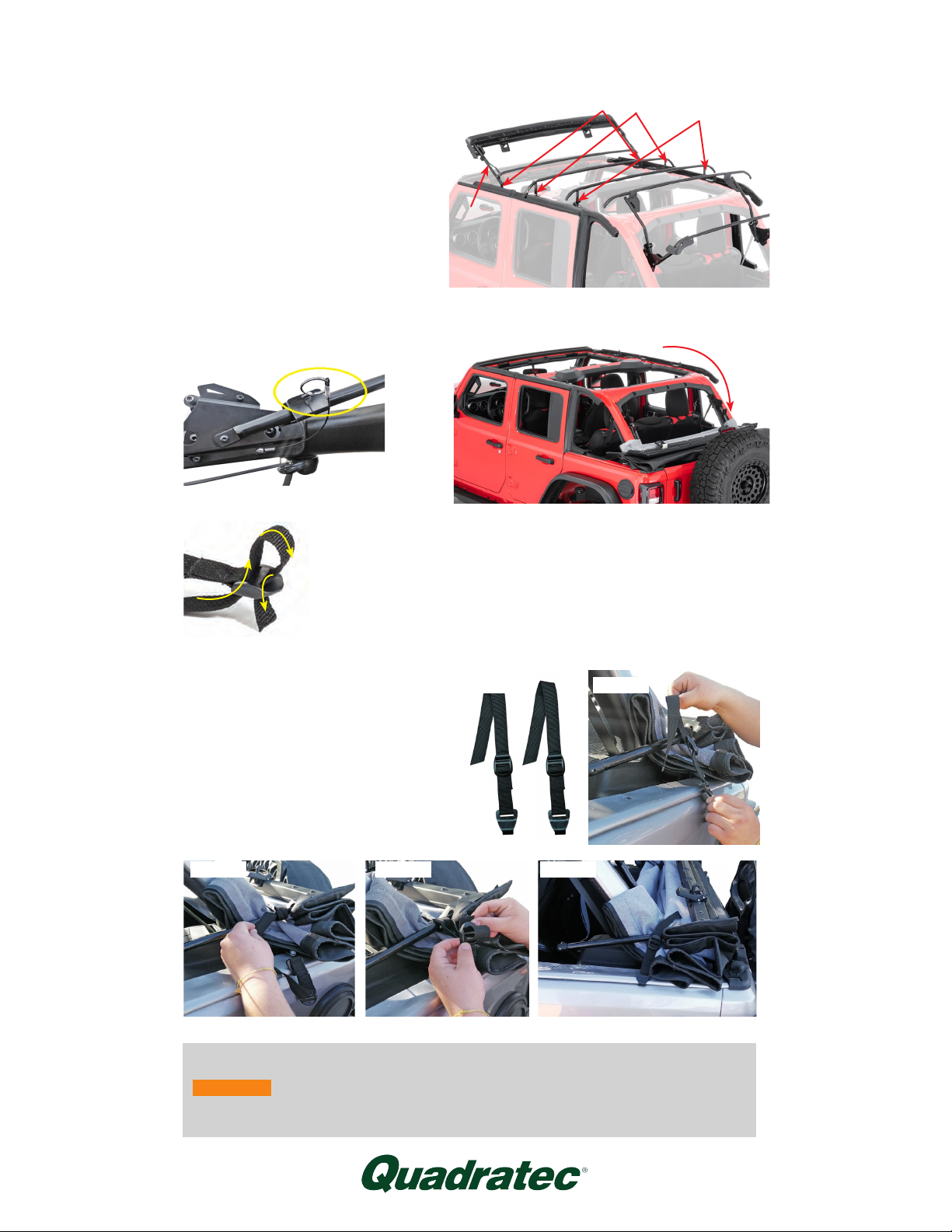

Step 7: Installing the Deck and
Front Windshield Header Continued
The bow arms will install to the front
bow mount brackets located on the
top of the door surrounds. With the
help of a friend, lift each of the bow
legs over the bow mount bracket (Fig
19). Once lined up with the bow mount
bracket, install the header assembly by
pulling out the quick release knob and
push over the mount until you hear a
“click” (Fig 19). Repeat on the
passenger side.

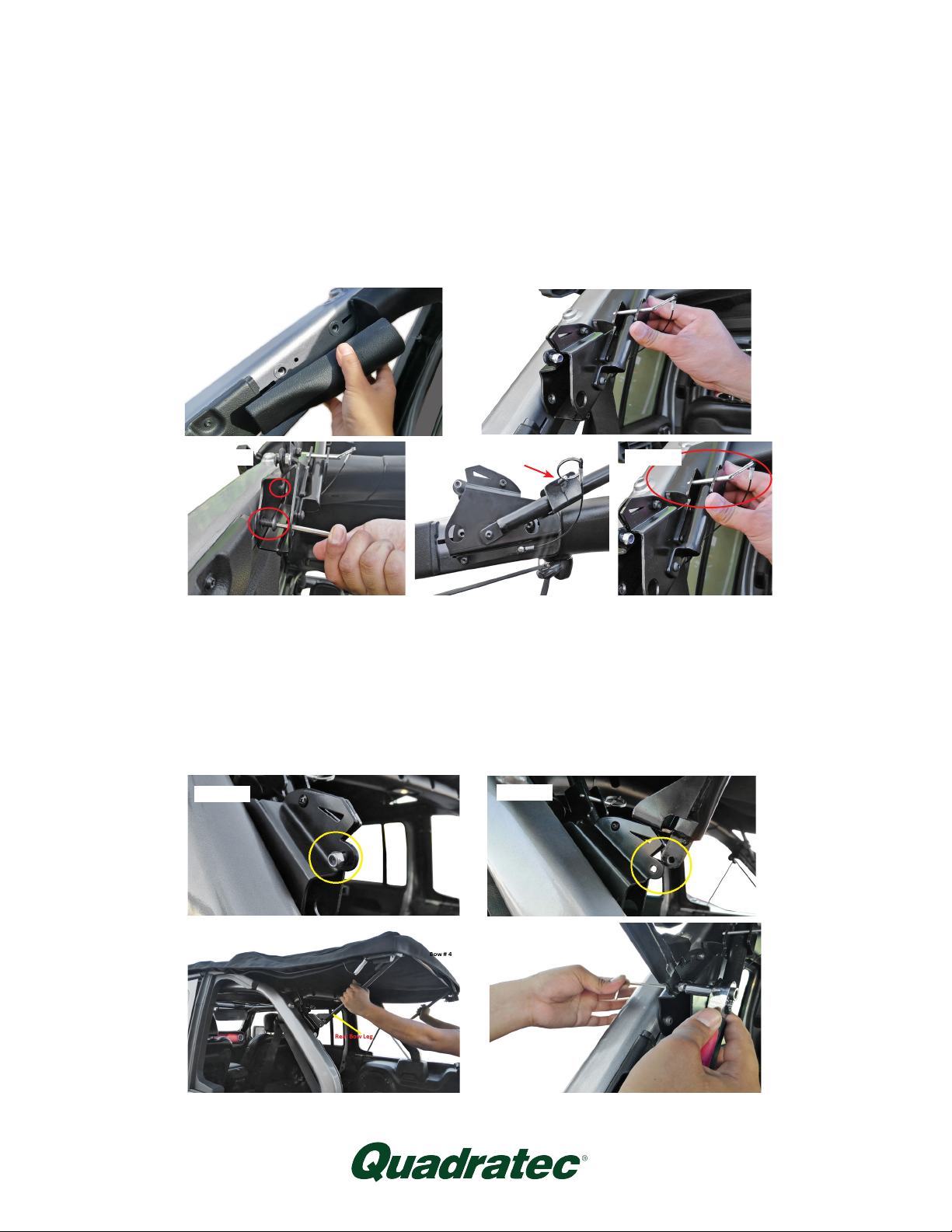

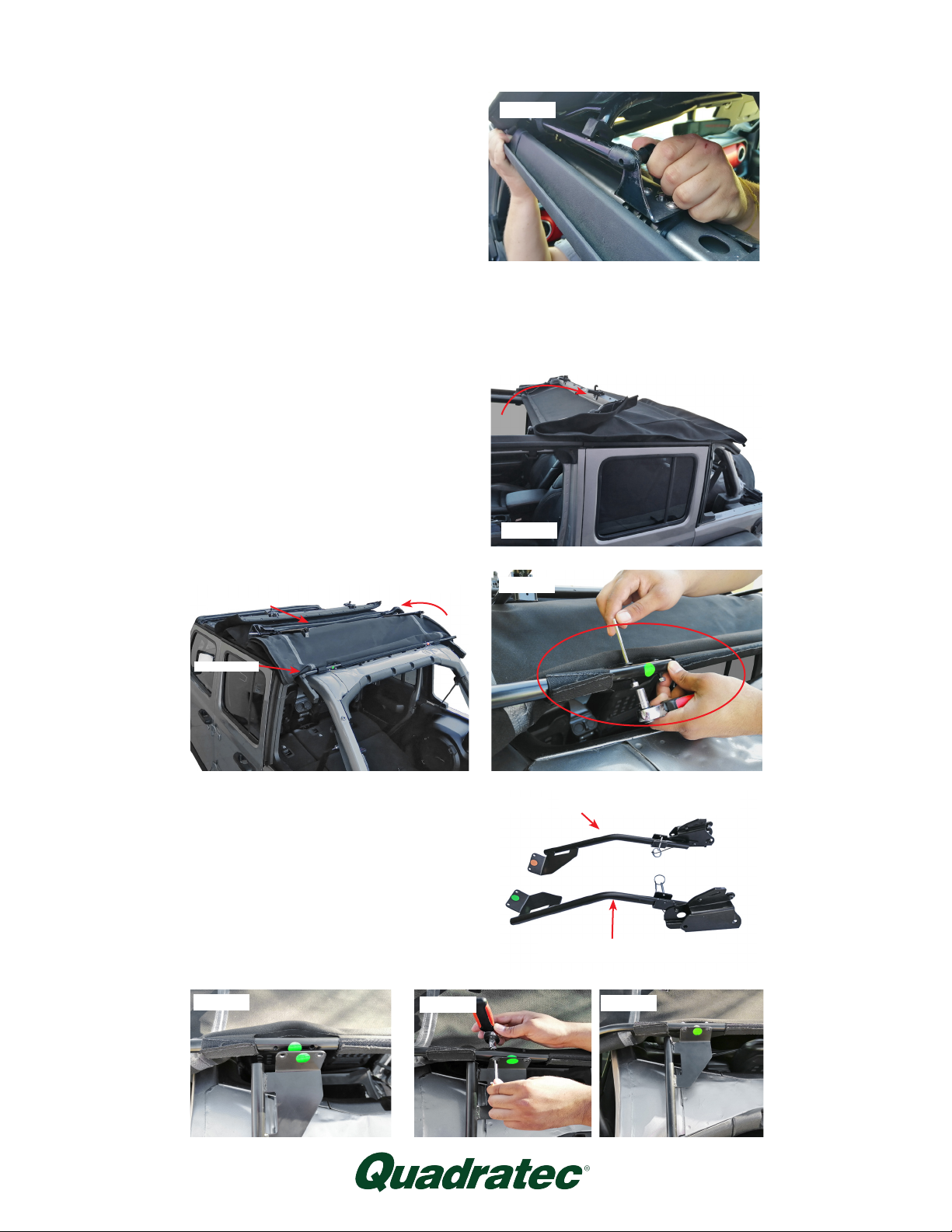

Step 8: Installing the Rear Legs to
the Rear Bow
With the front header folded back
towards the rear of the vehicle (Fig
20), and the rear bow #4 folded to the
front (Fig 21). Locate the #3 rear bow.
There is a screw and nut installed for
shipping (Fig 22). Remove this screw
and nut using a 10mm socket and the
included 5mm Allen head tool and set
aside.
FIG 19
FIG 20
Rear Bow #3
Rear Bow #4
FIG 21 FIG 22
Locate the rear leg with rear main
bracket installed for shipping (Fig 23).
Line up the driver’s side rear leg with
main bracket to the rear bow #3 as
shown in g 24. Insert the previously
removed screw to the hole and place
the nut to the screw and tighten with
the included 4mm Allen wrench to
secure as shown in g 25 & 26.
FIG 23
FIG 26
FIG 25
FIG 24
Driver side rear leg w/rear main
Bracket
Passenger side rear leg w/rear
main Bracket
Repeat the above on the other side of
the vehicle

7
Step 9: Installing the Rear Main
Bracket to the Vehicle
On the rear sport bar, pull off the
plastic cover that comes with the Jeep.
There are two metal clips that hold it in
place (Fig 27). Line up the rear main
bracket over the holes (Fig 28). Insert
the M8 screws and using the included
5mm Allen head tool, tighten the
bracket in place (Fig 29).
Make sure the pin secures the
rear leg as shown in g 30 & 31.
Repeat this procedure on the passen-
ger side.
Pin Securing Leg
FIG 28
FIG 27
FIG 29 FIG 30 FIG 31

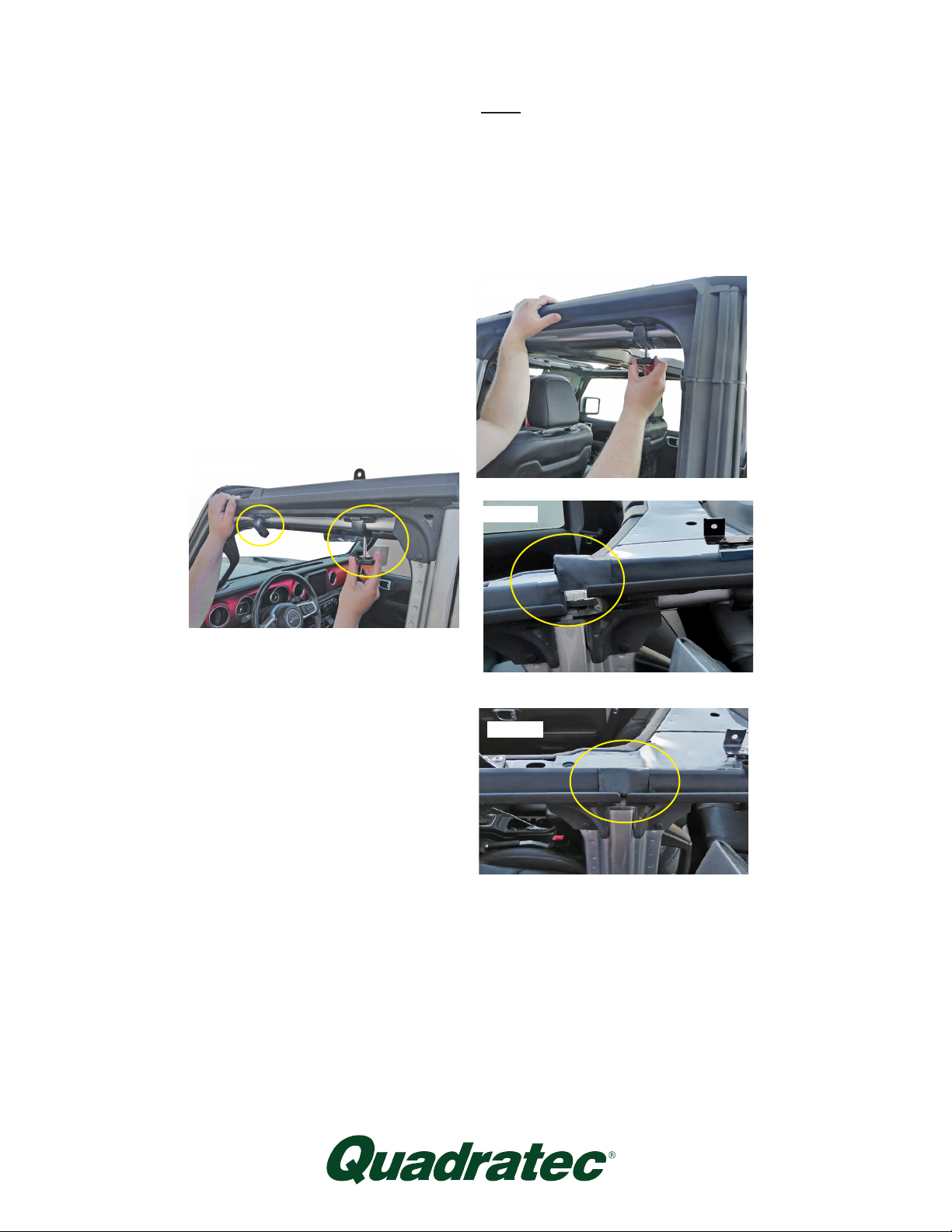

Step 10: Installing the rear bow
with leg to the main bracket
In the Driver’s side rear main brack-
et, there is a screw and nut installed
for shipping (fig 32). Remove this
screw and nut, and set aside. Place
the Driver rear leg to the main rear
bracket (fig 33 & 34).
Make sure the holes of the rear leg
and main bracket line up (g 34). Insert
the screw and nut previously removed
using a 10mm socket and the includ-
ed 4mm Allen head tool. Tighten and
secure the bracket (g 35).
Repeat this procedure on the other
side of the vehicle
FIG 33
FIG 32
FIG 34 FIG 35

8
Step 11: Installing the Top Deck
Once the rear bow is installed (Step
10), SLOWLY fold the front header
down resting the windshield header
on the windshield (fig 36). The first
time you fold this header down it will
be very tight. Make sure before you
fold down the header that the front
two header corner pockets are in
place and not lifted up over the
header.Repeat on the passenger side
Locate the driver side square bracket
on the rear driver door surround as
shown in g 37. Secure the deck to the
bracket by rolling the plastic into the
slot on the bracket (Fig 38 & 39).
With the header resting on the
windshield, close the front header
latches to secure the front of the top to
the wind- shield. See FIG’s 40 & 41.
FIG 36
FIG 37
FIG 36
FIG 38
FIG 40 FIG 41
FIG 39

9
FIG 42
FIG 44
FIG 43
Step 12: Installing the Side quarter
window
Locate the drivers rear quarter window.
Line up and slide the rear quarter win-
dow into the “C” Channel sewn on the
Top Deck as shown in FIG’s 42 & 43.
Repeat on the passenger side
Step 13: Attaching the Corner
Mounts and Tailgate Bar
Locate the corner mounts and two
short knobs (FIG 44). Locate the driv-
er’s side corner mount and line up with
the corner of the body tub. With the
short knob, secure the corner mount
to the body tube and tighten. See Fig’s
45 & 46. Repeat this procedure on the
passenger side.
FIG 45
FIG 46
Step 14: Insert the side corner
window
On the rear of the quarter window
there is a corner support installed. The
quarter window corner support will
engage with the plastic piece up in the
soft top (g 47 & 47a). Once the upper
is secure, in the bottom of this corner
support is a tab that locks to the corner
bracket mount installed in step 13, see
Fig 48 & 49).Repeat on the passenger
side
Corner
Support
FIG 47
FIG 47a
FIG 48
FIG 49

10
Step 15: Installing the Rear
Windows
Locate the rear window and line up
and slide the rear window into the “C”
Channel located at the top of the rear
portion of the top deck and slide it
across (FIGs 50 & 51).
Once both quarter windows and the
upper portion of the rear window are
secured to the top deck, line up the
driver’s side rear zipper on the Quar-
ter window to the zipper on the rear
window and zip it down a few inches
(FIG 52).
When removing the quarter and rear windows from the Top deck be sure to
slide them out completely before pulling down. Disengage the side hook and
loop before sliding the windows out. DO NOT “Peel” the windows out! Failure
to completely disengage the windows from the “C” Channel will damage the
Top and quarter window!
NOTICE
FIG 63
Each Time you remove the windows:
Completely pull the windows out of the “C” Chan-
nel before pulling the windows down!
Do not “Peel” the windows out. See Fig 55.
FIG 55
There may be times when the “P” extrusion may come out of the “C” Channel
ends due to extreme downward pressure. This is normal. If this occurs, slide
the “P” extrusion out of the C channel and re install securing the window back
into the “C” Channel.
NOTICE
Repeat this on the passenger side of
the rear window. You may have to lift
the quarter window up to secure this
second zipper a few inches. Once both
side zippers are attached, zip the rear
window zippers down about half way
(Fig 53). You will close these zippers
completely at the end of the install.
FIG 50
FIG 51
FIG 52
FIG 53
Next, Go inside the vehicle and locate
the second and third center bow hook
and loop flaps sewn into the top deck.
Wrap this flap around the second &
third center bow securing the top deck
to the bows (FIG 54).
FIG 54

11

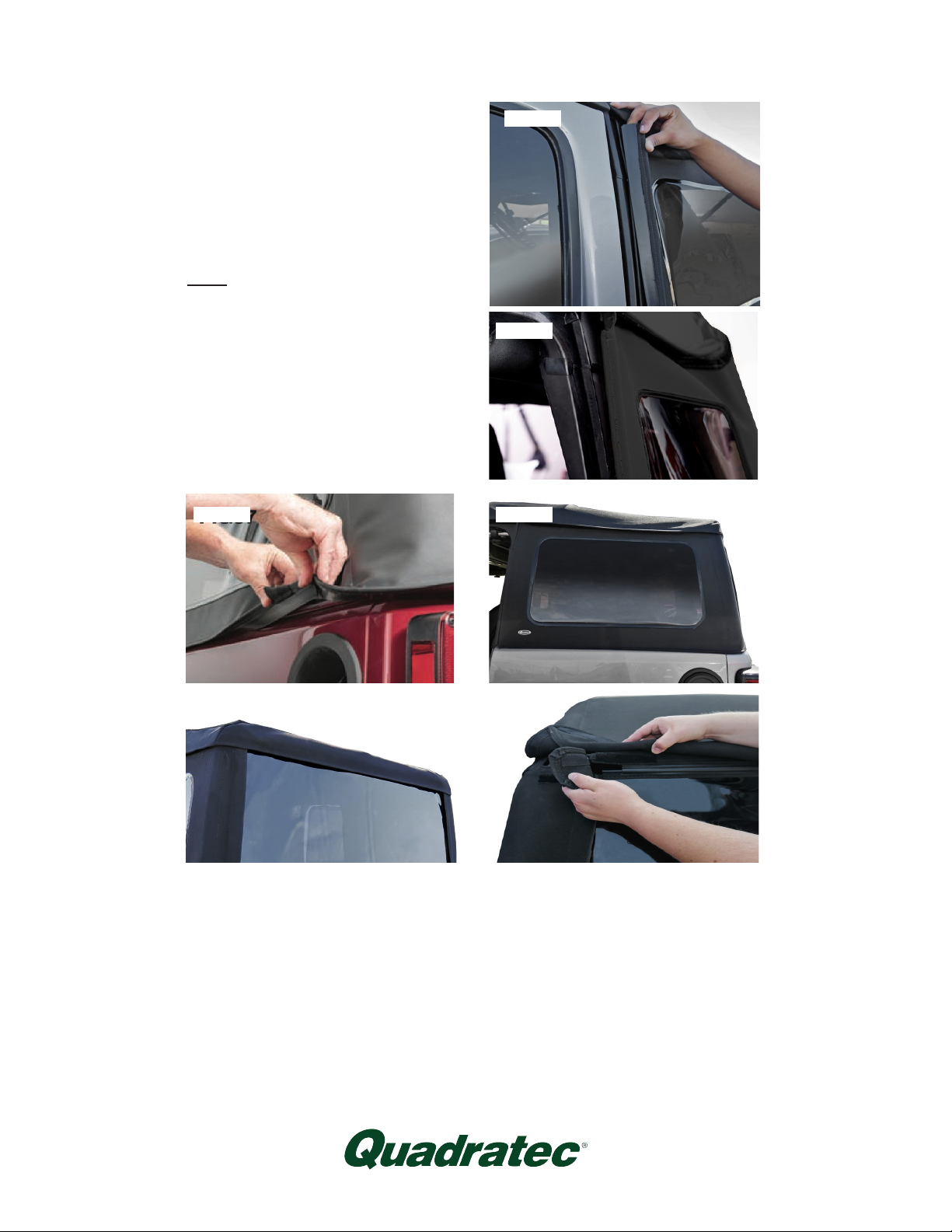

As shown in g’s 56 & 57, roll the ver-
tical plastic strip into the door surround
slot securing it to the door surround.
Next, starting at the driver’s side front,
attach the side belt rail into the vehicle
body by “rolling” the plastic into the
slot (FIG’s 58 & 59).
Step 16: Securing the Side and Rear
Windows to the Vehicle
Note: You may have to pull the cor-
ners around towards the front or back
of the vehicle to center the top on the
vehicle. If this is too dicult, release
the front windshield header latches.
Once installed the rst time these win-
dows will easily install. Repeat this on
the passenger side centering the top
over the rear bow.
Seal hook and loop around windows
(Fig 60 & 61)
FIG 58
FIG 57
FIG 56
FIG 59
FIG 60 FIG 61

FIG 62 FIG 63 FIG 64
FIG 65 FIG 66
Step 17: Securing the tailgate bar &
rear window to the vehicle
Take the tailgate bar and orient the
“C“-Channel with the round seal facing
down and slide the “C” Channel onto
the rear window retainer as shown in
FIG 62 & 63. After sliding the retainer
all the way through the “C” Channel,
roll the tailgate bar into the mounts
with the outside of the fabric facing to-
wards the rear of the Vehicle (Fig 64 ).
Once the Tailgate bar in secure, lower
zippers on both sides of the rear cur-
tain and move to the rear driver’s side
corner mounts and “roll” the plastic
into the corner mount as shown in FIG
65. Secure the rear zipper cover ap
as shown in Figs 66 & 67. Repeat this
procedure on the passenger side.
Option #1 & #2
Your Soft top hardware has multiple
front fold back options. Depending
on how much sun and weather you
want to let into the cab determines
the options available to you
Using Your Fastback Soft Top
Open over the front driver and pas-
senger compartments:
Unlatch the two front Windshield latch-
es (Fig 68 & 69). Push the front head-
er up and over to open the “sunroof”.
When you open the front portion there
will be fabric still hanging down over
your head (Fig 70) This is Option #1
which provides protection from the
sun while opening the “sunroof”. If
you push the fabric up in the center of
the folded back “sunroof” and tuck/
fold it under the header, this is option
#2 which completely opens up the
“sun roof”. This option is shown in Fig
70A.
13
FIG 70A
FIG 70
FIG 69FIG68
FIG 67

FIG 71
14
Using Your Fastback Soft Top-Continued
Option #3 & #4
Fully Open Front and Rear Passen-
ger “Sun Roof”:
These options open both the front
cab and rear cab portions of the top.
This option requires you to remove
the front header arms and the two
bows from the bow mount brackets.
Fig 71 shows the finished look of
this “Sun Roof” option with the front
header installed on the third bow
bracket mount and the header folded
all the way back to the rear of
the vehicle.
With the header latches un-latched
and front section open(Fig 71) un-hook
the 2 quick release knobs located on
the end of the header arms as circled
in Fig 72. Next, un-hook the 4 quick re-
lease knobs on bow #1 and bow #2
(Fig 72) leaving the two rear bows (Bow
#1 & #2) encased in the hook and loop
flaps. Once The front bow arms and
two rear bows are disconnected from
the bow mount brackets, with the help
of a friend, carefully fold back the front
header and two bows layering the top
and bows under the fabric and then
connect the front bow arms quick
release knobs to the rear-most third
bow mount bracket as circled in Fig 73.
This is option # 3. Notice in Fig.74 how
the fabric is “layered" back and the front
Bow Mount Brackets are installed to
the rear bow brackets. This is option
#4 with the entire fabric assembly
folded back and secured to the rear
brackets.
The front header arms must be secure to the third bow mount bracket and the
fabric/ bows must be layered back before the vehicle is driven! Failure to
secure these bow mounts will cause the top to potentially ly o󰀨 the vehicle
causing damage to the top, vehicle and potentially other vehicles on the road.
WARNING
FIG 74
FIG 73
FIG 72

15
When folding back your soft top, it must always be secured to the vehicle using
the enclosed straps shown above. When the Top is folded back in the sun roof
position,make sure the quick release knobs are secure. Failure to do so may
result in damage to your vehicle, hardware system, soft top and your person.
WARNING
Using Your Fastback Soft Top-
Continued
Folding your soft top all the way
back and securing
To fold back and secure your top, re-
move the rear and quarter windows
from your soft top. Unlatch the quick
release knobs (both sides) from the
front, Center #1, Center #2 bows (fig
75), unhook the pin securing the rear
leg (fig 75a). With the help of a
friend, fold back the entire top to the
rear of the vehicle as shown in fig 76.
Front Bow Center
Bow #1 Center
Bow #2
Front Leg
Threading Straps through Buckles:
For the following strap attachment you will need to thread webbing
straps through buckles. Please review the picture to the left for correct
strap routing through the buckles. As a rule of thumb, run the strap
below and through the sewn side of the buckle rst and then back down
through the end of the buckle. Tighten the strap by simply pulling the
exposed webbing after threading the strap through the buckle.
To secure your folded down soft top,
locate the two side tension straps (Fig
77). Hook the end of strap under the
belt rail (Fig 78), insert the other side
of the tension strap through the strap
that is sewn for shipping located on
the front leg (Fig 79). Thread through
the buckle and tighten to secure as
show in fig's 80 & 81. Repeat on the
other side of the vehicle.
FIG 75
FIG 76
FIG 75a
FIG 77 FIG 78
FIG 79 FIG 81FIG 80

Care and Maintenance:
Your QuadraTop is made of the nest
materials available but to keep it looking
new and for the maximum possible wear,
it will need periodic cleaning and basic
maintenance. The main threats to your
soft top are pollutants, dirt and grime.
By keeping your soft top clean you will
prolong the life of your top.
We recommend the following to keep
your top like new:
Washing: The soft top fabric should be
washed often using a mild soap, warm
water and a soft bristle brush (do not use
the brush on the window glass!). You
can also use special soft top clean- ers
available on our website and shown on
page 15. Make sure that after clean- ing
you rinse with clear water to remove all
traces of soap.
Zippers: Keeping the zipper cleaned
and lubricated with a silicone lubricant
(see Page 15) will help prevent damage
and keep the zippers in a smooth work-
ing condition. If zipper opens behind the
slider, the slider may have been spread
apart. This problem can usually be xed

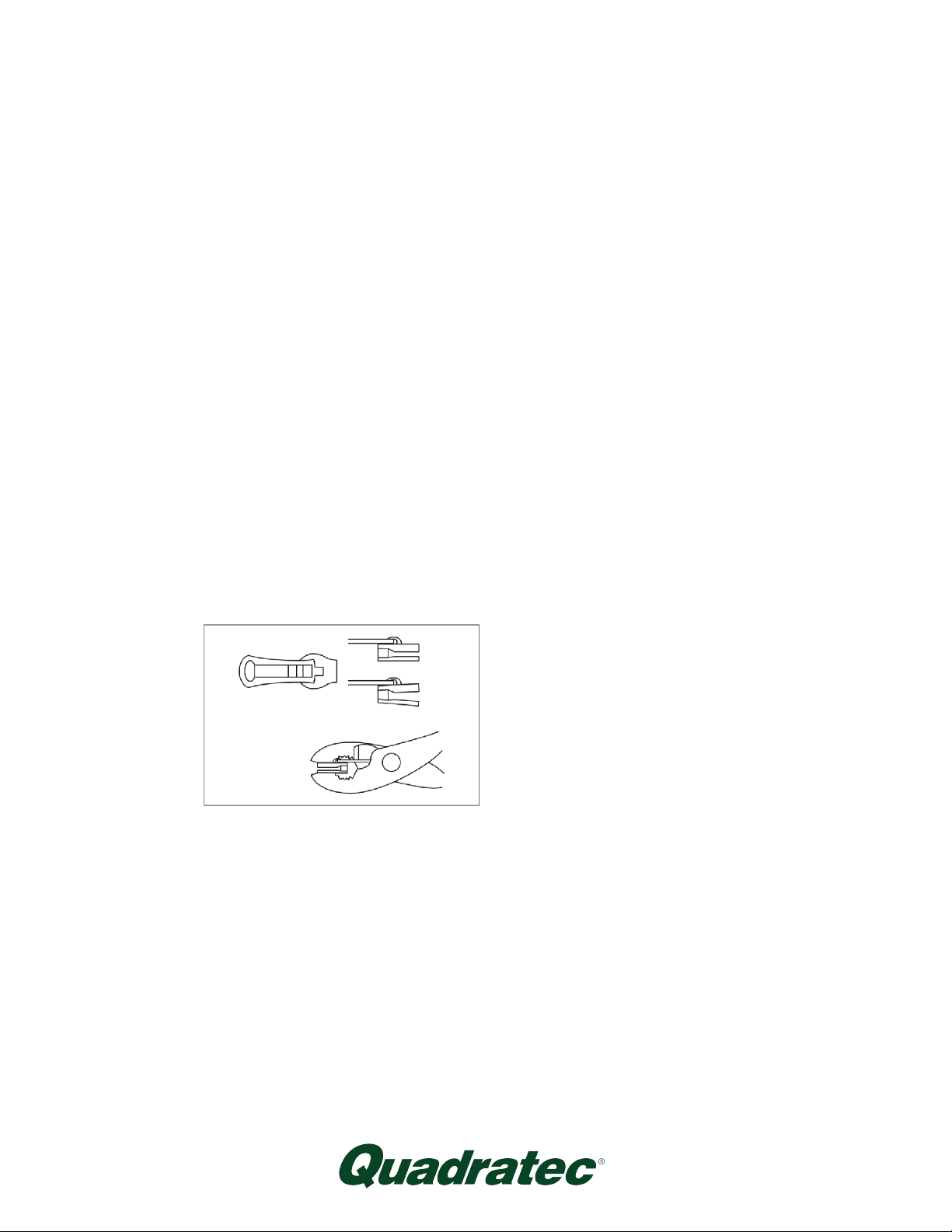

by using an ordinary pair of pliers to bring the
sides back into parallel. Return slider to the
end of the zipper in the normal Open posi-
tion. Squeeze lightly at rst and test zipper. If
the zipper continues to remain open squeeze
more rmly with pliers and try the zipper
again. Repeat procedure until your zipper
operates correctly.
Windows: It is very important that you keep
your QuadraTop windows clean! Use a mild
soap and water solution to gently clean your
windows. NEVER wipe your windows clean
with a dry cloth! Dust and dirt on a dry cloth
can scratch your windows causing “fog- ging”
and permanent damage. When re- mov-
ing your windows, store them with a towel
between the panels/rear win- dows to protect
them from damage. If frost or ice forms on
the outside of your windows during the win-
ter, DO NOT use an ice scraper to remove
this frost. Over time you will see small micro
scratches in your windows which are natural
wear and tear. These Micro scratches can be
“polished” out using the window polish listed
on page 15 (Available at Quadratec.com).
Water/Fabric: In the event of seeping
through the seams, 3M Scotchgard® may
be applied on the inside of the seams to stop
the see. Rips in the fabric may be repaired
with Bondex® iron on patches. Iron the
patches to the Inside of the top, carefully
following the Bondex® instructions.
Snaps: Keep snaps cleaned and lubricated
with silicone to help prevent snaps from
sticking to the studs. If a snap does become
stuck to a stud, use a screwdriver and GEN-
TLY pry apart to prevent permanent damage
to the snap or the top fabric.
16

Quadratec Limited Warranty
for QuadraTop® Replacement Soft Tops
Your QuadraTop® replacement soft top is
covered by the following Limited Warranty
provided exclusively by Quadratec, Inc. 1028
Saunders Lane, West Chester, PA 19380.
This Limited Warranty is the only warranty
made in connection with purchase. Qua-
dratec neither assumes nor authorizes any
vendor, retailer or other person or entity to
assume for it any other obligation or liability
in connection with this product or Limited
Warranty.
What is Covered:
Subject to the terms, exclusions and limita-
tions herein and with respect only to soft tops
rst sold in the United States, Quadratec
warrants to the initial retail purchaser only
that your QuadraTop soft top shall be free of
defects in material and workmanship for a
period of 3 years from date of initial retail
sale.
All other warranties are hereby disclaimed,
except to the extent prohibited by applicable
law in which case any implied warranty of
merchantabil- ity or tness for a particular
purpose on this prod- uct is limited to 3 years
from date of initial retail sale. Quadratec
reserves the rights to: (a.) require invoice or
other proof your soft top is within the terms
of this Limited Warranty as a condition of
warranty service and, (b.) make future revi-
sions to this product and Limited Warranty
without prior notice or obligation to upgrade
your soft top.
What is Not Covered:
Your Quadratec Limited Warranty does not
cover products or parts Quadratec determi-
nes to have been damaged by or subjec-
ted to: (a.) installation damage, alteration,
modication, failure to maintain or attempted
repair or service by anyone not authorized
by Quadratec, (b.) normal wear and tear,
cosmetic damage or damage from
water immersion, (c.) Acts of God, accidents,
misuse, negligence, inadequate mounting
or impact with vehicle(s), obstacles or other
aspects of the environment, (d.) theft, vanda-
lism or other intentional damage.
Remedy Limited to Repair/Replacement:
The exclusive remedy provided hereun-
der shall, upon Quadratec inspection and
at Quadratec’s option, be either repair or
replacement of product or parts (new or
refurbished) covered under this Limited
Warranty. Customers requesting warranty
consideration on QuadraTop soft top should
rst contact Quadratec to obtain a RGA
number (610-701-3336). All labor, removal,
shipping and installation costs are custo-
mer’s responsibility.
Other Limitations - Exclusion of Damages
- Your Rights Under State Law:
In consideration of the purchase price paid,
neither Quadratec nor any independent
Quadratec distributor/licensee are responsi-
ble for any time loss, rental costs, or for any
incidental, consequen- tial, punitive or other
damages you may have or incur in connec-
tion with any part or product purchased. Your
exclusive remedy hereunder
for covered parts is repair/replacement as
described above.
This Limited Warranty gives you specic
rights. You may also have other rights that
vary from state to state. For example, some
states do not allow limitations of how long an
implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or con-
sequential damages, so the limitations and
exclusions herein may not apply to you.
The terms Quadratec®, QuadraTop®
Essentials® and Essential® are Registered
Trademarks of Quadratec Inc. Registered in
U.S. Patent and Trademark Office.
©Quadratec, Inc. 2022. All Rights Reserved.
Version 6.28.22
# 941082Q.01
17
