Quantel Medical Pocket II E PCK2 MT AN User manual

XE PCK2 MT AN NOVEMBER 2003
SERVICE MANUALSERVICE MANUAL
SERVICE MANUALSERVICE MANUAL
SERVICE MANUAL
PACHYMETER ECHOGRAPH
ON
AC
MEAS.
MEAS.MEAS.
MEAS. OK
OKOK
OK
TEST
TESTTEST
TEST
QUANTEL MEDICAL SA
21, rue Newton, Z.I. du BREZET
63039 Clermont-Ferrand Cedex 2 - FRANCE
Tel : [phone] - Fax : [phone]
e-mail : [email protected]
web site : www.quantel-medical.fr

P -2
SERVICE MANUAL
Rev 11-2003
WARRANTY :
- For safety reasons, QUANTEL MEDICAL
considers the instrument CPU Board as whole
part.
Defective CPU Board will be returned to
QUANTEL MEDICAL as a whole for replacement.
Any faulty component will be replaced by a strictly
identical component.
- QUANTEL MEDICAL shall not be liable for any
intervention or attempt to repair the "CPU Board"
should any incident or breakdown occur.
The guarantee of the equipment will be void if the
equipment is opened (even partially), modified or
repaired in any way by persons who are not
authorised by QUANTEL MEDICAL.
In case of user or equipment problems, call
QUANTEL MEDICAL Service department :
Quantel Medical SA
Head Office : 21, rue Newton, Z.I. du BREZET
63039 Clermont-Ferrand Cedex 2 - FRANCE
Tel : [phone]
Fax : [phone]
E-mail : [email protected]
Quantel Medical Inc.
601, Haggerty Lane
BOZEMAN MT 59715 USA
Tel : [phone] Fax : [phone]
E-mail : [email protected]
WARNINGS

P -3
SERVICE MANUAL
Rev 11-2003
Page Rev
11-2003
WARNINGS P - 2
TABLE OF CONTENTS P - 3 X
1- TECHNICAL SPECIFICATIONS P - 4
1-1 Frequency P - 4
1-2 ANTI Interference P - 4
1-3 Power Supply P - 4 X
1-4 Stickers P - 5
2- OVERALL BLOCK DIAGRAM P - 8
3- DIAGRAM OF THE CPU BOARD P - 9
3-1 Schematic P - 9 X
3-2 Layout P - 10
4- INSTRUMENT BOX P - 11
4-1 Material P - 11
4-2 Dimensions and Weight P - 11
5- ACCESSORIES AND SPARE P - 12 X
PARTS
6- MAINTENANCE P - 13
6-1 How to open the POCKET-II box P - 13
6-2 Pachymetry probe calibration P - 14 X
6-3 Checking procedure P - 16 X
VALIDATION SHEET P - 18 X
TT
TT
TABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTS

P -4
SERVICE MANUAL
Rev 11-2003
1-1 FREQUENCY
- Probe transducteur : 20 MHz
- Programmable Logic device (PLD)Clock:32MHz
- Microprocessor Clock : 8 MHz
1-2 ANTI INTERFERENCE
The POCKET-II equipment consumes very low
current and cannot generate any significant EMI
effect.
The POCKET-II equipment is powered by direct
current (DC) voltage.
1-3 POWER SUPPLY
The POCKET-II equipment requires four 1,5V AA
batteries in order to operate.
An optional external power supply may be used
to replace the batteries.
This external power supply can be found in any
country with the appropriate regulation. The
voltage and current required are 9V DC and
500 mA.
Do not remove the batteries before connecting to
the external power supply (in order to safeguard
the configuration data) .
external power supply placement
The external power supply connector is
positionned on the upper left side of the
POCKET-II instrument.
1- TECHNIC1- TECHNIC
1- TECHNIC1- TECHNIC
1- TECHNICAL SPECIFICAL SPECIFIC
AL SPECIFICAL SPECIFIC
AL SPECIFICATIONSATIONS
ATIONSATIONS
ATIONS
9V

P -5
SERVICE MANUAL
Rev 11-2003
9V
SN 002
PACHYMETER
Echograph
Model : POCKET-II
Class II
Type BF
QUANTEL MEDICAL
21, rue Newton, Z.I. du BREZET
63039 CLERMONT-FERRAND cedex 2
- FRANCE -
Tel: [phone]
Fax: [phone]
- Power supply : 6 Vdc =
4 Alkaline LR6 batteries
- Option : External power supply
Complying with IEC 065 standard
Maximum : 9 Vdc ; 500 mA
(Does not recharge batteries)
0459
1- TECHNIC1- TECHNIC
1- TECHNIC1- TECHNIC
1- TECHNICAL SPECIFICAL SPECIFIC
AL SPECIFICAL SPECIFIC
AL SPECIFICATIONSATIONS
ATIONSATIONS
ATIONS

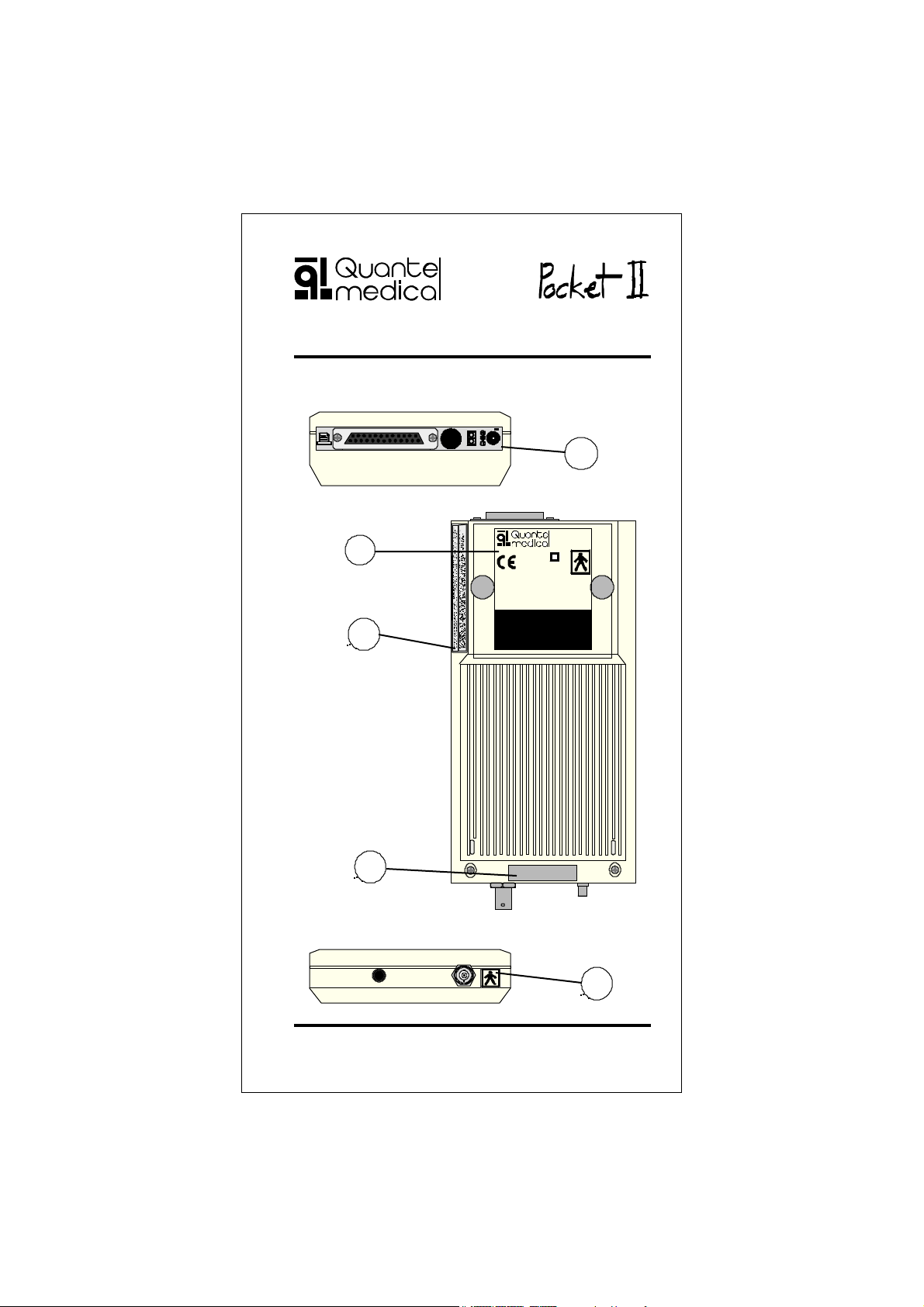

1-4 STICKERS
1
2
3
4
Upper panel
Rear panel
Lower panel
5

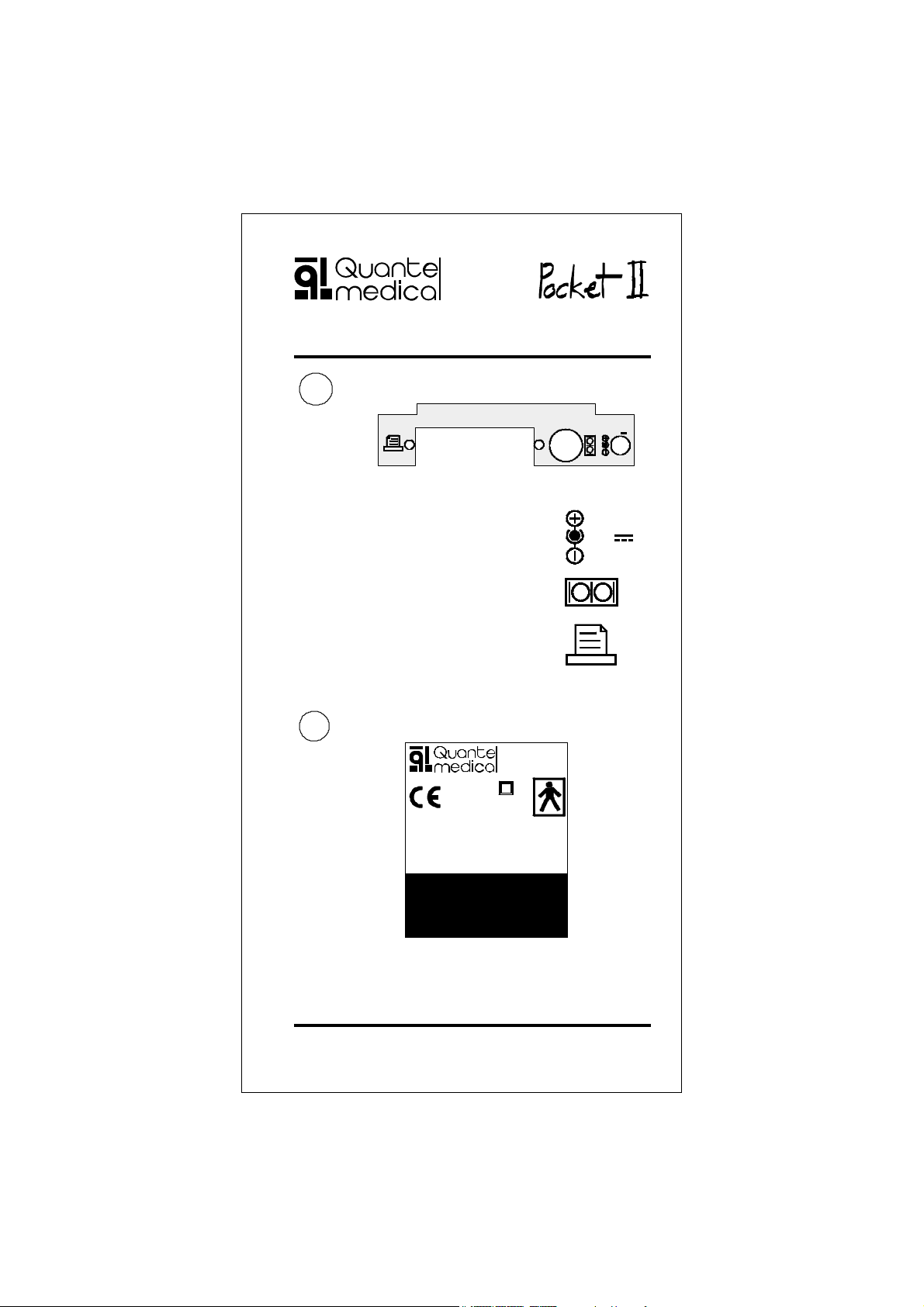

P -6
SERVICE MANUAL
Rev 11-2003
1
2
PACHYMETER
Echograph
Model : POCKET-II
Class II
Type BF
QUANTEL MEDICAL
21, rue Newton, Z.I. du BREZET
63039 CLERMONT-FERRAND cedex 2
- FRANCE -
Tel: [phone]
Fax: [phone]
- Power supply : 6 Vdc =
4 Alkaline LR6 batteries
- Option : External power supply
Complying with IEC 065 standard
Maximum : 9 Vdc ; 500 mA
(Does not recharge batteries)
0459
Size 60 x 50 mm
Size : 23 x 93 mm
Plate with serigraphy :
Identification sticker :
1- TECHNIC1- TECHNIC
1- TECHNIC1- TECHNIC
1- TECHNICAL SPECIFICAL SPECIFIC
AL SPECIFICAL SPECIFIC
AL SPECIFICATIONSATIONS
ATIONSATIONS
ATIONS
- external power supply placement
- serial port to PC placement
- parallel port for printer placement
9V
9V

P -7
SERVICE MANUAL
Rev 11-2003
3
4
5
CAUTION : FEDERAL USA LAW RESTRICTS THIS DEVICE TO SALE BY OR ON THE
ORDER OF A PHYSICIAN OR AN OPTOMETRIST LICENCED BY THE LAW OF THE
STATE IN WHICH HE PRACTISES TO USE OR ORDER THE USE OF THIS DEVICE
DANGER : EXPLOSION HAZARD. DO NOT USE IN PRESENCE OF
FLAMMABLE ANESTETICS OR OXIGEN. RICH ATMOSPHERE
CAUTION : ELECTRIC SHOCK HAZARD. DO NOT OPEN. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
SN 002
Size 59 x 15 mm
Type BF symbol :
Serial number sticker :
Size : 13 x 13 mm
Size :33 x 12 mm
Special sticker for USA :
1- TECHNIC1- TECHNIC
1- TECHNIC1- TECHNIC
1- TECHNICAL SPECIFICAL SPECIFIC
AL SPECIFICAL SPECIFIC
AL SPECIFICATIONSATIONS
ATIONSATIONS
ATIONS

P -8
SERVICE MANUAL
Rev 11-2003
2- OVERALL BLOCK DIAGRAM
Control of 8
Time delays Measurment
Control Counter
Display
Control
Parallel Port
Printer Control
Serial Port
Printer
Numerical
display
Sampler Level
Control Counter
Receiver
32Mhz clock
Pulser
8 Mhz clock Microprocessor
Probe
User Buttons Footswitch
Repplaceable
batteries
(4x1.5V)
Power Supply
Plug for 9 Vdc
External power
suppply
Programmable Logic Device (PLD) :
This hardware circuit realizes fast
sub-functions on request of the
micro-processor.
5 Volts
PC

P -9
SERVICE MANUAL
Rev 11-2003
3-1 SCHEMATIC
3- DIAGRAM
REFER TO THE TREATMENT CARD
REF : 3 101 0109 Rev B

P -10
SERVICE MANUAL
Rev 11-2003
3-2 LAYOUT
3- DIAGRAM
REFER TO THE TREATMENT CARD
REF : 4 152 0109 Rev A.

P -11
SERVICE MANUAL
Rev 11-2003
4-1 MATERIAL
The box is in ABS plastic in accordance with the
UL94V0 Standard.
4-2 DIMENSIONS AND WEIGHT
Width : 100 mm Height : 45 mm
Depth : 200 mm Weight : 460 g
4- INSTRUMENT BOX
Front panel Rear Panel
SN 002
PACHYMETER
Echograph
Model : POCKET-II
Class II
Type BF
QUANTEL MEDICAL
21,rueNewton,Z.I.duBREZET
63039CLERMONT-FERRANDcedex 2
- FRANCE -
Tel: [phone]
Fax: [phone]
- Power supply : 6 Vdc =
4 Alkaline LR6 batteries
- Option : External power supply
Complying with IEC 065 standard
Maximum : 9 Vdc ; 500 mA
(Does not recharge batteries)
0459
ON
AC
MEAS.
MEAS.MEAS.
MEAS. OK
OKOK
OK
TEST
TESTTEST
TEST

P -12
SERVICE MANUAL
Rev 11-2003
5- ACCESSORIES & SPARE PARTS
IDENTIFICATIO N CODE
ACCESSORIES
Pachymetry probe
reference P1 XE AAA PRB PK
User Manual XE PCK2 ME
Technical Manual XE PCK2 MT AN
OPTION
F ootsw itch XE AAA PE D
SPARE PARTS
Pocket-II plastic box XE POC BOIT2
Pocket-II front panel + test block XE POC LEXAN2
Pocket-II CPU board XE POC CPU2
Pocket-II LCD screen and Board XE POC LCD2
Pocket-II transport case XE POC VALISE2

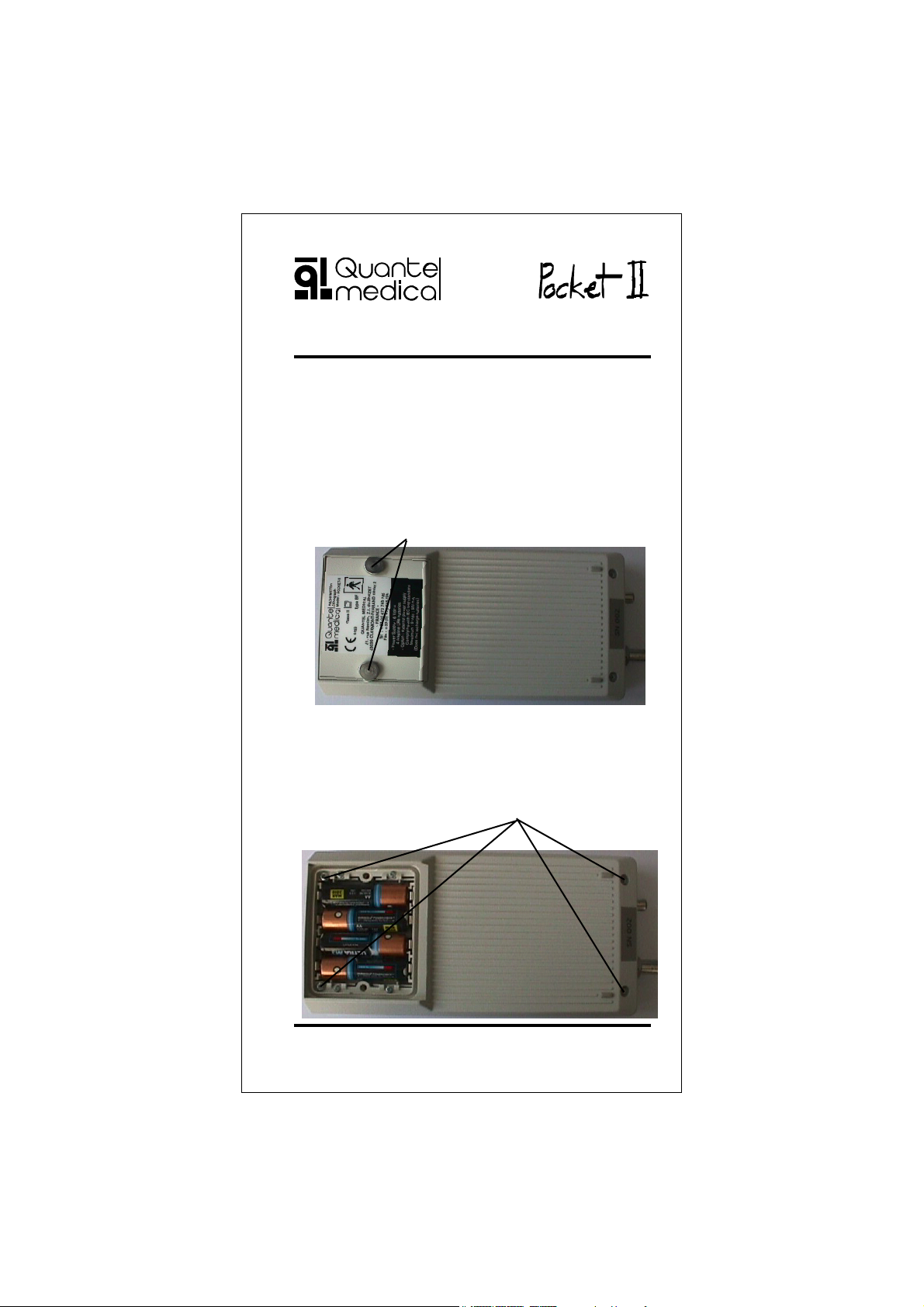

P -13
SERVICE MANUAL
Rev 11-2003
The POCKET-II plastic box is composed of 2
parts.
1) Unscrew the 2 large headed metal screws on
the underside of the POCKET-II
and remove the back panel of the battery
compartment
2) Unscrew the 4 screws and remove the
inferior part of the POCKET-II plastic box.
6- MAINTENANCE
2 screws
6-1 HOW TO OPEN THE POCKET BOX
4 screws

P -14
SERVICE MANUAL
Rev 11-2003
6- MAINTENANCE
ON
AC
MEAS.
MEAS.MEAS.
MEAS. OK
OKOK
OK
OK
OKOK
OK
6-2 PACHYMETRY PROBE CALIBRATION
OK
OKOK
OK
Firstly, ensure that the probe is connected and the
tip is clean and dry.
- From this screen:
- Press 3 seconds.
- The configuration screen appears:
- Press simultaneously these two keys 3s:
- Speed selection appears on the screen:
- Press
- This message appears on the screen:
- Press simultaneously these two keys :
- This message appears on the screen :
- Unplug the probe.
Pres. MEAS M1
Freeze MEDIUM
CalUnp 1878 2554
Unplug the probe
Speed 1620 m/s
NOTE :
The parameters in the screens below are given
for examples. You can find parameters slightly
differents.
ON
AC

P -15
SERVICE MANUAL
Rev 11-2003
6- MAINTENANCE
OK
OKOK
OK
OK
OKOK
OK

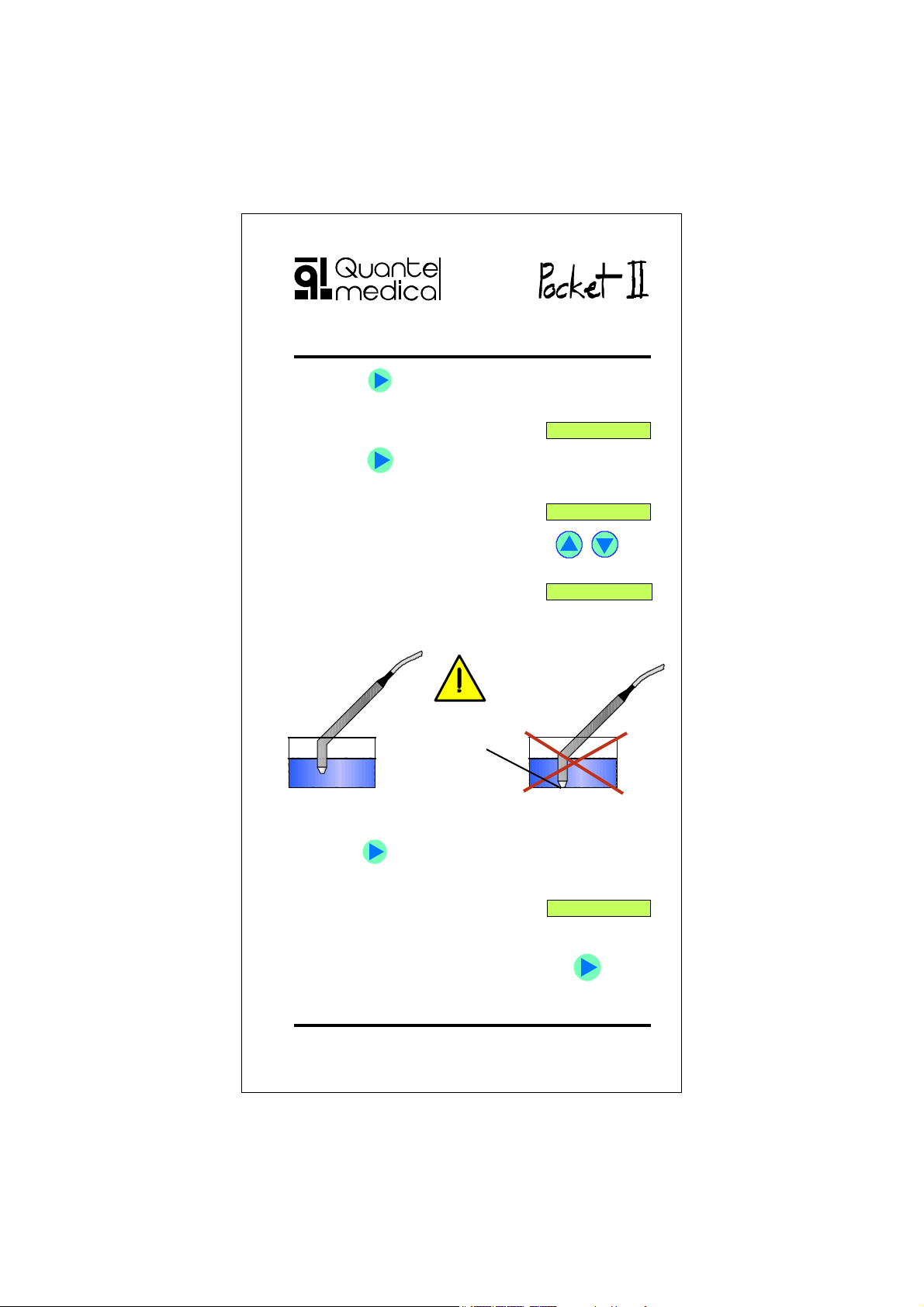

- Press
- CalUnp with the new parameters is displayed :
- Press
- This message appears on the screen:
- Press simultaneously these keys :
-This message appears on the screen:
- Plug the probe on the pocket-II and put the probe
in a glass of water like indicate below
- Press
- CalWat with the new parameters is displayed:
- The calibration is done.
- In order to save this calibration press 3 s.
CalWat 2021 1876
CalUnp 1911 2557
Probe in water
OK
OKOK
OK
OK
OKOK
OK
CalWat 2052 1842
BE CARREFULL
that the end
of the probe
is not in
contact with
the bottom
of the container

P -16
SERVICE MANUAL
Rev 11-2003

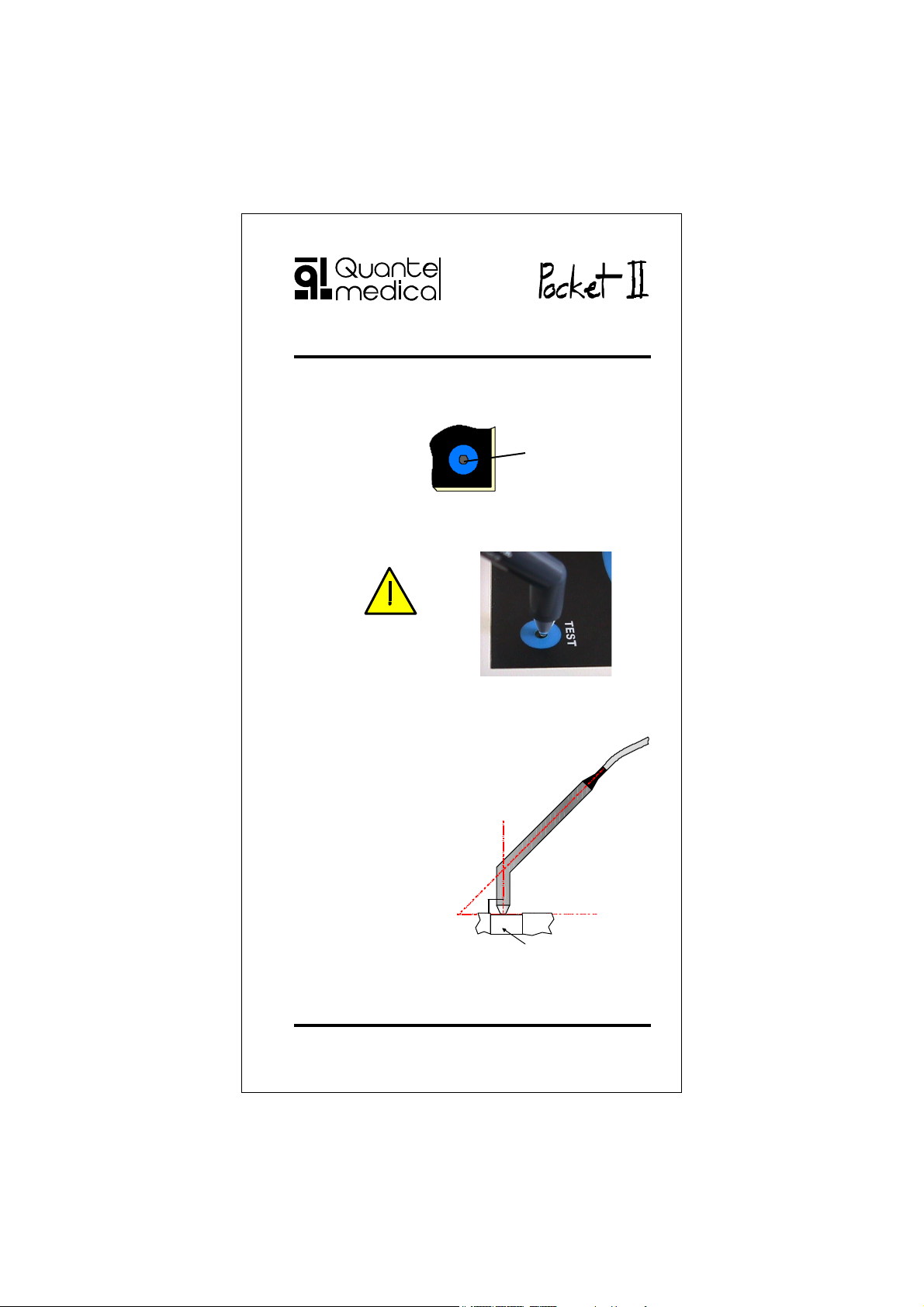

6-3 CHECKING PROCEDURE
The measurement acquisition may be checked
with the test-block :
1- Dampen the probe extremity with water and
place it perpendicular on the Pocket-II
test block like indicated below.
2- Press “MEAS”.
The acquisition should be fast : if necessary,
change slightly the position of the probe to
obtain an acquisition. You ear a repetitive
sound while the position of the probe
is incorrect.
You must be perpendicular
like the opposite diagram.
Note : Make a series of
measurments to have
a representative Standard Deviation (SD).
TEST
TESTTEST
TEST
Do not put water
on the test block
Test-block
90°
Test-block on the Pocket-II
6- MAINTENANCE

P -17
SERVICE MANUAL
Rev 11-2003
3- Results of the test :
if the procedure has been succesfull and the
position of the probe is correct, the readings
of the series of measurements must be
repetitive to ± 20 µm.
As some microns represent a very thin
thickness, some parameters influencing the
test-block itself :
- the variation of the thickness with the
ambiant temperature.
- possible dust.
- Incorrect positioning.
If you suspect any problem, please call for
Service.

P -18
SERVICE MANUAL
Rev 11-2003
Software Version 1.04
Publishing Date November 2003
Revision Date November 2003
Written by
F. LOYAL
Checked by
C. CHABRIER
Validated by
P. QUERO
VALIDATION SHEET
