Introduction
Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Introduction 0
The ATL ATL P4000 is an automated storage and retrieval library
consisting of up to 10 tape drives and up to 322 tape cartridges (see
figure 1).
This document explains how to unpack the ATL P4000. Once the
library is unpacked and moved to the desired installation location, set
up the library using the instructions in the ATL P4000 and ATL P7000
User’s Guide (PN 6434003).

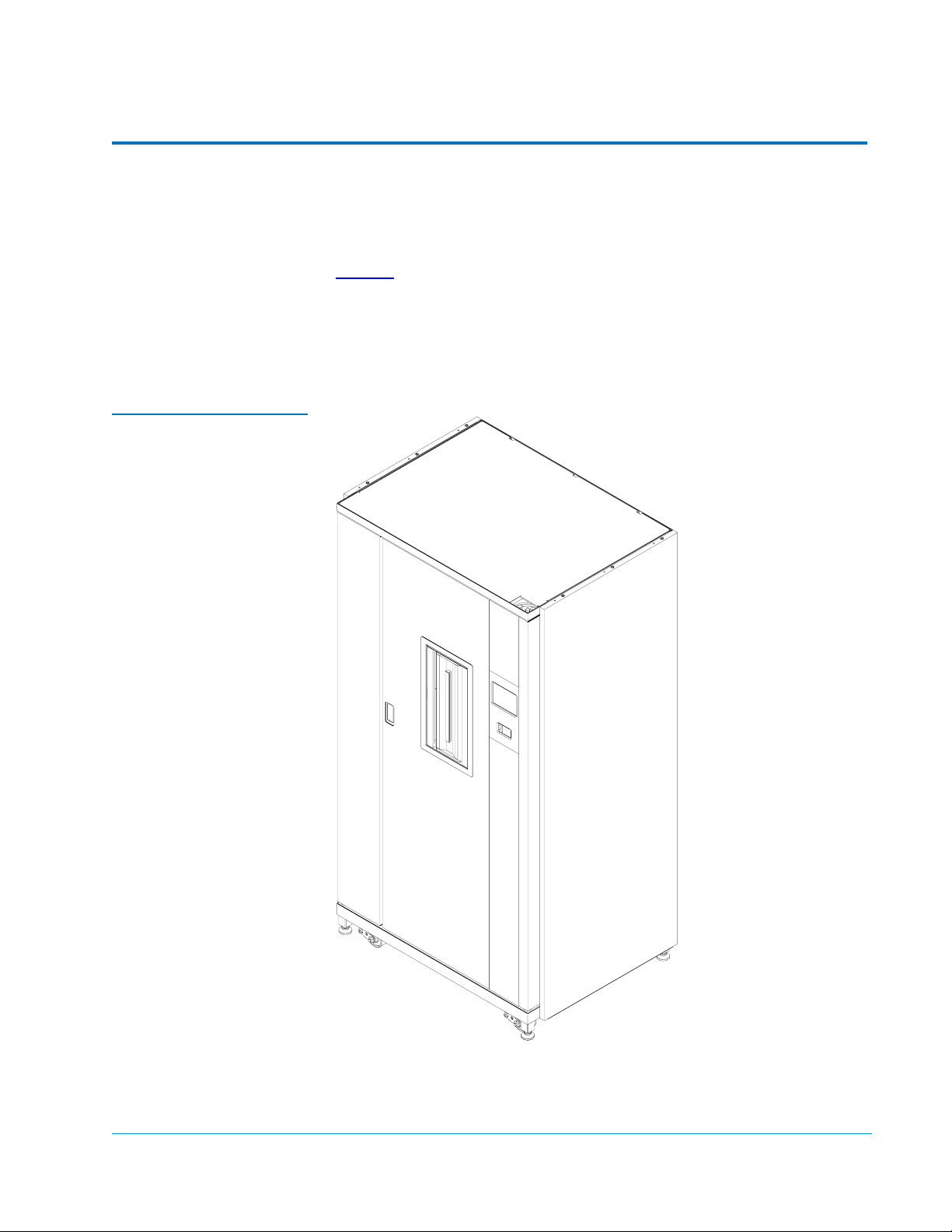

Figure 1 ATL P4000 Library

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
4 Selecting an Installation Location
Selecting an Installation Location 0
When choosing an installation site for the ATL P4000, consider the
following requirements:
• Floor space
• Floor clearance
• Floor strength and inclination
• Power and grounding
• Environmental conditions
These requirements are also described in the ATL P4000 and ATL P7000
User’s Guide (PN 6434003).
Floor Space 0Figure 2 shows the minimum floor space required by the ATL P4000.

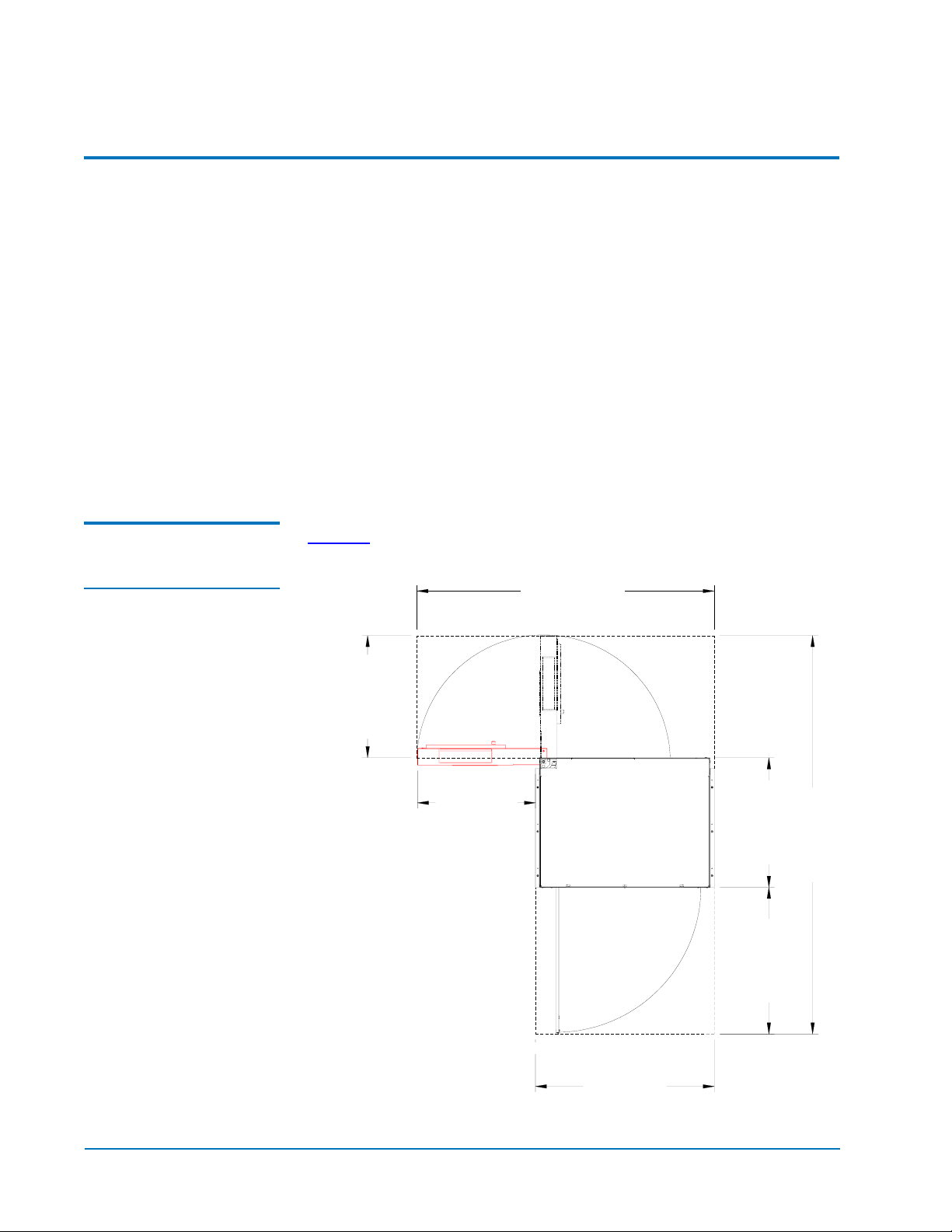

Figure 2 Floor Space
Requirements
Rear
Front
Library
27 in (69 cm)
40 in (102 cm)
89 in (226 cm)
26 in (66 cm)
67 in (170 cm)
29 in (74 cm)
33 in (84 cm)

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Selecting an Installation Location 5
Floor Clearance 0The library has a floor clearance of 0.75 inch (19 mm). Place the library
on a level, uncarpeted floor free of defects.
Floor Strength and
Inclination 0
The floor at the installation site must be rated at 250 lb/ft2
(1221 kg/m2). This is sufficient to support a fully loaded ATL P4000
library.
The floor must be level to within 0.25 inch (6.4 mm) over a 6-foot-by-6-
foot (1.83-meter-by-1.83-meter) area.
Power and Grounding 0For the United States and Canada, one or two UL/CSA certified power
cords are furnished. Each uses a 14/3 SJT cord, a 5-20P plug, and an
IEC-C320 C19 female connector (see figure 3).

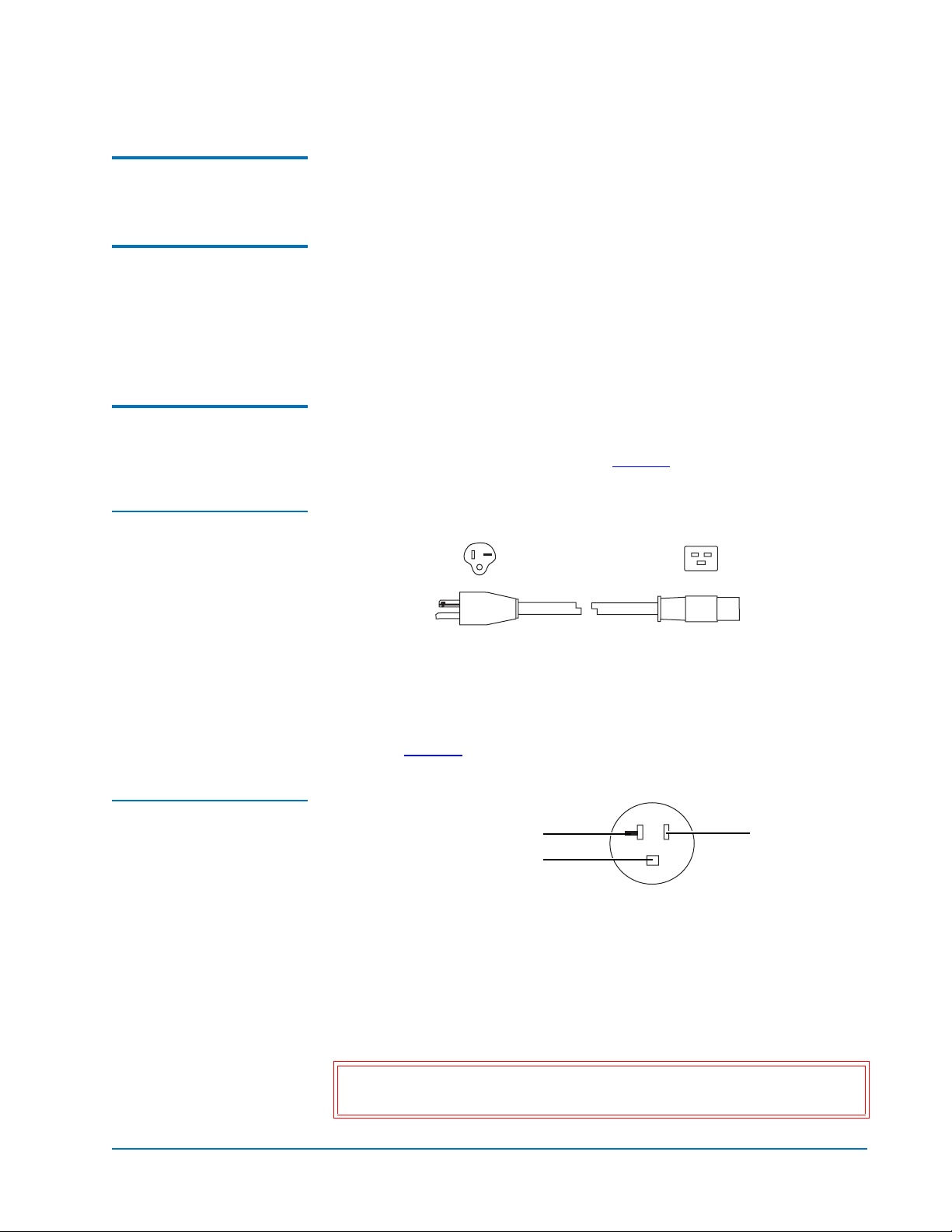

Figure 3 Power Supply
Cord
The library is rated 100-240V~, 50-60Hz, 12A-8A, 1200W.
The library power requirements may require modification of the
facilities existing power capabilities by a qualified electrician. The
required wall outlet for the United States and Canada is rated at 125V
20A (see figure 4).
Figure 4 Wall Outlet
The dedicated wall outlet and a 20 amp circuit breaker must provide
power to the ATL P4000 library only. Outside North America, replace
the supplied power cord with a harmonized 3 x 1.5 mm2power cord
that is approved by the country where used, and install the
appropriate wall outlet. More information on the electrical
requirements is provided in the ATL P4000 Pre-Installation Site Survey
Instructions.
Caution: The ATL P4000 library must be connected to a grounded
electrical outlet.
Plug:
NEMA 5-20
Connector:
IEC-C320 C19
Connects to library
power supply
Connects to
wall outlet
Neutral
Ground
Line
Wall outlet
NEMA 5-20R
rated 125V 20A

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
6 Preparing for the Installation
Environmental
Conditions 0
The installation site must have the following environmental
conditions:
• Humidity: 20%-80% non-condensing
• Temperature: 15°C-32°C (59°F-90°F)
• Altitude: sea level to 10,000 feet
• Air: free of airborne contaminates; e.g., dust, paper particles
These environmental conditions apply when the library is in
operation.
Preparing for the Installation 0
Before you begin the installation procedure, make the following
preparations:
• Providing necessary tools and equipment for installation
• Taking ESD precautions
Providing Necessary
Tools and Equipment 0
Provide the following tools for unpacking the library:
•Scissors
• Ratchet with 15/16 inch socket (or 15/16 inch open-end wrench)
Provide the following tools for removing the shipping restraints:
• #2 Phillips® screwdriver
•Tiewrap
Provide the following tools for leveling the library:
• 3/4-inch open-end wrench
• Carpenter’s level
Taking ESD
Precautions 0
Some components within the ATL P4000 library contain static-
sensitive parts. To avoid damaging these parts while performing
installation procedures, always observe the following precautions:
Note: For additional library specifications (including
environmental requirements during shipping and storage),
see appendix A in the ATL P4000 and ATL P7000 User’s Guide
(PN 6434003).

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Unpacking the Library 7
• Keep the library turned off during all installation procedures.
• Keep the library power cord plugged into a grounded power
outlet except when working with AC electrical components.
• Avoid contact with power supplies, EMI filters, and AC electrical
components while the library is connected to a power outlet.
• Use an antistatic wrist strap.
• Keep static-sensitive parts in their original shipping containers
until ready for installation.
• Do not place static-sensitive parts on a metal surface. Place them
inside their protective shipping bag or on an antistatic mat.
• Avoid touching connectors and other components.
Unpacking the Library 0
This section explains how to unpack the library and move it to its final
installation location. The ATL P4000 is shipped in packing materials
designed to protect it from damage during transit. By following these
instructions, you help ensure that the library will continue to be
safeguarded after it arrives at the installation site.
The following are the major steps in this procedure:
• Receiving the library
• Unboxing the library
• Positioning the library
• Unpacking the library
• Leveling the library
Note: Dry climates and cold-weather heating environments have
lower relative humidity and are more likely to produce static
electricity.

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
8 Unpacking the Library
Receiving the Library 0Unpack the library as close to the installation site as possible. Inspect
the shipping pallet and carton for damage that may have occurred
during shipment. Report any damage to the shipper.
Unboxing the Library 0To unbox the library:
1Choose the unloading side. The ATL P4000 may be unloaded from
either the right or left side of the pallet.
2Verify the minimum floor space requirements.
Caution: The ATL P4000 weighs approximately 1072 pounds
(486 kg), without drives. Each drive weighs
approximately 13.5 lbs. It is strongly advised to use at
least two people to move and install the library.
Note: Uncrating the library requires a minimum of 3 feet (91 cm)
on all sides. For the side being used for the ramp, uncrating
the library requires 9 feet (2.74 m). Figure 5 shows the
minimum floor space required by the ATL P4000 at its
uncrating site. The minimum height required for unpacking
the ATL P4000 is 85 inches (2.16 meters).

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Unpacking the Library 9

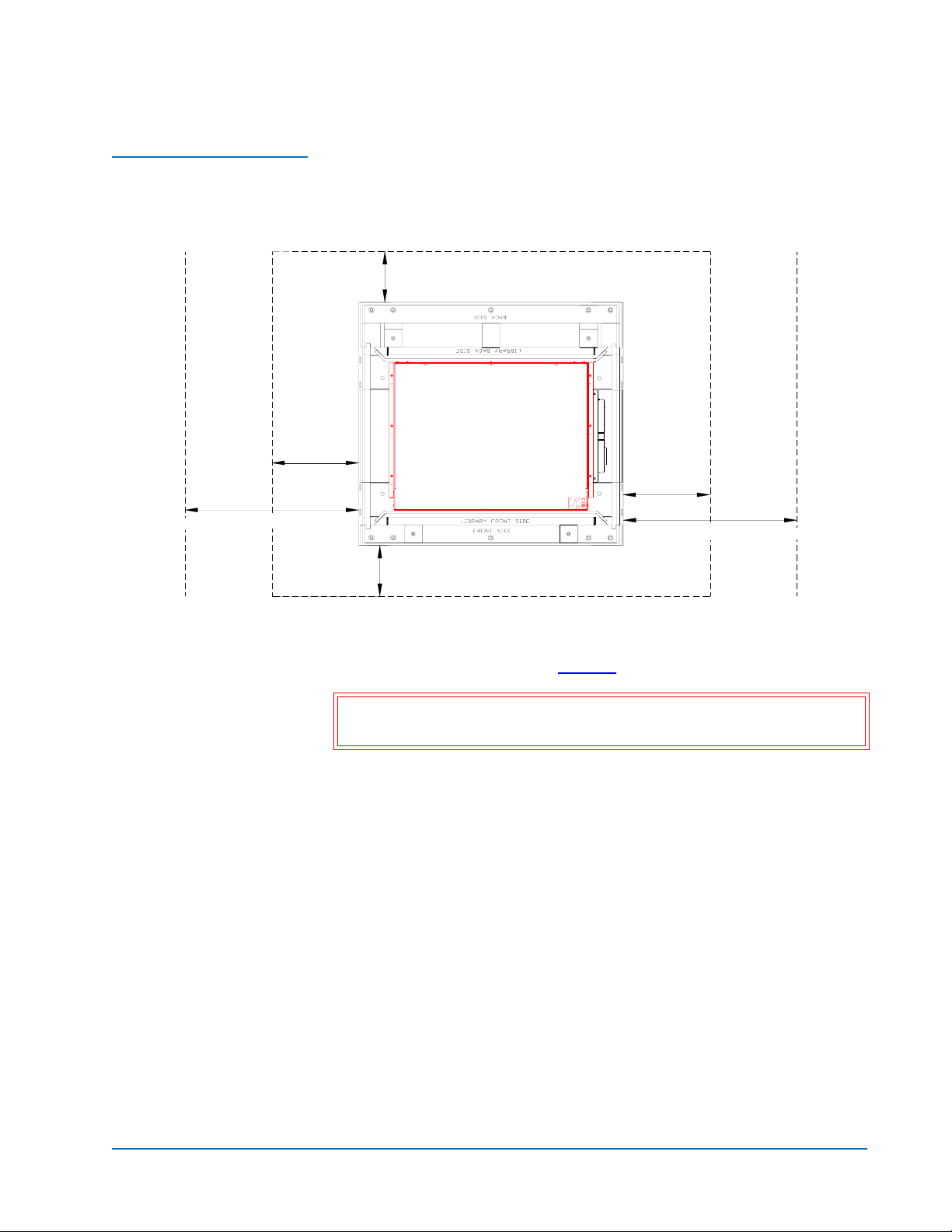

Figure 5 Minimum Floor
Space Requirements—
Uncrating Site
3Cut the two steel bands that secure the library and packing
material to the pallet (see figure 6).
Caution: The steel bands are under tension and will snap away
when cut.
3 ft (91 cm)
3 ft (91 cm)
3 ft (91 cm)
3 ft ( 91 cm)
9 ft (2.74 m) for ramp extensions 9 ft (2.74 m) for ramp extentions

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
10 Unpacking the Library
Figure 6 Removing the
Steel Bands
4Lift the cardboard box top cover straight up and off of the pallet
(see figure 7).
Figure 7 Removing the
Box Top Cover

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Unpacking the Library 11
5Pull the eight cardboard box retaining clips to their open position.
6Unwrap the cardboard box from the library (see figure 8).
Figure 8 Removing the
Cardboard Box
7Remove the accessory kit from the rear compartment of the crate.
8Check the packing list and verify that all accessories have been
received.
9Lift the foam cap up and off of the library (see figure 9).
Note: If any part is missing or damaged, contact your
authorized reseller.

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
12 Unpacking the Library

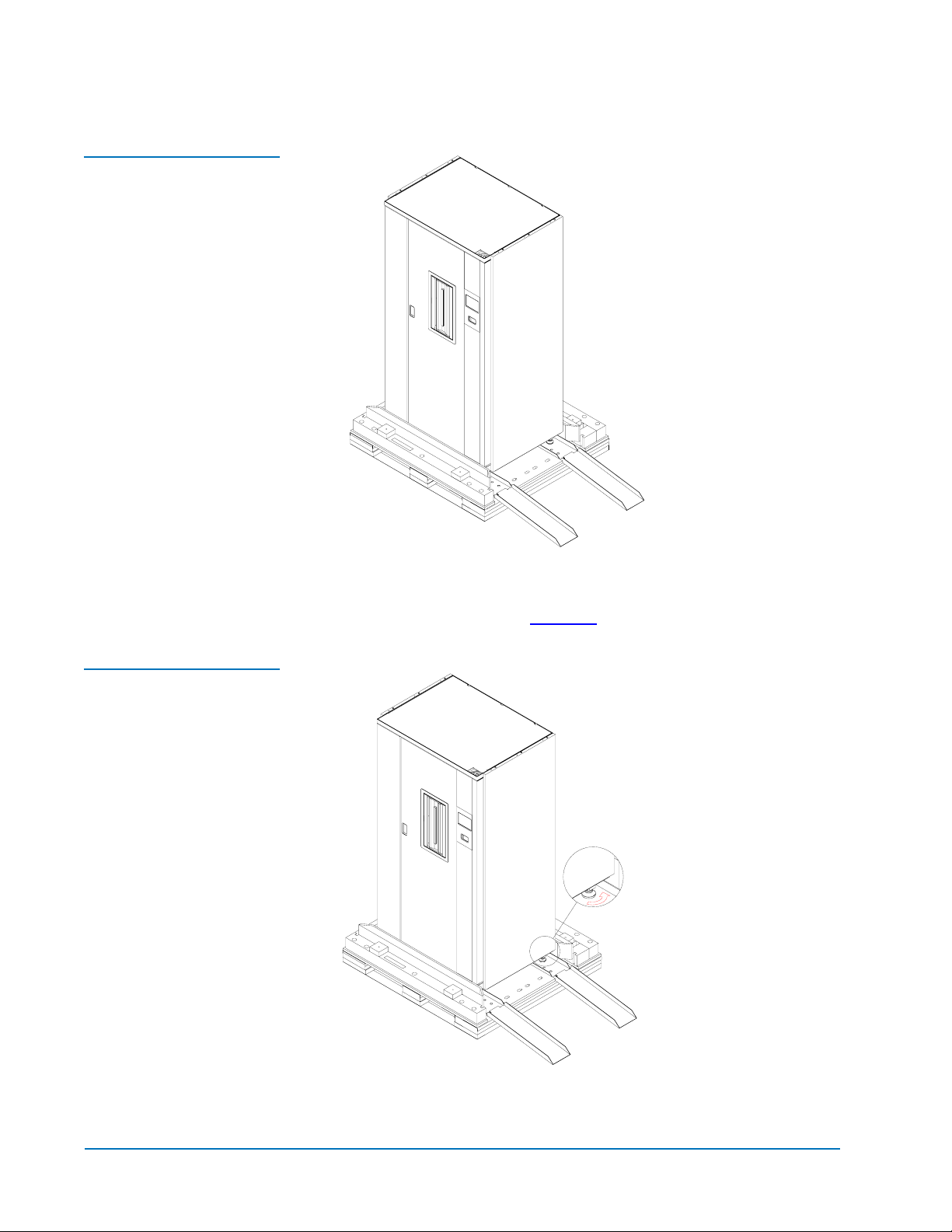

Figure 9 Removing the
Foam Cap
10 On the right side of the library, lift the wooden bar out of its
brackets on the pallet (see figure 10).
Figure 10 Removing the
Wooden Bar

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Unpacking the Library 13
11 On the right side of the library, unscrew the bolts that secure the
hold-down brackets. Each hold-down bracket is secured with two
bolts .
12 Remove each hold-down bracket from under the library (see
figure 11), using the supplied wrench.
Figure 11 Removing the
Stop Blocks
13 Re-insert the left-side wooden bar in its brackets on the pallet to
hold the library in place.
14 Repeat steps 10, 11, and 12 for the right side of the library. Do not
replace the right-side wooden bar.
15 Slide out the two ramp extensions and the foam block, all located
under the library on the right side (see figure 12).

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
14 Unpacking the Library

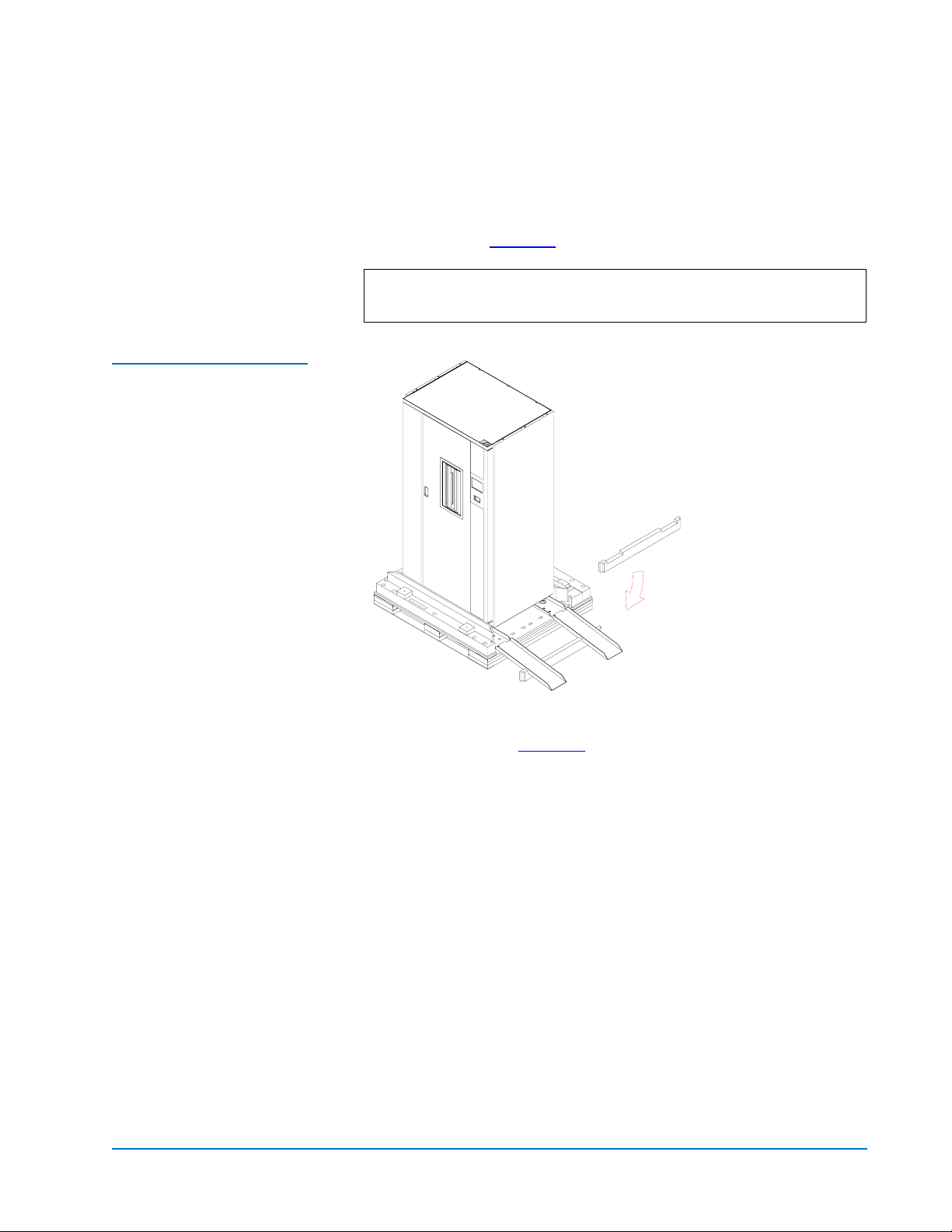

Figure 12 Removing the
Ramp Extensions
16 Place the ramp extensions aside until the library is ready to be
positioned.
17 Re-insert the right-side wooden bar into its brackets on the pallet to
hold the library in place.
Positioning the Library 0To position the library:
1Map out a route to the installation site.

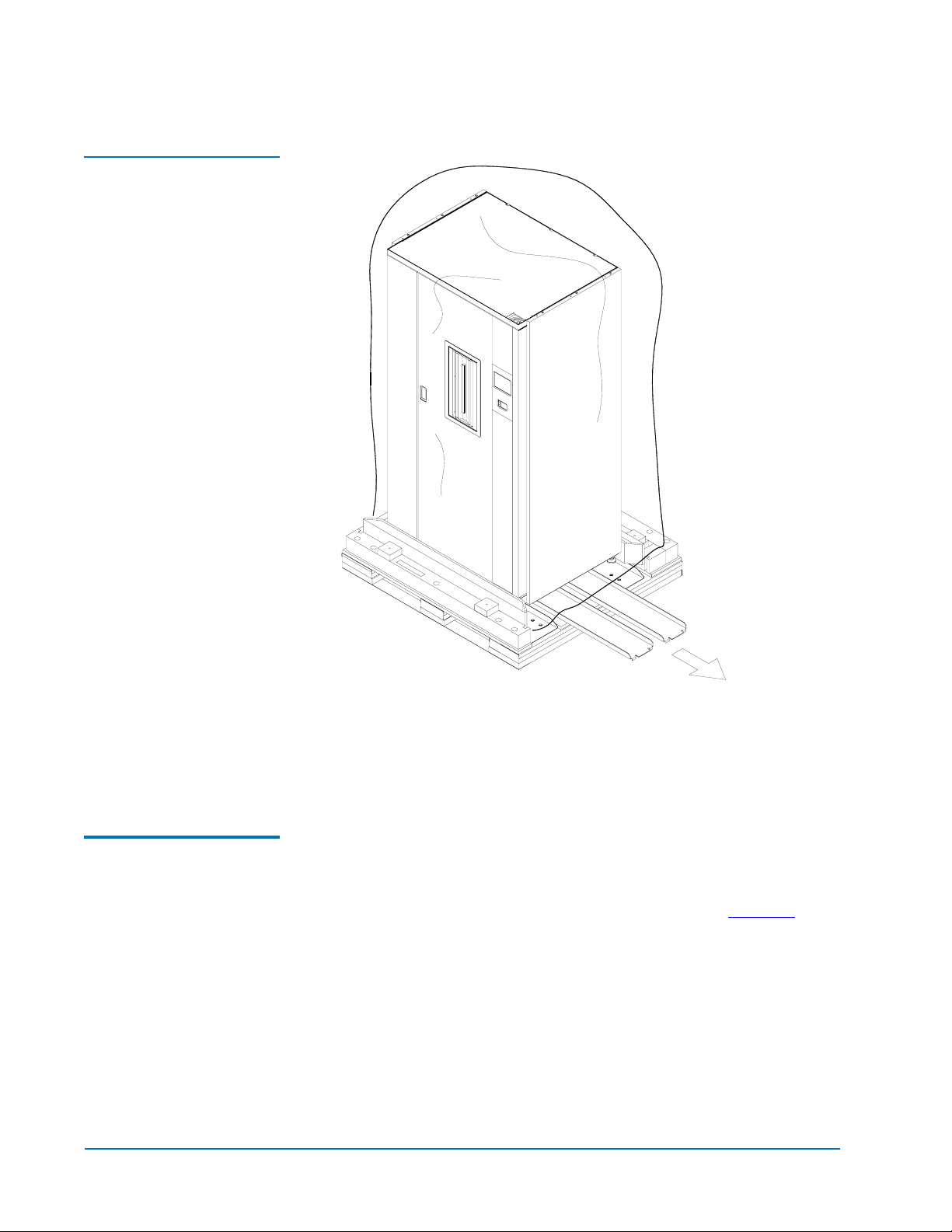

2Carefully lift the shipping bag off of the library (see figure 13).

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Unpacking the Library 15
Figure 13 Removing the
Shipping Bag
3Inspect the library for any damage that may have occurred during
shipment.
4Place the two ramp extensions in the slots provided at the edge of
the pallet (see figure 14).
Note: The ramp may be set up on either the right side or the
left side of the pallet. The following illustrations show
the ramp set-up procedure when the right side of the
library is used.

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
16 Unpacking the Library
Figure 14 Preparing the
Ramp
5Verify that the library’s four leveling feet are raised. If not, raise
each foot as needed as by turning the leveling foot until it is 1/2
inch above the pallet (see figure 15).
Figure 15 Raising the
Leveling Feet

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Unpacking the Library 17
6Move the wooden bar:
aRemove the wooden bar from the ramp-side of the pallet.
bTurn the bar over and place it under the ramp extensions for
support (see figure 16).
Figure 16 Moving the
Wooden Bar
7With the help of one or more people, carefully guide the library
down the ramp (see figure 17). Control the speed of its descent.
8Guide the library to its final installation site.
Note: Align the notches in the wooden bar with the ramp
extensions.

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
18 Unpacking the Library
Figure 17 Rolling the
Library Down the Ramp
Unpacking the Library 0To unpack the library:
1Using the power cable from the accessory kits, connect the library
to a grounded power source.
2Unlock and open the library door:
aUsing the key from the accessories kit, unlock the door.
bLift the door handle straight up and then turn the handle to
unlatch the door.
cGently pull on the door handle to open the door.
3Remove the foam pads from inside the front doors and around the
robotics.
Note: Do not turn on the library.
Note: Save the bolts, washers and shipping plate for use in
repacking the library, if required at a later date.

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
Unpacking the Library 19
4Remove the shipping plate that protects the load port:
aUnscrew and remove the bolts and washers securing the plate
to the load port (see figure 18).
bRemove the shipping plate from the load port.
Figure 18 Removing the
Load Port Shipping Plate
5Locate the vertical carriage assembly (see figure 19).
Figure 19 Locating the
Vertical Carriage Assembly Gripper
assembly
Extension
axis
assembly
Horizontal
axis
Vertical
axis
Vertical
carraige
assembly
Horizontal
assembly
carraige

Quantum ATL 4000 Library Unpacking Instructions
Document 6434005-02, Ver. 2, Rel. 0
August 2002
20 Unpacking the Library
6Remove the horizontal carriage restraint (see figure 20):
aRemove the two screws that secure the horizontal carriage
restraint to the horizontal carriage.
bRemove the screw that secures the horizontal carriage restraint
to the floor of the library.
cRemove the horizontal carriage restraint.
Figure 20 Removing the
Horizontal Carriage
Restraint
7Slide the horizontal carriage along the horizontal axis toward the
middle of the library.
8Remove the gripper restraint:
aRemove the screw that secures the gripper restraint to the belt
clamp (see figure 21).
Vertical carraige assembly
Horizontal carraige restraint
Gripper assembly
Extension axis
assembly
