OWNER’SMANUAL
ENGINE STAND 450KG
QS19309
DESCRIPTION
Engine Stand 450kg QS19309: Capacity: 450kg | Height: 800mm | Weight: 21kg
SAFETY INSTRUCTIONS
WARNING
-DO NOT exceed the maximum capacity of 450kg. Overloading could result in loss of load and/or personal injury or property
damage.
-Always use stand on hard level surface capable of sustaining the load.
-Never work directly under a suspended engine.
-Do not attempt to move the stand when under load. The casters are not designed to be rolled when the stand
is supporting a heavy weight. If you need to move the engine you must transfer it to an approved, appropriate moving
device such as an engine hoist.
-Make sure that stand is stable. Before using the stand check it for cracks, bends in the material or signs of unusual wear.
If any are found do not use the stand. Take it to an authorized technician for service or repair.
-Do not attempt to remove an engine from a vehicle using this device. Use an engine hoist (not included).
-Be careful not to pinch fingers and hands when adjusting and using the engine stand.
-Be sure that the load is centered and secured to the mounting plate.
-Do not drop load suddenly as resulting shock to unit may cause damage.
-Before each use ensure that all nuts and bolts are correctly fitted and tight. Do not substitute hardware provided.
-Failure to follow these instructions could result in loss of load and/or personal injury or property damage.
OPERATION
WARNING! Ensure that you read, understand and apply the safety instructions.
The warnings, cautions and instructions discussed in this instruction manual cannot cover a possible conditions and situations that
may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product
but must be supplied by the operator.
OPERATION
1. Remove the engine from the vehicle by engine hoist/engine crane.
2. Connect the motor to the stand. Put the bolts through engine stand fingers (#2) and screw in place of the holes connecting
the engine with the gearbox.
3. Make sure all bolts are tightened.
INSPECTION
-Visual inspection should be made before each use of the engine stand.
-Any engine stand which appears to be damaged in any way is found to be badly worn or operated abnormally must be
removed from service.
-If the engine stand is accidentally subjected to an abnormal load or shock it must be inspected by the manufacturer
immediately.
-It is recommended that an annual inspection of the engine stand be made and that any defective parts, decals or warning
labels be replaced with manufacturer’s specified parts.

a
a
PW TECHSAM Woch Sp. J. tel. [phone]
ul. Warszawska 131 tel. [phone]
20-824 Lublin fax [phone]
www.quatros.eu e-mail: [email protected]
IMPORTER:
ASSEMBLY INSTRUCTIONS
Waring: During the assembly procedure, nuts and bolts should be hand tightened only. When assembly is complete, nuts and bolts
must be fully tightened.

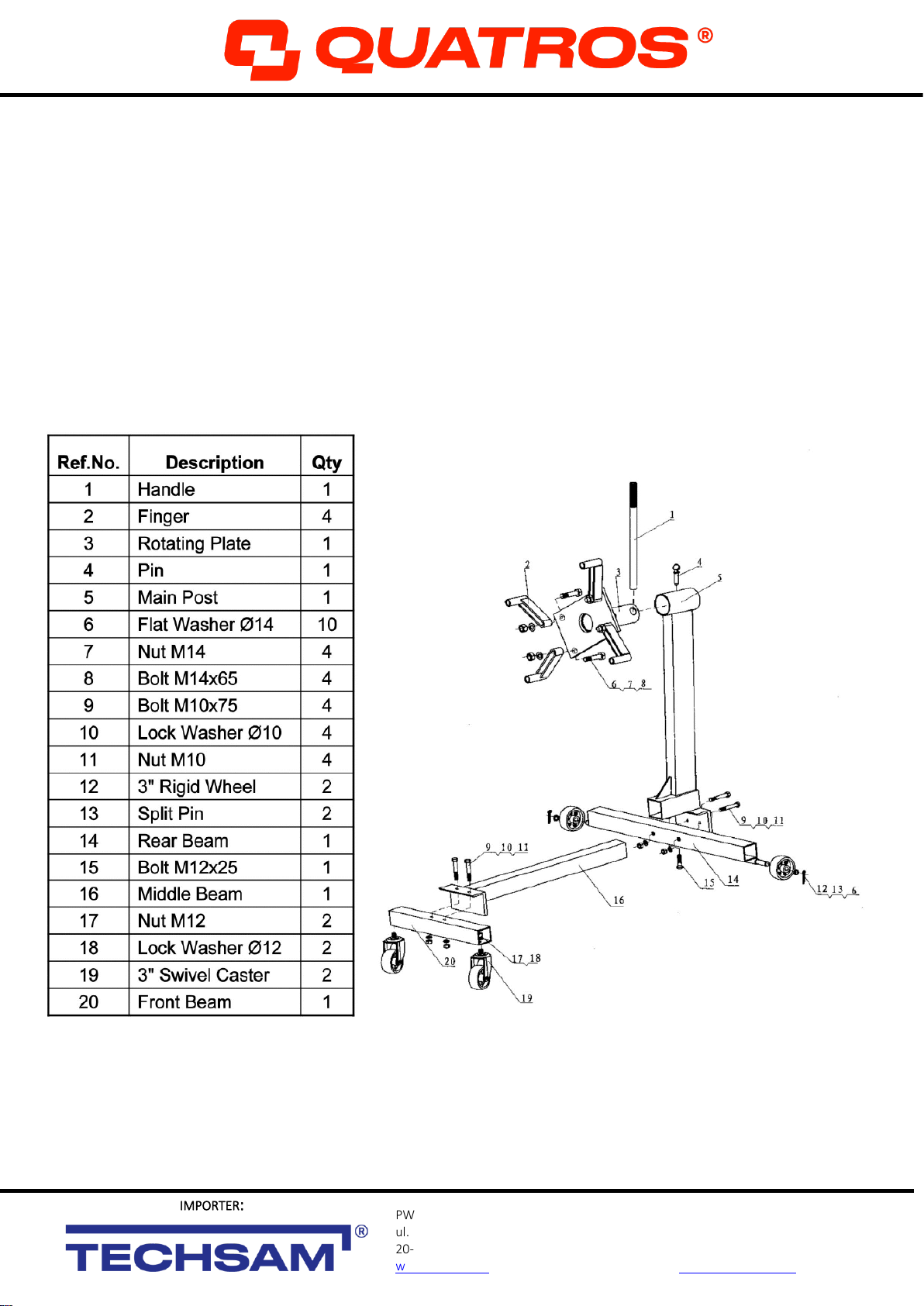

1. Attach two front wheels (#19) to front beam (#20) using nuts (#17) and lock washers (#18).
2. Attach front beam assembly (#20) to middle beam (#16) using bolts (#9), nuts (#11) and lock washers (#10).
3. Attach main post (#5) to rear beam (#14) using bolts (#9), nuts (#11) and lock washers (#10).
4. Insert middle beam assembly (#16) to the tube of main post (#5) and secure it with bolt (#15).
5. Insert rotating plate (#3) through the tube at the top of the main post. Rotate the plate till one of the holes in the inner
tube is aligned with a hole in the outer tube and insert the ringed pin (#4).
6. Insert the handle (#1) through the hole in the rotating plate tube with protrudes from the top off the main post.
7. Attach four fingers (#2) to the rotating head (#3) using bolts (#8), flat washers (#6) and nuts (#7).
8. Check all bolts for tightness before operating.

a
a
PW TECHSAM Woch Sp. J. tel. [phone]
ul. Warszawska 131 tel. [phone]
20-824 Lublin fax [phone]
www.quatros.eu e-mail: [email protected]
IMPORTER:
WARRANTY CONDITIONS
1. P.W. TECHSAM Woch Sp. J. with its registered office in Poland at Lublin, 131 Warszawska Av. guarantees the highest quality of
Quatros tools and workshop equipment. Warranty period for products is 12 months from purchase date excluding batteries being
part of tools for which warranty period is 6 months from purchase date.
2. This warranty does not apply to normal wear and tear of spare parts or any damage caused by improper maintenance (including
overloading of tool, using power tools with hand-operated tools, inefficient thread greasing etc.).
3. Complaint shall be filed at place where the tool was bought.
4. Faulty tool or equipment is repaired or replaced in 14 days from date of its receive unless additional expertise written by
manufacturer or expert is needed or replaced tool/part has to be delivered from manufacturer or unexpected occurrence like flood,
conflagration, strike, natural disease, embargo, break in production etc. takes place.
5. In case of sets warranty is limited to repair or replacement only complained part of the set, not whole set.
6. Due to specific working conditions this warranty does not apply to:
-hand-operated bits and socket bits, power bits and power socket bits,
-screwdrivers if type of damage is caused by using with inappropriate screw size or overloading.
