QuietCool AFG SLR-40 User manual

DO NOT THROW AWAY!
SERIAL NUMBER FOR FAN IS LOCATED ON THE BACK COVER OF THE OWNER’S GUIDE.
LEAVE WITH HOMEOWNER
OWNER’S GUIDE
SOLAR ATTIC FANS
!
AFG SLR-40 AFR SLR-40

1-888-QUIETCOOL
2
CONTENTS
1. SYSTEM OVERVIEW .......................................3
1.1 Introduction .........................................3
1.2 Features ............................................3
1.3 System Venting Requirements...........................4
2. INSTALLATION ...........................................5
2.1 Installing AFG SLR Models .............................5
2.2 Installing AFG SLR Solar Panel ..........................7
2.3 Installing AFR SLR Models ..............................8
3. WIRING ................................................10
3.1 Connecting the AC/DC Inverter ........................10
4. SYSTEM OPERATING INSTRUCTIONS .......................10
4.1 How to Operate.....................................10
WARRANTY...............................................11
QC MANUFACTURING, INC.
26040 YNEZ ROAD
TEMECULA, CA 92591
PHONE 1-888-QUIETCOOL
WEBSITE WWW.QUIETCOOLSYSTEMS.COM
WARNINGS
CAUTION: This unit has an unguarded impeller. Do not use in locations readily
accessible to people or animals.
CAUTION: Do not operate any fan with a damaged cord or plug. Discard fan
or return to an authorized service facility for examination and/or repair.
CAUTION: Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from trafc area and where it will not be
tripped over.
CAUTION: Automatically started device. To reduce the risk of injury,
disconnect from power supply before servicing. Do not use fan with any solid
state speed control device. For residential use only.
!
!
!
!
!
!
!
!

QUIETCOOLSYSTEMS.COM
3
1. SYSTEM OVERVIEW
1.1 INTRODUCTION
CONGRATULATIONS
on the purchase of your new QuietCool Solar Attic Fan!
Solar attic fans work by using sunlight to power the fans motor to
help prevent any heat or moisture build up in your attic. Your attic
can reach temperatures of up to 150ºF which can destroy the
integrity of your home as well as completely destroy your roof
because of the humidity and moisture build up.
Because of this, solar attic fans can prolong the life of your roof
structure and air conditioning while even helping you to save up to
30% off A/C costs.
The best part of a QuietCool Solar Attic Fan is that an AC/DC Smart
Inverter is included with the fan. This allows the fan to run during
the day from the sunlight, and at nighttime using traditional
electricity. This gives you the best of both worlds: free ventilation
during the day and nighttime supercooling using the cooler outdoor
air.
1.2 FEATURES
+ High Efciency Design
+ Designed and Engineered in California
+ 15 Year Warranty
+ Built-in thermostat
+ Included AC/DC Smart Inverter
+ Adjustable high-precision mounting tabs
WELCOME INSTALLATION WIRING OPERATION WARRANTY

1-888-QUIETCOOL
4
1.3 SYSTEM VENTING REQUIREMENTS
VERY IMPORTANT: 1 SQUARE FOOT OF NET FREE VENT AREA PER 750 CFM
RECOMMENDED: 2 TO 4 SQUARE FEET OF INLET VENTS PER FAN
Venting plays a very signicant role in the performace of QuietCool fans. QuietCool recommends a mini-
mum of 1 SQ. FT. of venting for every 750 CFM in the QuietCool system. If an attic has at least 1:750 attic
venting, the QuietCool system will operate efciently and effectively. If an attic has less than 1:750 attic
venting, the system may not operate as efciently, or effectively, as it could with 1:750 attic venting. But
don’t worry, the system will still operate if there is not enough venting.
Insufcient venting is a very simple problem to x. Roong contractors can add extra venting to most
homes simply and easily. The most common types of venting is shown in the chart below.
Vent Type Model Type Average Size Venting Sq. Ft.
Gable vent 12” x 19.5” 1.20
Dormer Vent 14” x 8” 0.70
Eave Vent
4”
5”
6”
0.03
0.04
0.07
Ridge Vent 4’ - 12’ 0.125 per ft
Soft Vent
16” x 4”
16” x 6”
16” x 8”
0.19
0.29
0.39
O’Hagin Vent
Low/Medium
Prole
Tapered Low
Prole
Low Prole Flat
High Prole
0.5
0.6
0.68
0.68
Turbine Vent
8”
12”
14”
.35
.79
1.1
*Note: This table is only a guideline and is not a guarantee of venting capacity.
!
!
!
!

QUIETCOOLSYSTEMS.COM
5
WELCOME INSTALLATION WIRING OPERATION WARRANTY
Installation Video:
Watch the video by scanning the QR
code or visit
www.QuietCoolSystems.com/support
2. INSTALLATION
2.1 INSTALLING AFG SLR MODEL
NOTE: The AFG SLR model fans are designed to mount behind existing
vents. If no vent exists, one must be installed. Vent should be installed
in the upper center section of the gable.
NOTE: The mounting brackets for the AFG SLR model fans are on
sliding rails. Simply loosen the 8 nuts on the 4 mounting brackets to
slide the bracket into the proper position for your installation. (as
shown in Figure 2.1A) The fan should be ush to the gable vent when
installed.
NOTE: The AFG SLR model fans include (8) screws that can be used
on masonry or brick and (8) screws with washers that can be used on
wood and shingles. (see Figure 2.1B)
1. Installing the QuietCool AFG is very easy. To install
the AFG, simply mount the gable fan to your gable
vents as shown in the following steps:
Flush Mount: The AFG SLR can be mounted
ush to a rectangular type louver by fastening
through the mounting brackets to the frame of the
louver (as shown in Figure 2.1C)
Fasten the fan to the vent frame studs. Once fastened, tighten the 8 mounting
bracket nuts to secure the fan ush to the gable vent.
Wide Mount: The AFG SLR can be mounted on a wide louver, but additional mounting
steps must be taken in order for the fan to work properly. As shown in Figure 2.1D, two
additional boards must be fastened to the boards framing the gable vent so the AFG SLR
can be mounted securely.
Fasten the fan to the vent frame studs. Once fastened, tighten the 8 mounting bracket
nuts to secure the fan ush to the gable vent.
Odd Mount: The AFG SLR can also be mounted off center for an odd shaped louver (as
shown in Figure 2.1E).
Any area of the louver that is not covered by the AFG SLR must be sealed off in order to
prevent air leakage, which may hinder performance.
While this is not the most ideal way to mount the gable fan, it is possible. However, since
the fan is not completely covering the vent, maximum airow will not be achieved.
Fasten the fan to the vent frame studs. Once fastened, tighten the 8 mounting bracket
nuts to secure the fan ush to the gable vent.
!
!
Figure 2.1A
Figure 2.1D
Figure 2.1E
Figure 2.1C
Figure 2.1B
!
!
!
!
Note: the screws with washers are for the solar panel
and the screws without washers are for mounting the
fan to the gable.

1-888-QUIETCOOL
6
Choosing the Right Location for Airow
Choose a location to install your QuietCool AFR SLR roof mounted fan that allows for balanced airow
throughout the attic space. We always recommend the fan to be installed centrally located on the roof three feet
below the ridge line. This will allow you to access the fan very easily. Your roof mount fan should not be installed
any closer than within 5 feet to an existing passive vent, ridge vent, or additional fan unit.
IMPORTANT: DO NOT CUT THROUGH ANY RAFTERS OR STRUCTURAL MEMBERS WHILE CUTTING THE
VENT HOLE. ONLY CUT OUT THE ROOF DECKING.
Choosing the Right Location for the Best Sunlight
Choose a location to install your QuietCool AFR SLR fan or AFG SLR solar panel is very important based on the
sun’s path during the day. The optimal adjustment is to have the panel 90 degrees to the midday path of the sun.
Be sure to consider potential obstructions such as trees and other homes which may shade the solar panel during
certain times of the day. Most of the time, in the United States, you will want to have the panel facing south.
If a southern or western exposure is not possible, the fan can be installed on any other exposure and the solar
panel can be adjusted to capture maximum sunlight
There are many smartphone apps that can help in nding the best location for your solar panel based on the
sun’s location throughout the day.
READ BEFORE ATTEMPTING TO INSTALL AN
AFR SLR OR THE AFG SLR SOLAR PANEL
Getting Started
Always follow Local Building Codes because the fan may require specic fasteners or anchoring
systems not discussed in this installation guide. Installation should be done by a licensed roong
contractor.
Safety Information
Safety precautions should be taken when performing the roong work described in this installation
guide. You can signicantly reduce your risk of danger by following the below recommendations:
• Do not install the fan in wet or windy conditions
• Tie-off both yourself and your equipment when working on steep pitched roofs to avoid falls
• Wear safety glasses and protective gloves when using power tools
• Always wear slip-resistant shoes when working on the roof
• Do not cut through any rafters or structural members of the roof during installation
Materials Needed
• Cordless Drill with Nut
Driver
• Roong Nails
• Reciprocating Saw (for AFR)
• Measuring Tape
• Weatherproof Roong
Grade Sealant
• Roong Knife (for AFR)
• Ladder Marker or Carpenter
Pencil
• Secondary Flashing Material
(for AFR on tile roof)
!
!

QUIETCOOLSYSTEMS.COM
7
WELCOME INSTALLATION WIRING OPERATION WARRANTY

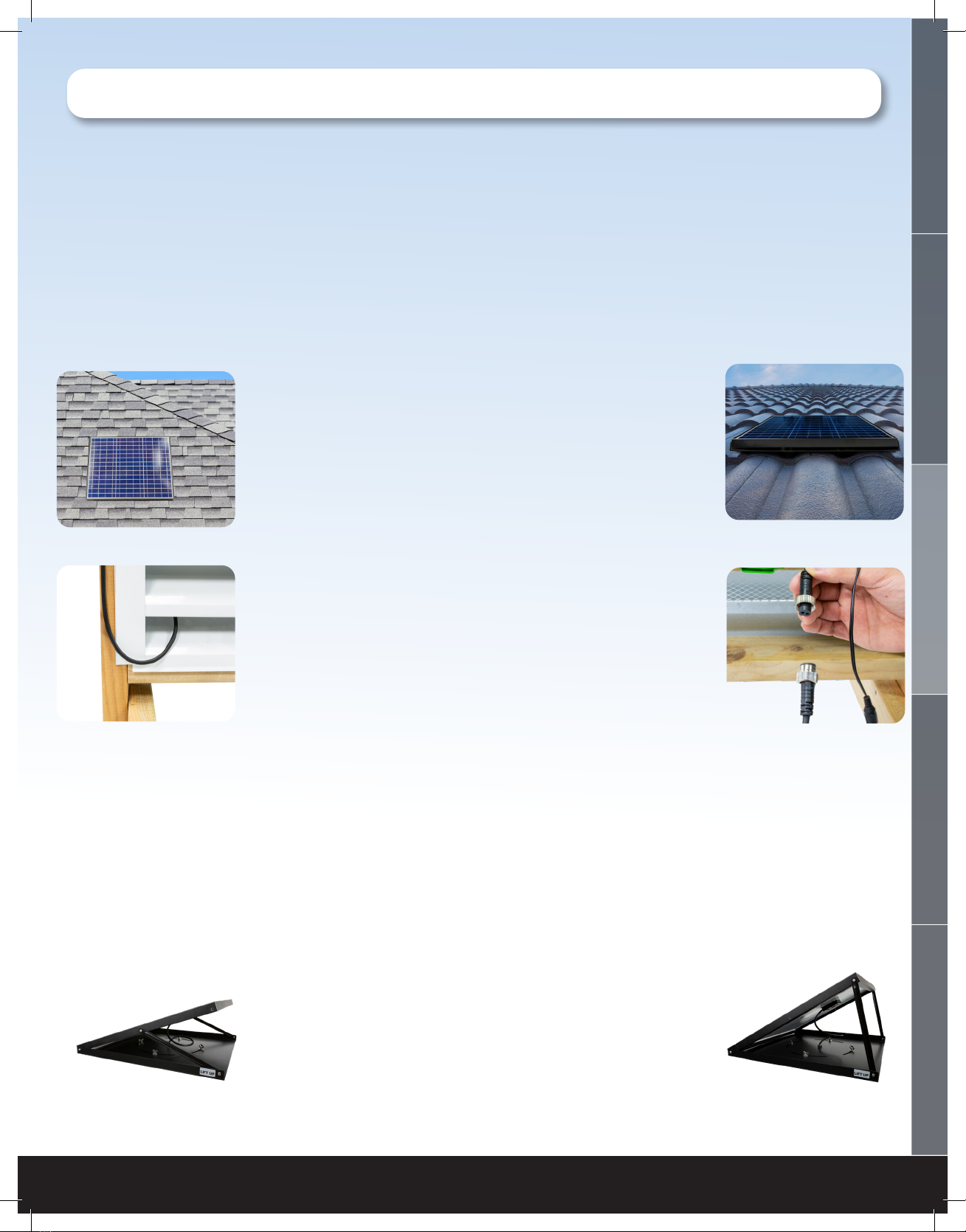

2.2 INSTALLING AFG SLR SOLAR PANEL
Once you have found a location for your AFG SLR solar panel, now it’s time to mount the panel. The wiring
from the solar panel is 30 feet long and must connect directly to the AFG SLR. Make sure the location you
have chosen is within 30 feet of the AFG SLR.
1. Attach the provided screws and brackets to the solar panel. Install the angle adjustment brackets by
securing one end to the regulating plate and the other end to the solar panel frame.
2. Set up the panel as stated in Adjusting Panel Tilt.
3. Find the best mounting location (see Choosing the Right
Location on page 6).
Shingle Roof: Using the four 1.5” galvanized screws and
washers, fasten the panel to the roof.
Tile Roof: Find the contact points between the roof and the
backside of the solar panel. Apply roong adhesive to these
contact points and rmly secure the panel to the surface.
4. To prevent leaking, make sure to apply weatherproof
roong grade sealant on the screwheads.
5. Now it’s time to run the wire from the solar panel into
the attic through the gable vent. Be sure to include a
drip curve in the wire to ensure no water can run down
the cord and enter the attic through the gable vent.
6. Now connect the wire to your AFG SLR. The AFG SLR will automatically turn on if there is sunlight
and the temperature is above 75° F
Adjusting the Solar Panel
The fan’s solar panel should be adjusted to maximize exposure to the sun’s path during the day. The optimal
adjustment is to have the panel 90 degrees to the midday path of the sun. You can readjust the panel during
winter or summer seasons if desired.
Adjusting Panel Tilt
This fan has two solar panel adjustments. Set the angle prop-
erly to capture the most direct sunlight. Remove the screw
on both sides of the panel assembly. Lift the panel and swing
the panel braces up to the desired position and re-attach the
screw in the applicable holes.
Surface Mount on Shingle
Roof
Surface Mount on Tile or
Metal Roof
Drip Curve Example Connecting the Solar Panel

1-888-QUIETCOOL
8
CAUTION
THE AFR SLR-40 COMES PRE-WIRED WITH THE SOLAR PANEL ATTACHED. THE FAN WILL TURN ON
AUTOMATICALLY WHENEVER THE SUN SHINES ON THE SOLAR PANEL.
DO NOT REMOVE PAPER COVER THAT IS LOCATED ON THE SOLAR PANEL UNTIL THE INSTALLATION IS
FINISHED. REMOVAL OF THE COVER CAN CAUSE UNINTENDED INJURIES IF THE FAN TURNS ON DURING
INSTALLATION.

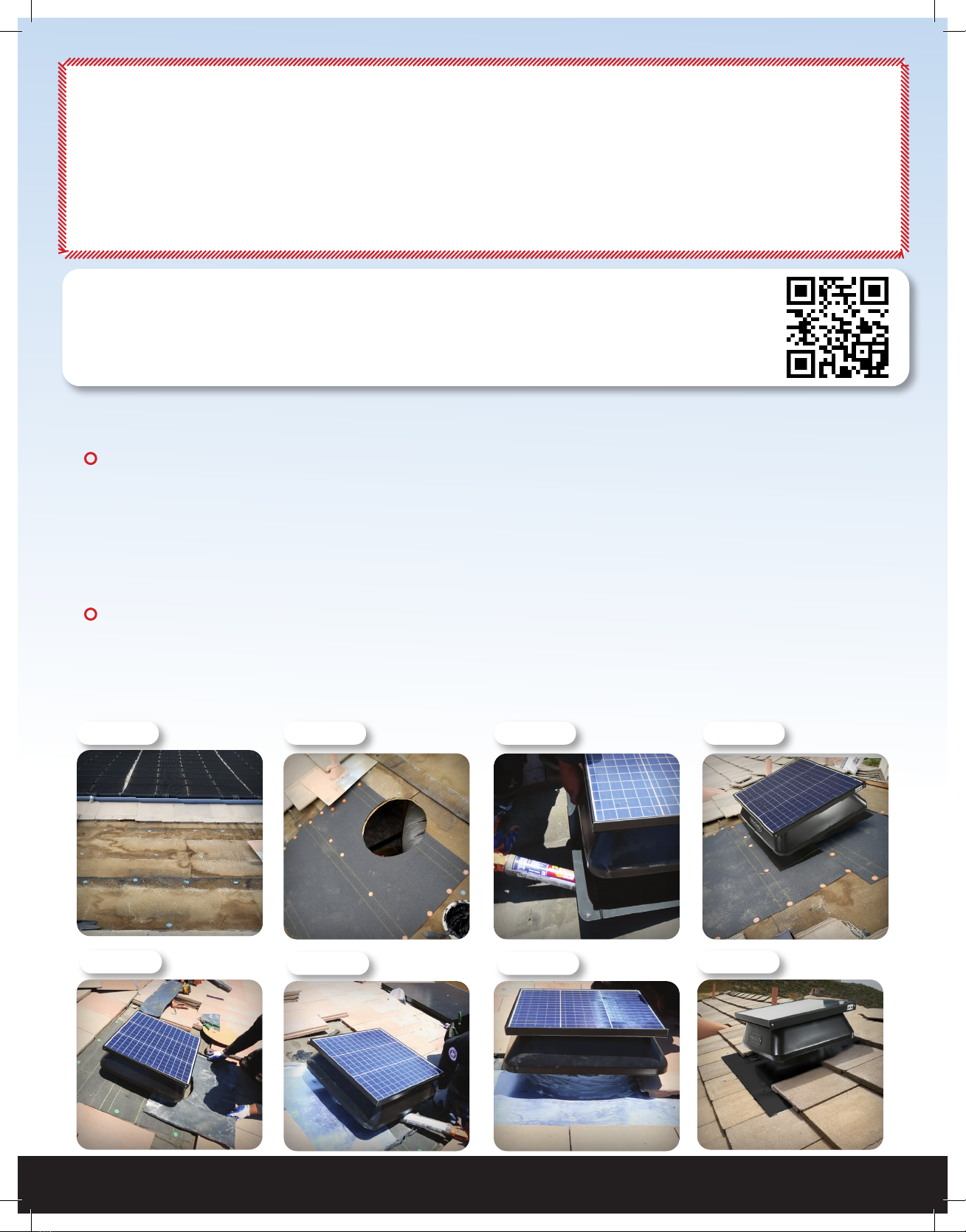

2.3 INSTALLING AFR SLR MODEL
1. Determine in which area you would like to install your QuietCool Attic Roof Mount Fan.
IMPORTANT: After choosing the location where your roof mount attic fan will be installed, nd the
closest rafter to that location and determine if your roof has either 16” on center or 24” on center rafter
spacing.
2. Find the center point between the two rafters and mark it as the center of the vent hole. Partially insert a
screw into the center point mark.
NOTE: If you have a tile roof, you will need to move the tiles out of the way before tracing and cutting.
(See Figure 2.3A)
3. Go to the roof. Using the screw as a reference point, trace out a 14” diameter circle using the provided
template.
Installation Video:
Watch the video by scanning the QR
code or visit
www.QuietCoolSystems.com/support
Figure 2.3A Figure 2.3B Figure 2.3C Figure 2.3D
Figure 2.3E Figure 2.3H
!
!
!
!
Figure 2.3F Figure 2.3G

QUIETCOOLSYSTEMS.COM
9
WELCOME INSTALLATION WIRING OPERATION WARRANTY
4. Use a reciprocating saw to cut out the traced hole pattern from the roof decking. Remove the cut out
decking material from around the hole as needed.
If installing on a tile roof, continue to step 5. If installing on a shingle roof, skip to step 11.
5. Apply weatherproof barrier to the roof. (See Figure 2.3B)
6. Position the fan so that it is centered with the vent hole.
7. Lifting the fan unit up at an angle, apply weatherproof sealant to the bottom side of the fan unit. This
will help keep the fan in place and will seal nice and tight. (See Figure 2.3C)
8. Using a minimum of 8 roong nails, nail the fan to the roof through the primary ashing. To prevent
leaking, be sure to apply weatherproof sealant on the nail heads. Once complete, apply more
weatherproof barrier to the top of the ashing. (See Figure 2.3D)
9. Using sheets of aluminum, construct a secondary ashing out of two pieces of material by cutting out
a semi-circle shape on either side while aring up the edges that will stick up above the tile, creating a
“bib” that will go around the fan. Once constructed, install the ashing material on top of the primary
ashing and attach using weatherproof sealant. (See Figure 2.3E)
10. Apply weatherproof sealant all around the fan housing and secondary
ashing, closing the gap between the ashing, the fan unit, and the tile.
Using an angle grinder, cut the removed tiles as needed. Re-install the
tile around the fan unit. (See Figure 2.3F, 2.3G, and 2.3H)
Shingle Roofs:
11. If you have a shingle roof, insert the reciprocating saw sideways between
the shingles and roof decking. Starting at the 3 o’clock position of the
vent hole, begin cutting in a sweeping motion under the shingles, cutting
through any roong nails or staples. Continue cutting counter-clockwise
around the vent hole until reaching the 9 o’clock position. Using a
roong knife, cut a 4 inch horizontal slit in the shingles at the 9 o’clock
and 3 o’clock positions of the hole, allowing the fan’s ashing to slide
underneath the shingles.
12. Slide the fan unit underneath the shingles until the fan reaches the top of
the hole. (See Figure 2.3I)
13. Lifting the fan unit up at an angle, apply weatherproof sealant to the
bottom side of the fan unit. This will help keep the fan in place and create
a tight seal. (See Figure 2.3J)
14. Secure the fan ashing to the roof using a minimum of 8 roong nails.
Finish applying weatherproof sealant around the fan and nails and secure
the shingles by re-nailing them into the roof. (See Figure 2.3H)
Figure 2.3I
Figure 2.3H
Figure 2.3J

1-888-QUIETCOOL
10
4. SYSTEM OPERATING INSTRUCTIONS
4.1 HOW TO OPERATE
QuietCool Attic Fans work almost everywhere, almost anytime. During the summer, an attic
can be 40-50 degrees hotter than the outside temperature, which in turn heats up the house
much faster. With an attic fan, you can cool the attic to the same temperature as it is outside,
greatly reducing the house from heating up as quickly.
3. WIRING
3.1 CONNECTING THE AC/DC SMART INVERTER
Your QuietCool Solar Attic Fan includes an AC/DC power inverter. This inverter is used to run
the solar attic fan at nighttime when there is no sunlight.
Simply plug the solar inverter from your fan into a 110v outlet in your attic. The Smart Inverter
will automatically switch between AC power and DC solar power depending on the level of
sunlight present. If you do not want to use the AC/DC Smart Inverter, simply leave the fan
unplugged. The fan will still run anytime there is sunlight.
Adjusting the Solar Panel
The fan’s solar panel should be adjusted to maximize exposure to the sun’s path during the day. The
optimal adjustment is to have the panel 90 degrees to the midday path of the sun. You can readjust the
panel during winter or summer seasons if desired.
Adjusting Panel Tilt
This fan has two solar panel adjustments. Set the angle properly to capture the most direct sunlight.
Remove the screw on both sides of the panel assembly. Lift the panel and swing the panel braces up to
the desired position and re-attach the screw in the applicable holes.
Adjusting Panel Rotation
The fan has a horizontal rotational adjustment that moves 90°. Simply loosen the 4 wing nuts to loosen
the solar panel and rotate for adjustment. If you need more adjustment than 90°, the assembly can
be removed by removing the 4 wing nuts and repositioning the panel. This gives a full 360° rotation
ability.
Figure 2.3G Figure 2.3H Figure 2.3I Figure 2.3J

QUIETCOOLSYSTEMS.COM
11
WELCOME INSTALLATION WIRING OPERATION WARRANTY
15 YEAR LIMITED WARRANTY
QuietCool Solar Attic Fans
SOLAR ATTIC FANS LIMITED WARRANTY
QC Manufacturing Inc. extends this warranty to the original purchaser of the following
QuietCool Solar Attic Fans - AFG SLR-30, AFG SLR-40, AFR SLR-30, and AFR SLR-40 -
installed and used in a residence under normal conditions within the United States:
A. Fifteen year coverage applies to the QuietCool motor and solar panel. At our option
we will repair or replace the motor should it fail to operate during the warranty period as
measured from the date of original purchase.
B. One year coverage applies to the QuietCool for all other components including motor
housing, fan blade, and any accessories furnished by QC Manufacturing, Inc. At our
option we will repair or replace any part which fails as a result of defective material or
workmanship during the warranty period as measured from the original date of
purchase.
C. This warranty does not cover any of the following:
1. Accidental or consequential damage resulting from the operation of
our equipment or any malfunction thereof.
2. Cost of service calls to diagnose the cause of problems or the labor charge
to un-install any components.
3. Product failure or damage due to faulty installation, abuse, misuse,
unauthorized alteration to factory specs, lack of maintenance, or
transportation damage.
4. Shipping or postage for warranty claims.
D. To obtain service under this warranty, first contact the dealer where you purchased
the equipment. If you are unable to find or reach your dealer, contact Customer Service
at QC Manufacturing, Inc. at the number below.
E. Registration is notrequired for QuietCool fans. If service is required under this
warranty, you must retain your proof or purchase.
This warranty is the only warranty extended by QC Manufacturing, Inc. to purchasers or suppliers of our equipment. QC Manufacturing Inc.
disclaims all other warranties, express or implied, that arise by operation of the law.
QC Manufacturing, Inc. Customer Service
26040 Ynez Rd.
Temecula, CA 92591
www.QuietCoolSystems.com
951-325-6340
Rev. 5.13.19
The best part about a QuietCool Solar Attic fan is that you never have to think about
it! Since it runs off solar power, it will turn on whenever the attic temperature is above
75°F and there is sunlight. The fan will turn off when the temperature is below 75ºF.
At nighttime, the fan will continue to run if you connected the QuietCool AC/DC Smart
Inverter. This gives you cooling capability 24/7. The thermostat will also function when
the fan is running on the Smart Inverter meaning it will turn on whenever the attic
temperature is above 75ºF and will turn off when it is below 75ºF.

FAN SERIAL NUMBER INFORMATION
RETAIN FOR YOUR RECORDS.
SERIAL NUMBER IS REQUIRED FOR WARRANTY PURPOSES.
1-888-QUIETCOOL | WWW.QUIETCOOLSYSTEMS.COM
Rev. 12/2/21
