Quipall 3100GPW User manual

Model:3100GPW
Gasoline Pressure Washer
OPERATOR'S MANUAL
CPO Commerce, LLC
120 W. Bellevue Dr.,Pasadena,
CA 91105 USA
Quipall.com
Customer service#: 1-866-577-3014
Email: [email protected]

THIS MANUAL CONTAINS SPECIAL MESSAGE OF POTENTIAL CONCERNS, DAMAGE TO THE
UNIT AS WELL AS HELPFUL OPERATING AND SERVICING INFORMATION. PLEASE READ ALL
THE INFORMATION CAREFULLY TO AVOID INJURY AND DAMAGE TO THE PRESSURE WASHER.
Introduction ..............................................................................................................................................................................3
Safety Rules .............................................................................................................................................................................4
Safety Symbols .............................................................................................................................................................4
Safety Instructions .......................................................................................................................................................4
Pressure Washer Features .....................................................................................................................................................7
Pressure Washer Parts Assembly..........................................................................................................................................8
Pressure Washer Parts List....................................................................................................................................................9
Assembly ...............................................................................................................................................................................10
Packing List ................................................................................................................................................................10
Unpacking ...................................................................................................................................................................10
Attaching Foot Assembly............................................................................................................................................11
Install Handle..............................................................................................................................................................11
Attaching Upper and Lower Gun Hooks .....................................................................................................................11
Attaching Accessory Hook ..........................................................................................................................................11
Attaching Spray Gun...................................................................................................................................................12
Adding Engine Oil and Fuel .........................................................................................................................................13
Operation ................................................................................................................................................................................15
How to Start Pressure Washer ...................................................................................................................................15
How to Turn Off Pressure Washer ..........................................................................................................................16
How to Use Spray Gun ...............................................................................................................................................16
Using Spray Nozzle ....................................................................................................................................................17
How to Apply Detergent ...........................................................................................................................................17
Maintenance ..........................................................................................................................................................................18
Pre Operation Steps ...................................................................................................................................................18
After Each Use ...........................................................................................................................................................18
Maintenance Schedule ...............................................................................................................................................18
Changing Oil ..............................................................................................................................................................19
Engine Maintenance ..................................................................................................................................................19
How to Store .............................................................................................................................................................20
Troubleshooting ....................................................................................................................................................................21
TABLE OF CONTENTS

3
•cement walkways.
• This unit can be used to clean cars, motorcycles, boats, RV’s outdoor furniture, lawn equipment, and grills.
This pressure washer is designed to remove dirt and mold from house siding, decks, garage floors, brick patios, and
INTRODUCTION
Thank you for purchasing this superior quality pressure washer from
Quipall®
. When operating and maintaining this
product as instructed in this manual, your pressure washer will give you many years of reliable service.
ProductSpecifications:
This pressure washer operates at 3100PSI with a flow rate of 2.5 gallons per minute. This high end residential use system
features a 212cc engine, no flat foam filled tires, 30’high pressure hose, and 5 quick-connect nozzles.
The emissions control system for this pressure washer is compliant with all standards set by the Environmental Protection
Agency.
ProductApplications:
Record the following information below for service or warranty assistance.
DATE OF PURCHASE: ______________________________________________
PURCHASED FROM: ______________________________________________
PRESSURE WASHER SERIAL NUMBER: ______________________________

4
Indicates a potentially hazardous
situation which could result in
serious injury or death if not avoided.
Slippery surface Risk of explosion
Risk of electric shock Hot surface Eye protection
WARNING!
CAUTION!
Indicates a potentially hazardous
situation which could result in
damage to equipment or property.
Safety Symbols
Read and understand this manual in its entirety before operating this pressure washer.
Improper use of this pressure washer could result in serious injury or death.
Never spray near a power source such as an electrical outlet. Making contact with
a power source could cause an electric shock or burn.
WARNING!
WARNING!
• Carbon monoxide gas is a poisonous, odorless gas that can cause headache, confusion, fatigue, nausea, fainting,
Safety Instructions
The manufacturer cannot anticipate every possible hazardous circumstance that the user may encounter. Therefore, the
Warnings! in this manual, on tags, and on affixed decals are not all-inclusive. To avoid accidents, the user must understand
and follow all manual instructions and use common sense.
sickness, seizures, or death. If you start to experience any of these symptoms, IMMEDIATELY get fresh air and seek
medical attention.
•
•
• When working in areas where vapors could be inhaled, use a respirator mask according to all of its instructions.
WARNING! from dissipating.
Do not operate indoors or in a confined space preventing dangerous carbon monoxide gas

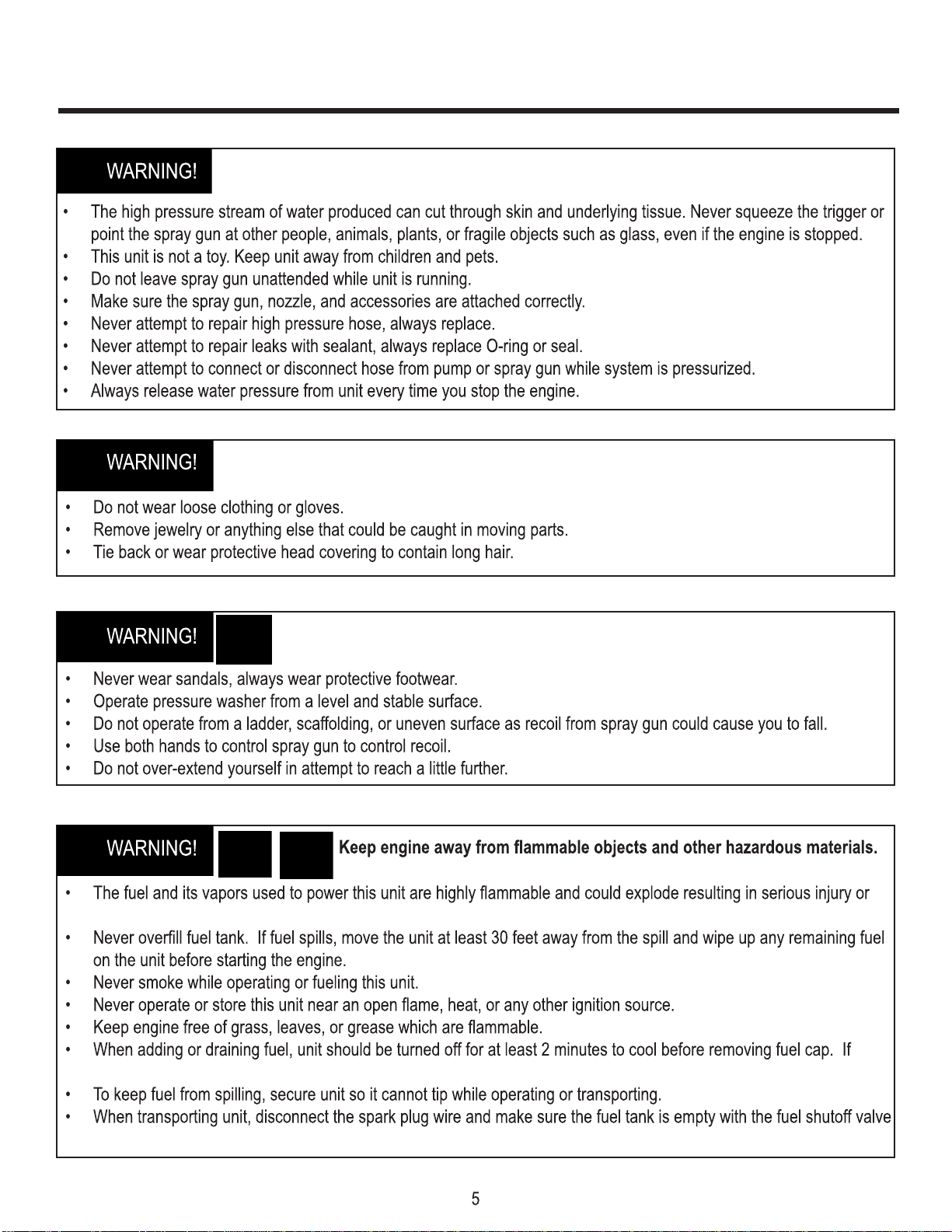

SAFETY RULES
Never use indoors, in a covered area, or in a confined space, even if doors and windows are open.

SAFETY RULES
To reduce the risk of injection, injury or possible amputation, never direct water pressure
towards people or pets.
Moving parts can catch on clothing, jewelry, and hair.
Pressure washer can create puddles and slippery surfaces.
death.
pressure builds up on the fuel cap, remove slowly.
turned to the OFF position.

alcohol, drugs, medication or you feel tired.
Stay alert and use common sense. Do not operate this unit if you are under the influence of
SAFETY RULES
Only use detergents or soaps that are safe to be used with pressure washers. Chemicals
which are caustic, such as acids or bleach, can result in serious injury, property damage,
damage to pressure washer, or death.
Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which
could result in injury.
Never operate this unit if there are any broken or missing parts and only use
eplacement parts specifically designed for this unit.
Avoid contacting hot areas of this unit.
Only use this unit as it is intended or th t th.
Use indirect vented safety goggles designed for wet conditions to protect eyes from
injury.
®

7
PRESSURE WASHER FEATURES
A - 30’ High Pressure Hose
B - Fuel Tank and cap
C - Choke
D - Fuel Valve Lever
E - Soap Tank
F - Handle
G - Spray Gun
H - Locking Trigger
I - Pull Cord
J - Engine ON/OFF Switch
A
B
C
D
E
G
H
I
L
J
M
N
K
F
K - Oil Fill and Dipstick
L - No Flat Foam Filled Tires
M - High Pressure Hose Outlet
N - Water Inlet

PRESSURE WASHER PARTS ASSEMBLY
8

PRESSURE WASHER PARTS LIST
9
NO. ITEM NAME Qty
1ENGINE DH212 1
2BOLT M6*40 1
3SOAP TANK CAP 1
4SOAP TANK CAP 1
5FRAME BASE 1
6LOCK NUT M8 1
7FOOT, FRAME ISOLATING 1
8BOLT M6 X 45 5
9SWINGING ROD GASKET 5
10 BRACKET,DOWN,GUN 1
11 LOCK NUT M6 5
12 NUT M8 8
13 ENGINE MOUNT, VIBRATION ISOLATOR 4
14 CHASSIS BACKPLANE 1
15 WHEEL 2
16 WHEEL AXLE 2
17 R PIN 2
18 CLIP 2
19 BOLT M6*16 2
20 UPPER GUN HOOK 1
21 PLASTIC RIVETS 8
22 NOZZLE SET 5
23 HANDLE, FRAME 1
24 FOAM GRIP 1
25 HIGH PRESSURE PIPE TIE BUCKLE. 1
26 HIGH PRESSURE LINE 1
27 PANEL 1
28 ATTACHMENT HOOK 1
29 LIQUID SUCTION HOSE 1
30 WATER PUMP 1
31 BOLT M8*20 4
32 FLAT KEY 1
33 WAND 1
34 SPRAY GUN 1
35 NOZZLE CLEANER 1
36 SHEATH，NOZZLE CLEANER 1
37 HIGH PRESSURE HOSE 1
38 NOZZLE 0° 1
39 NOZZLE 15° 1
40 NOZZLE 25° 1
41 NOZZLE 40° 1
42 PLASTIC SUCTION NOZZLE. 1
43 SPARK PLUG WRENCH 1
44 CONTAINER OF10W30 ENGINE OIL 1

ASSEMBLY
Packing List
Do not attempt to assemble or operate this pressure washer until you have read and
understood this entire manual. If you have any problems assembling or operating this unit
Unpacking
Do not operate this pressure washer if any of the parts are damaged or missing until the
part is replaced. Using this product with damaged or missing parts can cause damage to
the machine or result in serious injury or death.
Spark Plug Wrench
CARB Warranty Statement Sheet

11
ASSEMBLY
• Parts needed - 1 foot, 1 M8 lock nuts.
• Raise or tilt pressure washer so you can line up foot with the hole located at the center of the frame.
• Align the rubber foot with the hole in the frame where the foot is to be located. Attach foot by inserting the bolt from the
bottom up and install the acorn nut. Wrench tighten until there is a slight crush on the frame tube. (Do not over tighten)
Attaching Foot Assembly (See fig 1)
Install Handle (See fig 2)
• Install upper frame (handle) onto the lower frame by sliding the handle over the two upright tubes on the lower frame
and pressing down firmly until the handle is seated and the two detent pins snap in place.
FIG 2FIG 1
• Attach the upper gun hook. Align the upper gun hook with the holes, install two plastic rivets, until the plastic rivets are
snug, press hard with your finger to lock the rivet.
•Attach the lower gun hook, install the plastic rivets, wrench tighten until the nut is snug, do not over tighten.
Attaching Upper and Lower Gun Hooks (See fig 3)
• Attach the accessory hook.
• Install two plastic rivets, until the plastic rivet is snug.
• Press hard with your finger to lock the rivet.
Attaching Accessory Hook (See fig 4)
FIG 4FIG 3

12
ASSEMBLY
• Screw the spray wand and the trigger handle together until they are secure.
•
nut on by turning clockwise until it is hand tight.
FIG 5 FIG 6

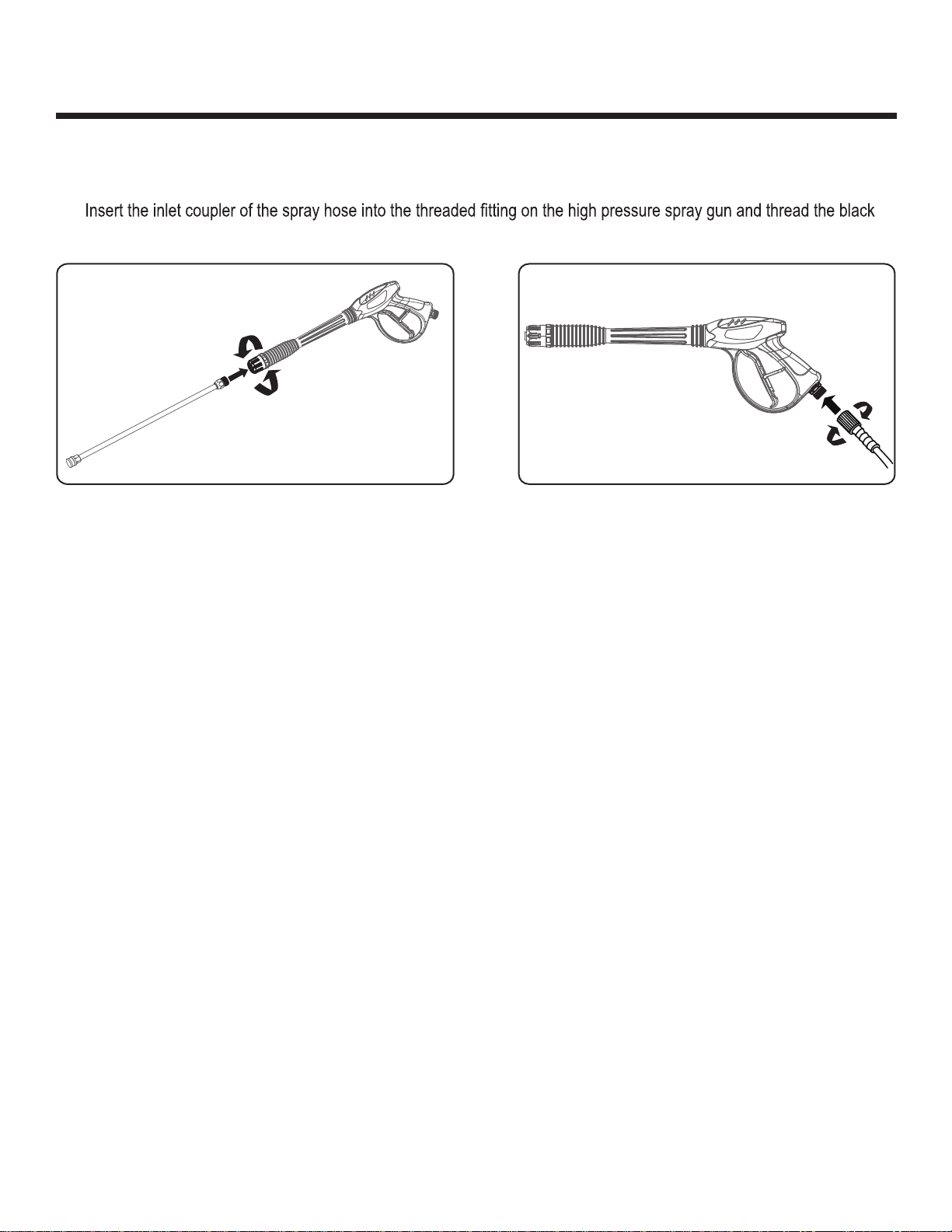

Attaching the Spray Gun (See fig 5 & 6)

13
ASSEMBLY
• Place pressure washer on a level surface.
•
• Carefully add between 520 ml (17.6 oz) of 4-Cycle engine oil (SAE10W30) to empty reservoir until oil reaches
• Be sure to replace both dipsticks before attempting to start the engine.
• To check oil, set pressure washer on a level surface, wipe dipstick clean, then reinsert dipstick without re-threading.
FIG 7
Adding / Checking Engine Oil (See fig 7)
• Set pressure washer on a clean and level surface in an area that is well ventilated.
• Remove fuel cap.
• Insert a funnel into the fuel tank and carefully pour gasoline into the tank until fuel level reaches 1 1/2 inches below the
top of the neck.
CAUTION!
CAUTION!
Adding Fuel (See fig 8)
FIG 8
Unleaded
Gasoline
10W30 OIL

14
ASSEMBLY
•
• Inspect inlet screen and remove any debris.
• Connect hose to water inlet and tighten by hand. There must be a minimum of 10 feet of unrestricted hose between
pressure washer and faucet or shut off valve.
•Turn on water.
• Purge the system’s pump of air by releasing the safety and squeezing the trigger of the spray gun.
Do not run pump without connecting to the water supply and turning water on. Failure to
do so could damage the pressure washer. Failure to follow these instructions will void
product warranty.
CAUTION!

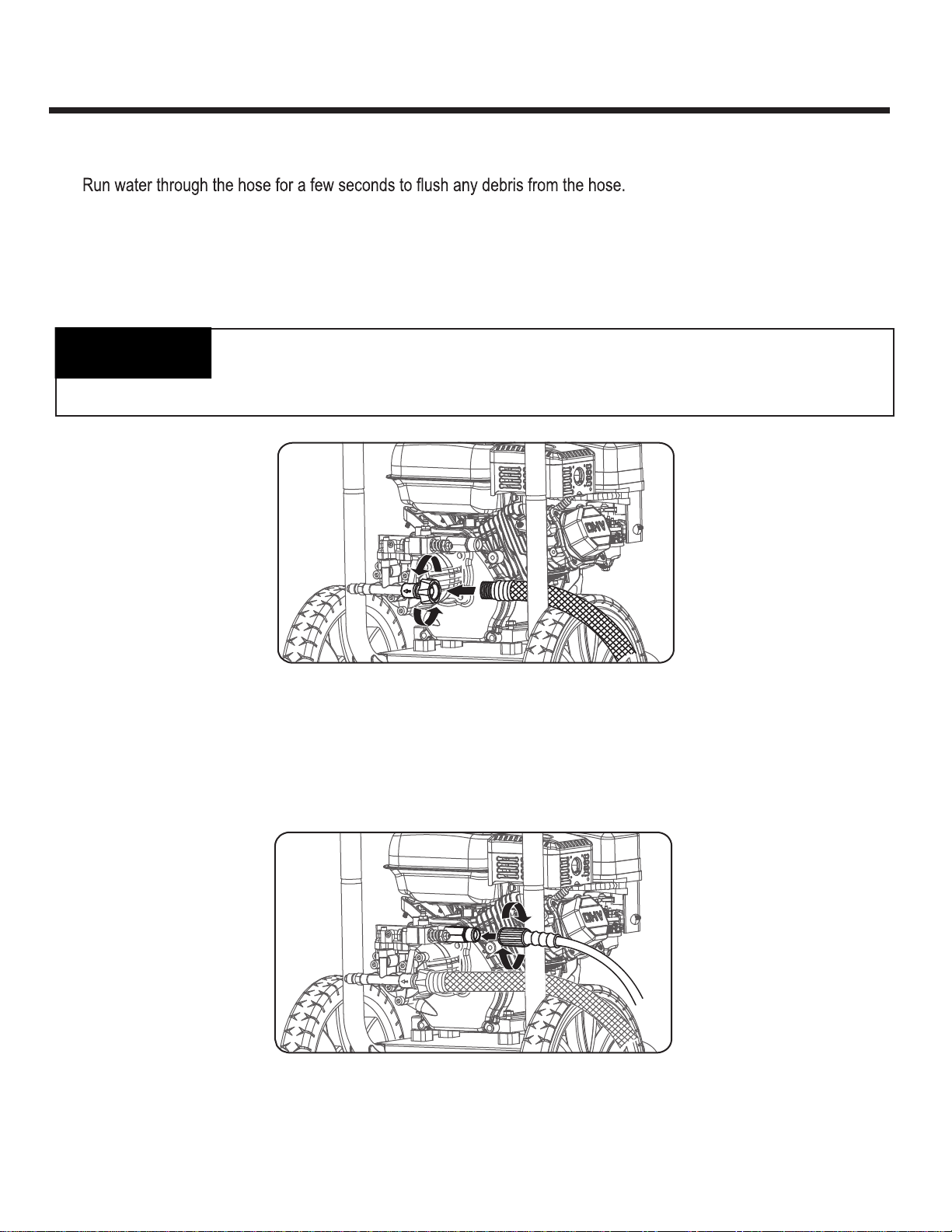

Connect High Pressure Hose to Pump (See Fig 10)
• Attach end of high pressure hose to the high pressure outlet on pump.
• Follow the same procedure with opposite end to attach high pressure hose to spray wand.
Connecting Garden Hose to Pressure Washer (See fig 9)
FIG 9
FIG 10

15
Pre-Operation Check List
• Read and understand this operator manual in its entirety before operating pressure washer.
• Check oil level and add oil to the proper level if low.
• Check fuel level and add fuel if needed.
• Check connections of handle and all hoses to make sure they are secure.
• Check all hoses for kinks and damage.
Check flow of water supply and make sure it is adequate (40 - 80PSI).
•
Do not run pressure washer with a damaged hose. Do not run pressure washer without
.YTNARRAWTCUDORPDIOVLLIWSNOITCURTSNIESEHTWOLLOFOTERULIAF.tluser
CAUTION!
Starting Pressure Washer (See Fig 11-12)
• Place pressure washer on a level surface.
• Turn on water.
• Purge the system’s pump of air by releasing the safety and squeezing the trigger of the spray gun.
• Attach wand/lance to spray gun.
• Turn fuel valve to the ON position.
• Slide the choke lever to the “Choke” position.
• Turn the engine OFF/ON switch to the “ON” position.
• Holding the machine with your hand, pull the recoil handle (starter cord) slowly until resistance is felt, then pull rapidly.
Squeeze the Gun trigger and release the pressure after every failed attempt to start the pressure washer (This will
reduce the back pressure).
• Let engine run for several seconds and then gradually slide the choke lever to the RUN position as the engine warms
up until the choke is fully slid to the RUN position.
OPERATION
• Carbon monoxide gas is a poisonous, odorless gas that can cause headache, confusion, fatigue, nausea, fainting,
sickness, seizures, or death. If you start to experience any of these symptoms, IMMEDIATELY get fresh air and seek
medical attention.
•
•
• When working in areas where vapors could be inhaled, use a respirator mask according to all of its instructions.
WARNING! from dissipating.
FIG 11 FIG 12
CHOCK
RUN
OFF ON
ON
OFF
CHOCKRUN
,

16
Stopping Pressure Washer (See Fig 13)
• Turn the on/stop switch to the OFF position.
• Turn the fuel valve to the OFF position.
• Turn off water and squeeze the trigger handle to release all water pressure.
FIG 13
OPERATION
• Always relieve pressure from spray gun before pulling starter cord, including every failed attempt to start engine.
• To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly.
WARNING! Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which
could result in injury.
Using the Spray Gun (See Fig 14 - 15)
• Flip the lock tab behind the trigger up or down until it clicks to apply or remove the safety. Pull back on the trigger to
begin operating pressure washer.
•
FIG 14 FIG 15
TRIGGER
ON
OFF
SLOT
LOCK OUT

17

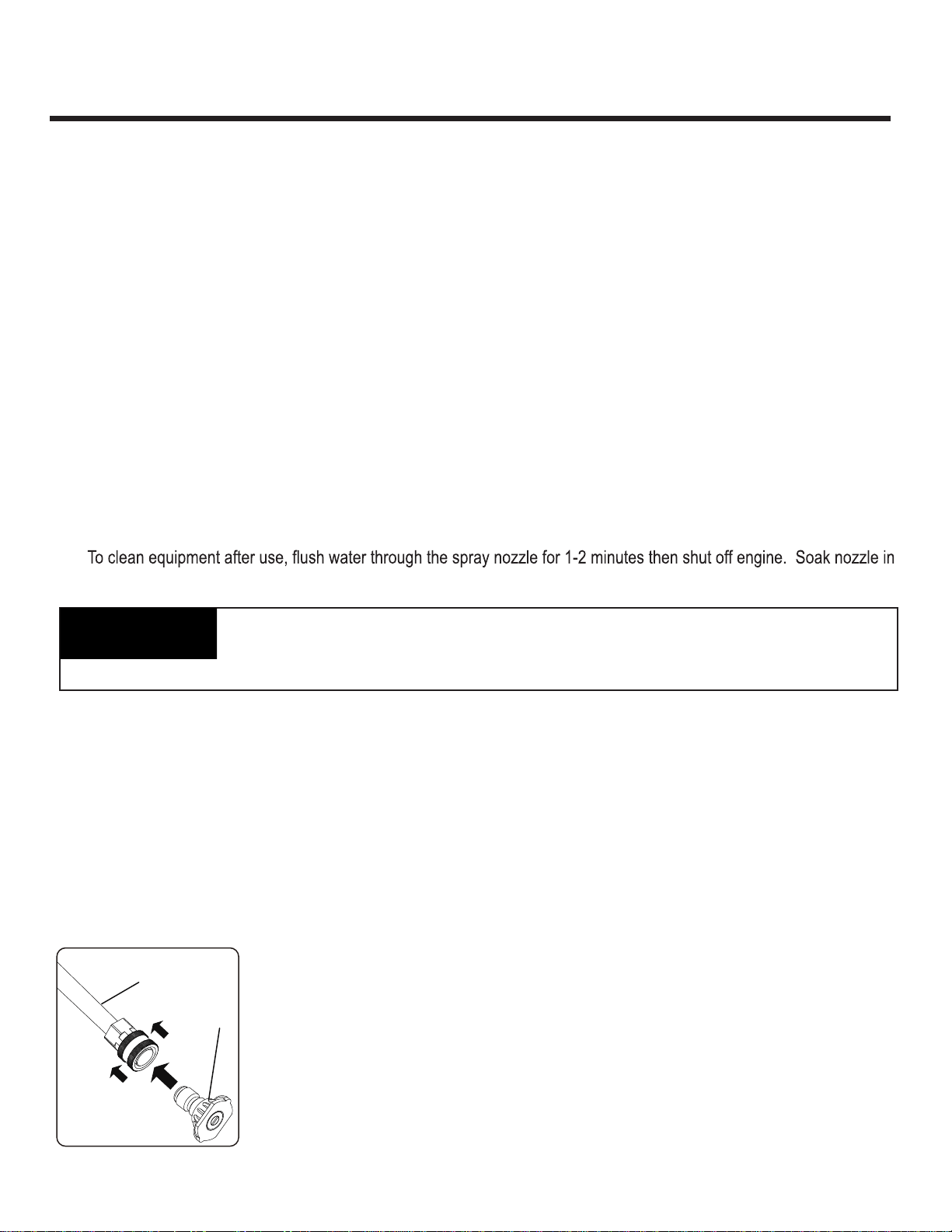

Using Spray Nozzle (See fig 16)
• To connect or disconnect spray tip, pull back on the quick-connect collar. Insert or remove spray tip then release collar.
• When spray tip is connected, pull on the spray tip to make sure it is secured.
• For general cleaning use the 40° spray tip. This option is for cement walkways.
• For stripping, spot cleaning, blasting, and hard to reach areas use the 15° spray tip. This option is for removing paint,
rust, mildew, marine growth off boats, or grease stains. This option can be used for reaching second story surfaces, or
for the removal of paint, rust, oil stains, tar, gum, and other stubborn substances. Use extreme caution when using this
nozzle.
• For applying pressure washer safe detergent, use the black soap nozzle.
OPERATION
FIG 16
SPRAY
WAND
NOZZLE
“CLICK”
Applying Detergent
• Rinse surface with cool water before applying cleaner.
• Prepare detergent as required by job. For best results follow detergent directions as supplied from manufacturer.
• Remove cap from detergent container and fill.
• Spray detergent on surface. For best results use long, even, and overlapping strokes. Allow detergent to set for about
3 minutes before rinsing, but do not allow detergent to dry on surface or it may cause streaking or cause damage to the
surface. Use good judgment.
•
a bucket of clean water to remove detergent.
Only use detergents or soaps that are safe to be used with pressure washers. Chemicals
which are caustic, such as acids or bleach, can result in serious injury, property damage,
or death.
WARNING!
Rinsing with the Pressure Washer
•
• Rinse from top to bottom using long, overlapping strokes.
Test a small area first to avoid surface damage.
Moving the Pressure Washer
• Turn the pressure washer OFF.
• Tilt unit towards you until it is balanced on its wheels.
• Roll machine to desired location.

18
Regular maintenance will extend the life of this pressure washer and improve its performance. The warranty does not
cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must
maintain the pressure washer as instructed in this manual, including proper storage.
Before inspecting or servicing this machine, make sure the engine is OFF and no parts
are moving. Disconnect the spark plug wire and move it away from the spark plug.
Pre-operation Steps
Before starting the engine, perform the following pre-operation steps:
• Check the level of the engine oil and the fuel tank level
•
• Remove any debris that has collected on the pressure washer.
• Check water inlet screen for damage. Clean inlet screen if it is clogged.
• Check high pressure hose for damage.
Briefly run garden hose to flush out any debris or insects.
•
• Inspect the work area for hazards.
Remove Debris
•
• Use a damp cloth to wipe exterior surfaces. If dirt is caked on, use a soft bristle brush.
After Each Use
Follow the following procedure after each use:
• Shut off engine and turn off water supply. Release water pressure by pointing spray gun in a safe direction and
squeezing the trigger.
• Disconnect high pressure hose, spray gun, and nozzle. Drain water from items and use a rag to wipe down the outside
of the hose and spray gun.
• Empty the water from the pump by pulling the recoil starter 6 times.
• Store unit in a clean and dry area.
• Use of a pressure washer pump conditioner is recommended, follow the instructions provided by the manufacturer of
the pump conditioner.
WARNING!
MAINTENANCE
After First 5 Hours Change Engine Oil
After Each Use Check and Clean Water Inlet screen
Check High Pressure Hose
Check and Clean Detergent Siphoning Tube
Check Spray Gun for Leaks
Clean Debris
Check Engine Oil Level before starting
Annually (20 hr Use) Change Engine Oil (Service more often under dirty or dusty conditions)
Annually (50 hr Use) Check and Clean Air Filter
Annually (100 hr Use) Service or Replace Spark Plug
Maintenance Schedule

High Pressure Hose
Spray Gun
Spray Nozzle
Never repair high pressure hose or use unit if hose is damaged. If hose is damaged
replace with identical Quipall®part.
MAINTENANCE
Changing Engine Oil
Checking Detergent Siphoning Tube

Checking Spark Plug
• Disconnect the spark plug wire from the spark plug.
• Before removing the spark plug, clean the area around its base to prevent debris from entering the engine.
• Clean carbon deposits off the electrode with a wire brush.
• Check the electrode gap and slowly adjust to 0.80mm (0.031in.) if necessary.
• Reinstall spark plug and tighten to torque 22.0 – 26.9 Nm (16-20 ft-lb).
• Reconnect spark plug wire.
• If spark plug is worn replace only with an equivalent replacement part. Spark plug should be replaced annually.
20
Repairing Leaking Connections
• Purchase O-Ring / Maintenance kits through the nearest authorized service center and follow instructions provided with
kit.
Air Filter
•
•
•
• .
.
WARNING!
Storing Pressure Washer
If storing pressure washer for 30 days or more follow the procedures below:
• Add fuel stabilizer to gasoline to keep gasoline from going stale and to prevent gum deposits from forming on the
carburetor. Run engine for a couple of minutes to circulate the fuel stabilizer.
• Add PumpSaver to protect pump from freezing or damage caused by mineral deposits.
•
• Disconnect the spark plug wire and clean the spark plug. Leave spark plug wire disconnected.
•
• Cover unit with a suitable protective cover to keep unit dry.
• Store unit in a frost-free area.
MAINTENANCE
• Never attempt to repair high pressure hose, always replace.
• Never attempt to repair leaks with sealant, always replace O-ring or seal.
WARNING! Water pressure produced by this unit can cut through skin and tissue leading to serious
injury and possible amputation.
