1of2

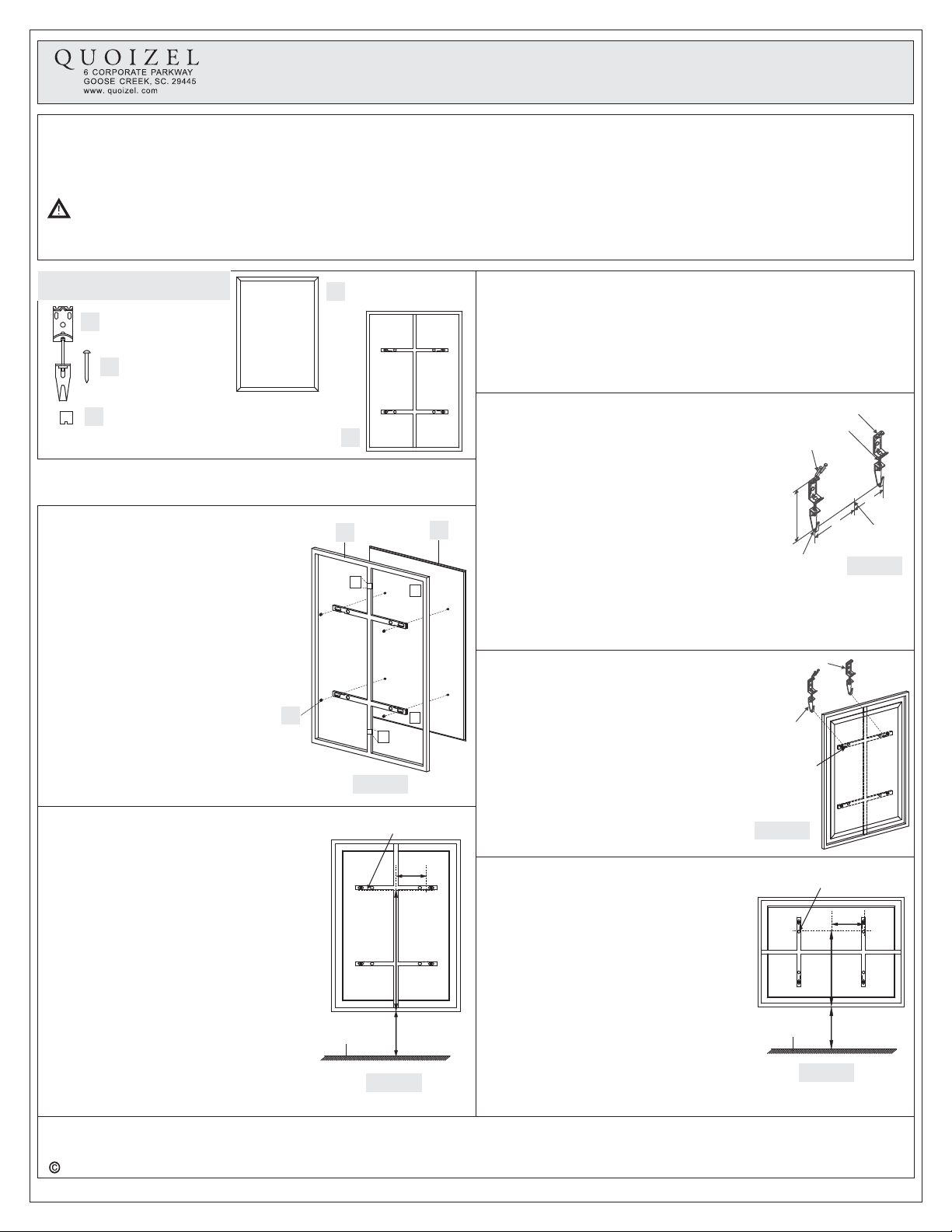

Assembly Instruction Sheet #IS-QR1857BN
For Style QR1857BN
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc.
Package Contents
AMirror Hanger
x2
Mirror Frame
x1
BHanger Nail
x4
STEP 2 Identify the Points for
mounting the Mirror Hangers
-
A. Determine where the mirror will be
placed on the wall and hold the mirror on
the wall in the position you wish. Mark
the wall at the bottom center of the mirror
with a pencil lightly. This will be
Measurement A, the distance from the
floor to the bottom of the mirror.
B. Place the mirror on a flat surface again
and measure from the bottom of the
mirror to the bottom edge of the short
crossbar that will be used to hang the
mirror, this is measurement B.
C. Add measurement A from step A above
and measurement B together and mark
this spot on the wall where the mirror will
be hung. Measurement B is straight up
from Measurement A you marked on the
wall in step A above.
Figure 2
Hanging Hole
"A”
Floor
Surface
"B”
"C”
BACK
STEP 3 Installing the 2 Mirror Hangers
Please note the Mirror Hangers are
adjustable allowing for easy leveling
-
A. To determine where the Mirror Hangers
(A) will be fastened to the wall, measure
up from Measurement C 3”. Do this in
two locations as illustrated and mark
the wall.
B. Using the Nails (B) provided with the
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
just marked 3” above Measurement C.
Figure 3
C
Hanger Nail
Mirror Hanger
Adjustment Screw
Hook
Mark "B"
3”
C
STEP 4 Hanging the Mirror-
A. With the help of another person place
the mirror onto the mirror hanger
hooks. Making sure each hook is
securely hooked into the hangers
before letting go of the mirror.
B. If needed you may remove the mirror
and adjust the mirror hanger hooks to
level the mirror and replace the mirror.
Clean glass with household glass
cleaner. Retain this sheet for future
reference.
Figure 4
Mirror Hanger
Bracket
Catch
Hanging
Hole
ToolsRequired:
EstimatedAssemblyTime:
Preparation:
Flatheadscrewdriver, Phillips screwdriver,pliers,gloves,safetyglasses.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethemirror. Contact customer service for replacement
parts.
Warnings and Cautions
These instructions are provided for your safety. It is very important you read them completely before installing the mirror. We strongly
recommend that a licensed, professional electrician perform the installation. Quoizel recommends 2 people for each step during assembly.
of the mirror as needed.
C. Once you have both Mirror Hangers (A) securely nailed in place,
adjust as the length of the Mirror Hangers (A) so that each Mirror
Hanger (A) is the same length.
E
Mirror
x1
C
D
Lock Ball
x4
STEP 1 Assemble Mirror-
A. Attach the Mirror (D) onto the Mirror
Frame (E). Align Label 1 bolt on the
back of the Mirror (D) to Label 1 hole
on the Mirror Frame (E). Align Label 2
bolt on the back of the Mirror (D) to
Label 2 hole on the Mirror Frame (E).
Pass the bolts on the back of the
Mirror (D) through the holes on the
Mirror Frame (E). Secure by
threading Lock Balls (C) onto blots.
Hand tighten until snug.
Figure 1
To hang the mirror go to Step 2.
To hang the mirror go to Step 5.
Vertically
Horizontally
D. Measure the distance between the centerline of each Hanging Hole
and then divide this measurement by 2, this is Measurement C. In
order to locate the exact hanger location on the wall, from
Measurement B go to the right the distance of Measurement C and
mark the wall. Do this going to the left of Measurement B as well and
mark the wall. These two marks are the center of the hangers,
Measurement C. The two marks you just made on the wall are the
same distance apart as the two hangers.
STEP 5 Identify the Points for
mounting the Mirror Hangers
-
A. Determine where the mirror will be
placed on the wall and hold the mirror on
the wall in the position you wish. Mark
the wall at the bottom center of the mirror
with a pencil lightly. This will be
Measurement A, the distance from the
floor to the bottom of the mirror.
B. Place the mirror on a flat surface again
and measure from the bottom of the
mirror to the top quarter of Hanging
Holes that will be used to hang the
mirror, this is measurement B.
C. Add measurement A from step A above
and measurement B together and mark
Figure 5
Hanging Hole
"A”
Floor
Surface
"B”
"C”
BACK
January2015
ED
C
1
1
1
22
2

2of2
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc. January2015
this spot on the wall where the mirror will be hung. Measurement B
is straight up from Measurement A you marked on the wall in step A
above.
D. Measure the distance between the centerline of each Hanging Hole
and then divide this measurement by 2, this is Measurement C. In
order to locate the exact hanger location on the wall, from
Measurement B go to the right the distance of Measurement C and
mark the wall. Do this going to the left of Measurement B as well and
mark the wall. These two marks are the center of the hangers,
Measurement C. The two marks you just made on the wall are the
same distance apart as the two hangers.
STEP 6 Installing the 2 Mirror Hangers
Please note the Mirror Hangers are
-
A. To determine where the Mirror Hangers
(A) will be fastened to the wall, measure
up from Measurement C 3”. Do this in two
locations as illustrated and mark the
wall.
B. Using the Nails (B) provided with the
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
just marked 3” above Measurement C.
Figure 6
C
Hanger Nail
Mirror Hanger
Adjustment Screw
Hook
Mark "B"
3”
C
STEP 7 Hanging the Mirror-
A. With the help of another person
place the mirror onto the mirror
hanger hooks. Making sure each
hook is securely hooked into the
hangers before letting go of the
mirror.
B. If needed you may remove the
mirror and adjust the mirror hanger
hooks to level the mirror and
replace the mirror.
Clean glass with household glass
cleaner. Retain this sheet for future
reference.
Figure 7
Mirror Hanger
Bracket
Catch
Hanging
Hole
adjustable allowing for easy leveling of the mirror as needed.
C. Once you have both Mirror Hangers (A) securely nailed in place,
adjust as the length of the Mirror Hangers (A) so that each Mirror
Hanger (A) is the same length.
QR1857BN
PART NUMBER
G122MR
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
MIRROR
REQ.
1
NO.
1
32”
24”
FINISH: BRUSHED NICKEL
1”
1
