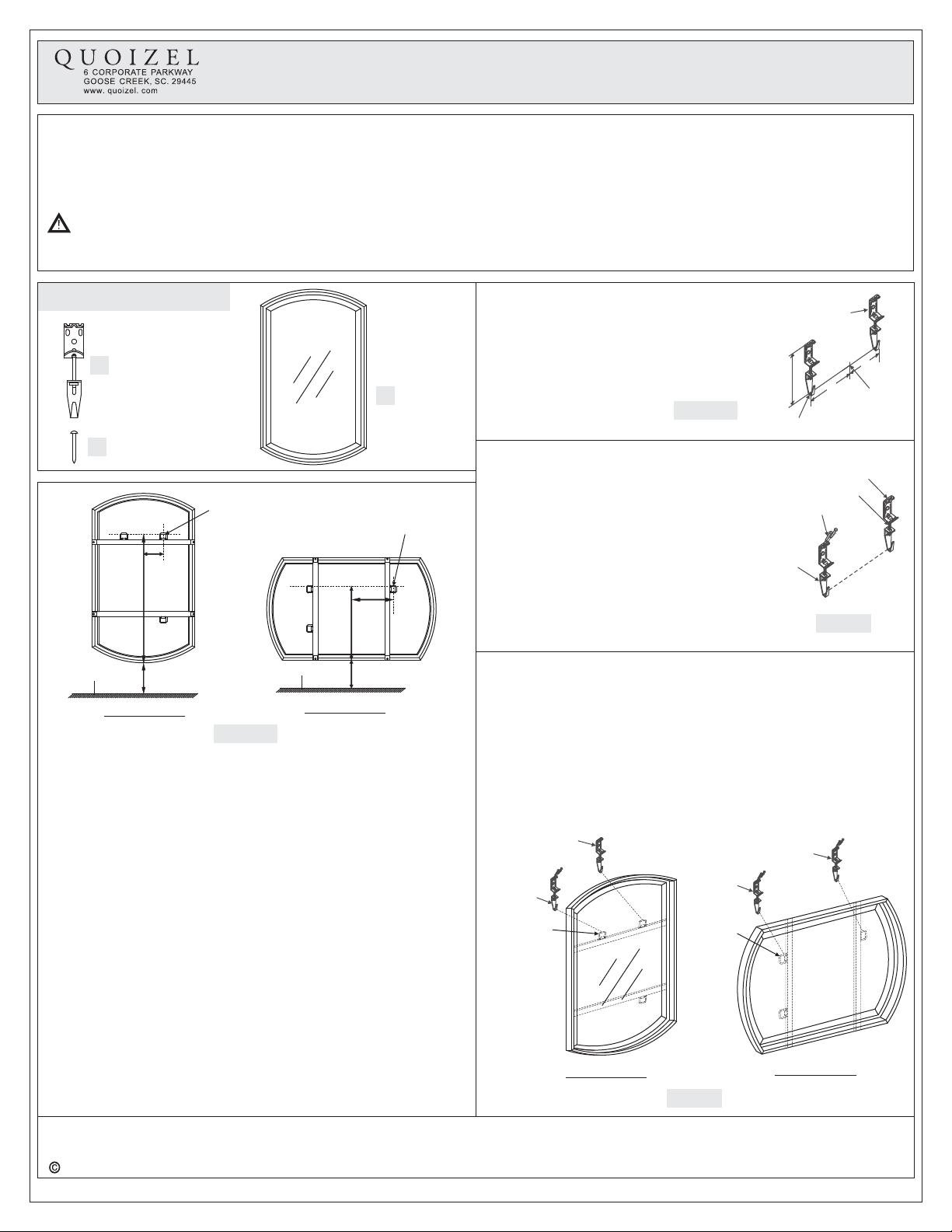

Quoizel QR1419PN Mounting instructions

1of2
Assembly Instruction Sheet #IS-QR1419PN_R1
For Style QR1419PN
Package Contents
A
C
Mirror Hanger
x2
Mirror
x1
BHanger Nail
x4
Pleasegoto forproductcleaningtips.Gotothe selection.
Flatheadscrewdriver,Phillipsscrewdriver,pliers,gloves,safetyglasses.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethemirror.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
ToolsRequired:
EstimatedAssemblyTime:
Preparation:
Warnings and Cautions
These instructions are provided for your safety. It is very important you read them completely before installing the mirror. We strongly
recommend that a licensed, professional electrician perform the installation. Quoizel recommends 2 people for each step during assembly.
“D” Hanger
“A”
Floor
Surface
“B”
“C”
BACK
Floor Surface
BACK
OPTIONAL A OPTIONAL B
STEP 1 Identify the Points for mounting the Mirror Hangers By
Using Measurement
-
A. Determine where the mirror will be placed on the wall and hold the
mirror on the wall in the position you wish. Mark the wall at the
bottom center of the mirror with a pencil lightly. This will be
Measurement A, the distance from the floor to the bottom of the
mirror.
B. Place the mirror on a flat surface again and measure from the
bottom of the mirror to the “D” hangers that will be used to hang the
mirror, this is measurement B.
C. Add measurement A from step A above and measurement B together
and mark this spot on the wall where the mirror will be hung.
Measurement B is straight up from Measurement A you marked on
the wall in step A above.
D. Measure the distance between the centerline of each “D” hanger
and then divide this measurement by 2, this is Measurement C. In
order to locate the exact hanger location on the wall, from
Measurement B go to the right the distance of Measurement C and
mark the wall. Do this going to the left of Measurement B as well and
mark the wall. These two marks are the center of the hangers,
Measurement C. The two marks you just made on the wall are the
same distance apart as the two hangers.
E. (Refer Figure 1B) To determine where the Mirror Hangers (A) will be
Figure 1A
C
Mirror Hanger
Hook
Mark "B"
3”
C
(Step 1 Continued)
fastened to the wall, measure up
from Measurement C 3”. Do this in
two locations as illustrated and mark
the wall.
Figure 1B
STEP 2 Installing the 2 Mirror Hangers
Please note the Mirror Hangers are
adjustable allowing for easy leveling
of the mirror as needed.
-
A. Using the Nails (B) provided with the
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
just marked by Option A or Option B.
B. Once you have both Mirror Hangers (A)
securely nailed in place, adjust as the
length of the Mirror Hangers (A) so that
each Mirror Hanger (A) is the same
length.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
2017 QuoizelInc. RevisedDate:2017-06-29
“B”
“C”
“A”
“D” Hanger
Figure 2
Hanger Nail
Mirror Hanger
Adjustment Screw
Hook
STEP 3 Hanging the Mirror-
A. With the help of another person place the mirror onto the mirror
hanger hooks. Making sure each hook is securely hooked into the
hangers before letting go of the mirror.
B. If needed you May remove the mirror and adjust the mirror hanger
hooks to level the mirror and replace the mirror.
Clean glass with household glass cleaner. Retain this sheet for
future reference.
Mirror Hanger
Bracket
Catch
“D” Hanger
OPTIONAL A
Bracket
Catch
Mirror Hanger
OPTIONAL B
Figure 3
“D” Hanger

2of2
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
QR1419PN
2017 QuoizelInc.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
FINISH: PALLADIAN BRONZE 21”
35”
RevisedDate:2017-06-29
