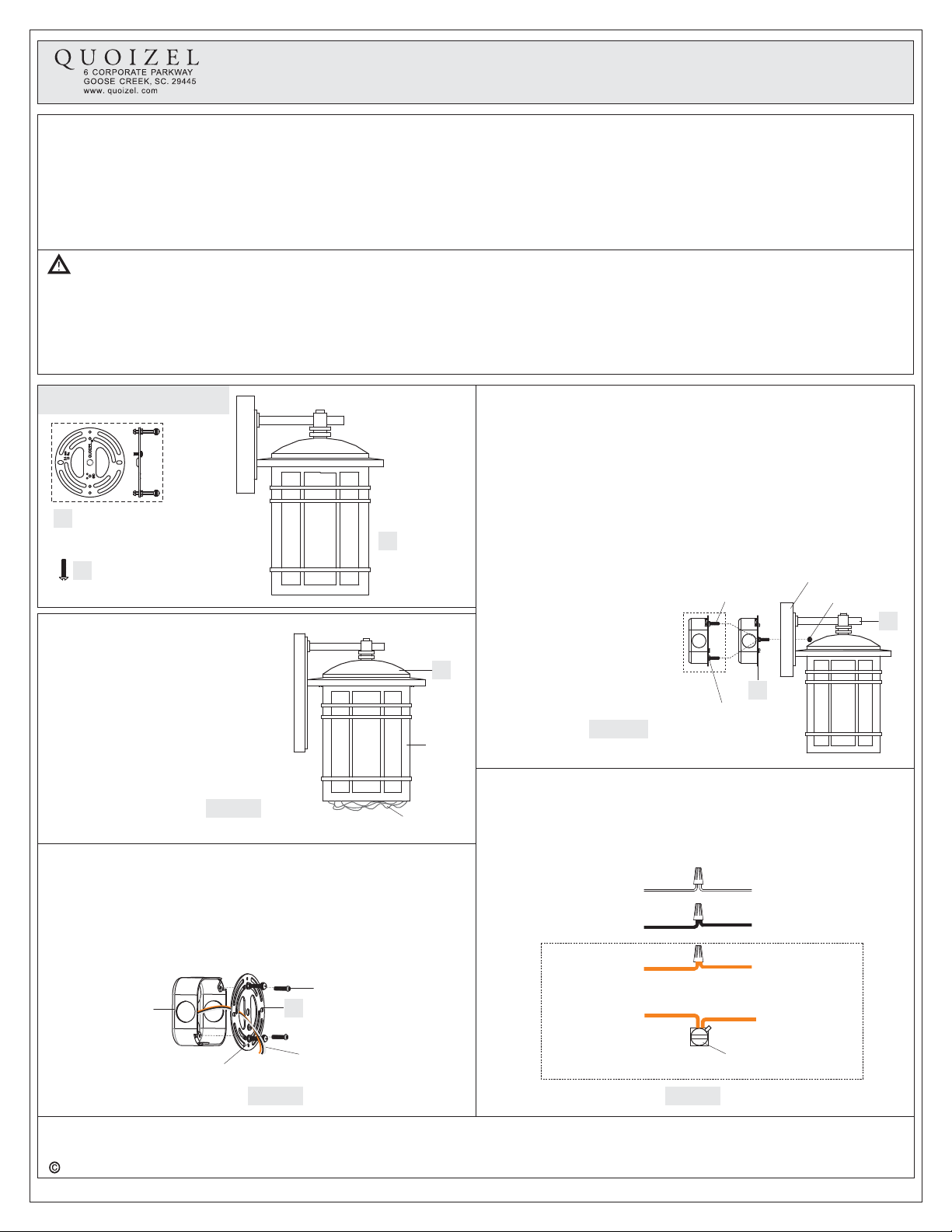

Quoizel HC8406IB Mounting instructions

Package Contents
Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-HC8406IB_R1
For Style HC8406IB
2016 QuoizelInc.
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
ACrossbar Assembly
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A19MediumBasebulb100WMaximum.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
Fixture
Body
x1
ReleasedDate:2016-12-08
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
C
B
Alternate
Mounting
screw
x2
STEP 3 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (C) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (C) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screw
or alternate short mounting screw on the Crossbar Assembly (A) by
unscrewing the preassembled hex nut and lock washer and then
screwing the mounting screws or alternate short mounting screws
in or out of the crossbar until the correct length is achieved. Once
C
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
Figure 3
Mounting Screw
or Alternate Short
Mounting Screw
STEP 1 Remove Paper-
A. Remove paper inside of the cage
and Fixture Body (C).
STEP 2 Installing the Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure the Crossbar Assembly (A)
with Outlet Box Screws (not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
Outlet
Box A
Figure 2
Mounting Screw
or Alternate Short
Mounting Screw
Cage
Figure 1 Paper
C
STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 4
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from fixture
Bare, or Green
Ground wire
from outlet box
OR
Ground wire
from fixture
Green Ground Screw
on the Crossbar
the backplate and Fixture
Body (C) is secure,
remove the mounting ball
and Fixture Body (C) and
proceed to Step 4.

2of2
2016 QuoizelInc.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
STEP 5 Install the Fixture Body-
A. Position the backplate and Fixture Body (C) onto the Crossbar
Assembly (A). Place the holes in the backplate over the mounting
screws or alternate short mounting screws. Secure the Fixture Body
by using the mounting balls and hand tighten the mounting balls
until snug.
Figure 6
STEP 6 -Install the Bulb and Apply Silicone Sealer
A. Insert the bulb onto socket and screw snugly into place.
B. Make sure the exterior wall surface and fixture backplate are free of
dirt before applying caulk. Using exterior grade caulk, caulk over
top of backplate and down both sides. Do not caulk the bottom of
Socket
Bulb (not
Supplied)
Exterior
Grade
Caulk
Backplate
Exterior
Grade
Caulk
the fixture backplate to
ensure proper moisture
drainage.
Your fixture is now
assembled and ready to
use. Enjoy!
HC8406IB
FINISH: IMPERIAL BRONZE
5.75"
4.5"
9"
6.75”
4.5"
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
Fixture can
only be
mounted in
the direction
indicated
ReleasedDate:2016-12-08
C
Mounting Ball
A
Backplate
Mounting Screw
or Alternate Short
Mounting Screw
Figure 5
