R.M. Young 06206 User manual

METEOROLOGICAL INSTRUMENTS
INSTRUCTIONS
R.M. YOUNG COMPANY 2801 AERO PARK DRIVE, TRAVERSE CITY, MICHIGAN 49686, USA
TEL: [phone] FAX: [phone] WEB: www.youngusa.com PN: 06206-90
REV: I111215
WIND TRACKER
MODEL 06206

Page 1
06206-90(I)
MODEL 06206
WIND TRACKER
SPECIFICATIONS
Size: 144 mm (5.65 in) x 144 mm (5.65 in) x 36 mm (1.4 in)
Panel Cutout: 138 mm (5.43 in) x 138 mm (5.43 in)
Sensors: Wind Monitor-MA (05), Wind Monitor (05),
Wind Monitor HD (Hd), Wind Monitor-SE (SEr),
Ultrasonic Anemometer (SEr), Wind Monitor-JR
(04), Wind Sentry (03)
Accuracy: ±0.6% Full Scale
NMEA Serial Input & Output:
$WIMWV, ddd, R, sss, u, A*c<cr><lf>
ddd wind direction in degrees
sss wind speed (ss.s for m/s)
u units (N knots, K km/hr, M m/s, S statute mph)
c NMEA checksum
Other inputs: 4-20 mA (0-360 deg, Ldi 0-50 m/s, Ld2 0-100 m/s)
Other outputs: 0-5 VDC = 0-360° or 0-540°
0-5 VDC = 0-100 m/s
Alarm Relays: Normally Open contacts for WS and WD Contact
rating 24 VAC or 30 VDC maximum 5A resistive,
2A inductive maximum
Input Power: 12-30 VDC, 3.5 W
Weight: 1.0 lb (0.45 kg) without AC adapter
INTRODUCTION
The YOUNG Model 06206 Wind Tracker is a compact wind speed
and direction display with advanced features such as relative wind
angle and NMEA serial I/O making it suitable for shipboard use.
FEATURES
• 3-digit wind speed display
• 3-digit maximum wind speed or wind direction display
• Multi-color wind direction display with variability
• Wind speed and direction alarms with delay
• RS-485/NMEA serial connections
• Calibrated 0-5 VDC outputs
• Display brightness control
• Compatible with YOUNG wind sensors & 4-20mAinputs
PRECAUTIONS
• INDOOR USE ONLY!
(Unless placed in approved enclosure)
• Operating temperature range:
0-50°C (32-122°F), 0-95% RH
• Use only recommended power sources.
(12-30 VDC, 3.5 W )
• Disconnect power when connecting or servicing
• Alarm contact rating 24 VAC/30 VDC,
(5 A resistive, 2 A inductive maximum)
MOUNTING AND START-UP
1. For best visibility, place the Wind Tracker in a location free of
direct sunlight. Mount it using the attached bracket or remove
bracket for ush mounting to a bulkhead or panel cutout. Panel
cutout dimensions are given in the specications. An optional
rack mounting panel (Model 06280) and protective enclosure
(Model 06260) are available from your YOUNG supplier.

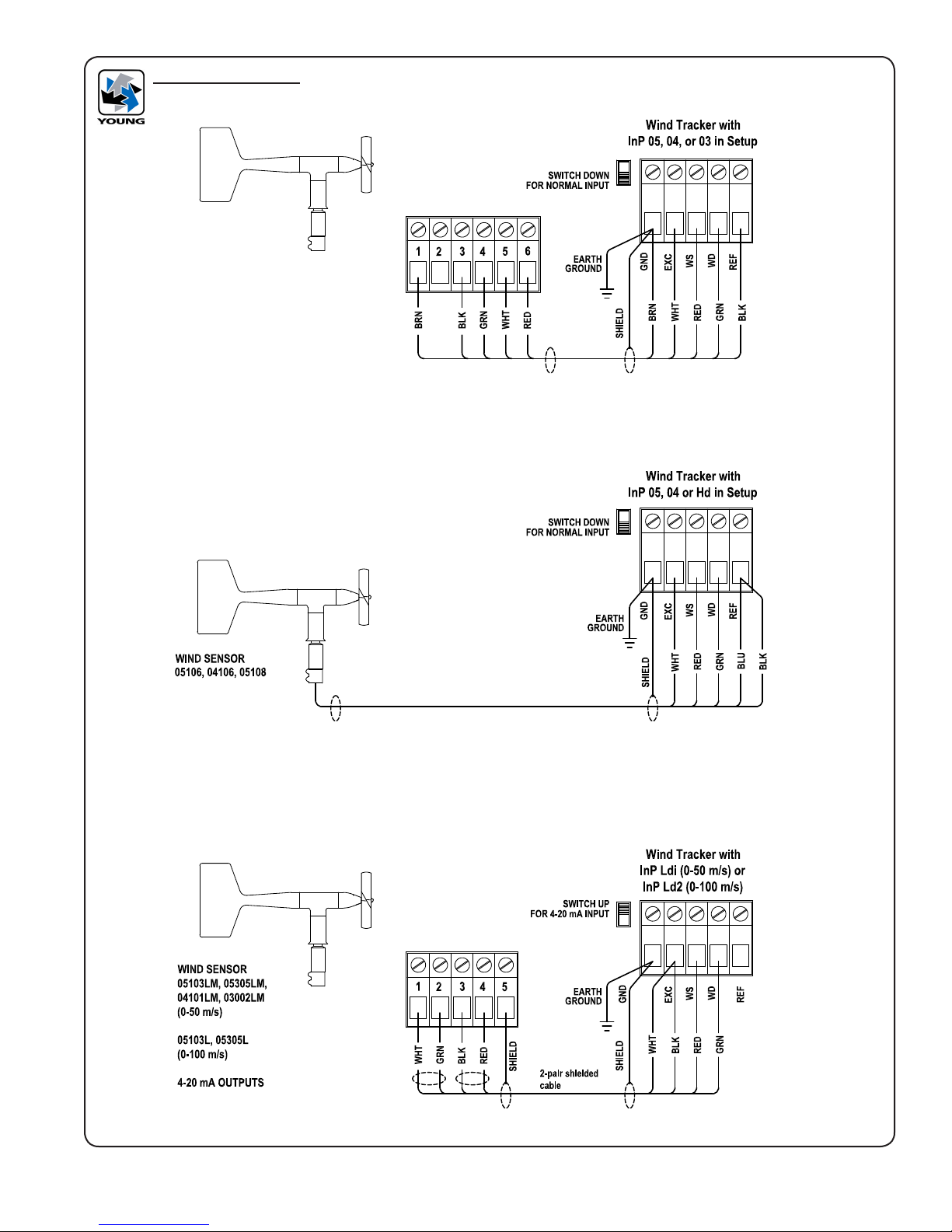

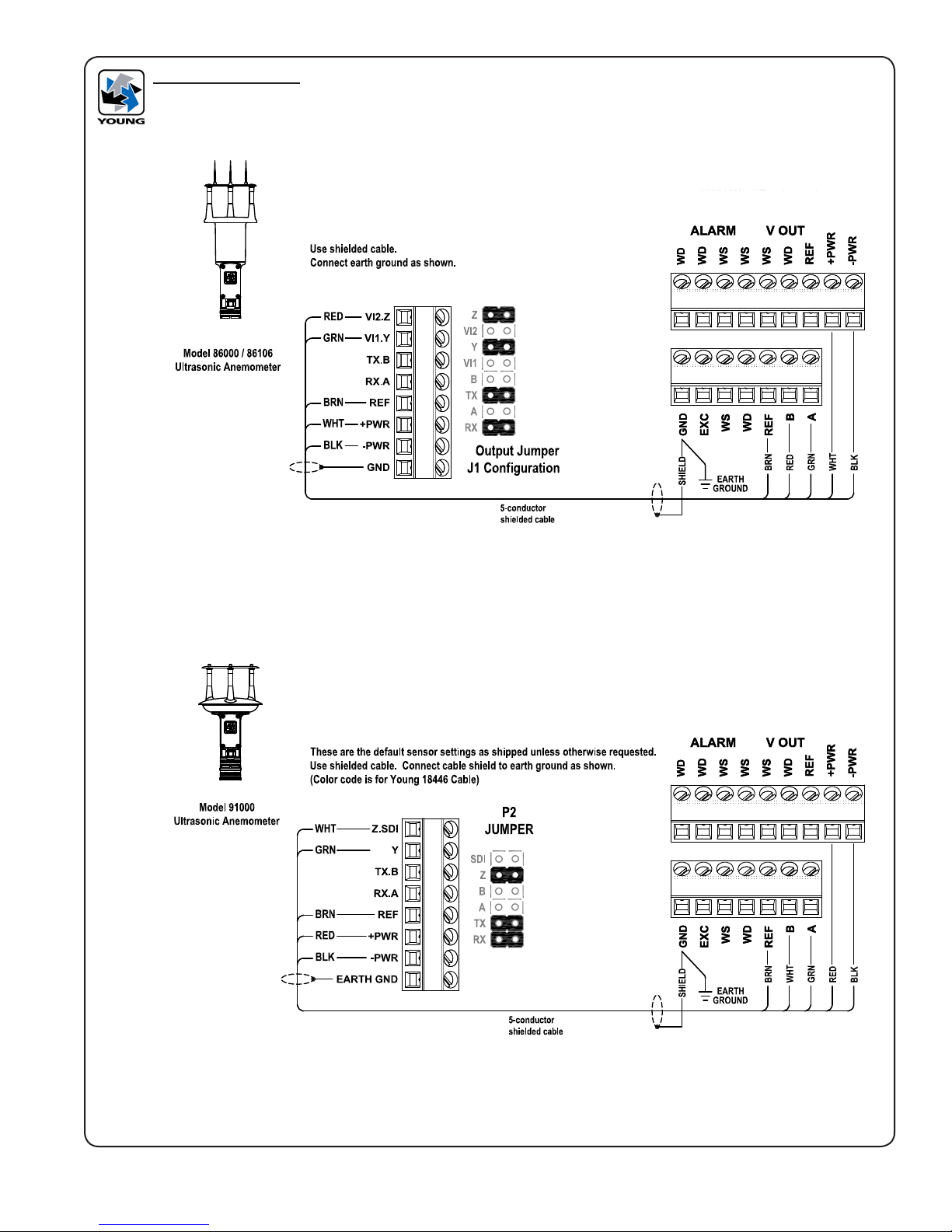

2. Connect cables to terminals according to wiring diagram.
IMPORTANT NOTE! Please observe correct position of back
panel Input Selector Switch according to wiring diagram.
3. Connect GND terminal to suitable earth ground.
4. Insert power supply plug into power jack, plug power supply into
a suitable AC wall outlet or connect to suitable 12 to 30 VDC
power source to terminals.
IMPORTANT NOTE! Do not connect more than one power
source to the Wind Tracker at the same time.
5. When power is applied, the Wind Tracker will display rmware
version number then begin to display wind information as follows:
• Wind speed
• Wind speed units
• Maximum wind speed or direction degrees
• Wind direction (single orange indicator)
• Direction variability (green indicators)
• Alarm status indicators (if selected)
• Wind speed & direction averaging indicator (if selected)
6. Observe display to conrm proper operation.

Page 2
06206-90(I)
FACTORY DEFAULT SETTINGS
INPUT:
- Sensor Input Setting: "05" Wind Monitor
- Input selector switch position: "Down" (Sensor)
OPTIONS:
- Averaging: "No"
- Right hand display window: "Max Wind Speed"
- Alarms: "No"
OUTPUT:
- Voltage Outputs: 0-5Vdc=0-100m/s / 0-5Vdc = 0-360°
- NMEA Serial Output Rate: "FST"
IMPORTANT NOTE!:
Before connecting any external devices, verify the above settings
are compatible with your application. If different, refer to the
wiring diagrams in the back of the manual for the correct settings.
CHANGING SETTINGS
Marine Wind Tracker parameters may be inspected or changed in
SETUP mode which is enabled by simultaneously pressing both
ENTER and SELECT keys for about 4 seconds. When SETUP mode
is active, abbreviations identify each function and available options
as listed below. The SELECT key changes options or values. The
ENTER key saves and moves to the next parameter.
Appearance of options depends on parameter settings.
Some options may be hidden.
DISPLAY SETUP FUNCTION
Input / Sensor Type
InP 03 Wind Sentry
04 Wind Monitor-Jr
05 Wind Monitor
SEr NMEA serial input
Ld2 Line Driver 4-20mA input (0-100 m/s)
Hd Wind Monitor HD
Ldi Line Driver 4-20mA input (0-50 m/s)
Wind Speed Units (annunciator blinks)
SPd unt SELECT key changes units. ENTER to save
NMEA Serial Output Rate
Out FSt 16 times per second
SLO Once per second
Display Averaging (annunciator blinks)
dSP no Instantaneous data displayed
YES Average data displayed
PEr 030 Set averaging period in seconds (0-999).
Display will update at this interval.
Right Display Window Selection
dSP SPd Maximum wind speed
dir Wind Direction degrees
Wind Direction Alarm (annunciator blinks)
ALr no Direction alarm not armed
YES Direction alarm armed
ALr dir SELECT key sets direction alarm sector start.
ENTER key saves.
ALr SPn SELECT key sets direction alarm sector span.
ENTER key saves.

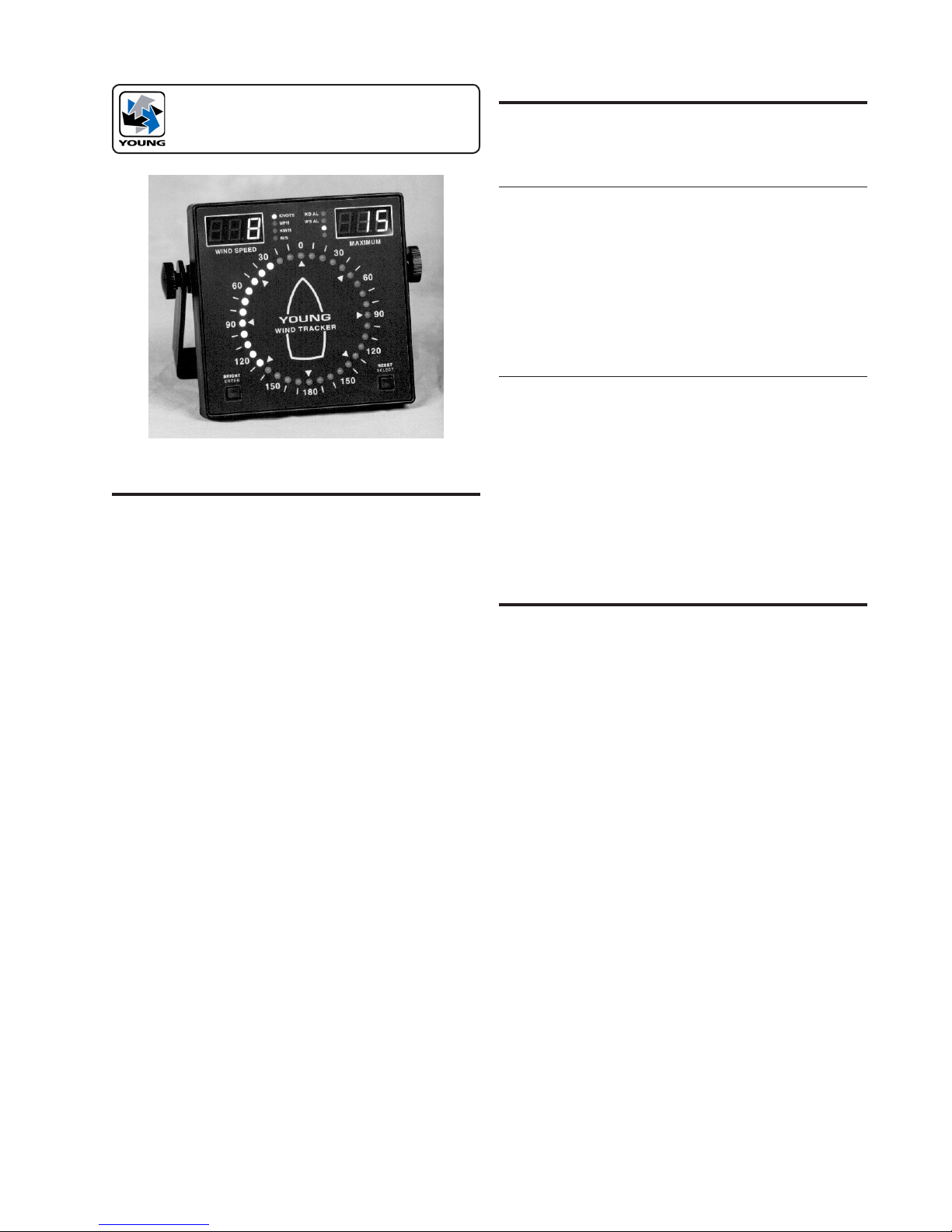

FRONT PANEL
1. Wind speed display
2. Wind speed units indicator
3. Alarm status indicators
4. Data averaging indicator
5. Maximum wind speed or direction display
6. Wind direction and variability display
7. Brightness control (operate) or Enter key (setup)
8. Maximum Reset (operate) or Select (setup)
BACK PANEL
1. Power input coaxial jack (12-30 VDC)
2. Power input terminals (12-30 VDC)
3. Sensor or 4-20 mA inputs
4. Earth ground connection
5. RS-485 serial input/output
6. 0-5 VDC calibrated outputs
7. Alarm relay connections (Normally Open)
8. Input Selector Switch (Sensor or 4-20mA)

Page 3
06206-90(I)
Wind Speed Alarm (annunciator blinks)
ALr no Speed alarm not armed
YES Speed alarm armed
ALr 000 Alarm set-point. SELECT key increments value.
ENTER key saves.
Alarm Delay Time
dLY 030 Alarm delay time in seconds (0-999). SELECT key
increments value. ENTER key saves.
Sound
Snd no No sound
YES Audiblebeepwithalarmactivationsoraverageupdate.
Wind Direction Voltage Output Scale
dir 360 0-360 degrees
540 0-540 degrees
Test Functions
tSt no No test
YES Test
tSt ALr SELECT key closes alarm relays.
CAL 0.00 SELECT key alternates between 0.00 and
5.00 VDC output to calibrate external devices.
tSt dsP SELECT key tests display sections.
OPERATION
ALARMS
Wind speed and direction alarms each have their own set-point,
LED status indicator, and relay contacts. The Alarm Delay parameter
establishes time duration in or out of the set-point range needed for
the alarm to change state. Front panel LEDs indicate alarm status
during operation.
LED Off = Alarm not armed and OFF. Relay open
LED Steady = Alarm armed and OFF. Relay open
LED Blinking = Alarm armed and ON. Relay closed.
Audible beep if Sound parameter is enabled.
AVERAGING
When averaging is enabled, the front-panel AVG annunciator is
illuminated, and average wind speed and direction values are displayed
at intervals set by the Period (PEr) parameter. When averaging is
disabled, instantaneous wind values are displayed.
BRIGHTNESS
Adjust display brightness by pressing and holding the left BRIGHT
key for 1 second.
MAXIMUM or WIND DIRECTION DISPLAY
Either MAXIMUM WIND SPEED GUST or numerical WIND
DIRECTION appears during operation depending on Right Display
Window (dSP) parameter setting. Maximum gust may be reset during
normal operation by pressing and holding the RESET key for 1 second.
REMOTE DISPLAYS
The Marine Wind Tracker may be congured as a remote display by
setting the Sensor Input for serial input (InP=SEr) and connecting
the RS-485 terminals to a source providing a $WIMWV NMEA wind
speed and direction string. This may be any valid NMEA source
including another Wind Tracker operating as a master, a Young wind
sensor or interface sending the NMEA string, or a shipboard system.
With a Marine Wind Tracker as the NMEA source, use these settings:
MASTER: Sensor InP = any non-serial device.
REMOTE: Sensor InP = SEr

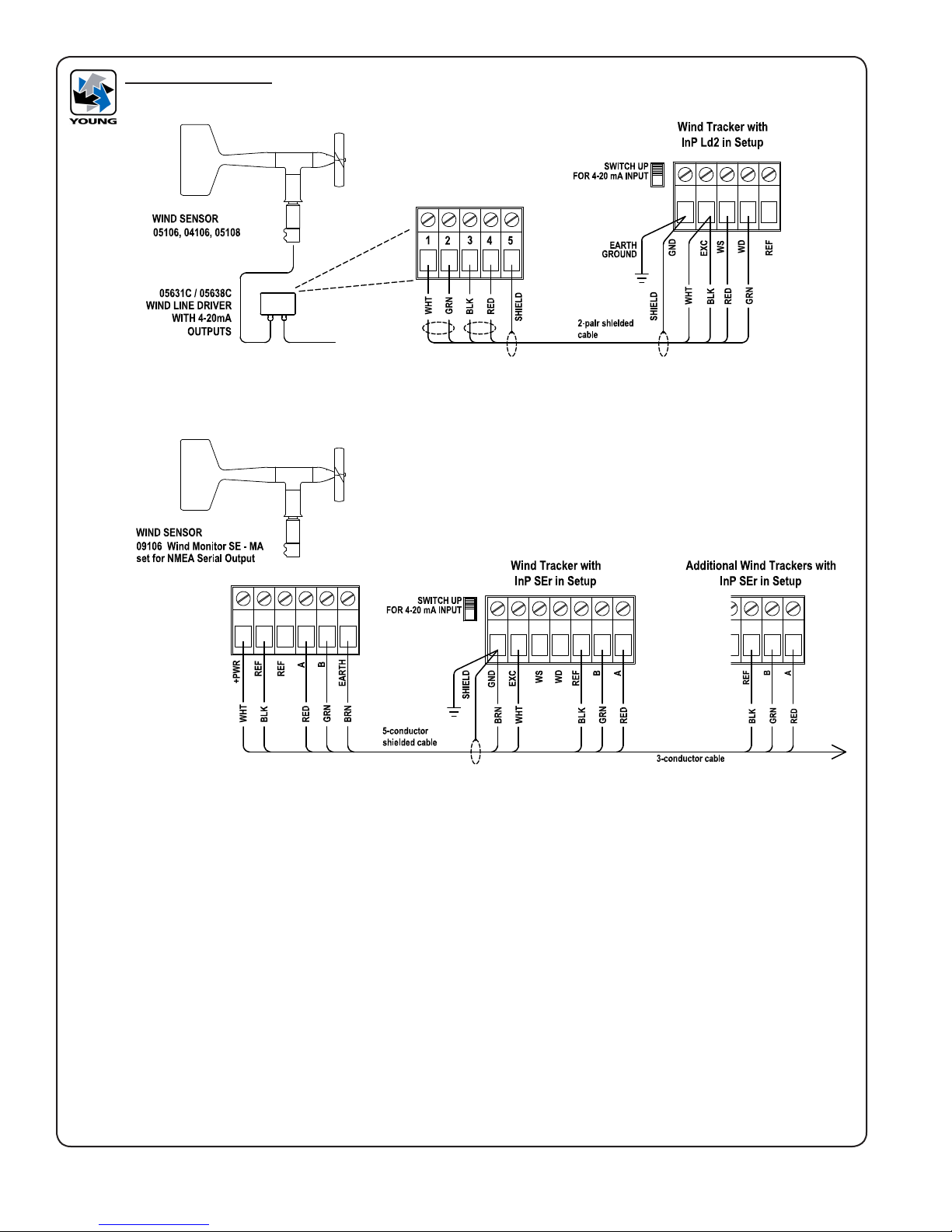

Connect one Wind Tracker master to up to 16 remote displays via
the RS-485 terminals as shown in wiring diagrams. Remote Wind
Trackers display exactly the same information as the master including
alarm states. MAX RESET and all display features are controlled by
the master unit only. Brightness can be adjusted independently at
each Wind Tracker display.
VOLTAGE OUTPUTS
Calibrated voltage outputs for wind speed and direction are updated
16 times per second. Wind Speed 0-100 m/s = 0.00 to 5.00 VDC.
Wind Direction may be scaled for either 0-360 or 0-540 degrees =
0.00 to 5.00 VDC by setting the Direction (dir) parameter.
4-20 mA INPUTS
The Wind Tracker accepts 4-20 mA Line Driver inputs with either
0-50 m/s or 0-100 m/s scaling (Ldi and Ld2 input settings). Connect
as shown in wiring diagram. The back-panel switch labeled 4-20 mA
must be in the UP position. 24VDC power is recommended for most
4-20 mA installations.
POWER CONNECTIONS
The Wind Tracker operates from a 12 to 30 VDC power source.
Power may be connected via the coaxial jack or terminals. These
are internally wired in together so DO NOT CONNECT MORE THAN
ONE POWER SOURCE AT THE SAME TIME. See wiring diagrams
for examples.
ERROR MESSAGES
Ldi Err 4-20 mA (line driver) signal is missing or outside
an acceptable range. Verify connections, signal,
and 4-20 mA switch in UP position.
SEr Err Unit set to receive RS-485 serial signal (inP=SEr),
but no serial data detected. Verify NMEA source
is working. Verify connections.

Page 4
06206-90(I)
EMC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
This ISM device complies with Canadian /CES-001.
Cet apparei/ISM est conforme a Ia norme NMB-001 du Canada.
EN55011/CISPR 11, Group 1, Class B device
Class B equipment is suitable for use in domestic establishments
and in establishments directly connected to a low voltage power
supply network which supplies buildings used for domestic
purposes.
Note:
Instrument measurements may be disrupted by conducted
RF interference at 13, 35, and 54 MHz.

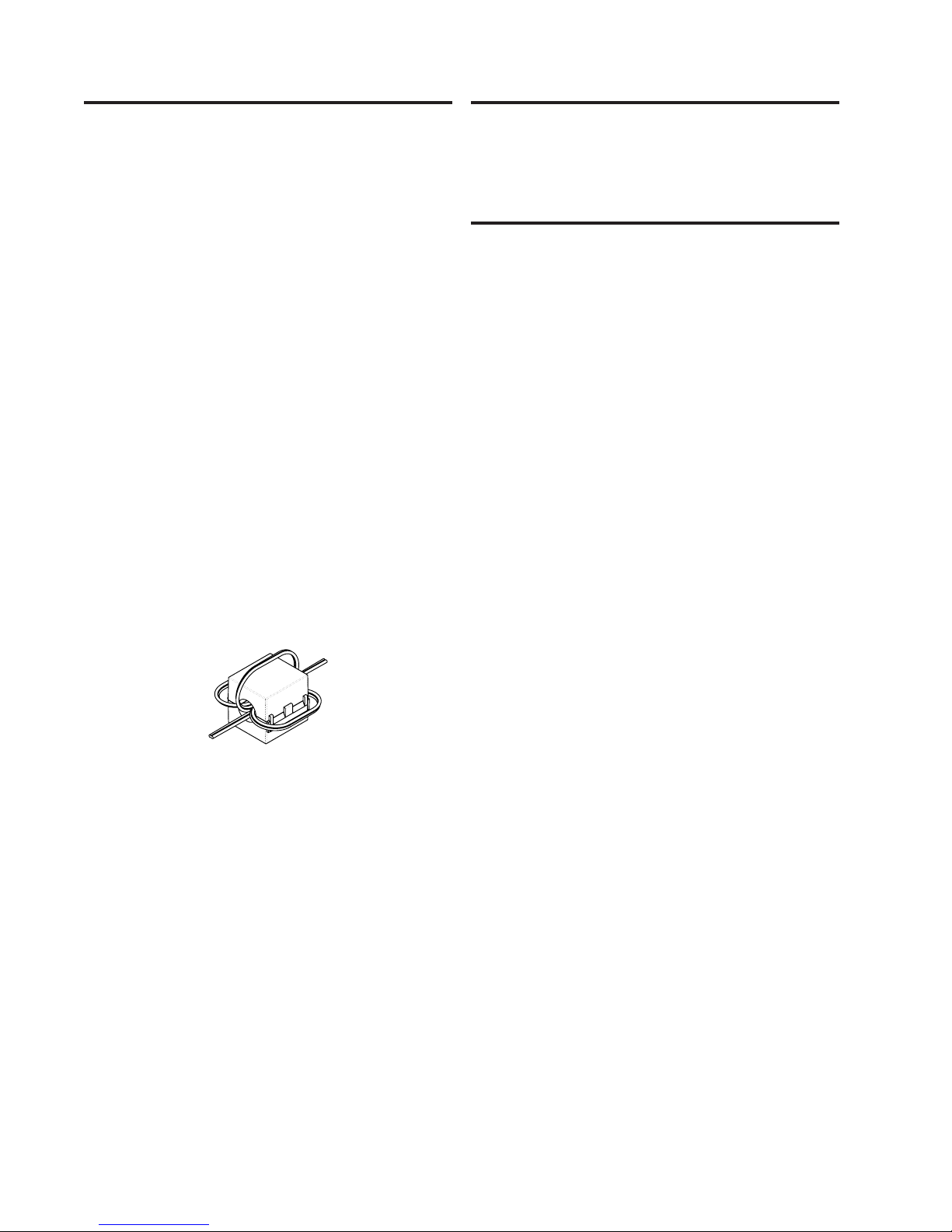

To meet EMC Compliance, a ferrite core (YOUNG 18500) must be
installed on the wall adapter DC power cable. The cable must pass
through the center hole of the choke at least 4 times, creating 3
loops around the outside as shown below.
18500 FERRITE CHOKE
WARRANTY
This product is warranted to be free of defects in materials and
construction for a period of 12 months from date of initial purchase.
Liability is limited to repair or replacement of defective item. A copy
of the warranty policy may be obtained from R. M. Young Company.
CE COMPLIANCE
This product has been tested and complies with European CE
requirements for the EMC Directive. Please note that shielded cable
must be used.

Page 5
06206-90(I)
WIRING DIAGRAMS
WIND SENSOR
05103, 04101,
03002

Page 6
06206-90(I)
WIRING DIAGRAMS

Page 7
06206-90(I)
WIRING DIAGRAMS
SENSOR SETTINGS:
Output Mode: RS-485 Output Only
Output Format: NMEA
Baud Rate: 4800
SENSOR SETTINGS:
Output Mode: RS-485 Output Only
Output Format: NMEA
Baud Rate: 4800
06206 Wind Tracker with
Inp SEr in setup
06206 Wind Tracker with
Inp SEr in setup

Page 8
06206-90(I)
Master-Remote Display
Wiring Example
WIRING DIAGRAMS
