Radia 0-5315-X1 User manual

Owner’s Manual:
5315 X1
Five-Gallon Vortex Mixer
Models 0-5315-X1
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015

2
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Table of Contents
Safety Information
1.1 Safety Precaution Labels
1.2 Saftey Precaution Summary
Introduction
2.1 Application
2.2 Specifications
Unpacking & Install
Operation
4.1 Control Panel
4.2 Install a Container
Care and Maintenance
5.1 Cleaning
1.
2.
3.
4.
5.
3
4
5
6
6
6
7
8
8
8
8
8
Trouble Shooting
Wiring Diagram
Exploded Views
8.1 Electrical Assembly
8.2 Enclosure Assembly
8.3 Drive, Bottom Assembly
8.4 Drive, Middle Assembly
8.5 Drive, Can Holder Assembly
8.6 Frame Assemblyl
Ordering
Replacement Parts
Warranty
Notes
6.
7.
8.
9.
9
10
11
11
12
13
14
15
16
17
17
18
19
10.
11.

3
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
“WARNING!” indicates a hazardous situation, which, if not
avoided, could result in death or serious injury. These serious
injuries could include permanent loss of function or significant
disfigurement, disability, considerable pain and suffering,
amputations, se vere burns, and loss or impairment of vision or
hearing. Take all necessary precautions to avoid unnecessary
“CAUTION!” indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
“NOTICE” indicates practices that do not involve physical injury
but may damage the machine.
NOTICE
1. Saftey Information
Review this owner’s manual and read all warning labels on the machine prior to use.
The three main safety notifications used in this manual and on the warning labels are
WARNING, CAUTION and NOTICE. They have specific meanings and indicate the potential
dangers from misuse of the machine.
Safety Information, Continued..

4
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1.1 Safety Precaution Labels
Safety Information, Continued..
Part No. 1784963
MOVING PARTS INSIDE
PARTES EN MOVIMENTO
PIE'CES EN MOVEMENT
-Do not open door until machine comes to complete stop;
moving parts inside could cause serious injury.
-No abra la puerta hasta que la marquina se detenga
completamente, las partes internas en movimiento pueden
causar heridas graves.
- Ne pas ouvrezla porte jusqu'a'ce que la machine esta
comple'tement arre'te'; pièces en mouvement à l'intérieur
pourrait provoquer des blessures grave.
WARNING
ADVERTENCIA
AVERTISSEMENT
- Machine must be properly grounded before use; improper grounding could
cause electric shock and injury.
-Disconnect power cord before servicing, cleaning or removing any
cover, and follow lockout/ tagout procedures in owner manual; failure to
disconnect power could cause electric shock and injury.
-Review Owners Manual before installing or operating.
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar,
el no apoyarla puede casuar choque elêctrico y daños.
-Desconecte la energía antes de dar mantenimiento, limpiar o quitar
caulquier cubierta, y siga los procedimientos de bloqueo/etiquetado del
manual, Fallar en desconectar puede causar choque eléctrico y daños.
- La machine doit e'tre correctement mis a' la terre avant de les utilizer
mise a' la terre incorrecte peut provoquer un choc e'lectrique et de
blessure.
- De'branchez le cordon d'alimentation avant de proce'der a'l'entretien,
le nettoyage ou le retrait des capots: suivez la proce'dure d'isolation/
consignation proce'dures dans le manul de l'opre'rateur; E'chec de
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1781570
Safety Information, Continued..

5
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
WARNING!
BE SURE that the remote power switch is
installed by a qualified electrician. Refer
to local codes for proper placement of the
remote power switch.
Review this owner's manual before installing or
operating.
The machine must be properly grounded prior
to use. In the case of an electrical short circuit,
grounding reduces the risk of electric shock
by providing an escape wire for the electric
current.
Check with a qualified electrician if you don’t
completely understand these grounding
instructions, or if you are not sure whether the
machine is properly grounded.
Follow the lockout/tagout procedures of your
company.
DO NOT open the door until the machine
comes to a complete stop.
Review product label, Material Safety Data
Sheet, and HMIS rating of materials prior to
mixing to determine potential hazards.
CAUTION!
Keep the work area free of clutter and
electrical cords.
DO NOT disable the limit switch. This
switch interrupts power when the mixer
door is opened.
Use the proper power source. Refer to
the machine data plate on the right side
panel or the section 2.2, Specifications, in
this manual.
Keep customers away from the work area.
The machine should be used only by
properly trained individuals.
Clamp the can carefully to ensure that it is
held securely during the mixing cycle.
Product safety labels should be inspected and
cleaned periodically to maintain good legibility.
Replace any labels that are no longer legible.
1.2 Safety Precaution Summary
Safety Information, Continued..
WARNING: This product may
expose you to chemicals including
DEHP, which is known to the State of
California to cause cancer. For more
information, go to www.P65Warnings.

6
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Congratulations on your purchase of the Speed
Demon 5TM Vortex Mixer. This machine is designed
to accommodate single round 5 gallon plastic
or metal containers weighing up to 80 lb. (36.3
kg). It can also accommodate round and square
gallon cans when used in conjunction with the
optional adapter, part no. A1510. See section 9,
Ordering, for ordering instructions.
Understand your machine's features and
proper operation to take full advantage of its
capabilities.
Read this entire manual completely before
operating the machine. Practice installing and
removing a pail before mixing for the first time.
Keep this manual for future reference.
Always follow all safety instructions!

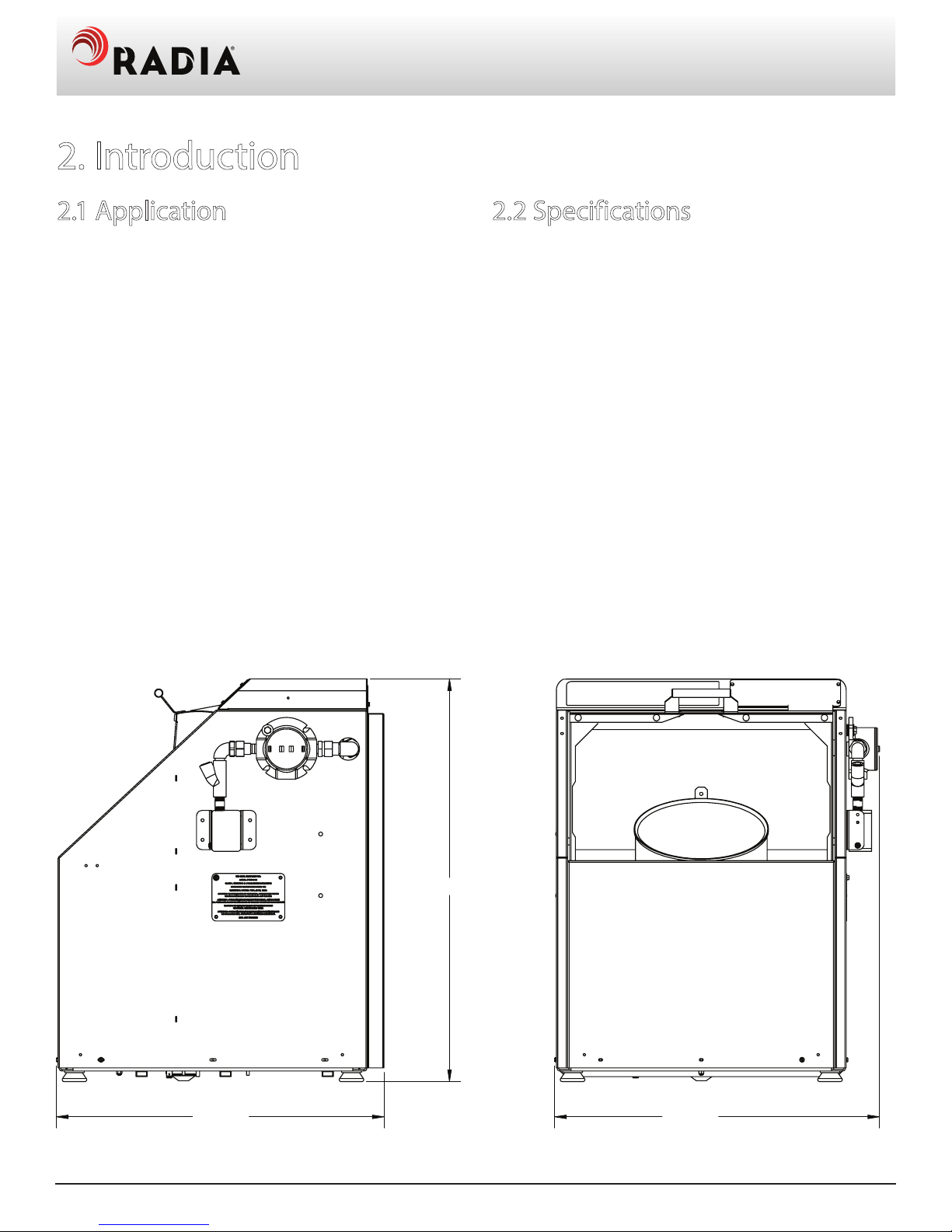

Unit Size, 5315-X1 : W 29.5 in. (75 cm) D29.3 in.
(73.7cm) H36 in. (91.5 cm)
Machine Weight
5315PB: 267 lb. (121 kg)
Maximum Capacity: 80 lb. (36.3 kg)
Sizes Mixed: Five gal., One gal. with adapter
Electric Service: 110 V 60 Hz
110 V Units
Machines rated at 110 V, 60 Hz are for use with a
nominal 120 V circuit.
29 1/4"29 1/2"
36"
2. Introduction
2.1 Application 2.2 Specifications

7
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
WARNING! Be sure that the remote power switch is installed by a qualified electrician. Refer to local
codes for proper placement of the remote power switch.
IMPORTANT: Before attempting to operate the machine:
1. Open the door and locate the shipping block and rope assembly. Remove the pin as shown by
lifting straight up.
2. Remove the block by sliding outwards. Repeat steps 1 and 2 for the other side
3. Discard or store the shipping blocks and rope assemblies.
4. Set the machine on a stable, level surface.
NOTE: If the machine needs to be shipped any time, contact Radia Products to obtain the
appropriate instruction sheet, part no. 1785025 and shipping block assembly, part no. 9784291. See
section 9, Ordering, for ordering information.
Step 1 Step 3Step 2
3. Unpacking & Installation

8
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING! Avoid electric shock. Always remove power from the machine per your company's
lock out/tag out procedures before performing cleaning and maintenance tasks.
CLEANING:
Keeping the machine clean is important for reliable operation.
• Colorant or base paint spilled on machine surfaces can be removed using lukewarm water and mild
detergent for water-based/glycol colorants.
• To preserve the appearance of the machine, do not use abrasives to clean machine surfaces.
NOTE: Mixer has been designed and tested for mixing full pails of paint. Mixing partial pails can result
in damage to the mixer.
1. Open the cabinet Door
2. Load the can into the machine for mixing:
• 5 Gallon Pail: Insert the pail into the holder. Slip the bail handle into the clip retainer (A) (See Figure
1).
• 1 Gallon Round Cans: Place the can inside the gallon adapter (optional), A1510 (B). Set the gallon
can as shown with the lid up. (See Figure 2)
• 1 Gallon Square Cans: Place the square can inside the gallon adapter with the lid up. (See Figure
3)
3. Close the cabinet door. The mixer has a safety switch that interrupts operation if the door is open.
4. Turn on the remote switch
If the container handle wasn’t properly secured, turn off the remote switch.
NOTE: If colorant has been added to the paint, be sure to reattach paint can lid tightly (using the
RADIA PRODUCTS Lid Press, Part No. 0-5080).
(B)
4. Operation
4.1 Install a Container
(A)
Figure 1 Figure 3
Figure 2
5.1 Cleaning
5. Care and Maintenance

9
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
Disconnect the machine from its power source before servicing .
6. Troubleshooting
PROBLEM CAUSE REMEDY
Not connected to power source Connect to power source
Building circuit breaker or fuse
blown Reset breaker or replace fuse
Machine door does not make
contact with limit switch
Re-adjust switch to make contact
wit limit switch screw when door is
closed
Motor themral protector
activated
Contact Radia's Customer Care
Contact Radia's Customer CareFaulty motor
Excessive Vibration Can not properly seated
Adjust and level feet
Contact Radia's Customer Care
Machine dosen't shut off
when door is opened
Faulty door limit switch
Contact Radia's Customer Care
Increasing mechincal
noise Bearings worn or damaged
Feet are not Level
Fix or replace pail
Reset can into holder
Allow to cool, then restart
Worn, damaged, or loose drive
belt
Unplug power cord, open mixer door,
and visually inspect the drive belt
Pail Damaged
Faulty door limit switch
Machine won't operate

10
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
P2
T8
T3
T2
T5
T4
P1
GROUND
5786182
MOTOR
9784067
CONDUIT BOX
W
B/W
G
B/W
G
B
5784065
LIMIT SWITCH
TO 110 VOLT
7. Wiring Diagrams

11
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
1
6
2
3
4
5
26
19
7
8
18
25
9
22
16
15
21
10
24 14
23
17
11
13
20
12
1
6
2
3
4
5
26
19
7
8
18
25
9
22
16
15
21
10
24 14
23
17
11
13
20
12
ID Description
15786182 motor, x-proof, 1 hp, 56c
29786184 PIPE NIPPLE, 1 NPT X 2.50
39786455 COUPLING, CONDUIT, 1.00
49786454 REDUCER, CONDUIT, 1.0-.75
59784909 ELBOW, UNION, .75M-.50F
69784661 CONDUIT, FLEXIBLE - .50NPT, 36 LG, M-M
79784660 CONDUIT, FLEXIBLE - .50NPT, 4 LG, M-F
89784702 ELBOW, 90°, .5NPT, M-F
99782429 UNION, .5 NPT
ID Description
10 9784067 Conduit Box, T 0.50
11 9785035 NIPPLE, 1_2 NPT X 1.50
12 9784659 ELBOW, 90° UNION, .50NPT, M-F
13 9784068 Fitting, Seal 0.50 M- F
14 9682000 PIPE NIPPLE .5 X 2 GALV
15 5784065 Switch, Limit Explosion Proof - 20A Rating
16 9787221 BRACKET, LIMIT SWITCH MOUNT - 5315 X1
17 9787221 BRACKET, LIMIT SWITCH MOUNT - 5315 X1
18 1784658 NAMEPLATE, METAL- 5315-X1
ID Description
19 9787226 HANGER, CONDUIT - 5315 X1
20 9784439 Screw Hex 3_8-16 X 1.50 Full Thd
21 9100023 WASHER, FLAT 5_16 USS
22 9780193 NUT, NYLOCK 3_8-16
23 9784079 Screw, Machine Washer HD #10-32 x .375
24 9780343 Nut 1_4-20 Nylon Lock
25 9780366 SCREW HEX THD CUT 1_4-20 X .50
26 9787290 CONDUIT LOCKNUT, 1.00

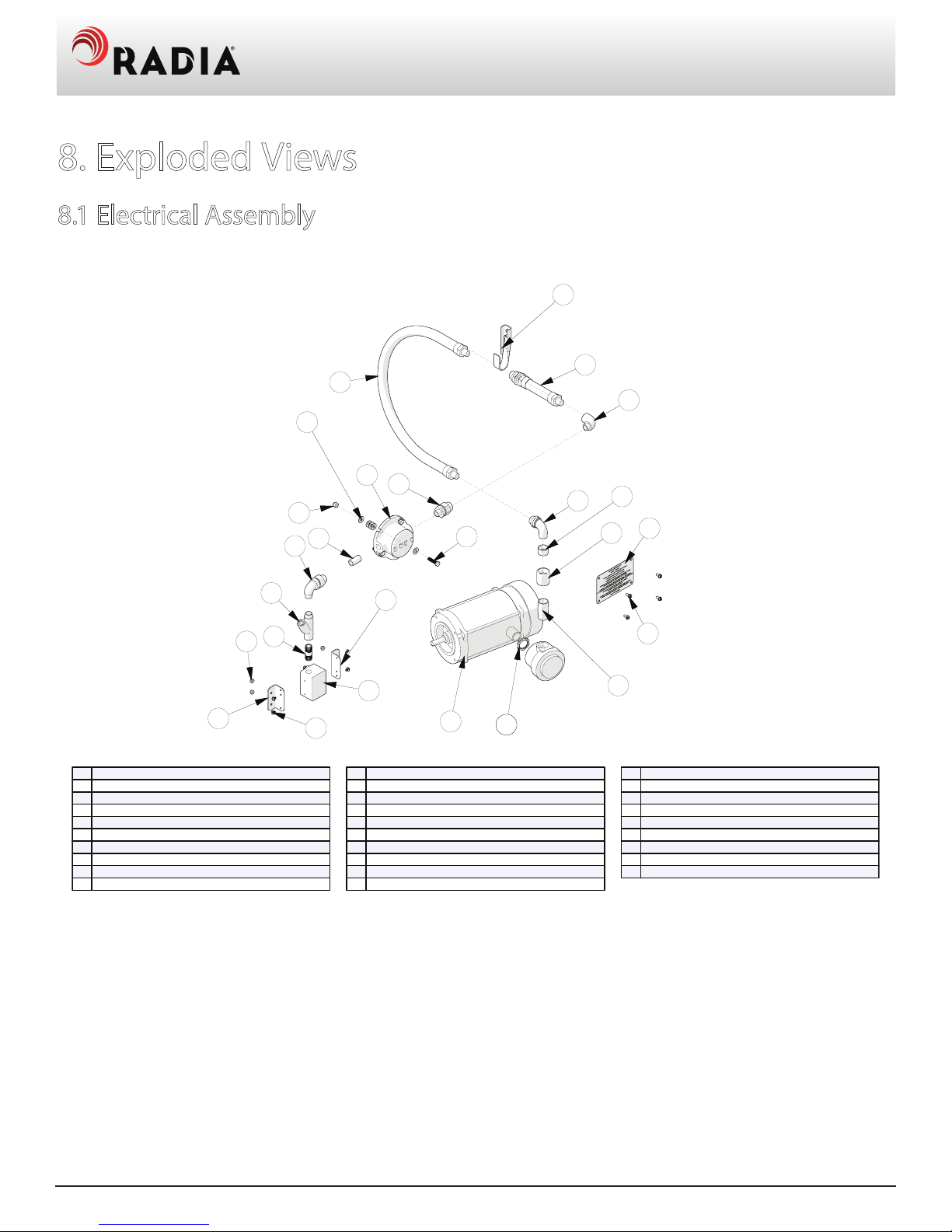

8. Exploded Views
8.1 Electrical Assembly
Exploded Views, Continued..
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY

12
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
4
1
16
7
18
14
13
12 17
15
6
3
20
10
5
11
2
19
9
8
4
1
16
7
18
14
13
12 17
15
6
3
20
10
5
11
2
19
9
8
ID Description
1 9787214 PANEL WELDMENT, LEFT - 5315
2 9787215 PANEL WELDMENT, RIGHT - 5315 X1
3 9787216 PANEL, FRONT-5315
4 9787217 PANEL, BACK - 5315 X1
5 9787218 COVER WELDMENT - 5315
6 9787225 DOOR WELDMENT - 5315
7 9783385 Screw, #10-32 SHWH Tap
8 9782581 COVER PLATE
9 9781367 Screw Hex Thd Form #8 X .50
10 9784303 HANDLE WELDMENT, DOOR - 5315
11 9784285 SCREW, FLAT HD, 82 DEG, PH #10-32 x .50
ID Description
12 9780886 SCREW HEX 3_8-16 X 1.00
13 9782362 BUSHING, BRONZE
14 9784361 BUSHING, STEEL
15 9780789 BUMPER, PAD
16 9760514 Washer 1_4 SAE .281 ID
17 9780343 Nut 1_4-20 Nylon Lock
18 9106254 Bumper, Foot
19 9784338 Plug, Nylon
20 9787220 ACTUATOR, LIMIT SWITCH - 5315 X1
8.2 Enclosure Assembly
...Exploded Views, Continued
Exploded Views, Continued..
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY

13
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
2
11
10
6
1
7
9
3
4
8
5
6
7
2
11
10
6
1
7
9
3
4
8
5
6
7
ID Description
1 6784582 kit, Speed Reducer - 5315
2 5786182 Motor, X-PROOF, 1 HP, 56C
3 9784259 Plate, Top - Mix Frame
4 9784258 Bracket, Gearbox
5 9161100 Washer, Flat 3_8 USS
6 9780402 Washer 3_8 split lock
ID Description
79780886 SCREW HEX 3_8-16 X 1.00
89780193 Nut, Nylock 3_8-16
99782319 KEY STOCK 3_8 X 3_8 X 4.00
10 9781083 Washer, Flat .507 ID x 2.00 OD x .19 Thk
11 9782154 Screw Hex 1_2 X 1_50
...Exploded Views, Continued

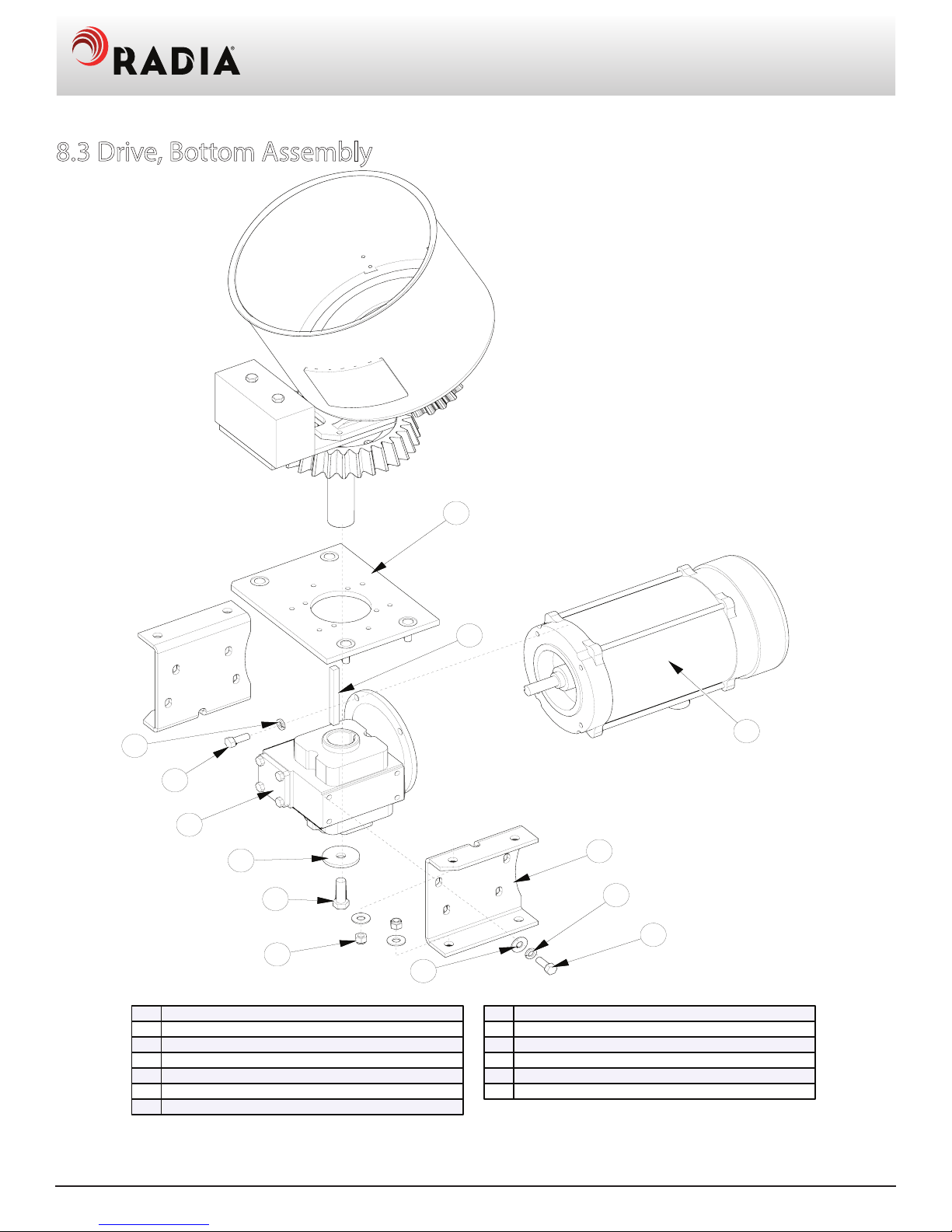

8.3 Drive, Bottom Assembly
Exploded Views, Continued..
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY

14
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1
4
2
3
5
8
6
7
1
4
2
3
5
8
6
7
ID Description
19784228 Gear, Ring
29784261 Retainer, Ring Gear
39784282 SCREW, SOC HD CAP 5_16 -18 X 1.25
46787072 Bearing Housing Assy, Drive Shaft - 5315
59784263 Shaft, Drive - 5315
ID Description
6 9784360 COUNTERWEIGHT - 5315
7 9784299 Screw Hex 3_8-16 x 4.50 Partial Thread
8 9780193 Nut, Nylock 3_8-16
...Exploded Views, Continued
8.4 Drive, Middle Assembly
Exploded Views, Continued..
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY

15
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
4
3
1
7
6
5
2
13
12
8
9
10
11
4
3
1
7
6
5
2
13
12
8
9
10
11
ID Description
1 9784230 Arm, Orbit
2 9784348 CAN DRIVE WELDMENT 5315
3 9784229 Gear, Pinion
4 9782316 Bushing, Trantorque
5 9781831 Screw, Hex 1_4 X 1
6 9780164 Washer 1_4 LOCK
7 9760514 Washer 1_4 SAE .281 ID
ID Description
89784264 Holder, Can - 5315
99784327 Plate, Round - 5315
10 6785232 Ring, Rubber
11 9782904 Screw Button 5_16-18 x .75
12 9784268 Retainer Bar, Bail
13 9781383 NUT, NYLON LOCK #10-32
8.5 Drive, Can Holder Assembly
...Exploded Views, Continued
Exploded Views, Continued..
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY

16
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
15
14
1
11
12
9
3
16
2
13
4
10
8765
15
14
1
11
12
9
3
16
2
13
4
10
8765
ID Description
1 9784714 Base Weldment - 53150X
2 9784250 FRAME, SUSPENDED - 5315
3 6784738 ISOLATOR ASSEMBLY - 5315
4 9784252 Spring, Extension
5 9781543 Screw Hex 3_8 X 2_25
6 9161100 Washer, Flat 3_8 USS
7 9784357 BEARING, SLEEVE
8 9784349 Cam, Spring Mount - 5315
9 9780193 Nut, Nylock 3_8-16
ID Description
10 9784358 Screw Hex 5_16-18 X .50
11 9780182 Nut, Nylock 5_16-18
12 9780343 Nut 1_4-20 Nylon Lock
13 9784326 Bumper, Single Round Stud
14 9782044 Foot, Floor Stand
15 9780886 SCREW HEX 3_8-16 X 1.00
16 9784255 Damper, Disc

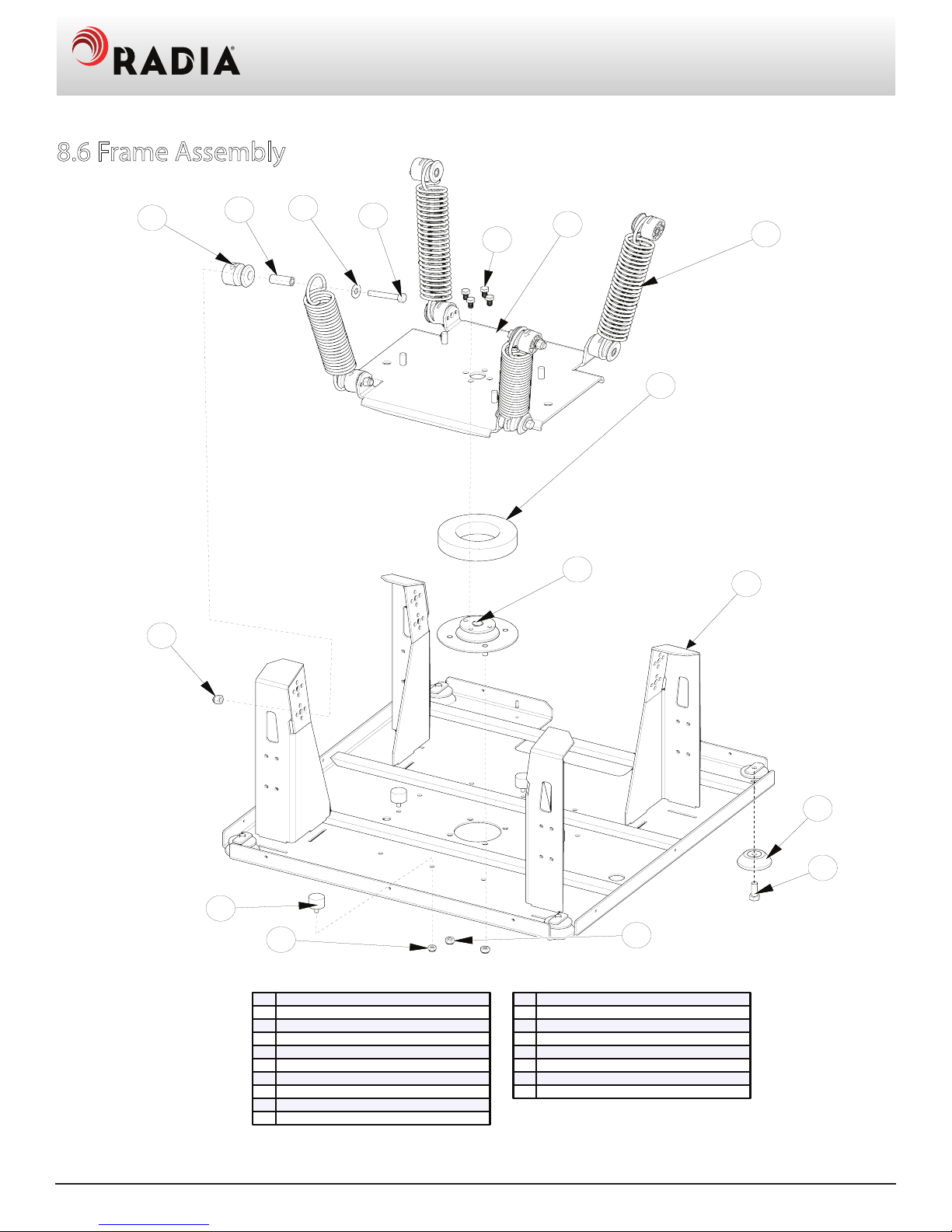

8.6 Frame Assembly
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY

17
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
HOW TO ORDER REPLACEMENT PARTS
Replacement parts can be ordered from Radia by telephone, fax, or email:
If you need help in determining the proper part(s) to order, please call Customer Care.
at 1-800-221-1083. Always indicate the Model and Serial numbers of the machine when
ordering replacement parts.
GENERAL PARTS REPLACEMENT POLICIES
While your machine is under warranty, do not attempt on-site repair or parts replacement
without first contacting RADIA. (to protect your warranty). After the warranty expires,
replacement parts and recommendations for on-site servicing are available from RADIA.
Please contact Customer Care for assistance.
RESTOCKING FEE
A restocking fee will be charged on all unused parts which are returned.
Replacment Parts
9. Ordering
RADIA
800-221-1083
763-533-2969
763-533-0015 (FAX)
[email protected]
For instructional "How To" videos please visit:
www.radiaproducts.com
??

18
Owner’s Manual: 5315-X1
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Equipment Covered Under This Warranty
Warranty
Models 5315-X1
10. Warranty
Radia warrants equipment manufactured by it and bearing its name to be free from defects in
material and workmanship.
EXCEPT FOR THE WARRANTY SET FORTH HEREIN, RADIA MAKES NO WARRANTY WHATSOEVER
WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY (a) WARRANTY OF MERCHANTABILITY; (b)
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE; OR (c) WARRANTY AGAINST INFRINGEMENT
OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD PARTY; WHETHER EXPRESS OR IMPLIED BY LAW,
COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE.
This warranty applies only when the equipment is installed, operated and maintained in
accordance with written Radia instructions as appearing in the owners’ manuals.
This warranty does not cover, and Radia shall not be liable for, any malfunction, damage, or
wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper
maintenance, negligence, accident, tampering or substitution of non-Radia component parts,
modification or use for non-intended purposes. Nor shall Radia be liable for malfunction, damage or
wear caused by the incompatibility of Radia equipment with structures, accessories, equipment, or
materials not supplied by Radia.
Subject to the limitations set forth above, Radia shall (i) repair or replace the equipment (or the
defective part) or (ii) credit or refund the price of such equipment. Costs of labor and transportation
for service of machines under this warranty will also be covered during the warranty period if Radia
elects to repair or replace the equipment. Normal ground freight will be covered for replacement
parts sent within the warranty period. For customers outside of the US and Canada, the warranty is
for parts only. Ground or common carrier ground freight will be covered for the return of defective
items only. In no case shall Radia's liability exceed the amount of the purchase price.
*All warranty repairs must be executed by a Radia Authorized Service Center or warranty will be
voided.
THE REMEDIES SET FORTH HEREIN ARE PURCHASER’S SOLE AND EXCLUSIVE REMEDY and RADIA’S
ENTIRE LIABILITY FOR ANY BREACH OF THE LIMITED WARRANTY SET FORTH HEREIN.
Please contact your Radia Relationship Manager at 800-221-1083 for specific questions regarding
specific questions regarding warranty terms.

19
1784242 Rev F
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Owner’s Manual: 5315-X1
11. Notes

www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
U.S. Telephone:
International Telephone:
Fax:
E-mail:
www.radiaproducts.com
For sales or service, please contact
RADIA
Attn: Customer Service Department
14900 21st Ave N
Plymouth, Mn 55447
USA
800.221.1083
763.533.2969
763.533.0015
[e-mail]
1784242 Rev F
ECO 18-0034
July 2018
Owner’s Manual: 5315-X1
For instructional "How To" videos please visit:
www.radiaproducts.com
??
